首先，先允许我，读者小可爱们，节日快乐。

之前的文章，介绍了Iotdb的LSM，以及Iot中的最佳实践，这次我们看看如何将mqtt和Iotdb整合起来。下面我们开始：

iotdb in docker

===============

首先，做一个测试环境，我现在越发喜欢docker 和 WSL 了，除了吃点硬盘，内存和CPU资源以外…

run in docker

直接把该开的端口打开，只是测试环境，我就没再挂目录。

docker run -d -p 6667:6667 -p 31999:31999 -p 8181:8181 -p 5555:5555 -p 1883:1883 apache/iotdb

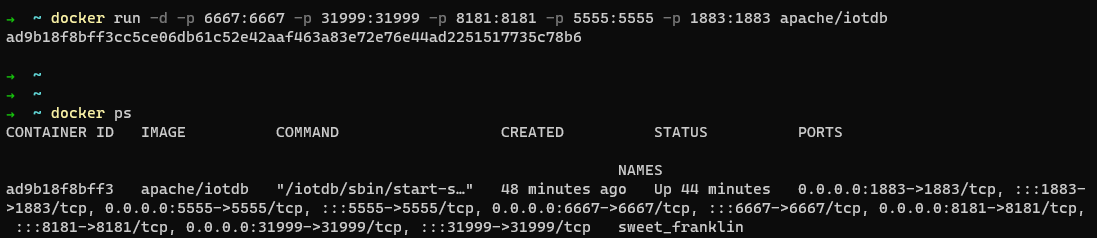

等待一会，执行 docker ps 查看是否成功了

➜ ~ docker ps

CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES

ad9b18f8bff3 apache/iotdb “/iotdb/sbin/start-s…” 2 hours ago Up 2 hours 0.0.0.0:1883->1883/tcp, :::1883->1883/tcp, 0.0.0.0:5555->5555/tcp, :::5555->5555/tcp, 0.0.0.0:6667->6667/tcp, :::6667->6667/tcp, 0.0.0.0:8181->8181/tcp, :::

初步的iotdb in docker 环境，我们就搞好了。接下来，开启mqtt服务。

开启 Mqtt 服务

进入iotdb的docker docker exec -it ad9b18f8bff3 /bin/bash

编辑配置文件vi iotdb/conf/iotdb-engine.properties

开启服务，根据自己的需要，配置ip和端口等。

####################

MQTT Broker Configuration

####################

whether to enable the mqtt service.

enable_mqtt_service=false # 修改成 true ，代表开启 mqtt服务

the mqtt service binding host.

mqtt_host=0.0.0.0 # ip

the mqtt service binding port.

mqtt_port=1883 # 端口

the handler pool size for handing the mqtt messages.

mqtt_handler_pool_size=1

the mqtt message payload formatter.

mqtt_payload_formatter=json # 数据格式

max length of mqtt message in byte

mqtt_max_message_size=1048576

重启服务，如果不会，就重启docker镜像。

iotdb 基础操作

启动服务: sbin/start-client.sh

root@ad9b18f8bff3:/iotdb/sbin# ./start-cli.sh

Starting IoTDB Cli

_____ _________ ______ ______

|_ | | _ _ || _ `.|_ _ \

| | .–.|/ | | _| | | `. \ | |) |

| | / .‘`\ \ | | | | | | | __’.

| || _. | | | | |.’ /| |__) |

||'..’ || |.'|___/ version 0.11.1

IoTDB> login successfully

退出CLI: quit 或 exit
停止服务：$sbin/stop-server.sh
设置一个存储组到IOTDB，名为root : IoTDB> SET STORAGE GROUP TO root
查看当前IOTDB的存储组： IoTDB> SHOW STORAGE GROUP

IoTDB> SHOW STORAGE GROUP

±------------+

|storage group|

±------------+

| root.test|

±------------+

Total line number = 1

It costs 0.127s

查看系统中存在的所有时间序列： IoTDB> SHOW TIMESERIES

IoTDB> show timeseries

±------------------------------±----±------------±-------±-------±----------±—±---------+

±------------------------------±----±------------±-------±-------±----------±—±---------+

±------------------------------±----±------------±-------±-------±----------±—±---------+

Total line number = 3

It costs 0.009s

查看系统中存在的特定时间序列: SHOW TIMESERIES root.test.wf01.wt01.status

IoTDB> SHOW TIMESERIES root.test.wf01.wt01.status

±-------------------------±----±------------±-------±-------±----------±—±---------+

±-------------------------±----±------------±-------±-------±----------±—±---------+

±-------------------------±----±------------±-------±-------±----------±—±---------+

Total line number = 1

It costs 0.003s

插入数据 INSERT INTO root.test.wf01.wt01(timestamp,status,temperature) values(200,false,20.71)

IoTDB> INSERT INTO root.test.wf01.wt01(timestamp,status,temperature) values(200,false,20.71)

Msg: The statement is executed successfully.

查看数据: select * from root.test;

IoTDB> select * from root.test;

±-----------------------±------------------------------±-------------------------±---------------------------+

±-----------------------±------------------------------±-------------------------±---------------------------+

|2021-01-20T02:00:00.000Z| 21.2| true| hello|

±-----------------------±------------------------------±-------------------------±---------------------------+

Total line number = 1

It costs 0.077s

查看设备：show devices

IoTDB> show devices

±------------------+

| devices|

±------------------+

|root.test.wf01.wt01|

±------------------+

Total line number = 1

It costs 0.002s

mqtt to iotdb

=============

代码

–

构建一个实体对象，用于存储

package wang.datahub.iotdb;

import com.google.gson.Gson;

import java.util.List;

public class IotdbVO {

private String device;

private long timestamp = System.currentTimeMillis();

private List measurements;

private List values;

public String getDevice() {

return device;

}

public void setDevice(String device) {

this.device = device;

}

public long getTimestamp() {

return timestamp;

}

public void setTimestamp(long timestamp) {

this.timestamp = timestamp;

}

public List getMeasurements() {

return measurements;

}

public void setMeasurements(List measurements) {

this.measurements = measurements;

}

public List getValues() {

return values;

}

public void setValues(List values) {

this.values = values;

}

public String toJson(){

Gson g = new Gson();

String jsonData = g.toJson(this);

return jsonData;

}

@Override

public String toString() {

return “IotdbVO{” +

“device='” + device + ‘’’ +

“, timestamp=” + timestamp +

“, measurements=” + measurements +

“, values=” + values +

‘}’;

}

模拟数据发射到iotdb

package wang.datahub.iotdb;

import org.fusesource.mqtt.client.BlockingConnection;

import org.fusesource.mqtt.client.MQTT;

import org.fusesource.mqtt.client.QoS;

import java.util.ArrayList;

import java.util.List;
