这篇博客介绍了如何在QCC3024芯片上进行I2C通信的配置，重点是根据原理图正确设置SCL和SDA管脚，这里是使用16进制表示，例如将pio16设为10，pio17设为11。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

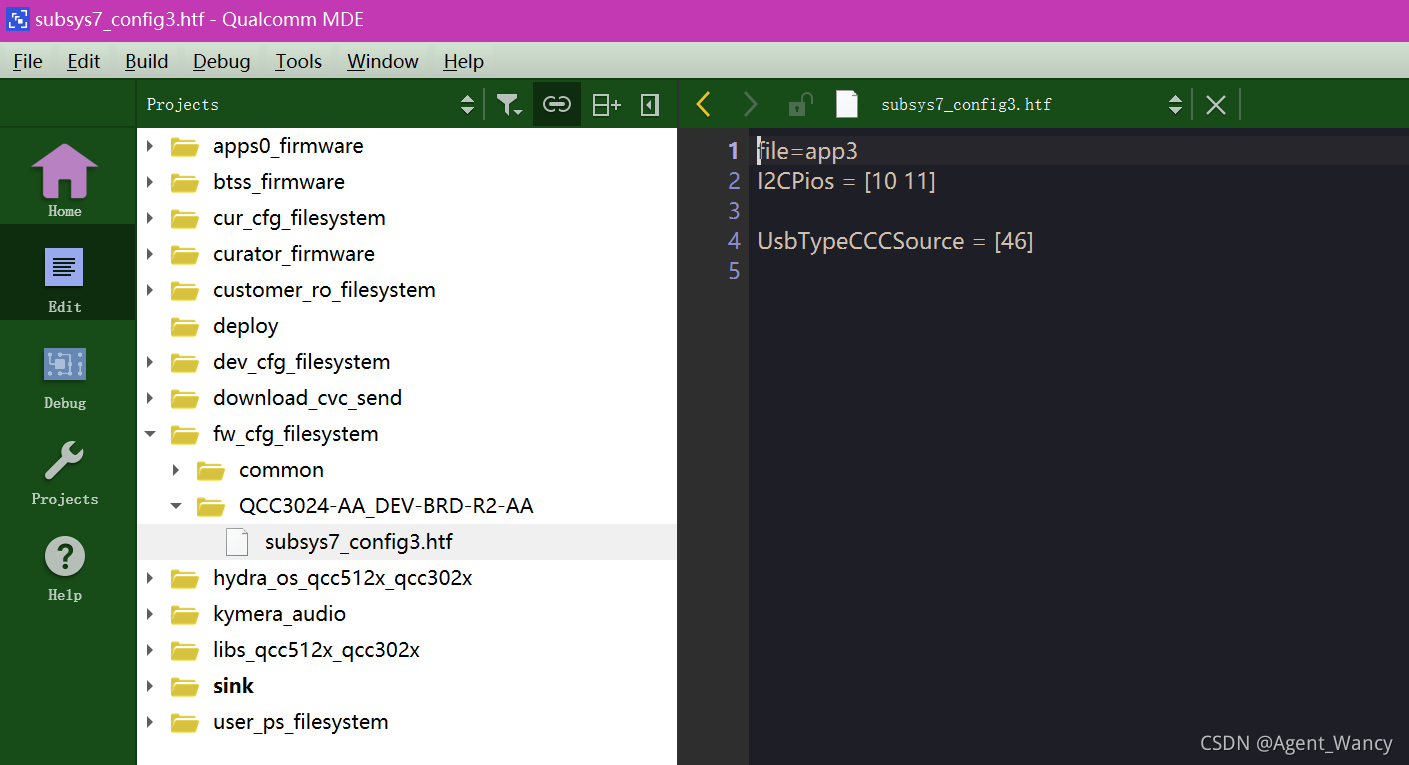

在这里插入图片描述
首先根据自己的原理图配置pio，注意这里是16进制显示
设置SCL SDA
pio16 = 10
pio17 = 11

//da7212.c
#include <i2c.h>
#include <panic.h>
#include <pio.h>
#include <message.h>
#include <bitserial_api.h>
#include "sink_debug.h"
#include "TM716I2c.h"
#include <system_clock.h>
/*#include "adk_log.h"*/

#ifdef DEBUG_MAIN
#define MAIN_DEBUG(x) DEBUG(x)
    #define TRUE_OR_FALSE(x)  ((x) ? 'T':'F')
#else
    #define MAIN_DEBUG(x)
#endif

#define DA7212_I2C_ADDRESS  0x01

#define DA7212_SCL_PIO  16
#define DA7212_SDA_PIO  17
#define DA7212_ENABLE_PIO   15

#define ARRAY_DIM(a) (sizeof(a) / sizeof((a)[0]))
#define PIO2BANK(pio) ((uint16)((pio) / 32))
#define PIO2MASK(pio) (1UL << ((pio) % 32))

gCodecTaskData appCodecDa7212;

const da7212_reg_init_table_t da7212_reg_init_table [] =
{

    {
   0x1d,    0x80},//Reset codec
    {
   0x23,    0x08},//Enable Bias
};
/*
const da7212_reg_init_table_t start_up_init [] =
{
    {0x01,0x10},{0x01,0x30},{0x01,0x00},{0x01,0x80},{0x01,0x8e},{0x01,0x63},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},
    {0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},
    {0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},
    {0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},
    {0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},{0x01,0x00},
    {0x01,0x00},{0x01,0x00},{0x01,0x4e},
};*/
/*
const test_table_t test [] =
{
    {0x01},{0x10},
};*/

uint8 start_up_init [53]={
    0x10, 0x30, 0x00, 0x80, 0x8e, 0x63, 0x00, 0x0, 0x0, 0x0,
                        0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0,
                        0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0,
                        0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0,
                        0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0,
                        0x0, 0x0, 0x4e };
uint8 mute[5] =
