SIMATIC ET 200SP是一款可扩展且灵活的分布式I/O系统，用于通过现场总线将过程信号连接到上级控制器。它包含CPU/接口模块、I/O模块、电机启动器等组件，并具有故障安全模块，适用于高安全要求的自动化系统。这些模块通过双通道设计进行内部监控，确保在故障时进入安全状态。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

SIMATIC ET 200SP is a scalable and highly flexible distributed I/O system for connecting process signals to a higher-level controller via a fieldbus.

The SIMATIC ET 200SP distributed I/O system is installed on a mounting rail. It consists of:
● CPU/interface module
● Up to 64 I/O modules, which can be plugged into BaseUnits in any combination
● Up to 31 motor starters
● A server module that completes the configuration of the ET 200SP.

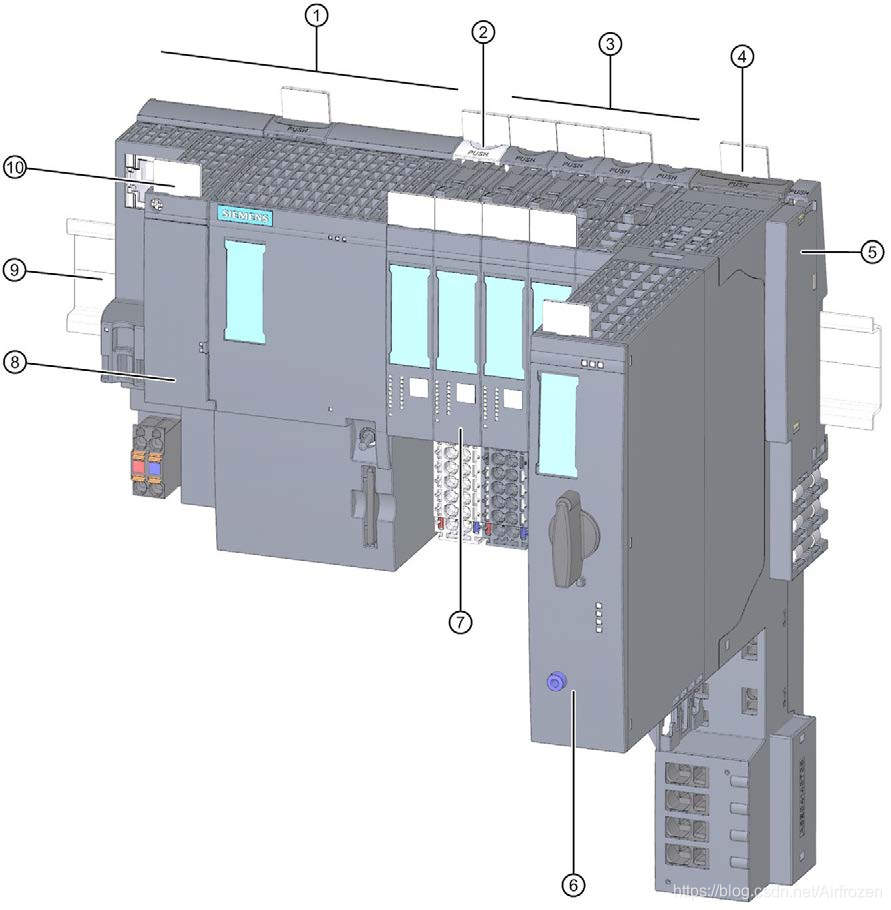

① CPU/interface module
② Light-colored BaseUnit BU..D with infeed of supply voltage
③ Dark-colored BaseUnits BU..B for extending the potential group
④ BaseUnit for motor starter
⑤ Server module (included in the scope of delivery of the CPU/interface module)
⑥ ET 200SP motor starter
⑦ I/O module
⑧ BusAdapter
⑨ Mounting rail
⑩ Refere
