关于TI玻璃管标签|应答器使用不同厂家的半导体专用读卡器|读写头所读取数据不一致推理说明

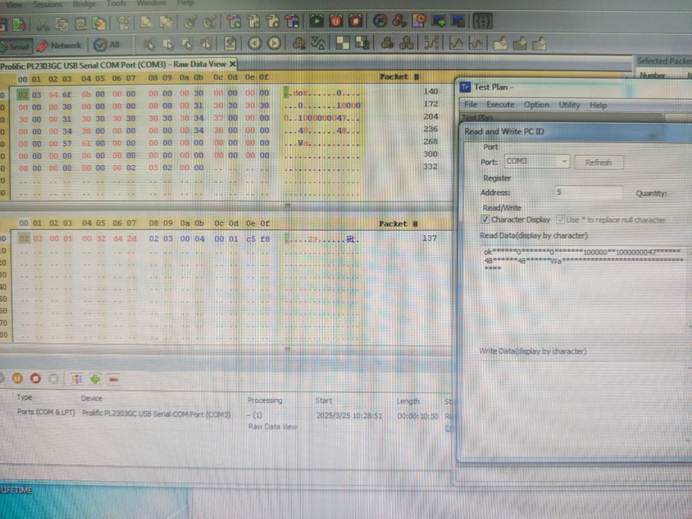

最近有用户反馈我司提供的晨控半导体专用读写器读取的数据和另外供应商的半导体读写器所读取的数据不一致。由于数据有限，推理后仍无法获取相关规则，为能帮助用户解决其现实问题，现将数据和推理过程分享如下，希望能等到网络的大咖的支持！

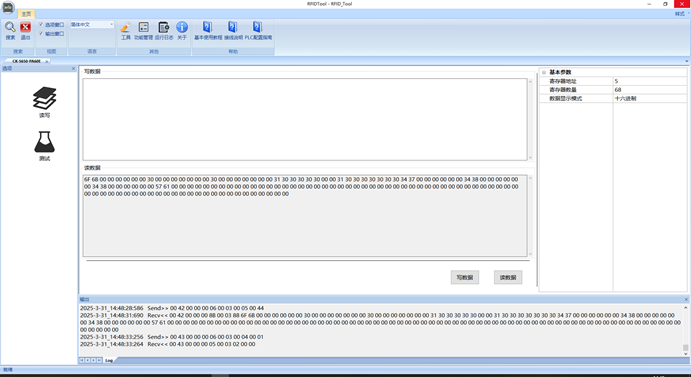

我司读取的数据是16进制， 用户所需要得到的数据是16进制转ASCCI码数据，但期中有2个数据无法直接从16进制转换所得！

数据和推理过程如下：

数据1：B0Wa

 6F 6B 00 00 00 00 00 00 30 00 00 00 00 00 00 00 30 00 00 00 00 00 31 30 30 30 30 30 00 00 31 30 30 30 30 30 30 30 34 37 00 00 00 00 00 00 34 38 00 00 00 00 00 00 34 38 00 00 00 00 00 00 57 61 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

数据2：B0WD02

6F 6B 00 00 00 00 00 00 30 00 00 00 00 00 00 00 30 00 00 00 00 00 31 30 30 30 30 30 00 00 31 30 30 30 30 30 30 30 39 33 00 00 00 00 00 00 34 38 00 00 00 00 00 00 34 38 00 00 00 00 00 00 57 44 30 32 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

数据3：B0WD01

6F 6B 00 00 00 00 00 00 30 00 00 00 00 00 00 00 30 00 00 00 00 00 31 30 30 30 30 30 00 00 31 30 30 30 30 30 30 30 39 34 00 00 00 00 00 00 34 38 00 00 00 00 00 00 34 38 00 00 00 00 00 00 57 44 30 31 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

数据4：E8W001

6F 6B 00 00 00 00 00 00 30 00 00 00 00 00 00 00 30 00 00 00 00 00 31 30 30 30 30 30 00 00 31 30 30 30 30 30 30 31 31 35 00 00 00 00 00 00 34 36 00 00 00 00 00 00 34 36 00 00 00 00 00 00 57 30 30 31 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

从上面的数据可以看到6F 6B为固定数据 ，31 30 30 30 30 30 00 00为固定数据。

第一组中的数据：31 30 30 30 30 30 30 30 34 37  对应47（ASCII码）

第二组中的数据：31 30 30 30 30 30 30 30 39 33  对应93（ASCII码）

第三组中的数据：31 30 30 30 30 30 30 30 39 34  对应94（ASCII码）

第四组中的数据：31 30 30 30 30 30 30 31 31 35  对应115（ASCII码）

这些数据为变动数据，从第一到第三组推测，此数据为序号数据，不影响其他数据

第一至第三组数据 34 38   34 38 为固定数据，对应的B0（ASCII码）

第四组数据 34 36    34 36为固定数据，对应E8（ASCII码）

这组16进制的数据应该与某组数据产生换算或则编码后得到对应的ASCII码数据，极可以能和6F 6B换算得到对应的数据，目前数据太少，无法推断，需要提供更多数据。

另外需要注意：

另外一家读卡器所得到的数据，是同一台读卡器读取所的 ，还是不同的读卡器读取所得，他们的读卡器是一拖多还是一拖1，如果是一拖多，或多台读卡器读取所得，B0 和E8 很可能是设备ID号，也就是他们读取数据的时候去获取了设备ID号+数据

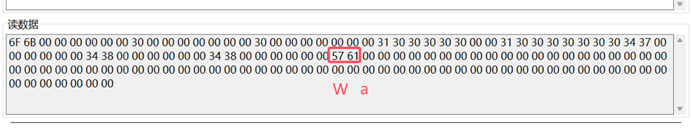

第一组中的数据：57 61 转ASCII码 对应数据Wa

第二组中的数据：57 44 30 31 转ASCII码 对应数据WD01

第三组中的数据：57 44 30 32 转ASCII码 对应数据WD02

第四组中的数据：57 30 30 31 转ASCII码 对应数据W001

说明这些数据是明文读取，从16进制转ASCII码所得
