QCC303X_512X内部充电快速设置浅析

对于QCC302X/303X/512X新版本的芯片充电设置和旧版本的CSR86XX和QCC300X其实没有很大的改变，就是设置的窗口有的不一样，这些芯片都是带有内有和外部充电控制的功能，只是QCC302X/303X/512X的ADK默认代码是在EVB的基础上开发，自动默认为外部充电，所以很多新的开发工程没有太注意这些设置，一直充电有问题。下面就来看看内部充电设置如何设置，如果使用外部充电，直接用默认配置就行！

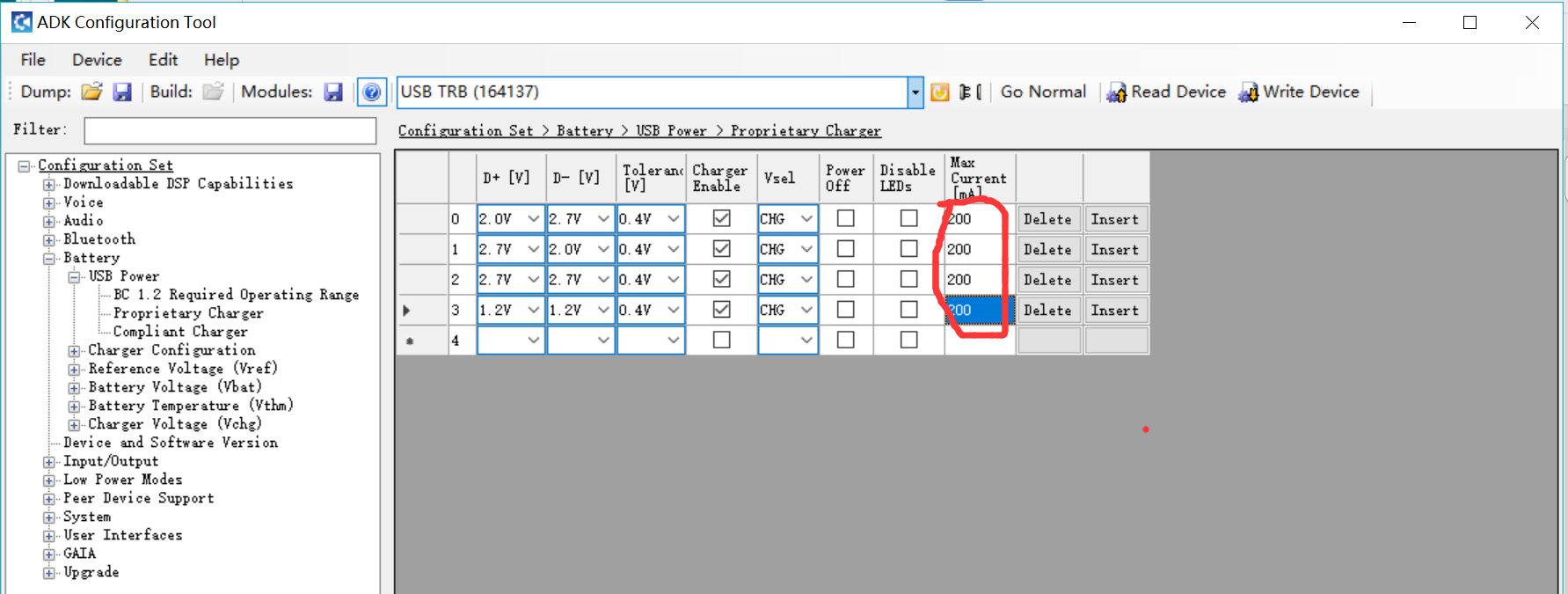

1. USB的D+/D_的电压偏差使用默认值，内部最大电流只能是200mA，一般根据客户自己的产品电池容量设置。例如使用100mA容量的电池，一般设置最大电流不超过100mA，常用90mA即可。D+/D_的电压偏置大小往往是识别使用不同的充电器，而经行不同充电设置：



2. USB作为充电口的入口点，而这个USB接口就有很多种类型，比如PC，Hub,DC可调电源，Type-C不同版本等，这些都是需要设置；如果不设置，就有可能UCB接插到一些USB充电设备是，就没有电流，无法充电识别：全部充电设备勾选，设置内部充电最大200mA;

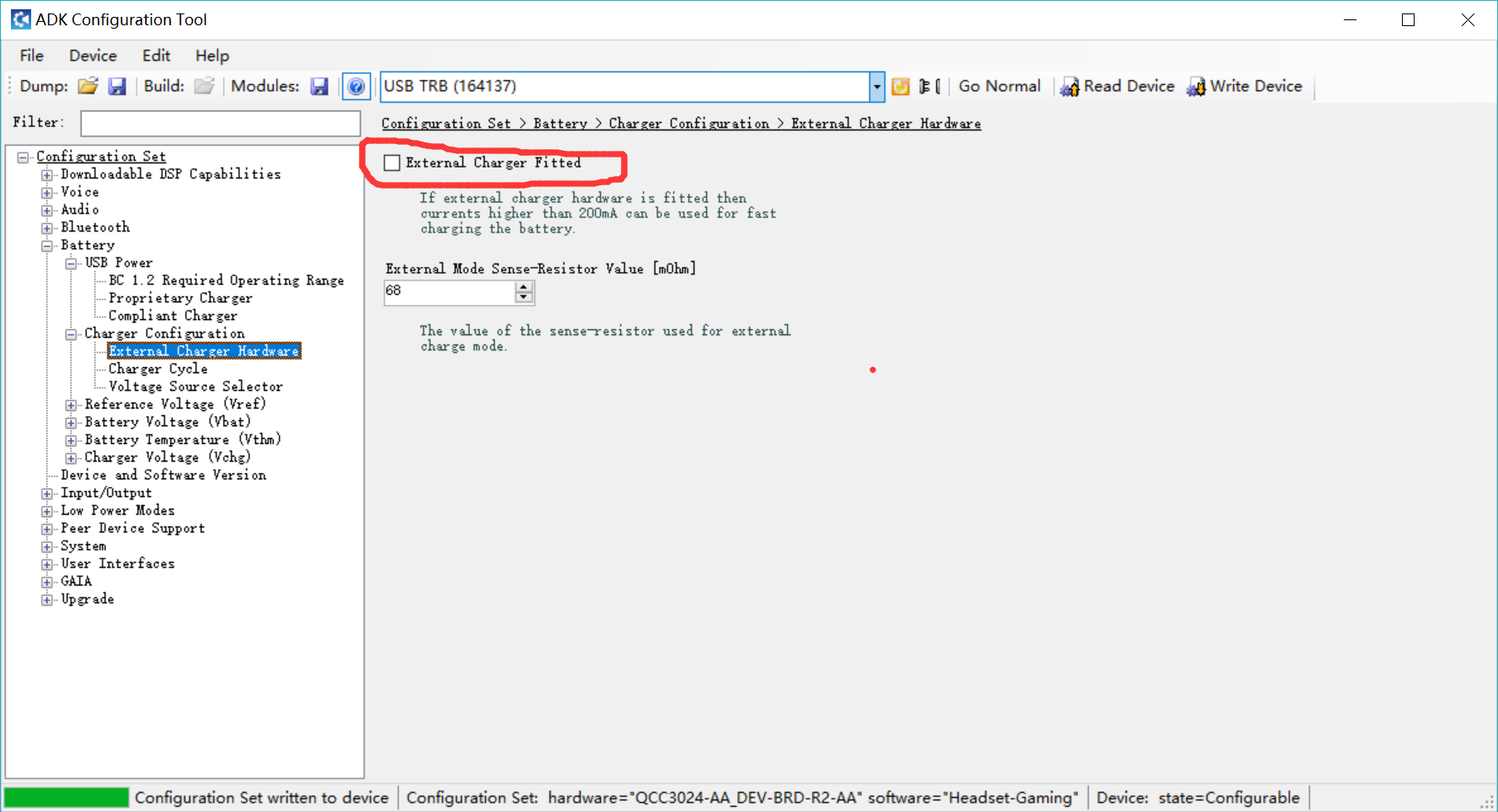

3. 充电内部和外部配置，不勾选是使用内部充电；

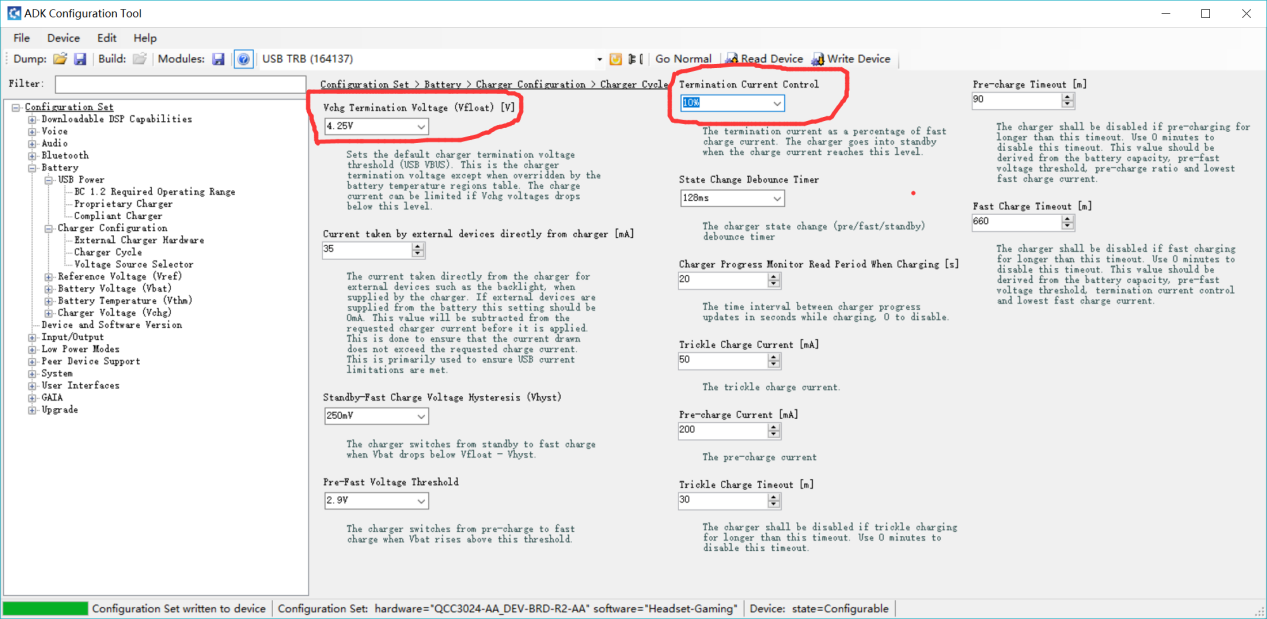

4. 设置电池充电电压为4.25V，截止充电电流为10%，相当恒压充值后，电流慢慢的下降，直至下降到设定值后就跳转停止充电；如果这个值设置太大40%，电流就在比较大40%的时候就跳转截止充电，电池电压一般没有到达4.16V就已经跳转截止，电池就充不满；

5. 电池电压阈值设定对应的提示音，一般按照客户自己的要求设定即可：

/*******************************************************************************
