最近和小伙伴一起构建了一个包含仿射、流密码RC4、流密码LFSR+JK,DES及RSA的加解密系统。界面包括加解密算法选择框,加密解密按钮,加密明文信息框以及解密密文信息框。
完整代码已经上传到github上了,里面的README.md有具体的操作说明教程,需要的同学可以自取,地址:https://github.com/Alexlingl/Cryptology
下面就大致介绍一下这个加解密系统的构建过程。
一、界面的设计与实现:
(一)、界面的设计:
(二)、界面的实现
1、布局:采用边框布局BorderLayout。它会将界面分为东南西北中四个部分,相应的,我们在北部添加一个Jpanel,作为按钮等组件的容器。在东部添加一个JPanel,作为JScrollPane的容器,呈现待处理的具体信息。在中部添加一个JPanel,也是作为JScrollPane的容器,不同的是它呈现的是处理后的具体信息。
2、信息框:使用JScrollPane可以实现信息过多时,可以下拉的效果,但是如果我们要在上面展示文字,还需要往上面添加一个JTextArea组件。

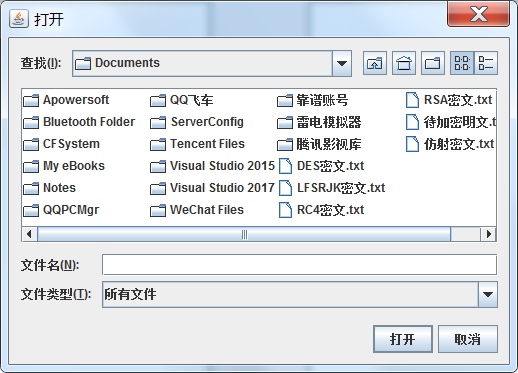

3、打开文件功能:调用JFileChoose来实现,点击后会出现一个从计算机中选择文件的界面。
4、算法下拉可选框:调用了JComboBox

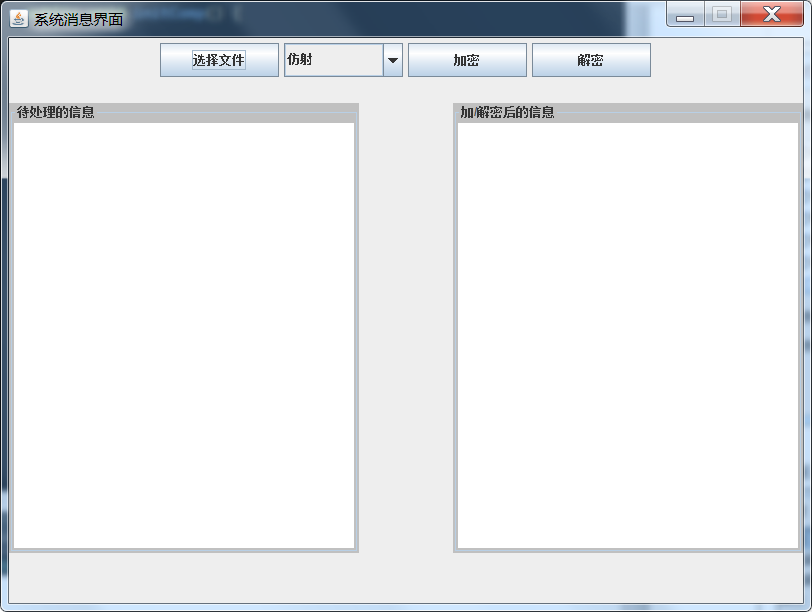

5、最终的界面实现
二、界面监控与后台:
(一)、“选择文件”功能的按钮监控与后台逻辑实现:
1、首先我们需要给按钮添加监听机制
2、接着,我们需要保存获取的文件
3、最后利用addmessageleft这个方法,把选择的文件内容展示在待处理的信息框中
(二)、可选框的监听与后台逻辑实现:
1、首先需要给可选框添加监听机制
2、其次我们需要记录可选框中用户当前所选择的内容,这里我定义了一个choosetype来作为标志。根据用户不同的选择来给这个变量赋值。
(三)、加解密按钮的监听与后台逻辑实现:

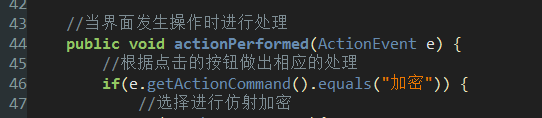

1、首先还是需要给两个按钮添加监听机制

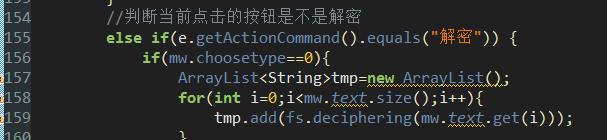

2、接着我们需要判断用户点击的是“加密”还是“解密”按钮,并进行不同的处理
3、最后,我们需要根据用户当前下拉框中选择的算法来进行相应的处理

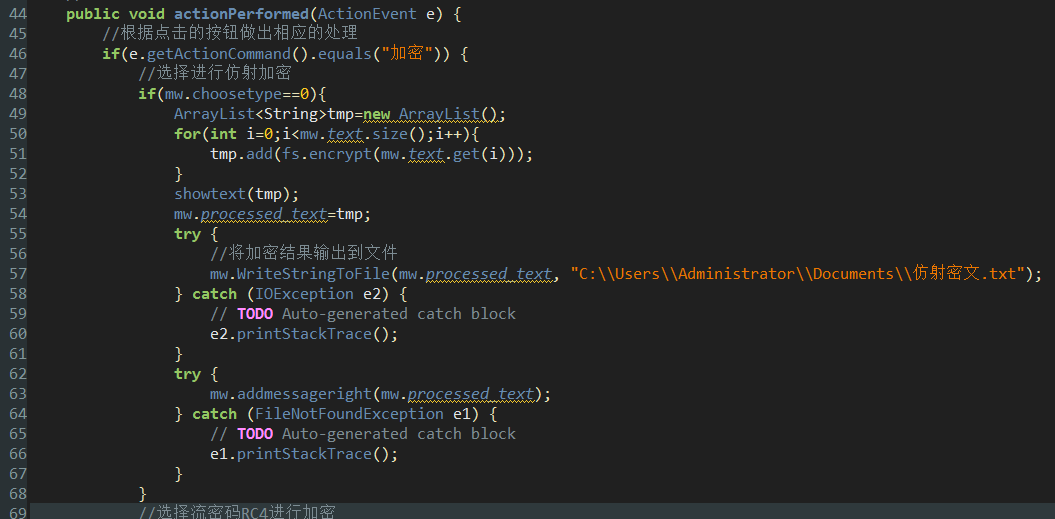

以仿射加密为例来看一下具体的处理过程
首先定义一个临时存储数据的动态字符串数组tmp,并调用事先定义好的仿射对象的加密方法encrypt()对文本中的信息一行行地进行加密,加密结果就存放在tmp中。接着我们把tmp传给MessageWindows对象mw中的processed_text属性,这个就是处理后的信息。调用WriteStringToFile()方法把加密后的信息输出到“C:\\Users\\Administrator\\Documents\\仿射密文.txt”这个文件中。最后再调用addmessageright把处理后的信息显示到右边的信息显示框即可。
三、代码:
界面类
package player3;
import java.awt.BorderLayout;
import java.awt.Color;
import java.awt.Dimension;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.io.FileNotFoundException;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.OutputStreamWriter;
import java.util.ArrayList;
import javax.swing.BorderFactory;
import javax.swing.JButton;
import javax.swing.JComboBox;
import javax.swing.JFrame;
import javax.swing.JPanel;
import javax.swing.JScrollPane;
import javax.swing.JTextArea;
public class MessageWindows extends JFrame implements Config{
public static ArrayList<String>messageList;
// 三块面板,一块是背景,两块是信息显示界面
public JPanel jPanel1,jPanelback2,jPanelback3;
//两块信息显示界面,分别添加在JPanelback1和JPanelback2上面。直接加载JPanel上会出现大小无法调节等问题
public JScrollPane jPanel2,jPanel3;
//文件菜单按钮
public JButton mnFile;
// 两个按钮,一个是加密,一个是解密
public JButton jButton1, jButton2;
//输出台
public JTextArea jTextAreainput,jTextAreaoutput;
//选择进行加密的类型
public int choosetype;
//待处理的文本
public static ArrayList<String> text = new ArrayList();
//待处理的文本
public static ArrayList<String> processed_text = new ArrayList();
public MessageWindows() {
initComp();
this.choosetype=0;
messageList=new ArrayList();
}
public void initComp() {
this.setTitle("系统消息界面");
//设置顶级容器的大小,setSize()只对顶级容器有效
this.setSize(MainWindows_WIDTH,MainWindows_HIGHTH);
//窗体关闭时结束程序
this.setDefaultCloseOperation(3);
//设置窗体居中
this.setLocationRelativeTo(null);
this.setResizable(false);
jPanel1= new JPanel();
jPanelback2=new JPanel();
jPanelback3=new JPanel();
//下拉可选框
String[] choose={"仿射","流密码RC4","流密码LFSRJK","DES","RSA"};
JComboBox box=new JComboBox(choose);
//三个按钮
mnFile= new JButton("选择文件");
jButton1= new JButton("加密");
jButton2= new JButton("解密");
//设置为边界布局
this.setLayout(new BorderLayout());
box.setPreferredSize(new Dimension(Button_WIDTH, Button_HIGHTH));
mnFile.setPreferredSize(new Dimension(Button_WIDTH, Button_HIGHTH));
jButton1.setPreferredSize(new Dimension(Button_WIDTH, Button_HIGHTH));
jButton2.setPreferredSize(new Dimension(Button_WIDTH, Button_HIGHTH));
//在画板面板添加组件
jPanel1.add(mnFile);
jPanel1.add(box);
jPanel1.add(jButton1);
jPanel1.add(jButton2);
jPanel1.setPreferredSize(new Dimension(NorthPanel_WIDTH,NorthPanel_HIGHTH));
jPanelback2.setPreferredSize(new Dimension(WestPanel_WIDTH,WestPanel_HIGHTH));
jPanelback3.setPreferredSize(new Dimension(EastPanel_WIDTH,EastPanel_HIGHTH));
//待处理的信息,将选择的待处理文本显示到界面上
jTextAreainput=new JTextArea();
jPanel2= new JScrollPane(jTextAreainput);
jPanel2.setBackground(Color.LIGHT_GRAY);
jPanel2.setBounds(41,34, WestPanel_WIDTH, 194);
jPanel2.setBorder(BorderFactory.createTitledBorder("待处理的信息"));
jPanel2.setPreferredSize(new Dimension(WestPanel_WIDTH,WestPanel_HIGHTH));
//处理后的信息,将处理后的文本信息显示到界面上
jTextAreaoutput=new JTextArea();
jPanel3= new JScrollPane(jTextAreaoutput);
jPanel3.setBackground(Color.LIGHT_GRAY);
jPanel3.setBounds(41,34, EastPanel_WIDTH, 194);
jPanel3.setBorder(BorderFactory.createTitledBorder("加/解密后的信息"));
jPanel3.setPreferredSize(new Dimension(EastPanel_WIDTH,EastPanel_HIGHTH));
jPanelback2.add(jPanel2);
jPanelback3.add(jPanel3);
//将界面加到布局上
this.add(jPanel1,BorderLayout.NORTH);
this.add(jPanelback2,BorderLayout.WEST);
this.add(jPanelback3,BorderLayout.EAST);
this.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
//设置界面可见
this.setVisible(true);
//为文件选择按钮添加监听机制
mnFile.addActionListener(new ActionListener() {
public void actionPerformed(ActionEvent e) {
try {
PlayerMain.openVideo();
} catch (IOException e1) {
// TODO Auto-generated catch block
e1.printStackTrace();
}
}
});
//为可选框添加监听机制
box.addActionListener(new ButtonListener(this,box));
//为按钮1,2添加监听机制
jButton1.addActionListener(new ButtonListener(this));
jButton2.addActionListener(new ButtonListener(this));
}
//将处理信息加到左边界面的方法
public void addmessageleft(ArrayList<String> text) throws FileNotFoundException{
this.text = text;
jTextAreainput.append("当前进行加/解密的文本\n");
jTextAreainput.paintImmediately(jTextAreainput.getBounds());
for(int i=0;i<text.size();i++){
jTextAreainput.append(text.get(i)+"\n");
jTextAreainput.paintImmediately(jTextAreainput.getBounds());
}
}
//将处理后的信息加到右边界面上
public void addmessageright(ArrayList<String> processed_text) throws FileNotFoundException{
this.processed_text = processed_text;
jTextAreaoutput.append("当前加/解密后得到的文本\n");
jTextAreaoutput.paintImmediately(jTextAreainput.getBounds());
for(int i=0;i<processed_text.size();i++){
jTextAreaoutput.append(processed_text.get(i)+"\n");
jTextAreaoutput.paintImmediately(jTextAreaoutput.getBounds());
}
}

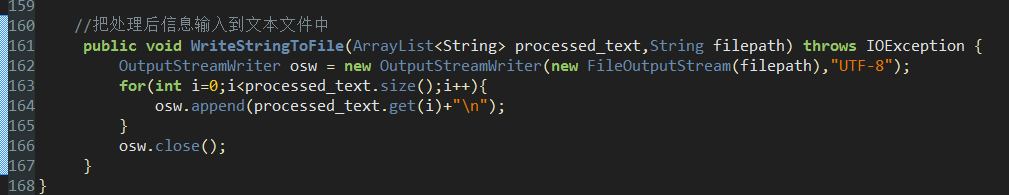

//把处理后信息输入到文本文件中
public void WriteStringToFile(ArrayList<String> processed_text,String filepath) throws IOException {
OutputStreamWriter osw = new OutputStreamWriter(new FileOutputStream(filepath),"UTF-8");
for(int i=0;i<processed_text.size();i++){
osw.append(processed_text.get(i)+"\n");
}
osw.close();
}
}
界面监听类:
package player3;
//设置按钮监听方法ButttonLitener类
import java.awt.event.ActionListener;
import java.awt.event.ActionEvent;
import java.io.FileNotFoundException;
import java.io.IOException;
import java.util.ArrayList;
import javax.swing.JComboBox;
import des.DESUtil;
import jklfsr.Jk;
import fangshe.Fangshe;
import rc4.Stream_cipher;
import rsa.RSA;
//实现对JPanel的监听接口处理
public class ButtonListener implements ActionListener{
public JComboBox box;
public MessageWindows mw;
public Fangshe fs=new Fangshe();
public RSA rsa=new RSA();
public Stream_cipher rc4=new Stream_cipher();
public Jk jk=new Jk();
public DESUtil des=new DESUtil();
//构造方法一,只需要传界面对象
public ButtonListener(MessageWindows mw){
this.mw=mw;
}
//构造方法二,需要传界面对象和下拉可选框的对象
public ButtonListener(MessageWindows mw,JComboBox box){
this.mw=mw;
this.box=box;
}
//在console中展示当前文本
public void showtext(ArrayList<String>text){
for(int i=0;i<text.size();i++){
System.out.println(text.get(i));
}
}
//当界面发生操作时进行处理
public void actionPerformed(ActionEvent e) {
//根据点击的按钮做出相应的处理
if(e.getActionCommand().equals("加密")) {
//选择进行仿射加密
if(mw.choosetype==0){
ArrayList<String>tmp=new ArrayList();
for(int i=0;i<mw.text.size();i++){
tmp.add(fs.encrypt(mw.text.get(i)));
}
showtext(tmp);
mw.processed_text=tmp;
try {
//将加密结果输出到文件
mw.WriteStringToFile(mw.processed_text, "C:\\Users\\Administrator\\Documents\\仿射密文.txt");
} catch (IOException e2) {
// TODO Auto-generated catch block
e2.printStackTrace();
}
try {
mw.addmessageright(mw.processed_text);
} catch (FileNotFoundException e1) {
// TODO Auto-generated catch block
e1.printStackTrace();
}
}
//选择流密码RC4进行加密
else if(mw.choosetype==1){
ArrayList<String>tmp=new ArrayList();
for(int i=0;i<mw.text.size();i++){
tmp.add(PlayerMain.toBinary(rc4.RC4_encrypt(mw.text.get(i))));
}
showtext(tmp);
try {
mw.WriteStringToFile(tmp, "C:\\Users\\Administrator\\Documents\\RC4密文.txt");
} catch (IOException e2) {
// TODO Auto-generated catch block
e2.printStackTrace();
}
mw.processed_text=tmp;
try {
mw.addmessageright(mw.processed_text);
} catch (FileNotFoundException e1) {
// TODO Auto-generated catch block
e1.printStackTrace();
}
}
//选择流密码LFSRJK进行加密
else if(mw.choosetype==2){
ArrayList<String>tmp=new ArrayList();
for(int i=0;i<mw.text.size();i++){
tmp.add(PlayerMain.toBinary(jk.JK_encrypt(mw.text.get(i))));
}
showtext(tmp);
mw.processed_text=tmp;
try {
mw.WriteStringToFile(tmp, "C:\\Users\\Administrator\\Documents\\LFSRJK密文.txt");
} catch (IOException e2) {
// TODO Auto-generated catch block
e2.printStackTrace();
}
try {
mw.addmessageright(mw.processed_text);
} catch (FileNotFoundException e1) {
// TODO Auto-generated catch block
e1.printStackTrace();
}
}
//选择DES进行加密
else if(mw.choosetype==3){
ArrayList<String>tmp=new ArrayList();
for(int i=0;i<mw.text.size();i++){
tmp.add(PlayerMain.convertByteToHexString(des.jdkDECENcode(mw.text.get(i))));
}
showtext(tmp);
mw.processed_text=tmp;
try {
mw.WriteStringToFile(mw.processed_text, "C:\\Users\\Administrator\\Documents\\DES密文.txt");
} catch (IOException e2) {
// TODO Auto-generated catch block
e2.printStackTrace();
}
try {
mw.addmessageright(mw.processed_text);
} catch (FileNotFoundException e1) {
// TODO Auto-generated catch block
e1.printStackTrace();
}
}
//选择进行RSA加密
else if(mw.choosetype==4){
ArrayList<String>tmp=new ArrayList();
for(int i=0;i<mw.text.size();i++){
tmp.add(PlayerMain.toBinary(rsa.encryption(mw.text.get(i))));
}
showtext(tmp);
mw.processed_text=tmp;
try {
mw.WriteStringToFile(tmp, "C:\\Users\\Administrator\\Documents\\RSA密文.txt");
} catch (IOException e2) {
// TODO Auto-generated catch block
e2.printStackTrace();
}
try {
mw.addmessageright(mw.processed_text);
} catch (FileNotFoundException e1) {
// TODO Auto-generated catch block
e1.printStackTrace();
}
}
}
//判断当前点击的按钮是不是解密
else if(e.getActionCommand().equals("解密")) {
if(mw.choosetype==0){
ArrayList<String>tmp=new ArrayList();
for(int i=0;i<mw.text.size();i++){
tmp.add(fs.deciphering(mw.text.get(i)));
}
showtext(tmp);
mw.processed_text=tmp;
try {
mw.addmessageright(mw.processed_text);
} catch (FileNotFoundException e1) {
// TODO Auto-generated catch block
e1.printStackTrace();
}
}
//选择RC4进行解密
else if(mw.choosetype==1){
ArrayList<String>tmp=new ArrayList();
for(int i=0;i<mw.text.size();i++){
System.out.println(mw.text.get(i));
tmp.add(rc4.RC4_encrypt(PlayerMain.BinstrToStr(mw.text.get(i))));
}
showtext(tmp);
mw.processed_text=tmp;
try {
mw.addmessageright(mw.processed_text);
} catch (FileNotFoundException e1) {
// TODO Auto-generated catch block
e1.printStackTrace();
}
}
//选择流密码LFSRJK进行解密
else if(mw.choosetype==2){
ArrayList<String>tmp=new ArrayList();
for(int i=0;i<mw.text.size();i++){
tmp.add(jk.JK_encrypt(PlayerMain.BinstrToStr(mw.text.get(i))));
}
showtext(tmp);
mw.processed_text=tmp;
try {
mw.addmessageright(mw.processed_text);
} catch (FileNotFoundException e1) {
// TODO Auto-generated catch block
e1.printStackTrace();
}
}
//选择DES进行解密
else if(mw.choosetype==3){
ArrayList<String>tmp=new ArrayList();
for(int i=0;i<mw.text.size();i++){
System.out.println(mw.text.get(i));
byte[] bytetmp=PlayerMain.convertHexStringToByte(mw.text.get(i));
tmp.add(new String(des.jdkDECDecode(bytetmp)));
}
showtext(tmp);
mw.processed_text=tmp;
try {
mw.addmessageright(mw.processed_text);
} catch (FileNotFoundException e1) {
// TODO Auto-generated catch block
e1.printStackTrace();
}
}
//选择RSA进行解密
else if(mw.choosetype==4){
//选择进行RSA解密
ArrayList<String>tmp=new ArrayList();
for(int i=0;i<mw.text.size();i++){
tmp.add(rsa.decrypt(PlayerMain.BinstrToStr(mw.text.get(i))));
}
showtext(tmp);
mw.processed_text=tmp;
try {
mw.addmessageright(mw.processed_text);
} catch (FileNotFoundException e1) {
// TODO Auto-generated catch block
e1.printStackTrace();
}
}
}
//"仿射","流密码RC4","流密码LFSRJK","DES","RSA"
else if(box.getSelectedItem().equals("仿射")) {
mw.choosetype=0;
}
else if(box.getSelectedItem().equals("流密码RC4")){
mw.choosetype=1;
}
else if(box.getSelectedItem().equals("流密码LFSRJK")){
mw.choosetype=2;
}
else if(box.getSelectedItem().equals("DES")) {
mw.choosetype=3;
}
else if(box.getSelectedItem().equals("RSA")){
mw.choosetype=4;
}
}
}
选择文件类:
package player3;
import java.io.File;
import java.io.IOException;
import java.util.ArrayList;
import java.util.Scanner;
import javax.swing.JFileChooser;
public class PlayerMain {
//界面类
static MessageWindows frame;
//待加解密的字符串
public static ArrayList<String> text = new ArrayList();
//处理后的字符串
public static ArrayList<String> processed_text = new ArrayList();
//程序的主函数入口,相当于c++的main函数
public static void main(String[] args) {
//创建主程序界面运行窗体
frame=new MessageWindows();
frame.setVisible(true);
}
//byte数组转十六进制字符串
public static String convertByteToHexString(byte[] bytes) {
String result = "";
for(int i=0;i<bytes.length; i++) {
int temp = bytes[i]&0xff;
String tempHex = Integer.toHexString(temp);
if(tempHex.length()<2) {
result +="0"+tempHex;
}
else {
result += tempHex;
}
}
return result;
}
//将字符串转为二进制流
public static String toBinary(String str){
char[] strChar=str.toCharArray();
String result="";
for(int i=0;i<strChar.length;i++){
result +=Integer.toBinaryString(strChar[i])+ " ";
}
return result;
}
private static int[] BinstrToIntArray(String binStr) {
char[] temp=binStr.toCharArray();
int[] result=new int[temp.length];
for(int i=0;i<temp.length;i++) {
result[i]=temp[i]-48;
}
return result;
}
//将二进制转换成字符
private static char BinstrToChar(String binStr){
int[] temp=BinstrToIntArray(binStr);
int sum=0;
for(int i=0; i<temp.length;i++){
sum +=temp[temp.length-1-i]<<i;
}
return (char)sum;
}
public static String BinstrToStr(String binStr){
String[] tempStr=binStr.split(" ");
char[] tempChar=new char[tempStr.length];
for(int i=0;i<tempStr.length;i++) {
tempChar[i]=BinstrToChar(tempStr[i]);
}
return String.valueOf(tempChar);
}
//十六进制字符串转为byte数组
public static byte[] convertHexStringToByte(String str) {
System.out.println(str);
if(str == null || str.trim().equals("")) {
return new byte[0];
}
byte[] bytes = new byte[str.length() / 2];
for(int i = 0; i < str.length() / 2; i++) {
String subStr = str.substring(i * 2, i * 2 + 2);
bytes[i] = (byte) Integer.parseInt(subStr, 16);
}
return bytes;
}
//打开文件
public static void openVideo() throws IOException {
JFileChooser chooser=new JFileChooser();
int v=chooser.showOpenDialog(null);
if(v==JFileChooser.APPROVE_OPTION){
File file=chooser.getSelectedFile();
ArrayList<String> tmp = new ArrayList();
Scanner sc = new Scanner(file);
while(sc.hasNextLine()){
tmp.add(sc.nextLine());
}
System.out.println("tmp="+tmp);
text = tmp;
//把选择的文件传过去
frame.addmessageleft(text);
}
}
}
四、注意事项
(一)、编码问题:不同加密方式产生的字符各不相同,DES等加密算法加密后生成的字符无论是utf-8还是GBK异或是unicode都没办法很好地表示出来。如果直接把DES加密后字符串写到文本中,会出现乱码的问题。于是最终我决定把加密后的信息都转为二进制字符串进行保存,等待需要解密时再转为字符串进行处理。
(二)、JScrollPane必须放在JPanel上面,如果直接放在JFrame的布局上,会出现无法调节JScrollPane大小的问题。
(三)、外部包的导入与生成

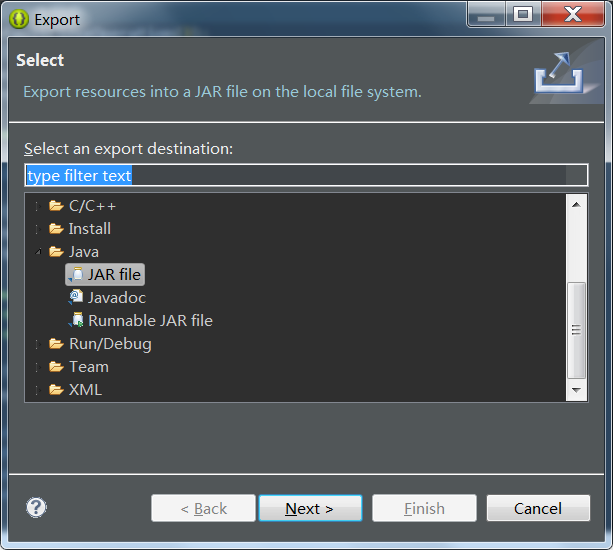

外部包的生成:右击要生成外部包的包,选择Export->JAR file

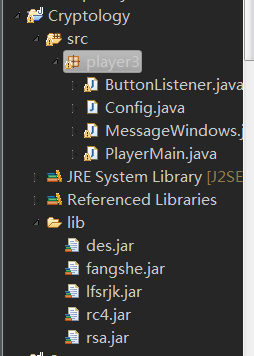

外部包的导入
先把外部包粘贴到lib中
右击要导入的包,选择build path即可。导入成功后我们是可以在Referenced Libraries中看到相应的包的
这篇博客只讲了整个系统的架构实现,具体的算法实现涉及的内容太多,这里就不展开讲了。
