Kubernetes核心-对外暴露应用Ingress

1、Ingress

Kubernetes 提供了两种内建的云端负载均衡机制（ cloud load balancing ）用于发布公共应用， 工作于传输层的 Service 资源，它实现的是 TCP 负载均衡器”，另种是Ingress 资源，它实现的是“ HTTP(S ）负载均衡器”

Ingress 是对集群中服务的外部访问进行管理的 API 对象，典型的访问方式是 HTTP和HTTPS。

Ingress 可以提供负载均衡、SSL 和基于名称的虚拟托管。

必须具有 ingress 控制器【例如 ingress-nginx】才能满足 Ingress 的要求。仅创建 Ingress 资源无效。

Ingress 是什么

Ingress 公开了从集群外部到集群内 services 的 HTTP 和 HTTPS 路由。 流量路由由 Ingress 资源上定义的规则控制。

1  internet
2      |
3 [ Ingress ]
4 --|-----|--
5 [ Services ]

可以将 Ingress 配置为提供服务外部可访问的 URL、负载均衡流量、 SSL / TLS，以及提供基于名称的虚拟主机。Ingress 控制器 通常负责通过负载均衡器来实现 Ingress，尽管它也可以配置边缘路由器或其他前端来帮助处理流量。

Ingress 不会公开任意端口或协议。若将 HTTP 和 HTTPS 以外的服务公开到 Internet 时，通常使用 Service.Type=NodePort 或者 Service.Type=LoadBalancer 类型的服务。

以Nginx Ingress为例，图如下



Ingress示例

架构图


Ingress和Ingress Controller

Ingress是Kubernetes API的标准资源类型之一，它其实就是基于DNS名称(host)或URL路径把请求转发至指定的Service资源的规则，用于将集群外部的请求流量转发至集群内部完成服务发布。然而，Ingess资源自身并不能运行“流量穿透”，它仅仅是一组路由规则的集合，这些规则要想真正发挥作用还需其它功能的辅助，如监听某个套接字上，根据这些规则匹配机制路由请求流量：这种能够为Ingress资源监听套接字并转发流量的组件称之为Ingress控制器

注意：
不同于 Deployment 控制器等 Ingress 控制器并不直接运行为 kube-controller-rnanager的一部 ，它是Kubemetes集群的重要附件类似于 CoreDNS 需要在集群单独部署

Ingress不是Kubernetes内置的，需要单独安装应用，来做负载均衡。

将端口号对外暴露，通过IP+端口号进行访问。

  • 使用Service里面的NodePort可以实现。

NodePort缺陷：

  • 在每个节点上都会起到端口，在访问时候通过任何节点，通过节点ip+暴露端口号实现访问。
  • 意味着每个端口只能使用一次，一个端口对应一个应用。
  • 实际访问中都是用域名，根据不同域名跳转到不同端口服务中。

1.1 Ingress和Pod关系

  • pod和ingress通过service关联的
    • ingress作为统一入口，由service关联一组pod

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-MInOE8dk-1607497265362)(…\img\ingress.png)]

1.2 Ingress工作流程

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-Wpcl29ad-1607497265364)(…\img\ingress1.png)]

1.3 使用ingress步骤

  1. 部署ingress controller（选择官方nginx控制器，实现部署）
  1. 创建ingress规则

1.4 使用ingress对外暴露应用

  1. 创建nginx应用，对外暴露端口使用NodePort
# 创建pod
kubectl create deployment web --image=nginx

# 查看
kubectl get pods

# 创建service
kubectl expose deployment web --port=80 --target-port=80 --type=NodePort
  1. 部署ingress controller
kubectl apply -f ingress-con.yaml

# 查看ingress controller状态
kubectl get pods -n ingress-nginx
  1. 创建ingress规则
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
meatadata:
  name: example-ingress
spec:
  rules:
  - host: example.ingredemo.com
    http:
      paths:
      - path: /
        backend:
          serviceName: web
          servicePort: 80

保存后，然后执行

# 创建ingress规则
kubectl applf -f ingress-http.yaml

查看在那个节点：

kubectl get pods -n ingress-nginx -o wide

2、Kubernetes Ingress-nginx使用

3.1 部署Ingress-Controller

官方地址

此处部署3.0版本

在你需要部署的node节点上拉去Ingerss-Controller镜像

[root@k8s-master01 daem]# docker pull quay.io/kubernetes-ingress-controller/nginx-ingress-controller:0.30.0

进入到GitHub上将mandatory.yaml复制到node节点上

mandatory.yaml地址

[root@k8s-master01 ingressdeploy]# cat mandatory.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx

---

kind: ConfigMap
apiVersion: v1
metadata:
  name: nginx-configuration
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
#data:
#  whitelist-source-range: 192.168.29.102 #白名单，允许某个IP或IP段的访问
#  block-cidrs: 192.168.29.101 #黑名单拒绝访问

---
kind: ConfigMap
apiVersion: v1
metadata:
  name: tcp-services
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx

---
kind: ConfigMap
apiVersion: v1
metadata:
  name: udp-services
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: nginx-ingress-serviceaccount
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx

---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRole
metadata:
  name: nginx-ingress-clusterrole
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
rules:
  - apiGroups:
      - ""
    resources:
      - configmaps
      - endpoints
      - nodes
      - pods
      - secrets
    verbs:
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - nodes
    verbs:
      - get
  - apiGroups:
      - ""
    resources:
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - events
    verbs:
      - create
      - patch
  - apiGroups:
      - "extensions"
      - "networking.k8s.io"
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - "extensions"
      - "networking.k8s.io"
    resources:
      - ingresses/status
    verbs:
      - update

---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: Role
metadata:
  name: nginx-ingress-role
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
rules:
  - apiGroups:
      - ""
    resources:
      - configmaps
      - pods
      - secrets
      - namespaces
    verbs:
      - get
  - apiGroups:
      - ""
    resources:
      - configmaps
    resourceNames:
      # Defaults to "<election-id>-<ingress-class>"
      # Here: "<ingress-controller-leader>-<nginx>"
      # This has to be adapted if you change either parameter
      # when launching the nginx-ingress-controller.
      - "ingress-controller-leader-nginx"
    verbs:
      - get
      - update
  - apiGroups:
      - ""
    resources:
      - configmaps
    verbs:
      - create
  - apiGroups:
      - ""
    resources:
      - endpoints
    verbs:
      - get

---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: RoleBinding
metadata:
  name: nginx-ingress-role-nisa-binding
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: nginx-ingress-role
subjects:
  - kind: ServiceAccount
    name: nginx-ingress-serviceaccount
    namespace: ingress-nginx

---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
  name: nginx-ingress-clusterrole-nisa-binding
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: nginx-ingress-clusterrole
subjects:
  - kind: ServiceAccount
    name: nginx-ingress-serviceaccount
    namespace: ingress-nginx

---

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-ingress-controller
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app.kubernetes.io/name: ingress-nginx
      app.kubernetes.io/part-of: ingress-nginx
  template:
    metadata:
      labels:
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
      annotations:
        prometheus.io/port: "10254"
        prometheus.io/scrape: "true"
    spec:
      hostNetwork: true      ###修改成hostNetwork模式直接共享服务器的网络名称空间
      # wait up to five minutes for the drain of connections
      terminationGracePeriodSeconds: 300
      serviceAccountName: nginx-ingress-serviceaccount
      nodeSelector:
        kubernetes.io/os: linux
        kubernetes.io/hostname: k8s-master02
      dnsPolicy: ClusterFirstWithHostNet
      containers:
        - name: nginx-ingress-controller
          imagePullPolicy: IfNotPresent
          image: quay.io/kubernetes-ingress-controller/nginx-ingress-controller:0.30.0
          args:
            - /nginx-ingress-controller
            - --configmap=$(POD_NAMESPACE)/nginx-configuration
            - --tcp-services-configmap=$(POD_NAMESPACE)/tcp-services
            - --udp-services-configmap=$(POD_NAMESPACE)/udp-services
            - --publish-service=$(POD_NAMESPACE)/ingress-nginx
            - --annotations-prefix=nginx.ingress.kubernetes.io
          securityContext:
            allowPrivilegeEscalation: true
            capabilities:
              drop:
                - ALL
              add:
                - NET_BIND_SERVICE
            # www-data -> 101
            runAsUser: 101
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
          ports:
            - name: http
              containerPort: 80
              protocol: TCP
              #hostPort: 80
            - name: https
              containerPort: 443
              protocol: TCP
              #hostPort: 443
          livenessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 10
          readinessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 10
          lifecycle:
            preStop:
              exec:
                command:
                  - /wait-shutdown

---

apiVersion: v1
kind: LimitRange
metadata:
  name: ingress-nginx
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
spec:
  limits:
  - min:
      memory: 90Mi
      cpu: 100m
    type: Container

需修改：
hostNetwork: true ###修改成hostNetwork模式直接共享服务器的网络名称空间

执行create创建Ingress-Controller

[root@k8s-master01 ingressdeploy]# kubectl get deploy -n ingress-nginx
NAME                       READY   UP-TO-DATE   AVAILABLE   AGE
nginx-ingress-controller   1/1     1            1           76m

Ingress-Controller已部署完成

3.2 使用Ingress规则

创建测试的web应用

[root@k8s-master01 daem]# cat deploy.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: default
  name: nginxapp
  labels:
    app: nginx-deploy
spec:
  replicas: 2
  selector:
    matchLabels:
      app: mynginx
  template:
    metadata:
      labels:
        app: mynginx
    spec:
      containers:
      - name: nginxweb
        image: nginx:1.15-alpine
[root@k8s-master01 daem]# cat svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: nginx-svc
  labels:
    app: nginx-svc
spec:
  ports:
  - name: http
    port: 80
    protocol: TCP
    nodePort: 30001   #node节点的映射端口 可以通过外部访问
    targetPort: 80
  selector:
    app: mynginx
  sessionAffinity: None
  type: NodePort

创建Ingress规则

[root@k8s-master01 daem]# cat ingress.yaml
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: ingress-daem
  annotations:
    kubernetes.io/ingress.class: "nginx"
    #nginx.ingress.kubernetes.io/limit-connections: 10
    #nginx.ingress.kubernetes.io/limit-rate: 100K
    #nginx.ingress.kubernetes.io/limit-rps: 1
    #nginx.ingress.kubernetes.io/limit-rpm: 30
spec:
  rules:
  - host: test.nginxsvc.com
    http:
      paths:
      - backend:
          serviceName: nginx-svc
          servicePort: 80
        path: /

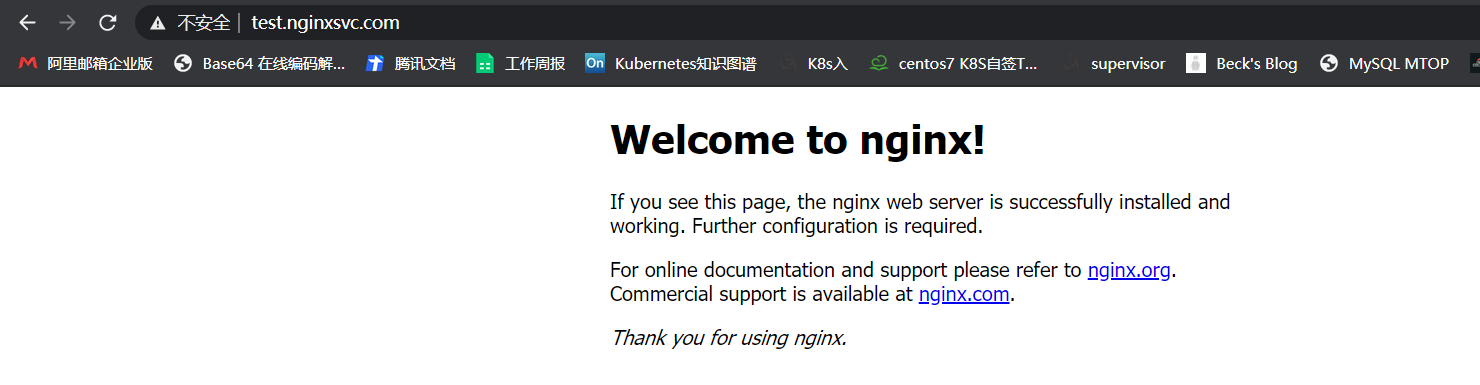

浏览器访问
添加hosts解析
192.168.29.102 test.nginxsvc.com test-tls.test.com

[root@k8s-master01 daem]# curl -I http://test.nginxsvc.com/
HTTP/1.1 200 OK
Server: nginx/1.17.8
Date: Thu, 03 Dec 2020 06:56:49 GMT
Content-Type: text/html
Content-Length: 612
Connection: keep-alive
Vary: Accept-Encoding
Last-Modified: Sat, 11 May 2019 00:35:53 GMT
ETag: "5cd618e9-264"
Accept-Ranges: bytes

2.1 Ingress地址重写

流量重定向到目标URL

apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: ingress-daem
  annotations:
    #kubernetes.io/ingress.class: "nginx"
    nginx.ingress.kubernetes.io/permanent-redirect: https://www.baidu.com   #当访问 test.nginxsvc.com会被重写到百度上
spec:
  rules:
  - host: test.nginxsvc.com
    http:
      paths:
      - backend:
          serviceName: nginx-svc
          servicePort: 80
        path: /

前后端分离

  [root@k8s-master01 daem]# cat ingress.yaml
  apiVersion: networking.k8s.io/v1beta1
  kind: Ingress
  metadata:
    name: ingress-daem
    annotations:
      #kubernetes.io/ingress.class: "nginx"
      #nginx.ingress.kubernetes.io/permanent-redirect: https://www.baidu.com
      nginx.ingress.kubernetes.io/rewrite-target: /    #当访问test.nginxsvc.com/foo  会把请求打到 nginx-svc此service上
  spec:
    rules:
    - host: test.nginxsvc.com
      http:
        paths:
        - backend:
            serviceName: nginx-svc
            servicePort: 80
          path: /foo



  [root@k8s-master01 daem]# cat ingress.yaml
  apiVersion: networking.k8s.io/v1beta1
  kind: Ingress
  metadata:
    name: ingress-daem
    annotations:
      #kubernetes.io/ingress.class: "nginx"
      #nginx.ingress.kubernetes.io/permanent-redirect: https://www.baidu.com
      nginx.ingress.kubernetes.io/rewrite-target: /$2
  spec:
    rules:
    - host: test.nginxsvc.com
      http:
        paths:
        - backend:
            serviceName: nginx-svc
            servicePort: 80
          path: /nginxservice(/|$)(.*)
        paths:
        - backend:
            serviceName: tomcat-svc
            servicePort: 80
          path: /tomcatservice(/|$)(.*) #当访问test.nginxsvc.com:PORT/tomcatservice -> 就会被重定向到tomcat-svc  / 资源下

2.2 配置HTTPS

[root@k8s-master01 ~]# openssl req -x509 -nodes -days 365 -newkey rsa:2048 -keyout tls.key -out tls.cert -subj "/CN=test-tls.test.com/O=test-tls.test.com"
Generating a 2048 bit RSA private key
..............................................+++
.........................................................................................+++
writing new private key to 'tls.key'
-----

[root@k8s-master01 ~]# kubectl create secret tls ca-cert  --key tls.key --cert tls.cert
secret/ca-cert created
[root@k8s-master01 ~]# cat tlsingress.yaml
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
annotations:
nginx.ingress.kubernetes.io/ssl-redirect: "false"
name: test-tls
spec:
rules:
- host: test-tls.test.com
http:
paths:
- backend:
serviceName: nginx-svc
servicePort: 80
path: /
tls:
- hosts:
- test-tls.test.com
secretName: ca-cert

2.3 黑白名单配置

    黑白名单

    [root@k8s-master01 ingressdeploy]# cat mandatory.yaml
    apiVersion: v1
    kind: Namespace
    metadata:
      name: ingress-nginx
      labels:
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx

    ---

    kind: ConfigMap
    apiVersion: v1
    metadata:
      name: nginx-configuration
      namespace: ingress-nginx
      labels:
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
    data:
      #############添加如下信息#################
      whitelist-source-range: 192.168.29.102 #白名单，允许某个IP或IP段的访问
      block-cidrs: 192.168.29.101 #黑名单拒绝访问

2.4 匹配请求头

      apiVersion: networking.k8s.io/v1beta1
      kind: Ingress
      metadata:
        annotations:
          nginx.ingress.kubernetes.io/server-snippet: |
              set $agentflag 0;

              if ($http_user_agent ~* "(Mobile)" ){
                set $agentflag 1;
              }

              if ( $agentflag = 1 ) {
                return 301 https://m.example.com;
              }

解释：
如果你的http_user_agent == Mobile。那么就把agentflag set成1 ，然后当agentflag == 1时，就会return 到这个域名 https://m.example.com

2.5 速率限制

    apiVersion: networking.k8s.io/v1beta1
    kind: Ingress
    metadata:
      name: ingress-nginx
      annotations:
        kubernetes.io/ingress.class: "nginx"
        nginx.ingress.kubernetes.io/limit-rate: 100K
        nginx.ingress.kubernetes.io/limit-rps: 1
        nginx.ingress.kubernetes.io/limit-rpm: 30
    spec:
      ......

  • nginx.ingress.kubernetes.io/limit-connections

    单个IP地址允许的并发连接数。超过此限制时返回503错误

  • nginx.ingress.kubernetes.io/limit-rps:

    每秒从给定IP接受的请求数。突发限制设置为该限制乘以突发乘数，默认乘数为5。当客户机超过此限制时，将返回limit req status code default:503

  • nginx.ingress.kubernetes.io/limit-rpm:

    每分钟从给定IP接受的请求数。突发限制设置为该限制乘以突发乘数，默认乘数为5。当客户机超过此限制时，将返回limit req status code default:503

  • nginx.ingress.kubernetes.io/limit-burst-multiplier:

    突发大小限制速率的乘数。默认的突发乘数为5，此批注覆盖默认乘数。当客户机超过此限制时，将返回limit req status code default:503。

  • nginx.ingress.kubernetes.io/limit-rate-after

    初始千字节数，此后对给定连接的响应的进一步传输将受到速率限制。此功能必须在启用代理缓冲的情况下使用

  • nginx.ingress.kubernetes.io/limit-rate

    每秒允许发送到给定连接的KB数。零值禁用速率限制。此功能必须在启用代理缓冲的情况下使用

  • nginx.ingress.kubernetes.io/limit-whitelist

    要从速率限制中排除的客户端IP源范围。该值是一个逗号分隔的cidr列表

以上就是Ingress常用的相关配置，所有配置均来自官方文档：https://kubernetes.github.io/ingress-nginx/user-guide/nginx-configuration/annotations/

3、部署Ingress-Nginx

该Nginx是经过改造的，而不是传统的Nginx。

Ingress-Nginx官网地址

https://kubernetes.github.io/ingress-nginx/

Ingress-Nginx GitHub地址

https://github.com/kubernetes/ingress-nginx

本次下载版本：nginx-0.30.0


镜像下载与重命名

docker pull registry.cn-beijing.aliyuncs.com/google_registry/nginx-ingress-controller:0.30.0
docker tag 89ccad40ce8e quay.io/kubernetes-ingress-controller/nginx-ingress-controller:0.30.0
docker rmi  registry.cn-beijing.aliyuncs.com/google_registry/nginx-ingress-controller:0.30.0

ingress-nginx的yaml文件修改后并启动

# 当前目录
[root@k8s-master ingress]# pwd
/root/k8s_practice/ingress
# 获取NGINX: 0.30.0
[root@k8s-master ingress]# wget https://github.com/kubernetes/ingress-nginx/archive/nginx-0.30.0.tar.gz
[root@k8s-master ingress]# tar xf nginx-0.30.0.tar.gz
# yaml文件在下载包中的位置：ingress-nginx-nginx-0.30.0/deploy/static/mandatory.yaml
[root@k8s-master ingress]# cp -a ingress-nginx-nginx-0.30.0/deploy/static/mandatory.yaml ./
[root@k8s-master ingress]#
# yaml文件配置修改
[root@k8s-master ingress]# vim mandatory.yaml
………………
apiVersion: apps/v1
kind: DaemonSet   # 从Deployment改为DaemonSet
metadata:
  name: nginx-ingress-controller
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
spec:
  #replicas: 1   # 注释掉
………………
      nodeSelector:
        kubernetes.io/hostname: k8s-master   # 修改处
      # 如下几行为新加行  作用【允许在master节点运行】
      tolerations:
      - key: node-role.kubernetes.io/master
        effect: NoSchedule
………………
          ports:
            - name: http
              containerPort: 80
              hostPort: 80    # 添加处【可在宿主机通过该端口访问Pod】
              protocol: TCP
            - name: https
              containerPort: 443
              hostPort: 443   # 添加处【可在宿主机通过该端口访问Pod】
              protocol: TCP
………………
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl apply -f mandatory.yaml
namespace/ingress-nginx created
configmap/nginx-configuration created
configmap/tcp-services created
configmap/udp-services created
serviceaccount/nginx-ingress-serviceaccount created
clusterrole.rbac.authorization.k8s.io/nginx-ingress-clusterrole created
role.rbac.authorization.k8s.io/nginx-ingress-role created
rolebinding.rbac.authorization.k8s.io/nginx-ingress-role-nisa-binding created
clusterrolebinding.rbac.authorization.k8s.io/nginx-ingress-clusterrole-nisa-binding created
daemonset.apps/nginx-ingress-controller created
limitrange/ingress-nginx created
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl get ds -n ingress-nginx -o wide
NAME                       DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR                       AGE     CONTAINERS                 IMAGES                                                                  SELECTOR
nginx-ingress-controller   1         1         1       1            1           kubernetes.io/hostname=k8s-master   9m47s   nginx-ingress-controller   quay.io/kubernetes-ingress-controller/nginx-ingress-controller:0.30.0   app.kubernetes.io/name=ingress-nginx,app.kubernetes.io/part-of=ingress-nginx
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl get pod -n ingress-nginx -o wide
NAME                             READY   STATUS    RESTARTS   AGE     IP            NODE         NOMINATED NODE   READINESS GATES
nginx-ingress-controller-rrbh9   1/1     Running   0          9m55s   10.244.0.46   k8s-master   <none>           <none>

deply_service1的yaml信息

yaml文件

[root@k8s-master ingress]# pwd
/root/k8s_practice/ingress
[root@k8s-master ingress]# cat deply_service1.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: myapp-deploy1
  namespace: default
spec:
  replicas: 3
  selector:
    matchLabels:
      app: myapp
      release: v1
  template:
    metadata:
      labels:
        app: myapp
        release: v1
        env: test
    spec:
      containers:
      - name: myapp
        image: registry.cn-beijing.aliyuncs.com/google_registry/myapp:v1
        imagePullPolicy: IfNotPresent
        ports:
        - name: http
          containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: myapp-clusterip1
  namespace: default
spec:
  type: ClusterIP  # 默认类型
  selector:
    app: myapp
    release: v1
  ports:
  - name: http
    port: 80
    targetPort: 80

启动Deployment和Service

[root@k8s-master ingress]# kubectl apply -f deply_service1.yaml
deployment.apps/myapp-deploy1 created
service/myapp-clusterip1 created

查看Deploy状态和信息

[root@k8s-master ingress]# kubectl get deploy -o wide
NAME            READY   UP-TO-DATE   AVAILABLE   AGE   CONTAINERS   IMAGES                                                      SELECTOR
myapp-deploy1   3/3     3            3           28s   myapp        registry.cn-beijing.aliyuncs.com/google_registry/myapp:v1   app=myapp,release=v1
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl get rs -o wide
NAME                       DESIRED   CURRENT   READY   AGE   CONTAINERS   IMAGES                                                      SELECTOR
myapp-deploy1-5695bb5658   3         3         3       30s   myapp        registry.cn-beijing.aliyuncs.com/google_registry/myapp:v1   app=myapp,pod-template-hash=5695bb5658,release=v1
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl get pod -o wide --show-labels
NAME                             READY   STATUS    RESTARTS   AGE   IP             NODE         NOMINATED NODE   READINESS GATES   LABELS
myapp-deploy1-5695bb5658-n6548   1/1     Running   0          36s   10.244.2.144   k8s-node02   <none>           <none>            app=myapp,env=test,pod-template-hash=5695bb5658,release=v1
myapp-deploy1-5695bb5658-rqcpb   1/1     Running   0          36s   10.244.2.143   k8s-node02   <none>           <none>            app=myapp,env=test,pod-template-hash=5695bb5658,release=v1
myapp-deploy1-5695bb5658-vv6gm   1/1     Running   0          36s   10.244.3.200   k8s-node01   <none>           <none>            app=myapp,env=test,pod-template-hash=5695bb5658,release=v1

curl访问pod

[root@k8s-master ingress]# curl 10.244.2.144
Hello MyApp | Version: v1 | <a href="hostname.html">Pod Name</a>
[root@k8s-master ingress]#
[root@k8s-master ingress]# curl 10.244.2.144/hostname.html
myapp-deploy1-5695bb5658-n6548
[root@k8s-master ingress]#
[root@k8s-master ingress]# curl 10.244.2.143/hostname.html
myapp-deploy1-5695bb5658-rqcpb
[root@k8s-master ingress]#
[root@k8s-master ingress]# curl 10.244.3.200/hostname.html
myapp-deploy1-5695bb5658-vv6gm

查看Service状态和信息

[root@k8s-master ingress]# kubectl get svc -o wide
NAME               TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE     SELECTOR
kubernetes         ClusterIP   10.96.0.1       <none>        443/TCP   19d     <none>
myapp-clusterip1   ClusterIP   10.104.146.14   <none>        80/TCP    5m38s   app=myapp,release=v1

curl访问svc

[root@k8s-master ingress]# curl 10.104.146.14
Hello MyApp | Version: v1 | <a href="hostname.html">Pod Name</a>
[root@k8s-master ingress]#
[root@k8s-master ingress]# curl 10.104.146.14/hostname.html
myapp-deploy1-5695bb5658-n6548
[root@k8s-master ingress]#
[root@k8s-master ingress]# curl 10.104.146.14/hostname.html
myapp-deploy1-5695bb5658-vv6gm
[root@k8s-master ingress]#
[root@k8s-master ingress]# curl 10.104.146.14/hostname.html
myapp-deploy1-5695bb5658-rqcpb

deply_service2的yaml信息

yaml文件

[root@k8s-master ingress]# pwd
/root/k8s_practice/ingress
[root@k8s-master ingress]# cat deply_service2.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: myapp-deploy2
  namespace: default
spec:
  replicas: 3
  selector:
    matchLabels:
      app: myapp
      release: v2
  template:
    metadata:
      labels:
        app: myapp
        release: v2
        env: test
    spec:
      containers:
      - name: myapp
        image: registry.cn-beijing.aliyuncs.com/google_registry/myapp:v2
        imagePullPolicy: IfNotPresent
        ports:
        - name: http
          containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: myapp-clusterip2
  namespace: default
spec:
  type: ClusterIP  # 默认类型
  selector:
    app: myapp
    release: v2
  ports:
  - name: http
    port: 80
    targetPort: 80

启动Deployment和Service

[root@k8s-master ingress]# kubectl apply -f deply_service2.yaml
deployment.apps/myapp-deploy2 created
service/myapp-clusterip2 created

查看Deploy状态和信息

[root@k8s-master ingress]# kubectl get deploy myapp-deploy2 -o wide
NAME            READY   UP-TO-DATE   AVAILABLE   AGE   CONTAINERS   IMAGES                                                      SELECTOR
myapp-deploy2   3/3     3            3           9s    myapp        registry.cn-beijing.aliyuncs.com/google_registry/myapp:v2   app=myapp,release=v2
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl get rs  -o wide
NAME                       DESIRED   CURRENT   READY   AGE     CONTAINERS   IMAGES                                                      SELECTOR
myapp-deploy1-5695bb5658   3         3         3       7m23s   myapp        registry.cn-beijing.aliyuncs.com/google_registry/myapp:v1   app=myapp,pod-template-hash=5695bb5658,release=v1   # 之前创建的
myapp-deploy2-54f48f879b   3         3         3       15s     myapp        registry.cn-beijing.aliyuncs.com/google_registry/myapp:v2   app=myapp,pod-template-hash=54f48f879b,release=v2   # 当前deploy创建的
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl get pod -o wide --show-labels -l "release=v2"
NAME                             READY   STATUS    RESTARTS   AGE   IP             NODE         NOMINATED NODE   READINESS GATES   LABELS
myapp-deploy2-54f48f879b-7pxwp   1/1     Running   0          25s   10.244.3.201   k8s-node01   <none>           <none>            app=myapp,env=test,pod-template-hash=54f48f879b,release=v2
myapp-deploy2-54f48f879b-lqlh2   1/1     Running   0          25s   10.244.2.146   k8s-node02   <none>           <none>            app=myapp,env=test,pod-template-hash=54f48f879b,release=v2
myapp-deploy2-54f48f879b-pfvnn   1/1     Running   0          25s   10.244.2.145   k8s-node02   <none>           <none>            app=myapp,env=test,pod-template-hash=54f48f879b,release=v2

查看Service状态和信息

[root@k8s-master ingress]# kubectl get svc -o wide
NAME               TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE    SELECTOR
kubernetes         ClusterIP   10.96.0.1       <none>        443/TCP   19d    <none>
myapp-clusterip1   ClusterIP   10.104.146.14   <none>        80/TCP    8m9s   app=myapp,release=v1
myapp-clusterip2   ClusterIP   10.110.181.62   <none>        80/TCP    61s    app=myapp,release=v2

curl访问svc

[root@k8s-master ingress]# curl 10.110.181.62
Hello MyApp | Version: v2 | <a href="hostname.html">Pod Name</a>
[root@k8s-master ingress]#
[root@k8s-master ingress]# curl 10.110.181.62/hostname.html
myapp-deploy2-54f48f879b-lqlh2
[root@k8s-master ingress]#
[root@k8s-master ingress]# curl 10.110.181.62/hostname.html
myapp-deploy2-54f48f879b-7pxwp
[root@k8s-master ingress]#
[root@k8s-master ingress]# curl 10.110.181.62/hostname.html
myapp-deploy2-54f48f879b-pfvnn

Ingress HTTP代理访问

yaml文件【由于自建的service在默认default名称空间，因此这里也是default名称空间】

[root@k8s-master ingress]# pwd
/root/k8s_practice/ingress
[root@k8s-master ingress]# cat ingress-http.yaml
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: nginx-http
  namespace: default
spec:
  rules:
    - host: www.zhangtest.com
      http:
        paths:
        - path: /
          backend:
            serviceName: myapp-clusterip1
            servicePort: 80
    - host: blog.zhangtest.com
      http:
        paths:
        - path: /
          backend:
            serviceName: myapp-clusterip2
            servicePort: 80

启动ingress http并查看状态

[root@k8s-master ingress]# kubectl apply -f ingress-http.yaml
ingress.networking.k8s.io/nginx-http created
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl get ingress -o wide
NAME         HOSTS                                  ADDRESS   PORTS   AGE
nginx-http   www.zhangtest.com,blog.zhangtest.com             80      9s

查看nginx配置文件

[root@k8s-master ~]# kubectl get pod -A | grep 'ingre'
ingress-nginx          nginx-ingress-controller-rrbh9               1/1     Running   0          27m
[root@k8s-master ~]#
[root@k8s-master ~]# kubectl exec -it -n ingress-nginx nginx-ingress-controller-rrbh9 bash
bash-5.0$ cat /etc/nginx/nginx.conf
…………
##### 可见server www.zhangtest.com 和 server blog.zhangtest.com的配置

浏览器访问

hosts文件修改，添加如下信息

文件位置：C:\WINDOWS\System32\drivers\etc\hosts
添加信息如下：
# K8S ingress学习
10.0.0.110  www.zhangtest.com  blog.zhangtest.com

浏览器访问www.zhangtest.com

http://www.zhangtest.com/
http://www.zhangtest.com/hostname.html


浏览器访问blog.zhangtest.com

http://blog.zhangtest.com/
http://blog.zhangtest.com/hostname.html


当然：除了用浏览器访问外，也可以在Linux使用curl访问。前提是修改/etc/hosts文件，对上面的两个域名进行解析。

Ingress HTTPS代理访问

SSL证书创建

[root@k8s-master cert]# pwd
/root/k8s_practice/ingress/cert
[root@k8s-master cert]# openssl req -x509 -sha256 -nodes -days 365 -newkey rsa:2048 -keyout tls.key -out tls.crt -subj "/C=CN/ST=BJ/L=BeiJing/O=BTC/OU=MOST/CN=zhang/emailAddress=ca@test.com"
Generating a 2048 bit RSA private key
......................................................+++
........................+++
writing new private key to 'tls.key'
-----
[root@k8s-master cert]# kubectl create secret tls tls-secret --key tls.key --cert tls.crt
secret/tls-secret created

创建ingress https

yaml文件【由于自建的service在默认default名称空间，因此这里也是default名称空间】

[root@k8s-master ingress]# pwd
/root/k8s_practice/ingress
[root@k8s-master ingress]# cat ingress-https.yaml
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: nginx-https
  namespace: default
spec:
  tls:
    - hosts:
      - www.zhangtest.com
      - blog.zhangtest.com
      secretName: tls-secret
  rules:
    - host: www.zhangtest.com
      http:
        paths:
        - path: /
          backend:
            serviceName: myapp-clusterip1
            servicePort: 80
    - host: blog.zhangtest.com
      http:
        paths:
        - path: /
          backend:
            serviceName: myapp-clusterip2
            servicePort: 80

启动ingress https并查看状态

[root@k8s-master ingress]# kubectl apply -f ingress-https.yaml
ingress.networking.k8s.io/nginx-https created
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl get ingress -o wide
NAME          HOSTS                                  ADDRESS   PORTS     AGE
nginx-https   www.zhangtest.com,blog.zhangtest.com             80, 443   8s

浏览器访问

hosts文件修改，添加如下信息

文件位置：C:\WINDOWS\System32\drivers\etc\hosts
添加信息如下：
# K8S ingress学习
10.0.0.110  www.zhangtest.com  blog.zhangtest.com

浏览器访问www.zhangtest.com

https://www.zhangtest.com/
https://www.zhangtest.com/hostname.html


浏览器访问blog.zhangtest.com

https://blog.zhangtest.com/
https://blog.zhangtest.com/hostname.html


Ingress-Nginx实现BasicAuth认证

官网地址：

https://kubernetes.github.io/ingress-nginx/examples/auth/basic/

准备工作

[root@k8s-master ingress]# pwd
/root/k8s_practice/ingress
[root@k8s-master ingress]# yum install -y httpd
[root@k8s-master ingress]# htpasswd -c auth foo
New password: #输入密码
Re-type new password: #重复输入的密码
Adding password for user foo   ##### 此时会生成一个 auth文件
[root@k8s-master ingress]# kubectl create secret generic basic-auth --from-file=auth
secret/basic-auth created
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl get secret basic-auth -o yaml
apiVersion: v1
data:
  auth: Zm9vOiRhcHIxJFpaSUJUMDZOJDVNZ3hxdkpFNWVRTi9NdnZCcVpHaC4K
kind: Secret
metadata:
  creationTimestamp: "2020-08-17T09:42:04Z"
  name: basic-auth
  namespace: default
  resourceVersion: "775573"
  selfLink: /api/v1/namespaces/default/secrets/basic-auth
  uid: eef0853b-a52b-4684-922a-817e4cd9e9ca
type: Opaque

ingress yaml文件

[root@k8s-master ingress]# pwd
/root/k8s_practice/ingress
[root@k8s-master ingress]# cat nginx_basicauth.yaml
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: ingress-with-auth
  annotations:
    # type of authentication
    nginx.ingress.kubernetes.io/auth-type: basic
    # name of the secret that contains the user/password definitions
    nginx.ingress.kubernetes.io/auth-secret: basic-auth
    # message to display with an appropriate context why the authentication is required
    nginx.ingress.kubernetes.io/auth-realm: 'Authentication Required - foo'
spec:
  rules:
  - host: auth.zhangtest.com
    http:
      paths:
      - path: /
        backend:
          serviceName: myapp-clusterip1
          servicePort: 80

启动ingress并查看状态

[root@k8s-master ingress]# kubectl apply -f nginx_rewrite.yaml
ingress.networking.k8s.io/rewrite created
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl get ingress -o wide
NAME                HOSTS                   ADDRESS          PORTS     AGE
rewrite             rewrite.zhangtest.com                    80        13s

浏览器访问

hosts文件修改，添加如下信息

文件位置：C:\WINDOWS\System32\drivers\etc\hosts
添加信息如下：
# K8S ingress学习
10.0.0.110  www.zhangtest.com  blog.zhangtest.com auth.zhangtest.com  rewrite.zhangtest.com

浏览器访问rewrite.zhangtest.com

http://rewrite.zhangtest.com/


之后，可见重定向到了https://www.baidu.com 百度页面

Kubernetes技术--k8s核心技术 ingress
u013185175的博客
08-31 1631
Ingress 也是为了解决在集群之外，访问集群内部Service服务的问题。Ingress，是K8s的一个资源对象，定义了一系列路由转发规则（或反向代理规则）。它规定了外部进来的HTTP/HTTPS请求，应该被转发到哪个Service上。具体说，Ingress就是一段nginx服务的反向代理配置，它能根据请求中不同的Host和URL路径，将请求转发到不同的Service所对应的后端Pod上。Ingress除了能将集群内部的服务暴露给外界访问，它也是一个负载均衡器。
Kubernetes核心组件Ingress详解
最新发布
weixin_72583321的博客
05-27 1704
在Kubernetes集群中，Ingress作为集群内服务对外暴露的访问接入点，几乎承载着集群内服务访问的所有流量。Ingress是Kubernetes中的一个资源对象，用来管理集群外部访问集群内部服务的方式。您可以通过Ingress资源来配置不同的转发规则，从而实现根据不同的规则设置访问集群内不同的Service所对应的后端Pod。 Ingress资源仅支持配置HTTP流量的规则，无法配置一些高级特性，例如负载均衡的算法、Sessions Affinity等，这些高级特性都需要在Ingress Cont
19.使用 Kubernetes Ingress 对外暴露服务
迷逝
10-06 731
本文主要介绍如何通过 Kubernetes Ingress 资源对象实现从外部对 k8s 集群中服务的访问，介绍了 k8s 对外暴露服务的多种方法、Ingress 及 Ingress Controller 的概念。涉及到的话题有： k8s 对外暴露服务的方法； Ingress 及 Ingress Controller 简介； helm 裸机部署 Nginx Ingress Controller； 使用 Ingress 对外暴露服务； 通过 Ingress 访问 kubernetes dashboard（支
kubernetes-Ingress最佳方式对外暴露应用
zhenlong_qu的博客
02-08 1155
看到k8s-node2节点监听着80端口，这个跟service不一样，service是所有的后端pod都会监听80/443端口，这个是只有部署ingree-nginx的那台机器会监听80/443端口。hostNetwork: true - 当前的网络使用主机节点网络对外提供服务，如果在不做任何的配置下，刚才创建的。--key=blog.ctnrs.com-key.pem - 自签证书Key。--cert=blgo.ctnrs.com.pem - 自签证书。Ingress-Nginx高可用方案。
Ingress对外发布应用
Sebastien23的博客
02-15 388
Ingress对外发布应用NodePort存在的问题Ingress对外暴露应用Pod与Ingress的关系Ingress Controller部署Ingress创建规则 NodePort存在的问题 通过Service的NodePort发布应用可能存在以下问题： 端口冲突，每创建一个Service就会占用一个端口，因此需要做好端口的分配与管理； NodePort使用的是四层负载均衡（即传输层，通过IP+端口号转发流量），无法使用域名或URL进行转发； 无法为集群内所有的应用/Pod做统一的代理（统一的访问入
k8s 对外服务之 ingress|ingress的对外暴露方式|ingress http，https代理|ingress nginx的认证，nginx重写
m0_75015568的博客
05-27 3026
k8s 对外服务之 ingress|ingress的对外暴露方式|ingress http，https代理|ingress nginx的认证，nginx重写
Ingress暴露服务的方式
NancyLCL的博客
11-22 1489
同样用deployment模式部署ingres-controller，并创建对应的服务 ，但是type为NodePort，这样，ingress就会暴露在集群节点ip的特定端口上。由于nodeport暴露的端口是随机器口，一般会在前面再搭建一套负载均衡器来转发请求。用DaemonSet结合nodeselector来部署ingress-controller到特定的node上，然后使用HostNetwork直接把该pod与宿主机node的网络打通，直接使用宿主机的80/433端口就能访问服务。
kubernetes-node-linux-amd64.tar.gz
08-13
8. **Ingress**：提供对外暴露服务的方法，如通过HTTP/HTTPS路由。 9. **Helm**：Kubernetes的应用包管理工具，用于安装、升级和管理复杂的应用程序。 10. **Kustomize**：用于自定义Kubernetes资源的工具，无需...
第28天-Kubernetes架构，集群部署，Ingress，项目部署，Dashboard
zenggeweiss的博客
08-01 1295
Kubernetes架构，集群部署，Ingress，项目部署，Dashboard
ingress-nginx-controller（含镜像和代码）.rar
10-28
ingress-nginx-controller 是 Kubernetes 社区维护的一个项目，它提供了对 Ingress 资源的实现，使得可以通过定义简单的 YAML 文件来管理对外暴露的服务路由。Nginx 作为业界广泛使用的高性能反向代理服务器，其稳定...
Kubernetes对外暴露与应用
Gf19991225的博客
12-26 1134
文章目录一、Service是什么二、Service存在的意义三、Service定义与创建四、Service三种类型4.1 ClusterIP：集群内部使用4.2 NodePort：对外暴露应用（集群外）4.3 LoadBanlancer：对外暴露应用，适用于公有云五、Servcie代理模式5.1 kubeadm放式修改ipvs模式5.2 二进制方式修改ipvs模式5.3 流程包六、Service DNS名称 一、Service是什么 二、Service存在的意义 service引入主要是解决Pod的动态变化
使用ingress 暴露springcloud服务
mark's technic world
02-14 1108
使用ingress 暴露springcloud服务k8s 集群搭建成功了，也能部署应用了，但是不可能每次去访问服务的时候都要去查一下运行的node和nodePort吧，即使查好node和nodePort ，避免不了重启k8s或者 ReplicationController，node 和 nodeport 又会改变，K8s 提供了 Ingress 来解决这个问题。使用ingress 暴露spring...
ingress介绍和ingress通过LoadBalancer暴露服务配置
树下一少年的博客
12-07 2975
工作原理了类似于nginx，等于是在ingress里建立许多规则，在通过controller监听规则变化，生成对应的配置，实现对服务的反向代理配置，为外部提供服务，并动态更新。如果要把ingress部署在公有云，那用这种方式比较合适。用Deployment部署ingress-controller，创建一个type为 LoadBalancer的 service关联这组pod。公有云为LoadBalancer的 service自动创建一个负载均衡器，这时把域名解析指向地址，就实现了集群服务的对外暴露。
Ingress 配置对外暴露端口
kwame211的博客
06-09 2737
[root@hadoop108 online]# kubectl get all NAME READY STATUS RESTARTS AGE pod/nginx-ingress-controller-c69f98895-kk67b 1/1 Running 0 131m pod/nginx-ingress-default-backend-7c868...
k8s---ingress对外服务（ingress-controller）
qq_61843057的博客
01-17 2730
1、定义外部流量的路由规则2、定义了服务暴露方式，主机名、url访问路径和其他属性3、负载均衡（ingress-controller）ingress-controller的运行方式是pod方式运行在集群当中ingress-controller两种方式：nginx-ingress-controller、traefikingress-controller的三种工作模式：deployment+loadbalancer：需要云平台提供一个负载均衡的公网地址。公有云上做。需要收费。
nginx配置资源防盗链
赛赛
07-05 108
server{ listen 80; server_name localhost; # 对源站点验证 valid_referers *.it996.vip; #非法引入会进入下方判断 if($invalid_referer){ return 404; } }
ingress来实现端口暴露
mtldswz312的博客
10-07 5015
一、大致的部署流程如下： 1）下载Ingress-controller相关的YAML文件，并给Ingress-controller创建独立的名称空间； 2）部署后端的服务，如myapp，并通过service进行暴露； 3）部署Ingress-controller的service，以实现接入集群外部流量； 4）部署Ingress，进行定义规则，使Ingress-controller和后端服务的Pod...
Kubernetes(k8s)当中安装并使用ingress暴露应用
XiaoHH的博客
08-28 2202
Kubernetes(k8s)安装并使用ingress-nginx暴露内部服务应用，镜像全部使用国内源镜像。步骤超详细并且超顺畅
云计算之kubernetes服务暴露——ingress
mx_steve的博客
01-08 465
一，暴露方法 1、hostNetwork：true 在pod中使用该配置，在这种Pod中运行的应用程序可以直接看到pod启动的主机的网络接口。 2、hostPort：直接将容器的端口与所调度的节点上的端口路由，这样用户就可以通过主机的IP来访问Pod了。 3、NodePort：是K8s里一个广泛应用的服务暴露方式。K8s中的service默认情况都是使用Clu...
掌握Kubernetes Ingress与Ingress控制器的应用与配置
使用Ingress的好处显而易见，它提供了一个统一和抽象的接口，使得对外暴露服务变得简单、易于管理。在没有Ingress的情况下，用户可能需要为每个服务手动配置负载均衡器，这不仅增加了管理上的复杂度，而且在服务扩展...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
