1、Separator介绍
Separator :分隔符/分割线,用于分隔项控件中各个项的控件。
**************************************************************************************************************
2、常用属性
Background:背景色,分割线的颜色;
HorizontalAlignment/VerticalContentAlignment:该元素在父类布局中水平对齐方式/垂直对齐方式;
Margin:元素外边距;
Opacity:透明度设置;
Width/Height:宽度/高度;
**************************************************************************************************************
3、具体代码示例
<Window x:Class="WPFControlsTest.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:local="clr-namespace:WPFControlsTest"
mc:Ignorable="d" Background="#2d323c" Foreground="#dddddd"
Title="MainWindow" Height="200" Width="320">
<Grid Margin="10">
<Separator Margin="0 0" Background="Red" Width="200" Height="10" SnapsToDevicePixels="True" HorizontalAlignment="Stretch" VerticalAlignment="Top"/>
<Separator Margin="0 0" Background="Green" Width="100" Height="10" SnapsToDevicePixels="True" HorizontalAlignment="Left" VerticalAlignment="Center">
<Separator.LayoutTransform>
<TransformGroup>
<TransformGroup.Children>
<TransformCollection>
<RotateTransform Angle="90"/>
</TransformCollection>
</TransformGroup.Children>
</TransformGroup>
</Separator.LayoutTransform>
</Separator>
</Grid>
</Window>
**************************************************************************************************************

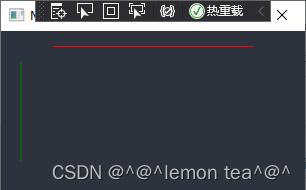

4、运行效果图
**************************************************************************************************************
5、总结和扩展
Separator中是没有属性可以设置数值分割线的,但是我们可以通过设置LayoutTransform来实现该功能。
在实际写示例过程中发现,设置Height值(大于0)是没有效果的,运行后分割线高度始终是1个像素。
其实要实现分割线的功能还可以用Border、Rectangle、GridSplitter控件。
**************************************************************************************************************
