App挂载文件-index.html
public目录下的index.html文件内容如下:
<!DOCTYPE html>
<html lang="">
<head>
<meta charset="utf-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width,initial-scale=1.0">
<link rel="icon" href="<%= BASE_URL %>favicon.ico">
<title><%= htmlWebpackPlugin.options.title %></title>
</head>
<body>
<noscript>
<strong>We're sorry but <%= htmlWebpackPlugin.options.title %> doesn't work properly without JavaScript enabled. Please enable it to continue.</strong>
</noscript>
<div id="app"></div>
<!-- built files will be auto injected -->
</body>
</html>
主要有一个div标签,提供vue创建的App进行挂载
创建App主文件-main.js
src目录下main.js文件内容如下:
// 从vue核心库中引入createApp方法
import { createApp } from 'vue'
// 引入当前目录下App.vue的组件
import App from './App.vue'
// 引入路由
import router from './router'
import store from './store'
// 创建APP,使用路由将其挂载到index.html文件上的div标签上
createApp(App).use(store).use(router).mount('#app')
main.js执行时是从上往下执行的。
根组件-App.vue
main.js是将App.vue组件引入并作为根节点挂载到index.html中,然后渲染到页面上
<!-- 模板部分 -->
<template>
<nav>
<!-- router-link路由链接导航,单击会渲染到router-view处,后者相当于一个占位符,用来显示路由结果的组件 -->
<router-link to="/">Home</router-link> |
<router-link to="/about">About</router-link>
</nav>
<router-view/>
</template>
<!-- css样式部分 scoped表示所有的样式仅在磁组件内容有效,不影响其他组件-->
<style lang="scss">
#app {
font-family: Avenir, Helvetica, Arial, sans-serif;
-webkit-font-smoothing: antialiased;
-moz-osx-font-smoothing: grayscale;
text-align: center;
color: #2c3e50;
}
nav {
padding: 30px;
a {
font-weight: bold;
color: #2c3e50;
&.router-link-exact-active {
color: #42b983;
}
}
}
</style>
<!-- 模板部分 -->
<script></script>
路由配置文件-router/index.js
// 从vue-router引入createRouter和createWebHashHistory 方法
import { createRouter, createWebHashHistory } from 'vue-router'
// 引入vuews目录下的Home.vue组件,并取名为HomeView
import HomeView from '../views/HomeView.vue'
// 配置路由,类型为数组
const routes = [
{
// 根路径,即第一个路由
path: '/',
// 路由名称
name: 'home',
// 对应组件模板
component: HomeView
},
{
path: '/about',
name: 'about',
// route level code-splitting
// this generates a separate chunk (about.[hash].js) for this route
// which is lazy-loaded when the route is visited.
// 路由懒加载,即路由被使用时才被加载
component: () => import(/* webpackChunkName: "about" */ '../views/AboutView.vue')
}
]
// 创建路由实例
const router = createRouter({
// 设置history模式的路由
history: createWebHashHistory(),
// 上面定义的路由数组
routes
})
// 暴露路由
export default router
浏览器访问之后,路由到第一个根路由,也就是HomeView,也就是说引入Home.vue组件替换App.vue组件内的路由占位符router-view
views/Home.vue
<template>
<div class="home">
<img alt="Vue logo" src="../assets/logo.png">
<!-- 使用子组件并渲染到网页中,传递数据msg -->
<HelloWorld msg="Welcome to Your Vue.js App"/>
</div>
</template>
<script>
// @ is an alias to /src
// @是一个别名,相当于/src文件夹
// 引入/src/components/HelloWorld.vue组件,取名为HelloWorld
import HelloWorld from '@/components/HelloWorld.vue'
export default {
name: 'HomeView',
components: {
// 定义子组件名称
HelloWorld
}
}
</script>
HelloWorld.vue
<template>
<div class="hello">
<h1>{{ msg }}</h1>
<p>
For a guide and recipes on how to configure / customize this project,<br>
check out the
<a href="https://cli.vuejs.org" target="_blank" rel="noopener">vue-cli documentation</a>.
</p>
<h3>Installed CLI Plugins</h3>
<ul>
<li><a href="https://github.com/vuejs/vue-cli/tree/dev/packages/%40vue/cli-plugin-babel" target="_blank" rel="noopener">babel</a></li>
<li><a href="https://github.com/vuejs/vue-cli/tree/dev/packages/%40vue/cli-plugin-router" target="_blank" rel="noopener">router</a></li>
<li><a href="https://github.com/vuejs/vue-cli/tree/dev/packages/%40vue/cli-plugin-vuex" target="_blank" rel="noopener">vuex</a></li>
<li><a href="https://github.com/vuejs/vue-cli/tree/dev/packages/%40vue/cli-plugin-eslint" target="_blank" rel="noopener">eslint</a></li>
</ul>
<h3>Essential Links</h3>
<ul>
<li><a href="https://vuejs.org" target="_blank" rel="noopener">Core Docs</a></li>
<li><a href="https://forum.vuejs.org" target="_blank" rel="noopener">Forum</a></li>
<li><a href="https://chat.vuejs.org" target="_blank" rel="noopener">Community Chat</a></li>
<li><a href="https://twitter.com/vuejs" target="_blank" rel="noopener">Twitter</a></li>
<li><a href="https://news.vuejs.org" target="_blank" rel="noopener">News</a></li>
</ul>
<h3>Ecosystem</h3>
<ul>
<li><a href="https://router.vuejs.org" target="_blank" rel="noopener">vue-router</a></li>
<li><a href="https://vuex.vuejs.org" target="_blank" rel="noopener">vuex</a></li>
<li><a href="https://github.com/vuejs/vue-devtools#vue-devtools" target="_blank" rel="noopener">vue-devtools</a></li>
<li><a href="https://vue-loader.vuejs.org" target="_blank" rel="noopener">vue-loader</a></li>
<li><a href="https://github.com/vuejs/awesome-vue" target="_blank" rel="noopener">awesome-vue</a></li>
</ul>
</div>
</template>
<script>
export default {
name: 'HelloWorld',
props: {
msg: String
}
}
</script>
<!-- Add "scoped" attribute to limit CSS to this component only -->
<style scoped lang="scss">
h3 {
margin: 40px 0 0;
}
ul {
list-style-type: none;
padding: 0;
}
li {
display: inline-block;
margin: 0 10px;
}
a {
color: #42b983;
}
</style>

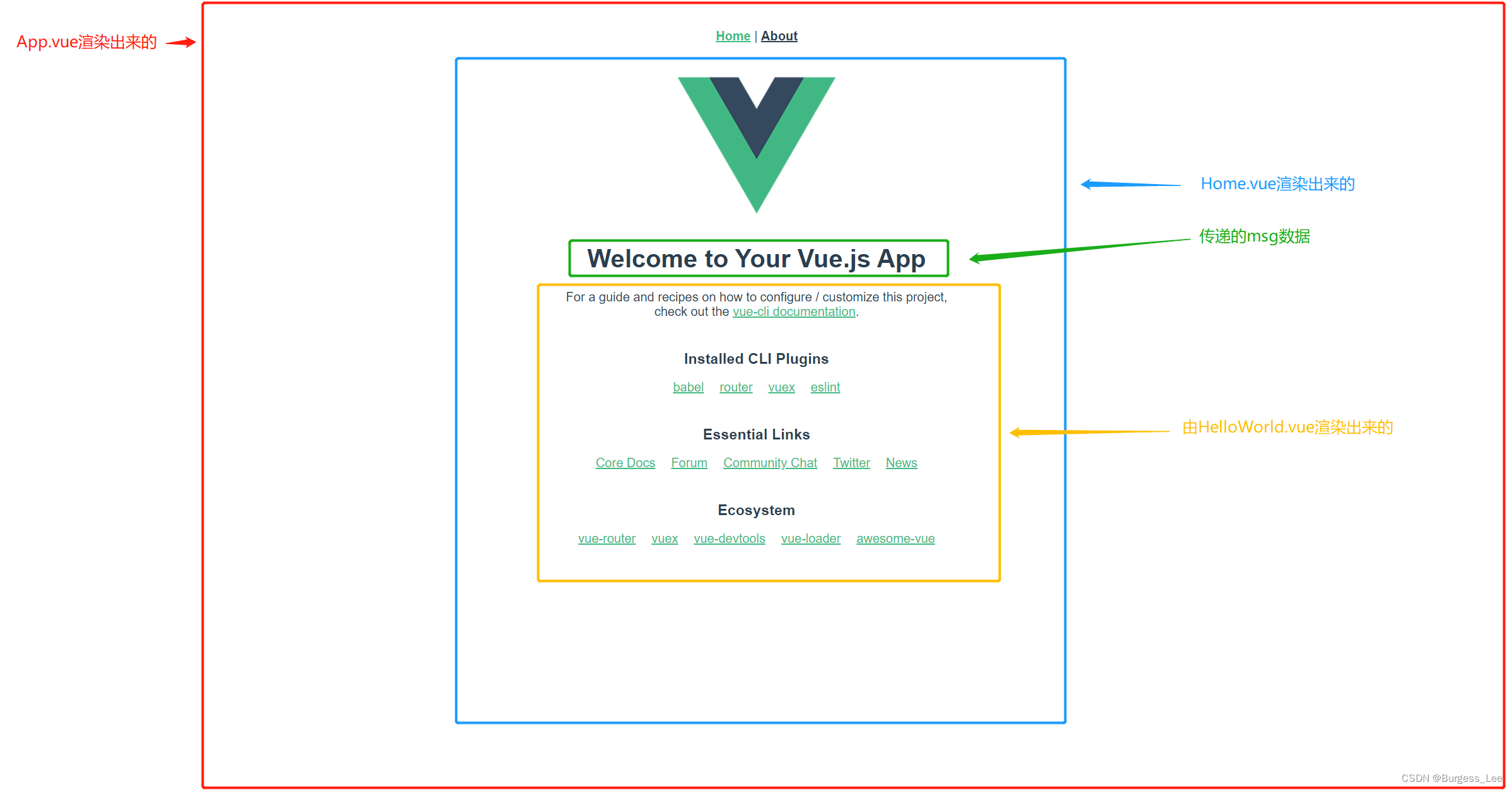

页面渲染部分的图示说明:
