华为云IoT智慧物流案例04 | 4G网卡拨号（广和通L610-CAT.1模组）与北斗定位模组（中科微电子）数据解析

回顾

衔接上个章节，稍微调整代码，令1个IIC接口同时接入2个设备并获取数据。

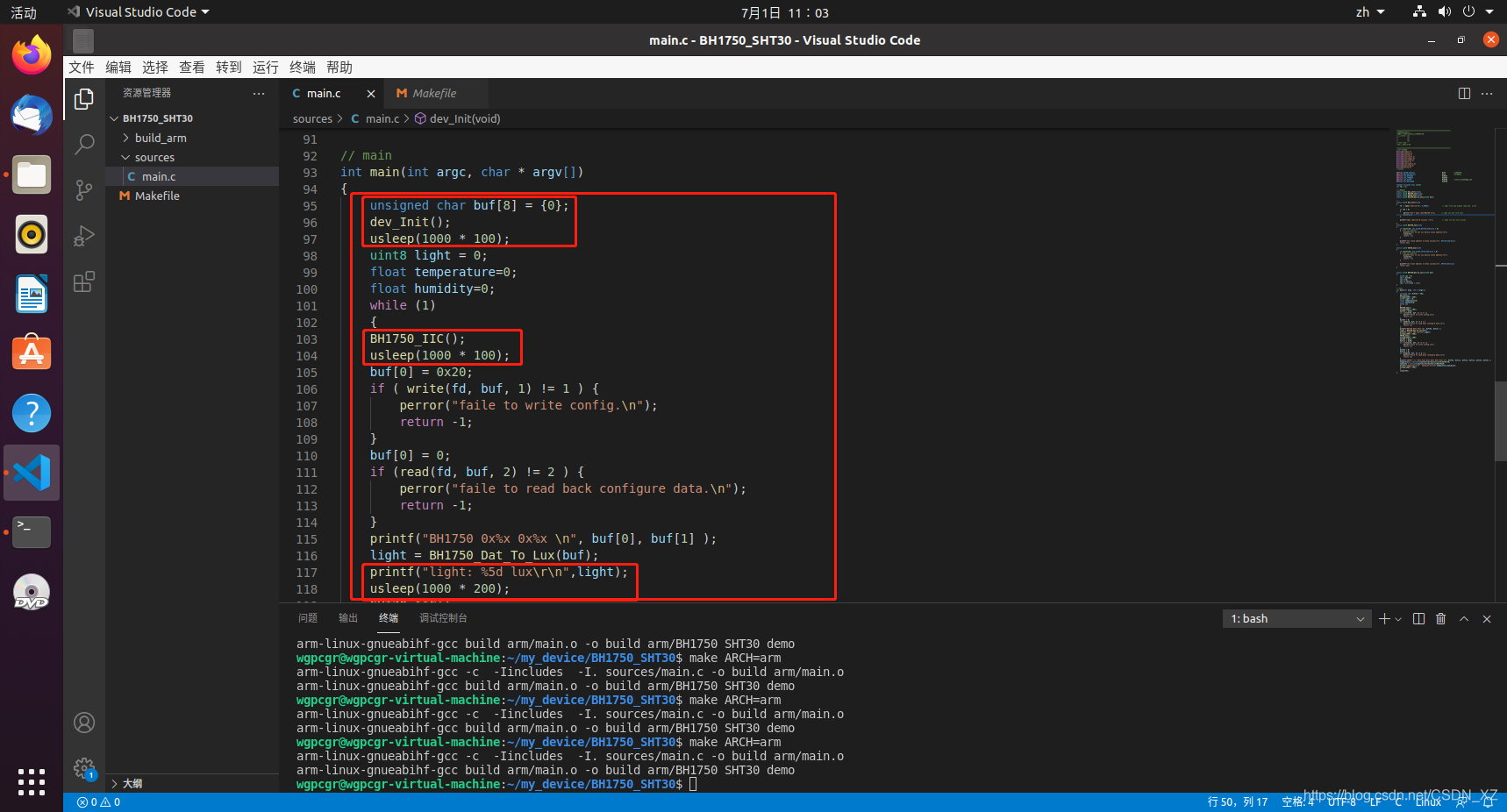

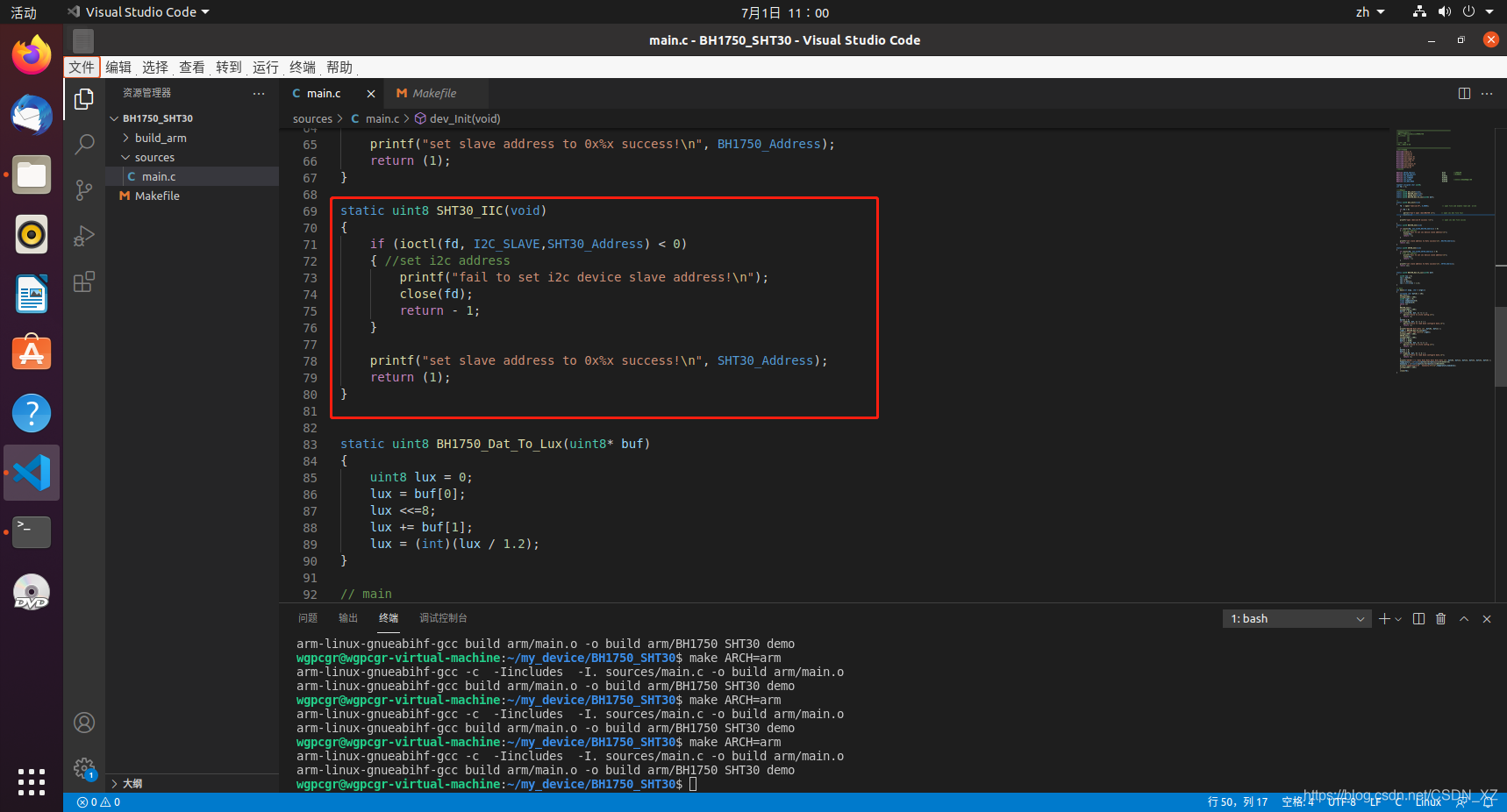

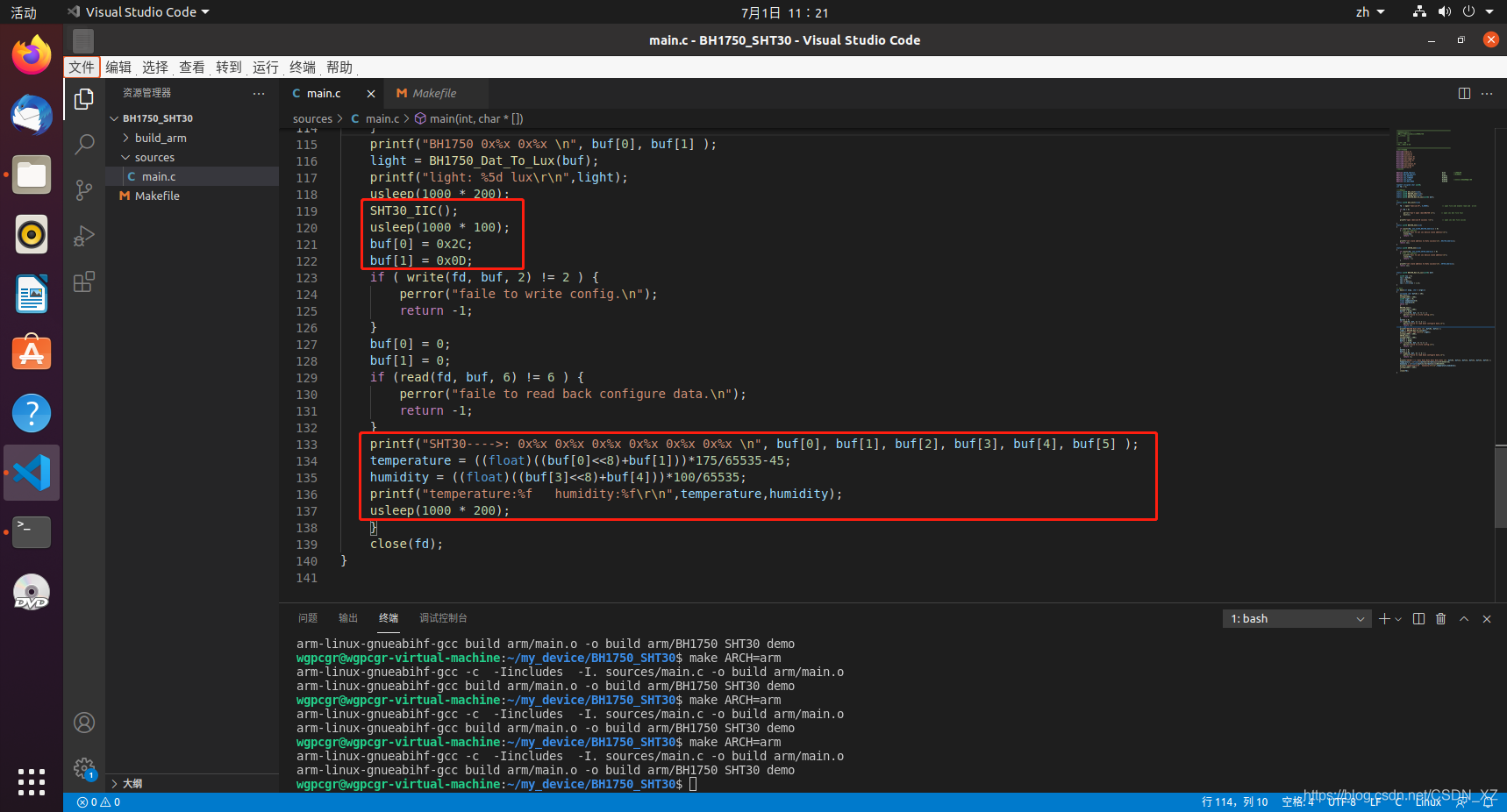

程序修改

//作者:实柏
//日期:2021-6-30

/************************************************************/
//包含头文件
#include<stdio.h>
#include<stdlib.h>
#include<unistd.h>
#include<sys/ioctl.h>
#include<sys/types.h>
#include<sys/stat.h>
#include<fcntl.h>
#include<sys/select.h>
#include<sys/time.h>
#include<errno.h>

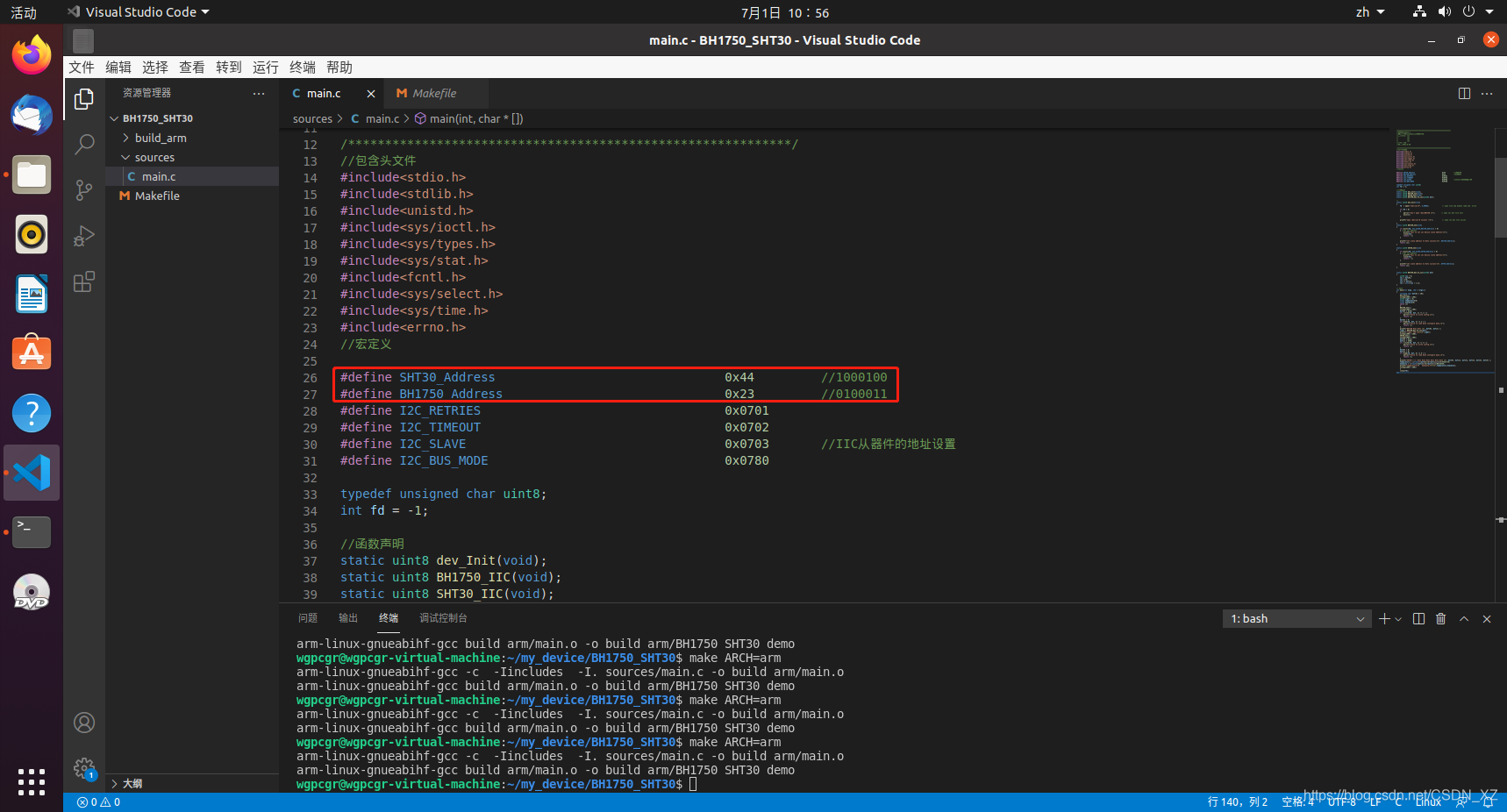

//宏定义

#define SHT30_Address                               0x44         //1000100
#define BH1750_Address                              0x23         //0100011
#define I2C_RETRIES                                 0x0701
#define I2C_TIMEOUT                                 0x0702
#define I2C_SLAVE                                   0x0703       //IIC从器件的地址设置
#define I2C_BUS_MODE                                0x0780

typedef unsigned char uint8;
int fd = -1;

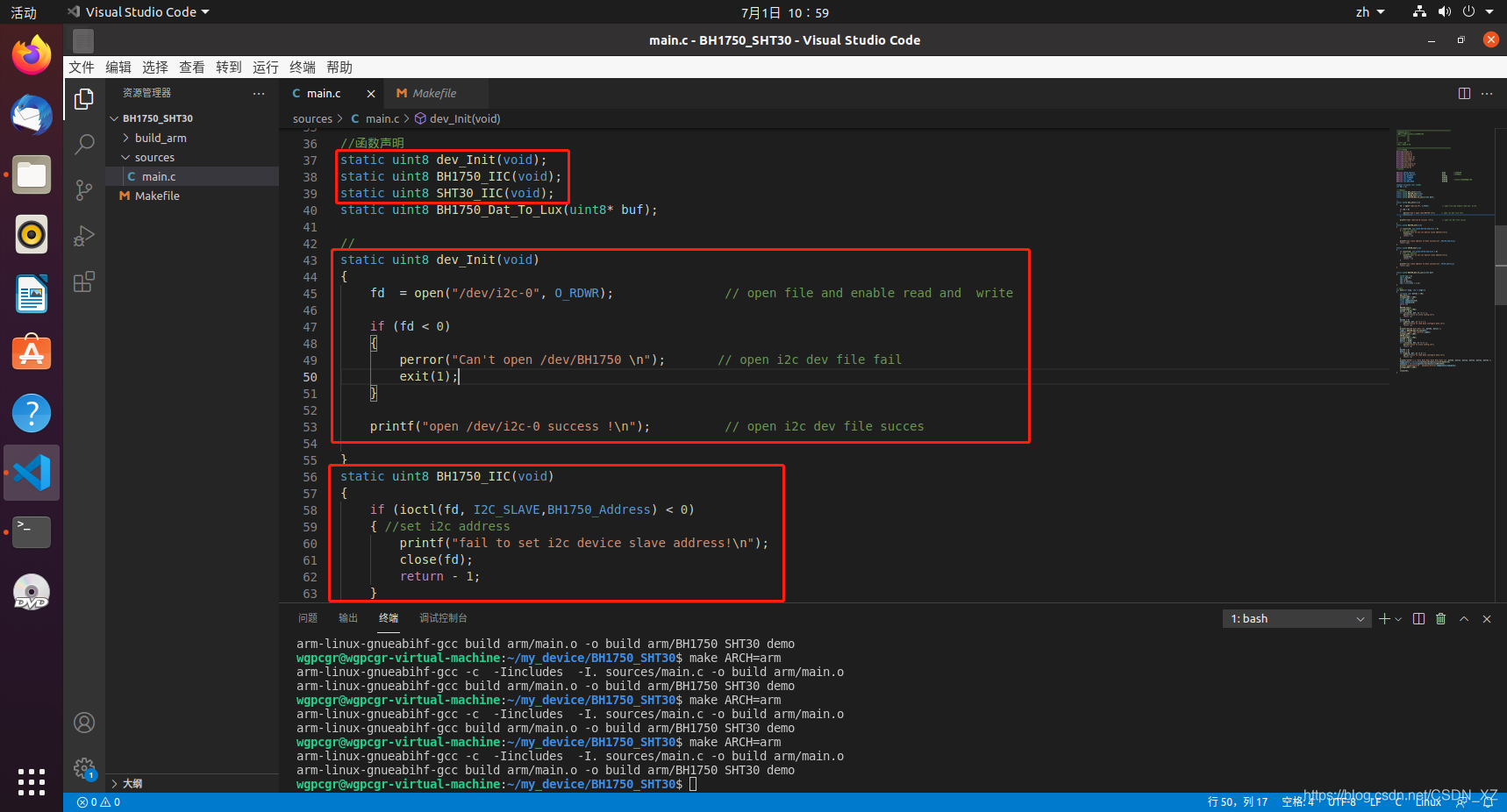

//函数声明
static uint8 dev_Init(void);
static uint8 BH1750_IIC(void);
static uint8 SHT30_IIC(void);
static uint8 BH1750_Dat_To_Lux(uint8* buf);

//
static uint8 dev_Init(void)
{
    fd  = open("/dev/i2c-0", O_RDWR);               // open file and enable read and  write

    if (fd < 0)
    {
        perror("Can't open /dev/BH1750 \n");       // open i2c dev file fail
        exit(1);
    }

    printf("open /dev/i2c-0 success !\n");          // open i2c dev file succes

}

static uint8 BH1750_IIC(void)
{
    if (ioctl(fd, I2C_SLAVE,BH1750_Address) < 0)
    { //set i2c address
        printf("fail to set i2c device slave address!\n");
        close(fd);
        return - 1;
    }

    printf("set slave address to 0x%x success!\n", BH1750_Address);
