snap7库下载：

https://sourceforge.net/projects/snap7/files/

将\snap7-full-1.4.2\release\Windows\Win64目录下的snap7.lib、snap7.dll，

与\snap7-full-1.4.2\examples\cpp\snap7.cpp、snap7.h拷贝至项目目录。

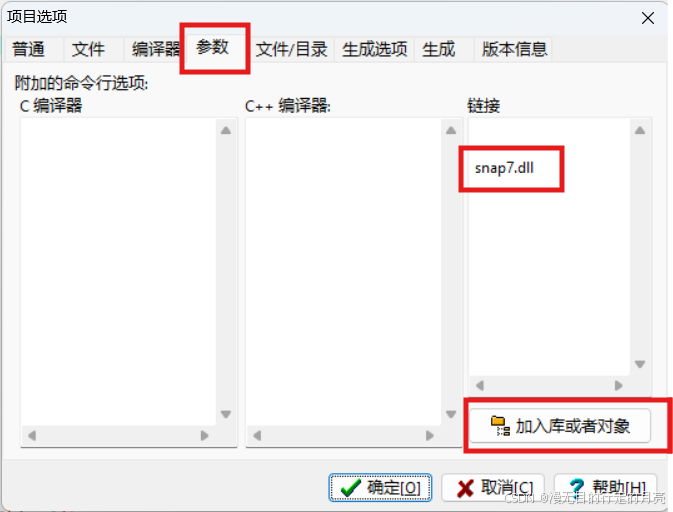

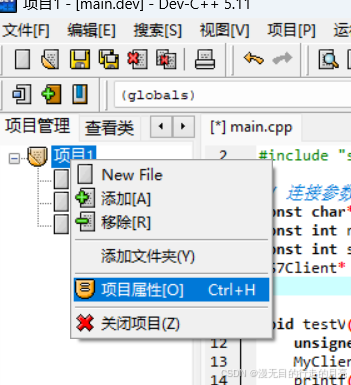

配置项目属性：

程序编写：

连接PLC：

const char* plc_address = "192.168.110.199";
const int rack = 0;
const int slot = 1;
TS7Client* MyClient;

MyClient = new TS7Client();
MyClient->ConnectTo(plc_address, rack, slot);
if (!MyClient->Connected() && MyClient->Connect()>0) {
    return -1;
}

按位读写：

	unsigned char value;
    MyClient->DBRead(1, 66, 1, &value);
    printf("%x",value&0x02);//V66.1

    value = value&0xfd;//V66.1置0
    value = value|0x02;//V66.1置1
    MyClient->DBWrite(1, 66, 1, &value);

按word读写（两个字节）：

	//写VW
    short newVal = 314;
    static unsigned char value[2];

    value[0]=( newVal>>8 ) & 0xff;
    value[1]=newVal&0xff;
    std::cout << "mydata:" << (int)value[0] <<","<<(int)value[1]<< std::endl;
    MyClient->DBWrite(1, 66, 2, value);

    //读VW
    MyClient->DBRead(1, 66, 2, value);
	int tmp = value[0]<<8 | value[1];
	printf("mydata:%d",tmp);

读写Real（4个字节）：

    float fval;
	unsigned char value[4];

	fval = 89.9;
	value[0]= ((unsigned char*)&fval)[3];
	value[1]= ((unsigned char*)&fval)[2];
	value[2]= ((unsigned char*)&fval)[1];
	value[3]= ((unsigned char*)&fval)[0];
    MyClient->DBWrite(1, 400, 4, value);

	MyClient->DBRead(1, 400, 4, value);
    for (int i = 0; i < 4; i++) {
        ((unsigned char*)&fval)[i] = value[3 - i];
    }
	printf("%f",fval);

结束：

delete MyClient;
