一、概述
1.1 功能介绍
应用退至后台后,在后台需要长时间运行用户可感知的任务,如播放音乐、导航等。为防止应用进程被挂起,导致对应功能异常,可以申请长时任务,使应用在后台长时间运行。在长时任务中,支持同时申请多种类型的任务,也可以对任务类型进行更新。应用退至后台执行业务时,系统会做一致性校验,确保应用在执行相应的长时任务。应用在申请长时任务成功后,通知栏会显示与长时任务相关联的消息,用户删除通知栏消息时,系统会自动停止长时任务。
1.2 使用场景
下表给出了当前长时任务支持的类型,包含数据传输、音视频播放、录制、定位导航、蓝牙相关业务、多设备互联、音视频通话和计算任务。可以参考下表中的场景举例,选择合适的长时任务类型。
长时任务类型
| 参数名 | 描述 | 配置项 | 场景举例 |
|---|---|---|---|
| DATA_TRANSFER | 数据传输 | dataTransfer | 非托管形式的上传、下载,如在浏览器后台上传或下载数据。 |
| AUDIO_PLAYBACK | 音视频播放 | audioPlayback | 音频、视频在后台播放,音视频投播。 说明: 支持在元服务中使用。 |
| AUDIO_RECORDING | 录制 | audioRecording | 录音、录屏退后台。 |
| LOCATION | 定位导航 | location | 定位、导航。 |
| BLUETOOTH_INTERACTION | 蓝牙相关业务 | bluetoothInteraction | 通过蓝牙传输文件时退后台。 |
| MULTI_DEVICE_CONNECTION | 多设备互联 | multiDeviceConnection | 分布式业务连接、投播。 说明: 支持在元服务中使用。 |
| VOIP | 音视频通话 | voip | 某些聊天类应用(具有音视频业务)音频、视频通话时退后台。 |
| TASK_KEEPING | 计算任务(仅对2in1设备开放) | taskKeeping | 如杀毒软件。 |
关于DATA_TRANSFER(数据传输)说明:
- 在数据传输时,若应用使用上传下载代理接口托管给系统,即使申请DATA_TRANSFER的后台任务,应用退后台时还是会被挂起。
- 在数据传输时,应用需要更新进度,如果进度长时间(超过10分钟)未更新,数据传输的长时任务会被取消。更新进度的通知类型必须为实况窗,具体实现可参考startBackgroundRunning()中的示例。
关于AUDIO_PLAYBACK(音视频播放)说明:
- 音视频投播,是指将一台设备的音视频投至另一台设备播放。投播退至后台,长时任务会检测音视频播放和投屏两个业务,只要有其一正常运行,长时任务就不会终止。
- 当应用需要在后台播放媒体类型(流类型为STREAM_USAGE_MUSIC、STREAM_USAGE_MOVIE和STREAM_USAGE_AUDIOBOOK)和游戏类型(流类型为STREAM_USAGE_GAME)时,必须接入媒体会话服务(AVSession)并申请AUDIO_PLAYBACK类型长时任务。
- 除了上述播放类型,针对用户可感知的其他播放任务,如果应用需要在后台长时间运行该任务,必须申请AUDIO_PLAYBACK类型长时任务,无需接入AVSession。
- 如果应用不满足上述接入规范,退至后台播放时会被系统静音并冻结,无法在后台正常播放,直到应用重新切回前台时,才会解除静音并恢复播放。
- 从API version 20开始,申请AUDIO_PLAYBACK类型长时任务但不接入AVSession,申请长时任务成功后会在通知栏显示通知;接入AVSession后,后台任务模块不会发送通知栏通知,由AVSession发送通知。对于API version 19及之前的版本,后台任务模块不会在通知栏显示通知。
1.3 约束与限制
申请限制:Stage模型中,长时任务仅支持UIAbility申请;FA模型中,长时任务仅支持ServiceAbility申请。长时任务支持设备当前应用申请,也支持跨设备或跨应用申请,跨设备或跨应用仅对系统应用开放。
数量限制:一个UIAbility(FA模型则为ServiceAbility)同一时刻仅支持申请一个长时任务,即在一个长时任务结束后才可能继续申请。如果一个应用同时需要申请多个长时任务,需要创建多个UIAbility;一个应用的一个UIAbility申请长时任务后,整个应用下的所有进程均不会被挂起。
- 运行限制:
- 申请长时任务后,应用未执行相应的业务,系统会对应用进行管控,即应用退至后台会被挂起。如系统检测到应用申请了AUDIO_PLAYBACK(音视频播放),但实际未播放音乐。
- 申请长时任务后,应用执行的业务类型与申请的不一致,系统会对应用进行管控,即应用退至后台会被挂起。如系统检测到应用只申请了AUDIO_PLAYBACK(音视频播放),但实际上除了播放音乐(对应AUDIO_PLAYBACK类型),还在进行录制(对应AUDIO_RECORDING类型)。
- 申请长时任务后,应用的业务已执行完,系统会对应用进行管控,即应用退至后台会被挂起。
- 若运行长时任务的进程后台负载持续高于所申请类型的典型负载,系统会对应用进行管控,即应用退至后台会被挂起或终止。
说明
应用按需求申请长时任务,当应用无需在后台运行(任务结束)时,要及时主动取消长时任务,否则应用退至后台会被系统挂起。例如用户主动点击音乐暂停播放时,应用需及时取消对应的长时任务;用户再次点击音乐播放时,需重新申请长时任务。
若音频在后台播放时被打断,系统会自行检测和停止长时任务,音频重启播放时,需要再次申请长时任务。
后台播放音频的应用,在停止长时任务的同时,需要暂停或停止音频流,否则应用会被系统强制终止。
二、接口说明
主要接口
以下是长时任务开发使用的相关接口,下表均以Promise形式为例,更多接口及使用方式请见后台任务管理。
| 接口名 | 描述 |
|---|---|
| startBackgroundRunning(context: Context, bgMode: BackgroundMode, wantAgent: WantAgent): Promise<void> | 申请长时任务 |
| stopBackgroundRunning(context: Context): Promise<void> | 取消长时任务 |
三、开发步骤
本文以申请录制长时任务为例,实现如下功能:
- 点击“申请长时任务”按钮,应用申请录制长时任务成功,通知栏显示“正在运行录制任务”通知。
- 点击“取消长时任务”按钮,取消长时任务,通知栏撤销相关通知。
3.1 Stage模型
- 需要申请ohos.permission.KEEP_BACKGROUND_RUNNING权限,配置方式请参见声明权限。
- 声明后台模式类型。
在module.json5文件中为需要使用长时任务的UIAbility声明相应的长时任务类型,配置文件中填写长时任务类型的配置项。
"module": {
"abilities": [
{
"backgroundModes": [
// 长时任务类型的配置项
"audioRecording",
"bluetoothInteraction",
"audioPlayback"
]
}
],
// ...
}
- 导入模块。
长时任务相关的模块为@ohos.resourceschedule.backgroundTaskManager和@ohos.app.ability.wantAgent,其余模块按实际需要导入。
import { backgroundTaskManager } from '@kit.BackgroundTasksKit';
import { BusinessError } from '@kit.BasicServicesKit';
import { wantAgent, WantAgent } from '@kit.AbilityKit';
// 在元服务中,请删除WantAgent导入
- 申请和取消长时任务。

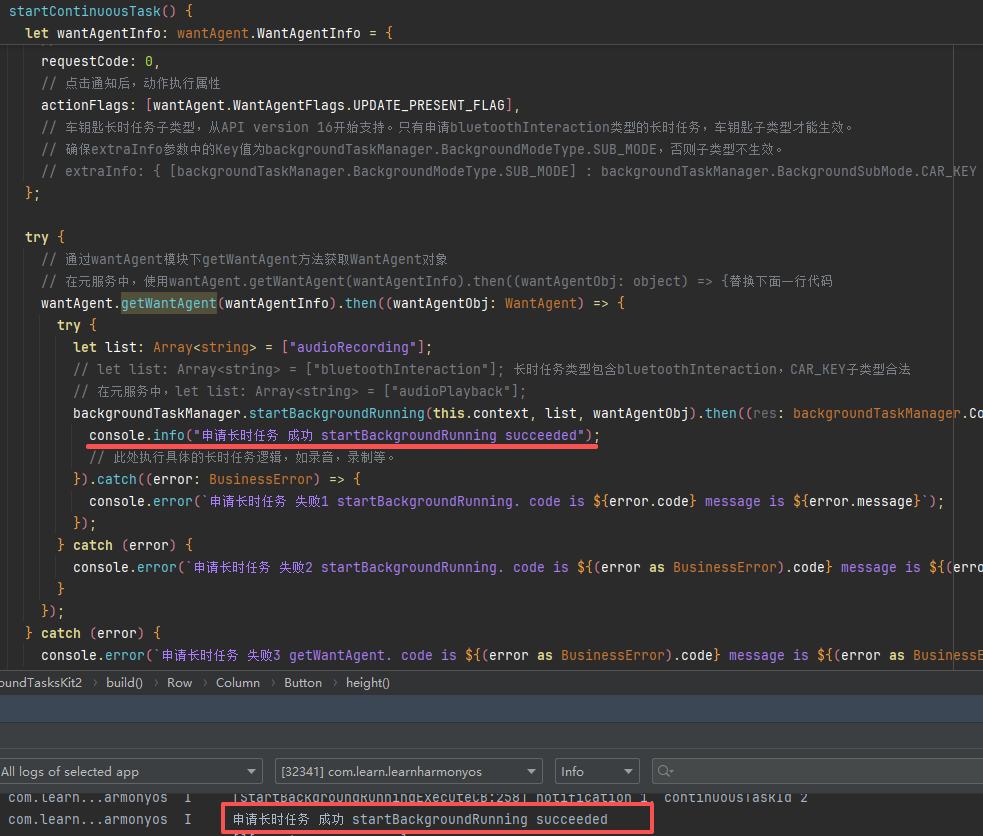

效果图
设备当前应用申请和取消长时任务示例代码如下:
function callback(info: backgroundTaskManager.ContinuousTaskCancelInfo) {
// 长时任务id
console.info('OnContinuousTaskCancel callback id ' + info.id);
// 长时任务取消原因
console.info('OnContinuousTaskCancel callback reason ' + info.reason);
}
@Entry
@Component
struct Index {
@State message: string = 'ContinuousTask';
// 通过getUIContext().getHostContext()方法,来获取page所在的UIAbility上下文
private context: Context | undefined = this.getUIContext().getHostContext();
OnContinuousTaskCancel() {
try {
backgroundTaskManager.on("continuousTaskCancel", callback);
console.info(`Succeeded in operationing OnContinuousTaskCancel.`);
} catch (error) {
console.error(`Operation OnContinuousTaskCancel failed. code is ${(error as BusinessError).code} message is ${(error as BusinessError).message}`);
}
}
OffContinuousTaskCancel() {
try {
// callback参数不传,则取消所有已注册的回调
backgroundTaskManager.off("continuousTaskCancel", callback);
console.info(`Succeeded in operationing OffContinuousTaskCancel.`);
} catch (error) {
console.error(`Operation OffContinuousTaskCancel failed. code is ${(error as BusinessError).code} message is ${(error as BusinessError).message}`);
}
}
// 申请长时任务.then()写法
startContinuousTask() {
let wantAgentInfo: wantAgent.WantAgentInfo = {
// 点击通知后,将要执行的动作列表
// 添加需要被拉起应用的bundleName和abilityName
wants: [
{
bundleName: "com.example.myapplication",
abilityName: "MainAbility"
}
],
// 指定点击通知栏消息后的动作是拉起ability
actionType: wantAgent.OperationType.START_ABILITY,
// 使用者自定义的一个私有值
requestCode: 0,
// 点击通知后,动作执行属性
actionFlags: [wantAgent.WantAgentFlags.UPDATE_PRESENT_FLAG],
// 车钥匙长时任务子类型,从API version 16开始支持。只有申请bluetoothInteraction类型的长时任务,车钥匙子类型才能生效。
// 确保extraInfo参数中的Key值为backgroundTaskManager.BackgroundModeType.SUB_MODE,否则子类型不生效。
// extraInfo: { [backgroundTaskManager.BackgroundModeType.SUB_MODE] : backgroundTaskManager.BackgroundSubMode.CAR_KEY }
};
try {
// 通过wantAgent模块下getWantAgent方法获取WantAgent对象
// 在元服务中,使用wantAgent.getWantAgent(wantAgentInfo).then((wantAgentObj: object) => {替换下面一行代码
wantAgent.getWantAgent(wantAgentInfo).then((wantAgentObj: WantAgent) => {
try {
let list: Array<string> = ["audioRecording"];
// let list: Array<string> = ["bluetoothInteraction"]; 长时任务类型包含bluetoothInteraction,CAR_KEY子类型合法
// 在元服务中,let list: Array<string> = ["audioPlayback"];
backgroundTaskManager.startBackgroundRunning(this.context, list, wantAgentObj).then((res: backgroundTaskManager.ContinuousTaskNotification) => {
console.info("Operation startBackgroundRunning succeeded");
// 此处执行具体的长时任务逻辑,如录音,录制等。
}).catch((error: BusinessError) => {
console.error(`Failed to Operation startBackgroundRunning. code is ${error.code} message is ${error.message}`);
});
} catch (error) {
console.error(`Failed to Operation startBackgroundRunning. code is ${(error as BusinessError).code} message is ${(error as BusinessError).message}`);
}
});
} catch (error) {
console.error(`Failed to Operation getWantAgent. code is ${(error as BusinessError).code} message is ${(error as BusinessError).message}`);
}
}
// 取消长时任务.then()写法
stopContinuousTask() {
backgroundTaskManager.stopBackgroundRunning(this.context).then(() => {
console.info(`Succeeded in operationing stopBackgroundRunning.`);
}).catch((err: BusinessError) => {
console.error(`Failed to operation stopBackgroundRunning. Code is ${err.code}, message is ${err.message}`);
});
}
build() {
Row() {
Column() {
Text("Index")
.fontSize(50)
.fontWeight(FontWeight.Bold)
Button() {
Text('申请长时任务').fontSize(25).fontWeight(FontWeight.Bold)
}
.type(ButtonType.Capsule)
.margin({ top: 10 })
.backgroundColor('#0D9FFB')
.width(250)
.height(40)
.onClick(() => {
// 通过按钮申请长时任务
this.startContinuousTask();
})
Button() {
Text('取消长时任务').fontSize(25).fontWeight(FontWeight.Bold)
}
.type(ButtonType.Capsule)
.margin({ top: 10 })
.backgroundColor('#0D9FFB')
.width(250)
.height(40)
.onClick(() => {
// 此处结束具体的长时任务的执行
// 通过按钮取消长时任务
this.stopContinuousTask();
})
Button() {
Text('注册长时任务取消回调').fontSize(25).fontWeight(FontWeight.Bold)
}
.type(ButtonType.Capsule)
.margin({ top: 10 })
.backgroundColor('#0D9FFB')
.width(250)
.height(40)
.onClick(() => {
// 通过按钮注册长时任务取消回调
this.OnContinuousTaskCancel();
})
Button() {
Text('取消注册长时任务取消回调').fontSize(25).fontWeight(FontWeight.Bold)
}
.type(ButtonType.Capsule)
.margin({ top: 10 })
.backgroundColor('#0D9FFB')
.width(250)
.height(40)
.onClick(() => {
// 通过按钮取消注册长时任务取消回调
this.OffContinuousTaskCancel();
})
}
.width('100%')
}
.height('100%')
}
}
- 申请和取消长时任务async/await写法。

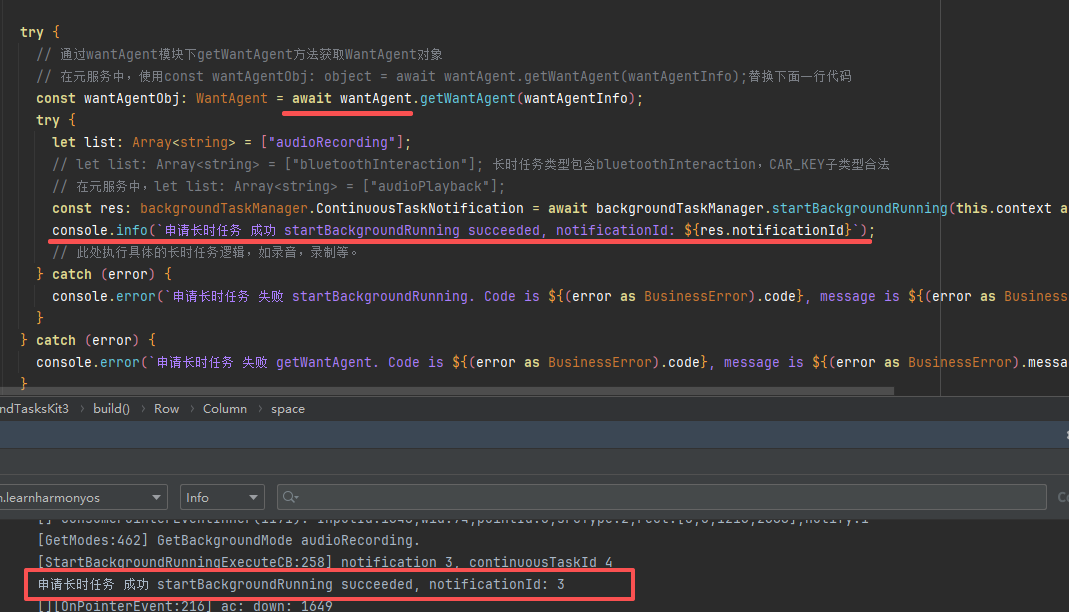

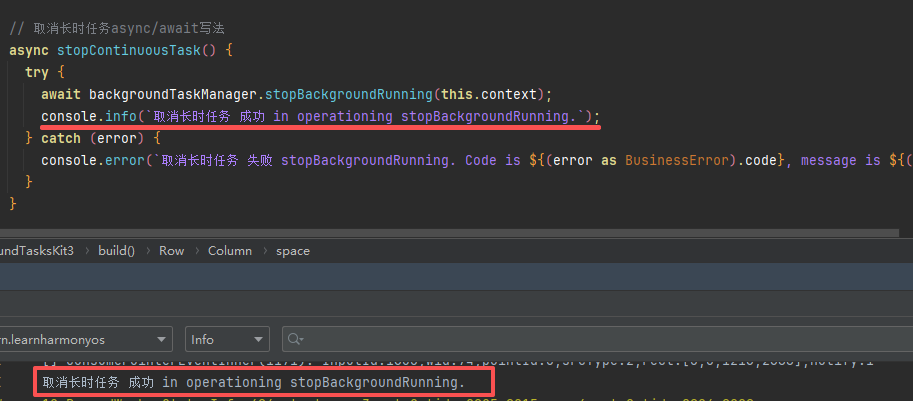

效果图
设备当前应用申请和取消长时任务async/await写法示例代码如下:
@Entry
@Component
struct Index {
@State message: string = 'ContinuousTask';
// 通过getUIContext().getHostContext()方法,来获取page所在的UIAbility上下文
private context: Context | undefined = this.getUIContext().getHostContext();
// 申请长时任务async/await写法
async startContinuousTask() {
let wantAgentInfo: wantAgent.WantAgentInfo = {
// 点击通知后,将要执行的动作列表
// 添加需要被拉起应用的bundleName和abilityName
wants: [
{
bundleName: "com.example.myapplication",
abilityName: "MainAbility"
}
],
// 指定点击通知栏消息后的动作是拉起ability
actionType: wantAgent.OperationType.START_ABILITY,
// 使用者自定义的一个私有值
requestCode: 0,
// 点击通知后,动作执行属性
actionFlags: [wantAgent.WantAgentFlags.UPDATE_PRESENT_FLAG],
// 车钥匙长时任务子类型,从API version 16开始支持。只有申请bluetoothInteraction类型的长时任务,车钥匙子类型才能生效。
// 确保extraInfo参数中的Key值为backgroundTaskManager.BackgroundModeType.SUB_MODE,否则子类型不生效。
// extraInfo: { [backgroundTaskManager.BackgroundModeType.SUB_MODE] : backgroundTaskManager.BackgroundSubMode.CAR_KEY }
};
try {
// 通过wantAgent模块下getWantAgent方法获取WantAgent对象
// 在元服务中,使用const wantAgentObj: object = await wantAgent.getWantAgent(wantAgentInfo);替换下面一行代码
const wantAgentObj: WantAgent = await wantAgent.getWantAgent(wantAgentInfo);
try {
let list: Array<string> = ["audioRecording"];
// let list: Array<string> = ["bluetoothInteraction"]; 长时任务类型包含bluetoothInteraction,CAR_KEY子类型合法
// 在元服务中,let list: Array<string> = ["audioPlayback"];
const res: backgroundTaskManager.ContinuousTaskNotification = await backgroundTaskManager.startBackgroundRunning(this.context as Context, list, wantAgentObj);
console.info(`Operation startBackgroundRunning succeeded, notificationId: ${res.notificationId}`);
// 此处执行具体的长时任务逻辑,如录音,录制等。
} catch (error) {
console.error(`Failed to Operation startBackgroundRunning. Code is ${(error as BusinessError).code}, message is ${(error as BusinessError).message}`);
}
} catch (error) {
console.error(`Failed to Operation getWantAgent. Code is ${(error as BusinessError).code}, message is ${(error as BusinessError).message}`);
}
}
// 取消长时任务async/await写法
async stopContinuousTask() {
try {
await backgroundTaskManager.stopBackgroundRunning(this.context);
console.info(`Succeeded in operationing stopBackgroundRunning.`);
} catch (error) {
console.error(`Failed to operation stopBackgroundRunning. Code is ${(error as BusinessError).code}, message is ${(error as BusinessError).message}`)
}
}
build() {
Row() {
Column() {
Text("Index")
.fontSize(50)
.fontWeight(FontWeight.Bold)
Button() {
Text('申请长时任务').fontSize(25).fontWeight(FontWeight.Bold)
}
.type(ButtonType.Capsule)
.margin({ top: 10 })
.backgroundColor('#0D9FFB')
.width(250)
.height(40)
.onClick(() => {
// 通过按钮申请长时任务
this.startContinuousTask();
})
Button() {
Text('取消长时任务').fontSize(25).fontWeight(FontWeight.Bold)
}
.type(ButtonType.Capsule)
.margin({ top: 10 })
.backgroundColor('#0D9FFB')
.width(250)
.height(40)
.onClick(() => {
// 此处结束具体的长时任务的执行
// 通过按钮取消长时任务
this.stopContinuousTask();
})
}
.width('100%')
}
.height('100%')
}
}
