ViewPager切换动画——PageTransformer

官方示例地址：
http://developer.android.com/training/animation/screen-slide.html

ViewPager的方法：

setPageTransformer(boolean reverseDrawingOrder, PageTransformer transformer)// 用于设置ViewPager切换时的动画效果

官方给出了两种效果实例：

1、DepthPageTransformer

public class DepthPageTransformer implements ViewPager.PageTransformer {
    private static final float MIN_SCALE = 0.75f;

    public void transformPage(View view, float position) {
        int pageWidth = view.getWidth();

        if (position < -1) { // [-Infinity,-1)
            // This page is way off-screen to the left.
            view.setAlpha(0);

        } else if (position <= 0) { // [-1,0]
            // Use the default slide transition when moving to the left page
            view.setAlpha(1);
            view.setTranslationX(0);
            view.setScaleX(1);
            view.setScaleY(1);

        } else if (position <= 1) { // (0,1]
            // Fade the page out.
            view.setAlpha(1 - position);

            // Counteract the default slide transition
            view.setTranslationX(pageWidth * -position);

            // Scale the page down (between MIN_SCALE and 1)
            float scaleFactor = MIN_SCALE
                    + (1 - MIN_SCALE) * (1 - Math.abs(position));
            view.setScaleX(scaleFactor);
            view.setScaleY(scaleFactor);

        } else { // (1,+Infinity]
            // This page is way off-screen to the right.
            view.setAlpha(0);
        }
    }
}

viewpager使用

mViewPager.setPageTransformer(true, new DepthPageTransformer());

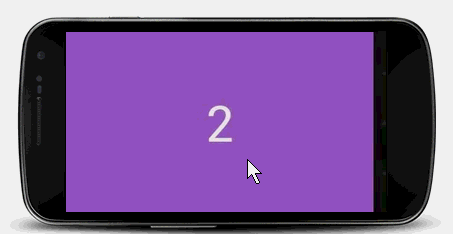

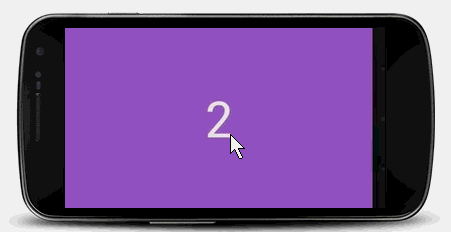

效果图

2、ZoomOutPageTransformer

public class ZoomOutPageTransformer implements ViewPager.PageTransformer
{
    private static final float MIN_SCALE = 0.85f;
    private static final float MIN_ALPHA = 0.5f;

    @SuppressLint("NewApi")
    public void transformPage(View view, float position)
    {
        int pageWidth = view.getWidth();
        int pageHeight = view.getHeight();

        Log.e("TAG", view + " , " + position + "");

        if (position < -1)
        { // [-Infinity,-1)
            // This page is way off-screen to the left.
            view.setAlpha(0);

        } else if (position <= 1) //a页滑动至b页 ； a页从 0.0 -1 ；b页从1 ~ 0.0
        { // [-1,1]
            // Modify the default slide transition to shrink the page as well
            float scaleFactor = Math.max(MIN_SCALE, 1 - Math.abs(position));
            float vertMargin = pageHeight * (1 - scaleFactor) / 2;
            float horzMargin = pageWidth * (1 - scaleFactor) / 2;
            if (position < 0)
            {
                view.setTranslationX(horzMargin - vertMargin / 2);
            } else
            {
                view.setTranslationX(-horzMargin + vertMargin / 2);
            }

            // Scale the page down (between MIN_SCALE and 1)
            view.setScaleX(scaleFactor);
            view.setScaleY(scaleFactor);

            // Fade the page relative to its size.
            view.setAlpha(MIN_ALPHA + (scaleFactor - MIN_SCALE)
                    / (1 - MIN_SCALE) * (1 - MIN_ALPHA));

        } else
        { // (1,+Infinity]
            // This page is way off-screen to the right.
            view.setAlpha(0);
        }
    }
}

viewpager使用

mViewPager.setPageTransformer(true, new ZoomOutPageTransformer());

还记得我上一篇博客 一屏显示多个ViewPager子item不？
http://blog.csdn.net/codenoodles/article/details/50991793
下面来给它加上切换动画：
直接上代码：

package com.upc.viewpagerGallery.View;

import android.support.v4.view.ViewPager;
import android.view.View;

/**
 * Created by Explorer on 2016/3/26.
 */
public class ZoomOutPageTransformer implements ViewPager.PageTransformer {

    private static final float MIN_SCALE = 0.9f;
    private static final float MIN_ALPHA = 0.5f;

    private static float defaultScale = 0.9f;

    public void transformPage(View view, float position) {
        int pageWidth = view.getWidth();
        int pageHeight = view.getHeight();

        if (position < -1) { // [-Infinity,-1)
            // This page is way off-screen to the left.
//          view.setAlpha(0);
            view.setScaleX(defaultScale);
            view.setScaleY(defaultScale);
        } else if (position <= 1) { // [-1,1]
            // Modify the default slide transition to shrink the page as well
            float scaleFactor = Math.max(MIN_SCALE, 1 - Math.abs(position));
            float vertMargin = pageHeight * (1 - scaleFactor) / 2;
            float horzMargin = pageWidth * (1 - scaleFactor) / 2;
            if (position < 0) {
                view.setTranslationX(horzMargin - vertMargin / 2);
            } else {
                view.setTranslationX(-horzMargin + vertMargin / 2);
            }

            // Scale the page down (between MIN_SCALE and 1)
            view.setScaleX(scaleFactor);
            view.setScaleY(scaleFactor);

            // Fade the page relative to its size.
//          view.setAlpha(MIN_ALPHA +
//                  (scaleFactor - MIN_SCALE) /
//                          (1 - MIN_SCALE) * (1 - MIN_ALPHA));

        } else { // (1,+Infinity]
            // This page is way off-screen to the right.
//          view.setAlpha(0);
            view.setScaleX(defaultScale);
            view.setScaleY(defaultScale);
        }
    }
}

这里就不贴效果图了，大家可以在下一篇博客里看到效果。

说一下原理：
position范围不同执行不同的逻辑
- （无穷，-1）：左边view不可见
- [-1，0]：左边view可见
- (0，1]： 右边view可见
- (1,无穷):右边view不可见

我们可以根据这个原理自己定制想要的效果。
