Vue3间距（Space）

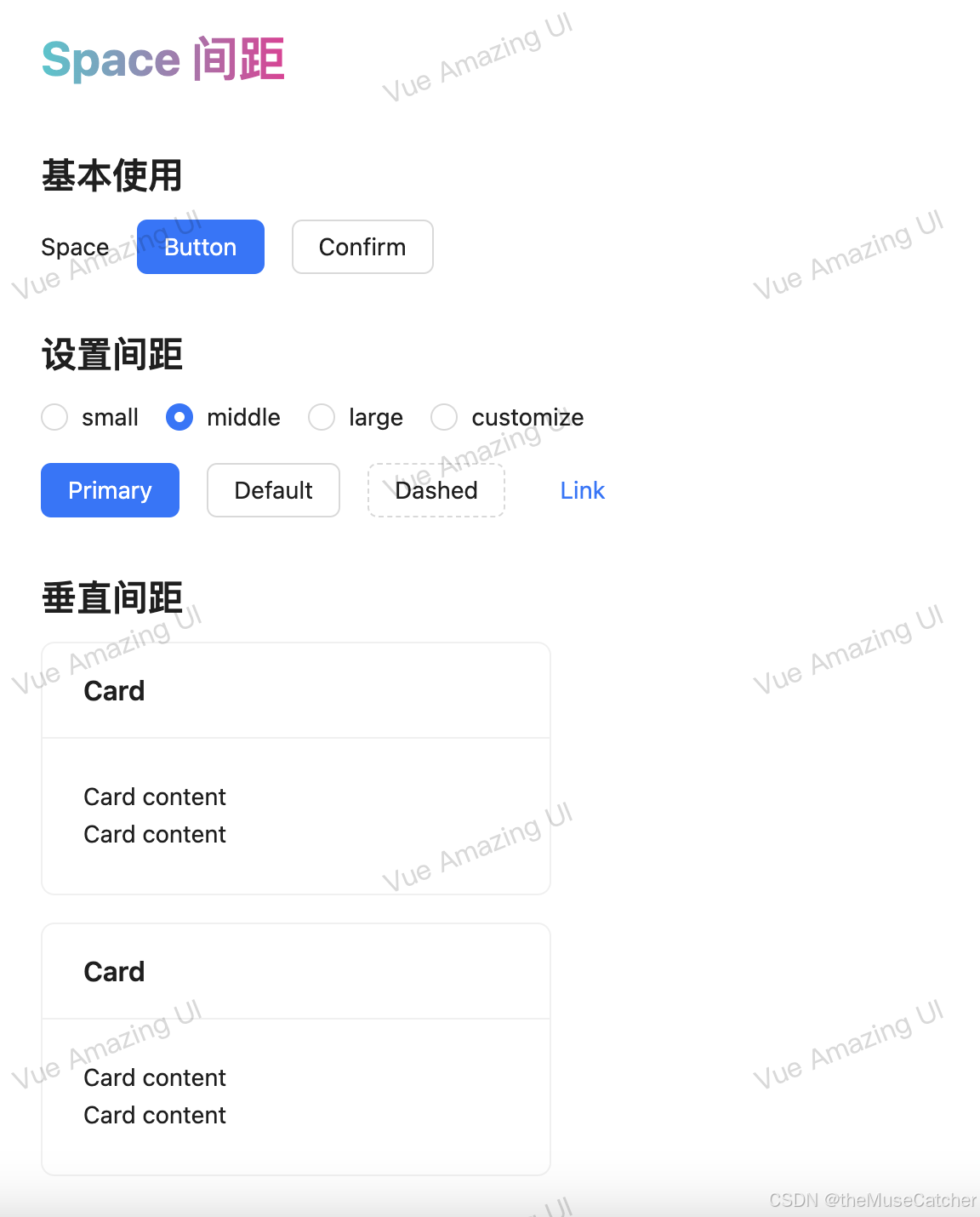

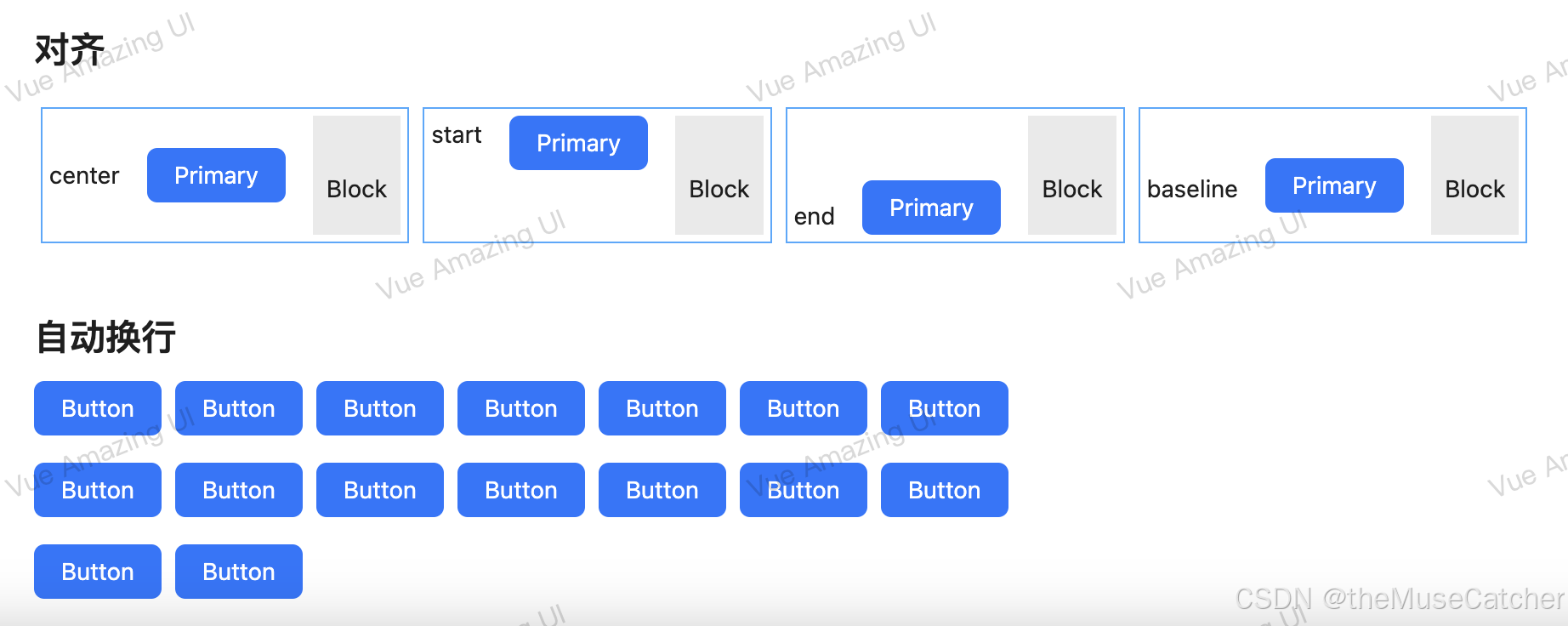

效果如下图：

在线预览

APIs

Space

参数	说明	类型	默认值
width	区域总宽度，单位 px	string | number	‘auto’
align	垂直排列方式	‘stretch’ | ‘start’ | ‘end’ | ‘center’ | ‘baseline’	‘start’
vertical	是否为垂直布局	boolean	false
gap	间距大小，数组时表示: [水平间距, 垂直间距]	number | number[] | ‘small’ | ‘middle’ | ‘large’	‘middle’
wrap	是否自动换行，仅在 horizontal 时有效	boolean	true

Slots

名称	说明	类型
default	自定义内容	v-slot:default

创建间距组件Space.vue

<script setup lang="ts">
import { computed } from 'vue'
interface Props {
  width?: string | number // 区域总宽度，单位 px
  align?: 'stretch' | 'start' | 'end' | 'center' | 'baseline' // 垂直排列方式
  vertical?: boolean // 是否为垂直布局
  gap?: number | number[] | 'small' | 'middle' | 'large' // 间距大小，数组时表示: [水平间距, 垂直间距]
  wrap?: boolean // 是否自动换行，仅在 horizontal 时有效
}
const props = withDefaults(defineProps<Props>(), {
  width: 'auto',
  align: 'start',
  vertical: false,
  gap: 'middle',
  wrap: true
})
const spaceWidth = computed(() => {
  if (typeof props.width === 'number') {
    return `${props.width}px`
  }
  return props.width
})
const gapValue = computed(() => {
  if (typeof props.gap === 'number') {
    return `${props.gap}px`
  }
  if (Array.isArray(props.gap)) {
    return `${props.gap[1]}px ${props.gap[0]}px`
  }
  if (['small', 'middle', 'large'].includes(props.gap)) {
    const gapMap = {
      small: '8px',
      middle: '16px',
      large: '24px'
    }
    return gapMap[props.gap]
  }
})
</script>
<template>
  <div
    class="m-space"
    :class="[`space-${align}`, { 'space-vertical': vertical, 'space-wrap': wrap }]"
    :style="`width: ${spaceWidth}; gap: ${gapValue}; margin-bottom: -${Array.isArray(props.gap) && wrap ? props.gap[1] : 0}px;`"
  >
    <slot></slot>
  </div>
</template>
<style lang="less" scoped>
.m-space {
  display: inline-flex;
  font-size: 14px;
  color: rgba(0, 0, 0, 0.88);
  transition: all 0.3s;
  flex-direction: row;
}
.space-vertical {
  flex-direction: column;
}
.space-stretch {
  align-items: stretch;
}
.space-start {
  align-items: flex-start;
}
.space-end {
  align-items: flex-end;
}
.space-center {
  align-items: center;
}
.space-baseline {
  align-items: baseline;
}
.space-wrap {
  flex-wrap: wrap;
}
</style>

在要使用的页面引入

其中引入使用了以下组件：

• Vue3 弹出确认（Popconfirm）
• Vue3单选（Radio）
• Vue3按钮（Button）
• Vue3卡片（Card）
• Vue3滑动输入条（Slider）
• Vue3弹性布局（Flex）

<script setup lang="ts">
import Space from './Space.vue'
import { ref } from 'vue'
const gapOptions = ref([
  {
    label: 'small',
    value: 'small'
  },
  {
    label: 'middle',
    value: 'middle'
  },
  {
    label: 'large',
    value: 'large'
  },
  {
    label: 'customize',
    value: 'customize'
  }
])
const gapSize = ref('middle')
const customGapSize = ref(16)
</script>
<template>
  <div>
    <h1>{{ $route.name }} {{ $route.meta.title }}</h1>
    <h2 class="mt30 mb10">基本使用</h2>
    <Space align="center">
      Space
      <Button type="primary">Button</Button>
      <Popconfirm title="Are you sure delete this task?" ok-text="Yes" cancel-text="No">
        <Button>Confirm</Button>
      </Popconfirm>
    </Space>
    <h2 class="mt30 mb10">设置间距</h2>
    <Flex vertical>
      <Radio :options="gapOptions" v-model:value="gapSize" />
      <Slider v-if="gapSize === 'customize'" v-model:value="customGapSize" />
      <Space :gap="gapSize !== 'customize' ? gapSize : customGapSize">
        <Button type="primary">Primary</Button>
        <Button>Default</Button>
        <Button type="dashed">Dashed</Button>
        <Button type="link">Link</Button>
      </Space>
    </Flex>
    <h2 class="mt30 mb10">垂直间距</h2>
    <Space vertical>
      <Card title="Card" style="width: 300px">
        <p>Card content</p>
        <p>Card content</p>
      </Card>
      <Card title="Card" style="width: 300px">
        <p>Card content</p>
        <p>Card content</p>
      </Card>
    </Space>
    <h2 class="mt30 mb10">对齐</h2>
    <div class="space-align-container">
      <div class="space-align-block">
        <Space align="center">
          center
          <Button type="primary">Primary</Button>
          <span class="mock-block">Block</span>
        </Space>
      </div>
      <div class="space-align-block">
        <Space align="start">
          start
          <Button type="primary">Primary</Button>
          <span class="mock-block">Block</span>
        </Space>
      </div>
      <div class="space-align-block">
        <Space align="end">
          end
          <Button type="primary">Primary</Button>
          <span class="mock-block">Block</span>
        </Space>
      </div>
      <div class="space-align-block">
        <Space align="baseline">
          baseline
          <Button type="primary">Primary</Button>
          <span class="mock-block">Block</span>
        </Space>
      </div>
    </div>
    <h2 class="mt30 mb10">自动换行</h2>
    <Space :gap="[8, 16]" style="width: 600px">
      <template v-for="n in 16" :key="n">
        <Button type="primary">Button</Button>
      </template>
    </Space>
  </div>
</template>
<style lang="less" scoped>
.space-align-container {
  display: flex;
  align-items: flex-start;
  flex-wrap: wrap;
}
.space-align-block {
  margin: 8px 4px;
  border: 1px solid #40a9ff;
  padding: 4px;
  flex: none;
}
.space-align-block .mock-block {
  display: inline-block;
  padding: 32px 8px 16px;
  background: rgba(150, 150, 150, 0.2);
}
</style>
