需要升级服务器CPU,查看超微网站主板介绍中提到,支持高一代 CPU需要升级BIOS到大于3.0的版本。服务器升级比台式机麻烦些,所以按照要求一步步做。
1、从超微网站主板页面右侧 update your BIOS ,接受协议后下载BIOS文件。(我遇到网络不好的情况,多试几次)

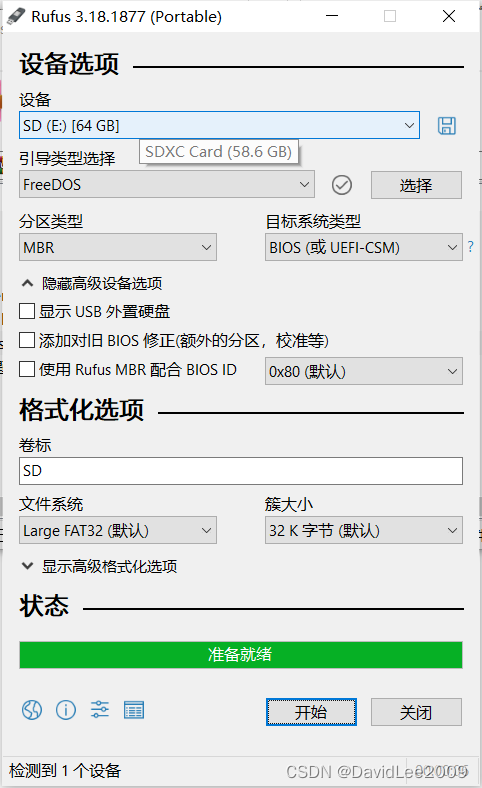

2、下载U盘启动盘工具 RUFUS,免安装的。使用一个U盘,通过Rufus为U盘制作启动盘。配置如下。然后将BIOS更新文件解压后的文件,复制到U盘根目录下。

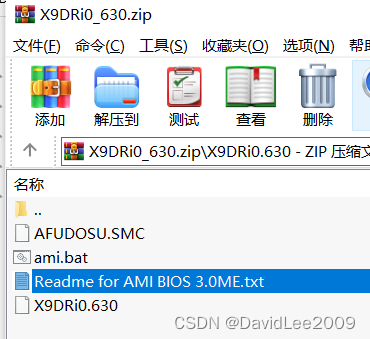

3、认真阅读BIOS更新文件中的帮助文档。具体摘录入下:
You must update the IPMI firmware to version 2.0 or above first, Before upgrading this BIOS.
升级前始版本号要求,需要大于2.0。
To disable ME (Intel Management Engine), before BIOS update starts, power down the system, and set the JPME1 and/or JPME2 (if applicable) jumpers on the motherboard to pin 2-3 location. ***Fail to do so may result in unnecessary RMA
