Leader Tree



import numpy as np
from sklearn import datasets
import matplotlib.pyplot as plt

import numpy as np
import pandas as pd
import copy
import matplotlib.pyplot as plt
from sklearn.metrics.pairwise import pairwise_distances
from sklearn.preprocessing import StandardScaler

class DPC(object):
    def __init__(self, X, clusterNum, distPercent):
        self.X = X
        self.nSample = X.shape[0]
        self.clusterNum = clusterNum
        self.distPercent = distPercent
        self.rho = np.zeros(self.nSample)
        self.delta = np.zeros(self.nSample)
        self.gamma = np.zeros(self.nSample)
        self.leader = np.ones(self.nSample, dtype=int) * int(-1)
        self.distMatrix = pairwise_distances(X,metric="euclidean")
        self.distCut = np.max(self.distMatrix) * (self.distPercent / 100)
        self.rho = np.sum(np.exp(-(self.distMatrix/self.distCut)**2), axis=1)
        self.order_rho = np.flipud(np.argsort(self.rho))


        # -------------密度最大点的delta-------------
        self.delta[self.order_rho[0]] = np.max(self.distMatrix[self.order_rho[0],:])
        self.leader[self.order_rho[0]] = -1
        # -----------获取非密度最大点的delta和leader--------
        for i in range(1, self.nSample):
            min_dist = np.inf
            min_idx = -1
            for j in range(i):
                dist = self.distMatrix[self.order_rho[i], self.order_rho[j]]
                if dist < min_dist:
                    min_dist = dist
                    min_idx = self.order_rho[j]
            self.delta[self.order_rho[i]] = min_dist
            self.leader[self.order_rho[i]] = min_idx
        self.gamma = self.rho * self.delta
        self.order_gamma = np.flipud(np.argsort(self.gamma))

        # --------给聚类中心分配簇标签----------
        self.clusterIndex = np.ones(self.nSample, dtype=int) * (-1)
        for i in range(self.clusterNum):
            self.clusterIndex[self.order_gamma[i]] = i

        for i in range(self.nSample):
            if self.clusterIndex[self.order_rho[i]] == -1:
                self.clusterIndex[self.order_rho[i]] = self.clusterIndex[self.leader[self.order_rho[i]]]



if __name__ == '__main__':
    font1 = {'family': 'Times New Roman', 'weight': 'normal', 'size': 15}
    # X, y = datasets.make_blobs(n_features=2, n_samples=200, centers=3, cluster_std=1.5, random_state=9)
    X, y = datasets.make_blobs(n_features=2, n_samples=200, centers=3, cluster_std=1.5, random_state=10)
    # plt.scatter(X[:,0], X[:,1],marker="o", s=30)
    # plt.show()

    model = DPC(X,clusterNum=3,distPercent=2)
    leader = model.leader
    ord_gamma = model.order_gamma
    cluster_id = model.clusterIndex

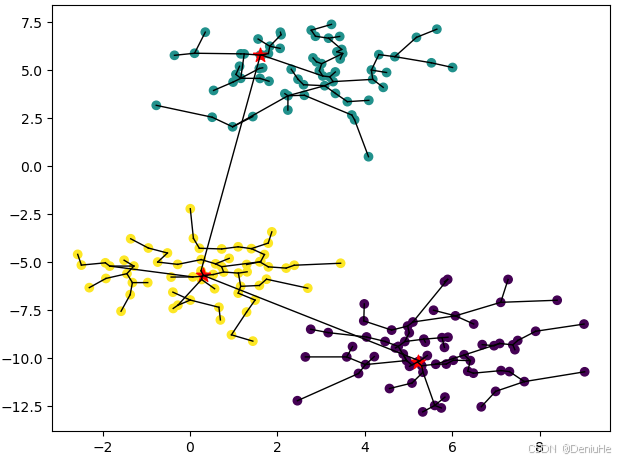

    plt.scatter(X[:,0],X[:,1],c=cluster_id)
    # plt.scatter(X[:,0],X[:,1],label="Instances")

    for idx in range(len(y)):
        jdx = leader[idx]
        if jdx != -1:
            plt.plot(X[[idx,jdx]][:,0],X[[idx,jdx]][:,1],c="k",lw=1)

    # plt.scatter(X[ord_gamma[0]][0], X[ord_gamma[0]][1],c='w', edgecolors='r',marker="o",linewidths=3,s=110)
    # plt.scatter(X[ord_gamma[1]][0], X[ord_gamma[1]][1],c='w', edgecolors='r',marker="o",linewidths=3,s=110)
    # plt.scatter(X[ord_gamma[2]][0], X[ord_gamma[2]][1],c='w', edgecolors='r',marker="o",linewidths=3,s=110)
    plt.scatter(X[ord_gamma[0]][0], X[ord_gamma[0]][1],c='r',marker="*",s=110)
    plt.scatter(X[ord_gamma[1]][0], X[ord_gamma[1]][1],c='r',marker="*",s=110)
    plt.scatter(X[ord_gamma[2]][0], X[ord_gamma[2]][1],c='r',marker="*",s=110)
    plt.tight_layout()
    # plt.legend(loc="lower left",prop=font1)
    plt.show()
