        encode()函数是x264的主干函数，主要包括x264_encoder_open()函数、x264_encoder_headers()函数、x264_encoder_encode()函数与x264_encoder_close()函数四大部分，其中x264_encoder_encode()函数是其核心部分，具体的H.264视频编码算法均在此模块。上一篇博文主要分析了x264_encoder_open()函数，本文主要学习x264_encoder_headers()函数。

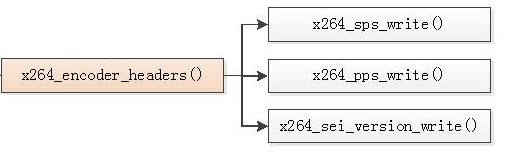

        x264_encoder_headers()是libx264的一个API函数，用于输出SPS/PPS/SEI这些H.264码流的头信息，如下图所示。它调用了下面的函数：

x264_sps_write()：输出SPS

x264_pps_write()：输出PPS

x264_sei_version_write()：输出SEI



        下面对x264_encoder_headers()函数所涉及的函数进行介绍，首先就是SPS与PPS的初始化工作；其次是x264_encoder_headers()函数的内容；最后就是x264_encoder_headers()函数中用于输出SPS/PPS/SEI这些H.264码流头信息的具体函数，即x264_sps_write()函数、x264_pps_write()函数与x264_sei_version_write()函数。



1、SPS与PPS的初始化函数x264_sps_init()、x264_pps_init()



        x264_sps_init()根据输入参数生成H.264码流的SPS（Sequence Parameter Set，序列参数集）信息，即根据输入参数集x264_param_t中的信息，初始化了SPS结构体中的成员变量。该函数的定义位于encoder\set.c，对应的代码如下：



初始化SPS
void x264_sps_init( x264_sps_t *sps, int i_id, x264_param_t *param )
{
    int csp = param->i_csp & X264_CSP_MASK;

    sps->i_id = i_id;
    sps->i_mb_width = ( param->i_width + 15 ) / 16;	//以宏块为单位的宽度
    sps->i_mb_height= ( param->i_height + 15 ) / 16;	//以宏块为单位的高度
    sps->i_chroma_format_idc = csp >= X264_CSP_I444 ? CHROMA_444 :
                               csp >= X264_CSP_I422 ? CHROMA_422 : CHROMA_420;	//色度取样格式

    sps->b_qpprime_y_zero_transform_bypass = param->rc.i_rc_method == X264_RC_CQP && param->rc.i_qp_constant == 0;
    //型profile
	if( sps->b_qpprime_y_zero_transform_bypass || sps->i_chroma_format_idc == CHROMA_444 )
        sps->i_profile_idc  = PROFILE_HIGH444_PREDICTIVE;	//YUV444的时候
    else if( sps->i_chroma_format_idc == CHROMA_422 )
        sps->i_profile_idc  = PROFILE_HIGH422;
    else if( BIT_DEPTH > 8 )
        sps->i_profile_idc  = PROFILE_HIGH10;
    else if( param->analyse.b_transform_8x8 || param->i_cqm_preset != X264_CQM_FLAT )
        sps->i_profile_idc  = PROFILE_HIGH;	//高型 High Profile 目前最常见
    else if( param->b_cabac || param->i_bframe > 0 || param->b_interlaced || param->b_fake_interlaced || param->analyse.i_weighted_pred > 0 )
        sps->i_profile_idc  = PROFILE_MAIN;	//主型
    else
        sps->i_profile_idc  = PROFILE_BASELINE;	//基本型

    sps->b_constraint_set0  = sps->i_profile_idc == PROFILE_BASELINE;
    /* x264 doesn't support the features that are in Baseline and not in Main,
     * namely arbitrary_slice_order and slice_groups. */
    sps->b_constraint_set1  = sps->i_profile_idc <= PROFILE_MAIN;
    /* Never set constraint_set2, it is not necessary and not used in real world. */
    sps->b_constraint_set2  = 0;
    sps->b_constraint_set3  = 0;

	//级level
    sps->i_level_idc = param->i_level_idc;
    if( param->i_level_idc == 9 && ( sps->i_profile_idc == PROFILE_BASELINE || sps->i_profile_idc == PROFILE_MAIN ) )
    {
        sps->b_constraint_set3 = 1; /* level 1b with Baseline or Main profile is signalled via constraint_set3 */
        sps->i_level_idc      = 11;
    }
    /* Intra profiles */
    if( param->i_keyint_max == 1 && sps->i_profile_idc > PROFILE_HIGH )
        sps->b_constraint_set3 = 1;

    sps->vui.i_num_reorder_frames = param->i_bframe_pyramid ? 2 : param->i_bframe ? 1 : 0;
    /* extra slot with pyramid so that we don't have to override the
     * order of forgetting old pictures */
	//参考帧数量
    sps->vui.i_max_dec_frame_buffering =
    sps->i_num_ref_frames = X264_MIN(X264_REF_MAX, X264_MAX4(param->i_frame_reference, 1 + sps->vui.i_num_reorder_frames,
                            param->i_bframe_pyramid ? 4 : 1, param->i_dpb_size));
    sps->i_num_ref_frames -= param->i_bframe_pyramid == X264_B_PYRAMID_STRICT;
    if( param->i_keyint_max == 1 )
    {
        sps->i_num_ref_frames = 0;
        sps->vui.i_max_dec_frame_buffering = 0;
    }

    /* number of refs + current frame */
    int max_frame_num = sps->vui.i_max_dec_frame_buffering * (!!param->i_bframe_pyramid+1) + 1;
    /* Intra refresh cannot write a recovery time greater than max frame num-1 */
    if( param->b_intra_refresh )
    {
        int time_to_recovery = X264_MIN( sps->i_mb_width - 1, param->i_keyint_max ) + param->i_bframe - 1;
        max_frame_num = X264_MAX( max_frame_num, time_to_recovery+1 );
    }

    sps->i_log2_max_frame_num = 4;
    while( (1 << sps->i_log2_max_frame_num) <= max_frame_num )
        sps->i_log2_max_frame_num++;

	//POC类型
    sps->i_poc_type = param->i_bframe || param->b_interlaced || param->i_avcintra_class ? 0 : 2;
    if( sps->i_poc_type == 0 )
    {
        int max_delta_poc = (param->i_bframe + 2) * (!!param->i_bframe_pyramid + 1) * 2;
        sps->i_log2_max_poc_lsb = 4;
        while( (1 << sps->i_log2_max_poc_lsb) <= max_delta_poc * 2 )
            sps->i_log2_max_poc_lsb++;
    }

    sps->b_vui = 1;

    sps->b_gaps_in_frame_num_value_allowed = 0;
    sps->b_frame_mbs_only = !(param->b_interlaced || param->b_fake_interlaced);
    if( !sps->b_frame_mbs_only )
        sps->i_mb_height = ( sps->i_mb_height + 1 ) & ~1;
    sps->b_mb_adaptive_frame_field = param-&g
