构建spring boot web项目：六、集成RabbitMQ

目录

一、docker安装RabbitMQ

1.1拉去镜像

1.2 启动容器

二、spring boot 整合RabbitMQ

2.1创建rabbitMQ模块

2.2引入依赖

2.3配置rabbitMQ

三、管理应用模块（management）集成rabbitMQ

一、docker安装RabbitMQ

1.1拉去镜像

docker pull rabbitmq:3-management

1.2 启动容器

docker run -dit --restart=always  --name rabbitmq -p 5672:5672 -p 15672:15672  --hostname myRabbit -e RABBITMQ_DEFAULT_VHOST=master  -e RABBITMQ_DEFAULT_USER=admin -e RABBITMQ_DEFAULT_PASS=admin rabbitmq:3-management

-p：指定服务运行的端口（15672：UI页面通信口,浏览器界面、5672：client端通信口,最常用到的）；
–hostname：主机名（RabbitMQ的一个重要注意事项是它根据所谓的 “节点名称” 存储数据，默认为主机名）；
-e：指定环境变量；（RABBITMQ_DEFAULT_VHOST：默认虚拟机名；RABBITMQ_DEFAULT_USER：默认的用户名；RABBITMQ_DEFAULT_PASS：默认用户名的密码）

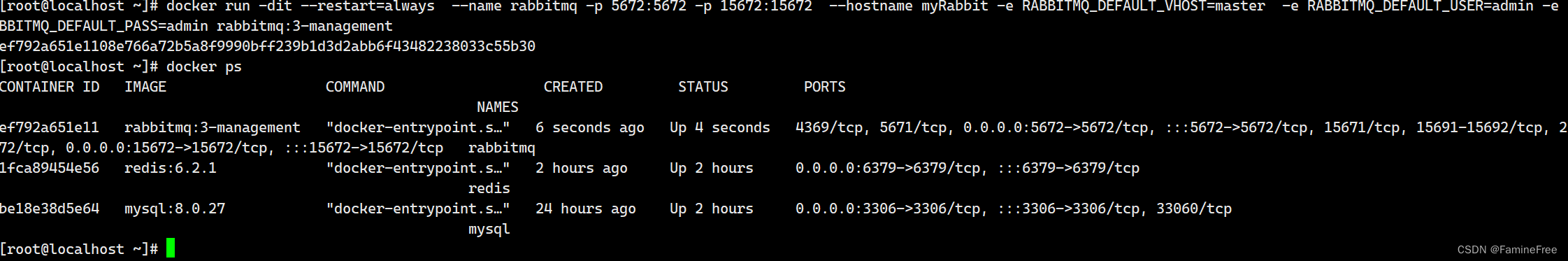

查看

docker ps

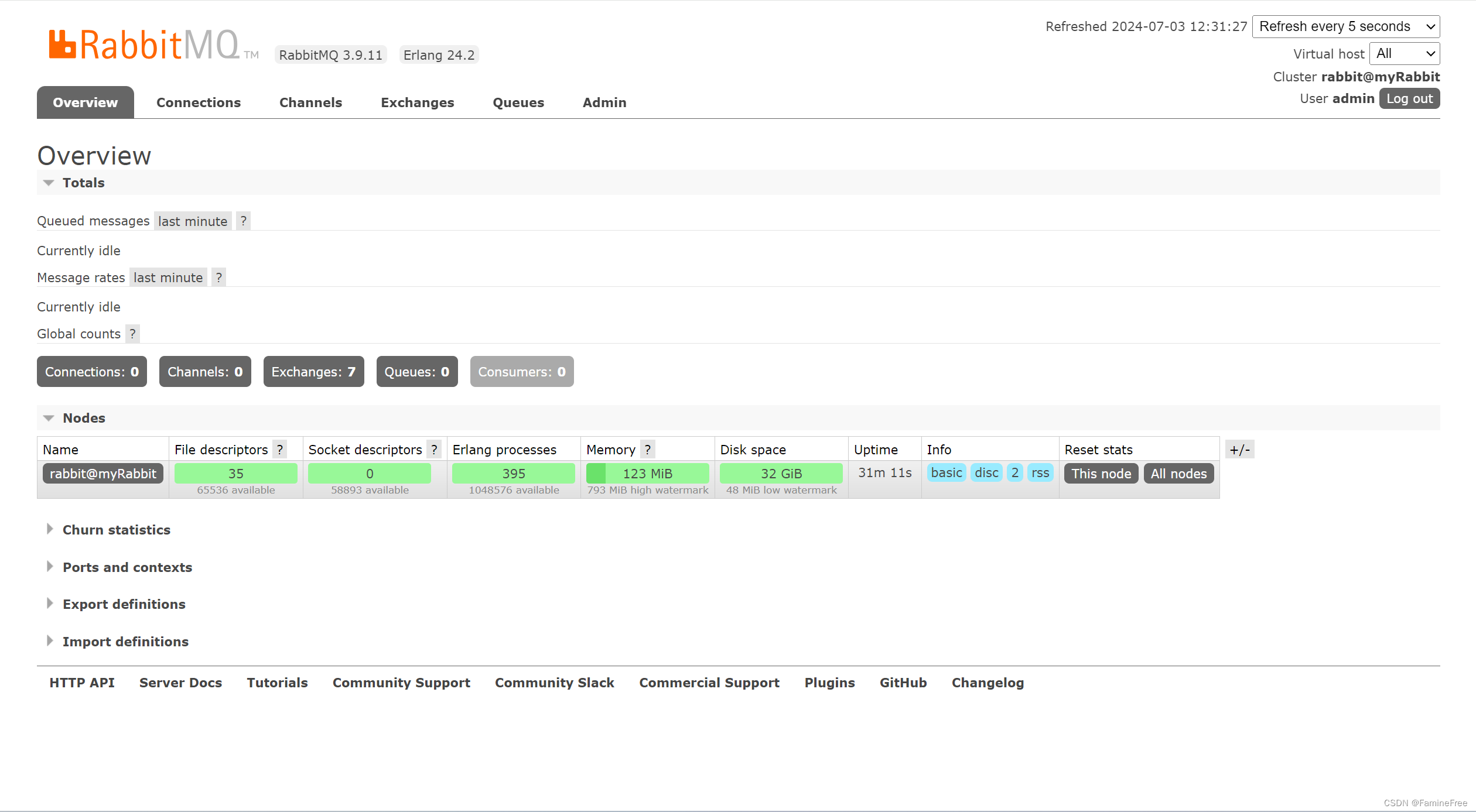

登录ip:15672/

二、spring boot 整合RabbitMQ

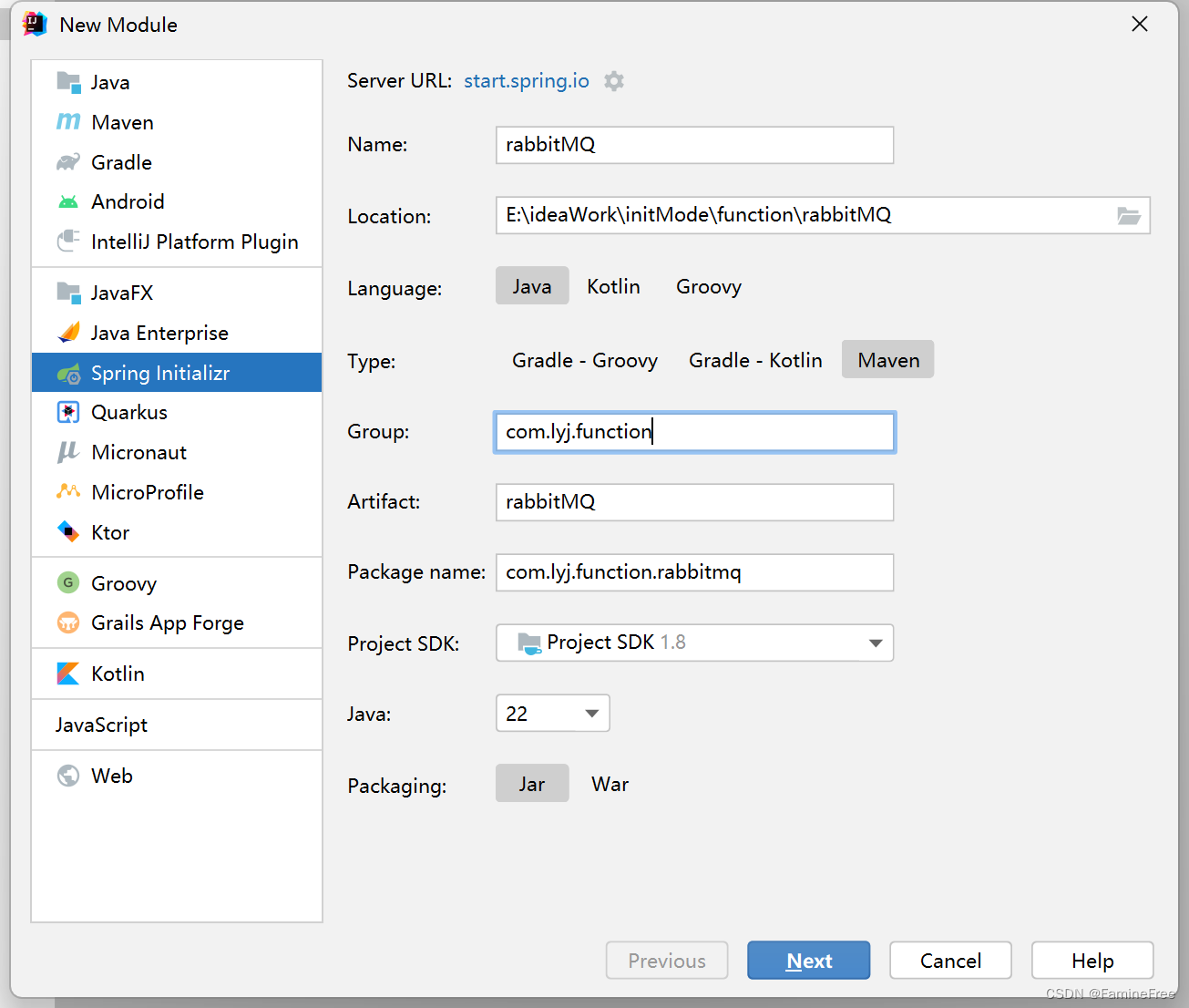

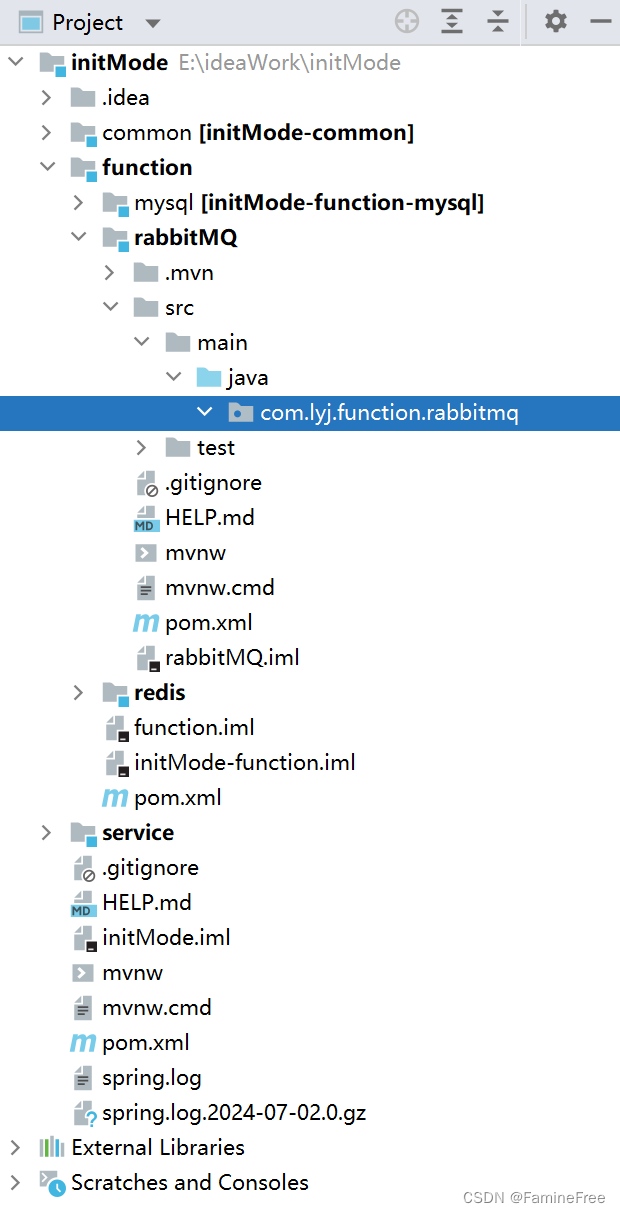

2.1创建rabbitMQ模块

2.2引入依赖

pom.xml(rabbitMQ)

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.lyj.initMode</groupId>
        <artifactId>initMode-function</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <artifactId>initMode-function-rabbitMQ</artifactId>

    <description>rabbitMQ功能模块</description>

    <dependencies>
        <!--rabbitmq-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-amqp</artifactId>
        </dependency>
    </dependencies>

</project>

pom.xml(initMode)

        <!--rabbitmq 消息队列-->
        <rabbitmq.version>2.3.7.RELEASE</rabbitmq.version>

            <dependency>
                <groupId>com.lyj.initMode</groupId>
                <artifactId>initMode-function-rabbitMQ</artifactId>
                <version>${project.version}</version>
            </dependency>

            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-amqp</artifactId>
                <version>${rabbitmq.version}</version>
            </dependency>

pom.xml(function)

<module>rabbitMQ</module>

2.3配置rabbitMQ

RabbitMqConfig.java

package com.lyj.function.rabbitmq.config;

import org.springframework.amqp.core.*;
import org.springframework.amqp.rabbit.annotation.EnableRabbit;
import org.springframework.amqp.rabbit.config.SimpleRabbitListenerContainerFactory;
import org.springframework.amqp.rabbit.connection.CachingConnectionFactory;
import org.springframework.amqp.rabbit.connection.ConnectionFactory;
import org.springframework.amqp.rabbit.core.RabbitAdmin;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.amqp.rabbit.retry.MessageRecoverer;
import org.springframework.amqp.rabbit.retry.RepublishMessageRecoverer;
import org.springframework.amqp.support.converter.Jackson2JsonMessageConverter;
import org.springfr
