本文的实验案例
https://blog.csdn.net/FullStackDeveloper0/article/details/90473559
先看微服务案例,再看本文
一、简介
Eureka是Netflix的一个子模块,也是核心模块之一。Eureka是一个基于REST的服务,用于定位服务,以实现云端中间层服务发现和故障转移。服务注册与发现对于微服务架构来说是非常重要的,有了服务发现与注册,只需要使用服务的标识符,就可以访问到服务,而不需要修改服务调用的配置文件了。功能类似于dubbo的注册中心,比如Zookeeper。
作为服务注册中心,Eureka比Zookeeper好在哪里?
著名的CAP理论指出,一个分布式系统不可能同时满足C(一致性)、A(可用性)和P(分区容错性)。由于分区容错性P是在分布式系统中必须要保证的,因此我们只能在A和C之间进行权衡。
因此 Zookeeper保证的是CP,Eureka则是AP。
Zookeeper保证CP
因网络问题使得zk集群失去master节点是较大概率会发生的事,当master节点因为网络故障与其他节点失去联系时,剩余节点会重新进行leader选举。问题在于,选举leader的时间太长,30 ~ 120s, 且选举期间整个zk集群都是不可用的,这就导致在选举期间注册服务瘫痪。虽然服务能够最终恢复,但是漫长的选举时间导致的注册长期不可用是不能容忍的。
Eureka保证AP
Eureka各个节点都是平等的,几个节点挂掉不会影响正常节点的工作,剩余的节点依然可以提供注册和查询服务。
而Eureka的客户端在向某个Eureka注册或时如果发现连接失败,则会自动切换至其它节点,只要有一台Eureka还在,就能保证注册服务可用(保证可用性),只不过查到的信息可能不是最新的(不保证强一致性)。
Eureka作为单纯的服务注册中心来说要比zookeeper更加“专业”,因为注册服务更重要的是可用性,我们可以接受短期内达不到一致性的状况。
二、原理
1. 基本架构
Spring Cloud 封装了 Netflix 公司开发的 Eureka 模块来实现服务注册和发现。
Eureka 采用了 C-S 的设计架构。Eureka Server 作为服务注册功能的服务器,它是服务注册中心。而系统中的其他微服务,使用 Eureka 的客户端连接到 Eureka Server并维持心跳连接。这样系统的维护人员就可以通过 Eureka Server 来监控系统中各个微服务是否正常运行。SpringCloud 的一些其他模块(比如Zuul)就可以通过 Eureka Server 来发现系统中的其他微服务,并执行相关的逻辑。
Eureka包含两个组件:Eureka Server 和 Eureka Client
(1)Eureka Server提供服务注册服务。各个节点启动后,会在EurekaServer中进行注册,这样EurekaServer中的服务注册表中将会存储所有可用服务节点的信息,服务节点的信息可以在界面中直观的看到
(2)EurekaClient是一个Java客户端,用于简化Eureka Server的交互,客户端同时也具备一个内置的、使用轮询(round-robin)负载算法的负载均衡器。在应用启动后,将会向Eureka Server发送心跳(默认周期为30秒)。如果Eureka Server在多个心跳周期内没有接收到某个节点的心跳,EurekaServer将会从服务注册表中把这个服务节点移除(默认90秒)
2. 三大角色
Eureka Server 提供服务注册和发现
Service Provider服务提供方将自身服务注册到Eureka,从而使服务消费方能够找到
Service Consumer服务消费方从Eureka获取注册服务列表,从而能够消费服务
3. 盘点下目前我们的工程情况
总父工程
通用模块api
服务提供者Provider
服务消费者Consumer
具体参考:https://blog.csdn.net/FullStackDeveloper0/article/details/90473559
三、构建步骤
1. microservicecloud - eureka-7001 Eureka Server
(1) 点击父工程,右键创建Maven moudle,packaging是jar
(2)pom.xml 文件
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<!-- 父项目坐标信息 -->
<parent>
<groupId>com.atguigu.springcloud</groupId>
<artifactId>microservicecloud</artifactId>
<version>0.0.1-SNAPSHOT</version>
</parent>
<!-- 本项目的坐标描述 -->
<artifactId>microservicecloud-eureka-7001</artifactId>
<dependencies>
<!--eureka-server服务端 -->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-eureka-server</artifactId>
</dependency>
</dependencies>
</project>
(3)yml文件
server:
port: 7001
eureka:
instance:
hostname: localhost #eureka服务端的实例名称
client:
register-with-eureka: false #false表示不向注册中心注册自己。
fetch-registry: false #false表示自己端就是注册中心,我的职责就是维护服务实例,并不需要去检索服务
service-url:
defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka/
#设置与Eureka Server交互的地址查询服务和注册服务都需要依赖这个地址。
(4)EurekaServer7001_App主启动类
package com.atguigu.springcloud;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;
@SpringBootApplication
@EnableEurekaServer//EurekaServer服务器端启动类,接受其它微服务注册进来
public class EurekaServer7001_App
{
public static void main(String[] args)
{
SpringApplication.run(EurekaServer7001_App.class, args);
}
}
(5)测试
2. 服务注册
(1)修改microservicecloud-provider-dept-8001
(2)pom.xml文件 (修改的部分)
<!-- 将微服务provider侧注册进eureka -->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-eureka</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-config</artifactId>
</dependency>
(3)yml文件(修改部分)
eureka:
client: #客户端注册进eureka服务列表内
service-url:
defaultZone: http://localhost:7001/eureka
(4)DeptProvider8001_App主启动类
package com.atguigu.springcloud;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
@SpringBootApplication
@EnableEurekaClient //本服务启动后会自动注册进eureka服务中
public class DeptProvider8001_App
{
public static void main(String[] args)
{
SpringApplication.run(DeptProvider8001_App.class, args);
}
}
(5)测试
先启动server,在启动微服务! 我们可以在server的注册列表中看到我们注册的微服务!
3. 服务的发现(了解)
对于注册进eureka里面的微服务,可以通过服务发现来获得该服务的信息
(1)修改microservicecloud-provider-dept-8001工程(提供者)的DeptController
package com.atguigu.springcloud.controller;
import java.util.List;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.client.ServiceInstance;
import org.springframework.cloud.client.discovery.DiscoveryClient;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;
import com.atguigu.springcloud.entities.Dept;
import com.atguigu.springcloud.service.DeptService;
@RestController
public class DeptController
{
@Autowired
private DiscoveryClient client;
@RequestMapping(value = "/dept/discovery", method = RequestMethod.GET)
public Object discovery()
{
//获取所有的微服务
List<String> list = client.getServices();
System.out.println("**********" + list);
/*
注意: list集合里面的字符串就是注册列表里面微服务的名字。每一个微服务下面
有很多微服务实例。
for(String s:list){
List<ServiceInstance> srvList = client.getInstances(s);
for (ServiceInstance element : srvList) {
System.out.println(
element.getServiceId() + "\t" +
element.getHost() + "\t" +
element.getPort() + "\t"+
element.getUri());
}
}
*/
//获取指定名称的微服务
List<ServiceInstance> srvList = client.getInstances("MICROSERVICECLOUD-DEPT");
//遍历微服务实例
for (ServiceInstance element : srvList) {
System.out.println(element.getServiceId() + "\t" + element.getHost() + "\t" + element.getPort() + "\t"
+ element.getUri());
}
return this.client;
}
}

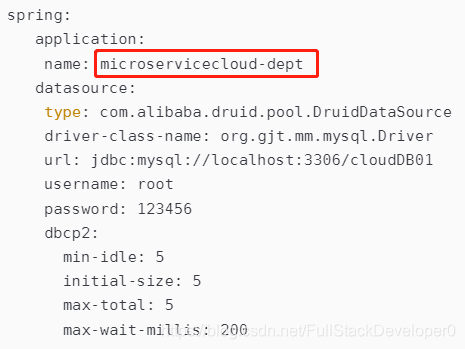

【提示】上面的微服务名 MICROSERVICECLOUD-DEPT 是来自yml中的配置
(2)DeptProvider8001_App主启动类
@SpringBootApplication
@EnableEurekaClient //本服务启动后会自动注册进eureka服务中
@EnableDiscoveryClient //服务发现
public class DeptProvider8001_App
{
public static void main(String[] args)
{
SpringApplication.run(DeptProvider8001_App.class, args);
}
}
(3)测试
先要启动EurekaServer,再启动DeptProvider8001_App主启动类,需要稍等一会儿!
http://localhost:8001/dept/discovery 发送请求,查看返回信息
当然,我们可以在microservicecloud-consumer-dept-80(消费者)工程中编写Controller来查看服务信息
