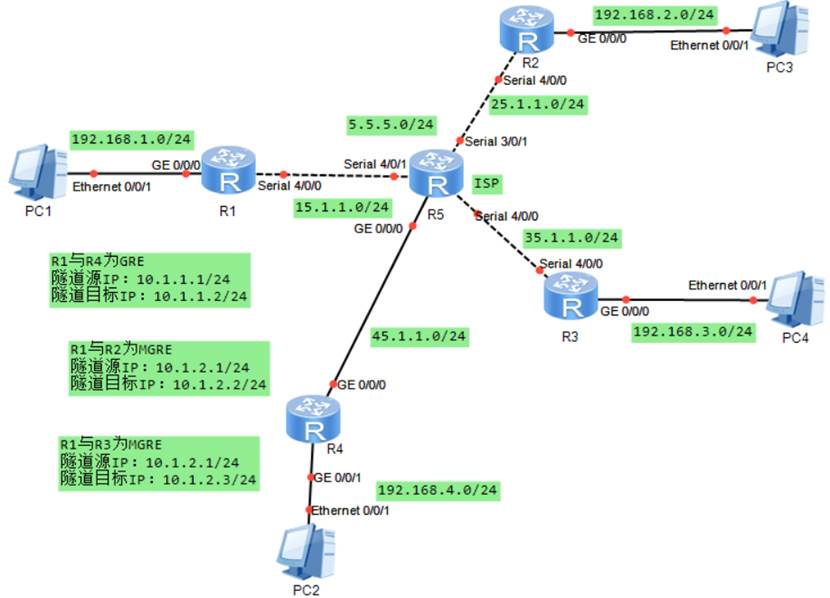

实验拓扑

实验要求

1、R5为ISP，只能进行ip地址配置，其所有地址均配为公有ip地址;

2、 R1和R5间使用PPP的PAP认证，R5为主认证方

R2与R5之间使用ppp的cHAP认证，R5为主认证方;

R3与R5之间使用HDLC封装;

3、R1、R2、R3构建一个MGRE环境，R1为中心站点，R1、R4间为点到点的GRE;

4、整个私有网络基本RIP全网可达;

5、所有pc设置私有IP为源IP，可以访问r5环回。

实验思路

IP地址配置
PPP验证和HDLC配置
GRE配置
配置nat和缺省路由，使所有pc可以访问r5的回环且公网全通
MGRE配置和rip配置

实验配置

IP地址配置

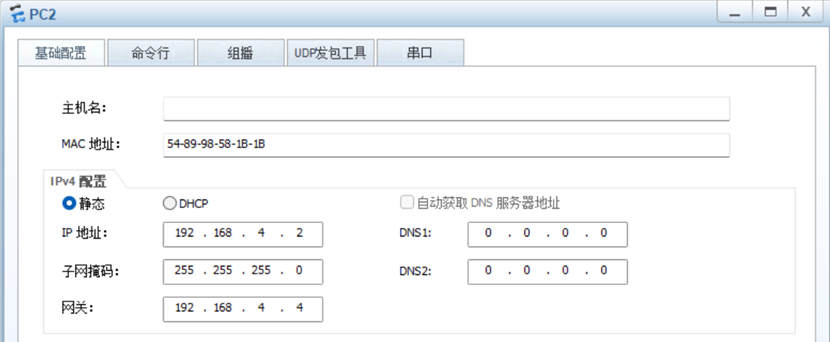

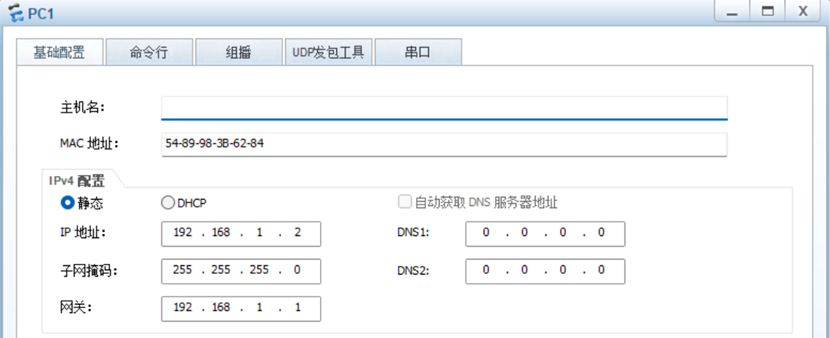

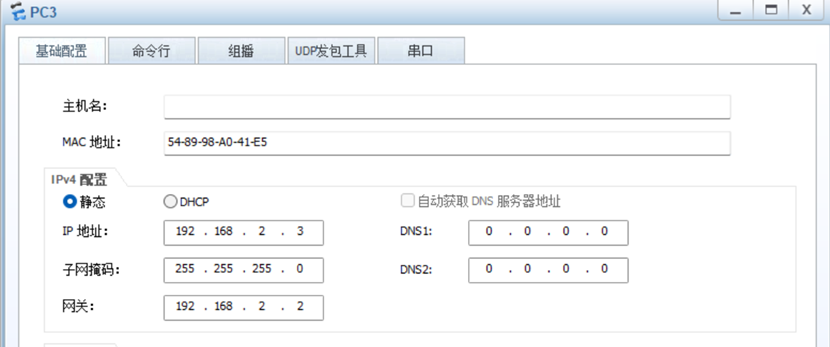

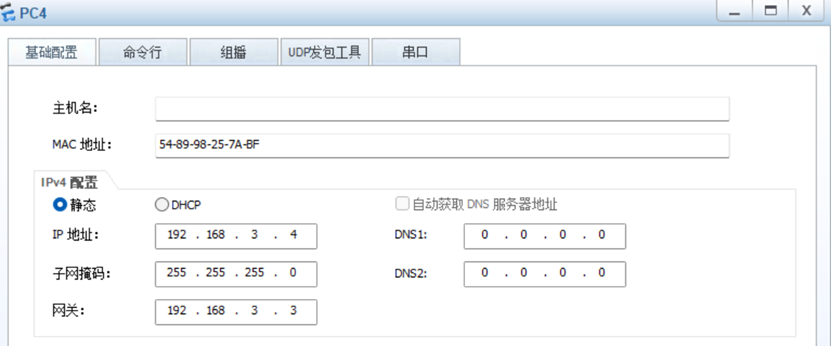

[r1-Serial4/0/0]ip address 15.1.1.1 24

[r1-GigabitEthernet0/0/0]ip address 192.168.1.1 24

[r2-GigabitEthernet0/0/0]ip address 192.168.2.2 24

[r2-Serial4/0/0]ip add 25.1.1.2 24

[r3-Serial4/0/0]ip address 35.1.1.3 24

[r3-GigabitEthernet0/0/0]ip address 192.168.3.3 24

[r4-GigabitEthernet0/0/1]ip address 192.168.4.4 24

[r4-GigabitEthernet0/0/0]ip address 45.1.1.4 24

[r5-GigabitEthernet0/0/0]ip address 45.1.1.5 24

[r5-Serial3/0/1]ip address 25.1.1.5 24

[r5-Serial4/0/0]ip add 35.1.1.5 24

[r5-Serial4/0/1]ip add 15.1.1.5 24

[r5-LoopBack0]ip address 5.5.5.5 24

PPP验证和HDLC配置

[r5]aaa

[r5-aaa]local-user xxx password cipher 123456

[r5-aaa]local-user xxx service-type ppp

[r5-Serial4/0/1]ppp authentication-mode pap

[r5-Serial3/0/1]ppp authentication-mode chap

[r1-Serial4/0/0]ppp pap local-user xxx password cipher 123456

[r2-Serial4/0/0]ppp chap user xxx

[r2-Serial4/0/0]ppp chap password cipher 123456

[r3-Serial4/0/0]link-protocol hdlc

[r5-Serial4/0/0]link-protocol hdlc

GRE配置

[r1-Tunnel0/0/4]ip add 10.1.1.1 24

[r1-Tunnel0/0/4]tunnel-protocol gre

[r1-Tunnel0/0/4]source 15.1.1.1

[r1-Tunnel0/0/4]destination 45.1.1.4

[r4-Tunnel0/0/4]ip add 10.1.1.2 24

[r4-Tunnel0/0/4]tunnel-protocol gre

[r4-Tunnel0/0/4]source 45.1.1.4

[r4-Tunnel0/0/4]destination 15.1.1.1

[r1]ip route-static 192.168.4.0 24 10.1.1.2

[r4]ip route-static 192.168.1.0 24 10.1.1.1

4、Nat配置

[r1]acl 2001

[r1-acl-basic-2001]rule permit source 192.168.1.0 0.0.0.255

[r1-Serial4/0/0]nat outbound 2001

[r2]acl 2002

[r2-acl-basic-2002]rule permit source 192.168.2.0 0.0.0.255

[r2-Serial4/0/0]nat outbound 2002

[r3]acl 2003

[r3-acl-basic-2003]rule permit source 192.168.3.0 0.0.0.255

[r3-Serial4/0/0]nat outbound 2003

[r4]acl 2004

[r4-acl-basic-2004]rule permit source 192.168.4.0 0.0.0.255

[r4- GigabitEthernet0/0/0]nat outbound 2004

缺省配置

[r1]ip route-static 0.0.0.0 0 15.1.1.5

[r2]ip route-static 0.0.0.0 0 25.1.1.5

[r3]ip route-static 0.0.0.0 0 35.1.1.5

[r4]ip route-static 0.0.0.0 0 45.1.1.5

5、MGRE配置

[r1-Tunnel0/0/23]ip add 10.1.2.1 24

[r1-Tunnel0/0/23]tunnel-protocol gre p2mp

[r1-Tunnel0/0/23]source 15.1.1.1

[r2-Tunnel0/0/2]ip add 10.1.2.2 24

[r2-Tunnel0/0/2]tunnel-protocol gre p2mp

[r2-Tunnel0/0/2]source 25.1.1.2

[r3-Tunnel0/0/3]ip address 10.1.2.3 24

[r3-Tunnel0/0/3]tunnel-protocol gre p2mp

[r3-Tunnel0/0/3]source 35.1.1.3

NHRP的配置

[r1-Tunnel0/0/23]nhrp network-id 100

[r2-Tunnel0/0/2]nhrp network-id 100

[r2-Tunnel0/0/2]nhrp entry 10.1.2.1 15.1.1.1 register

[r3-Tunnel0/0/3]nhrp network-id 100

[r3-Tunnel0/0/3]nhrp entry 10.1.2.1 15.1.1.1 register

RIP配置

[r1]rip 1

[r1-rip-1]undo summary

[r1-rip-1]version 2

[r1-rip-1]network 192.168.1.0

[r1-rip-1]network 10.0.0.0

[r2]rip 1

[r2-rip-1]undo summary

[r2-rip-1]version 2

[r2-rip-1]network 192.168.2.0

[r2-rip-1]network 10.0.0.0

[r3]rip 1

[r3-rip-1]undo summary

[r3-rip-1]version 2

[r3-rip-1]network 192.168.3.0

[r3-rip-1]network 10.0.0.0

开启伪广播

[r1-Tunnel0/0/23]nhrp entry multicast dynamic

关闭水平分割

[R1-Tunnel0/0/0]undo rip split-horizon

[R2-Tunnel0/0/0]undo rip split-horizon

[R3-Tunnel0/0/0]undo rip split-horizon
