EP4CE22F17C8+SDRAM+WM8731+HR911105A网口 cycloen4e fpga开发板硬件(原理图+PCB）

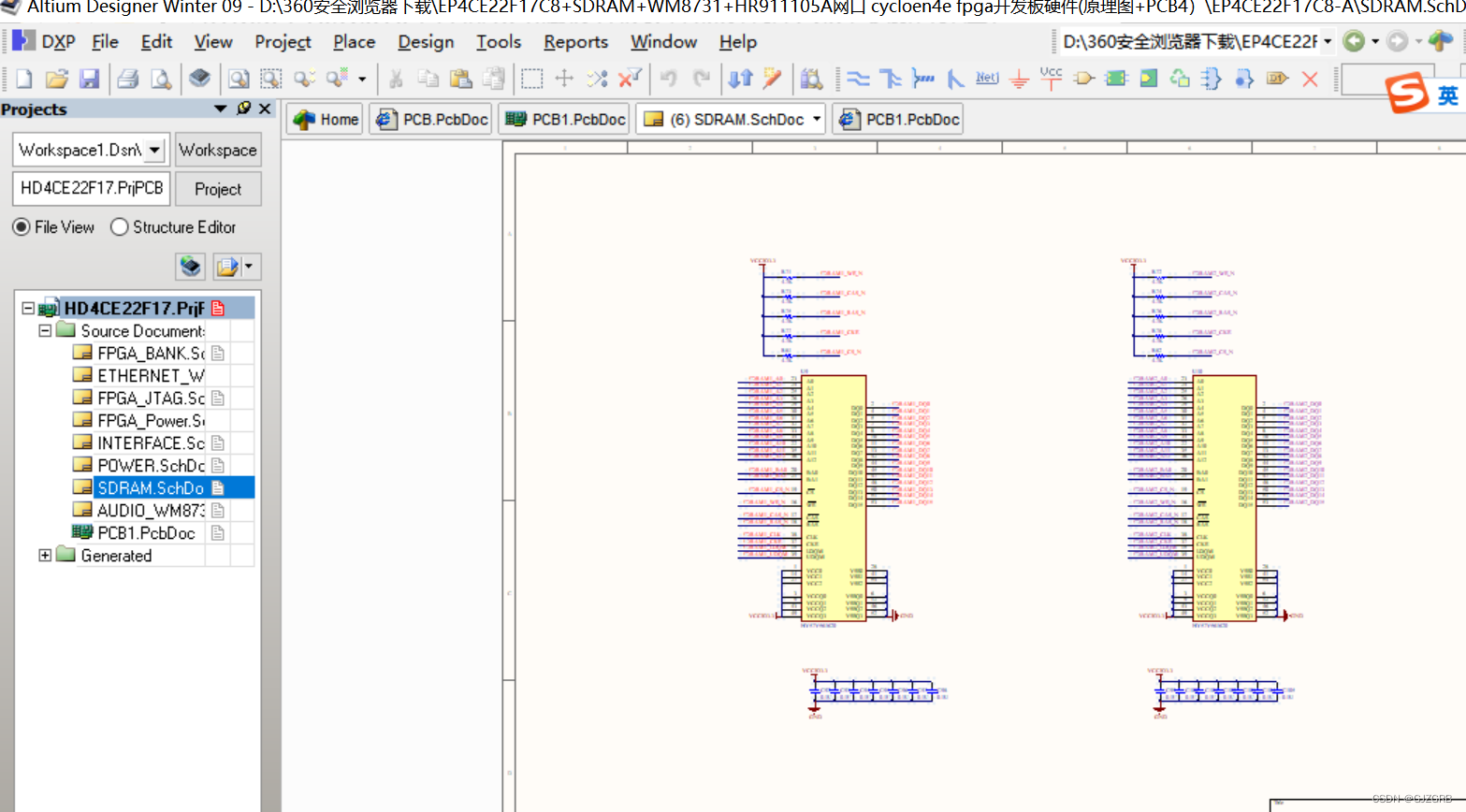

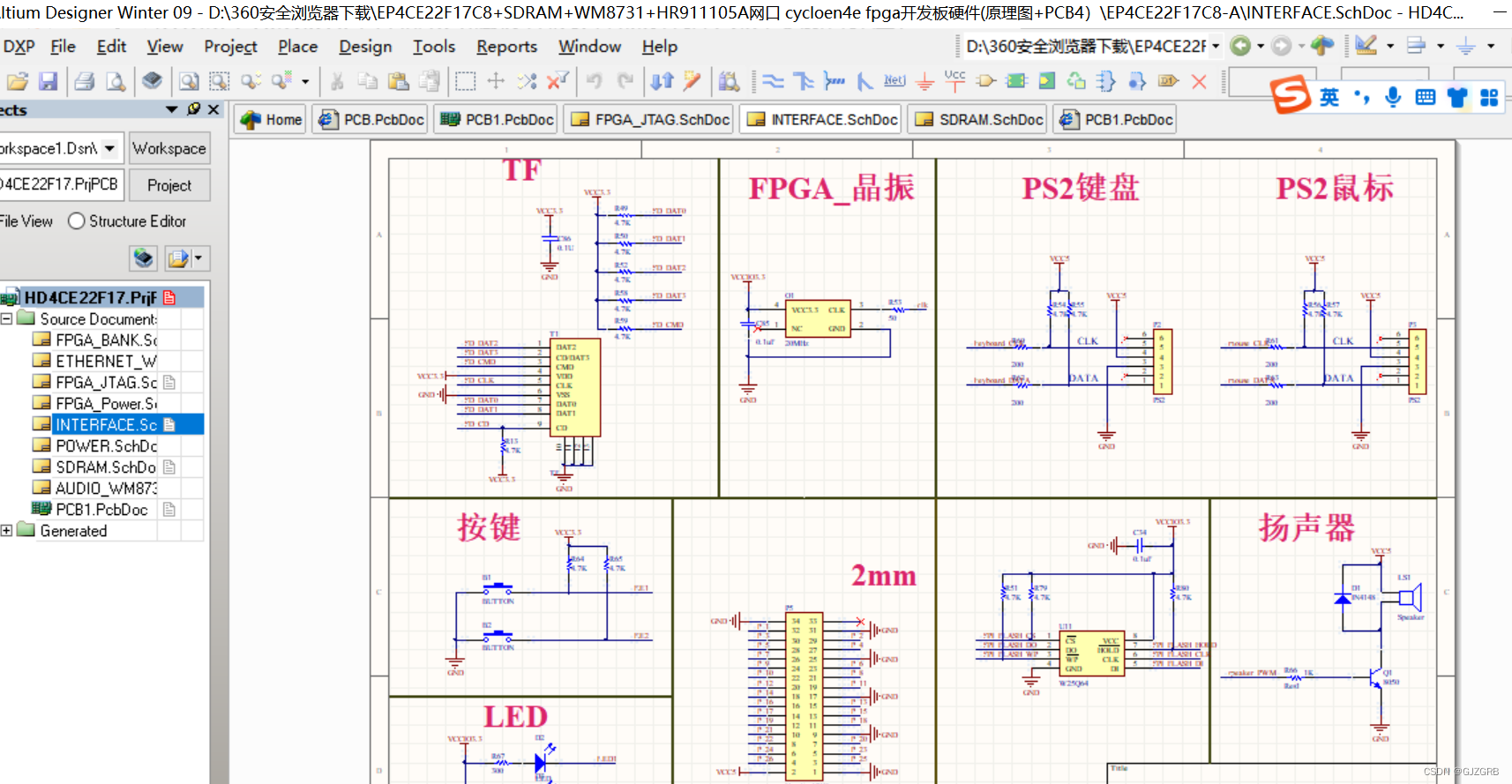

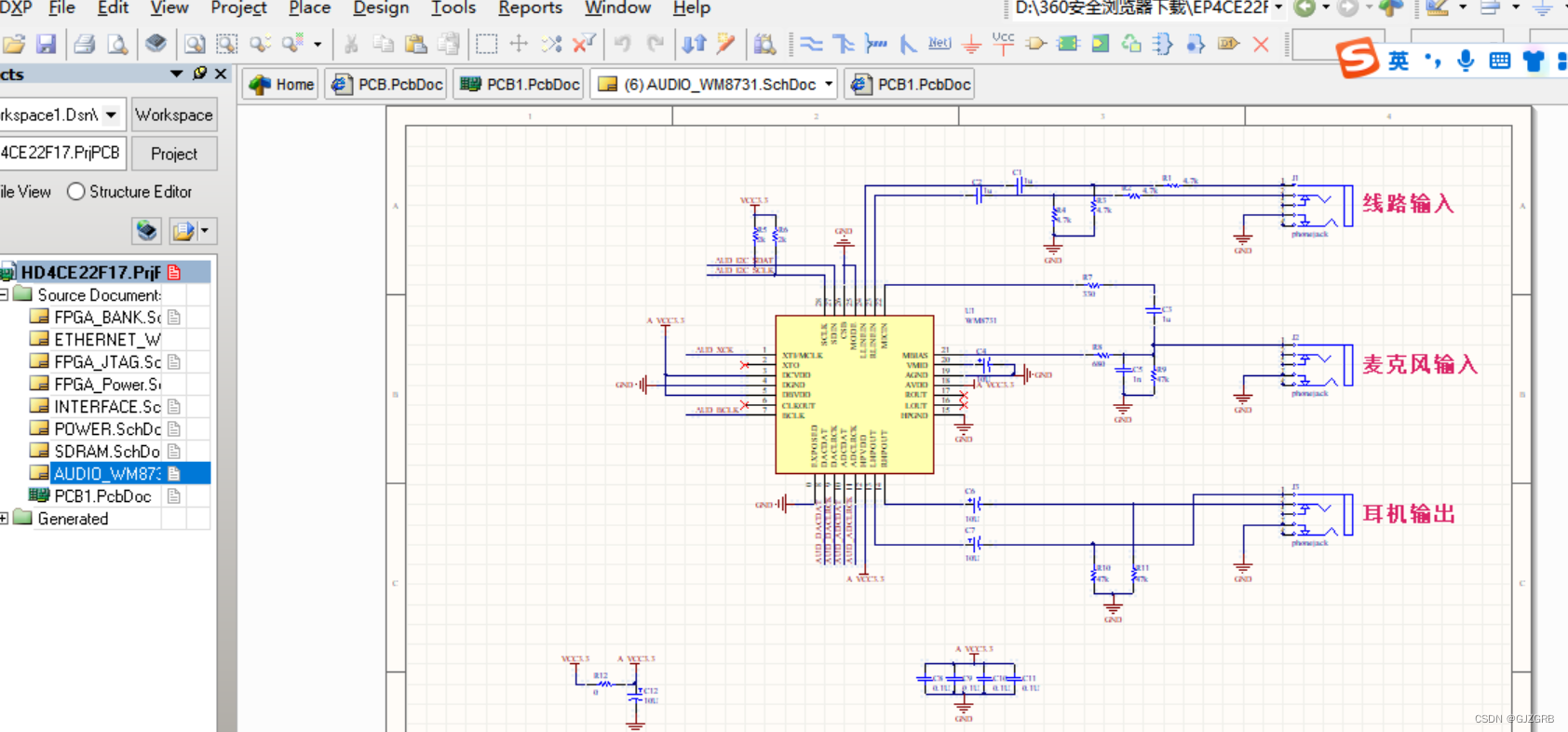

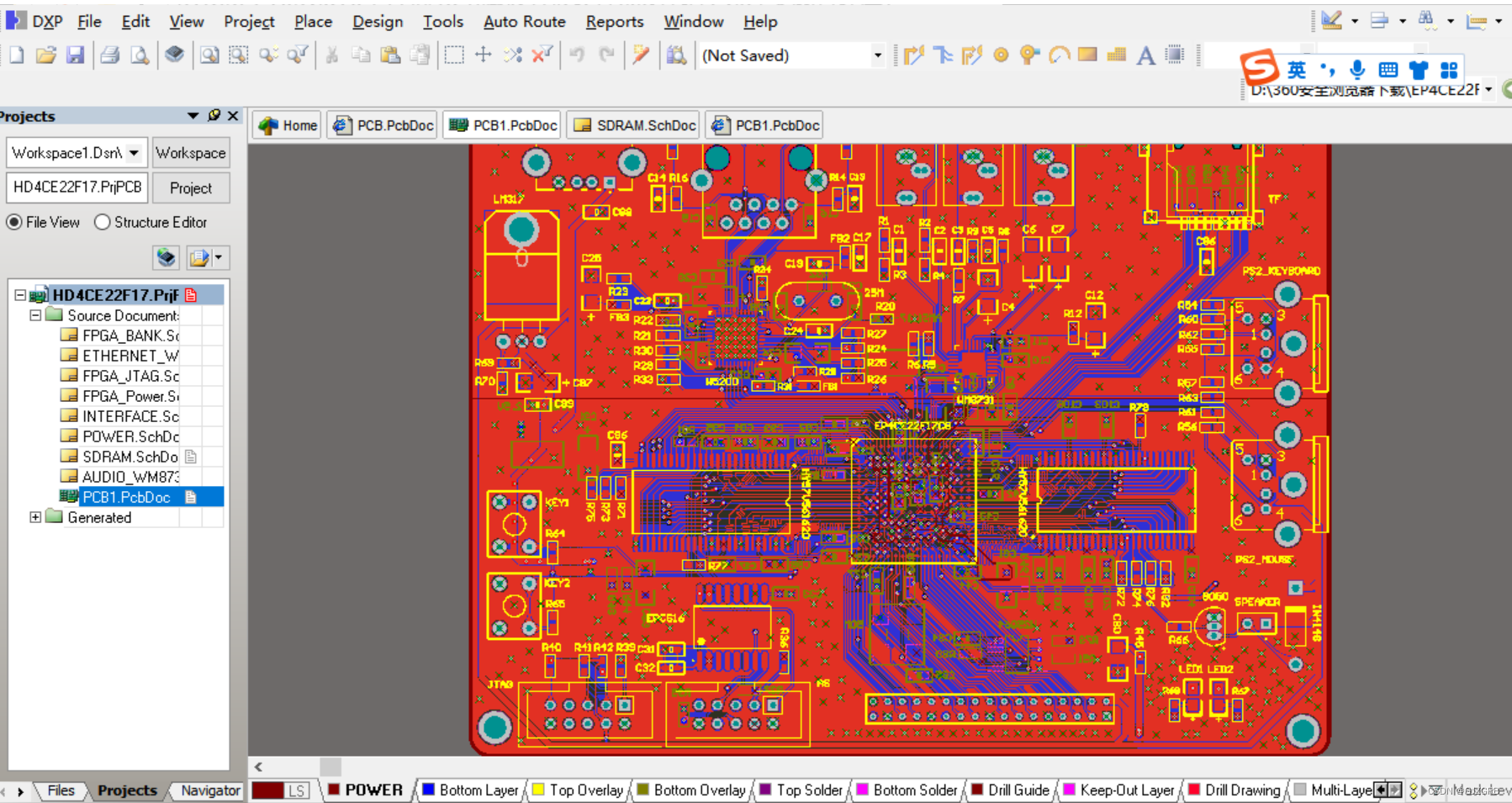

EP4CE22F17C8+SDRAM+HR911105A网口 cycloen4e fpga开发板硬件(原理图+PCB4层板）。 Altium Designer 设计的工程文件，包括原理图及PCB文件，4层板设计，板子大小为116x90mm，双面布局布线，可以用Altium(AD)软件打开或修改，可作为你产品设计的参考。 主要器件如下： BUTTON CAP1 CRYSTAL EP4CE22F17C8 Cyclone IV Family FPGA, 2V Core, 153 I/O Pins, 4 PLLs, 256-Pin FBGA, Speed Grade 8, Commercial Grade EPCS16 HY57V561620 Header 17X2 Header, 17-Pin, Dual row Header 5X2 Header, 5-Pin, Dual row LED LM1117-3.3 LM317 NPN NPN Bipolar Transistor PN DIODE PS2 RES Res1 Resistor Speaker Loudspeaker TF USB W25Q64 W5200 WM8731 cap oscillator phonejack 磁珠 网口_HR911105A
