1. 拓扑

2. PC的IP设置

3. 交换机配置

4. 测试

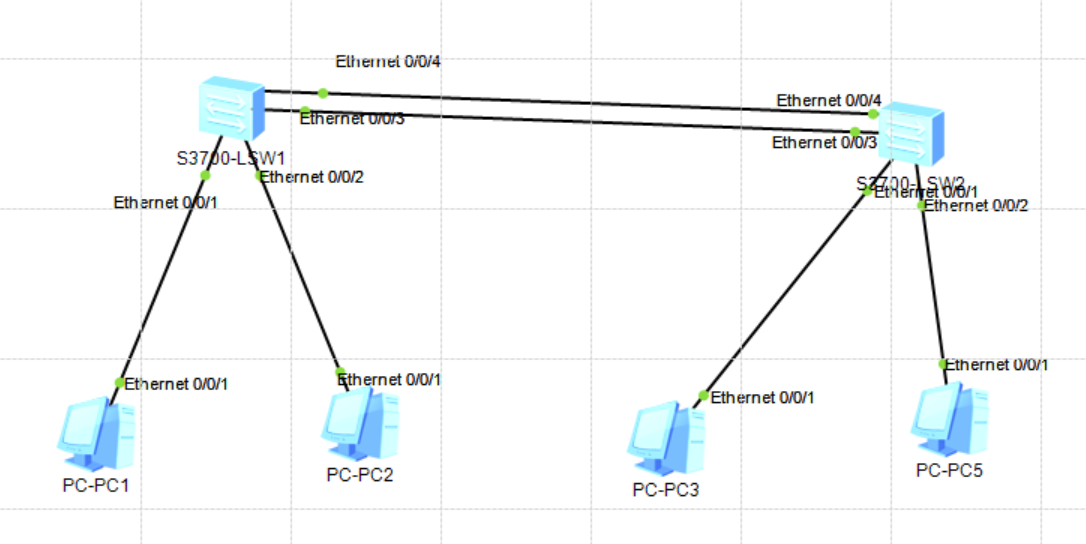

   1拓扑模型

本实验目的是将PC1与PC3划分在一个VLAN下并实现

将PC2与PC5划分在一个VLAN下

2PC的IP设置

	IP地址	子网掩码
PC1	192.168.1.1	255.255.255.0
PC2	192.168.1.2	255.255.255.0
PC3	192.168.1.3	255.255.255.0
PC5	192.168.1.4	255.255.255.0

3交换机配置

<Huawei>system-view
[Huawei]vlan 10
[Huawei-vlan10]
Jul  9 2020 09:23:40-08:00 Huawei DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5
.25.191.3.1 configurations have been changed. The current change number is 4, th
e change loop count is 0, and the maximum number of records is 4095.
[Huawei-vlan10]q
[Huawei]vlan 20
[Huawei-vlan20]
Jul  9 2020 09:24:00-08:00 Huawei DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5
.25.191.3.1 configurations have been changed. The current change number is 5, th
e change loop count is 0, and the maximum number of records is 4095.
[Huawei-vlan20]q
[Huawei]interface Ethernet 0/0/1
[Huawei-Ethernet0/0/1]port link-type access
[Huawei-Ethernet0/0/1]port default vlan 10
[Huawei]interface Ethernet 0/0/2
[Huawei-Ethernet0/0/2]port link-type access
[Huawei-Ethernet0/0/2]port default vlan 10
[Huawei]interface Ethernet 0/0/3
[Huawei-Ethernet0/0/3]port link-type trunk
[Huawei-Ethernet0/0/3]
Jul  9 2020 09:29:40-08:00 Huawei DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5
.25.191.3.1 configurations have been changed. The current change number is 8, th
e change loop count is 0, and the maximum number of records is 4095.
[Huawei-Ethernet0/0/3]port trunk allow-pass vlan 10 20
[Huawei-Ethernet0/0/3]q
[Huawei]interface Ethernet 0/0/4
[Huawei-Ethernet0/0/4]port link-type trunk
[Huawei-Ethernet0/0/4]port trunk allow-pass vlan 10 20

两台交换机配置相同

测试

在PC1上测试

Welcome to use PC Simulator!

PC>ping 192.168.1.3

Ping 192.168.1.3: 32 data bytes, Press Ctrl_C to break
From 192.168.1.3: bytes=32 seq=1 ttl=128 time=62 ms
From 192.168.1.3: bytes=32 seq=2 ttl=128 time=47 ms
From 192.168.1.3: bytes=32 seq=3 ttl=128 time=63 ms
From 192.168.1.3: bytes=32 seq=4 ttl=128 time=63 ms
From 192.168.1.3: bytes=32 seq=5 ttl=128 time=62 ms

--- 192.168.1.3 ping statistics ---
  5 packet(s) transmitted
  5 packet(s) received
  0.00% packet loss
  round-trip min/avg/max = 47/59/63 ms

PC>192.168.1.2
Invalid command!

PC>ping 192.168.1.2

Ping 192.168.1.2: 32 data bytes, Press Ctrl_C to break
From 192.168.1.1: Destination host unreachable
From 192.168.1.1: Destination host unreachable
From 192.168.1.1: Destination host unreachable
From 192.168.1.1: Destination host unreachable
From 192.168.1.1: Destination host unreachable

--- 192.168.1.2 ping statistics ---
  5 packet(s) transmitted
  0 packet(s) received
  100.00% packet loss

PC>ping 192.168.1.4

Ping 192.168.1.4: 32 data bytes, Press Ctrl_C to break
From 192.168.1.1: Destination host unreachable
From 192.168.1.1: Destination host unreachable
From 192.168.1.1: Destination host unreachable
From 192.168.1.1: Destination host unreachable
From 192.168.1.1: Destination host unreachable

--- 192.168.1.4 ping statistics ---
  5 packet(s) transmitted
  0 packet(s) received
  100.00% packet loss

** PC1与PC3可以通信，与PC2\PC5不能通信. **
