《Wlan技术与应用》实验一、二层组网AP上线

---

前言

Wlan在日常生活中的应用越来越多，同学们实习在即，希望通过这门《Wlan技术与应用》课程的学习，为实习和就业起到一点帮助。

---

一、实验目的

通过直连二层组网方式，使AP在AC上线。先打通AP的管理，为下一步业务的配置做好准备。

二、使用设备

1. eNSP平台；
2. AC采用AC6005，1台；
3. AP采用AP6050，1台。

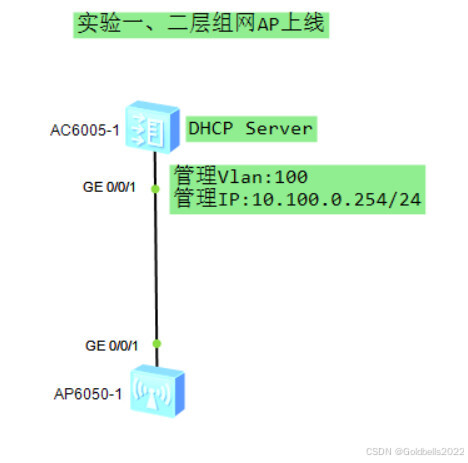

三、网络拓扑

组网 ：AP直挂在AC下。
DHCP部署 ：AC作为DHCP Server为AP分配IP地址。
AP的管理 ：VLAN 100，网段为10.100.0.0/24。网关为AC上的VLAN100接口IP。
AC与AP建立管理隧道的源接口：AC上的VLANIF100。

四、设备配置

1.AC上的配置

1）配置管理VLAN和端口数据

<AC6005>
<AC6005>system-view
Enter system view, return user view with Ctrl+Z.
[AC6005]
[AC6005]vlan 100
Info: This operation may take a few seconds. Please wait for a moment...done.
[AC6005-vlan100]q
[AC6005]
[AC6005]int GigabitEthernet 0/0/1
[AC6005-GigabitEthernet0/0/1]description To-AP1
[AC6005-GigabitEthernet0/0/1]port link-type access
[AC6005-GigabitEthernet0/0/1]port default vlan 100
[AC6005-GigabitEthernet0/0/1]display this
#
interface GigabitEthernet0/0/1
 description To-AP1
 port link-type access
 port default vlan 100
#
return
[AC6005-GigabitEthernet0/0/1]
[AC6005-GigabitEthernet0/0/1]q

2）配置DHCP服务器

[AC6005]
[AC6005]dhcp enable
Info: The operation may take a few seconds. Please wait for a moment.done.
[AC6005]
[AC6005]interface Vlanif 100
[AC6005-Vlanif100]
[AC6005-Vlanif100]ip address 10.100.0.254 24
[AC6005-Vlanif100]dhcp select interface
[AC6005-Vlanif100]display this
#
interface Vlanif100
 ip address 10.100.0.254 255.255.255.0
 dhcp select interface
#
return
[AC6005-Vlanif100]q
[AC6005]

2.配置WLAN视图中的数据

1）配置域管理模板，模版命名为default。

[AC6005]wlan
[AC6005-wlan-view]
[AC6005-wlan-view]regulatory-domain-profile name default
[AC6005-wlan-regulate-domain-default]country-code cn
Info: The current country code is same with the input country code.
[AC6005-wlan-regulate-domain-default]
[AC6005-wlan-regulate-domain-default]q

2）配置AP组，模板命名为ap-xg。

[AC6005-wlan-view]ap-group na
[AC6005-wlan-view]ap-group name ap-xg
Info: This operation may take a few seconds. Please wait for a moment.done.
[AC6005-wlan-ap-group-ap-xg]regulatory-domain-profile default
Warning: Modifying the country code will clear channel, power and antenna gain c
onfigurations of the radio and reset the AP. Continue?[Y/N]:y
[AC6005-wlan-ap-group-ap-xg]
[AC6005-wlan-ap-group-ap-xg]q

3）配置AP认证模式，默认为MAC认证。

[AC6005-wlan-view]ap auth-mode mac-auth

4）查看AP1的MAC地址，并离线导入AP。

[AC6005]display mac-address
-------------------------------------------------------------------------------
MAC Address    VLAN/VSI                          Learned-From        Type
-------------------------------------------------------------------------------
00e0-fcc5-68f0    100/-                   GE0/0/1                    dynamic
-------------------------------------------------------------------------------
Total items displayed = 1

[AC6005]wlan
[AC6005-wlan-view]ap-id 1 ap-mac 00e0-fcc5-68f0
[AC6005-wlan-ap-1]ap-name AP1
[AC6005-wlan-ap-1]ap-group ap-xg
Warning: This operation may cause AP reset. If the country code changes, it will
 clear channel, power and antenna gain configurations of the radio, Whether to c
ontinue? [Y/N]:y
Info: This operation may take a few seconds. Please wait for a moment.. done.
[AC6005-wlan-ap-1]
[AC6005-wlan-ap-1]q

3. 查看AP上线情况。

[AC6005]display ap all
Info: This operation may take a few seconds. Please wait for a moment.done.
Total AP information:
nor  : normal          [1]
---------------------------------------------------------------------------------------
ID   MAC            Name Group IP           Type            State STA Uptime
---------------------------------------------------------------------------------------
1    00e0-fcc5-68f0 AP1  ap-xg 10.100.0.206 AP6050DN        nor   0   5M:49S
---------------------------------------------------------------------------------------
Total: 1
[AC6005]

AP状态
normal ： AP正常状态，指AP在AC上成功上线。
fault ： AP上线失败状态。
idle ： AP和AC建立连接前的初始状态。

总结

本次实验为AP上线的基础实验，只用到了1台AC和1台AP，组网也较简单。通过本次实验，可以初步学习和掌握AP上线的配置，为以后的学习打好基础。
