华为跨域 MPLS Opiton C 配置（很详细）

已于 2022-07-10 00:30:43 修改
阅读量2.4k 收藏 39
点赞数 9
文章标签： 网络
于 2022-07-10 00:25:05 首次发布
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.csdn.net/HappyAston/article/details/125701032
版权

文章目录

实验环境

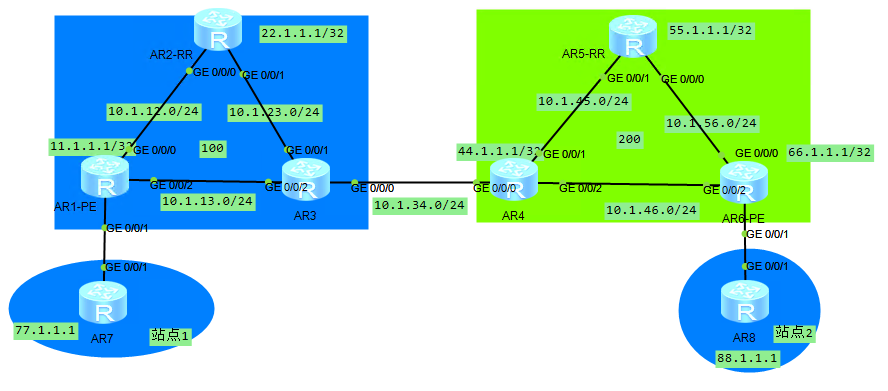

拓扑

image-20220709142446282

目的

此实验演示有RR的场景，通过RR之间建立BGP邻居的方式将各站点的路由通告给对方，最终实现CE之间的互访。

步骤

基础环境的配置

1）配置各设备接口IP地址。

2）完成各域内的OSPF邻居建立。

3）各PE创建VPN实例并绑定。

3）PE和CE建立OSPF邻居关系。

4）各域内开启MPLS和LDP。

5）各CE发布路由。

####控制层面的配置

1）PE和RR建立iBGP VPNv4邻居关系，RR关闭RT值检查，学习到CE端的客户路由。

2）ASBR（R3或R4）和RR之间建立IPv4单播iBGP邻居关系。

3）ASBR（R3和R4）之间建立IPv4单播eBGP邻居关系，并发布各RR的环回口地址。

4）RR之间使用对端的环回口地址建立VPNv4 eBGP多跳邻居关系，并关闭RR之间IPv4的邻居关系，否则可能产生路由动荡。

数据层面的配置

1）PE和RR、RR和ASBR、ASBR和ASBR之间需要增加BGP为IPv4单播提供标签分发的能力，是扩展BGP为IPv4单播路由提供标签分发的能力，为PE到PE之间建立一条完整的LSP。

2）ASBR之间开启MPLS

3）ASBR之间使用路由策略应用标签

4）ASBR针对RR使用路由策略应用标签

实验配置

基础环境的配置

Area100
R1
全局路由表中IP地址和OSPF配置
[R1]int g0/0/0
[R1-GigabitEthernet0/0/0]ip add 10.1.12.1 24
[R1-GigabitEthernet0/0/0]int g0/0/2
[R1-GigabitEthernet0/0/2]ip add 10.1.13.1 24
[R1-GigabitEthernet0/0/2]int loo0
[R1-LoopBack0]ip add 11.1.1.1 32
[R1-LoopBack0]q
[R1]ospf 1 router-id 11.1.1.1
[R1-ospf-1]area 0
[R1-ospf-1-area-0.0.0.0]q
[R1-ospf-1]q
[R1]int g0/0/0
[R1-GigabitEthernet0/0/0]ospf enable 1 area 0
[R1-GigabitEthernet0/0/0]int g0/0/2
[R1-GigabitEthernet0/0/2]ospf enable 1 area 0
[R1-GigabitEthernet0/0/2]int loo0
[R1-LoopBack0]ospf enable 1 area 0
VPN实例和OSPF配置
[R1]ip vpn-instance test
[R1-vpn-instance-test]route-distinguisher 1:7
[R1-vpn-instance-test-af-ipv4]q
[R1-vpn-instance-test]vpn-target 100:100 import-extcommunity
[R1-vpn-instance-test]vpn-target 100:100 export-extcommunity
[R1]ospf 10 vpn-instance test
[R1-ospf-10]area 0
[R1-ospf-10-area-0.0.0.0]q
[R1]int g0/0/1
[R1-GigabitEthernet0/0/1]ip binding vpn-instance test
[R1-GigabitEthernet0/0/1]ip add 10.1.17.1 24
[R1-GigabitEthernet0/0/1]ospf enable 10 area 0
[R1-GigabitEthernet0/0/1]q
MPLS和LDP配置
[R1]mpls lsr-id 11.1.1.1
[R1]mpls
Info: Mpls starting, please wait... OK!
[R1-mpls]q
[R1]mpls ldp
[R1-mpls-ldp]q
[R1]int g0/0/0
[R1-GigabitEthernet0/0/0]mpls
[R1-GigabitEthernet0/0/0]mpls ldp
[R1-GigabitEthernet0/0/0]q
[R1]int g0/0/2
[R1-GigabitEthernet0/0/2]mpls
[R1-GigabitEthernet0/0/2]mpls ldp
[R1-GigabitEthernet0/0/2]q

R2
全局路由表中IP地址和OSPF配置
[R2]int g0/0/0
[R2-GigabitEthernet0/0/0]ip add 10.1.12.2 24
[R2-GigabitEthernet0/0/0]int g0/0/1
[R2-GigabitEthernet0/0/1]ip add 10.1.23.2 24
[R2-GigabitEthernet0/0/1]int loo0
[R2-LoopBack0]ip add 22.1.1.1 32
[R2-LoopBack0]q
[R2]ospf 1 router-id 22.1.1.1
[R2-ospf-1]area 0
[R2-ospf-1-area-0.0.0.0]q
[R2-ospf-1]int g0/0/0
[R2-GigabitEthernet0/0/0]ospf en area 0
[R2-GigabitEthernet0/0/0]int g0/0/1
[R2-GigabitEthernet0/0/1]ospf en area 0
[R2-GigabitEthernet0/0/1]int loo0
[R2-LoopBack0]ospf en area 0
MPLS和LDP配置
[R2]mpls lsr-id 22.1.1.1
[R2]mpls
Info: Mpls starting, please wait... OK!
[R2-mpls]q
[R2]mpls ldp
[R2-mpls-ldp]q
[R2]int g0/0/0
[R2-GigabitEthernet0/0/0]mpls
[R2-GigabitEthernet0/0/0]mpls ldp
[R2-GigabitEthernet0/0/0]int g0/0/1
[R2-GigabitEthernet0/0/1]mpls
[R2-GigabitEthernet0/0/1]mpls ldp
[R2-GigabitEthernet0/0/1]q

R3
全局路由表中IP地址和OSPF配置
[R3]int g0/0/1
[R3-GigabitEthernet0/0/1]ip add 10.1.23.3 24
[R3-GigabitEthernet0/0/1]int g0/0/2
[R3-GigabitEthernet0/0/2]ip add 10.1.13.3 24
[R3-GigabitEthernet0/0/2]int g0/0/0
[R3-GigabitEthernet0/0/0]ip add 10.1.34.3 24
[R3-GigabitEthernet0/0/0]int loo0
[R3-LoopBack0]ip add 33.1.1.1 32
[R3]ospf 1 router-id 33.1.1.1
[R3-ospf-1]area 0
[R3-ospf-1-area-0.0.0.0]q
[R3-ospf-1]q
[R3]int g0/0/1
[R3-GigabitEthernet0/0/1]ospf en 1 area 0
[R3-GigabitEthernet0/0/1]int g0/0/2
[R3-GigabitEthernet0/0/2]ospf en 1 area 0
[R3-GigabitEthernet0/0/2]q
[R3]int loo0
[R3-LoopBack0]ospf en 1 area 0
MPLS和LDP配置
[R3]mpls lsr-id 33.1.1.1
[R3]mpls
Info: Mpls starting, please wait... OK!
[R3-mpls]q
[R3]mpls ldp
[R3-mpls-ldp]q
[R3]int g0/0/1
[R3-GigabitEthernet0/0/1]mpls
[R3-GigabitEthernet0/0/1]mpls ldp
[R3-GigabitEthernet0/0/1]int g0/0/2
[R3-GigabitEthernet0/0/2]mpls
[R3-GigabitEthernet0/0/2]mpls ldp
[R3-GigabitEthernet0/0/2]q

R7
全局路由表中IP地址和OSPF配置
[R7]int g0/0/1
[R7-GigabitEthernet0/0/1]ip add 10.1.17.7 24
[R7-GigabitEthernet0/0/1]int loo0
[R7-LoopBack0]ip add 77.1.1.1 32
[R7-LoopBack0]q
[R7]ospf 10
[R7-ospf-10]area 0
[R7-ospf-10-area-0.0.0.0]q
[R7-ospf-10]q
[R7]int g0/0/1
[R7-GigabitEthernet0/0/1]ospf en 10 area 0
[R7]int loo0
[R7-LoopBack0]ospf en 10 area 0
[R7-LoopBack0]q
Area200
R6
###全局路由表中IP地址和OSPF配置
[R6]int g0/0/0
[R6-GigabitEthernet0/0/0]ip add 10.1.56.6 24
[R6-GigabitEthernet0/0/0]int g0/0/2
[R6-GigabitEthernet0/0/2]ip add 10.1.46.6 24
[R6-GigabitEthernet0/0/2]int loo0
[R6-LoopBack0]ip add 66.1.1.1 32
[R6-LoopBack0]q
[R6]ospf 1 router-id 66.1.1.1
[R6-ospf-1]area 0
[R6-ospf-1-area-0.0.0.0]q
[R6-ospf-1]q
[R6]int g0/0/0
[R6-GigabitEthernet0/0/0]ospf en 1 area 0
[R6-GigabitEthernet0/0/0]int g0/0/2
[R6-GigabitEthernet0/0/2]ospf en 1 area 0
[R6-GigabitEthernet0/0/2]q
[R6]int loo0
[R6-LoopBack0]ospf en 1 area 0
###VPN实例和OSPF配置
[R6]ip vpn-instance test
[R6-vpn-instance-test]route-distinguisher 6:8
[R6-vpn-instance-test-af-ipv4]q
[R6-vpn-instance-test]vpn-target 100:100 im
[R6-vpn-instance-test]vpn-target 100:100 export-extcommunity
[R6-vpn-instance-test]q
[R6]ospf 10 vpn-instance test
[R6-ospf-10]area 0
[R6-ospf-10-area-0.0.0.0]q
[R6-ospf-10]q
[R6]int g0/0/1
[R6-GigabitEthernet0/0/1]ip binding vpn-instance test
[R6-GigabitEthernet0/0/1]ip add 10.1.68.6 24
[R6-GigabitEthernet0/0/1]ospf en 10 area 0
[R6-GigabitEthernet0/0/1]q
###MPLS和LDP配置
[R6]mpls lsr-id 66.1.1.1
[R6]mpls
Info: Mpls starting, please wait... OK!
[R6-mpls]q
[R6]mpls ldp
[R6-mpls-ldp]q
[R6]int g0/0/0
[R6-GigabitEthernet0/0/0]mpls
[R6-GigabitEthernet0/0/0]mpls ldp
[R6-GigabitEthernet0/0/0]int g0/0/2
[R6-GigabitEthernet0/0/2]mpls
[R6-GigabitEthernet0/0/2]mpls ldp
[R6-GigabitEthernet0/0/2]q

R5
###全局路由表中IP地址和OSPF配置
[R5]int g0/0/0
[R5-GigabitEthernet0/0/0]ip add 10.1.56.5 24
[R5-GigabitEthernet0/0/0]int g0/0/1
[R5-GigabitEthernet0/0/1]ip add 10.1.45.5 24
[R5-GigabitEthernet0/0/1]int loo0
[R5-LoopBack0]ip add 55.1.1.1 32
[R5-LoopBack0]q
[R5]ospf 1 router-id 55.1.1.1
[R5-ospf-1]area 0
[R5-ospf-1-area-0.0.0.0]q
[R5-ospf-1]q
[R5]int g0/0/1
[R5-GigabitEthernet0/0/1]ospf en 1 area 0
[R5-GigabitEthernet0/0/1]int g0/0/0
[R5-GigabitEthernet0/0/0]ospf en 1 area 0
[R5-GigabitEthernet0/0/0]int loo0
[R5-LoopBack0]ospf en 1 area 0
[R5-LoopBack0]q
###MPLS和LDP配置
[R5]mpls lsr-id 55.1.1.1
[R5]mpls
Info: Mpls starting, please wait... OK!
[R5-mpls]q
[R5]mpls ldp
[R5-mpls-ldp]q
[R5]int g0/0/1
[R5-GigabitEthernet0/0/1]mpls
[R5-GigabitEthernet0/0/1]mpls ldp
[R5-GigabitEthernet0/0/1]int g0/0/0
[R5-GigabitEthernet0/0/0]mpls
[R5-GigabitEthernet0/0/0]mpls ldp
[R5-GigabitEthernet0/0/0]q

R4
###全局路由表中IP地址和OSPF配置
[R4]int g0/0/1
[R4-GigabitEthernet0/0/1]ip add 10.1.45.4 24
[R4-GigabitEthernet0/0/1]int g0/0/2
[R4-GigabitEthernet0/0/2]ip add 10.1.46.4 24
[R4-GigabitEthernet0/0/2]int g0/0/0
[R4-GigabitEthernet0/0/0]ip add 10.1.34.4 24
[R4-GigabitEthernet0/0/0]int loo0
[R4-LoopBack0]ip add 44.1.1.1 32
[R4-LoopBack0]q
[R4]ospf 1 router-id 44.1.1.1
[R4-ospf-1]area 0
[R4-ospf-1-area-0.0.0.0]q
[R4-ospf-1]q
[R4]int g0/0/1
[R4-GigabitEthernet0/0/1]ospf en 1 area 0
[R4-GigabitEthernet0/0/1]int g0/0/2
[R4-GigabitEthernet0/0/2]ospf en 1 area 0
[R4]int loo0
[R4-LoopBack0]ospf en 1 area 0
###MPLS和LDP配置
[R4]mpls lsr-id 44.1.1.1
[R4]mpls
Info: Mpls starting, please wait... OK!
[R4-mpls]q
[R4]mpls ldp
[R4-mpls-ldp]q
[R4]int g0/0/1
[R4-GigabitEthernet0/0/1]mpls
[R4-GigabitEthernet0/0/1]mpls ldp
[R4-GigabitEthernet0/0/1]int g0/0/2
[R4-GigabitEthernet0/0/2]mpls
[R4-GigabitEthernet0/0/2]mpls ldp
[R4-GigabitEthernet0/0/2]q

R8
###全局路由表中IP地址和OSPF配置
[R8]int g0/0/1
[R8-GigabitEthernet0/0/1]ip add 10.1.68.8 24
[R8-GigabitEthernet0/0/1]int loo0
[R8-LoopBack0]ip add 88.1.1.1 32
[R8-LoopBack0]q
[R8]ospf 10
[R8-ospf-10]area 0
[R8-ospf-10-area-0.0.0.0]q
[R8-ospf-10]q
[R8]int g0/0/1
[R8-GigabitEthernet0/0/1]ospf en 10 area 0
[R8-GigabitEthernet0/0/1]int loo0
[R8-LoopBack0]ospf en 10 area 0
[R8-LoopBack0]q
验证
<R1>dis ip rou vpn test
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: test
         Destinations : 5        Routes : 5

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

      10.1.17.0/24  Direct  0    0           D   10.1.17.1       GigabitEthernet0/0/1
      10.1.17.1/32  Direct  0    0           D   127.0.0.1       GigabitEthernet0/0/1
    10.1.17.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet0/0/1
       77.1.1.1/32  OSPF    10   1           D   10.1.17.7       GigabitEthernet0/0/1
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

<R1>dis ospf pe br

         OSPF Process 1 with Router ID 11.1.1.1
                  Peer Statistic Information
 ----------------------------------------------------------------------------
 Area Id          Interface                        Neighbor id      State
 0.0.0.0          GigabitEthernet0/0/0             22.1.1.1         Full
 0.0.0.0          GigabitEthernet0/0/2             33.1.1.1         Full
 ----------------------------------------------------------------------------

         OSPF Process 10 with Router ID 10.1.17.1
                  Peer Statistic Information
 ----------------------------------------------------------------------------
 Area Id          Interface                        Neighbor id      State
 0.0.0.0          GigabitEthernet0/0/1             10.1.17.7        Full
 ----------------------------------------------------------------------------

 <R1>dis mpls ldp session

 LDP Session(s) in Public Network
 Codes: LAM(Label Advertisement Mode), SsnAge Unit(DDDD:HH:MM)
 A '*' before a session means the session is being deleted.
 ------------------------------------------------------------------------------
 PeerID             Status      LAM  SsnRole  SsnAge      KASent/Rcv
 ------------------------------------------------------------------------------
 22.1.1.1:0         Operational DU   Passive  0000:00:29  117/117
 33.1.1.1:0         Operational DU   Passive  0000:00:19  79/79
 ------------------------------------------------------------------------------
 TOTAL: 2 session(s) Found.


 <R6>dis ip rou vpn test
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: test
         Destinations : 5        Routes : 5

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

      10.1.68.0/24  Direct  0    0           D   10.1.68.6       GigabitEthernet0/0/1
      10.1.68.6/32  Direct  0    0           D   127.0.0.1       GigabitEthernet0/0/1
    10.1.68.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet0/0/1
       88.1.1.1/32  OSPF    10   1           D   10.1.68.8       GigabitEthernet0/0/1
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

<R6>dis ospf pe b

         OSPF Process 1 with Router ID 66.1.1.1
                  Peer Statistic Information
 ----------------------------------------------------------------------------
 Area Id          Interface                        Neighbor id      State
 0.0.0.0          GigabitEthernet0/0/0             55.1.1.1         Full
 0.0.0.0          GigabitEthernet0/0/2             44.1.1.1         Full
 ----------------------------------------------------------------------------

         OSPF Process 10 with Router ID 10.1.68.6
                  Peer Statistic Information
 ----------------------------------------------------------------------------
 Area Id          Interface                        Neighbor id      State
 0.0.0.0          GigabitEthernet0/0/1             10.1.68.8        Full
 ----------------------------------------------------------------------------
<R6>dis mpls ldp se

 LDP Session(s) in Public Network
 Codes: LAM(Label Advertisement Mode), SsnAge Unit(DDDD:HH:MM)
 A '*' before a session means the session is being deleted.
 ------------------------------------------------------------------------------
 PeerID             Status      LAM  SsnRole  SsnAge      KASent/Rcv
 ------------------------------------------------------------------------------
 44.1.1.1:0         Operational DU   Active   0000:00:05  21/21
 55.1.1.1:0         Operational DU   Active   0000:00:08  36/36
 ------------------------------------------------------------------------------
 TOTAL: 2 session(s) Found.

控制层面的配置

第一步：

​ PE和RR建立iBGP VPNv4邻居关系，RR关闭RT值检查，学习到CE端的客户路由。

配置
R1
[R1]bgp 100
[R1-bgp]router-id 11.1.1.1
[R1-bgp]peer 22.1.1.1 as 100
[R1-bgp]peer 22.1.1.1 connect-interface loo0
[R1-bgp]ipv4 vpnv4
[R1-bgp-af-vpnv4]peer 22.1.1.1 enable
[R1-bgp]ipv4 vpn-instance test   ### 进入vpn实例引入OSPF
[R1-bgp-test]import-route ospf 10
[R1]ospf 10
[R1-ospf-10]import-route bgp	### 引入BGP

R2
[R2]bgp 100
[R2-bgp]router-id 22.1.1.1
[R2-bgp]peer 11.1.1.1 as 100
[R2-bgp]peer 11.1.1.1 connect-interface loo0
[R2-bgp]ipv4 vpnv4
[R2-bgp-af-vpnv4]peer 11.1.1.1 enable
[R2-bgp-af-vpnv4]undo policy vpn-target		### 关闭对RT值的检查。

R6
[R6]bgp 200
[R6-bgp]router-id 66.1.1.1
[R6-bgp]peer 55.1.1.1 as 200
[R6-bgp]peer 55.1.1.1 connect-interface loo0
[R6-bgp]ipv4 vpnv4
[R6-bgp-af-vpnv4]peer 55.1.1.1 enable
[R6-bgp]ipv4 vpn-instance test
[R6-bgp-test]import-route ospf 10
[R6]ospf 10
[R6-ospf-10]import-route bgp

R5
[R5]bgp 200
[R5-bgp]router-id 55.1.1.1
[R5-bgp]peer 66.1.1.1 as 200
[R5-bgp]peer 66.1.1.1 connect-interface loo0
[R5-bgp]ipv4 vpnv4
[R5-bgp-af-vpnv4]peer 66.1.1.1 enable
[R5-bgp-af-vpnv4]undo policy vpn-target
验证
<R2>dis bgp vpnv4 all routing-table


 BGP Local router ID is 22.1.1.1
 Status codes: * - valid, > - best, d - damped,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete



 Total number of routes from all PE: 2
 Route Distinguisher: 1:7


      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>i  10.1.17.0/24       11.1.1.1        0          100        0      ?
 *>i  77.1.1.1/32        11.1.1.1        2          100        0      ?

<R5>dis bgp vpnv4 all routing-table


 BGP Local router ID is 55.1.1.1
 Status codes: * - valid, > - best, d - damped,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete



 Total number of routes from all PE: 2
 Route Distinguisher: 6:8


      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>i  10.1.68.0/24       66.1.1.1        0          100        0      ?
 *>i  88.1.1.1/32        66.1.1.1        2          100        0      ?
第二步

​ ASBR（R3或R4）和RR之间建立IPv4单播iBGP邻居关系。

配置
R2
[R2]bgp 100
[R2-bgp]peer 33.1.1.1 as 100
[R2-bgp]peer 33.1.1.1 connect-interface loo0

R3
[R3]bgp 100
[R3-bgp]router-id 33.1.1.1
[R3-bgp]peer 22.1.1.1 as 100
[R3-bgp]peer 22.1.1.1 connect-interface loo0
[R3-bgp]peer 22.1.1.1 next-hop-local

R5
[R5]bgp 200
[R5-bgp]peer 44.1.1.1 as 200
[R5-bgp]peer 44.1.1.1 connect-interface loo0

R4
[R4]bgp 200
[R4-bgp]router-id 44.1.1.1
[R4-bgp]peer 55.1.1.1 as 200
[R4-bgp]peer 55.1.1.1 connect-interface loo0
[R4-bgp]peer 55.1.1.1 next-hop-local
验证
<R2>dis bgp peer

 BGP local router ID : 22.1.1.1
 Local AS number : 100
 Total number of peers : 2                Peers in established state : 2

  Peer            V          AS  MsgRcvd  MsgSent  OutQ  Up/Down       State PrefRcv

  11.1.1.1        4         100       25       23     0 00:21:38 Established       0
  33.1.1.1        4         100        3        4     0 00:01:47 Established       0

<R5>dis bgp peer

 BGP local router ID : 55.1.1.1
 Local AS number : 200
 Total number of peers : 2                Peers in established state : 2

  Peer            V          AS  MsgRcvd  MsgSent  OutQ  Up/Down       State PrefRcv

  44.1.1.1        4         200        2        3     0 00:00:12 Established       0
  66.1.1.1        4         200       20       18     0 00:16:19 Established       0
第三步

​ ASBR（R3和R4）之间建立IPv4单播eBGP邻居关系，并发布各RR的环回口地址。之所以在ASBR上发布RR的地址是因为如果在RR上发布，ASBR会认为其是不优选的，而由于路由优先级的缘故，RR学习到ASBR通告的自己的地址也不会造成其他影响。

配置
R3
[R3]bgp 100
[R3-bgp]network 22.1.1.1 32
[R3-bgp]peer 10.1.34.4 as 200

R4
[R4]bgp 200
[R4-bgp]network 55.1.1.1 32
[R4-bgp]peer 10.1.34.3 as 100
验证
<R3>dis bgp peer

 BGP local router ID : 33.1.1.1
 Local AS number : 100
 Total number of peers : 1                Peers in established state : 1

  Peer            V          AS  MsgRcvd  MsgSent  OutQ  Up/Down       State PrefRcv

  10.1.34.4       4         200        2        3     0 00:00:15 Established       0

<R4>dis bgp peer

 BGP local router ID : 44.1.1.1
 Local AS number : 200
 Total number of peers : 1                Peers in established state : 1

  Peer            V          AS  MsgRcvd  MsgSent  OutQ  Up/Down       State PrefRcv

  10.1.34.3       4         100        2        2     0 00:00:05 Established       0
第四步

​ RR之间使用对端的环回口地址建立VPNv4 eBGP多跳邻居关系，并关闭RR之间IPv4的邻居关系，否则可能产生路由动荡。

配置
R2
[R2]bgp 100
[R2-bgp]peer 55.1.1.1 as 200
[R2-bgp]peer 55.1.1.1 connect-interface loo0
[R2-bgp]peer 55.1.1.1 ebgp-max-hop 255		### eBGP多跳
[R2-bgp]ipv4 unicast
[R2-bgp-af-ipv4]undo peer 55.1.1.1 enable		### 关闭ipv4单播邻居
[R2-bgp-af-ipv4]q
[R2-bgp]ipv4 vpnv4
[R2-bgp-af-vpnv4]peer 55.1.1.1 enable 		### 建立VPNv4邻居
[R2-bgp-af-vpnv4]q

R5
[R5]bgp 200
[R5-bgp]peer 22.1.1.1 as 100
[R5-bgp]peer 22.1.1.1 connect-interface loo0
[R5-bgp]peer 22.1.1.1 ebgp-max-hop 255
[R5-bgp]ipv4 unicast
[R5-bgp-af-ipv4]undo peer 22.1.1.1 enable
[R5-bgp-af-ipv4]q
[R5-bgp]ipv4 vpnv4
[R5-bgp-af-vpnv4]peer 22.1.1.1 enable
验证
<R1>dis bgp vpnv4 all peer

 BGP local router ID : 11.1.1.1
 Local AS number : 100
 Total number of peers : 1                Peers in established state : 1

  Peer            V          AS  MsgRcvd  MsgSent  OutQ  Up/Down       State PrefRcv

  22.1.1.1        4         100       45       45     0 00:37:58 Established       2

<R1>dis bgp vpnv4 all routing-table


 BGP Local router ID is 11.1.1.1
 Status codes: * - valid, > - best, d - damped,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete



 Total number of routes from all PE: 4
 Route Distinguisher: 1:7


      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>   10.1.17.0/24       0.0.0.0         0                     0      ?
 *>   77.1.1.1/32        0.0.0.0         2                     0      ?

 Route Distinguisher: 6:8


      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>i  10.1.68.0/24       22.1.1.1                   100        0      200?
 *>i  88.1.1.1/32        22.1.1.1                   100        0      200?

 VPN-Instance test, Router ID 11.1.1.1:

 Total Number of Routes: 4
      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>   10.1.17.0/24       0.0.0.0         0                     0      ?
 *>i  10.1.68.0/24       22.1.1.1                   100        0      200?
 *>   77.1.1.1/32        0.0.0.0         2                     0      ?
 *>i  88.1.1.1/32        22.1.1.1                   100        0      200?



<R5>dis bgp vpnv4 all peer

 BGP local router ID : 55.1.1.1
 Local AS number : 200
 Total number of peers : 2                Peers in established state : 2

  Peer            V          AS  MsgRcvd  MsgSent  OutQ  Up/Down       State PrefRcv

  22.1.1.1        4         100        4        4     0 00:00:12 Established       2
  66.1.1.1        4         200       39       39     0 00:31:48 Established       2

 <R5>dis bgp vpnv4 all routing-table


 BGP Local router ID is 55.1.1.1
 Status codes: * - valid, > - best, d - damped,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete



 Total number of routes from all PE: 4
 Route Distinguisher: 1:7


      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>   10.1.17.0/24       22.1.1.1                              0      100?
 *>   77.1.1.1/32        22.1.1.1                              0      100?

 Route Distinguisher: 6:8


      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>i  10.1.68.0/24       66.1.1.1        0          100        0      ?
 *>i  88.1.1.1/32        66.1.1.1        2          100        0      ?

<R7>dis ip routing-table protocol o
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Public routing table : OSPF
         Destinations : 2        Routes : 2

OSPF routing table status : <Active>
         Destinations : 2        Routes : 2

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

      10.1.68.0/24  O_ASE   150  1           D   10.1.17.1       GigabitEthernet0/0/1
       88.1.1.1/32  OSPF    10   2           D   10.1.17.1       GigabitEthernet0/0/1

OSPF routing table status : <Inactive>
         Destinations : 0        Routes : 0

<R8>dis ip routing-table protocol ospf
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Public routing table : OSPF
         Destinations : 2        Routes : 2

OSPF routing table status : <Active>
         Destinations : 2        Routes : 2

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

      10.1.17.0/24  O_ASE   150  1           D   10.1.68.6       GigabitEthernet0/0/1
       77.1.1.1/32  OSPF    10   2           D   10.1.68.6       GigabitEthernet0/0/1

OSPF routing table status : <Inactive>
         Destinations : 0        Routes : 0

注：此时还不能够通信因为数据层面的标签还没完善

数据层面的配置

第一步：

​ PE和RR、RR和ASBR、ASBR和ASBR之间需要增加BGP为IPv4单播提供标签分发的能力，是扩展BGP为IPv4单播路由提供标签分发的能力，为PE到PE之间建立一条完整的LSP。

配置
R1
[R1]bgp 100
[R1-bgp]ipv4 unicast
[R1-bgp-af-ipv4]peer 22.1.1.1 label-route-capability

R2
[R2]bgp 100
[R2-bgp]ipv4 unicast
[R2-bgp-af-ipv4]peer 11.1.1.1 label-route-capability
[R2-bgp-af-ipv4]peer 33.1.1.1 label-route-capability

R3
[R3]bgp 100
[R3-bgp]ipv4 unicast
[R3-bgp-af-ipv4]peer 22.1.1.1 label-route-capability
[R3-bgp-af-ipv4]peer 10.1.34.4 label-route-capability

R4
[R4]bgp 200
[R4-bgp]ipv4 unicast
[R4-bgp-af-ipv4]peer 10.1.34.3 label-route-capability
[R4-bgp-af-ipv4]peer 55.1.1.1 label-route-capability

R5
[R5]bgp 200
[R5-bgp]ipv4 unicast
[R5-bgp-af-ipv4]peer 44.1.1.1 label-route-capability
[R5-bgp-af-ipv4]peer 66.1.1.1 label-route-capability

R6
[R6]bgp 200
[R6-bgp]ipv4 unicast
[R6-bgp-af-ipv4]peer 55.1.1.1 label-route-capability
验证
<R2>display bgp peer verbose | include Label
        Address family IPv4 Unicast Label: advertised and received
        Address family IPv4 Unicast Label: advertised and received
第二步：

​ ASBR之间开启MPLS

配置
R3
[R3]int g0/0/0
[R3-GigabitEthernet0/0/0]mpls

R4
[R4]int g0/0/0
[R4-GigabitEthernet0/0/0]mpls
第三步：

​ ASBR之间使用路由策略应用标签

配置
R3
[R3]route-policy ASBR permit node 10
Info: New Sequence of this List.
[R3-route-policy]apply mpls-label
[R3-route-policy]q
[R3]bgp 100
[R3-bgp]ipv4 unicast
[R3-bgp-af-ipv4]peer 10.1.34.4 route-policy ASBR export

R4
[R4]route-policy ASBR permit node 10
Info: New Sequence of this List.
[R4-route-policy]apply mpls-label
[R4-route-policy]q
[R4]bgp 200
[R4-bgp]ipv4 unicast
[R4-bgp-af-ipv4]peer 10.1.34.3 route-policy ASBR export
第四步：

​ ASBR针对RR使用路由策略应用标签

配置
R3
[R3]route-policy RR permit node 10
Info: New Sequence of this List.
[R3-route-policy]if-match mpls-label
[R3-route-policy]apply mpls-label
[R3-route-policy]q
[R3]bgp 100
[R3-bgp]ipv4 unicast
[R3-bgp-af-ipv4]peer 22.1.1.1 route-policy RR export

R4
[R4]route-policy RR permit node 10
Info: New Sequence of this List.
[R4-route-policy]if-match mpls-label
[R4-route-policy]apply mpls-label
[R4-route-policy]q
[R4]bgp 200
[R4-bgp]ipv4 unicast
[R4-bgp-af-ipv4]peer 55.1.1.1 route-policy RR export
验证

RR的标签表

[R2]dis mpls lsp
-------------------------------------------------------------------------------
                 LSP Information: BGP  LSP
-------------------------------------------------------------------------------
FEC                In/Out Label  In/Out IF                      Vrf Name
55.1.1.1/32        NULL/1027     -/-
-------------------------------------------------------------------------------
                 LSP Information: L3VPN  LSP
-------------------------------------------------------------------------------
FEC                In/Out Label  In/Out IF                      Vrf Name
10.1.17.0/24       1042/1032     -/-                            ASBR LSP
77.1.1.1/32        1043/1033     -/-                            ASBR LSP
88.1.1.1/32        1046/1040     -/-                            ASBR LSP
10.1.68.0/24       1047/1039     -/-                            ASBR LSP
-------------------------------------------------------------------------------
                 LSP Information: LDP LSP
-------------------------------------------------------------------------------
FEC                In/Out Label  In/Out IF                      Vrf Name
11.1.1.1/32        NULL/3        -/GE0/0/0
11.1.1.1/32        1024/3        -/GE0/0/0
22.1.1.1/32        3/NULL        -/-
33.1.1.1/32        NULL/3        -/GE0/0/1
33.1.1.1/32        1025/3        -/GE0/0/1

PE的BGP VPNv4路由表

<R1>dis bgp vpnv4 all routing-table


 BGP Local router ID is 11.1.1.1
 Status codes: * - valid, > - best, d - damped,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete



 Total number of routes from all PE: 4
 Route Distinguisher: 1:7


      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>   10.1.17.0/24       0.0.0.0         0                     0      ?
 *>   77.1.1.1/32        0.0.0.0         2                     0      ?

 Route Distinguisher: 6:8


      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>i  10.1.68.0/24       22.1.1.1                   100        0      200?
 *>i  88.1.1.1/32        22.1.1.1                   100        0      200?

 VPN-Instance test, Router ID 11.1.1.1:

 Total Number of Routes: 4
      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>   10.1.17.0/24       0.0.0.0         0                     0      ?
 *>i  10.1.68.0/24       22.1.1.1                   100        0      200?
 *>   77.1.1.1/32        0.0.0.0         2                     0      ?
 *>i  88.1.1.1/32        22.1.1.1                   100        0      200?

RR的BGP VPNv4路由表

<R2>dis bgp vpnv4 all routing-table


 BGP Local router ID is 22.1.1.1
 Status codes: * - valid, > - best, d - damped,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete



 Total number of routes from all PE: 4
 Route Distinguisher: 1:7


      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>i  10.1.17.0/24       11.1.1.1        0          100        0      ?
 *>i  77.1.1.1/32        11.1.1.1        2          100        0      ?

 Route Distinguisher: 6:8


      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>   10.1.68.0/24       55.1.1.1                              0      200?
 *>   88.1.1.1/32        55.1.1.1                              0      200?

ASBR的路由表

<R3>dis ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 18       Routes : 19

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

      10.1.12.0/24  OSPF    10   2           D   10.1.23.2       GigabitEthernet0/0/1
                    OSPF    10   2           D   10.1.13.1       GigabitEthernet0/0/2
      10.1.13.0/24  Direct  0    0           D   10.1.13.3       GigabitEthernet0/0/2
      10.1.13.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet0/0/2
    10.1.13.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet0/0/2
      10.1.23.0/24  Direct  0    0           D   10.1.23.3       GigabitEthernet0/0/1
      10.1.23.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet0/0/1
    10.1.23.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet0/0/1
      10.1.34.0/24  Direct  0    0           D   10.1.34.3       GigabitEthernet0/0/0
      10.1.34.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet0/0/0
    10.1.34.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet0/0/0
       11.1.1.1/32  OSPF    10   1           D   10.1.13.1       GigabitEthernet0/0/2
       22.1.1.1/32  OSPF    10   1           D   10.1.23.2       GigabitEthernet0/0/1
       33.1.1.1/32  Direct  0    0           D   127.0.0.1       LoopBack0
       55.1.1.1/32  EBGP    255  1          RD   10.1.34.4       GigabitEthernet0/0/0
      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

标签

<R1>dis bgp vpnv4 all routing-table label

 BGP Local router ID is 11.1.1.1
 Status codes: * - valid, > - best, d - damped,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete


 Total number of routes from all PE: 4

 Route Distinguisher: 1:7


        Network           NextHop           In/Out Label

 *>     10.1.17.0         10.1.17.1         1032/NULL
 *>     77.1.1.1          10.1.17.7         1033/NULL

 Route Distinguisher: 6:8


        Network           NextHop           In/Out Label

 *>i    10.1.68.0         22.1.1.1          NULL/1047
 *>i    88.1.1.1          22.1.1.1          NULL/1046

 VPN-Instance test, Router ID 11.1.1.1:

 Total Number of Routes: 2


        Network           NextHop           In/Out Label

 *>i    10.1.68.0         22.1.1.1          NULL/1047
 *>i    88.1.1.1          22.1.1.1          NULL/1046

<R1>dis mpls lsp
-------------------------------------------------------------------------------
                 LSP Information: BGP  LSP
-------------------------------------------------------------------------------
FEC                In/Out Label  In/Out IF                      Vrf Name
10.1.17.0/24       1032/NULL     -/-                            test
77.1.1.1/32        1033/NULL     -/-                            test
-------------------------------------------------------------------------------
                 LSP Information: LDP LSP
-------------------------------------------------------------------------------
FEC                In/Out Label  In/Out IF                      Vrf Name
11.1.1.1/32        3/NULL        -/-
22.1.1.1/32        NULL/3        -/GE0/0/0
22.1.1.1/32        1026/3        -/GE0/0/0
33.1.1.1/32        NULL/3        -/GE0/0/2
33.1.1.1/32        1027/3        -/GE0/0/2

<R2>dis mpls lsp
-------------------------------------------------------------------------------
                 LSP Information: BGP  LSP
-------------------------------------------------------------------------------
FEC                In/Out Label  In/Out IF                      Vrf Name
55.1.1.1/32        NULL/1027     -/-
-------------------------------------------------------------------------------
                 LSP Information: L3VPN  LSP
-------------------------------------------------------------------------------
FEC                In/Out Label  In/Out IF                      Vrf Name
10.1.17.0/24       1042/1032     -/-                            ASBR LSP
77.1.1.1/32        1043/1033     -/-                            ASBR LSP
88.1.1.1/32        1046/1040     -/-                            ASBR LSP
10.1.68.0/24       1047/1039     -/-                            ASBR LSP
-------------------------------------------------------------------------------
                 LSP Information: LDP LSP
-------------------------------------------------------------------------------
FEC                In/Out Label  In/Out IF                      Vrf Name
11.1.1.1/32        NULL/3        -/GE0/0/0
11.1.1.1/32        1024/3        -/GE0/0/0
22.1.1.1/32        3/NULL        -/-
33.1.1.1/32        NULL/3        -/GE0/0/1
33.1.1.1/32        1025/3        -/GE0/0/1

<R3>dis mpls lsp
-------------------------------------------------------------------------------
                 LSP Information: BGP  LSP
-------------------------------------------------------------------------------
FEC                In/Out Label  In/Out IF                      Vrf Name
22.1.1.1/32        1026/NULL     -/-
55.1.1.1/32        1027/1028     -/-
55.1.1.1/32        NULL/1028     -/-
-------------------------------------------------------------------------------
                 LSP Information: LDP LSP
-------------------------------------------------------------------------------
FEC                In/Out Label  In/Out IF                      Vrf Name
22.1.1.1/32        NULL/3        -/GE0/0/1
22.1.1.1/32        1024/3        -/GE0/0/1
33.1.1.1/32        3/NULL        -/-
11.1.1.1/32        NULL/3        -/GE0/0/2
11.1.1.1/32        1025/3        -/GE0/0/2

tracert

​ RR没有回包的原因是没有VPN实例，也就是说因为此时还是只有VPNv4的标签且RR的全局路由表中并没有客户路由，所以不会回包，而ASBR回回报是因为此时用的已经是BGP LSP了，不需要关心有没有客户路由。

<R7>tracert -a 77.1.1.1 88.1.1.1
 traceroute to  88.1.1.1(88.1.1.1), max hops: 30 ,packet length: 40,press CTRL_C to break
 1 10.1.17.1 30 ms  10 ms  10 ms
 2  *  *  *
 3 10.1.23.3 90 ms  40 ms  30 ms
 4 10.1.34.4 50 ms  40 ms  40 ms
 5  *  *  *
 6 10.1.68.6 40 ms  40 ms  50 ms
 7 10.1.68.8 60 ms  50 ms  40 ms

ping

<R7>ping -a 77.1.1.1 88.1.1.1
  PING 88.1.1.1: 56  data bytes, press CTRL_C to break
    Reply from 88.1.1.1: bytes=56 Sequence=1 ttl=249 time=60 ms
    Reply from 88.1.1.1: bytes=56 Sequence=2 ttl=249 time=40 ms
    Reply from 88.1.1.1: bytes=56 Sequence=3 ttl=249 time=40 ms
    Reply from 88.1.1.1: bytes=56 Sequence=4 ttl=249 time=50 ms
    Reply from 88.1.1.1: bytes=56 Sequence=5 ttl=249 time=50 ms

  --- 88.1.1.1 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 40/48/60 ms
数据层面分析

此时R8去往R7的标签转发情况：

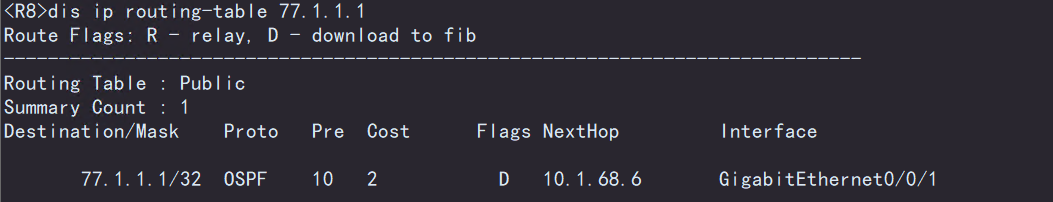

1）R8的88.1.1.1去往R7的77.1.1.1的下一跳是R6且是IP转发

image-20220709233656807

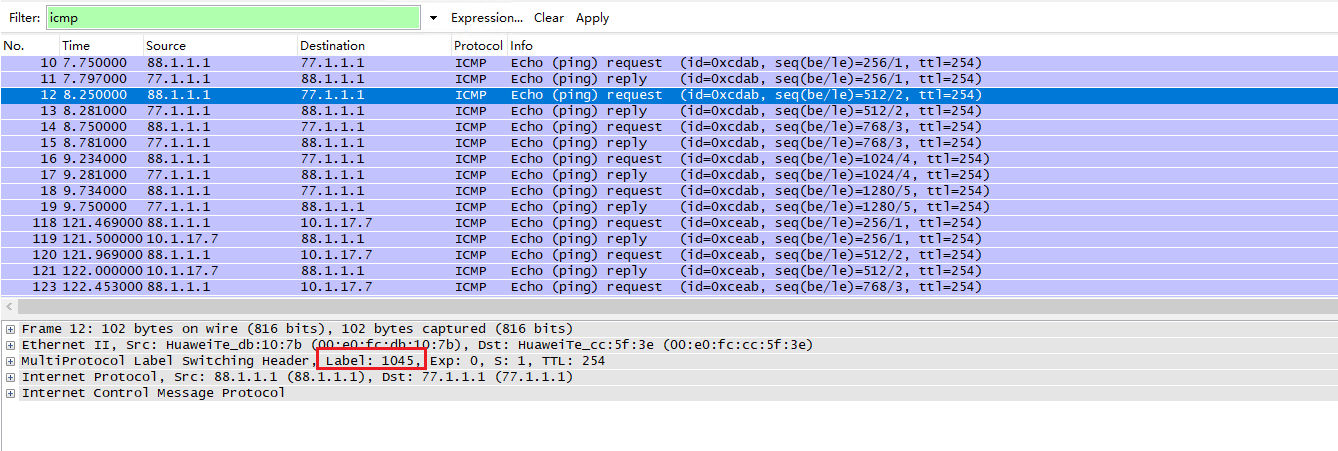

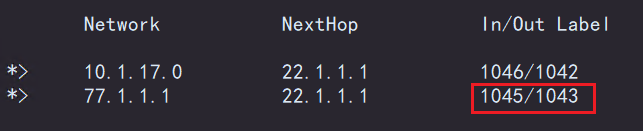

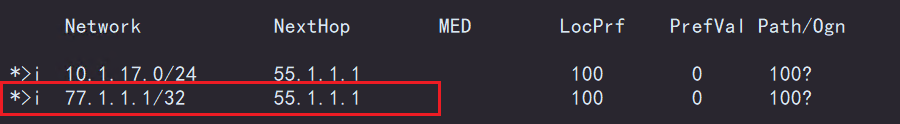

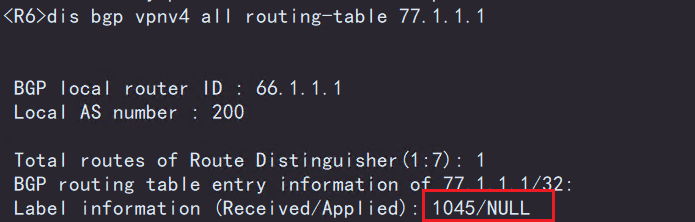

2）R6去往77.1.1.1的下一跳是R5，VPNv4标签转发

image-20220709233814751

image-20220709233145302

image-20220709232949808

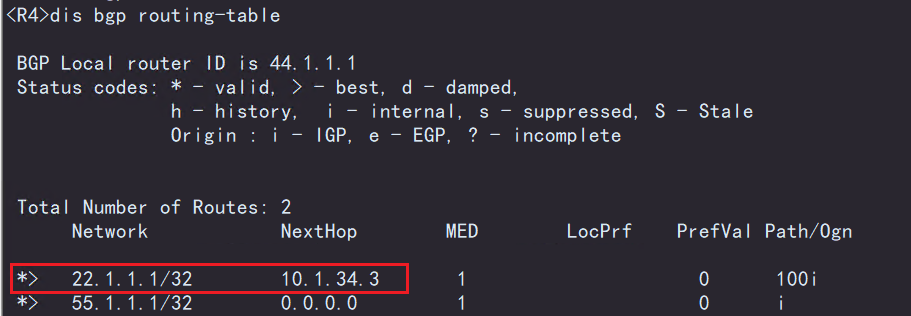

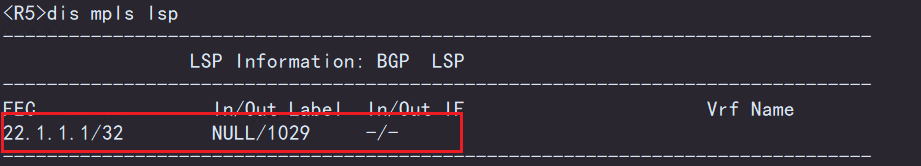

3）当数据包到达R5后，R5去往77.1.1.1的下一跳是22.1.1.1，查看22.1.1.1的LSP，可以发现是通过BGP生成的出标签1029，下一跳是R4

image-20220709233351501

image-20220709234923803

image-20220709233505367

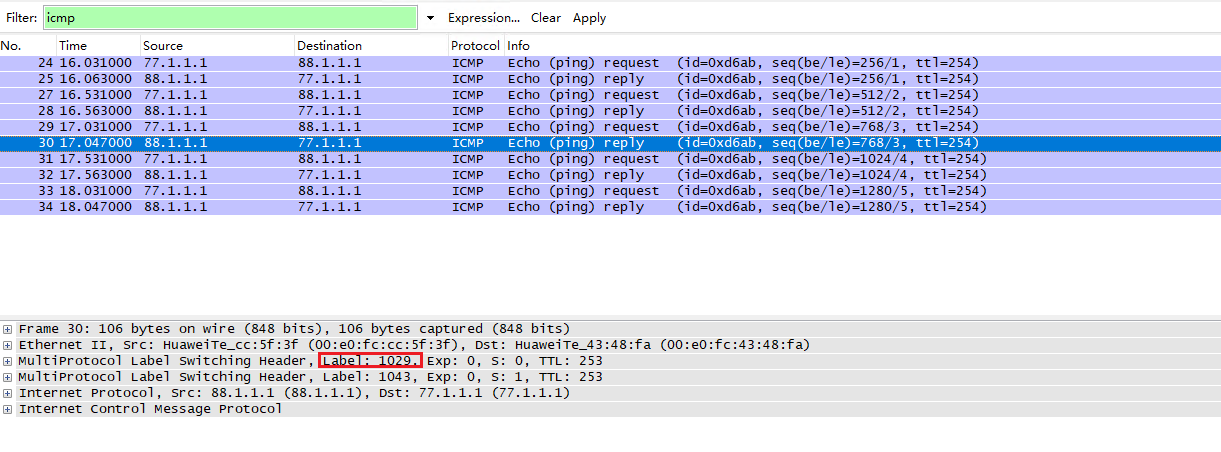

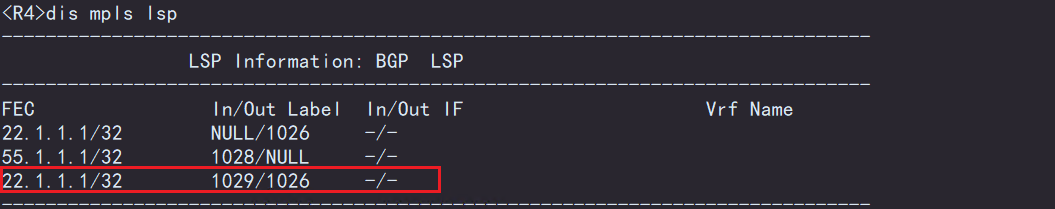

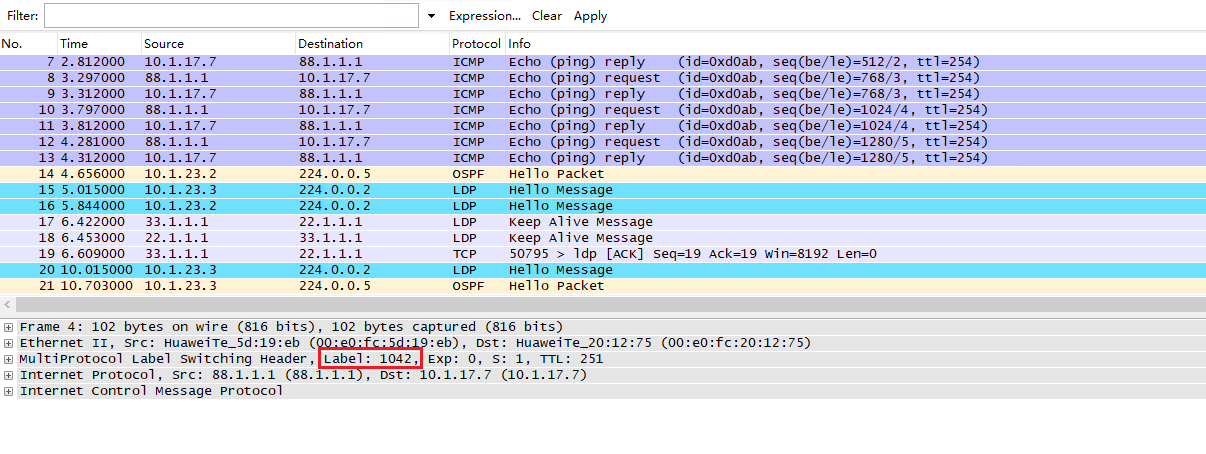

4）R4收到数据包后，查看去往22.1.1.1的LSP，出标签是1026，下一跳是R3，但是能发现R5将里层的VPNv4标签改成了1042，这里我也没有理解，但不影响最终结果

image-20220709234107455

image-20220709234219273

image-20220709234255872

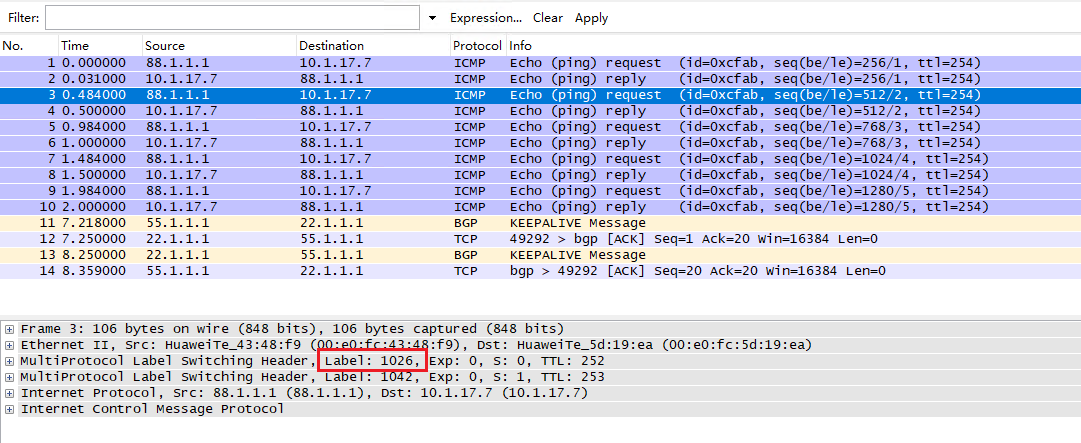

5）此时数据包到达AS100的ASBR R3上，R3根据22.1.1.1的LSP发现出标签是空，则会将标签弹出，下一跳是R2

image-20220709234404054

image-20220709234459155

6）数据包到达R2上，这个时候只剩下VPNv4标签了，查找VPNv4的标签表，得知

image-20220709235601111

image-20220709235644385

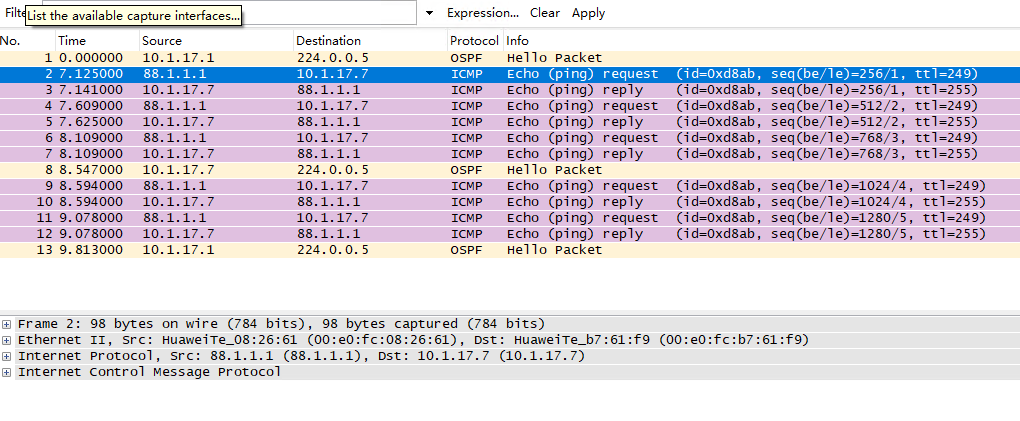

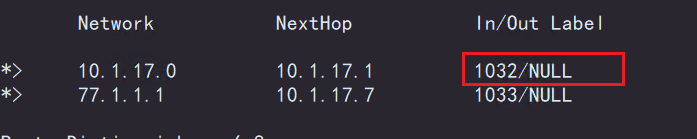

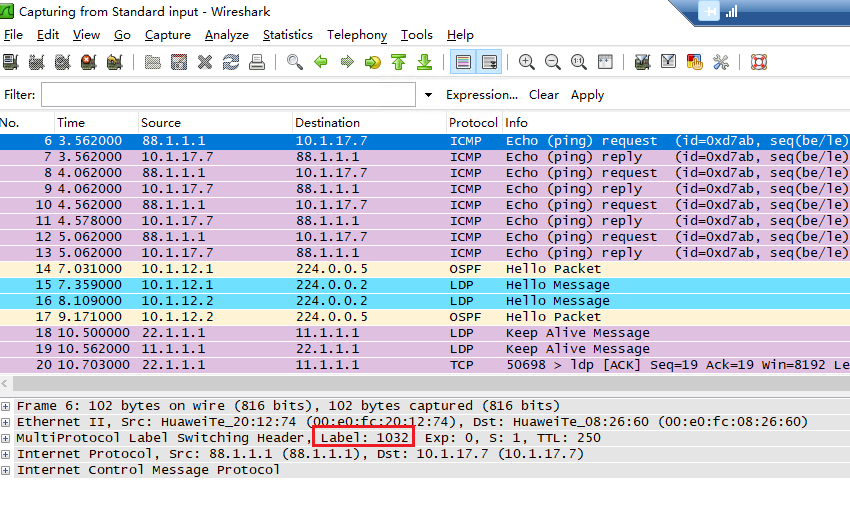

7）R1收到1032的标签后就会拆除标签了，最后IP转发，所以中间转发时它的标签切换了，我也不知道是什么原因

image-20220709235730965

image-20220709235910646

问题：为什么中间VPNv4的标签切换了，从目标地址77.1.1.1切换成了10.1.17.0，在R5上被切换了

小结

​ 到这里基础的Option C方案一已经完成了，但现在的做法是有不足的。由于现在的做法是通过RR建立VPNv4的邻居关系，PE之间学习到的客户路由都是需要通过RR的，这是我们不想看到的，可以通过在RR上让BGP学来的路由下一跳不变优化，在下面演示。

配置优化（不改变下一跳的情况）

​ 在RR上对对端RR和本端PE的VPNv4邻居执行下一跳不变命令，然后需要在ASBR上发布本区域内PE的环回口地址，还需要在RR上打破iBGP防环

R2
[R2]bgp 100
[R2-bgp]ipv4 vpnv4
[R2-bgp-af-vpnv4]peer 11.1.1.1 next-hop-invariable
[R2-bgp-af-vpnv4]peer 55.1.1.1 next-hop-invariable
[R2-bgp-af-vpnv4]q
[R2-bgp]peer 11.1.1.1 reflect-client

R5
[R5]bgp 200
[R5-bgp]ipv4 vpnv4
[R5-bgp-af-vpnv4]peer 22.1.1.1 next-hop-invariable
[R5-bgp-af-vpnv4]peer 66.1.1.1 next-hop-invariable
[R5-bgp-af-vpnv4]q
[R5-bgp]peer 66.1.1.1 reflect-client

R3
[R3]bgp 100
[R3-bgp]network 11.1.1.1 32

[R4]bgp 200
[R4-bgp]network 66.1.1.1 32

验证

R1
<R1>dis bgp routing-table

 BGP Local router ID is 11.1.1.1
 Status codes: * - valid, > - best, d - damped,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete


 Total Number of Routes: 2
      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>i  55.1.1.1/32        33.1.1.1        1          100        0      200i
 *>i  66.1.1.1/32        33.1.1.1        1          100        0      200i
<R1>dis bgp vpnv4 all routing-table


 BGP Local router ID is 11.1.1.1
 Status codes: * - valid, > - best, d - damped,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete



 Total number of routes from all PE: 4
 Route Distinguisher: 1:7


      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>   10.1.17.0/24       0.0.0.0         0                     0      ?
 *>   77.1.1.1/32        0.0.0.0         2                     0      ?

 Route Distinguisher: 6:8


      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>i  10.1.68.0/24       66.1.1.1                   100        0      200?
 *>i  88.1.1.1/32        66.1.1.1                   100        0      200?

 VPN-Instance test, Router ID 11.1.1.1:

 Total Number of Routes: 4
      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>   10.1.17.0/24       0.0.0.0         0                     0      ?
 *>i  10.1.68.0/24       66.1.1.1                   100        0      200?
 *>   77.1.1.1/32        0.0.0.0         2                     0      ?
 *>i  88.1.1.1/32        66.1.1.1                   100        0      200?

 R6
 <R6>dis bgp routing-table

 BGP Local router ID is 66.1.1.1
 Status codes: * - valid, > - best, d - damped,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete


 Total Number of Routes: 2
      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>i  11.1.1.1/32        44.1.1.1        1          100        0      100i
 *>i  22.1.1.1/32        44.1.1.1        1          100        0      100i

<R6>dis bgp vpnv4 all routing-table


 BGP Local router ID is 66.1.1.1
 Status codes: * - valid, > - best, d - damped,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete



 Total number of routes from all PE: 4
 Route Distinguisher: 1:7


      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>i  10.1.17.0/24       11.1.1.1                   100        0      100?
 *>i  77.1.1.1/32        11.1.1.1                   100        0      100?

 Route Distinguisher: 6:8


      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>   10.1.68.0/24       0.0.0.0         0                     0      ?
 *>   88.1.1.1/32        0.0.0.0         2                     0      ?

 VPN-Instance test, Router ID 66.1.1.1:

 Total Number of Routes: 4
      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>i  10.1.17.0/24       11.1.1.1                   100        0      100?
 *>   10.1.68.0/24       0.0.0.0         0                     0      ?
 *>i  77.1.1.1/32        11.1.1.1                   100        0      100?
 *>   88.1.1.1/32        0.0.0.0         2                     0      ?

<R7>tracert -a 77.1.1.1 88.1.1.1
 traceroute to  88.1.1.1(88.1.1.1), max hops: 30 ,packet length: 40,press CTRL_C to break
 1 10.1.17.1 30 ms  10 ms  10 ms
 2 10.1.13.3 30 ms  20 ms  40 ms
 3 10.1.34.4 30 ms  40 ms  40 ms
 4 10.1.68.6 40 ms  30 ms  30 ms
 5 10.1.68.8 40 ms  50 ms  40 ms
小结

到这里只是方案1结束了，方案2在下面继续介绍，内容很多比较复杂，要耐心，加油！！！

HappyAston
关注
HUAWEI MPLS 静态配置和动态LDP配置
m0_68698993的博客
07-02 1723
在MPLS网络中，位于网络边缘的路由称为LER(Label Edge Router)，网络内部路由器称为LSR(Label Switch Router)，MPLS报文经过的路径称为LSP(Label Switch Path)。若不是，则根据报文的目的地址查找路由表，若找到路由，将报文送给相应端口的数据链路层，数据链路层封装后，发送报文。查找LFIB，如果对应的出标签是特殊标签，如标签3 ，则将报文的标签去掉，进行IP转发。标签（Label）：是一个定长的，比较短的，只有本地意义的标识，4字节（0-3）
华为HCIE MPLS三种跨域方案实验
最新发布
m0_74169440的博客
07-05 894
华为HCIE MPLS三种跨域方案实验
局域网组网 实验7 MPLS VNP
m0_51828898的博客
08-03 934
配置： AR1： # interface GigabitEthernet0/0/0 ip address 10.1.2.1 255.255.255.0 # interface GigabitEthernet0/0/1 # interface GigabitEthernet0/0/2 # interface NULL0 # interface LoopBack0 ip address 10.1.1.1 255.255.255.255 # ip route-static 10.1.3.0 255.2..
华为MPLS单域实验配置
m0_49864110的博客
01-15 2414
配置MPLS单域，PE与CE之间采用OSPF、静态、BGP
华为 MPLS配置
_Dong的博客
03-07 7493
MPLS基本配置 //到边界路由器倒数第二台路由器弹出标签 [R1]int g0/0/0 [R1-GigabitEthernet0/0/0]ip add 12.0.0.1 24 [R1-GigabitEthernet0/0/0]int l0 [R1-LoopBack0]ip add 1.1.1.1 32 [r2]int g0/0/0 [r2-GigabitEthernet0/0/0]ip a...
mpls *** option C
weixin_34357928的博客
03-23 147
转载于:https://blog.51cto.com/86484/141532
BGP MPLS配置OptionC方式跨域VNP示例（方案二）.zip
03-13
下面我们将详细探讨BGP MPLS配置Option C方式跨域VNP的原理、应用场景以及如何在ENSP（Enterprise Network Simulation Platform）上进行模拟配置。 1. **BGP MPLS Option C概述** Option C是BGP/MPLS IP VPN标准中...
华为MPLS跨域实验配置方案汇总
资源摘要信息: "华为MPLS跨域实验.zip" 文件集合包含了华为设备上进行MPLS（多协议标签交换）跨域网络配置的实验方案。跨域MPLS网络涉及不同自治域之间的互连，是构建大型IP网络中的关键技术。实验配置文件涵盖了...
华为MPLS跨域实验.zip
07-19
华为跨域C1方案带RR实验配置 华为MPLS跨域C2方案实验配置 华为MPLS跨域C1方案实验配置 华为MPLS跨域A、B方案实验配置
跨域MPLS OptionC1.zip
06-25
跨域MPLS OptionC1.zip
华为 MPLS VPN部署
weixin_45564816的博客
05-25 2158
LSP是单向的，LSP是报文在穿越MPLS网络或者部分MPLS网络时的路径，为了保证双向通信，我们需要建立双向的LSP。每一台运行LDP的LSR都会为自己路由表中的路由前缀捆绑标签，然后再将所分配的标签分发给给所有的LSR邻居，一台LDP路由器会有多个LDP邻居。LSR（Label Switch Router，标签交换路由器）是支持并激活MPLS的路由器，LSR能理解MPLS标签并能够对MPLS标签包进行交换。标签的操作类型包括压入（Push）、标签交换（Swap）和标签弹出（Pop）。
华为ENSP之MPLS V 跨域OptionC1
m0_73406895的博客
10-03 959
MPLS VPN 跨域OptionC1。上配置策略，使2.7MP-EBGP。27MP-EBGP邻居建立成功。
华为静态mpls、动态mpls简单配置
qq_51142269的博客
08-10 859
华为路由器静态MPLS、动态MPLS配置
华为MPLS跨域C1方案实验配置
m0_49864110的博客
01-16 2073
MPLS隧道——跨域解决方案C1、C2讲解_静下心来敲木鱼的博客-CSDN博客_route-policy rr permit node 10 if-match mpls-label。 配置域内IGP路由协议与LDP协议 配置IPv4的BGP邻居 配置PE之间的Vpnv4邻居 ASBR上手工为PE地址分配标签 配置PE与CE设备对接命令
Lab1 跨域MPLS-虚拟专网 Option A配置详解
WFlySky的博客
11-15 885
实验拓扑： 实验需求： 需要R5与R7，私网通信，R6与R8私网通信。 地址预配，不再描述。例如R5，g0/0/0：192.168.15.5/24；lo0：192.168.5.5/32 实验结果 实验配置： 所有设备配置如下，每一步就不写了，有疑问可以留言： R1 <R1>dis cu [V200R003C00] # sysname R1 # snmp-agent local-engineid 800007DB03000000000000 snmp-agent # clock t
华为MPLS VPV配置
weixin_34149796的博客
11-11 1164
配置步骤一、在PE路由器上配置VRF（虚拟路由转发），VRF将路由器的2个实例分割，实例之间不能直接通信。二、在PE和P路由器上配置路由协议，互联网的内部路由器可以互通三、在PE设备之间配置BGP协议，BGP协议支持标签转发四、在PE和P路由器上配置MPLS协议，将端口设置允许MPLS协议五、配置×××六、配置VRF路由注入，让PE间设备能够学习到对方的路由协议PE1配置[P...
华为路由与交换 MPLS 协议原理与配置
weixin_42463871的博客
05-31 4174
本次博客主要介绍MPLS协议原理与配置 MPLS(英语：Multi-Protocol Label Switching，缩写为MPLS） 多协议标签交换 90年代初，互联网流量快速增长，而由于当时硬件技术的限制，采用的不是硬件，而是采用软件去转，路由器采用最长匹配算法逐跳转发数据包，成为网络数据转发的瓶颈。快速路由技术成为当时研究的一个热点。 在各种方案中，IETF确定MPLS协议作为标准的协议，用来提高数据转发的速率，所以，对于MPLS这个协议，一开始提出的目的就是在没有硬件的条件上，通过软件的方.
华为mpls Optionc 方案1 配置
_Dong的博客
06-27 1711
实验拓扑:接口地址为各路由器编号对应的网段 配置步骤： 1.配置各接口IP -AR1: interface GigabitEthernet0/0/0 ip address 12.0.0.1 255.255.255.0 interface LoopBack0 ip address 11.11.11.11 255.255.255.255 interface LoopBack1 ip address 1.1.1.1 255.255.255.255 -AR2: interface Gigab
MPLS 虚拟专用网络 Option C 2
qq_44751470的博客
12-18 903
图一拓扑图 一、实验目的 1.配置BGP/MPLS 虚拟专用网络 Option C 2 二.配置BGP/MPLS 虚拟专用网络 Option C 2 1.底层路由协议可以配置为OSPF、ISIS等 2.利用MPLS为每条路由或每个实例分配一个标签，进行数据包的传输 3.利用BGP VPNv4传递私网路由 4.ASBR相连的接口，使能MPLS功能 5.ASBR之间，建立EBGP关系，传递公网路由 6.PE之间利用彼此的，公网路由建立BGP VPNv4邻居关系 三、简单配置 1.CE_1 sysname
评论 3
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
