C# Winform酒店管理系统根据数据库动态加载房间生成房态图的制作效果(附图且详细)

酒店管理系统根据数据库动态加载房间生成房态图的制作

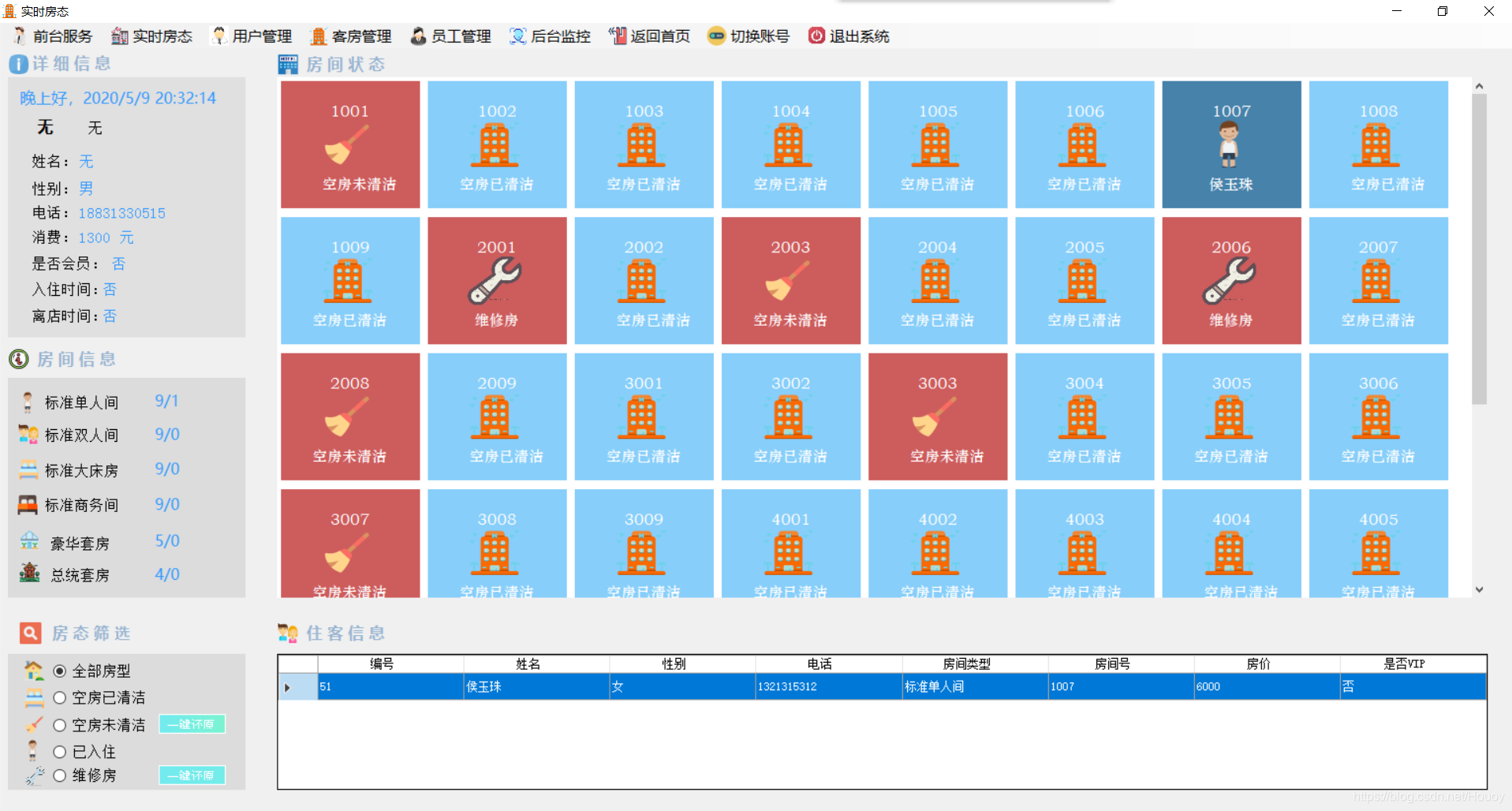

先放一张效果图：

因为要动态加载房态图，需要遍历每一个小房间，所以我定义了一个自定义控件，大概是这个样子的，

首先创建一个自定义控件，然后我们来绘制一个panel容器作为我们的一个小房间，上面的label作为房间号的显示，下面的label作为房间状态的显示，中间的图片对应的是状态的图标喽。

附上自定义控件的代码：

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Drawing;
using System.Data;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace AegeanHotel_management_system
{
    public partial class Userstate : UserControl
    {
        private int _roomNum;
        private List<User> _inUsers;
        private string _status;
        private string _remark;

        public Userstate()
        {
            InitializeComponent();
        }

        private void pnl_Back_Paint(object sender, PaintEventArgs e)
        {
            //RoundPanel myPanel = new Panel();
            //边框线
            //ControlPaint.DrawBorder(e.Graphics,
            //                    pnl_Back.ClientRectangle,
            //                    Color.Blue,
            //                    3,
            //                    ButtonBorderStyle.Solid,
            //                    Color.Red,
            //                    3,
            //                    ButtonBorderStyle.Solid,
            //                    Color.Red,
            //                    3,
            //                    ButtonBorderStyle.Solid,
            //                    Color.Red,
            //                    3,
            //                    ButtonBorderStyle.Solid);
        }
        /// <summary>
        /// 房间号
        /// </summary>
        public int RoomNum
        {
            get { return _roomNum; }
            set
            {
                _roomNum = value;
                UpdateRoomNum();
            }
        }
        //房间号方法
        private void UpdateRoomNum()
        {
            if (_roomNum == 0)
                return;
            lbl_RoomNum.Text = _roomNum.ToString();
            var width = pnl_Back.Width - lbl_RoomNum.Width;
            if (width < 0)
                width = 0;
            lbl_RoomNum.Location = new Point(width / 2, lbl_RoomNum.Location.Y);
        }
        /// <summary>
        /// 入住人
        /// </summary>
        public List<User> InUsers
        {
            get { return _inUsers; }
            set
            {
                _inUsers = value;
                UpdateInUsers();
            }
        }
        //入住人方法
        private void UpdateInUsers()
        {
            if (_inUsers == null)
            {
                lbl_RoomUsers.Text = _status.ToString();
                return;
            }
            lbl_RoomUsers.Text = string.Join(",", _inUsers.Select(p => p.UserName).ToList());
            var width = pnl_Back.Width - lbl_RoomUsers.Width;
            if (width < 0)
                width = 0;
            lbl_RoomUsers.Location = new Point(width / 2, lbl_RoomUsers.Location.Y);
        }
        /// <summary>
        /// 房间状态
        /// </summary>
        public string Status
        {
            get { return _status; }
            set
            {
                _status = value;
                UpdateStatus();
            }
        }
        //房间状态方法
        private void UpdateStatus()
        {
            switch (_status)
            {
                case "空房已清洁":
                    pnl_Back.BackColor = Color.FromArgb(135, 206, 250);
                    pictureBox1.Image = Image.FromFile(@"F:\小图标\房子2.ico", true);
                    break;
                case "已入住":
                    pnl_Back.BackColor = Color.FromArgb(70, 130, 170);
                    pictureBox1.Image = Image.FromFile(@"F:\小图标\用户4.png", true);
                    break;
                case "维修房":
                    pnl_Back.BackColor = Color.FromArgb(205, 92, 92);
                    pictureBox1.Image = Image.FromFile(@"F:\小图标\维修1.png", true);
                    break;
                case "空房未清洁":
                    pnl_Back.BackColor = Color.FromArgb(205, 92, 92);
                    pictureBox1.Image = Image.FromFile(@"F:\小图标\打扫2.png", true);
                    break;
            }
        }
        /// <summary>
        /// 房间备注
        /// </summary>
        public string Remark { get; set; }

        #region 初始化
        #endregion

        public class User
        {
            public string UserName { get; set; }
        }
    }
}

到此为止我们的自定义控件就画好了，然后我们将他根据数据库展示出来就好了。

我们依然需要在显示的界面上绘制一个flowLayoutPanel容器，准备放入我们的自定义控件，也就是每一个小房间，

然后我们直接遍历显示就好啦

//房态图动态加载
string sql = "select RoomID from Room";
DataTable dt = DBHelper.GetDataTable(sql);
int RoomID = 0;
string RoomState = "";
string Sanname = "";
foreach (DataRow row in dt.Rows)
{
    RoomID = Convert.ToInt32(row["RoomID"]);
    string sql1 = string.Format("select RoomState from Room where RoomID={0}", RoomID);
    DataTable dt1 = DBHelper.GetDataTable(sql1);
    RoomState = dt1.Rows[0][0].ToString();
    string sql2 = "select Name from RoomState where Roomhao=" + RoomID;
    DataTable dt2 = DBHelper.GetDataTable(sql2);

    if (dt2.Rows.Count > 0)
    {
        Sanname = dt2.Rows[0][0].ToString();

    }
    else
    {
        Sanname = RoomState;
    }

    Userstate roomInfo = new Userstate()
    {
        RoomNum = RoomID,
        Status = RoomState,
        InUsers = RoomID % 7 == 0 ? null : new List<Userstate.User>()
            {
                new Userstate.User(){ UserName = Sanname }
            }
    };
    roomInfo.Name ="LBL"+RoomID;
    flowLayoutPanel1.Controls.Add(roomInfo);
}

到此为止我们房间的动态图就加载完成了。快去看看效果吧！

感谢大佬指正 小Monkey
如果你觉得有用的话，就留个赞吧！蟹蟹
