Log4j中配置文件自动加载原理及非SRC下使用

在项目中直接在src(即，编译后的WEN-INF/classes)下放置log4j.properties or log4j.xml，项目会自动加载并打印日志。

【1】自动加载原理

JVM加载log4j的类(org.apache.log4j.LogManager)后，执行静态代码块，会尝试加载默认路径下(WEN-INF/classes)的log4j.properties or log4j.xml:

public class LogManager {

  /**
   * @deprecated This variable is for internal use only. It will
   * become package protected in future versions.
   * */
  static public final String DEFAULT_CONFIGURATION_FILE = "log4j.properties";

  static final String DEFAULT_XML_CONFIGURATION_FILE = "log4j.xml";

  /**
   * @deprecated This variable is for internal use only. It will
   * become private in future versions.
   * */
  static final public String DEFAULT_CONFIGURATION_KEY="log4j.configuration";

  /**
   * @deprecated This variable is for internal use only. It will
   * become private in future versions.
   * */
  static final public String CONFIGURATOR_CLASS_KEY="log4j.configuratorClass";

  /**
  * @deprecated This variable is for internal use only. It will
  * become private in future versions.
  */
  public static final String DEFAULT_INIT_OVERRIDE_KEY =
"log4j.defaultInitOverride";
...//

部分静态代码块：

 static {
    // By default we use a DefaultRepositorySelector which always returns 'h'.
    Hierarchy h = new Hierarchy(new RootLogger((Level) Level.DEBUG));
    repositorySelector = new DefaultRepositorySelector(h);

    /** Search for the properties file log4j.properties in the CLASSPATH.  */
    String override =OptionConverter.getSystemProperty(DEFAULT_INIT_OVERRIDE_KEY,null);

    // if there is no default init override, then get the resource
    // specified by the user or the default config file.
    if(override == null || "false".equalsIgnoreCase(override)) {

      String configurationOptionStr = OptionConverter.getSystemProperty(
							  DEFAULT_CONFIGURATION_KEY, null);

      String configuratorClassName = OptionConverter.getSystemProperty(
CONFIGURATOR_CLASS_KEY, null);

-- 注意下面的代码 -- 注意下面的代码 -- 注意下面的代码 -- 注意下面的代码

      URL url = null;

      // if the user has not specified the log4j.configuration
      // property, we search first for the file "log4j.xml" and then
      // "log4j.properties"
      if(configurationOptionStr == null) {
		url =Loader.getResource(DEFAULT_XML_CONFIGURATION_FILE);
		if(url == null) {
		  url = Loader.getResource(DEFAULT_CONFIGURATION_FILE);
		}
      } else {
			try {
			  url = new URL(configurationOptionStr);
			} catch (MalformedURLException ex) {
			  // so, resource is not a URL:
			  // attempt to get the resource from the class path
			  url = Loader.getResource(configurationOptionStr);
			}
      }
      ...//
 }

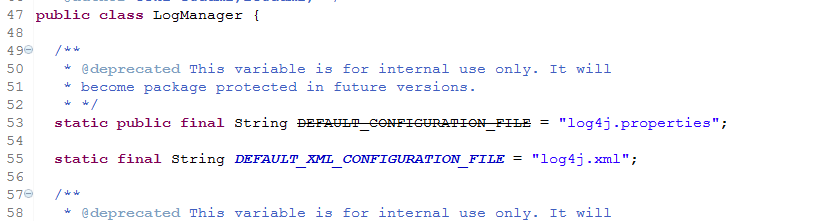

如下图所示配置了加载的两种配置文件：

---

【2】非src路径下

如果log4j.properties or log4j.xml 放到了另外路径下，比如src/config ，那么可以在spring.xml 或者 web.xml加载该配置文件，如下：

spring方式加载，配置于web.xml中

Spring加载log4j.properties，它提供了一个Log4jConfigListener，本身就能通过web.xml配置从指定位置加载log4j配置文件和log4j的输出路径。

要注意的是Log4jConfigListener必须要在Spring的Listener之前。

<!-- 设置由Sprng载入的Log4j配置文件位置 -->

<context-param>
    <param-name>log4jConfigLocation</param-name>
    <param-value>WEB-INF/classes/config/log4j.properties</param-value>
</context-param>
  <!-- Spring刷新Log4j配置文件变动的间隔,单位为毫秒 -->
<context-param>
    <param-name>log4jRefreshInterval</param-name>
    <param-value>10000</param-value>
</context-param>
<listener>
    <listener-class>org.springframework.web.util.Log4jConfigListener</listener-class>
</listener>

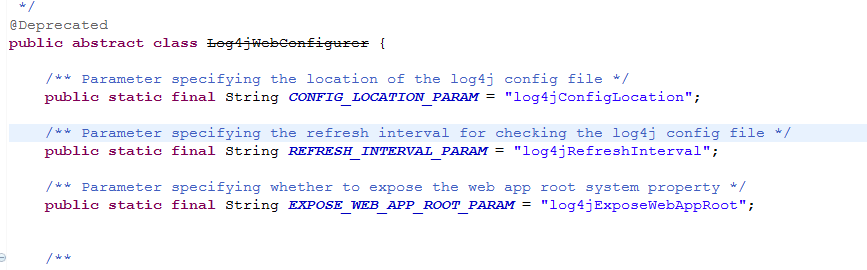

其配置参数说明如下图：
