Scipy中signal.square函数的用法

signal.square(t, duty = 0.5)

返回周期性方波波形

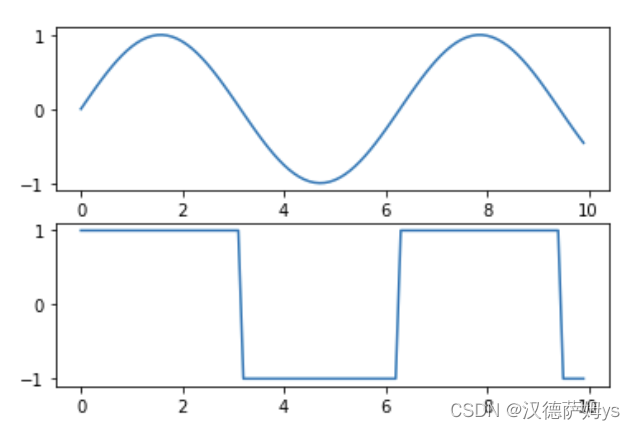

import numpy as np
from scipy import signal
import matplotlib.pyplot as plt

x = np.arange(0, 10, 0.1)
y = np.sin(x)
y1 = signal.square(y)

plt.subplot(211)
plt.plot(x, y)
plt.subplot(212)
plt.plot(x, y1)
