蓝桥杯单片机组-16 DS1302

要求

DS1302实时时钟

DS1302

简单来说，DS1302可以理解为一个电子手表，里面除了存有时、分、秒、日，还带有一个31字节的RAM内存。可以用来记录实时时间、其它数据

代码

文件的基本操作

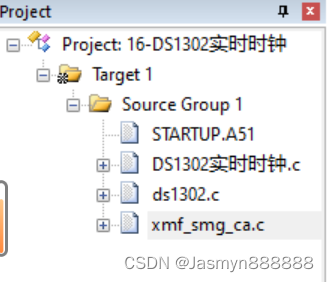

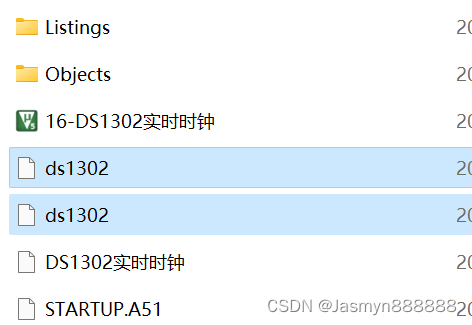

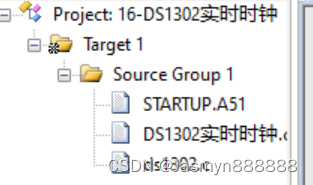

1.需要将底层驱动引入刚刚建好的工程中。

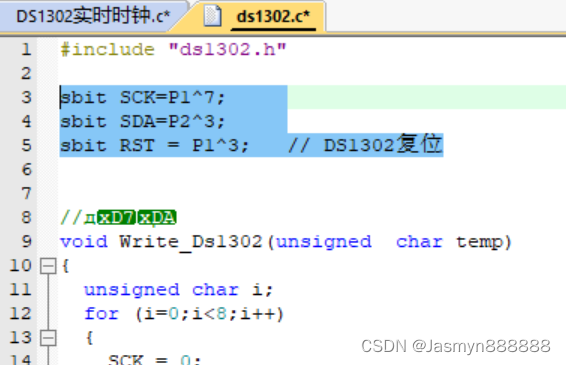

2.检查底层驱动文件：ds1302.c

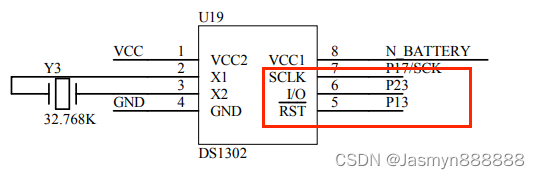

        引脚是否和开发板对应！

 考得难点的话，可能直接不写引脚，要补充上去！

3.检查底层驱动文件：ds1302.h

        头文件是否申明！

4.引入xmf_smg_ca.c与xmf_smg_ca.h

DS1302基本配置

DS1302的基本配置：设定时间参数+读取实时时间

背！

/*============日历时钟参数配置=========*/
//配置
void DS1302_Config()
{
	char i;

	Write_Ds1302_Byte(0x8e, 0x00);  //打开保护
	for(i = 0; i < 7; i++)
	{
		Write_Ds1302_Byte(Write_DS1302_adrr[i], Timer[i]);
	}
	Write_Ds1302_Byte(0x8e, 0x80);
}

温度读取：背！

//读取
void Read_DS1302_Timer()
{
	unsigned char i;
	for(i = 0; i < 7; i++)
	{
		Timer[i] = Read_Ds1302_Byte(Read_DS1302_adrr[i]);
	}
}

数码管显示时间

//数码管显示
void DisPlay_DS1302()
{
	DisPlaySMG_Bit(0,SMGNoDot_CA[Timer[2]/16]);    //时间的十位
	DelaySMG(100);
	DisPlaySMG_Bit(1,SMGNoDot_CA[Timer[2]%16]);    //时间的个位
	DelaySMG(100);

	DisPlaySMG_Bit(2,0xbf);    //显示”-“
	DelaySMG(100);

	DisPlaySMG_Bit(3,SMGNoDot_CA[Timer[1]/16]);
	DelaySMG(100);
	DisPlaySMG_Bit(4,SMGNoDot_CA[Timer[1]%16]);
	DelaySMG(100);

	DisPlaySMG_Bit(5,0xbf);    //显示”-“
	DelaySMG(100);

	DisPlaySMG_Bit(6,SMGNoDot_CA[Timer[0]/16]);
	DelaySMG(100);
	DisPlaySMG_Bit(7,SMGNoDot_CA[Timer[0]%16]);
	DelaySMG(100);

	DisPlay_All(0xff);        //关闭全部数码管
}

完整代码

main

#include "reg52.h"
#include "ds1302.h"
#include "xmf_smg_ca.h"

unsigned char Write_DS1302_adrr[7] = {0X80, 0X82, 0X84, 0X86, 0X88, 0X8A, 0X8C};
unsigned char Read_DS1302_adrr[7] = {0X81, 0X83, 0X85, 0X87, 0X89, 0X8B, 0X8D};
//24年2月29日，星期4
unsigned char Timer[7] = {0X24, 0X59, 0X23, 0X18, 0X04, 0X06, 0X20};

unsigned char code SMG_duanma[18] = {0xc0,0xf9,0xa4,0xb0,0x99,0x92,0x82,0xf8,0x80,0x90,0x88,0x80,0xc6,0xc0,0x86,0x8e,0xbf,0x7f};//分别是0-9（对应下标），A-F，“-”，“.”

//配置
void DS1302_Config()
{
	char i;

	Write_Ds1302_Byte(0x8e, 0x00);  //打开保护
	for(i = 0; i < 7; i++)
	{
		Write_Ds1302_Byte(Write_DS1302_adrr[i], Timer[i]);
	}
	Write_Ds1302_Byte(0x8e, 0x80);
}
//读取
void Read_DS1302_Timer()
{
	unsigned char i;
	for(i = 0; i < 7; i++)
	{
		Timer[i] = Read_Ds1302_Byte(Read_DS1302_adrr[i]);
	}
}
//数码管显示
void DisPlay_DS1302()
{
	DisPlaySMG_Bit(0,SMGNoDot_CA[Timer[2]/16]);    //时间的十位
	DelaySMG(100);
	DisPlaySMG_Bit(1,SMGNoDot_CA[Timer[2]%16]);    //时间的个位
	DelaySMG(100);

	DisPlaySMG_Bit(2,0xbf);    //显示”-“
	DelaySMG(100);

	DisPlaySMG_Bit(3,SMGNoDot_CA[Timer[1]/16]);
	DelaySMG(100);
	DisPlaySMG_Bit(4,SMGNoDot_CA[Timer[1]%16]);
	DelaySMG(100);

	DisPlaySMG_Bit(5,0xbf);    //显示”-“
	DelaySMG(100);

	DisPlaySMG_Bit(6,SMGNoDot_CA[Timer[0]/16]);
	DelaySMG(100);
	DisPlaySMG_Bit(7,SMGNoDot_CA[Timer[0]%16]);
	DelaySMG(100);

	DisPlay_All(0xff);        //关闭全部数码管
}

void main()
{
	DS1302_Config();
	while(1)
	{
		Read_DS1302_Timer();
		DisPlay_DS1302();
	}
}

ds1302.c

此为底层驱动文件

#include "ds1302.h"
#include "intrins.h"




//写字节
void Write_Ds1302(unsigned  char temp)
{
	unsigned char i;
	for (i=0;i<8;i++)
	{
		SCK = 0;
		SDA = temp&0x01;
		temp>>=1;
		SCK=1;
	}
}

//向DS1302寄存器写入数据
void Write_Ds1302_Byte( unsigned char address,unsigned char dat )
{
 	RST=0;	_nop_();
 	SCK=0;	_nop_();
 	RST=1; 	_nop_();
 	Write_Ds1302(address);
 	Write_Ds1302(dat);
 	RST=0;
}

//从DS1302寄存器读出数据
unsigned char Read_Ds1302_Byte ( unsigned char address )
{
 	unsigned char i,temp=0x00;
 	RST=0;	_nop_();
 	SCK=0;	_nop_();
 	RST=1;	_nop_();
 	Write_Ds1302(address);
 	for (i=0;i<8;i++)
 	{
		SCK=0;
		temp>>=1;
 		if(SDA)
 		temp|=0x80;
 		SCK=1;
	}
 	RST=0;	_nop_();
 	SCK=0;	_nop_();
	SCK=1;	_nop_();
	SDA=0;	_nop_();
	SDA=1;	_nop_();
	return (temp);
}

ds1302.h

注意引脚的申明

#ifndef __DS1302_H
#define __DS1302_H

#include <reg52.h>
#include <intrins.h>

sbit SCK = P1^7;
sbit SDA = P2^3;
sbit RST = P1^3;

void Write_Ds1302(unsigned char temp);
void Write_Ds1302_Byte( unsigned char address,unsigned char dat );
unsigned char Read_Ds1302_Byte( unsigned char address );

#endif

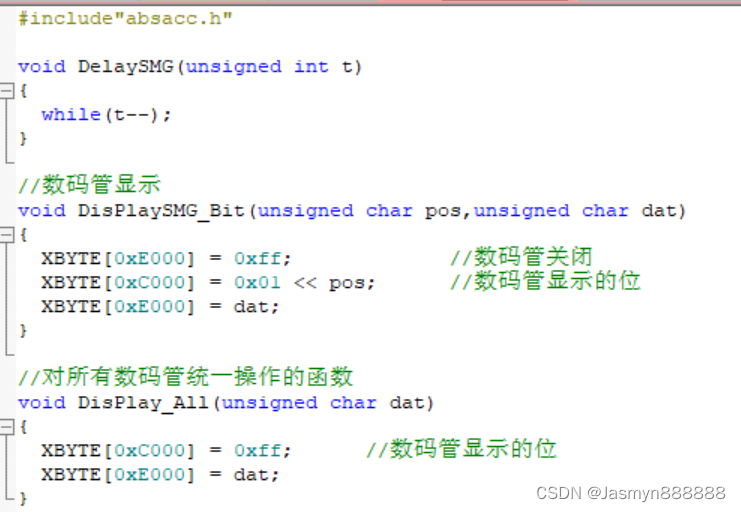

xmf_smg_ca.c

这个需要直接写！背！

#include"absacc.h"

void DelaySMG(unsigned int t)
{
	while(t--);
}

//数码管显示
void DisPlaySMG_Bit(unsigned char pos,unsigned char dat)
{
  XBYTE[0xE000] = 0xff;             //数码管关闭
	XBYTE[0xC000] = 0x01 << pos;      //数码管显示的位
	XBYTE[0xE000] = dat;
}

//对所有数码管统一操作的函数
void DisPlay_All(unsigned char dat)
{
	XBYTE[0xC000] = 0xff;      //数码管显示的位
	XBYTE[0xE000] = dat;
}

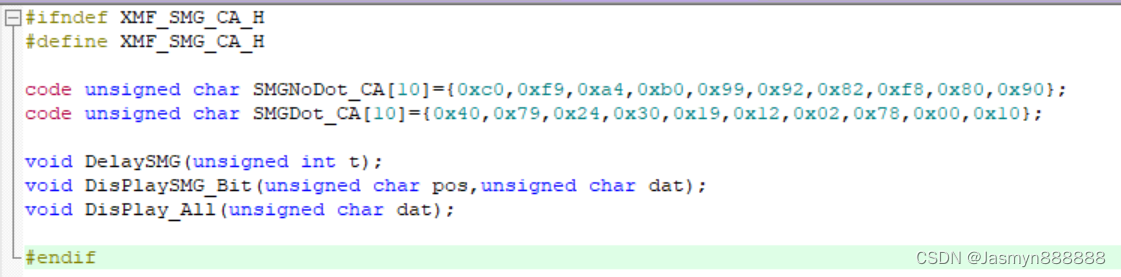

xmf_smg_ca.h

这个需要自己写！背！

#ifndef XMF_SMG_CA_H
#define XMF_SMG_CA_H

code unsigned char SMGNoDot_CA[10]={0xc0,0xf9,0xa4,0xb0,0x99,0x92,0x82,0xf8,0x80,0x90};
code unsigned char SMGDot_CA[10]={0x40,0x79,0x24,0x30,0x19,0x12,0x02,0x78,0x00,0x10};

void DelaySMG(unsigned int t);
void DisPlaySMG_Bit(unsigned char pos,unsigned char dat);
void DisPlay_All(unsigned char dat);

#endif
