索引优先队列 Indexed Priority Queue

索引优先队列 Indexed Priority Queue的C 语言实现

  1. 索引优先队列定义

​ 在谈论索引优先队列时,无法绕开的话题就是优先队列,那么让我们简单回顾一下优先队列的定义。

1.1 优先队列(Priority Queue=PQ)

​ 优先队列的定义一般用Heap实现,过程中不断对Heap进行操作。常见的有最小优先队列和最大优先队列,最小优先队列的实现依靠min-heap的中元素不断进行上移或下沉操作,在顶部永远对应可比较对象的最小元素;而最大优先队列恰恰相反,其实现逻辑与最小优先队列类似。通过优先队列,可以快速对根元素进行访问和删除操作。

1.2 索引优先队列(Indexed Priority Queue= IPQ)

​ 既然有了优先队列这类数据,为什么还需要引入索引优先队列的概念呢? 假设我们需要删除队列中的非根元素,那么正常的步骤就需要按照二叉树逐个进行遍历,首先找到此元素的位置,此过程需要花费大量的时间,无法在程序过程中直接访问;找到元素位置之后,和最后一个元素进行交换,再重新调整堆中个元素的位置。整个过程需要大量的遍历和数据移动,不方便程序操作。 为了解决这个问题,就提出了索引优先队列概念,索引优先队列和优先队列实际上有本质的区别。

​ 索引优先队列的核心是维护pm[]和im[]数组,而优先队列的核心是不断交换或调整heap中实际元素;索引优先队列无需对实际元素进行操作,实际上IPQ操作对象为数组的索引号(比如vals[]数组),通过维护pm[]和im[]数组达到索引化,从而让优先队列的访问更加灵活。

​ pm[]数组,pm(position map)数组实际上映射的是vals数组索引在二叉树上节点的序列号,形象记忆为KN(KeyIndex–>NodeIndex),通过pm映射,我们可以立即找到某个values的keyindex在优先队列中的节点位置。

​ im[]数组,im(inverse map)实际上是把二叉树上节点的序列号映射到vals数组的索引,形象记忆为(NK)(NodeIndex–>KeyIndex),通过im映射,我们可以立即找到某个二叉树上节点序列号所对应的keyindex.

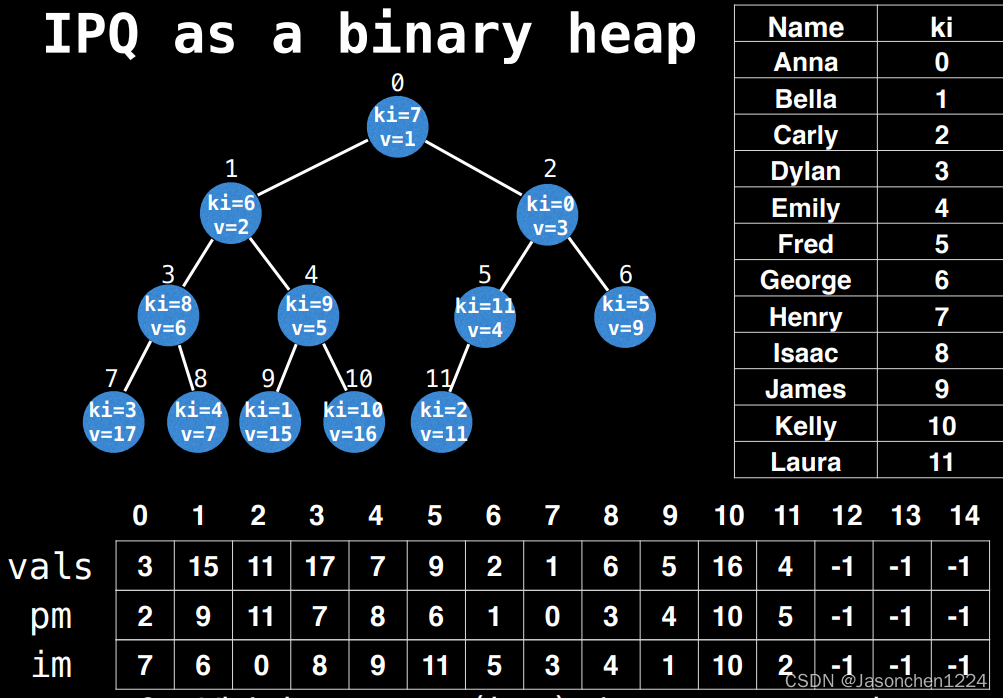

IPQ slide

大家可以通过William 的上述标记,进一步理解pm数组和im数组的具体含义。

  1. IPQ的实现(参考Java 版本)

网络上有很多IPQ的java实现版本,比较遗憾的是,还未发现C语言的实现方式,本文拟采用C语言的实现IPQ.

2.1 首先通过结构体建立IPQ所包含的基本对象,包含了基本pm[],im[],values[]以及当前IPQ大小(元素数量)

#if !defined DIJKSTRA_IPQ_H
	typedef int IPQElemType;
#endif

/**
 * @brief Define IPQ node struct
 * @param pm, position map,a given the key index of ki, pm will denote node index
 * @param im, inverse map, a give the index of node, im will denote the key index
 * @param sz, current size of IPQ_Node(number of elements)
 */
typedef struct IPQ_Node
{
    int         pm[MAX_SIZE];
    int         im[MAX_SIZE];
    IPQElemType   values[MAX_SIZE];
    int         sz;
}IPQ_Node;

2.2 基本函数

  • swim 函数,Swim函数的作用是,按照比较大小,对pm[], im[]操作,重新向上(float)调整顺序。
void swim(IPQ_Node *Q, int i)
{
    while (parent(i) >= 0 && less_value(Q->values[Q->im[i]], Q->values[Q->im[parent(i)]]))
    {
        swap(Q,i,parent(i));
        i=parent(i);
    }
}
  • sink 函数,Sink函数的作用是,按照比较大小,对pm[], im[]操作,重新向下(调整)调整顺序。
void sink(IPQ_Node *Q, int i)
{
    int l;
    int r;
    int smallest;

    l=left(i);
    r=right(i);
    if(l<Q->sz && less_value(Q->values[Q->im[l]],Q->values[Q->im[i]]))
    {
        smallest=l;
    }
    else
    {
        smallest=i;
    }

    if(r<Q->sz && less_value(Q->values[Q->im[r]],Q->values[Q->im[smallest]]))
    {
        smallest =r;
    }

    while(smallest != i)
    {
        swap(Q,i,smallest);

        i=smallest;
        l = left(i);
        r = right(i);

        if (l < Q->sz && less_value(Q->values[Q->im[l]], Q->values[Q->im[i]]))
        {
            smallest = l;
        }
        else
        {
            smallest = i;
        }

        if (r < Q->sz && less_value(Q->values[Q->im[r]], Q->values[Q->im[smallest]]))
        {
            smallest = r;
        }
    }
}
  • swap 函数,这个函数不是交换values数组中的元素,而是维护im[]和pm[]数组

    void swap(IPQ_Node *Q, int i, int j)
    {
        int temp;

        Q->pm[Q->im[i]]=j;
        Q->pm[Q->im[j]]=i;

        temp=Q->im[i];
        Q->im[i]=Q->im[j];
        Q->im[j]=temp;
    }

  • 求heap 中各节点位置的函数

    int left(int i)
    {
        return 2*i+1;
    }

    int right(int i)
    {
        return 2*i+2;
    }

    int parent(int i)
    {
        return (i-1)/2;
    }
  • 比较函数,比较函数可以放在具体的应用中进行实现,比如Dijkstra或者main测试函数中实现,由于本文定义为整型,所以实现起来比较简单。
int less_value(IPQElemType v1, IPQElemType v2)
{
    return v1<v2;
}

2.3 操作函数实现(具体参考代码)

  1. 参考代码

3.1 头函数文件(IndexedPriorityQueue.h)

/**
 * @file IndexedPriorityQueue.h
 * @author your name (you@domain.com)
 * @brief
 * Reference code link in the learning note.md documentation
 * @version 0.1
 * @date 2023-02-09
 *
 * @copyright Copyright (c) 2023
 *
 */
#ifndef INDEXPRIORITYQUEUE_H
#define INDEXPRIORITYQUEUE_H
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <limits.h>
#include <stdbool.h>
#define  MAX_SIZE 100

#if !defined DIJKSTRA_IPQ_H
typedef int IPQElemType;
#endif

/**
 * @brief Define indexed priority queue node
 * @param pm, position map, given the key index of ki, pm will denote node index
 * @param im, inverse map, give the index of node, im will denote the key index
 * @param sz, current size of IPQ_Node(number of elements)
 */
typedef struct IPQ_Node
{
    int         pm[MAX_SIZE];
    int         im[MAX_SIZE];
    IPQElemType   values[MAX_SIZE];
    int         sz;
}IPQ_Node;

/**
 * @brief Initialize indexed priority queue
 *
 * @param Q
 */
void Init_IPQ(IPQ_Node *Q);

/**
 * @brief Check if ki had been included in the ipq
 *
 * @param Q  indexed priority queue
 * @param ki key index number
 * @return true
 * @return false
 */
bool contains(IPQ_Node Q,int ki);

/**
 * @brief Get the key index of node[0]
 * @param Q  indexed priority queue
 * @return int -Key index of node[0]
 */
int Peek_MinKeyIndex(IPQ_Node Q);

/**
 * @brief Get the node[0] as the min key index
 * Remove this element
 *
 * @param Q Pointer to indexed priority queue
 * @return int int -Key index of node[0]
 */
int Poll_MinKeyIndex(IPQ_Node *Q);

/**
 * @brief Look for the values of node[0]
 *
 * @param Q indexed priority queue
 * @return IPQElemType -Object of IPQElemType
 */
IPQElemType Peek_MinValue(IPQ_Node Q);

/**
 * @brief Get the ki from the node[0] and look for the value based on ki
 *
 * @param Q Pointer to indexed priority queue
 * @return IPQElemType -Min value from the key index,follow this ki and return
 */
IPQElemType Poll_MinValue(IPQ_Node *Q);

/**
 * @brief Assign value to a certain of Q->values[], then conduct the swim function
 *
 * @param Q Pointer to indexed priority queue
 * @param ki Key index with hashtable
 * @param value Value(weight/distance etc.) to be assigned to Q->values[]
 */
void Insert_KeyValue(IPQ_Node *Q, int ki, IPQElemType value);

/**
 * @brief Acquire the value from values[] based on key index(ki)
 *
 * @param ki Key index of pair map
 * @return IPQElemType -Return IPQElemType object
 */
IPQElemType Get_ValueOf(IPQ_Node Q, int ki);

/**
 * @brief Delete the value of key index(ki)
 *
 * @param Q Poiner to IPQ_Node
 * @param ki Key index
 * @return -IPQElemType IPQElemType object
 */
IPQElemType Delete_ValueOf(IPQ_Node *Q, int ki);

/**
 * @brief Update the value at ki locatoin, then execute swim() and sink() function
 *
 * @param Q Pointer to IPQ_Node
 * @param ki Key index
 * @param value new value
 * @return IPQElemType -Return the old value
 */
IPQElemType Update_ValueOf(IPQ_Node *Q, int ki,IPQElemType value);

/**
 * @brief Decrease the value at the location of ki to new value(value)
 *
 * @param Q Pointer to IPQ_Node
 * @param ki Key index
 * @param value -New value(decreased to this value)
 */
void Decrease_Valueof(IPQ_Node *Q, int ki, IPQElemType value);

/**
 * @brief Increase the value at the location of ki to new value(value)
 *
 * @param Q Pointer to IPQ_Node
 * @param ki Key index
 * @param value -New value(increased to this value)
 */
void Increase_Valueof(IPQ_Node *Q, int ki, IPQElemType value);


/*
   It will list the helper function in next section
*/

/**
 * @brief Return the left child of index i
 *
 * @param i parent index
 * @return int
 */
int left(int i);

/**
 * @brief Return the right child of index i
 *
 * @param i current index
 * @return int return the index of right child
 */
int right(int i);

/**
 * @brief Return the parent node of index i
 *
 * @param i current index
 * @return int return the index of right child
 */
int parent(int i);

/**
 * @brief Float up since node[i]
 *
 * @param Q Pointer to IPQ_Node
 * @param i Index of node(node[i])
 */
void swim(IPQ_Node *Q, int i);

/**
 * @brief Sink down since node[i]
 *
 * @param Q Pointer to IPQ_Node
 * @param i Index of node(node[i])
 */
void sink(IPQ_Node *Q, int i);

/**
 * @brief Update the pm[] and i[] in the IPQ_Node
 *
 * @param Q Pointer to IPQ_Node
 * @param i Index of node i(node[i])
 * @param j Index of node j(node[j])
 */
void swap(IPQ_Node *Q, int i, int j);


/**
 * @brief Compare index of array
 *
 * @param i index i
 * @param j index j
 * @return int return i<j;
 */
int less_index(int i, int j);

/**
 * @brief Compare the value of IPQElemType v1 and v2
 * IPQElement should be comparable
 *
 * @param v1 First value
 * @param v2 Second value
 * @return int return v1<v2(comparable)
 */
int less_value(IPQElemType v1, IPQElemType v2);

#endif

2.2 函数的实现C语言实现文件(IndexedPriorityQueue.c)

/**
 * @file IndexedPriorityQueue.c
 * @author your name (you@domain.com)
 * @brief
 * @version 0.1
 * @date 2023-02-09
 *
 * @copyright Copyright (c) 2023
 *
 */

#ifndef INDEXPRIORITYQUEUE_C
#define INDEXPRIORITYQUEUE_C
#include "IndexedPriorityQueue.h"

void swim(IPQ_Node *Q, int i)
{
    while (parent(i) >= 0 && less_value(Q->values[Q->im[i]], Q->values[Q->im[parent(i)]]))
    {
        swap(Q,i,parent(i));
        i=parent(i);
    }
}

void sink(IPQ_Node *Q, int i)
{
    int l;
    int r;
    int smallest;

    l=left(i);
    r=right(i);
    if(l<Q->sz && less_value(Q->values[Q->im[l]],Q->values[Q->im[i]]))
    {
        smallest=l;
    }
    else
    {
        smallest=i;
    }

    if(r<Q->sz && less_value(Q->values[Q->im[r]],Q->values[Q->im[smallest]]))
    {
        smallest =r;
    }

    while(smallest != i)
    {
        swap(Q,i,smallest);

        i=smallest;
        l = left(i);
        r = right(i);

        if (l < Q->sz && less_value(Q->values[Q->im[l]], Q->values[Q->im[i]]))
        {
            smallest = l;
        }
        else
        {
            smallest = i;
        }

        if (r < Q->sz && less_value(Q->values[Q->im[r]], Q->values[Q->im[smallest]]))
        {
            smallest = r;
        }
    }
}

void swap(IPQ_Node *Q, int i, int j)
{
    int temp;

    Q->pm[Q->im[i]]=j;
    Q->pm[Q->im[j]]=i;

    temp=Q->im[i];
    Q->im[i]=Q->im[j];
    Q->im[j]=temp;
}

int left(int i)
{
    return 2*i+1;
}

int right(int i)
{
    return 2*i+2;
}

int parent(int i)
{
    return (i-1)/2;
}

/* Main function implementation*/

void Init_IPQ(IPQ_Node *Q)
{
    int i;

    for(i=0;i<MAX_SIZE;i++)
    {
        Q->pm[i]=-1;
        Q->im[i]=-1;
        Q->values[i]=INT_MIN;
    }

    Q->sz=0;
}

bool contains(IPQ_Node Q, int ki)
{
    return Q.pm[ki]!=-1;
}

int Peek_MinKeyIndex(IPQ_Node Q)
{
    return Q.im[0];
}

int Poll_MinKeyIndex(IPQ_Node *Q)
{
    int minki;

    minki= Peek_MinKeyIndex(*Q);

    Delete_ValueOf(Q,minki);

    return minki;
}

IPQElemType Peek_MinValue(IPQ_Node Q)
{
    return Q.values[Q.im[0]];
}

IPQElemType Poll_MinValue(IPQ_Node *Q)
{
    IPQElemType minvalue;
    minvalue = Peek_MinValue(*Q);
    Delete_ValueOf(Q,Peek_MinKeyIndex(*Q));

    return minvalue;
}

void Insert_KeyValue(IPQ_Node *Q, int ki, IPQElemType value)
{
    Q->pm[ki]=Q->sz;
    Q->im[Q->sz]=ki;
    Q->values[ki]=value;

    swim(Q,Q->sz);
    Q->sz++;
}

IPQElemType Get_ValueOf(IPQ_Node Q, int ki)
{
    return Q.values[ki];
}

IPQElemType Delete_ValueOf(IPQ_Node *Q, int ki)
{
    int i;
    IPQElemType value;

    i=Q->pm[ki];
    value=Q->values[ki];
    Q->sz--;
    swap(Q,i,Q->sz);
    sink(Q,i);
    swim(Q,i);

    Q->values[ki]=INT_MIN;
    Q->pm[ki]=-1; //node index set to -1
    Q->im[Q->sz]=-1;

    return value;
}

IPQElemType Update_ValueOf(IPQ_Node *Q, int ki, IPQElemType value)
{
    int i;
    IPQElemType old_value;

    i=Q->pm[ki];

    old_value=Q->values[ki];

    Q->values[ki]=value;
    sink(Q,i);
    swim(Q,i);

    return old_value;
}

void Decrease_Valueof(IPQ_Node *Q, int ki, IPQElemType value)
{
    if (less_value(value, Q->values[ki]))
    {
        Q->values[ki] = value;
        swim(Q,Q->pm[ki]);
    }
}

void Increase_Valueof(IPQ_Node *Q, int ki, IPQElemType value)
{
    if (less_value(Q->values[ki],value))
    {
        Q->values[ki] = value;
        sink(Q,Q->pm[ki]);
    }
}

#endif
  1. 主函数测试(IndexedPriorityQueue_main.c)
/**
 * @file IndexedPriorityQueue_main.c
 * @author your name (you@domain.com)
 * @brief
 * @version 0.1
 * @date 2023-02-09
 *
 * @copyright Copyright (c) 2023
 *
 */

#ifndef INDEXPRIORITYQUEUE_MAIN_C
#define INDEXPRIORITYQUEUE_MAIN_C
#include "IndexedPriorityQueue.c"

int main(void)
{
    int ki;
    int N=5;
    char *map[]={"jason","mary","jacky","lily","maggy"};
    int  values[]={3,20,5,9,2};
    IPQ_Node Q;
    int minvalue;

    Init_IPQ(&Q);
    for(ki=0;ki<N;ki++)
    {
        Insert_KeyValue(&Q,ki,values[ki]);
    }

    Increase_Valueof(&Q,4,7);
    minvalue=Peek_MinValue(Q);
    minvalue = Poll_MinValue(&Q);
    minvalue = Peek_MinValue(Q);
    printf("\n end \n");
   	getchar();
    return EXIT_SUCCESS;
}

int less_value(IPQElemType v1, IPQElemType v2)
{
    return v1<v2;
}

#endif
  1. 总结

    通过对IPQ的学习和C语言实现,初步掌握了PQ(Priority Queue)和IPQ(Indexed Priority Queue)之间的区别,另外通过C语言实现,将为Dijkstra的eager算法提供了可能。

    IPQ的关键还是理解pm[]和im[]数组,理解这两个数组后,其它的操作都相对比较简单。

    以上,

    谢谢

  2. 总结

    通过对IPQ的学习和C语言实现,初步掌握了PQ(Priority Queue)和IPQ(Indexed Priority Queue)之间的区别,另外通过C语言实现,将为Dijkstra的eager算法提供了可能。

    IPQ的关键还是理解pm[]和im[]数组,理解这两个数组后,其它的操作都相对比较简单。

    以上,

    谢谢

参考文献:

  1. Indexed Priority Queue的Java实现 by William Fiset

https://github.com/williamfiset/Algorithms/blob/master/src/main/java/com/williamfiset/algorithms/datastructures/priorityqueue/MinIndexedDHeap.java#L124

  1. Video Index Priority Queue by William Fiset

https://www.youtube.com/watch?v=jND_WJ8r7FE&t=0s&ab_channel=WilliamFiset

  • 2
    点赞
  • 3
    收藏
    觉得还不错? 一键收藏
  • 0
    评论

“相关推荐”对你有帮助么?

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
