最近换工作了。面试的时候被一个比较老的程序员到地上摩擦,表示很难受。之前因为是从事音视频方面的开发,所以去应聘智能硬件方面的工作。因为都会涉及道JNI层面的开发。所以感觉比较适合。But. 生活真的不是那么的一翻风顺啊,我去面试的时候,面试官问ArrayList和LinkList的区别,暗想这都是老掉牙的问题,果断完美答出。But 他又来句ArrayList具体是怎么实现的?我擦勒,平时只是用的很爽,还真没有仔细看过ArrayList的源码。之后又问道HashMap的原理,我回答说散列,结果又被问怎么散列的。嗯此时我的心里阴影面积很大,被按着地上摩擦......所以决定一看究竟,以免以后被继续摩擦。
下面来看看ArrayList的源码吧。博主查阅的是JDK 1.8中的ArrayList的源码。

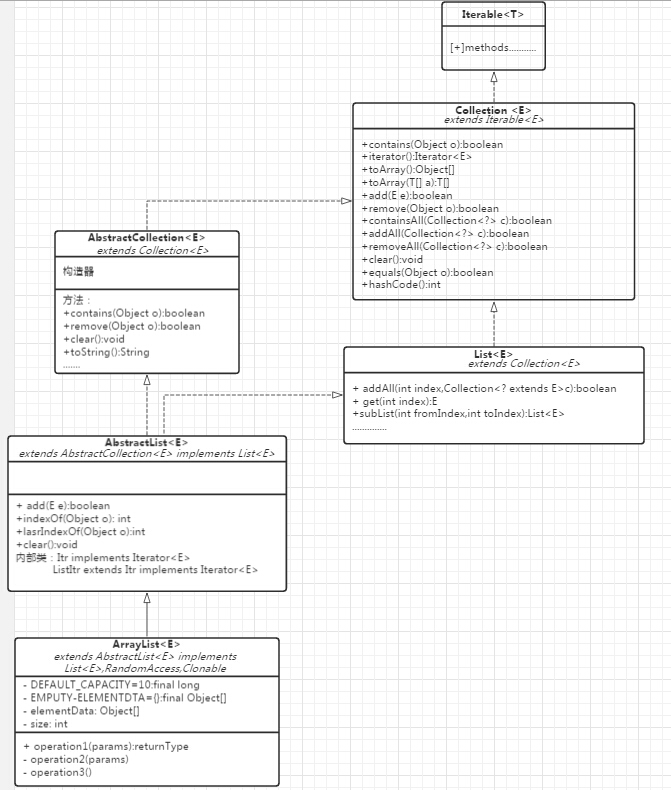

public class ArrayList<E> extends AbstractList<E> implements List<E>, RandomAccess, Cloneable, java.io.Serializable {...}
其中RandomAccess(可随机访问)、Cloneable(可以克隆)、Serializable(可序列化)等3个接口只有声明,里面没有任何变量或者接口方法,可以理解为一个标志作用。 对ArrayList追根查底我们能得到这样一幅结构图:
ArrayList中几个重要的全局成员变量:
//默认的ArrayLis的容量值
private static final int DEFAULT_CAPACITY = 10;
//空的对象数组,用于初始化空ArrayList
private static final Object[] EMPTY_ELEMENTDATA = {};
//ArrayList数据储存的地方,transient关键字是反序列化
transient Object[] elementData;
//ArrayList里面元素的个数
private int size;
一、ArrayList的构造方法
public ArrayList() {
super();
this.elementData = EMPTY_ELEMENTDATA;
}
public ArrayList(Collection<? extends E> c) {
elementData = c.toArray();
size = elementData.length;
// c.toArray might (incorrectly) not return Object[] (see 6260652)
if (elementData.getClass() != Object[].class)
elementData = Arrays.copyOf(elementData, size, Object[].class);
}
public ArrayList(int initialCapacity) {
super();
if (initialCapacity < 0)
throw new IllegalArgumentException("Illegal Capacity: "+
initialCapacity);
this.elementData = new Object[initialCapacity];
}
第一个无参构造,数据数组用空数组对象初始化;第二个为有参数的,用集合初始化ArrayList储存数据的数组;第三个自定义初始化容量的ArrayList(后期不够用仞然会变)。
//Arrays.copyOf 方法:
public static <T,U> T[] copyOf(U[] original, int newLength, Class<? extends T[]> newType) {
T[] copy = ((Object)newType == (Object)Object[].class)
? (T[]) new Object[newLength]
: (T[]) Array.newInstance(newType.getComponentType(), newLength);
System.arraycopy(original, 0, copy, 0,
Math.min(original.length, newLength));
return copy;
}
public static native void arraycopy(Object src, int srcPos,Object dest, int destPos,int length); src原数组(被复制的数组)srcPos被复制数组的起始位置;dest目标数组,destPos目标数组的存放复制数据的起始位置;length复制的长度。
二、ArrayList的增删改查以及遍历方法
1.增加数据:add方法
public void add(int index, E element) {
if (index > size || index < 0)
throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
ensureCapacityInternal(size + 1); // Increments modCount!!
System.arraycopy(elementData, index, elementData, index + 1,
size - index);
elementData[index] = element;
size++;
}
private void ensureCapacityInternal(int minCapacity) {
if (elementData == DEFAULTCAPACITY_EMPTY_ELEMENTDATA) {
minCapacity = Math.max(DEFAULT_CAPACITY, minCapacity);
}
ensureExplicitCapacity(minCapacity);
}
private void ensureExplicitCapacity(int minCapacity) {
modCount++;
// overflow-conscious code
if (minCapacity - elementData.length > 0)
grow(minCapacity);
}
private static final int MAX_ARRAY_SIZE = Integer.MAX_VALUE - 8;
private void grow(int minCapacity) {
// overflow-conscious code
int oldCapacity = elementData.length;
int newCapacity = oldCapacity + (oldCapacity >> 1);
if (newCapacity - minCapacity < 0)
newCapacity = minCapacity;
if (newCapacity - MAX_ARRAY_SIZE > 0)
newCapacity = hugeCapacity(minCapacity);
// minCapacity is usually close to size, so this is a win:
elementData = Arrays.copyOf(elementData, newCapacity);
}
可以清晰的看见add方法 首先检查添加的索引位置是否正确,不正确的话直接抛出异常。然后增加一个值,调用ensureCapacityInternal 方法确保ArrayList的容量是足够的(如果不足,则增加ArrayList的容量)。最后调用System.arraycopy 方法把原数组中自index索引位置的元素都向后移动一位,然后给index位置重新复制即可。
使用ensureCapacityInternal方法,先初步确定最小的容量。然后进一步使用ensureExplicitCapacity方法确定ArrayList的容量;modCount 关键字是记录ArrayList的大小改变的次数;如果容量不够的话,就使用grow方法进行扩增;可以看到grow方法里面做了这样的的事情:newCapacity先为原始容量的1.5倍;如果newCapacity比需要的最小容量小;那么将所需的最小容量赋值给newCapacity;如果newCapacity的值比MAX_ARRAY_SIZE = Integer.MAX_VALUE - 8 值要大(不要纠结MAX_ARRAY_SIZE这个值怎么来的,这是JDK工程师通过大量的实验得出的经验值,我们直接用就好),那么newCapacity的值为hugeCapacity方法的返回值;最后调用Arrays.copyOf方法生新的对象数组赋值给elementData。
private static int hugeCapacity(int minCapacity) {
if (minCapacity < 0) // overflow
throw new OutOfMemoryError();
return (minCapacity > MAX_ARRAY_SIZE) ?
Integer.MAX_VALUE :
MAX_ARRAY_SIZE;
}
到现在为止;add方法的其中一个就被分析完毕了;当然add方法有很多的重载但都大同小异这里就不过多的赘述了。读者可以自己看看。
2.删除数组: remove 方法
public boolean remove(Object o) {
if (o == null) {
for (int index = 0; index < size; index++)
if (elementData[index] == null) {
fastRemove(index);
return true;
}
} else {
for (int index = 0; index < size; index++)
if (o.equals(elementData[index])) {
fastRemove(index);
return true;
}
}
return false;
}
private void fastRemove(int index) {
modCount++;
int numMoved = size - index - 1;
if (numMoved > 0)
System.arraycopy(elementData, index+1, elementData, index,
numMoved);
elementData[--size] = null; // clear to let GC do its work
}
可以发现remove方法首先是找到那个要删除的元素第一次出现位置,然后调用fastRemove方法将其删除。也就是说如果有重复的元素,只能删除第一个。fastRemove先将index后面的每一个元素都向前面移动一位(这样以来index位置的元素就被index+1这个位置的元素给覆盖了)。最后将原数组中的最后一个元素置为null;相对add方法remove方法比较简单;其他的remove的重载方法也比较简单读者可自己查阅。
3.修改数据 :set方法
public E set(int index, E element) {
if (index >= size)
throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
E oldValue = (E) elementData[index];
elementData[index] = element;
return oldValue;
}
该方法非常的单纯简单,就是直接把原来的元素值返回;然后直接改变数组中该位置的中的值即可。
4.查询数据:get方法
public E get(int index) {
if (index >= size)
throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
return (E) elementData[index];
}
和set方法一样天真无邪。
5.遍历数据:iterator方法
iterator方法比较简单这里不做过多的描述;我们来看看listIterator方法:
public ListIterator<E> listIterator() {
return new ListItr(0);
}
private class ListItr extends Itr implements ListIterator<E> {
ListItr(int index) {
super();
cursor = index;
}
public boolean hasPrevious() {
return cursor != 0;
}
public int nextIndex() {
return cursor;
}
public int previousIndex() {
return cursor - 1;
}
@SuppressWarnings("unchecked")
public E previous() {
if (modCount != expectedModCount)
throw new ConcurrentModificationException();
int i = cursor - 1;
if (i < 0)
throw new NoSuchElementException();
Object[] elementData = ArrayList.this.elementData;
if (i >= elementData.length)
throw new ConcurrentModificationException();
cursor = i;
return (E) elementData[lastRet = i];
}
public void set(E e) {
if (lastRet < 0)
throw new IllegalStateException();
if (modCount != expectedModCount)
throw new ConcurrentModificationException();
try {
ArrayList.this.set(lastRet, e);
} catch (IndexOutOfBoundsException ex) {
throw new ConcurrentModificationException();
}
}
public void add(E e) {
if (modCount != expectedModCount)
throw new ConcurrentModificationException();
try {
int i = cursor;
ArrayList.this.add(i, e);
cursor = i + 1;
lastRet = -1;
expectedModCount = modCount;
limit++;
} catch (IndexOutOfBoundsException ex) {
throw new ConcurrentModificationException();
}
}
}
private class Itr implements Iterator<E> {
// Android-changed: Add "limit" field to detect end of iteration.
// The "limit" of this iterator. This is the size of the list at the time the
// iterator was created. Adding & removing elements will invalidate the iteration
// anyway (and cause next() to throw) so saving this value will guarantee that the
// value of hasNext() remains stable and won't flap between true and false when elements
// are added and removed from the list.
protected int limit = ArrayList.this.size;
int cursor; // index of next element to return
int lastRet = -1; // index of last element returned; -1 if no such
int expectedModCount = modCount;
public boolean hasNext() {
return cursor < limit;
}
@SuppressWarnings("unchecked")
public E next() {
if (modCount != expectedModCount)
throw new ConcurrentModificationException();
int i = cursor;
if (i >= limit)
throw new NoSuchElementException();
Object[] elementData = ArrayList.this.elementData;
if (i >= elementData.length)
throw new ConcurrentModificationException();
cursor = i + 1;
return (E) elementData[lastRet = i];
}
public void remove() {
if (lastRet < 0)
throw new IllegalStateException();
if (modCount != expectedModCount)
throw new ConcurrentModificationException();
try {
ArrayList.this.remove(lastRet);
cursor = lastRet;
lastRet = -1;
expectedModCount = modCount;
limit--;
} catch (IndexOutOfBoundsException ex) {
throw new ConcurrentModificationException();
}
}
@Override
@SuppressWarnings("unchecked")
public void forEachRemaining(Consumer<? super E> consumer) {
Objects.requireNonNull(consumer);
final int size = ArrayList.this.size;
int i = cursor;
if (i >= size) {
return;
}
final Object[] elementData = ArrayList.this.elementData;
if (i >= elementData.length) {
throw new ConcurrentModificationException();
}
while (i != size && modCount == expectedModCount) {
consumer.accept((E) elementData[i++]);
}
// update once at end of iteration to reduce heap write traffic
cursor = i;
lastRet = i - 1;
if (modCount != expectedModCount)
throw new ConcurrentModificationException();
}
}
先看看Itr这个类,它实现了Iterator接口:
public interface Iterator<E> {
//是否含有下一个元素
boolean hasNext();
//下一个元素值
E next();
//移除元素
default void remove() {
throw new UnsupportedOperationException("remove");
}
//JDK 1.8中新增的方法,先不用管
default void forEachRemaining(Consumer<? super E> action) {
Objects.requireNonNull(action);
while (hasNext())
action.accept(next());
}
}
这个类比较简单,不做分析;看看我们正主listIterator他继承Itr实现了ListIterator 接口
public interface ListIterator<E> extends Iterator<E> {
//是否有下一个元素值
boolean hasNext();
//下一个元素值
E next();
//是否含有上一个元素
boolean hasPrevious();
//上一个元素值
E previous();
//下一个元素的索引
int nextIndex();
//上一个元素的索引
int previousIndex();
//移除元素
void remove();
//设置值
void set(E e);
//添加值
void add(E e);
}
cursor : 下一个要返回元素的下标 lastRet:最后一个返回元素的位置 limit:表示的ArrayList中的元素的个数
previous()方法:当前元素的上一个元素 其索引位置为 cursor-1;如果是第一个元素就没有上一个元素啦;取出值之后将cursor的值赋值为cursor-1;同时也将这个值赋值给lastRet。可以说是ListItr是Itr的升级加强版;它可以添加元素,获取上一个元素等等,这些都是Itr类所办不到的。
6.清空数据:clear方法
public void clear() {
modCount++;
// clear to let GC do its work
for (int i = 0; i < size; i++)
elementData[i] = null;
size = 0;
}
其实就是将所有的元素置为null 方便GC回收。
三、JDK 1.8中新增的方法
public void forEachRemaining(Consumer<? super E> consumer) {
Objects.requireNonNull(consumer);
final int size = ArrayList.this.size;
int i = cursor;
if (i >= size) {
return;
}
final Object[] elementData = ArrayList.this.elementData;
if (i >= elementData.length) {
throw new ConcurrentModificationException();
}
while (i != size && modCount == expectedModCount) {
consumer.accept((E) elementData[i++]);
}
// update once at end of iteration to reduce heap write traffic
cursor = i;
lastRet = i - 1;
if (modCount != expectedModCount)
throw new ConcurrentModificationException();
}
forEachRemaining方法是迭代器在JDK 1.8中新增的方法,目前还没看见这个怎么使用,但是这个方法有个新的思想。如果读者有C语言的基础那么一眼就能看明白;这个其实就是函数指针的原型;使用Consumer接口的accept方法对ArrayList中的每个元素进行处理。
public interface Consumer<T> {
void accept(T t);
/**
* Returns a composed {@code Consumer} that performs, in sequence, this
* operation followed by the {@code after} operation. If performing either
* operation throws an exception, it is relayed to the caller of the
* composed operation. If performing this operation throws an exception,
* the {@code after} operation will not be performed.
*
* @param after the operation to perform after this operation
* @return a composed {@code Consumer} that performs in sequence this
* operation followed by the {@code after} operation
* @throws NullPointerException if {@code after} is null
*/
default Consumer<T> andThen(Consumer<? super T> after) {
Objects.requireNonNull(after);
return (T t) -> { accept(t); after.accept(t); };
}
}
这样我们只要实现Consumer接口就可以利用accept方法对ArrayList中的每个元素进行自定义的处理。
四、小结
整体来说ArrayLsit的源码还是比较的善良单纯的。没看过被别人问起来总是心虚,看过之后其实也没什么哈。从看ArrayList的源码,我们可以知道ArrayList做查询的时候或者修改的时候非常的快,但是做插入和删除的时候就不行,尤其是数据量大的时候;原因就是它需要后面的元素都向前移动一位或者向后移动一位;对于这种需要删除和插入较为频繁的我们需要使用LinkedList. 下一节我们来分析下LinkedList的源码:重拾Java之LinkedList源码阅读
