Windows 11 系统中 WSL + OpenFOAM-v2106 安装

Lidong Cheng

已于 2024-08-20 10:04:39 修改

阅读量4.6k

点赞数 7

分类专栏： OpenFOAM 文章标签：开源软件

于 2023-09-27 11:14:30 首次发布

本文链接：https://blog.csdn.net/Jerry_CLD/article/details/133343607

版权

OpenFOAM 专栏收录该内容

11 篇文章

订阅专栏

文章目录

前言
一、通过WSL安装Ubuntu
二、在 Ubuntu 中配置 OpenFOAM

前言

本文介绍如何在windows11系统中通过WSL安装ubuntu子系统，并配置OpenFOAM-v2106库。

一、通过WSL安装Ubuntu

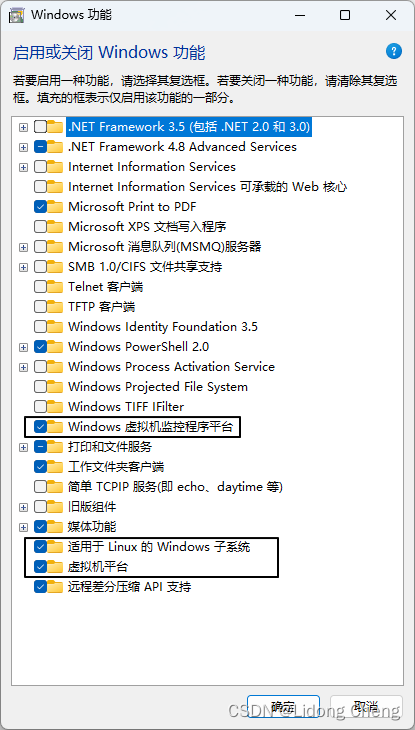

控制面板 $\to$ 程序 $\to$ 启用或关闭windows功能 $\to$ 开启如下功能
(1) windows虚拟机监控程序平台
(2) 适用于Linux的windows子系统
(3) 虚拟机平台
在这里插入图片描述

以管理员权限打开powerShell，并执行如下指令

Enable-WindowsOptionalFeature -Online -FeatureName Microsoft-Windows-Subsystem-Linux

（参考资料：这就是修复 Windows 11 的 WSL 错误的方法）

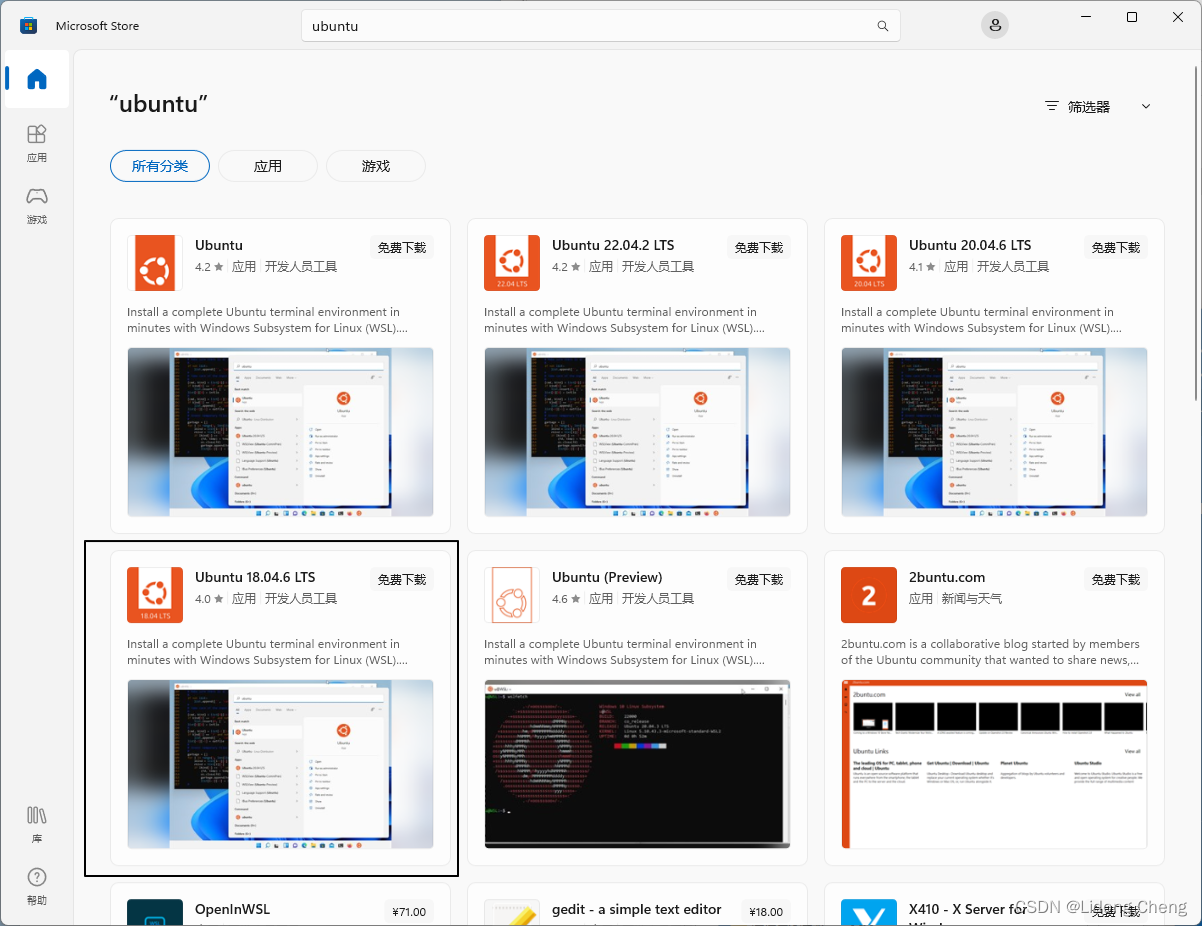

在microsoft store中搜索 ubuntu，选择并安装 Ubuntu 18.04.6 LTS

在这里插入图片描述

二、在 Ubuntu 中配置 OpenFOAM

首先更换ubuntu的软件源，手动更换的方法是

sudo cp /etc/apt/source.list /etc/apt/source.list.bak
sudo vi /etc/apt/source.list

将软件源更换为如下的阿里云和清华源

# 阿里云源
deb http://mirrors.aliyun.com/ubuntu/ bionic main restricted universe multiverse
deb http://mirrors.aliyun.com/ubuntu/ bionic-security main restricted universe multiverse
deb http://mirrors.aliyun.com/ubuntu/ bionic-updates main restricted universe multiverse
deb http://mirrors.aliyun.com/ubuntu/ bionic-backports main restricted universe multiverse
##測試版源
deb http://mirrors.aliyun.com/ubuntu/ bionic-proposed main restricted universe multiverse
# 源碼
deb-src http://mirrors.aliyun.com/ubuntu/ bionic main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic-security main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic-updates main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic-backports main restricted universe multiverse
##測試版源
deb-src http://mirrors.aliyun.com/ubuntu/ bionic-proposed main restricted universe multiverse


# 清华大学源
deb http://mirrors.tuna.tsinghua.edu.cn/ubuntu/ bionic main restricted universe multiverse
deb http://mirrors.tuna.tsinghua.edu.cn/ubuntu/ bionic-security main restricted universe multiverse
deb http://mirrors.tuna.tsinghua.edu.cn/ubuntu/ bionic-updates main restricted universe multiverse
deb http://mirrors.tuna.tsinghua.edu.cn/ubuntu/ bionic-backports main restricted universe multiverse
##測試版源
deb http://mirrors.tuna.tsinghua.edu.cn/ubuntu/ bionic-proposed main restricted universe multiverse
# 源碼
deb-src http://mirrors.tuna.tsinghua.edu.cn/ubuntu/ bionic main restricted universe multiverse
deb-src http://mirrors.tuna.tsinghua.edu.cn/ubuntu/ bionic-security main restricted universe multiverse
deb-src http://mirrors.tuna.tsinghua.edu.cn/ubuntu/ bionic-updates main restricted universe multiverse
deb-src http://mirrors.tuna.tsinghua.edu.cn/ubuntu/ bionic-backports main restricted universe multiverse
##測試版源
deb-src http://mirrors.tuna.tsinghua.edu.cn/ubuntu/ bionic-proposed main restricted universe multiverse

然后执行软件源的更新操作

sudo apt-get update

从OpenFOAM的官方路径下载OpenFOAM-v2106安装包

Source: https://dl.openfoam.com/source/v2106/OpenFOAM-v2106.tgz
ThirdParty: https://dl.openfoam.com/source/v2106/ThirdParty-v2106.tgz

放在 ~/OpenFOAM路径下并解压到

~/OpenFOAM/OpenFOAM-v2106
~/OpenFOAM/ThirdParty-v2106

接下来安装OpenFOAM-v2106依赖的包

sudo apt-get install build-essential autoconf autotools-dev cmake gawk gnuplot
sudo apt-get install flex libfl-dev libreadline-dev zlib1g-dev openmpi-bin libopenmpi-dev mpi-default-bin mpi-default-dev
sudo apt-get install libgmp-dev libmpfr-dev libmpc-dev

在 ~/.bashrc 中添加OpenFOAM的环境变量

alias of2106='source ~/OpenFOAM/OpenFOAM-v2106/etc/bashrc'

更新环境变量并执行

source ~/.bashrc
of2106

最后，编译OpenFOAM库

foam
./Allwmake -s -l

需要等待较长的时间完成编译。结束之后，测试编译是否成功：

打开一个新的wsl终端，使用 of2106 加载OpenFOAM的环境变量，然后执行下面的命令

icoFoam -help

如果编译成功，将输出如下信息

Usage: icoFoam [OPTIONS]
Options:
  -case <dir>       Specify case directory to use (instead of cwd)
  -decomposeParDict <file>
                    Use specified file for decomposePar dictionary
  -dry-run          Check case set-up only using a single time step
  -dry-run-write    Check case set-up and write only using a single time step
  -parallel         Run in parallel
  -postProcess      Execute functionObjects only
  -doc              Display documentation in browser
  -help             Display short help and exit
  -help-full        Display full help and exit

Transient solver for incompressible, laminar flow of Newtonian fluids.

Using: OpenFOAM-v2106 (2106) - visit www.openfoam.com
Build: _c15bfde3cb-20210624
Arch:  LSB;label=32;scalar=64

然后可以找一个OpenFOAM自带的case运行一遍，作为最终测试，例如

~/OpenFOAM/OpenFOAM-v2106/tutorials/incompressible/icoFoam/cavity
