目录
一、页面环境

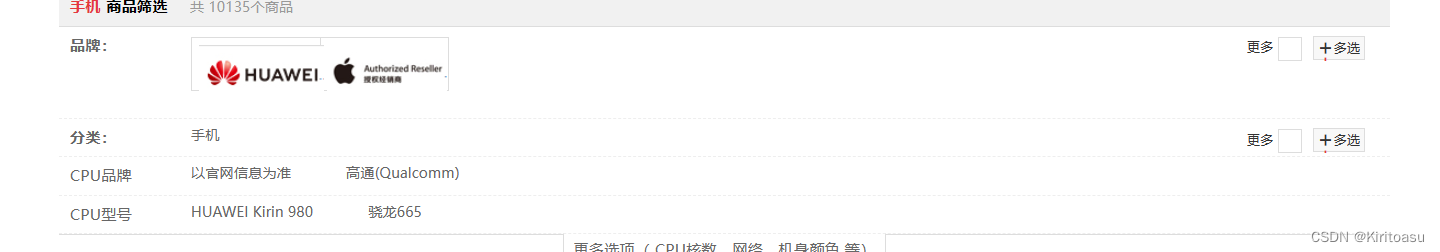

商城页面搜索页面
1、基本配置

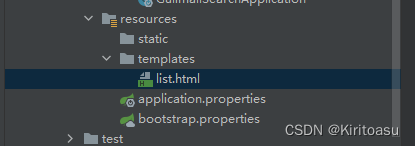

将主页面导入search服务下

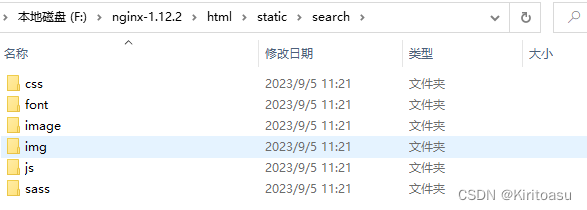

将静态资源放入nginx的资源中进行统一管理
后端导入thymeleaf依赖
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-thymeleaf</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-devtools</artifactId>
</dependency>

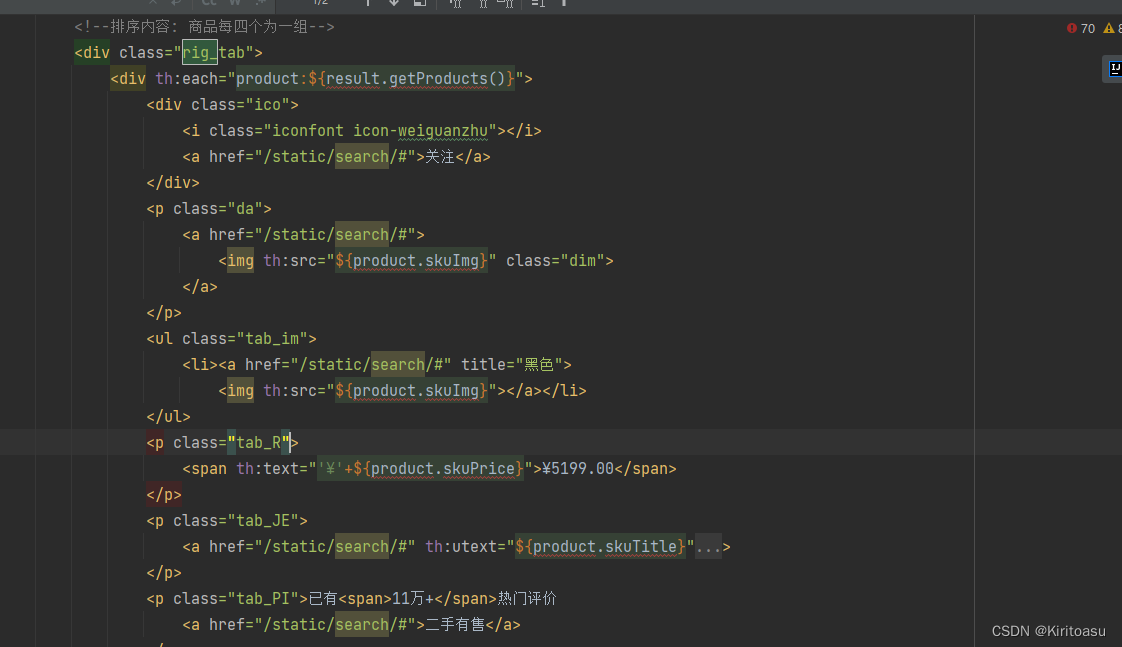

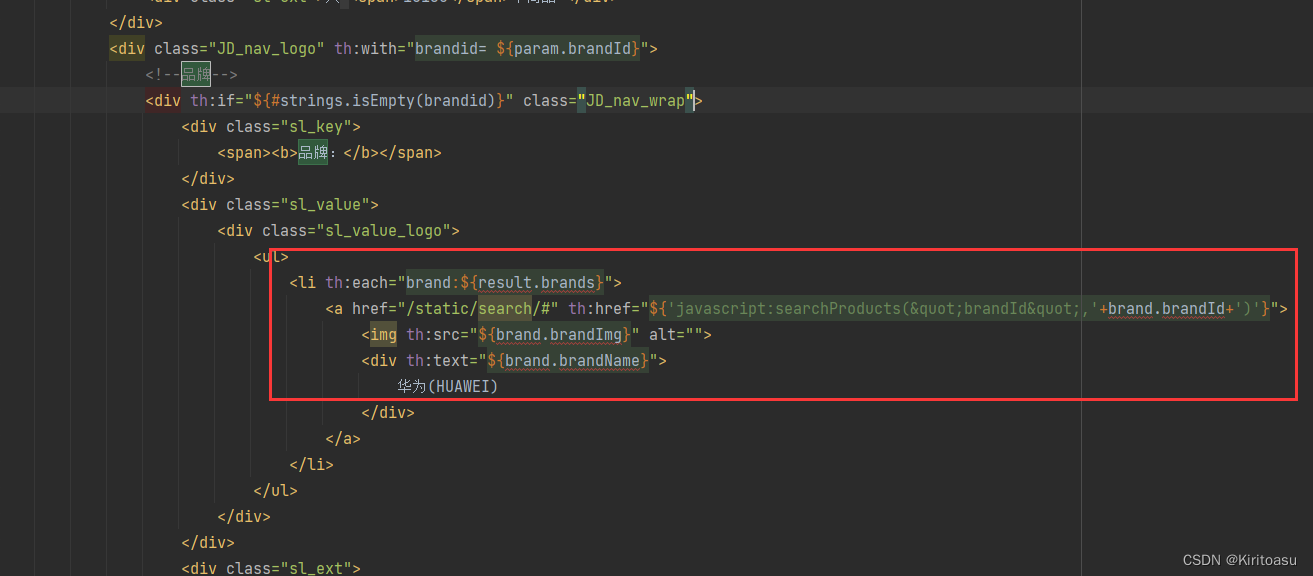

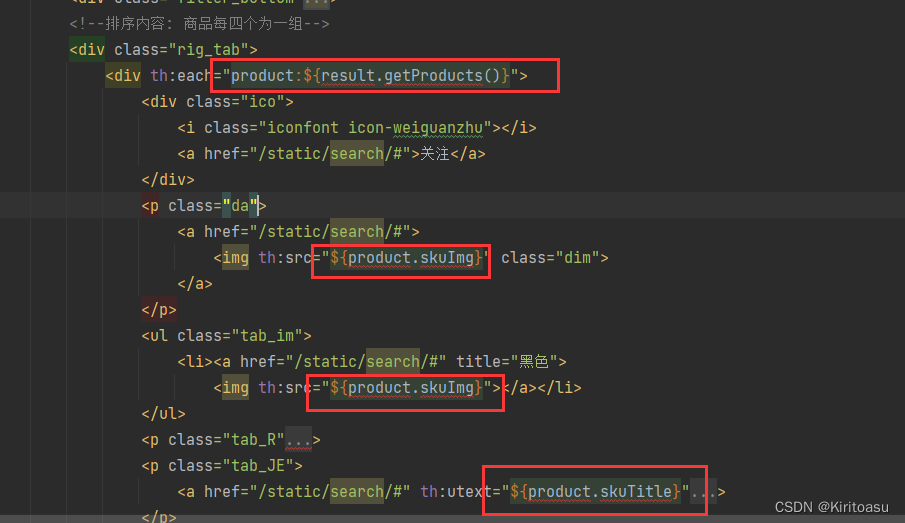

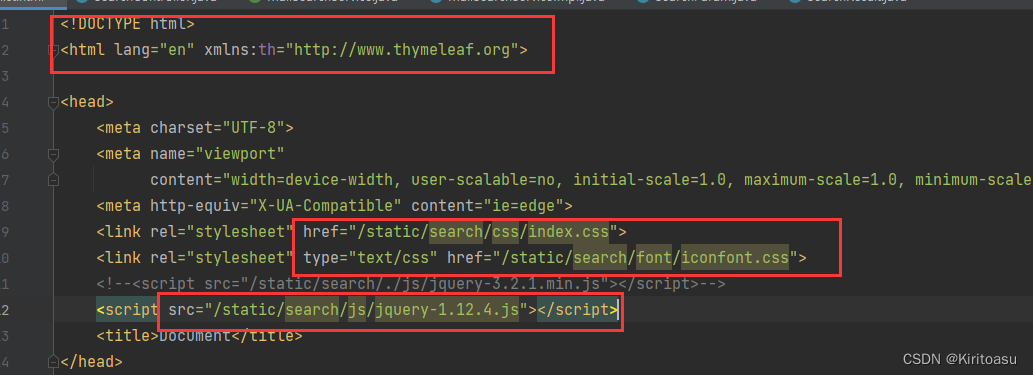

前端页面加thymeleaf渲染，并将全部需要访问资源的路径进行修改

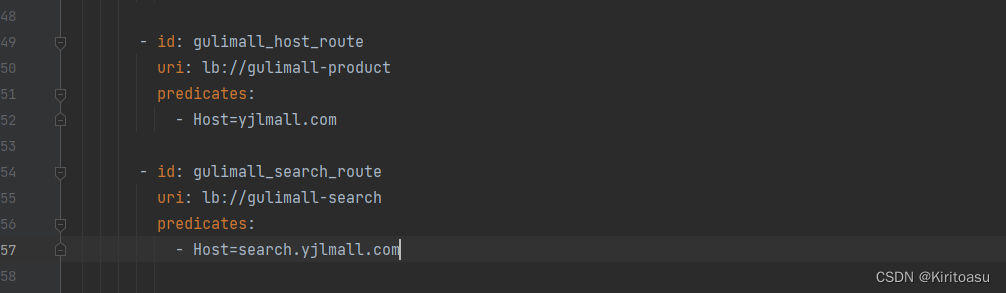

配置路由转发（gateway服务的配置环境中）
二、首页跳转检索查询功能

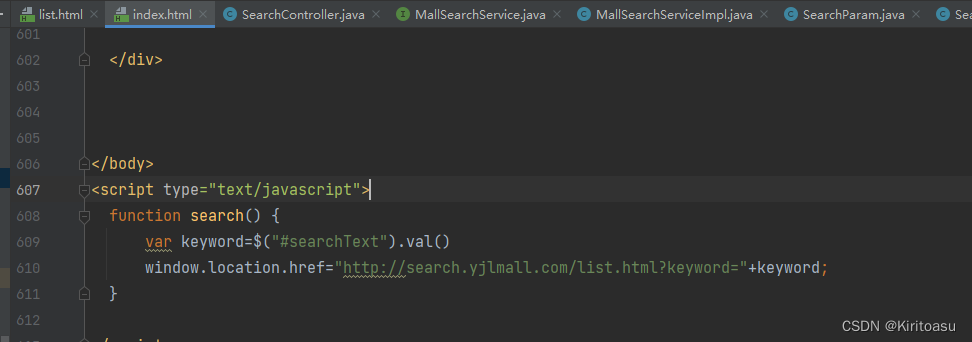

1、首页跳转修改
search方法路径改为我们搜索页面的路径

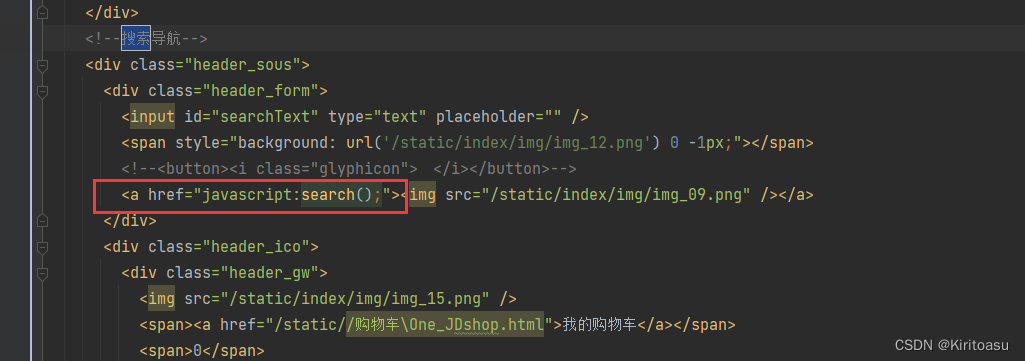

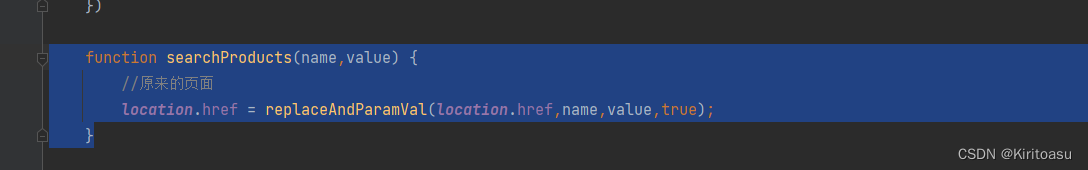

搜索导航调用search方法

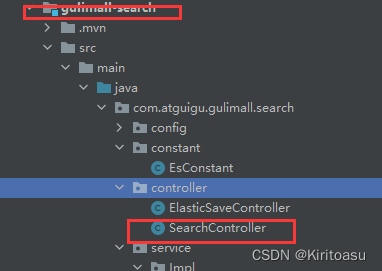

2、搜索服务-Controller类
建立controller类统一管理检索服务
@Controller
public class SearchController {
@Autowired
MallSearchService mallSearchService;
@GetMapping("/list.html")
public String listPage(SearchParam param, Model model){
//1.根据传递过来的页面查询参数，去es中检索商品
SearchResult result = mallSearchService.search(param);
model.addAttribute("result", result);
return "list";
}
}

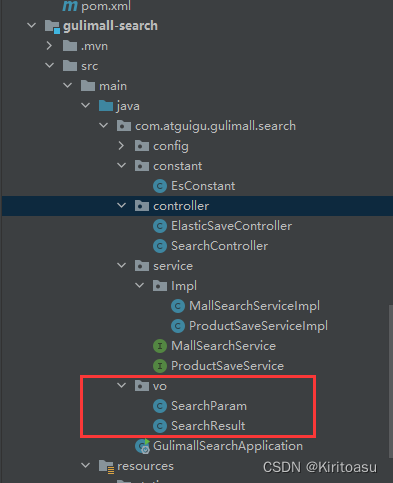

3、实体类
一个用于封装传入的数据，一个是统一返回的数据
/**
* 封装页面所有可能传递过来的查询条件
*
*
*/
@Data
public class SearchParam {
private String keyword; //页面传递过来的全文匹配关键字
private Long catalog3Id; //三级分类id
private String sort; //排序条件
private Integer hasStock = 1;//是否有货
private String skuPrice;//价格区间查询
private List<Long> brandId;//根据品牌进行查询，可以多选
private List<String> attrs;//按照属性进行筛选
private Integer pageNum = 1;//页码
}
@Data
public class SearchResult {
//查询到的所有商品信息
private List<SkuEsModel> products;
/**
* 以下是分页信息
*/
private Integer pageNum; //当前页码
private Long total; //总记录数
private Integer totalPages; //总页码
private List<BrandVo> brands; //当前查询到的结果，所有设计到的品牌
private List<AttrVo> attrs; //所有涉及到的所有属性
private List<CatalogVo> catalogs; //所有涉及到的所有分类
//======================以上是返回给页面的所有信息=============================
@Data
public static class BrandVo{
private Long brandId;
private String brandName;
private String brandImg;
}
@Data
public static class AttrVo{
private Long attrId;
private String attrName;
private List<String> attrValue;
}
@Data
public static class CatalogVo{
private Long catalogId;
private String catalogName;
}
}
4、Service接口
public interface MallSearchService {
/**
* 检索所有参数
* 返回结果 里面包含页面的所有信息
*/
SearchResult search(SearchParam param);
}
5、Impl实现类
import com.alibaba.fastjson.JSON;
import com.atguigu.common.to.es.SkuEsModel;
import com.atguigu.gulimall.search.config.GulimallElasticSearchConfig;
import com.atguigu.gulimall.search.constant.EsConstant;
import com.atguigu.gulimall.search.service.MallSearchService;
import com.atguigu.gulimall.search.vo.SearchParam;
import com.atguigu.gulimall.search.vo.SearchResult;
import com.baomidou.mybatisplus.core.toolkit.StringUtils;
import org.apache.lucene.search.join.ScoreMode;
import org.elasticsearch.action.search.SearchRequest;
import org.elasticsearch.action.search.SearchResponse;
import org.elasticsearch.client.RestHighLevelClient;
import org.elasticsearch.index.query.BoolQueryBuilder;
import org.elasticsearch.index.query.NestedQueryBuilder;
import org.elasticsearch.index.query.QueryBuilders;
import org.elasticsearch.index.query.RangeQueryBuilder;
import org.elasticsearch.search.SearchHit;
import org.elasticsearch.search.SearchHits;
import org.elasticsearch.search.aggregations.AggregationBuilders;
import org.elasticsearch.search.aggregations.bucket.nested.NestedAggregationBuilder;
import org.elasticsearch.search.aggregations.bucket.nested.ParsedNested;
import org.elasticsearch.search.aggregations.bucket.terms.ParsedLongTerms;
import org.elasticsearch.search.aggregations.bucket.terms.ParsedStringTerms;
import org.elasticsearch.search.aggregations.bucket.terms.Terms;
import org.elasticsearch.search.aggregations.bucket.terms.TermsAggregationBuilder;
import org.elasticsearch.search.builder.SearchSourceBuilder;
import org.elasticsearch.search.fetch.subphase.highlight.HighlightBuilder;
import org.elasticsearch.search.fetch.subphase.highlight.HighlightField;
import org.elasticsearch.search.sort.SortOrder;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import javax.swing.*;
import javax.swing.text.Highlighter;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;
import java.util.stream.Collectors;
@Service
public class MallSearchServiceImpl implements MallSearchService {
@Autowired
private RestHighLevelClient client;
@Override
public SearchResult search(SearchParam param) {
//1.动态构建出查询需要的DSL语句
SearchResult result = null;
//1.准备检索请求
SearchRequest searchRequest = buildSearchRequrest(param);
try {
//2.执行检索请求
SearchResponse response = client.search(searchRequest, GulimallElasticSearchConfig.COMMON_OPTIONS);
//3.分析相应数据封装成我们需要的格式
result = buildSearchResult(response, param);
}catch (IOException e){
e.printStackTrace();
}
return result;
}
/**
* 准备检索请求
* #模糊匹配，过滤（按照属性，分类，品牌，价格区间，库存），排序，分页，高亮，聚合分析
* @return
*/
private SearchRequest buildSearchRequrest(SearchParam param) {
SearchSourceBuilder sourceBuilder = new SearchSourceBuilder();//构建DSL语句的
/**
* 查询： 过滤（按照属性，分类，品牌，价格区间，库存）
*/
//1. 构建bool-query
BoolQueryBuilder boolQuery = QueryBuilders.boolQuery();
//1.1 must-模糊查询
if(!StringUtils.isEmpty(param.getKeyword())){
boolQuery.must(QueryBuilders.matchQuery("skuTitle",param.getKeyword()));
}
//1.2 bool-filter- 按照三级分类id查询
if(param.getCatalog3Id()!=null){
boolQuery.filter(QueryBuilders.termQuery("catalogId",param.getCatalog3Id()));
}
//1.2 bool-filter- 按照品牌id查询
if(param.getBrandId()!=null && param.getBrandId().size()>0){
boolQuery.filter(QueryBuilders.termsQuery("brandId", param.getBrandId()));
}
//1.2 bool-filter- 按照所有指定的属性进行查询
if(param.getAttrs()!=null && param.getAttrs().size()>0){
for(String attrStr : param.getAttrs()){
//attrs=1_5寸：8寸&attrs=2_16g:8g
BoolQueryBuilder nestedboolQuery = QueryBuilders.boolQuery();
//attrs= 1_5寸：8寸
String[] s = attrStr.split("_");
String attrId = s[0];//检索的属性id
String[] attrValue = s[1].split(".");//用这个属性的检索用值
nestedboolQuery.must(QueryBuilders.termQuery("attrs.attrId", attrId));
nestedboolQuery.must(QueryBuilders.termsQuery("attrs.attrValue", attrValue));
//每一个必须都得生成一个nested查询
NestedQueryBuilder nestedQuery = QueryBuilders.nestedQuery("attrs",nestedboolQuery, ScoreMode.None);
boolQuery.filter(nestedQuery);
}
}
//1.2 bool-filter- 按照库存是否有进行查询
boolQuery.filter(QueryBuilders.termsQuery("hasStock", param.getHasStock()==0));
//1.2 bool-filter- 按照价格区间
if(!StringUtils.isEmpty(param.getSkuPrice())){
//1_500 _500 500_
//gte上区间
//lte下区间
RangeQueryBuilder rangeQuery = QueryBuilders.rangeQuery("skuPrice");
String[] s = param.getSkuPrice().split("_");
if(s.length == 2){
rangeQuery.gte(s[0]).lte(s[1]);
}else if(s.length == 1){
if(param.getSkuPrice().startsWith("_")){
rangeQuery.lte(s[0]);
}
if(param.getSkuPrice().endsWith("_")){
rangeQuery.gte(s[0]);
}
}
boolQuery.filter(rangeQuery);
}
//把以前的所有条件都拿来进行封装
sourceBuilder.query(boolQuery);
/**
* 排序，分页，高亮
*/
//2.1 排序
if(!StringUtils.isEmpty(param.getSort())){
String sort = param.getSort();
//sort = hotScore_asc/desc
String[] s = sort.split("_");
SortOrder order = s[1].equalsIgnoreCase("asc")?SortOrder.ASC:SortOrder.DESC;
sourceBuilder.sort(s[0], order);
}
//2.2 分页 pageSize：5
//pageNum:1 from:0 size:5 [0.1.2.3.4]
//pageNum:2 from:5 size:5
//from = (pageNum - 1)*size

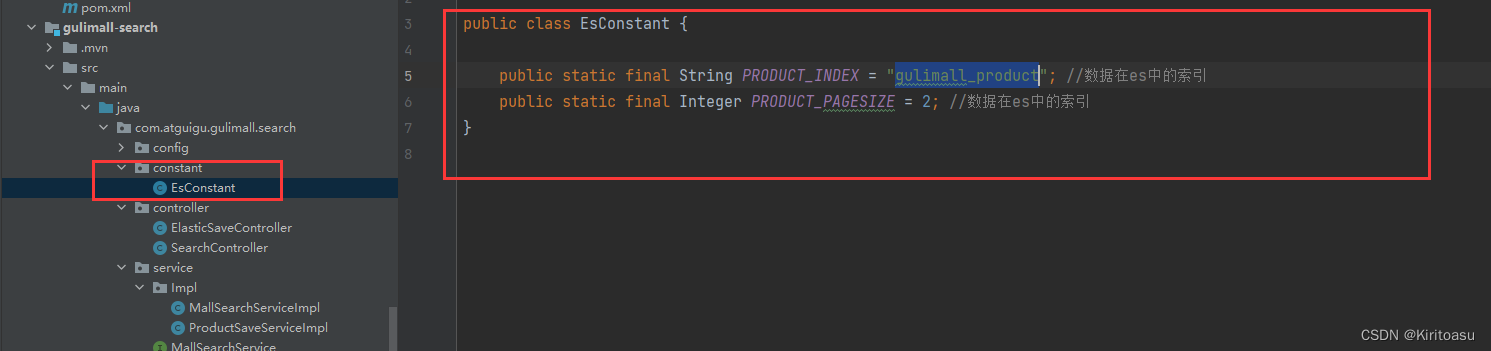

sourceBuilder.from((param.getPageNum()-1)*EsConstant.PRODUCT_PAGESIZE);
sourceBuilder.size(EsConstant.PRODUCT_PAGESIZE);
//2.3 高亮
if(!StringUtils.isEmpty(param.getKeyword())){
HighlightBuilder builder = new HighlightBuilder();
builder.field("skuTitle");
builder.preTags("<b style='color:red'>");
builder.postTags("</b>");
sourceBuilder.highlighter(builder);
}
/**
* 聚合分析
*/
//1.品牌聚合
TermsAggregationBuilder brand_agg = AggregationBuilders.terms("brand_agg");
brand_agg.field("brandId").size(50);
//品牌聚合的子聚合
brand_agg.subAggregation(AggregationBuilders.terms("brand_name_agg").field("brandName").size(1));
brand_agg.subAggregation(AggregationBuilders.terms("brand_img_agg").field("brandImg").size(1));
sourceBuilder.aggregation(brand_agg);
//2.分类聚合
TermsAggregationBuilder catalog_agg = AggregationBuilders.terms("catalog_agg").field("catalogId").size(20);
catalog_agg.subAggregation(AggregationBuilders.terms("catalog_name_agg").field("catalogName").size(1));
sourceBuilder.aggregation(catalog_agg);
//3.属性聚合
NestedAggregationBuilder attr_agg = AggregationBuilders.nested("attr_agg","attrs");
//聚合分析出当前attr_id
TermsAggregationBuilder attr_id_agg = AggregationBuilders.terms("attr_id_agg").field("attrs.attrId");
//聚合分析出当前attr_id对应的名字
attr_id_agg.subAggregation(AggregationBuilders.terms("attr_name_agg").field("attrs.attrName").size(1));
//聚合分析出当前attr_id对应的所有可能的属性值attrValue
attr_id_agg.subAggregation(AggregationBuilders.terms("attr_value_agg").field("attrs.attrValue").size(50));
attr_agg.subAggregation(attr_id_agg);
sourceBuilder.aggregation(attr_agg);
String s = sourceBuilder.toString();
System.out.println("构建DSL" + s);
SearchRequest searchRequest = new SearchRequest(new String[]{EsConstant.PRODUCT_INDEX}, sourceBuilder);
return searchRequest;
}
/**
* 构建检索请求：
* #模糊匹配，过滤（按照属性，分类，品牌，价格区间，库存），排序，分页，高亮，聚合分析
* */
// private SearchRequest buildSearchRequrest(SearchParam searchParam) {
// SearchSourceBuilder searchSourceBuilder=new SearchSourceBuilder();//构建DSL语句
// BoolQueryBuilder boolQueryBuilder = QueryBuilders.boolQuery();
// /**
// * 模糊匹配，过滤（按照属性，分类，品牌，价格区间，库存）
// * */
// //1.构建bool-query
// //1.1 模糊匹配 bool - must
// if (!StringUtils.isEmpty(searchParam.getKeyword())){
// boolQueryBuilder.must(QueryBuilders.matchQuery("skuTitle",searchParam.getKeyword()));
// }
// //1.2 bool - filter 按照三级分类id查询
// if (searchParam.getCatalog3Id()!=null){
// boolQueryBuilder.filter(QueryBuilders.termQuery("catalogId",searchParam.getCatalog3Id()));
// }
// //1.3 bool -filter 按照品牌id查询
// if (searchParam.getBrandId()!=null&&searchParam.getBrandId().size()>0){
// boolQueryBuilder.filter(QueryBuilders.termsQuery("brandId",searchParam.getBrandId()));
// }
// //1.4 bool -filter - nested 按照指定的属性查询
// if (searchParam.getAttrs()!=null&&searchParam.getAttrs().size()>0){
// //每一个属性查询必须都得生成一个nested查询
// for (String attr : searchParam.getAttrs()) {
// BoolQueryBuilder nestedBoolQuery = QueryBuilders.boolQuery();
// //attrs=1_5寸:8寸&attrs=2_16G:8G
// String[] attrSplit = attr.split("_");
// String attrId = attrSplit[0];
// String[] attrValues = attrSplit[1].split(":");
// nestedBoolQuery.must(QueryBuilders.termQuery("attrs.attrId",attrId));
// nestedBoolQuery.must(QueryBuilders.termsQuery("attrs.attrValue",attrValues));
// //每一个必须都得生成一个nested查询
// NestedQueryBuilder nestedQuery = QueryBuilders.nestedQuery("attrs", nestedBoolQuery, ScoreMode.None);
// boolQueryBuilder.filter(nestedQuery);
// }
// }
// //1.5 bool -filter 是否有库存查询
// if (searchParam.getHasStock()==null){
// //如果没有传输是否有库存这个参数，默认查找有库存的
// boolQueryBuilder.filter(QueryBuilders.termQuery("hasStock",true));
// }else {
// boolQueryBuilder.filter(QueryBuilders.termQuery("hasStock",searchParam.getHasStock()==0));
// }
//
// //1.6按照价格区间
// if (!StringUtils.isEmpty(searchParam.getSkuPrice())){
// RangeQueryBuilder skuPriceRangeQuery = QueryBuilders.rangeQuery("skuPrice");
// String[] s = searchParam.getSkuPrice().split("_");
// if (s.length == 2 ){
// //区间
// skuPriceRangeQuery.gte(s[0]).lte(s[1]);
// }else if (s.length==1){
// if (searchParam.getSkuPrice().startsWith("_")){
// skuPriceRangeQuery.lte(s[0]);
// }
// if (searchParam.getSkuPrice().endsWith("_")){
// skuPriceRangeQuery.gte(s[0]);
// }
// }
// boolQueryBuilder.filter(skuPriceRangeQuery);
// }
// searchSourceBuilder.query(boolQueryBuilder);
//
// /**
// * 排序，分页，
// * sort=saleCount_asc/desc
// * sort=skuPrice_asc/desc
// * sort= hotScore_asc/desc
// * */
// if (!StringUtils.isEmpty(searchParam.getSort())){
// String sort = searchParam.getSort();
// String[] sortSplit = sort.split("_");
// SortOrder sortOrder = sortSplit[1].equalsIgnoreCase("asc")?SortOrder.ASC:SortOrder.DESC;
// searchSourceBuilder.sort(sortSplit[0],sortOrder);
// }
// //分页
// if (searchParam.getPageNum()==null){
// //如果没有传输pagenum参数,默认为第一页
// searchSourceBuilder.from(((1-1)*EsConstant.PRODUCT_PAGESIZE));
// searchSourceBuilder.size(EsConstant.PRODUCT_PAGESIZE);
// }else {
// searchSourceBuilder.from((searchParam.getPageNum()-1)*EsConstant.PRODUCT_PAGESIZE);
// searchSourceBuilder.size(EsConstant.PRODUCT_PAGESIZE);
// }
//
// /**
// * 高亮
// * */
// if (!StringUtils.isEmpty(searchParam.getKeyword())){
// HighlightBuilder highlightBuilder=new HighlightBuilder();
// highlightBuilder.field("skuTitle");
// highlightBuilder.preTags("<b style= 'color:red'>");
// highlightBuilder.postTags("</b>");
// searchSourceBuilder.highlighter(highlightBuilder);
// }
// /**
// * 聚合分析
// * */
//
// //1.品牌的聚合
// TermsAggregationBuilder brand_agg = AggregationBuilders.terms("brand_agg");
// brand_agg.field("brandId");
// //品牌的子聚合
// brand_agg.subAggregation(AggregationBuilders.terms("brand_name_agg").field("brandName").size(1));
// brand_agg.subAggregation(AggregationBuilders.terms("brand_img_agg").field("brandImg").size(1));
// //TODO 1. 品牌的聚合
// searchSourceBuilder.aggregation(brand_agg);
// //2.分类聚合 catalog_agg
// TermsAggregationBuilder catalog_agg = AggregationBuilders.terms("catalog_agg").field("catalogId").size(20);
// catalog_agg.subAggregation(AggregationBuilders.terms("catalog_name_agg").field("catalogName").size(1));
// //TODO 2. 分类的聚合
// searchSourceBuilder.aggregation(catalog_agg);
// //3.属性聚合 attr_agg
// NestedAggregationBuilder attr_agg = AggregationBuilders.nested("attr_agg", "attrs");
// //3.1聚合当前所有的attrId
// TermsAggregationBuilder attr_id_agg = AggregationBuilders.terms("attr_id_agg").field("attrs.attrId").size(10);
// //3.2聚合分析出当前attr_id对应的名字
// attr_id_agg.subAggregation(AggregationBuilders.terms("attr_name_agg").field("attrs.attrName").size(1));
// //3.3聚合分析出当前attr_id对应的所有可能的属性值attrValue
// attr_id_agg.subAggregation(AggregationBuilders.terms("attr_value_agg").field("attrs.attrValue").size(50));
// attr_agg.subAggregation(attr_id_agg);
// //TODO 3. 属性的聚合
// searchSourceBuilder.aggregation(attr_agg);
// //打印构造的DSL
// String s = searchSourceBuilder.toString();
// System.out.println("构建的DSL："+s);
//
// SearchRequest searchRequest = new SearchRequest(new String[]{EsConstant.PRODUCT_INDEX}, searchSourceBuilder);
// return searchRequest;
// }
/**
* 构建结果
*/
private SearchResult buildSearchResult(SearchResponse response,SearchParam param){
SearchResult result = new SearchResult();
//1. 返回所有查询到的商品
SearchHits hits = response.getHits();
List<SkuEsModel> esModels = new ArrayList<>();
if(hits.getHits() != null && hits.getHits().length > 0){
for(SearchHit hit : hits.getHits()){
String sourceAsString = hit.getSourceAsString();
SkuEsModel esModel = JSON.parseObject(sourceAsString, SkuEsModel.class);
if(!StringUtils.isEmpty(param.getKeyword())){
HighlightField skuTitle = hit.getHighlightFields().get("skuTitle");
String string = skuTitle.getFragments()[0].string();
esModel.setSkuTitle(string);
}
esModels.add(esModel);
}
}
result.setProducts(esModels);
//2. 当前所有商品涉及到的所有属性信息
List<SearchResult.AttrVo> attrVos = new ArrayList<>();
ParsedNested attr_agg = response.getAggregations().get("attr_agg");
ParsedLongTerms attr_id_agg = attr_agg.getAggregations().get("attr_id_agg");
for(Terms.Bucket bucket : attr_id_agg.getBuckets()){
SearchResult.AttrVo attrVo = new SearchResult.AttrVo();
//1.得到属性的id
long attrId = bucket.getKeyAsNumber().longValue();
//2.得到属性的名字
String attrName = ((ParsedStringTerms) bucket.getAggregations().get("attr_name_agg")).getBuckets().get(0).getKeyAsString();
//3.得到属性的所有值
List<String> attrValues = ((ParsedStringTerms) bucket.getAggregations().get("attr_value_agg")).getBuckets().stream().map(item->{
String keyAsString = ((Terms.Bucket) item).getKeyAsString();
return keyAsString;
}).collect(Collectors.toList());
attrVo.setAttrId(attrId);
attrVo.setAttrName(attrName);
attrVo.setAttrValue(attrValues);
attrVos.add(attrVo);
}
result.setAttrs(attrVos);
//3. 当前所有商品涉及到的所有品牌信息
List<SearchResult.BrandVo> brandVos = new ArrayList<>();
ParsedLongTerms brand_agg = response.getAggregations().get("brand_agg");
for(Terms.Bucket bucket : brand_agg.getBuckets()){
SearchResult.BrandVo brandVo = new SearchResult.BrandVo();
//1. 得到品牌id
long brandId = bucket.getKeyAsNumber().longValue();
//2. 得到品牌名
String brandName = ((ParsedStringTerms)bucket.getAggregations().get("brand_name_agg")).getBuckets().get(0).getKeyAsString();
//3. 得到品牌的图片
String brandImg = ((ParsedStringTerms)bucket.getAggregations().get("brand_img_agg")).getBuckets().get(0).getKeyAsString();
brandVo.setBrandId(brandId);
brandVo.setBrandName(brandName);
brandVo.setBrandImg(brandImg);
brandVos.add(brandVo);
}
result.setBrands(brandVos);
//4. 当前所有商品涉及到的所有分类信息
ParsedLongTerms catalog_agg = response.getAggregations().get("catalog_agg");
List<SearchResult.CatalogVo> catalogVos = new ArrayList<>();
List<? extends Terms.Bucket> buckets = catalog_agg.getBuckets();
for(Terms.Bucket bucket : buckets){
SearchResult.CatalogVo catalogVo = new SearchResult.CatalogVo();
//得到分类id
String keyAsString = bucket.getKeyAsString();
catalogVo.setCatalogId(Long.parseLong(keyAsString));
//得到分类名
ParsedStringTerms catalog_name_agg = bucket.getAggregations().get("catalog_name_agg");
String catalog_name = catalog_name_agg.getBuckets().get(0).getKeyAsString();
catalogVo.setCatalogName(catalog_name);
catalogVos.add(catalogVo);
}
result.setCatalogs(catalogVos);
//==========以上从聚合信息中获取==============
//5. 分页信息-页码
result.setPageNum(param.getPageNum());
//5. 分页信息-总记录数
long total = hits.getTotalHits().value;
result.setTotal(total);
//5. 分页信息-总页码
int totalPages = (int)total%EsConstant.PRODUCT_PAGESIZE == 0?(int)total/EsConstant.PRODUCT_PAGESIZE:((int)total/EsConstant.PRODUCT_PAGESIZE + 1);
result.setTotalPages(totalPages);
return result;
}
}
6、搜索页面修改
将得到的数据进行回显
7、测试
1.查询方法
1.在Kibana中，首先建立新的查询mapping，命名为gulimall_product
{
"gulimall_product" : {
"mappings" : {
"properties" : {
"attrs" : {
"type" : "nested",
"properties" : {
"attrId" : {
"type" : "long"
},
"attrName" : {
"type" : "keyword"
},
"attrValue" : {
"type" : "keyword"
}
}
},
"brandId" : {
"type" : "long"
},
"brandImg" : {
"type" : "keyword"
},
"brandName" : {
"type" : "keyword"
},
"catalogId" : {
"type" : "long"
},
"catalogName" : {
"type" : "keyword"
},
"hasStock" : {
"type" : "boolean"
},
"hotScore" : {
"type" : "long"
},
"saleCount" : {
"type" : "long"
},
"skuId" : {
"type" : "long"
},
"skuImg" : {
"type" : "keyword"
},
"skuPrice" : {
"type" : "keyword"
},
"skuTitle" : {
"type" : "text",
"analyzer" : "ik_smart"
},
"spuId" : {
"type" : "keyword"
}
}
}
}
}

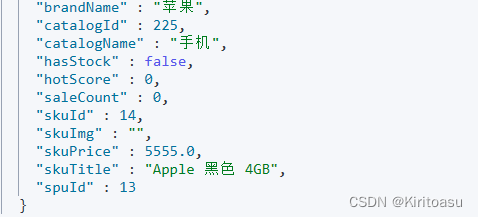

我们可以输入

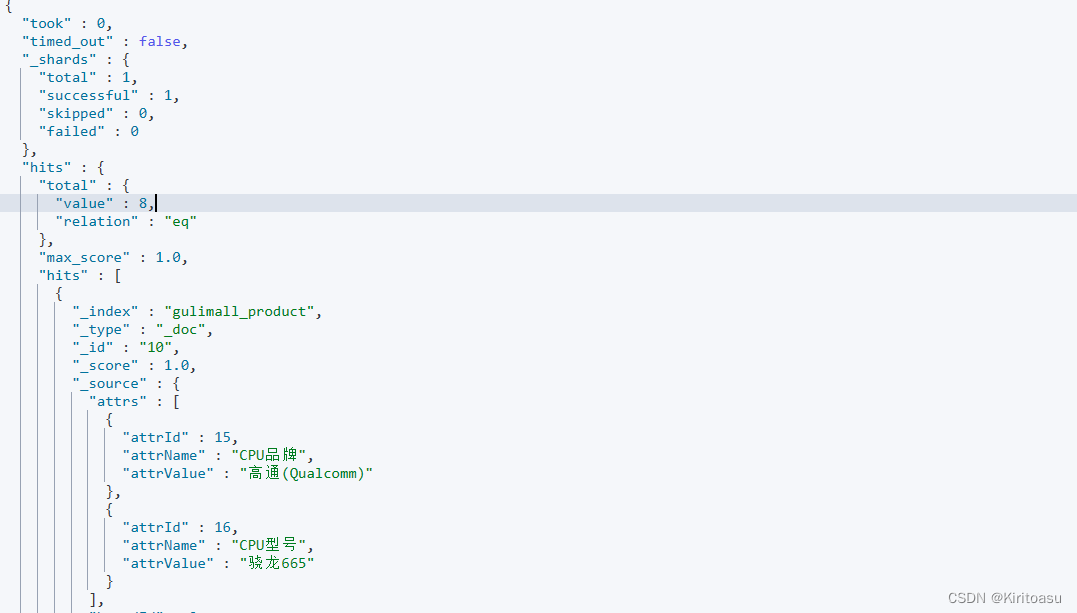

GET gulimall_product/_search
查询之前以及商品上传的数据
2.在搜索服务中，使用新的检索规则

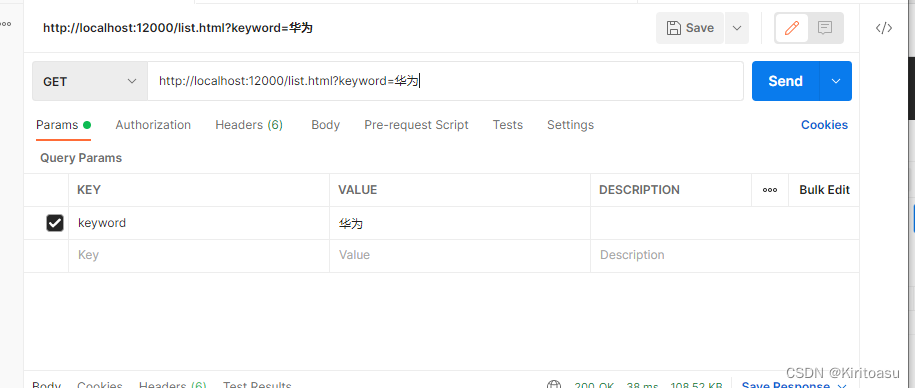

3.用postman测试接口
查看返回到的dsl

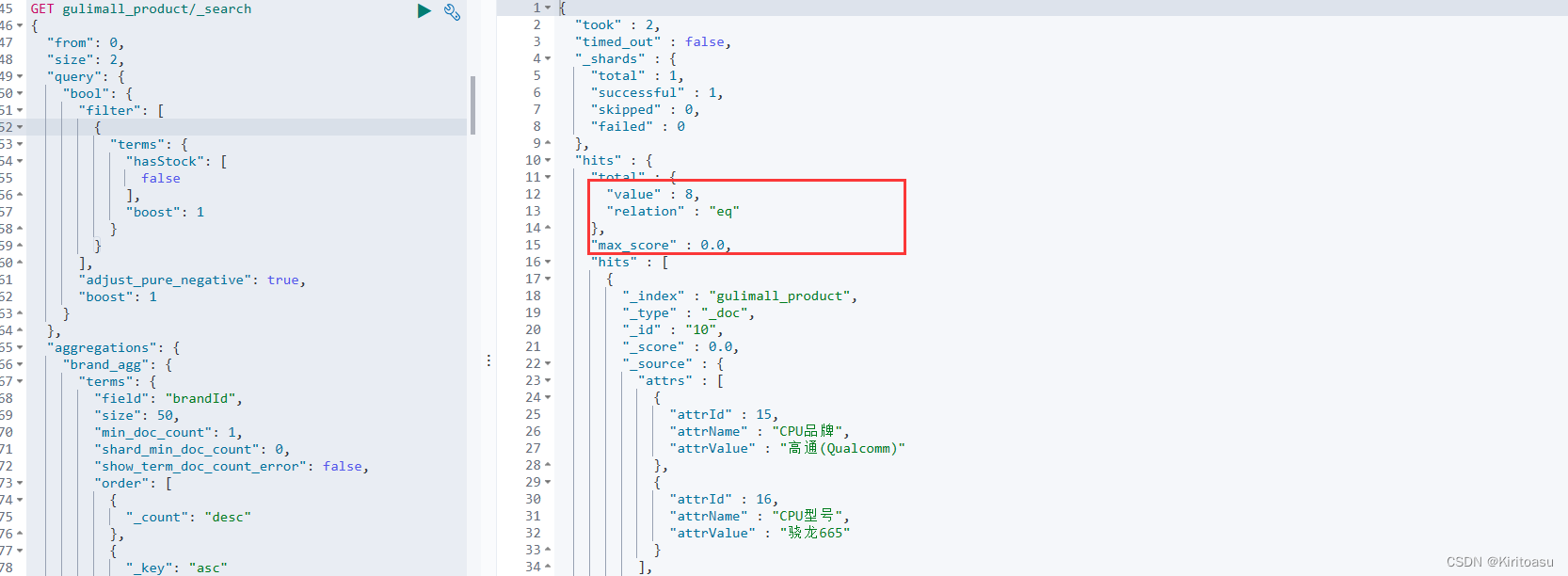

放入kibana中测试
GET gulimall_product/_search
{
"from": 0,
"size": 2,
"query": {
"bool": {
"must": [
{
"match": {
"skuTitle": {
"query": "华为",
"operator": "OR",
"prefix_length": 0,
"max_expansions": 50,
"fuzzy_transpositions": true,
"lenient": false,
"zero_terms_query": "NONE",
"auto_generate_synonyms_phrase_query": true,
"boost": 1
}
}
}
],
"filter": [
{
"terms": {
"hasStock": [
false
],
"boost": 1
}
}
],
"adjust_pure_negative": true,
"boost": 1
}
},
"aggregations": {
"brand_agg": {
"terms": {
"field": "brandId",
"size": 50,
"min_doc_count": 1,
"shard_min_doc_count": 0,
"show_term_doc_count_error": false,
"order": [
{
"_count": "desc"
},
{
"_key": "asc"
}
]
},
"aggregations": {
"brand_name_agg": {
"terms": {
"field": "brandName",
"size": 1,
"min_doc_count": 1,
"shard_min_doc_count": 0,
"show_term_doc_count_error": false,
"order": [
{
"_count": "desc"
},
{
"_key": "asc"
}
]
}
},
"brand_img_agg": {
"terms": {
"field": "brandImg",
"size": 1,
"min_doc_count": 1,
"shard_min_doc_count": 0,
"show_term_doc_count_error": false,
"order": [
{
"_count": "desc"
},
{
"_key": "asc"
}
]
}
}
}
},
"catalog_agg": {
"terms": {
"field": "catalogId",
"size": 20,
"min_doc_count": 1,
"shard_min_doc_count": 0,
"show_term_doc_count_error": false,
"order": [
{
"_count": "desc"
},
{
"_key": "asc"
}
]
},
"aggregations": {
"catalog_name_agg": {
"terms": {
"field": "catalogName",
"size": 1,
"min_doc_count": 1,
"shard_min_doc_count": 0,
"show_term_doc_count_error": false,
"order": [
{
"_count": "desc"
},
{
"_key": "asc"
}
]
}
}
}
},
"attr_agg": {
"nested": {
"path": "attrs"
},
"aggregations": {
"attr_id_agg": {
"terms": {
"field": "attrs.attrId",
"size": 10,
"min_doc_count": 1,
"shard_min_doc_count": 0,
"show_term_doc_count_error": false,
"order": [
{
"_count": "desc"
},
{
"_key": "asc"
}
]
},
"aggregations": {
"attr_name_agg": {
"terms": {
"field": "attrs.attrName",
"size": 1,
"min_doc_count": 1,
"shard_min_doc_count": 0,
"show_term_doc_count_error": false,
"order": [
{
"_count": "desc"
},
{
"_key": "asc"
}
]
}
},
"attr_value_agg": {
"terms": {
"field": "attrs.attrValue",
"size": 50,
"min_doc_count": 1,
"shard_min_doc_count": 0,
"show_term_doc_count_error": false,
"order": [
{
"_count": "desc"
},
{
"_key": "asc"
}
]
}
}
}
}
}
}
},
"highlight": {
"pre_tags": [
"<b style='color:red'>"
],
"post_tags": [
"</b>"
],
"fields": {
"skuTitle": {}
}
}
}

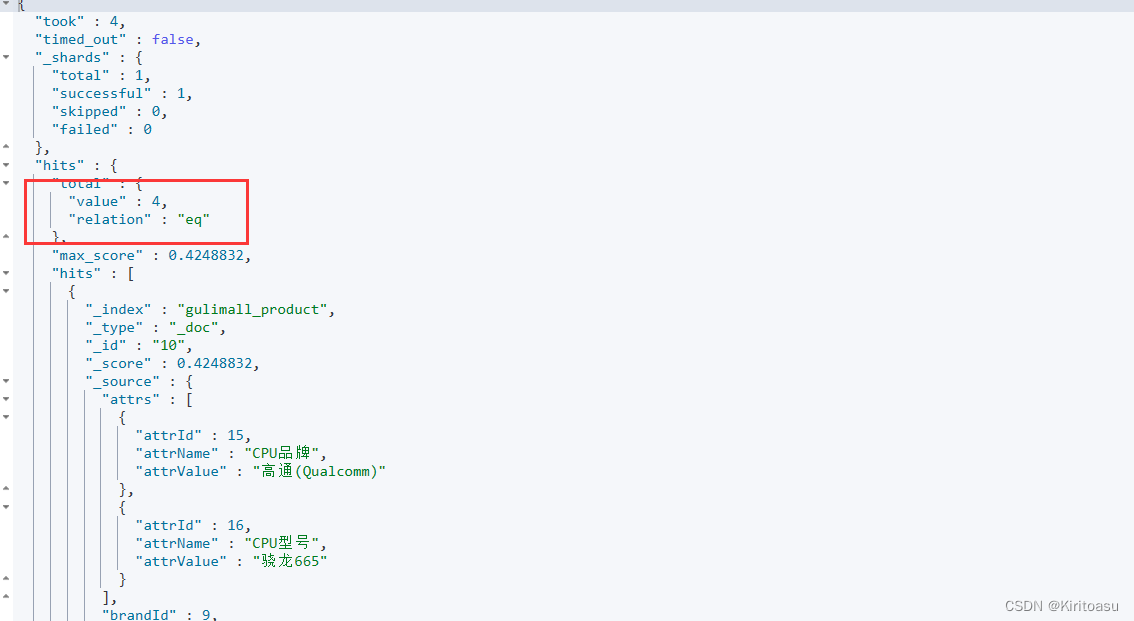

查询到的数据，则表明我们查询功能成功
2.返回方法
打开前端页面
输入查询条件，可以看的返回数据
三、页面基本数据渲染
1、基本页面

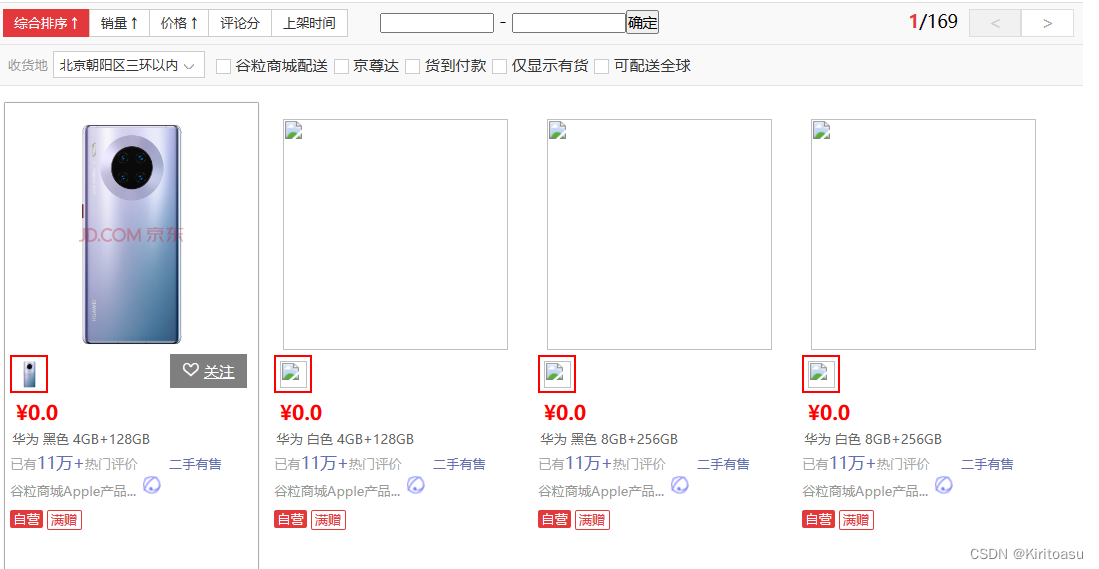

这里把页面中的数据换为已经发布的商品数据主要修改前端
回显页面下我们数据库中存在的商品，以及相关信息
回显导航栏数据
品牌：
分类：

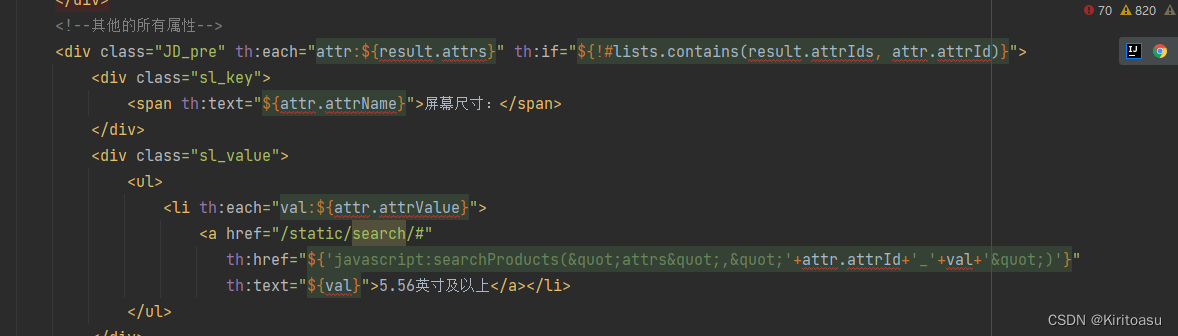

其他属性：

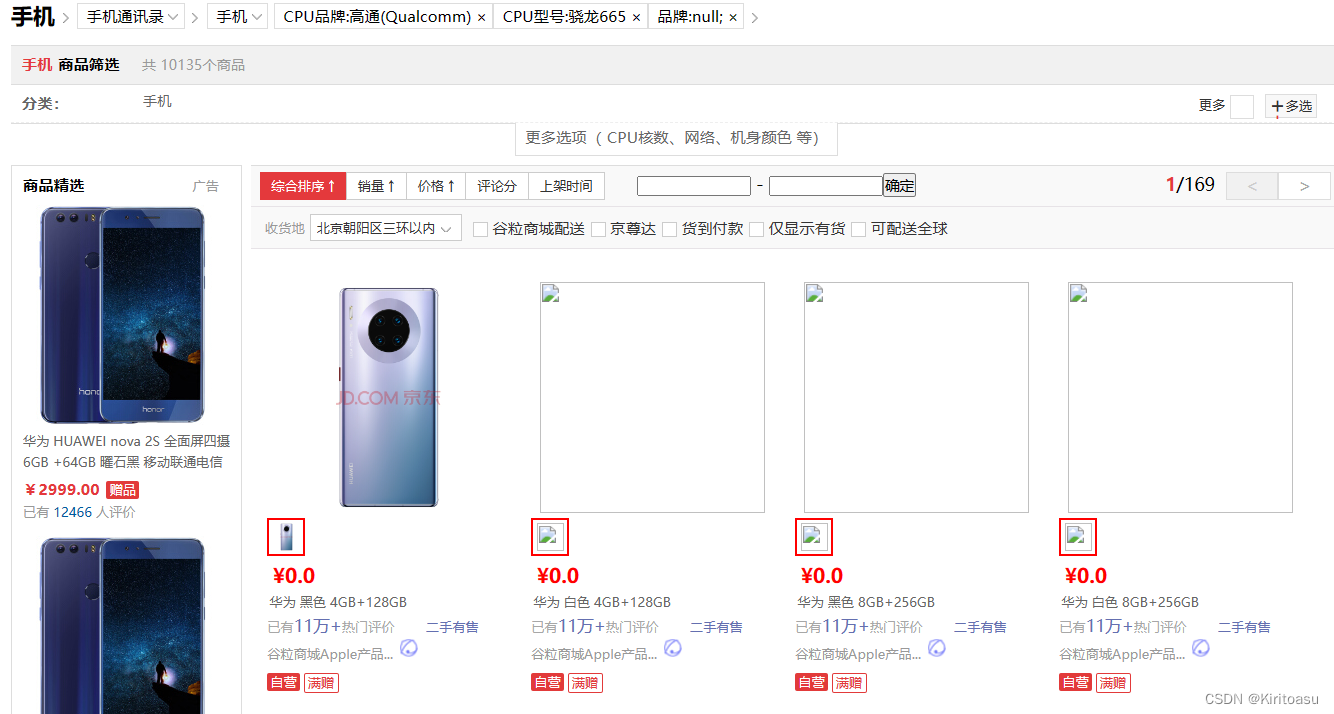

2、筛选条件渲染
上一步的导航栏数据已经渲染出来了，这步做渲染条件查询
定义search方法

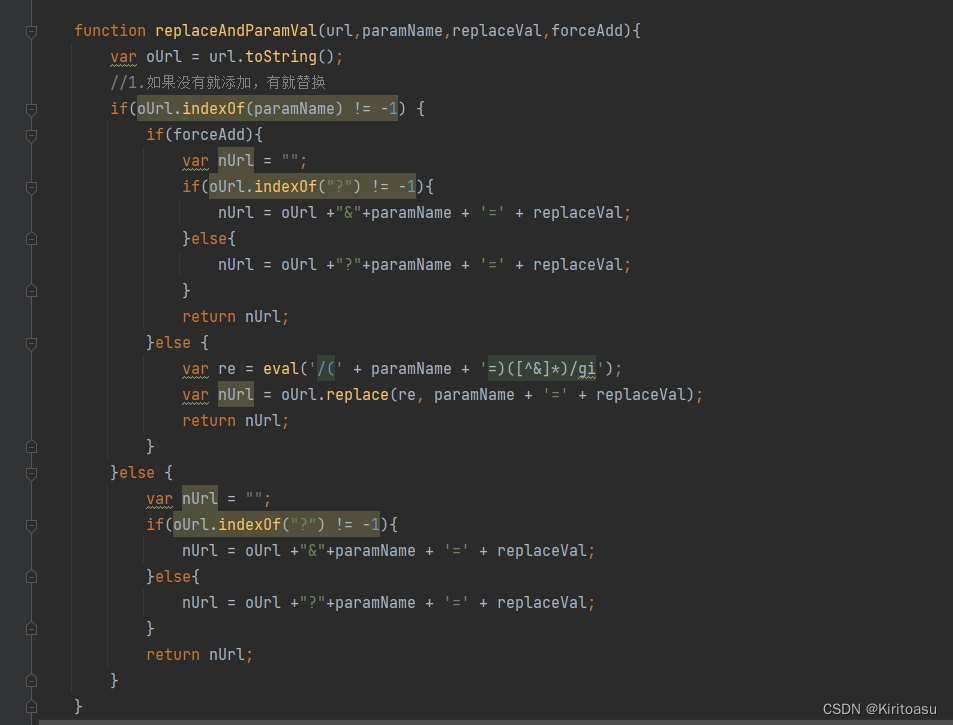

定义一个替换url连接的方法，根据不同的查询条件拼接连接

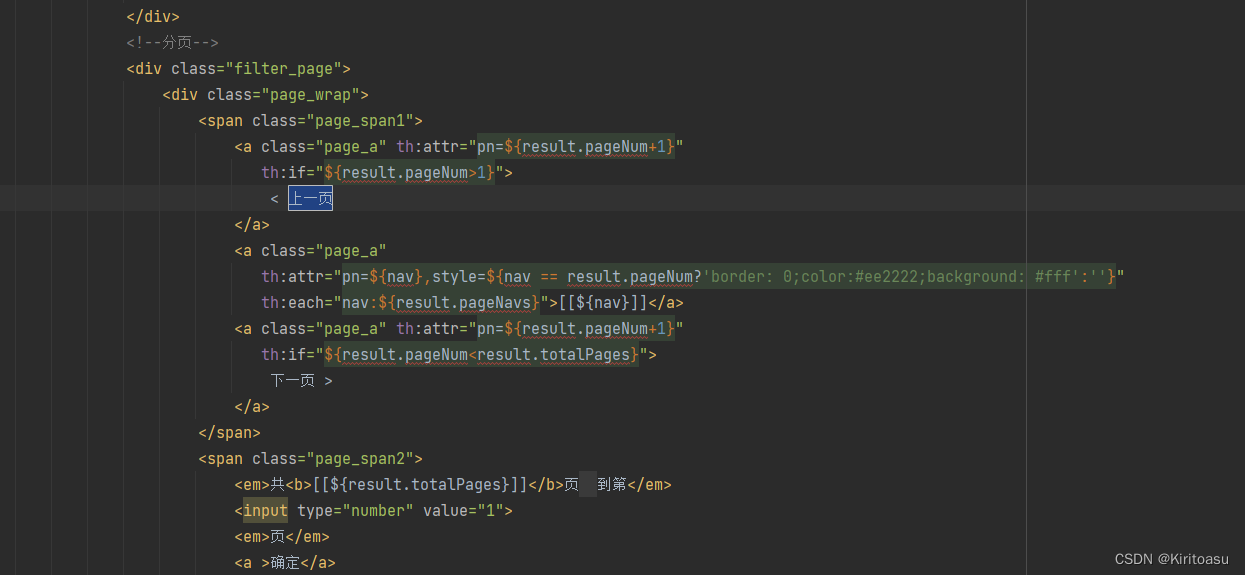

3、分页功能
在 private SearchResult buildSearchResult(SearchResponse response,SearchParam param)中封装分页的信息：
//5. 分页信息-页码
result.setPageNum(param.getPageNum());
//5. 分页信息-总记录数
long total = hits.getTotalHits().value;
result.setTotal(total);
//5. 分页信息-总页码
int totalPages = (int)total%EsConstant.PRODUCT_PAGESIZE == 0?(int)total/EsConstant.PRODUCT_PAGESIZE:((int)total/EsConstant.PRODUCT_PAGESIZE + 1);
result.setTotalPages(totalPages);
List<Integer> pageNavs = new ArrayList<>();
for(int i = 1; i <= totalPages; i++){
pageNavs.add(i);
}
result.setPageNavs(pageNavs);

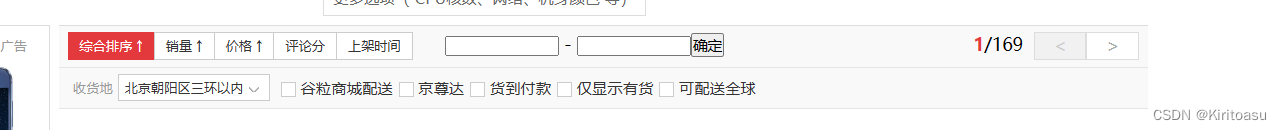

4、页面排序功能
<!--综合排序-->
<div class="JD_con_right">
<div class="filter">
<!--综合排序-->
<div class="filter_top">
<div class="filter_top_left" th:with="p = ${param.sort},priceRange = ${param.skuPrice}">
<a th:class="${(!#strings.isEmpty(p) && #strings.startsWith(p,'hotScore') && #strings.endsWith(p,'desc'))?'sort_a desc':'sort_a'}"
th:attr="style=${(#strings.isEmpty(p) || #strings.startsWith(p,'hotScore'))?'color: #FFF;border-color: #e4393c;background: #e4393c':'color: #333;border-color: #CCC;background #fff'}"
sort="hotScore" href="/static/search/#">综合排序 [[${(!#strings.isEmpty(p) && #strings.startsWith(p,'hotScore') && #strings.endsWith(p,'desc'))?'↓':'↑'}]]</a>
<a th:class="${(!#strings.isEmpty(p) && #strings.startsWith(p,'saleCount') && #strings.endsWith(p,'desc'))?'sort_a desc':'sort_a'}"
th:attr="style=${(!#strings.isEmpty(p) && #strings.startsWith(p,'saleCount'))?'color: #FFF;border-color:#e4393c;background: #e4393c':'color: #333;border-color: #CCC;background #fff'}"
sort="saleCount" href="/static/search/#">销量 [[${(!#strings.isEmpty(p) && #strings.startsWith(p,'saleCount') && #strings.endsWith(p,'desc'))?'↓':'↑'}]]</a>
<a th:class="${(!#strings.isEmpty(p) && #strings.startsWith(p,'skuPrice') && #strings.endsWith(p,'desc'))?'sort_a desc':'sort_a'}"
th:attr="style=${(!#strings.isEmpty(p) && #strings.startsWith(p,'skuPrice'))?'color: #FFF;border-color:#e4393c;background: #e4393c':'color: #333;border-color: #CCC;background #fff'}"
sort="skuPrice" href="/static/search/#">价格 [[${(!#strings.isEmpty(p) && #strings.startsWith(p,'skuPrice') && #strings.endsWith(p,'desc'))?'↓':'↑'}]]</a>
<a class="sort_a" href="/static/search/#">评论分</a>
<a class="sort_a" href="/static/search/#">上架时间</a>
<input id="skuPriceFrom" type="number" style="width: 100px;margin-left: 30px;" th:value="${#strings.isEmpty(priceRange)?'':#strings.substringBefore(priceRange,'_')}"> -
<input id="skuPriceTo" type="number" style="width: 100px;" th:value="${#strings.isEmpty(priceRange)?'':#strings.substringAfter(priceRange,'_')}"><button id="skuPriceSearchBtn">确定</button>
</div>
<div class="filter_top_right">
<span class="fp-text">
<b>1</b><em>/</em><i>169</i>
</span>
<a href="/static/search/#" class="prev"><</a>
<a href="/static/search/#" class="next"> > </a>
</div>
</div>
绑定点击事件，方法
$(".sort_a").click(function (){
//1.当前被点击的元素变为选中状态
// 改变当前元素以及兄弟元素的样式
// changeStyle(this);
$(this).toggleClass("desc");
//2.跳转到指定位置 sort=skuPrice_asc/desc
var sort = $(this).attr("sort");
sort = $(this).hasClass("desc")?sort+"_desc":sort+"_asc";
location.href = replaceAndParamVal(location.href,"sort",sort);
//禁用默认行为
return false;
});
function changeStyle(ele){
$(".sort_a").css({"color":"#333","border-color":"#CCC","background":"#FFF"});
$(".sort_a").each(function(){
var text = $(ele).text().replace("⬇","").replace("⬆","");
text = text + "⬇";
$(ele).text(text);
});
$(ele).css({"color":"#FFF","border-color":"#e4393c","background":"#e4393c"});
//改变升降序
$(ele).toggleClass("desc");//加上就是降序，不加就是升序
if($(ele).hasClass("desc")){
//降序
var text = $(ele).text().replace("⬇","").replace("⬆","");
text = text + "⬇";
$(ele).text(text);
}else{
var text = $(ele).text().replace("⬇","").replace("⬆","");
text = text + "⬆";
$(ele).text(text);
}
};
$("#skuPriceSearchBtn").click(function (){
//1.拼上价格区间的查询条件
var from = $("#skuPriceFrom").val();
var to = $("#skuPriceTo").val();
var query = from + "_" + to;
location.href = replaceAndParamVal(location.href,"skuPrice",query);
});
5、面包屑导航功能
也是在回显结果方法中构建面包屑返回数据
//6.构建面包屑导航功能
if(param.getAttrs() != null && param.getAttrs().size()>0){
List<SearchResult.NavVo> collect = param.getAttrs().stream().map(attr -> {
//1.分析每个attrs传过来的查询参数值
SearchResult.NavVo navVo = new SearchResult.NavVo();
String[] s = attr.split("_");
navVo.setNavValue(s[1]);
R r = productFeignService.attrInfo(Long.parseLong(s[0]));
result.getAttrIds().add(Long.parseLong(s[0]));
if(r.getCode() == 0){
AttrResponseVo data = r.getData("attr", new TypeReference<AttrResponseVo>(){
});
navVo.setNavName(data.getAttrName());
}else{
navVo.setNavName(s[0]);
}
//2.取消面包屑后，跳转剩下条件的页面
//将请求地址的url清空
//拿到所有的查询条件，去掉当前
String replace = replaceQueryString(param, attr, "attrs");
navVo.setLink("http://search.yjlmall.com/list.html?"+replace);
return navVo;
}).collect(Collectors.toList());
result.setNavs(collect);
}
//品牌 分类
if(param.getBrandId() != null && param.getBrandId().size() > 0){
List<SearchResult.NavVo> navs = result.getNavs();
SearchResult.NavVo navVo = new SearchResult.NavVo();
navVo.setNavName("品牌");
//TODO 远程查询所有品牌
R r = productFeignService.brandsInfo(param.getBrandId());
if(r.getCode() == 0){
List<BrandVo> brand = r.getData("brand", new TypeReference<List<BrandVo>>() {});
StringBuffer buffer = new StringBuffer();
String replace = "";
for (BrandVo brandVo : brand){
buffer.append(brandVo.getBrandName()+";");
replace = replaceQueryString(param,brandVo.getBrandId()+"","brandId");
}
navVo.setNavValue(buffer.toString());
navVo.setLink("http://search.yjlmall.com/list.html?"+replace);
}
navs.add(navVo);
}
统一编码返回结果方法
private String replaceQueryString(SearchParam param, String value, String key){
String encode = null;
try{
encode = URLEncoder.encode(value, "UTF-8");
encode = encode.replace("+","%20");
}catch (UnsupportedEncodingException e){
e.printStackTrace();
}
return param.get_queryString().replace("&"+key+"=" + encode, "");
}
利用远程调用product中的方法查询数据
@FeignClient("gulimall-product")
public interface ProductFeignService {
@GetMapping("/product/attr/info/{attrId}")
public R attrInfo(@PathVariable("attrId") Long attrId);
@GetMapping("/product/brand/infos")
public R brandsInfo(@RequestParam("brandIds") List<Long> brandIds);
}
四、主要代码
1、前端页面
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
<meta charset="UTF-8">
<meta name="viewport"
content="width=device-width, user-scalable=no, initial-scale=1.0, maximum-scale=1.0, minimum-scale=1.0">
<meta http-equiv="X-UA-Compatible" content="ie=edge">
<link rel="stylesheet" href="/static/search/css/index.css">
<link rel="stylesheet" type="text/css" href="/static/search/font/iconfont.css">
<!--<script src="/static/search/./js/jquery-3.2.1.min.js"></script>-->
<script src="/static/search/js/jquery-1.12.4.js"></script>
<title>Document</title>
</head>
<body>
<!--头部-->
<div class="header_head">
<div class="header_head_box">
<b class="header_head_p">
<div style="overflow: hidden">
<a href="http://yjlmall.com" class="header_head_p_a1" style="width:73px;">
谷粒商城首页
</a>
<a href="/static/search/#" class="header_head_p_a">
<!--<img src="/static/search/img/img_05.png" style="border-radius: 50%;"/>-->
北京</a>
</div>
<div class="header_head_p_cs">
<a href="/static/search/#" style="background: #C81623;color: #fff;">北京</a>
<a href="/static/search/#">上海</a>
<a href="/static/search/#">天津</a>
<a href="/static/search/#">重庆</a>
<a href="/static/search/#">河北</a>
<a href="/static/search/#">山西</a>
<a href="/static/search/#">河南</a>
<a href="/static/search/#">辽宁</a>
<a href="/static/search/#">吉林</a>
<a href="/static/search/#">黑龙江</a>
<a href="/static/search/#">内蒙古</a>
<a href="/static/search/#">江苏</a>
<a href="/static/search/#">山东</a>
<a href="/static/search/#">安徽</a>
<a href="/static/search/#">浙江</a>
<a href="/static/search/#">福建</a>
<a href="/static/search/#">湖北</a>
<a href="/static/search/#">湖南</a>
<a href="/static/search/#">广东</a>
<a href="/static/search/#">广西</a>
<a href="/static/search/#">江西</a>
<a href="/static/search/#">四川</a>
<a href="/static/search/#">海南</a>
<a href="/static/search/#">贵州</a>
<a href="/static/search/#">云南</a>
<a href="/static/search/#">西藏</a>
<a href="/static/search/#">陕西</a>
<a href="/static/search/#">甘肃</a>
<a href="/static/search/#">青海</a>
<a href="/static/search/#">宁夏</a>
<a href="/static/search/#">新疆</a>
<a href="/static/search/#">港澳</a>
<a href="/static/search/#">台湾</a>
<a href="/static/search/#">钓鱼岛</a>
<a href="/static/search/#">海外</a>
</div>
</b>
<ul>
<li>
<a href="/static/search/#" class="li_2">你好，请登录</a>
</li>
<li>
<a href="/static/search/#">免费注册</a>
</li>
<span>|</span>
<li>
<a href="/static/search/#">我的订单</a>
</li>
<span>|</span>
<li class="header_wdjd" style="width:80px;">
<a href="/static/search/#">我的谷粒商城</a>
<img src="/static/search/image/down-@1x.png" />
<!--<b class="glyphicon glyphicon-menu-down"></b>-->
<div class="header_wdjd_txt">
<ul>
<li>
<a href="/static/search/#">待处理订单</a>
</li>
<li>
<a href="/static/search/#">消息</a>
</li>
<li>
<a href="/static/search/#">返修退换货</a>
</li>
<li>
<a href="/static/search/#">我的回答</a>
</li>
<li>
<a href="/static/search/#">降价商品</a>
</li>
<li>
<a href="/static/search/#">我的关注</a>
</li>
</ul>
<ul>
<li>
<a href="/static/search/#">我的京豆</a>
</li>
<li>
<a href="/static/search/#">我的优惠券</a>
</li>
<li>
<a href="/static/search/#">我的白条</a>
</li>
<li>
<a href="/static/search/#">我的理财</a>
</li>
</ul>
</div>
</li>
<span>|</span>
<li>
<a href="/static/search/#">谷粒商城会员</a>
</li>
<span>|</span>
<li>
<a href="/static/search/#">企业采购</a>
</li>
<span>|</span>
<li class="header_wdjd1">
<a href="/static/search/#">客户服务</a>
<img src="/static/search/image/down-@1x.png" />
<!--<b class="glyphicon glyphicon-menu-down"></b>-->
<div class="header_wdjd_txt">
<ul>
<p style="width:100%;">客户</p>
<li>
<a href="/static/search/#">帮助中心</a>
</li>
<li>
<a href="/static/search/#">售后服务</a>
</li>
<li>
<a href="/static/search/#">在线客服</a>
</li>
<li>
<a href="/static/search/#">意见建议</a>
</li>
<li>
<a href="/static/search/#">电话客服</a>
</li>
<li>
<a href="/static/search/#">客服邮箱</a>
</li>
<li>
<a href="/static/search/#">金融资讯</a>
</li>
<li>
<a href="/static/search/#">售全球客服</a>
</li>
</ul>
<ul>
<p style="width:100%;">商户</p>
<li>
<a href="/static/search/#">合作招商</a>
</li>
<li>
<a href="/static/search/#">学习中心</a>
</li>
<li>
<a href="/static/search/#">商家后台</a>
</li>
<li>
<a href="/static/search/#">京麦工作台</a>
</li>
<li>
<a href="/static/search/#">商家帮助</a>
</li>
<li>
<a href="/static/search/#">规则平台</a>
</li>
</ul>
</div>
</li>
<span>|</span>
<li class="header_wzdh">
<a href="/static/search/#">网站导航</a>
<img src="/static/search/image/down-@1x.png" />
<!--<b class="glyphicon glyphicon-menu-down"></b>-->
<div class="header_wzdh_txt">
<ul style="width: 25%;">
<p style="width:100%;">特色主题</p>
<li>
<a href="/static/search/#">谷粒商城试用</a>
</li>
<li>
<a href="/static/search/#">谷粒商城金融</a>
</li>
<li>
<a href="/static/search/#">全球售</a>
</li>
<li>
<a href="/static/search/#">国际站</a>
</li>
<li>
<a href="/static/search/#">谷粒商城会员</a>
</li>
<li>
<a href="/static/search/#">谷粒商城预售</a>
</li>
<li>
<a href="/static/search/#">买什么</a>
</li>
<li>
<a href="/static/search/#">俄语站</a>
</li>
<li>
<a href="/static/search/#">装机大师</a>
</li>
<li>
<a href="/static/search/#">0元评测</a>
</li>
<li>
<a href="/static/search/#">定期送</a>
</li>
<li>
<a href="/static/search/#">港澳售</a>
</li>
<li>
<a href="/static/search/#">优惠券</a>
</li>
<li>
<a href="/static/search/#">秒杀</a>
</li>
<li>
<a href="/static/search/#">闪购</a>
</li>
<li>
<a href="/static/search/#">印尼站</a>
</li>
<li>
<a href="/static/search/#">谷粒商城金融科技</a>
</li>
<li>
<a href="/static/search/#">In货推荐</a>
</li>
<li>
<a href="/static/search/#">陪伴计划</a>
</li>
<li>
<a href="/static/search/#">出海招商</a>
</li>
</ul>
<ul style="width: 20%;">
<p style="width:100%;">行业频道</p>
<li>
<a href="/static/search/#">手机</a>
</li>
<li>
<a href="/static/search/#">智能数码</a>
</li>
<li>
<a href="/static/search/#">玩3c</a>
</li>
<li>
<a href="/static/search/#">电脑办公</a>
</li>
<li>
<a href="/static/search/#">家用电器</a>
</li>
<li>
<a href="/static/search/#">谷粒商城智能</a>
</li>
<li>
<a href="/static/search/#">服装城</a>
</li>
<li>
<a href="/static/search/#">美妆馆</a>
</li>
<li>
<a href="/static/search/#">家装城</a>
</li>
<li>
<a href="/static/search/#">母婴</a>
</li>
<li>
<a href="/static/search/#">食品</a>
</li>
<li>
<a href="/static/search/#">运动户外</a>
</li>
<li>
<a href="/static/search/#">农资频道</a>
</li>
<li>
<a href="/static/search/#">整车</a>
</li>
<li>
<a href="/static/search/#">图书</a>
</li>
</ul>
<ul style="width: 21%;">
<p style="width:100%;">生活服务</p>
<li>
<a href="/static/search/#">白条</a>
</li>
<li>
<a href="/static/search/#">谷粒商城金融App</a>
</li>
<li>
<a href="/static/search/#">谷粒商城小金库</a>
</li>
<li>
<a href="/static/search/#">理财</a>
</li>
<li>
<a href="/static/search/#">智能家电</a>
</li>
<li>
<a href="/static/search/#">话费</a>
</li>
<li>
<a href="/static/search/#">水电煤</a>
</li>
<li>
<a href="/static/search/#">彩票</a>
</li>
<li>
<a href="/static/search/#">旅行</a>
</li>
<li>
<a href="/static/search/#">机票酒店</a>
</li>
<li>
<a href="/static/search/#">电影票</a>
</li>
<li>
<a href="/static/search/#">谷粒商城到家</a>
</li>
<li>
<a href="/static/search/#">谷粒商城众测</a>
</li>
<li>
<a href="/static/search/#">游戏</a>
</li>
</ul>
<ul style="width: 23%; border-right: 0;">
<p style="width:100%;">更多精选</p>
<li>
<a href="/static/search/#">合作招商</a>
</li>
<li>
<a href="/static/search/#">谷粒商城通信</a>
</li>
<li>
<a href="/static/search/#">谷粒商城E卡</a>
</li>
<li>
<a href="/static/search/#">企业采购</a>
</li>
<li>
<a href="/static/search/#">服务市场</a>
</li>
<li>
<a href="/static/search/#">办公生活馆</a>
</li>
<li>
<a href="/static/search/#">乡村招募</a>
</li>
<li>
<a href="/static/search/#">校园加盟</a>
</li>
<li>
<a href="/static/search/#">京友帮</a>
</li>
<li>
<a href="/static/search/#">谷粒商城社区</a>
</li>
<li>
<a href="/static/search/#">智能社区</a>
</li>
<li>
<a href="/static/search/#">游戏社区</a>
</li>
<li>
<a href="/static/search/#">知识产权维权</a>
</li>
</ul>
</div>
</li>
<span>|</span>
<li class="header_sjjd">
<a href="/static/search/#">手机谷粒商城</a>
<div class="header_sjjd_div">
<img src="/static/search/img/01.png" />
</div>
</li>
</ul>
</div>
</div>
<!--搜索导航-->
<div class="header_sous">
<div class="logo">
<a href="http://yjlmall.com"><img src="/static/search/./image/logo1.jpg" alt=""></a>
</div>
<div class="header_form">
<input id="keyword_input" type="text" placeholder="手机" th:value="${param.keyword}"/>
<a href="javascript:searchByKeyword();">搜索</a>
</div>
<div class="header_ico">
<div class="header_gw">
<span><a href="/static/search/#">我的购物车</a></span>
<img src="/static/search/image/settleup-@1x.png" />
<span>0</span>
</div>
<div class="header_ko">
<p>购物车中还没有商品，赶紧选购吧！</p>
</div>
</div>
<div class="header_form_nav">
<ul>
<li>
<a href="/static/search/#">谷粒商城之家</a>
</li>
<li>
<a href="/static/search/#">谷粒商城专卖店</a>
</li>
<li>
<a href="/static/search/#">平板</a>
</li>
<li>
<a href="/static/search/#">电脑</a>
</li>
<li>
<a href="/static/search/#">ipad</a>
</li>
</ul>
</div>
<nav>
<ul>
<li class="nav_li1">
<a href="/static/search/#">全部商品分类</a>
</li>
<li class="nav_li">
<a href="/static/search/#">服装城</a>
</li>
<li class="nav_li">
<a href="/static/search/#">没装馆</a>
</li>
<li class="nav_li">
<a href="/static/search/#">超市</a>
</li>
<li class="nav_li">
<a href="/static/search/#">生鲜</a>
</li>
</ul>
<div class="spacer">|</div>
<ul>
<li class="nav_li">
<a href="/static/search/#">全球购</a>
</li>
<li class="nav_li">
<a href="/static/search/#">闪购</a>
</li>
<li class="nav_li">
<a href="/static/search/#">拍卖</a>
</li>
</ul>
<div class="spacer">|</div>
<ul>
<li class="nav_li">
<a href="/static/search/#">金融</a>
</li>
</ul>
</nav>
<div class="header_main_left">
<ul>
<li>
<a href="/static/search/#" class="header_main_left_a"><b>家用电器</b></a>
</li>
<li class="header_li2">
<a href="/static/search/#" class="header_main_left_a"><b>手机</b> / <b>运营商</b> / <b>数码</b></a>
<div class="header_main_left_main">
<div class="header_sj">
<a href="/static/search/#" class="header_sj_a">玩3c</a>
<a href="/static/search/#" class="header_sj_a">手机频道</a>
<a href="/static/search/#" class="header_sj_a">网上营业厅</a>
<a href="/static/search/#" class="header_sj_a">配件选购中心</a>
<a href="/static/search/#" class="header_sj_a">企业购</a>
<a href="/static/search/#" class="header_sj_a">以旧换新</a>
</div>
<ol class="header_ol">
<a href="/static/search/#" style="color: #111;" class="aaa">手机通讯 ></a>
<li>
<a href="/static/search/#" style="color: #999;">手机</a>
<a href="/static/search/#" style="color: #999;">对讲机</a>
<a href="/static/search/#" style="color: #999;">手机维修</a>
<a href="/static/search/#" style="color: #999;">以旧换新</a>
</li>
<a href="/static/search/#" style="color: #111;" class="aaa">运营商 ></a>
<li>
<a href="/static/search/#" style="color: #999;">合约机</a>
<a href="/static/search/#" style="color: #999;">固话宽带</a>
<a href="/static/search/#" style="color: #999;">办套餐</a>
<a href="/static/search/#" style="color: #999;">从话费/流量</a>
<a href="/static/search/#" style="color: #999;">中国电信</a>
<a href="/static/search/#" style="color: #999;">中国移动</a>
<a href="/static/search/#" style="color: #999;">中国联通</a>
<a href="/static/search/#" style="color: #999;">谷粒商城通信</a>
<a href="/static/search/#" style="color: #999;">170选号</a>
</li>
<a href="/static/search/#" style="color: #111;" class="aaa">手机配件 ></a>
<li style="height: 60px;">
<a href="/static/search/#" style="color: #999;">手机壳</a>
<a href="/static/search/#" style="color: #999;">贴膜</a>
<a href="/static/search/#" style="color: #999;">手机储存卡</a>
<a href="/static/search/#" style="color: #999;">数据线</a>
<a href="/static/search/#" style="color: #999;">存电器</a>
<a href="/static/search/#" style="color: #999;">手机耳机</a>
<a href="/static/search/#" style="color: #999;">创业配件</a>
<a href="/static/search/#" style="color: #999;">手机饰品</a>
<a href="/static/search/#" style="color: #999;">手机电池</a>
<a href="/static/search/#" style="color: #999;">苹果周边</a>
<a href="/static/search/#" style="color: #999;">移动电源</a>
<a href="/static/search/#" style="color: #999;">蓝牙耳机</a>
<a href="/static/search/#" style="color: #999;">手机支架</a>
<a href="/static/search/#" style="color: #999;">车载配件</a>
<a href="/static/search/#" style="color: #999;">拍照配件</a>
</li>
<a href="/static/search/#" style="color: #111;" class="aaa">摄影摄像 ></a>
<li style="height: 60px;">
<a href="/static/search/#" style="color: #999;">数码相机</a>
<a href="/static/search/#" style="color: #999;">单电/微单相机</a>
<a href="/static/search/#" style="color: #999;">单反相机</a>
<a href="/static/search/#" style="color: #999;">拍立得</a>
<a href="/static/search/#" style="color: #999;">运动相机</a>
<a href="/static/search/#" style="color: #999;">摄像机</a>
<a href="/static/search/#" style="color: #999;">镜头</a>
<a href="/static/search/#" style="color: #999;">户外器材</a>
<a href="/static/search/#" style="color: #999;">影棚器材</a>
<a href="/static/search/#" style="color: #999;">冲印服务</a>
<a href="/static/search/#" style="color: #999;">数码相框</a>
</li>
<a href="/static/search/#" style="color: #111;" class="aaa">数码配件 ></a>
<li style="height: 60px;">
<a href="/static/search/#" style="color: #999;">三脚架/云台</a>
<a href="/static/search/#" style="color: #999;">相机包</a>
<a href="/static/search/#" style="color: #999;">滤镜</a>
<a href="/static/search/#" style="color: #999;">散光灯/手柄</a>
<a href="/static/search/#" style="color: #999;">相机清洁</a>
<a href="/static/search/#" style="color: #999;">机身附件</a>
<a href="/static/search/#" style="color: #999;">镜头附件</a>
<a href="/static/search/#" style="color: #999;">读卡器</a>
<a href="/static/search/#" style="color: #999;">支架</a>
<a href="/static/search/#" style="color: #999;">电池/存电器</a>
</li>
<a href="/static/search/#" style="color: #111;" class="aaa">影音娱乐 ></a>
<li>
<a href="/static/search/#" style="color: #999;">耳机/耳麦</a>
<a href="/static/search/#" style="color: #999;">音箱/音响</a>
<a href="/static/search/#" style="color: #999;">智能音箱</a>
<a href="/static/search/#" style="color: #999;">便携/无线音箱</a>
<a href="/static/search/#" style="color: #999;">收音机</a>
<a href="/static/search/#" style="color: #999;">麦克风</a>
<a href="/static/search/#" style="color: #999;">MP3/MP4</a>
<a href="/static/search/#" style="color: #999;">专业音频</a>
</li>
<a href="/static/search/#" style="color: #111;" class="aaa">智能设备 ></a>
<li style="height: 60px;">
<a href="/static/search/#" style="color: #999;">智能手环</a>
<a href="/static/search/#" style="color: #999;">智能手表</a>
<a href="/static/search/#" style="color: #999;">智能眼镜</a>
<a href="/static/search/#" style="color: #999;">智能机器人</a>
<a href="/static/search/#" style="color: #999;">运动跟踪器</a>
<a href="/static/search/#" style="color: #999;">健康监测</a>
<a href="/static/search/#" style="color: #999;">智能配饰</a>
<a href="/static/search/#" style="color: #999;">智能家居</a>
<a href="/static/search/#" style="color: #999;">体感车</a>
<a href="/static/search/#" style="color: #999;">无人机</a>
<a href="/static/search/#" style="color: #999;">其他配件</a>
</li>
<a href="/static/search/#" style="color: #111;" class="aaa">电子教育 ></a>
<li>
<a href="/static/search/#" style="color: #999;">学生平板</a>
<a href="/static/search/#" style="color: #999;">点读机</a>
<a href="/static/search/#" style="color: #999;">早教益智</a>
<a href="/static/search/#" style="color: #999;">录音笔</a>
<a href="/static/search/#" style="color: #999;">电纸书</a>
<a href="/static/search/#" style="color: #999;">电子词典</a>
<a href="/static/search/#" style="color: #999;">复读机</a>
</li>
</ol>
<div class="header_r">
<div class="header_r_tu">
<a href="/static/search/#"><img src="/static/search/img/56b2f385n8e4eb051.jpg" /></a>
<a href="/static/search/#"><img src="/static/search/img/56b2f385n8e4eb051.jpg" /></a>
<a href="/static/search/#"><img src="/static/search/img/56b2f385n8e4eb051.jpg" /></a>
<a href="/static/search/#"><img src="/static/search/img/56b2f385n8e4eb051.jpg" /></a>
<a href="/static/search/#"><img src="/static/search/img/56b2f385n8e4eb051.jpg" /></a>
<a href="/static/search/#"><img src="/static/search/img/56b2f385n8e4eb051.jpg" /></a>
<a href="/static/search/#"><img src="/static/search/img/56b2f385n8e4eb051.jpg" /></a>
<a href="/static/search/#"><img src="/static/search/img/56b2f385n8e4eb051.jpg" /></a>
</div>
<div class="header_r_tu1">
<a href="/static/search/#"><img src="/static/search/img/JD_ash7 - 副本.png" /></a>
<a href="/static/search/#"><img src="/static/search/img/JD_ash6.png" /></a>
</div>
</div>
</div>
</li>
<li>
<a href="/static/search/#" class="header_main_left_a"><b>电脑</b> / <b>办公</b></a>
</li>
<li>
<a href="/static/search/#" class="header_main_left_a"><b>家居</b> / <b>家具</b> / <b>家装</b> / <b>厨具</b></a>
</li>
<li>
<a href="/static/search/#" class="header_main_left_a"><b>男装</b> / <b>女装</b> / <b>童装</b> / <b>内衣</b></a>
</li>
<li>
<a href="/static/search/#" class="header_main_left_a"><b>美妆个护 </b>/ <b>宠物</b></a>
</li>
<li>
<a href="/static/search/#" class="header_main_left_a"><b>女鞋</b> / <b>箱包</b> / <b>钟表</b> / <b>珠宝</b></a>
</li>
<li>
<a href="/static/search/#" class="header_main_left_a"><b>男鞋</b> / <b>运动</b> / <b>户外</b></a>
</li>
<li>
<a href="/static/search/#" class="header_main_left_a"><b>汽车</b> / <b>汽车用品</b></a>
</li>
<li>
<a href="/static/search/#" class="header_main_left_a"><b>母婴</b> / <b>玩具乐器</b></a>
</li>
<li>
<a href="/static/search/#" class="header_main_left_a"><b>食品</b> / <b>酒类</b> / <b>生鲜</b> / <b>特产</b></a>
</li>
<li>
<a href="/static/search/#" class="header_main_left_a"><b>礼品鲜花</b> / <b>农资绿植</b></a>
</li>
<li>
<a href="/static/search/#" class="header_main_left_a"><b>医药保健</b> / <b>计生情趣</b></a>
</li>
<li>
<a href="/static/search/#" class="header_main_left_a"><b>图书</b> / <b>音箱</b>/ <b>电子书</b></a>
</li>
<li>
<a href="/static/search/#" class="header_main_left_a"><b>机票</b> / <b>酒店</b> / <b>旅游</b> / <b>生活</b></a>
</li>
<li>
<a href="/static/search/#" class="header_main_left_a"><b>理财</b> / <b>众筹</b> / <b>白条</b> / <b>保险</b></a>
</li>
</ul>
</div>
</div>
<hr style="border: 1px solid red;margin-top: -7px;">
<!--热卖促销-->
<div class="JD_temai">
<div class="JD_main">
<div class="JD_left">
<div class="hd">
热卖推荐
</div>
<div class="bd mc">
<ul class="mc">
<li>
<a href="/static/search/#" class="mc_a"><img src="/static/search/./img/5a28b5a1n8a5c095f.jpg" alt=""></a>
<div class="mc_div">
<a href="/static/search/#" class="mc_div_a1">
<em>华为 HUAWEI nova 2S 全面屏四摄 6GB +64GB 曜石黑 移动联通电信4G手机 双卡双待</em>
</a>
<p>
<strong>
<em class="number J-p-5963064">￥2999.00</em>
</strong>
</p>
<a href="/static/search/#" class="mc_div_a2">立即抢购</a>
</div>
</li>
<li>
<a href="/static/search/#" class="mc_a"><img src="/static/search/./img/59f5eef1n99542494.jpg" alt=""></a>
<div class="mc_div">
<a href="/static/search/#" class="mc_div_a1">
<em>【预约版】华为 HUAWEI 畅享7S 全面屏双摄 4GB +64GB 黑色 移动联通电信4G手机 双卡双待</em>
</a>
<p>
<strong>
<em class="number J-p-5963064">￥1699.00</em>
</strong>
</p>
<a href="/static/search/#" class="mc_div_a2">立即抢购</a>
</div>
</li>
<li style="margin-right: 0">
<a href="/static/search/#" class="mc_a"><img src="/static/search/./img/59f5eef1n99542494.jpg" alt=""></a>
<div class="mc_div">
<a href="/static/search/#" class="mc_div_a1">
<em>华为 HUAWEI nova 2S 全面屏四摄 6GB +64GB 曜石黑 移动联通电信4G手机 双卡双待</em>
</a>
<p>
<strong>
<em class="number J-p-5963064">￥2999.00</em>
</strong>
</p>
<a href="/static/search/#" class="mc_div_a2">立即抢购</a>
</div>
</li>
</ul>
</div>
</div>
<div class="JD_right">
<div class="hd"> 促销活动</div>
<div class="bd">
<ul>
<li> . <a href="/static/search/#">红米千元全面屏手机上市</a></li>
<li> . <a href="/static/search/#">锤子坚果Pro2火爆预约中</a></li>
<li> . <a href="/static/search/#">大牌新品 疯狂抢购</a></li>
<li> . <a href="/static/search/#">X20 vivo蓝新色上市</a></li>
<li> . <a href="/static/search/#">荣耀畅玩7X新品上市</a></li>
</ul>
</div>
</div>
</div>
</div>
<!--手机-->
<div class="JD_ipone">
<div class="JD_ipone_bar">
<div class="JD_ipone_one a">
<a href="/static/search/#">手机</a>
</div>
<i><img src="/static/search/image/right-@1x.png" alt=""></i>
<div class="JD_ipone_one b">
<a href="/static/search/#" class="qqq">手机通讯录 <img src="/static/search/image/down-@1x.png" alt=""></a>
<div>
<a href="/static/search/#">手机通讯</a>
<a href="/static/search/#">运营商</a>
<a href="/static/search/#">手机配件</a>
<a href="/static/search/#">手机服务</a>
</div>
</div>
<i><img src="/static/search/image/right-@1x.png" alt=""></i>
<div class="JD_ipone_one c">
<a href="/static/search/#" class="qqq">手机 <img src="/static/search/image/down-@1x.png" alt=""></a>
<div>
<a href="/static/search/#">手机</a>
<a href="/static/search/#">老人机</a>
<a href="/static/search/#">对讲机</a>
<a href="/static/search/#">女性手机</a>
<a href="/static/search/#">超续航手机</a>
<a href="/static/search/#">全面屏手机</a>
<a href="/static/search/#">拍照手机</a>
<a href="/static/search/#">游戏手机</a>
</div>
</div>
<div class="JD_ipone_one c">
<!--遍历面包屑功能-->
<a th:href="${nav.link}" th:each="nav:${result.navs}"><span th:text="${nav.navName}"></span>:<span th:text="${nav.navValue}"></span> ×</a>
</div>
<i><img src="/static/search/image/right-@1x.png" alt=""></i>
</div>
</div>
<!--商品筛选和排序-->
<div class="JD_banner w">
<div class="JD_nav">
<div class="JD_selector">
<!--手机商品筛选-->
<div class="title">
<h3><b>手机</b><em>商品筛选</em></h3>
<div class="st-ext">共 <span>10135</span>个商品 </div>
</div>
<div class="JD_nav_logo" th:with="brandid= ${param.brandId}">
<!--品牌-->
<div th:if="${#strings.isEmpty(brandid)}" class="JD_nav_wrap">
<div class="sl_key">
<span><b>品牌：</b></span>
</div>
<div class="sl_value">
<div class="sl_value_logo">
<ul>
<li th:each="brand:${result.brands}">
<a href="/static/search/#" th:href="${'javascript:searchProducts("brandId",'+brand.brandId+')'}">
<img th:src="${brand.brandImg}" alt="">
<div th:text="${brand.brandName}">
华为(HUAWEI)
</div>
</a>
</li>
</ul>
</div>
</div>
<div class="sl_ext">
<a href="/static/search/#">
更多
<i style='background: url("image/search.ele.png")no-repeat 3px 7px'></i>
<b style='background: url("image/search.ele.png")no-repeat 3px -44px'></b>
</a>
<a href="/static/search/#">
多选
<i>+</i>
<span>+</span>
</a>
</div>
</div>
<!--分类-->
<div class="JD_pre">
<div class="sl_key">
<span><b>分类：</b></span>
</div>
<div class="sl_value">
<ul>
<li th:each="catalog:${result.catalogs}">
<a href="/static/search/#"
th:href="${'javascript:searchProducts("catalog3Id",'+catalog.catalogId+')'}"
th:text="${catalog.catalogName}">5.56英寸及以上</a></li>
</ul>
</div>
<div class="sl_ext">
<a href="/static/search/#">
更多
<i style='background: url("image/search.ele.png")no-repeat 3px 7px'></i>
<b style='background: url("image/search.ele.png")no-repeat 3px -44px'></b>
</a>
<a href="/static/search/#">
多选
<i>+</i>
<span>+</span>
</a>
</div>
</div>
<!--其他的所有属性-->
<div class="JD_pre" th:each="attr:${result.attrs}" th:if="${!#lists.contains(result.attrIds, attr.attrId)}">
<div class="sl_key">
<span th:text="${attr.attrName}">屏幕尺寸：</span>
</div>
<div class="sl_value">
<ul>
<li th:each="val:${attr.attrValue}">
<a href="/static/search/#"
th:href="${'javascript:searchProducts("attrs","'+attr.attrId+'_'+val+'")'}"
th:text="${val}">5.56英寸及以上</a></li>
</ul>
</div>
</div>
</div>
<div class="JD_show">
<a href="/static/search/#">
<span>
更多选项（ CPU核数、网络、机身颜色 等）
</span>
</a>
</div>
</div>
<!--排序-->
<div class="JD_banner_main">
<!--商品精选-->
<div class="JD_con_left">
<div class="JD_con_left_bar">
<div class="JD_con_one">
<div class="mt">
<h3>商品精选</h3>
<span>广告</span>
</div>
<div class="mc">
<ul>
<li>
<a href="/static/search/#" title="vivo X9s 全网通 4GB+64GB 磨砂黑 移动联通电信4G手机 双卡双待"><img src="/static/search/img/59bf3c47n91d65c73.jpg" alt=""></a>
<a href="/static/search/#" title="【预约版】华为 HUAWEI 畅享7S 全面屏双摄 4GB +64GB 黑色 移动联通电信4G手机 双卡双待">
<em>华为 HUAWEI nova 2S 全面屏四摄 6GB +64GB 曜石黑 移动联通电信4G手机 双卡双待</em>
</a>
<div class="mc_price">
<strong class="price">
<span class="J-p-5963064">￥2999.00</span>
</strong>
<span class="mc-ico" title="购买本商品送赠品">
<i class="goods-icons">赠品</i>
</span>
</div>
<div class="mc_rev">
已有
<a href="/static/search/#" class="number">12466</a>
人评价
</div>
</li>
<li>
<a href="/static/search/#" title="vivo X9s 全网通 4GB+64GB 磨砂黑 移动联通电信4G手机 双卡双待"><img src="/static/search/img/59bf3c47n91d65c73.jpg" alt=""></a>
<a href="/static/search/#" title="【预约版】华为 HUAWEI 畅享7S 全面屏双摄 4GB +64GB 黑色 移动联通电信4G手机 双卡双待">
<em>华为 HUAWEI nova 2S 全面屏四摄 6GB +64GB 曜石黑 移动联通电信4G手机 双卡双待</em>
</a>
<div class="mc_price">
<strong class="price">
<span class="J-p-5963064">￥2999.00</span>
</strong>
<span class="mc-ico" title="购买本商品送赠品">
<i class="goods-icons">赠品</i>
</span>
</div>
<div class="mc_rev">
已有
<a href="/static/search/#" class="number">12466</a>
人评价
</div>
</li>
<li>
<a href="/static/search/#" title="vivo X9s 全网通 4GB+64GB 磨砂黑 移动联通电信4G手机 双卡双待"><img src="/static/search/img/593ba628n8794c6a6.jpg" alt=""></a>
<a href="/static/search/#" title="【预约版】华为 HUAWEI 畅享7S 全面屏双摄 4GB +64GB 黑色 移动联通电信4G手机 双卡双待">
<em>诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机</em>
</a>
<div class="mc_price">
<strong class="price">
<span class="J-p-5963064">￥1799.00</span>
</strong>
<span class="mc-ico" title="购买本商品送赠品">
<i class="goods-icons">赠品</i>
</span>
</div>
<div class="mc_rev">
已有
<a href="/static/search/#" class="number">15600</a>
人评价
</div>
</li>
<li>
<a href="/static/search/#" title="vivo X9s 全网通 4GB+64GB 磨砂黑 移动联通电信4G手机 双卡双待"><img src="/static/search/img/5919637an271a1301.jpg" alt=""></a>
<a href="/static/search/#" title="【预约版】华为 HUAWEI 畅享7S 全面屏双摄 4GB +64GB 黑色 移动联通电信4G手机 双卡双待">
<em>vivo Xplay6 全网通 6GB+64GB 磨砂黑 移动联通电信4G手机 双卡双待</em>
</a>
<div class="mc_price">
<strong class="price">
<span class="J-p-5963064">￥3498.00</span>
</strong>
<span class="mc-ico" title="购买本商品送赠品">
<i class="goods-icons">赠品</i>
</span>
</div>
<div class="mc_rev">
已有
<a href="/static/search/#" class="number">5369</a>
人评价
</div>
</li>
</ul>
</div>
</div>
<div class="JD_con_one">
<div class="mt">
<h3>达人选购</h3>
</div>
<div class="mc">
<ul>
<li>
<a href="/static/search/#" title="vivo X9s 全网通 4GB+64GB 磨砂黑 移动联通电信4G手机 双卡双待"><img src="/static/search/img/59bf3c47n91d65c73.jpg" alt=""></a>
<a href="/static/search/#">
<em>华为 HUAWEI nova 2S 全面屏四摄 6GB +64GB 曜石黑 移动联通电信4G手机 双卡双待</em>
</a>
<div class="mc_price">
<strong class="price">
<span class="J-p-5963064">￥2999.00</span>
</strong>
</div>
</li>
<li>
<a href="/static/search/#" title="vivo X9s 全网通 4GB+64GB 磨砂黑 移动联通电信4G手机 双卡双待"><img src="/static/search/img/59bf3c47n91d65c73.jpg" alt=""></a>
<a href="/static/search/#">
<em>华为 HUAWEI nova 2S 全面屏四摄 6GB +64GB 曜石黑 移动联通电信4G手机 双卡双待</em>
</a>
<div class="mc_price">
<strong class="price">
<span class="J-p-5963064">￥2999.00</span>
</strong>
</div>
</li>
<li>
<a href="/static/search/#" title="vivo X9s 全网通 4GB+64GB 磨砂黑 移动联通电信4G手机 双卡双待"><img src="/static/search/img/593ba628n8794c6a6.jpg" alt=""></a>
<a href="/static/search/#">
<em>诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机</em>
</a>
<div class="mc_price">
<strong class="price">
<span class="J-p-5963064">￥1799.00</span>
</strong>
</div>
</li>
<li>
<a href="/static/search/#" title="vivo X9s 全网通 4GB+64GB 磨砂黑 移动联通电信4G手机 双卡双待"><img src="/static/search/img/5919637an271a1301.jpg" alt=""></a>
<a href="/static/search/#">
<em>vivo Xplay6 全网通 6GB+64GB 磨砂黑 移动联通电信4G手机 双卡双待</em>
</a>
<div class="mc_price">
<strong class="price">
<span class="J-p-5963064">￥3498.00</span>
</strong>
</div>
</li>
</ul>
</div>
</div>
<div class="JD_con_one" style="border:none;">
<div class="mt">
<h3>商品精选</h3>
<span>广告</span>
</div>
<div class="mc">
<ul>
<li>
<a href="/static/search/#"><img src="/static/search/img/599a806bn9d829c1c.jpg" alt=""></a>
</li>
<li>
<a href="/static/search/#"><img src="/static/search/img/593e4de0n5ff878a4.jpg" alt=""></a>
</li>
</ul>
</div>
</div>
</div>
</div>
<!--综合排序-->
<div class="JD_con_right">
<div class="filter">
<!--综合排序-->
<div class="filter_top">
<div class="filter_top_left" th:with="p = ${param.sort},priceRange = ${param.skuPrice}">
<a th:class="${(!#strings.isEmpty(p) && #strings.startsWith(p,'hotScore') && #strings.endsWith(p,'desc'))?'sort_a desc':'sort_a'}"
th:attr="style=${(#strings.isEmpty(p) || #strings.startsWith(p,'hotScore'))?'color: #FFF;border-color: #e4393c;background: #e4393c':'color: #333;border-color: #CCC;background #fff'}"
sort="hotScore" href="/static/search/#">综合排序 [[${(!#strings.isEmpty(p) && #strings.startsWith(p,'hotScore') && #strings.endsWith(p,'desc'))?'↓':'↑'}]]</a>
<a th:class="${(!#strings.isEmpty(p) && #strings.startsWith(p,'saleCount') && #strings.endsWith(p,'desc'))?'sort_a desc':'sort_a'}"
th:attr="style=${(!#strings.isEmpty(p) && #strings.startsWith(p,'saleCount'))?'color: #FFF;border-color:#e4393c;background: #e4393c':'color: #333;border-color: #CCC;background #fff'}"
sort="saleCount" href="/static/search/#">销量 [[${(!#strings.isEmpty(p) && #strings.startsWith(p,'saleCount') && #strings.endsWith(p,'desc'))?'↓':'↑'}]]</a>
<a th:class="${(!#strings.isEmpty(p) && #strings.startsWith(p,'skuPrice') && #strings.endsWith(p,'desc'))?'sort_a desc':'sort_a'}"
th:attr="style=${(!#strings.isEmpty(p) && #strings.startsWith(p,'skuPrice'))?'color: #FFF;border-color:#e4393c;background: #e4393c':'color: #333;border-color: #CCC;background #fff'}"
sort="skuPrice" href="/static/search/#">价格 [[${(!#strings.isEmpty(p) && #strings.startsWith(p,'skuPrice') && #strings.endsWith(p,'desc'))?'↓':'↑'}]]</a>
<a class="sort_a" href="/static/search/#">评论分</a>
<a class="sort_a" href="/static/search/#">上架时间</a>
<input id="skuPriceFrom" type="number" style="width: 100px;margin-left: 30px;" th:value="${#strings.isEmpty(priceRange)?'':#strings.substringBefore(priceRange,'_')}"> -
<input id="skuPriceTo" type="number" style="width: 100px;" th:value="${#strings.isEmpty(priceRange)?'':#strings.substringAfter(priceRange,'_')}"><button id="skuPriceSearchBtn">确定</button>
</div>
<div class="filter_top_right">
<span class="fp-text">
<b>1</b><em>/</em><i>169</i>
</span>
<a href="/static/search/#" class="prev"><</a>
<a href="/static/search/#" class="next"> > </a>
</div>
</div>
<!--收货地址-->
<div class="filter_bottom">
<div class="filter_bottom_left">
<div class="fs-cell">收货地</div>
<div class="dizhi">
<div class="dizhi_show">
<em>北京朝阳区三环以内</em>
<b></b>
</div>
</div>
<div class="dizhi_con">
<ul id="tab">
<li id="tab1" value="1">北京 <img src="/static/search/image/down-@1x.png" alt=""></li>
<li id="tab2" value="2">朝阳 <img src="/static/search/image/down-@1x.png" alt=""></li>
<li id="tab3" value="3">三环以内 <img src="/static/search/image/down-@1x.png" alt=""></li>
</ul>
<div id="container">
<div id="content1" style="z-index: 1;">
<a href="/static/search/#">北京</a>
<a href="/static/search/#">上海</a>
<a href="/static/search/#">天津</a>
<a href="/static/search/#">重庆</a>
<a href="/static/search/#">河北</a>
<a href="/static/search/#">山西</a>
<a href="/static/search/#">河南</a>
<a href="/static/search/#">辽宁</a>
<a href="/static/search/#">吉林</a>
<a href="/static/search/#">黑龙江</a>
<a href="/static/search/#">内蒙古</a>
<a href="/static/search/#">江苏</a>
<a href="/static/search/#">山东</a>
<a href="/static/search/#">安徽</a>
<a href="/static/search/#">浙江</a>
<a href="/static/search/#">福建</a>
<a href="/static/search/#">湖北</a>
<a href="/static/search/#">湖南</a>
<a href="/static/search/#">广东</a>
<a href="/static/search/#">广西</a>
<a href="/static/search/#">江西</a>
<a href="/static/search/#">四川</a>
<a href="/static/search/#">海南</a>
<a href="/static/search/#">贵州</a>
<a href="/static/search/#">云南</a>
<a href="/static/search/#">西藏</a>
<a href="/static/search/#">陕西</a>
<a href="/static/search/#">甘肃</a>
<a href="/static/search/#">青海</a>
<a href="/static/search/#">宁夏</a>
<a href="/static/search/#">新疆</a>
<a href="/static/search/#">港澳</a>
<a href="/static/search/#">台湾</a>
<a href="/static/search/#">钓鱼岛</a>
<a href="/static/search/#">海外</a>
</div>
<div id="content2">
<a href="/static/search/#">朝阳区</a>
<a href="/static/search/#">海淀区</a>
<a href="/static/search/#">西城区</a>
<a href="/static/search/#">东城区</a>
<a href="/static/search/#">大兴区</a>
<a href="/static/search/#">丰台区</a>
<a href="/static/search/#">昌平区</a>
<a href="/static/search/#">顺义区</a>
</div>
<div id="content3">
<a href="/static/search/#">三环以内</a>
<a href="/static/search/#">管庄</a>
<a href="/static/search/#">北苑</a>
<a href="/static/search/#">定福庄</a>
<a href="/static/search/#">三环到四环之间</a>
<a href="/static/search/#">四环到五环之间</a>
<a href="/static/search/#">五环到六环之间</a>
</div>
</div>
</div>
</div>
<div class="filter_bottom_right">
<ul>
<li>
<a href="/static/search/#">
<i></i>
谷粒商城配送
</a>
</li>
<li>
<a href="/static/search/#">
<i></i>
京尊达 </a>
</li>
<li>
<a href="/static/search/#">
<i></i>
货到付款
</a>
</li>
<li>
<a href="/static/search/#">
<i></i>
仅显示有货
</a>
</li>
<li>
<a href="/static/search/#">
<i></i>
可配送全球
</a>
</li>
</ul>
</div>
</div>
<!--排序内容: 商品每四个为一组-->
<div class="rig_tab">
<div th:each="product:${result.getProducts()}">
<div class="ico">
<i class="iconfont icon-weiguanzhu"></i>
<a href="/static/search/#">关注</a>
</div>
<p class="da">
<a href="/static/search/#">
<img th:src="${product.skuImg}" class="dim">
</a>
</p>
<ul class="tab_im">
<li><a href="/static/search/#" title="黑色">
<img th:src="${product.skuImg}"></a></li>
</ul>
<p class="tab_R">
<span th:text="'¥'+${product.skuPrice}">¥5199.00</span>
</p>
<p class="tab_JE">
<a href="/static/search/#" th:utext="${product.skuTitle}">
Apple iPhone 7 Plus (A1661) 32G 黑色 移动联通电信4G手机
</a>
</p>
<p class="tab_PI">已有<span>11万+</span>热门评价
<a href="/static/search/#">二手有售</a>
</p>
<p class="tab_CP"><a href="/static/search/#" title="谷粒商城Apple产品专营店">谷粒商城Apple产品...</a>
<a href='#' title="联系供应商进行咨询">
<img src="/static/search/img/xcxc.png">
</a>
</p>
<div class="tab_FO">
<div class="FO_one">
<p>自营
<span>谷粒商城自营,品质保证</span>
</p>
<p>满赠
<span>该商品参加满赠活动</span>
</p>
</div>
</div>
</div>
</div>
<!--分页-->
<div class="filter_page">
<div class="page_wrap">
<span class="page_span1">
<a class="page_a" th:attr="pn=${result.pageNum+1}"
th:if="${result.pageNum>1}">
< 上一页
</a>
<a class="page_a"
th:attr="pn=${nav},style=${nav == result.pageNum?'border: 0;color:#ee2222;background: #fff':''}"
th:each="nav:${result.pageNavs}">[[${nav}]]</a>
<a class="page_a" th:attr="pn=${result.pageNum+1}"
th:if="${result.pageNum<result.totalPages}">
下一页 >
</a>
</span>
<span class="page_span2">
<em>共<b>[[${result.totalPages}]]</b>页 到第</em>
<input type="number" value="1">
<em>页</em>
<a >确定</a>
</span>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
<!--商品精选-->
<div class="JD_jx">
<div class="JD_jx_title">
<div class="mt">
<strong class="mt-title">商品精选</strong>
<img src="/static/search/image/u-ad.gif" alt="">
</div>
<div class="mc">
<ul>
<li>
<div class="mc_img">
<a href="/static/search/#" title="【预约版】华为 HUAWEI 畅享7S 全面屏双摄 4GB +64GB 黑色 移动联通电信4G手机 双卡双待">
<img src="/static/search/img/5a25ffc7N98b35d49.jpg" alt="">
</a>
</div>
<div class="mc_name">
<a href="/static/search/#" title="【预约版】华为 HUAWEI 畅享7S 全面屏双摄 4GB +64GB 黑色 移动联通电信4G手机 双卡双待">
<em>【预约版】华为 HUAWEI 畅享7S 全面屏双摄 4GB +64GB 黑色 移动联通电信4G手机 双卡双待</em>
</a>
</div>
<div class="mc_price">
<strong>
<span>￥1999.00</span>
</strong>
<span class="mc_ico" title="购买本商品送赠品">赠品</span>
</div>
<div class="mc_rev">
<a href="/static/search/#">15930</a>
<span>人好评</span>
</div>
</li>
<li>
<div class="mc_img">
<a href="/static/search/#" title="【预约版】华为 HUAWEI 畅享7S 全面屏双摄 4GB +64GB 黑色 移动联通电信4G手机 双卡双待">
<img src="/static/search/img/5a25ffc7N98b35d49.jpg" alt="">
</a>
</div>
<div class="mc_name">
<a href="/static/search/#" title="【预约版】华为 HUAWEI 畅享7S 全面屏双摄 4GB +64GB 黑色 移动联通电信4G手机 双卡双待">
<em>【预约版】华为 HUAWEI 畅享7S 全面屏双摄 4GB +64GB 黑色 移动联通电信4G手机 双卡双待</em>
</a>
</div>
<div class="mc_price">
<strong>
<span>￥1999.00</span>
</strong>
<span class="mc_ico" title="购买本商品送赠品">赠品</span>
</div>
<div class="mc_rev">
<a href="/static/search/#">15930</a>
<span>人好评</span>
</div>
</li>
<li>
<div class="mc_img">
<a href="/static/search/#" title="【预约版】华为 HUAWEI 畅享7S 全面屏双摄 4GB +64GB 黑色 移动联通电信4G手机 双卡双待">
<img src="/static/search/img/5a25ffc7N98b35d49.jpg" alt="">
</a>
</div>
<div class="mc_name">
<a href="/static/search/#" title="【预约版】华为 HUAWEI 畅享7S 全面屏双摄 4GB +64GB 黑色 移动联通电信4G手机 双卡双待">
<em>【预约版】华为 HUAWEI 畅享7S 全面屏双摄 4GB +64GB 黑色 移动联通电信4G手机 双卡双待</em>
</a>
</div>
<div class="mc_price">
<strong>
<span>￥1999.00</span>
</strong>
<span class="mc_ico" title="购买本商品送赠品">赠品</span>
</div>
<div class="mc_rev">
<a href="/static/search/#">15930</a>
<span>人好评</span>
</div>
</li>
<li>
<div class="mc_img">
<a href="/static/search/#" title="【预约版】华为 HUAWEI 畅享7S 全面屏双摄 4GB +64GB 黑色 移动联通电信4G手机 双卡双待">
<img src="/static/search/img/5a25ffc7N98b35d49.jpg" alt="">
</a>
</div>
<div class="mc_name">
<a href="/static/search/#" title="【预约版】华为 HUAWEI 畅享7S 全面屏双摄 4GB +64GB 黑色 移动联通电信4G手机 双卡双待">
<em>【预约版】华为 HUAWEI 畅享7S 全面屏双摄 4GB +64GB 黑色 移动联通电信4G手机 双卡双待</em>
</a>
</div>
<div class="mc_price">
<strong>
<span>￥1999.00</span>
</strong>
<span class="mc_ico" title="购买本商品送赠品">赠品</span>
</div>
<div class="mc_rev">
<a href="/static/search/#">15930</a>
<span>人好评</span>
</div>
</li>
<li>
<div class="mc_img">
<a href="/static/search/#" title="【预约版】华为 HUAWEI 畅享7S 全面屏双摄 4GB +64GB 黑色 移动联通电信4G手机 双卡双待">
<img src="/static/search/img/5a25ffc7N98b35d49.jpg" alt="">
</a>
</div>
<div class="mc_name">
<a href="/static/search/#" title="【预约版】华为 HUAWEI 畅享7S 全面屏双摄 4GB +64GB 黑色 移动联通电信4G手机 双卡双待">
<em>【预约版】华为 HUAWEI 畅享7S 全面屏双摄 4GB +64GB 黑色 移动联通电信4G手机 双卡双待</em>
</a>
</div>
<div class="mc_price">
<strong>
<span>￥1999.00</span>
</strong>
<span class="mc_ico" title="购买本商品送赠品">赠品</span>
</div>
<div class="mc_rev">
<a href="/static/search/#">15930</a>
<span>人好评</span>
</div>
</li>
</ul>
</div>
</div>
</div>
<!--猜你喜欢-->
<div class="JD_cnxh">
<div class="JD_jx_title">
<div class="mt">
<strong class="mt-title">猜你喜欢</strong>
<a href="/static/search/#">
<img src="/static/search/image/update.png" alt="">
换一批
</a>
</div>
<div class="mc">
<ul>
<li>
<div class="mc_img">
<a href="/static/search/#" title="诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机">
<img src="/static/search/img/59bf3c47n91d65c73.jpg" alt="">
</a>
</div>
<div class="mc_name">
<a href="/static/search/#" title="诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机">
<em>诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机</em>
</a>
</div>
<div class="mc_rev">
<a href="/static/search/#">已有80万+人评价</a>
</div>
<div class="mc_price">
<strong>
<span>￥1999.00</span>
</strong>
</div>
</li>
<li>
<div class="mc_img">
<a href="/static/search/#" title="诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机">
<img src="/static/search/img/5a28b5c6Ndec5088f.jpg" alt=""></a>
</div>
<div class="mc_name">
<a href="/static/search/#" title="诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机">
<em>诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机</em>
</a>
</div>
<div class="mc_rev">
<a href="/static/search/#">已有80万+人评价</a>
</div>
<div class="mc_price">
<strong>
<span>￥1999.00</span>
</strong>
</div>
</li>
<li>
<div class="mc_img">
<a href="/static/search/#" title="诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机"><img src="/static/search/img/593e4de0n5ff878a4.jpg" alt=""></a>
</div>
<div class="mc_name">
<a href="/static/search/#" title="诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机">
<em>诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机</em>
</a>
</div>
<div class="mc_rev">
<a href="/static/search/#">已有80万+人评价</a>
</div>
<div class="mc_price">
<strong>
<span>￥1999.00</span>
</strong>
</div>
</li>
<li>
<div class="mc_img">
<a href="/static/search/#" title="诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机"><img src="/static/search/img/593e4de0n5ff878a4.jpg" alt=""></a>
</div>
<div class="mc_name">
<a href="/static/search/#" title="诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机">
<em>诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机</em>
</a>
</div>
<div class="mc_rev">
<a href="/static/search/#">已有80万+人评价</a>
</div>
<div class="mc_price">
<strong>
<span>￥1999.00</span>
</strong>
</div>
</li>
<li>
<div class="mc_img">
<a href="/static/search/#" title="诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机"><img src="/static/search/img/59c493a7N3f9b9c85 (1).jpg" alt=""></a>
</div>
<div class="mc_name">
<a href="/static/search/#" title="诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机">
<em>诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机</em>
</a>
</div>
<div class="mc_rev">
<a href="/static/search/#">已有80万+人评价</a>
</div>
<div class="mc_price">
<strong>
<span>￥1999.00</span>
</strong>
</div>
</li>
<li>
<div class="mc_img">
<a href="/static/search/#" title="诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机"><img src="/static/search/img/59c493a7N3f9b9c85 (1).jpg" alt=""></a>
</div>
<div class="mc_name">
<a href="/static/search/#" title="诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机">
<em>诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机</em>
</a>
</div>
<div class="mc_rev">
<a href="/static/search/#">已有80万+人评价</a>
</div>
<div class="mc_price">
<strong>
<span>￥1999.00</span>
</strong>
</div>
</li>
</ul>
</div>
</div>
</div>
<!--我的足迹-->
<div class="JD_zuji">
<div class="JD_jx_title">
<div class="mt">
<strong class="mt-title">我的足迹</strong>
<a href="/static/search/#">
更多浏览记录
</a>
</div>
<div class="mc">
<ul>
<li>
<div class="mc_img">
<a href="/static/search/#" title="诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机">
<img src="/static/search/img/59e58a11Nc38676d5.jpg" alt="">
</a>
</div>
<div class="mc_price">
<strong>
<span>￥2998.00</span>
</strong>
</div>
</li>
<li>
<div class="mc_img">
<a href="/static/search/#" title="诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机">
<img src="/static/search/img/5a28acccN73689386.jpg" alt="">
</a>
</div>
<div class="mc_price">
<strong>
<span>￥88.00</span>
</strong>
</div>
</li>
<li>
<div class="mc_img">
<a href="/static/search/#" title="诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机">
<img src="/static/search/img/5a1690ddN441b5dce.jpg" alt="">
</a>
</div>
<div class="mc_price">
<strong>
<span>￥199.00</span>
</strong>
</div>
</li>
<li>
<div class="mc_img">
<a href="/static/search/#" title="诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机">
<img src="/static/search/img/5a02bde7N7d4453b1.jpg" alt="">
</a>
</div>
<div class="mc_price">
<strong>
<span>￥799.00</span>
</strong>
</div>
</li>
<li>
<div class="mc_img">
<a href="/static/search/#" title="诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机">
<img src="/static/search/img/5a122dbeN044ebf19.jpg" alt="">
</a>
</div>
<div class="mc_price">
<strong>
<span>￥599.00</span>
</strong>
</div>
</li>
<li>
<div class="mc_img">
<a href="/static/search/#" title="诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机">
<img src="/static/search/img/59c493a7N3f9b9c85.jpg" alt="">
</a>
</div>
<div class="mc_price">
<strong>
<span>￥699.00</span>
</strong>
</div>
</li>
<li>
<div class="mc_img">
<a href="/static/search/#" title="诺基亚 7 (Nokia 7) 4GB+64GB 黑色 全网通 双卡双待 移动联通电信4G手机">
<img src="/static/search/img/5a08f6f6N5bab2c1c.jpg" alt="">
</a>
</div>
<div class="mc_price">
<strong>
<span>￥715.00</span>
</strong>
</div>
</li>
</ul>
</div>
</div>
</div>
<div style="width: 1210px;margin: 0 auto;margin-bottom: 10px"><img src="/static/search/img/5a33a2e0N9a04b4af.jpg" alt=""></div>
<!--底部-->
<footer class="footer">
<div class="footer_top">
<ul>
<li>
<span></span>
<h3>品类齐全，轻松购物</h3>
</li>
<li>
<span></span>
<h3>多仓直发，极速配发</h3>
</li>
<li>
<span></span>
<h3>正品行货，精致服务</h3>
</li>
<li>
<span></span>
<h3>天天低价，畅选无忧</h3>
</li>
</ul>
</div>
<div class="footer_center">
<ol>
<li>购物指南</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">购物流程</a>
</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">会员介绍</a>
</li>
<li><a href="/static/search/#">生活旅行</a>
</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">常见问题</a>
</li>
<li><a href="/static/search/#">大家电</a>
</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">联系客服</a>
</li>
</ol>
<ol>
<li>配送方式</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">上门自提</a>
</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">211限时达</a>
</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">配送服务查询</a>
</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">配送费收取标准</a>
</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">海外配送</a>
</li>
</ol>
<ol>
<li>支付方式</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">货到付款</a>
</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">在线支付</a>
</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">分期付款</a>
</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">邮局汇款</a>
</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">公司转账</a>
</li>
</ol>
<ol>
<li>售后服务</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">售后政策</a>
</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">价格保护</a>
</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">退款说明</a>
</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">返修/退换货</a>
</li>
<li><a href="/static/search/#">取消订单</a>
</li>
</ol>
<ol>
<li>特色服务</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">夺宝岛</a>
</li>
<li><a href="/static/search/#">DIY装机</a>
</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">延保服务</a>
</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">谷粒商城E卡</a>
</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">谷粒商城通信</a>
</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">谷粒商城gulimall+</a>
</li>
</ol>
<ol>
<li>谷粒商城自营覆盖区域</li>
<li>
谷粒商城已向全国2661个区县提供自<br> 营配送服务，支持货到付款、
<br> POS机刷卡和售后上门服务。
</li>
<li><a href="/static/search/#" style="color: rgb(114, 114, 114);">查看详情></a>
</li>
</ol>
</div>
<div class="footer_foot">
<p class="footer_p p1">
<a href="/static/search/#">关于我们</a>
<span></span>
<a href="/static/search/#" style="color: rgb(114, 114, 114);">联系我们</a>
<span></span>
<a href="/static/search/#">联系客服</a>
<span></span>
<a href="/static/search/#" style="color: rgb(114, 114, 114);">合作招商</a>
<span></span>
<a href="/static/search/#" style="color: rgb(114, 114, 114);">商家帮助</a>
<span></span>
<a href="/static/search/#" style="color: rgb(114, 114, 114);">营销中心</a>
<span></span>
<a href="/static/search/#" style="color: rgb(114, 114, 114);">手机谷粒商城</a>
<span></span>
<a href="/static/search/#" style="color: rgb(114, 114, 114);">友情链接</a>
<span></span>
<a href="/static/search/#" style="color: rgb(114, 114, 114);">销售联盟</a>
<span></span>
<a href="/static/search/#" style="color: rgb(114, 114, 114);">谷粒商城社区</a>
<span></span>
<a href="/static/search/#" style="color: rgb(114, 114, 114);">风险监测</a>
<span></span>
<a href="/static/search/#">隐私政策</a>
<span></span>
<a href="/static/search/#">谷粒商城公益</a>
<span></span>
<a href="/static/search/#" style="color: rgb(114, 114, 114);">English Site</a>
<span></span>
<a href="/static/search/#">media & IR</a>
</p>
<p class="footer_p">
<a href="/static/search/#">京公网安备 11000002000088号</a>
<span></span>
<a href="/static/search/#">京ICP证070359号</a>
<span></span>
<a href="/static/search/#">互联网药品信息服务资格证编号(京)-经营性-2014-0008</a>
<span></span>
<a href="/static/search/#">新出发京零 字第大120007号</a>
</p>
<p class="footer_p">
<a href="/static/search/#">互联网出版许可证编号新出网证(京)字150号</a>
<span></span>
<a href="/static/search/#">出版物经营许可证</a>
<span></span>
<a href="/static/search/#">网络文化经营许可证京网文[2014]2148-348号</a>
<span></span>
<a href="/static/search/#">违法和不良信息举报电话：4006561155</a>
</p>
<p class="footer_p">
<a href="/static/search/#">Copyright © 2004 - 2017 谷粒商城JD.com 版权所有</a>
<span></span>
<a href="/static/search/#">消费者维权热线：4006067733</a>
<a href="/static/search/#">经营证照</a>
</p>
<p class="footer_p">
<a href="/static/search/#">谷粒商城旗下网站:</a>
<a href="/static/search/#">谷粒商城支付</a>
<span></span>
<a href="/static/search/#">谷粒商城云</a>
</p>
<ul>
<li></li>
<li></li>
<li></li>
<li></li>
<li></li>
<li></li>
</ul>
</div>
</footer>
<!--右侧侧边栏-->
<div class="header_bar">
<div class="header_bar_box">
<ul>
<li>
<a href="/static/search/#"><img src="/static/search/img/wo.png" /></a>
<div class="div">
<a href="/static/search/#">谷粒商城会员</a>
</div>
</li>
<li>
<a href="/static/search/#"><img src="/static/search/img/gouwuche.png" /></a>
<div class="div">
<a href="/static/search/#">购物车</a>
</div>
</li>
<li>
<a href="/static/search/#"><img src="/static/search/img/taoxin.png" /></a>
<div class="div">
<a href="/static/search/#">我的关注</a>
</div>
</li>
<li>
<a href="/static/search/#"><img src="/static/search/img/shi.png" /></a>
<div class="div">
<a href="/static/search/#">我的足迹</a>
</div>
</li>
<li>
<a href="/static/search/#"><img src="/static/search/img/xinxi.png" /></a>
<div class="div">
<a href="/static/search/#">我的消息</a>
</div>
</li>
<li>
<a href="/static/search/#"><img src="/static/search/img/qianbao.png" /></a>
<div class="div">
<a href="/static/search/#">资讯JIMI</a>
</div>
</li>
</ul>
<ul>
<li>
<a href="/static/search/#"><img src="/static/search/img/fa3f24a70d38bd439261cb7439e517a5.png" /></a>
<div class="div">
<a href="/static/search/#">顶部</a>
</div>
</li>
<li>
<a href="/static/search/#"><img src="/static/search/img/xinxi.png" /></a>
<div class="div">
<a href="/static/search/#">反馈</a>
</div>
</li>
</ul>
</div>
</div>
<script>
$(".sl_ext a:nth-child(1)").hover(function(){
$(this).children("b").stop(true).animate({top:"3px"},50);
$(this).children("i").stop(true).animate({top:"-23px"},50)
},function(){
$(this).children("b").stop(true).animate({top:"24px"},50);
$(this).children("i").stop(true).animate({top:"3px"},50)
});
$(".sl_ext a:nth-child(2)").hover(function(){
$(this).children("span").stop(true).animate({top:"-1px"},100);
$(this).children("i").stop(true).animate({top:"-14px"},100).css({display:"none"})
},function(){
$(this).children("span").stop(true).animate({top:"14px"},100);
$(this).children("i").stop(true).animate({top:"-1px"},100).css({display:"block"})
});
$('.tab_im img').hover(function(){
var a=$(this).prop('src');
var index=$(this).parents('li').index();
$(this).parents('li').css('border','2px solid red').siblings('li').css('border','1px solid #ccc');
$(this).parents('ul').prev().find('img').prop('src',a);
$(this).parents('ul').siblings('.tab_JE').find('a').eq(list).css('display','block').siblings('a').css('display','none');
$(this).parents('ul').siblings('.tab_R').find('span').eq(list).css('display','block').siblings('span').css('display','none')
});
$(".JD_ipone_one").hover(function(){
$(this).children("div").css({display:"block"})
},function(){
$(this).children("div").css({display:"none"})
});
$("#tab>li").click(function() {
var i = $(this).index();
$("#container>div").hide().eq(i).show()
});
$(".dizhi_show").hover(function(){
$(".dizhi_con").css({display:"block"})
},function(){
$(".dizhi_con").css({display:"none"})
});
$(".dizhi_con").hover(function(){
$(this).css({display:"block"})
},function(){
$(this).css({display:"none"})
});
//显示隐藏
var $li = $(".JD_nav_logo>div:gt(3)").hide();
$('.JD_show span').click(function(){
if($li.is(':hidden')){
$li.show();
$(this).css({width:"86px"}).text('收起 ^');
}else{
$li.hide();
$('.JD_show span').css({width:"291px"}).text('更多选项（ CPU核数、网络、机身颜色 等）');
}
return false;
});
$(".rig_tab>div").hover(function(){
var i = $(this).index();
$(this).find('.ico').css({display:'block'}).stop(true).animate({top:"190px"},300)
},function(){
var i = $(this).index();
$(this).find('.ico').css({display:'none'}).stop(true).animate({top:"230px"})
});
$('.header_main_left>ul>li').hover(function() {
$(this).css({
background: "#f0f0f0"
}).find('.header_main_left_main').stop(true).fadeIn(300)
}, function() {
$(this).css({
background: "#fff"
}).find(".header_main_left_a").css({
color: "#000"
});
$(this).find('.header_main_left_main').stop(true).fadeOut(100)
});
$(".header_sj a").hover(function() {
$(this).css({
background: "#444"
})
}, function() {
$(this).css({
background: "#6e6568"
})
});
$(".nav_li1 a").hover(function(){
$(".header_main_left").stop(true).fadeIn()
},function(){
$(".header_main_left").stop(true).fadeOut()
});
$(".header_main_left").hover(function(){
$(this).stop(true).fadeIn()
},function(){
$(this).stop(true).fadeOut()
});
//右侧侧边栏
$(".header_bar_box ul li").hover(function() {
$(this).css({
background: "#7A6E6E"
}).children(".div").css({
display: "block"
}).stop(true).animate({
left: "-60px"
}, 300)
}, function() {
$(this).css({
background: "#7A6E6E"
}).children(".div").css({
display: "none"
}).stop(true).animate({
left: "0"
}, 300)
});
//底部
$(".footer_foot .p1 a").hover(function(){
$(this).css("color","#D70B1C")
},function(){
$(this).css("color","#727272")
});
$(".footer .footer_center ol li a").hover(function(){
$(this).css("color","#D70B1C")
},function(){
$(this).css("color","#727272")
})
function searchProducts(name,value) {
//原来的页面
location.href = replaceAndParamVal(location.href,name,value,true);
}
function searchByKeyword(){
searchProducts("keyword",$("#keyword_input").val());
}
$(".page_a").click(function (){
var pn = $(this).attr("pn");
var href = location.href;
if(href.indexOf("pageNum") != -1){
//替换pagenum的值
location.href = replaceAndParamVal(href,"pageNum",pn)
}else if(href.indexOf("?") != -1){
location.href = location.href + "&pageNum="+pn;
}else {
location.href = location.href + "?pageNum="+pn;
}
return false;
});
function replaceAndParamVal(url,paramName,replaceVal,forceAdd){
var oUrl = url.toString();
//1.如果没有就添加，有就替换
if(oUrl.indexOf(paramName) != -1) {
if(forceAdd){
var nUrl = "";
if(oUrl.indexOf("?") != -1){
nUrl = oUrl +"&"+paramName + '=' + replaceVal;
}else{
nUrl = oUrl +"?"+paramName + '=' + replaceVal;
}
return nUrl;
}else {
var re = eval('/(' + paramName + '=)([^&]*)/gi');
var nUrl = oUrl.replace(re, paramName + '=' + replaceVal);
return nUrl;
}
}else {
var nUrl = "";
if(oUrl.indexOf("?") != -1){
nUrl = oUrl +"&"+paramName + '=' + replaceVal;
}else{
nUrl = oUrl +"?"+paramName + '=' + replaceVal;
}
return nUrl;
}
}
$(".sort_a").click(function (){
//1.当前被点击的元素变为选中状态
// 改变当前元素以及兄弟元素的样式
// changeStyle(this);
$(this).toggleClass("desc");
//2.跳转到指定位置 sort=skuPrice_asc/desc
var sort = $(this).attr("sort");
sort = $(this).hasClass("desc")?sort+"_desc":sort+"_asc";
location.href = replaceAndParamVal(location.href,"sort",sort);
//禁用默认行为
return false;
});
function changeStyle(ele){
$(".sort_a").css({"color":"#333","border-color":"#CCC","background":"#FFF"});
$(".sort_a").each(function(){
var text = $(ele).text().replace("⬇","").replace("⬆","");
text = text + "⬇";
$(ele).text(text);
});
$(ele).css({"color":"#FFF","border-color":"#e4393c","background":"#e4393c"});
//改变升降序
$(ele).toggleClass("desc");//加上就是降序，不加就是升序
if($(ele).hasClass("desc")){
//降序
var text = $(ele).text().replace("⬇","").replace("⬆","");
text = text + "⬇";
$(ele).text(text);
}else{
var text = $(ele).text().replace("⬇","").replace("⬆","");
text = text + "⬆";
$(ele).text(text);
}
};
$("#skuPriceSearchBtn").click(function (){
//1.拼上价格区间的查询条件
var from = $("#skuPriceFrom").val();
var to = $("#skuPriceTo").val();
var query = from + "_" + to;
location.href = replaceAndParamVal(location.href,"skuPrice",query);
});
</script>
</body>
</html>
2、search模块下的远程调用方法
package com.atguigu.gulimall.search.feign;
import com.atguigu.common.utils.R;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import java.util.List;
@FeignClient("gulimall-product")
public interface ProductFeignService {
@GetMapping("/product/attr/info/{attrId}")
public R attrInfo(@PathVariable("attrId") Long attrId);
@GetMapping("/product/brand/infos")
public R brandsInfo(@RequestParam("brandIds") List<Long> brandIds);
}
3、search模块下的controller类
package com.atguigu.gulimall.search.controller;
import com.atguigu.gulimall.search.service.MallSearchService;
import com.atguigu.gulimall.search.vo.SearchParam;
import com.atguigu.gulimall.search.vo.SearchResult;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;
import javax.servlet.http.HttpServletRequest;
@Controller
public class SearchController {
@Autowired
MallSearchService mallSearchService;
@GetMapping("/list.html")
public String listPage(SearchParam param, Model model, HttpServletRequest request){
param.set_queryString(request.getQueryString());
//1.根据传递过来的页面查询参数，去es中检索商品
SearchResult result = mallSearchService.search(param);
model.addAttribute("result", result);
return "list";
}
}
4、Impl实现类
package com.atguigu.gulimall.search.service.Impl;
import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.TypeReference;
import com.atguigu.common.to.es.SkuEsModel;
import com.atguigu.common.utils.R;
import com.atguigu.gulimall.search.config.GulimallElasticSearchConfig;
import com.atguigu.gulimall.search.constant.EsConstant;
import com.atguigu.gulimall.search.feign.ProductFeignService;
import com.atguigu.gulimall.search.service.MallSearchService;
import com.atguigu.gulimall.search.vo.AttrResponseVo;
import com.atguigu.gulimall.search.vo.BrandVo;
import com.atguigu.gulimall.search.vo.SearchParam;
import com.atguigu.gulimall.search.vo.SearchResult;
import com.baomidou.mybatisplus.core.toolkit.StringUtils;
import org.apache.lucene.search.join.ScoreMode;
import org.elasticsearch.action.search.SearchRequest;
import org.elasticsearch.action.search.SearchResponse;
import org.elasticsearch.client.RestHighLevelClient;
import org.elasticsearch.index.query.BoolQueryBuilder;
import org.elasticsearch.index.query.NestedQueryBuilder;
import org.elasticsearch.index.query.QueryBuilders;
import org.elasticsearch.index.query.RangeQueryBuilder;
import org.elasticsearch.search.SearchHit;
import org.elasticsearch.search.SearchHits;
import org.elasticsearch.search.aggregations.AggregationBuilders;
import org.elasticsearch.search.aggregations.bucket.nested.NestedAggregationBuilder;
import org.elasticsearch.search.aggregations.bucket.nested.ParsedNested;
import org.elasticsearch.search.aggregations.bucket.terms.ParsedLongTerms;
import org.elasticsearch.search.aggregations.bucket.terms.ParsedStringTerms;
import org.elasticsearch.search.aggregations.bucket.terms.Terms;
import org.elasticsearch.search.aggregations.bucket.terms.TermsAggregationBuilder;
import org.elasticsearch.search.builder.SearchSourceBuilder;
import org.elasticsearch.search.fetch.subphase.highlight.HighlightBuilder;
import org.elasticsearch.search.fetch.subphase.highlight.HighlightField;
import org.elasticsearch.search.sort.SortOrder;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import javax.swing.*;
import javax.swing.text.Highlighter;
import java.io.IOException;
import java.io.UnsupportedEncodingException;
import java.net.URLEncoder;
import java.util.ArrayList;
import java.util.List;
import java.util.stream.Collectors;
@Service
public class MallSearchServiceImpl implements MallSearchService {
@Autowired
private RestHighLevelClient client;
@Autowired
ProductFeignService productFeignService;
@Override
public SearchResult search(SearchParam param) {
//1.动态构建出查询需要的DSL语句
SearchResult result = null;
//1.准备检索请求
SearchRequest searchRequest = buildSearchRequrest(param);
try {
//2.执行检索请求
SearchResponse response = client.search(searchRequest, GulimallElasticSearchConfig.COMMON_OPTIONS);
//3.分析相应数据封装成我们需要的格式
result = buildSearchResult(response, param);
}catch (IOException e){
e.printStackTrace();
}
return result;
}
/**
* 准备检索请求
* #模糊匹配，过滤（按照属性，分类，品牌，价格区间，库存），排序，分页，高亮，聚合分析
* @return
*/
private SearchRequest buildSearchRequrest(SearchParam param) {
SearchSourceBuilder sourceBuilder = new SearchSourceBuilder();//构建DSL语句的
/**
* 查询： 过滤（按照属性，分类，品牌，价格区间，库存）
*/
//1. 构建bool-query
BoolQueryBuilder boolQuery = QueryBuilders.boolQuery();
//1.1 must-模糊查询
if(!StringUtils.isEmpty(param.getKeyword())){
boolQuery.must(QueryBuilders.matchQuery("skuTitle",param.getKeyword()));
}
//1.2 bool-filter- 按照三级分类id查询
if(param.getCatalog3Id()!=null){
boolQuery.filter(QueryBuilders.termQuery("catalogId",param.getCatalog3Id()));
}
//1.2 bool-filter- 按照品牌id查询
if(param.getBrandId()!=null && param.getBrandId().size()>0){
boolQuery.filter(QueryBuilders.termsQuery("brandId", param.getBrandId()));
}
//1.2 bool-filter- 按照所有指定的属性进行查询
if(param.getAttrs()!=null && param.getAttrs().size()>0){
for(String attrStr : param.getAttrs()){
//attrs=1_5寸：8寸&attrs=2_16g:8g
BoolQueryBuilder nestedboolQuery = QueryBuilders.boolQuery();
//attrs= 1_5寸：8寸
String[] s = attrStr.split("_");
String attrId = s[0];//检索的属性id
String[] attrValue = s[1].split(":");//用这个属性的检索用值
nestedboolQuery.must(QueryBuilders.termQuery("attrs.attrId", attrId));
nestedboolQuery.must(QueryBuilders.termsQuery("attrs.attrValue", attrValue));
//每一个必须都得生成一个nested查询
NestedQueryBuilder nestedQuery = QueryBuilders.nestedQuery("attrs",nestedboolQuery, ScoreMode.None);
boolQuery.filter(nestedQuery);
}
}
//1.2 bool-filter- 按照库存是否有进行查询
if(param.getHasStock() != null) {
boolQuery.filter(QueryBuilders.termsQuery("hasStock", param.getHasStock() == 1));
}
//1.2 bool-filter- 按照价格区间
if(!StringUtils.isEmpty(param.getSkuPrice())){
//1_500 _500 500_
//gte上区间
//lte下区间
RangeQueryBuilder rangeQuery = QueryBuilders.rangeQuery("skuPrice");
String[] s = param.getSkuPrice().split("_");
if(s.length == 2){
rangeQuery.gte(s[0]).lte(s[1]);
}else if(s.length == 1){
if(param.getSkuPrice().startsWith("_")){
rangeQuery.lte(s[0]);
}
if(param.getSkuPrice().endsWith("_")){
rangeQuery.gte(s[0]);
}
}
boolQuery.filter(rangeQuery);
}
//把以前的所有条件都拿来进行封装
sourceBuilder.query(boolQuery);
/**
* 排序，分页，高亮
*/
//2.1 排序
if(!StringUtils.isEmpty(param.getSort())){
String sort = param.getSort();
//sort = hotScore_asc/desc
String[] s = sort.split("_");
SortOrder order = s[1].equalsIgnoreCase("asc")?SortOrder.ASC:SortOrder.DESC;
sourceBuilder.sort(s[0], order);
}
//2.2 分页 pageSize：5
//pageNum:1 from:0 size:5 [0.1.2.3.4]
//pageNum:2 from:5 size:5
//from = (pageNum - 1)*size
sourceBuilder.from((param.getPageNum()-1)*EsConstant.PRODUCT_PAGESIZE);
sourceBuilder.size(EsConstant.PRODUCT_PAGESIZE);
//2.3 高亮
if(!StringUtils.isEmpty(param.getKeyword())){
HighlightBuilder builder = new HighlightBuilder();
builder.field("skuTitle");
builder.preTags("<b style='color:red'>");
builder.postTags("</b>");
sourceBuilder.highlighter(builder);
}
/**
* 聚合分析
*/
//1.品牌聚合
TermsAggregationBuilder brand_agg = AggregationBuilders.terms("brand_agg");
brand_agg.field("brandId").size(50);
//品牌聚合的子聚合
brand_agg.subAggregation(AggregationBuilders.terms("brand_name_agg").field("brandName").size(1));
brand_agg.subAggregation(AggregationBuilders.terms("brand_img_agg").field("brandImg").size(1));
sourceBuilder.aggregation(brand_agg);
//2.分类聚合
TermsAggregationBuilder catalog_agg = AggregationBuilders.terms("catalog_agg").field("catalogId").size(20);
catalog_agg.subAggregation(AggregationBuilders.terms("catalog_name_agg").field("catalogName").size(1));
sourceBuilder.aggregation(catalog_agg);
//3.属性聚合
NestedAggregationBuilder attr_agg = AggregationBuilders.nested("attr_agg","attrs");
//聚合分析出当前attr_id
TermsAggregationBuilder attr_id_agg = AggregationBuilders.terms("attr_id_agg").field("attrs.attrId");
//聚合分析出当前attr_id对应的名字
attr_id_agg.subAggregation(AggregationBuilders.terms("attr_name_agg").field("attrs.attrName").size(1));
//聚合分析出当前attr_id对应的所有可能的属性值attrValue
attr_id_agg.subAggregation(AggregationBuilders.terms("attr_value_agg").field("attrs.attrValue").size(50));
attr_agg.subAggregation(attr_id_agg);
sourceBuilder.aggregation(attr_agg);
String s = sourceBuilder.toString();
System.out.println("构建DSL" + s);
SearchRequest searchRequest = new SearchRequest(new String[]{EsConstant.PRODUCT_INDEX}, sourceBuilder);
return searchRequest;
}
/**
* 构建检索请求：
* #模糊匹配，过滤（按照属性，分类，品牌，价格区间，库存），排序，分页，高亮，聚合分析
* */
// private SearchRequest buildSearchRequrest(SearchParam searchParam) {
// SearchSourceBuilder searchSourceBuilder=new SearchSourceBuilder();//构建DSL语句
// BoolQueryBuilder boolQueryBuilder = QueryBuilders.boolQuery();
// /**
// * 模糊匹配，过滤（按照属性，分类，品牌，价格区间，库存）
// * */
// //1.构建bool-query
// //1.1 模糊匹配 bool - must
// if (!StringUtils.isEmpty(searchParam.getKeyword())){
// boolQueryBuilder.must(QueryBuilders.matchQuery("skuTitle",searchParam.getKeyword()));
// }
// //1.2 bool - filter 按照三级分类id查询
// if (searchParam.getCatalog3Id()!=null){
// boolQueryBuilder.filter(QueryBuilders.termQuery("catalogId",searchParam.getCatalog3Id()));
// }
// //1.3 bool -filter 按照品牌id查询
// if (searchParam.getBrandId()!=null&&searchParam.getBrandId().size()>0){
// boolQueryBuilder.filter(QueryBuilders.termsQuery("brandId",searchParam.getBrandId()));
// }
// //1.4 bool -filter - nested 按照指定的属性查询
// if (searchParam.getAttrs()!=null&&searchParam.getAttrs().size()>0){
// //每一个属性查询必须都得生成一个nested查询
// for (String attr : searchParam.getAttrs()) {
// BoolQueryBuilder nestedBoolQuery = QueryBuilders.boolQuery();
// //attrs=1_5寸:8寸&attrs=2_16G:8G
// String[] attrSplit = attr.split("_");
// String attrId = attrSplit[0];
// String[] attrValues = attrSplit[1].split(":");
// nestedBoolQuery.must(QueryBuilders.termQuery("attrs.attrId",attrId));
// nestedBoolQuery.must(QueryBuilders.termsQuery("attrs.attrValue",attrValues));
// //每一个必须都得生成一个nested查询
// NestedQueryBuilder nestedQuery = QueryBuilders.nestedQuery("attrs", nestedBoolQuery, ScoreMode.None);
// boolQueryBuilder.filter(nestedQuery);
// }
// }
// //1.5 bool -filter 是否有库存查询
// if (searchParam.getHasStock()==null){
// //如果没有传输是否有库存这个参数，默认查找有库存的
// boolQueryBuilder.filter(QueryBuilders.termQuery("hasStock",true));
// }else {
// boolQueryBuilder.filter(QueryBuilders.termQuery("hasStock",searchParam.getHasStock()==0));
// }
//
// //1.6按照价格区间
// if (!StringUtils.isEmpty(searchParam.getSkuPrice())){
// RangeQueryBuilder skuPriceRangeQuery = QueryBuilders.rangeQuery("skuPrice");
// String[] s = searchParam.getSkuPrice().split("_");
// if (s.length == 2 ){
// //区间
// skuPriceRangeQuery.gte(s[0]).lte(s[1]);
// }else if (s.length==1){
// if (searchParam.getSkuPrice().startsWith("_")){
// skuPriceRangeQuery.lte(s[0]);
// }
// if (searchParam.getSkuPrice().endsWith("_")){
// skuPriceRangeQuery.gte(s[0]);
// }
// }
// boolQueryBuilder.filter(skuPriceRangeQuery);
// }
// searchSourceBuilder.query(boolQueryBuilder);
//
// /**
// * 排序，分页，
// * sort=saleCount_asc/desc
// * sort=skuPrice_asc/desc
// * sort= hotScore_asc/desc
// * */
// if (!StringUtils.isEmpty(searchParam.getSort())){
// String sort = searchParam.getSort();
// String[] sortSplit = sort.split("_");
// SortOrder sortOrder = sortSplit[1].equalsIgnoreCase("asc")?SortOrder.ASC:SortOrder.DESC;
// searchSourceBuilder.sort(sortSplit[0],sortOrder);
// }
// //分页
// if (searchParam.getPageNum()==null){
// //如果没有传输pagenum参数,默认为第一页
// searchSourceBuilder.from(((1-1)*EsConstant.PRODUCT_PAGESIZE));
// searchSourceBuilder.size(EsConstant.PRODUCT_PAGESIZE);
// }else {
// searchSourceBuilder.from((searchParam.getPageNum()-1)*EsConstant.PRODUCT_PAGESIZE);
// searchSourceBuilder.size(EsConstant.PRODUCT_PAGESIZE);
// }
//
// /**
// * 高亮
// * */
// if (!StringUtils.isEmpty(searchParam.getKeyword())){
// HighlightBuilder highlightBuilder=new HighlightBuilder();
// highlightBuilder.field("skuTitle");
// highlightBuilder.preTags("<b style= 'color:red'>");
// highlightBuilder.postTags("</b>");
// searchSourceBuilder.highlighter(highlightBuilder);
// }
// /**
// * 聚合分析
// * */
//
// //1.品牌的聚合
// TermsAggregationBuilder brand_agg = AggregationBuilders.terms("brand_agg");
// brand_agg.field("brandId");
// //品牌的子聚合
// brand_agg.subAggregation(AggregationBuilders.terms("brand_name_agg").field("brandName").size(1));
// brand_agg.subAggregation(AggregationBuilders.terms("brand_img_agg").field("brandImg").size(1));
// //TODO 1. 品牌的聚合
// searchSourceBuilder.aggregation(brand_agg);
// //2.分类聚合 catalog_agg
// TermsAggregationBuilder catalog_agg = AggregationBuilders.terms("catalog_agg").field("catalogId").size(20);
// catalog_agg.subAggregation(AggregationBuilders.terms("catalog_name_agg").field("catalogName").size(1));
// //TODO 2. 分类的聚合
// searchSourceBuilder.aggregation(catalog_agg);
// //3.属性聚合 attr_agg
// NestedAggregationBuilder attr_agg = AggregationBuilders.nested("attr_agg", "attrs");
// //3.1聚合当前所有的attrId
// TermsAggregationBuilder attr_id_agg = AggregationBuilders.terms("attr_id_agg").field("attrs.attrId").size(10);
// //3.2聚合分析出当前attr_id对应的名字
// attr_id_agg.subAggregation(AggregationBuilders.terms("attr_name_agg").field("attrs.attrName").size(1));
// //3.3聚合分析出当前attr_id对应的所有可能的属性值attrValue
// attr_id_agg.subAggregation(AggregationBuilders.terms("attr_value_agg").field("attrs.attrValue").size(50));
// attr_agg.subAggregation(attr_id_agg);
// //TODO 3. 属性的聚合
// searchSourceBuilder.aggregation(attr_agg);
// //打印构造的DSL
// String s = searchSourceBuilder.toString();
// System.out.println("构建的DSL："+s);
//
// SearchRequest searchRequest = new SearchRequest(new String[]{EsConstant.PRODUCT_INDEX}, searchSourceBuilder);
// return searchRequest;
// }
/**
* 构建结果
*/
private SearchResult buildSearchResult(SearchResponse response,SearchParam param){
SearchResult result = new SearchResult();
//1. 返回所有查询到的商品
SearchHits hits = response.getHits();
List<SkuEsModel> esModels = new ArrayList<>();
if(hits.getHits() != null && hits.getHits().length > 0){
for(SearchHit hit : hits.getHits()){
String sourceAsString = hit.getSourceAsString();
SkuEsModel esModel = JSON.parseObject(sourceAsString, SkuEsModel.class);
if(!StringUtils.isEmpty(param.getKeyword())){
HighlightField skuTitle = hit.getHighlightFields().get("skuTitle");
String string = skuTitle.getFragments()[0].string();
esModel.setSkuTitle(string);
}
esModels.add(esModel);
}
}
result.setProducts(esModels);
//2. 当前所有商品涉及到的所有属性信息
List<SearchResult.AttrVo> attrVos = new ArrayList<>();
ParsedNested attr_agg = response.getAggregations().get("attr_agg");
ParsedLongTerms attr_id_agg = attr_agg.getAggregations().get("attr_id_agg");
for(Terms.Bucket bucket : attr_id_agg.getBuckets()){
SearchResult.AttrVo attrVo = new SearchResult.AttrVo();
//1.得到属性的id
long attrId = bucket.getKeyAsNumber().longValue();
//2.得到属性的名字
String attrName = ((ParsedStringTerms) bucket.getAggregations().get("attr_name_agg")).getBuckets().get(0).getKeyAsString();
//3.得到属性的所有值
List<String> attrValues = ((ParsedStringTerms) bucket.getAggregations().get("attr_value_agg")).getBuckets().stream().map(item->{
String keyAsString = ((Terms.Bucket) item).getKeyAsString();
return keyAsString;
}).collect(Collectors.toList());
attrVo.setAttrId(attrId);
attrVo.setAttrName(attrName);
attrVo.setAttrValue(attrValues);
attrVos.add(attrVo);
}
result.setAttrs(attrVos);
//3. 当前所有商品涉及到的所有品牌信息
List<SearchResult.BrandVo> brandVos = new ArrayList<>();
ParsedLongTerms brand_agg = response.getAggregations().get("brand_agg");
for(Terms.Bucket bucket : brand_agg.getBuckets()){
SearchResult.BrandVo brandVo = new SearchResult.BrandVo();
//1. 得到品牌id
long brandId = bucket.getKeyAsNumber().longValue();
//2. 得到品牌名
String brandName = ((ParsedStringTerms)bucket.getAggregations().get("brand_name_agg")).getBuckets().get(0).getKeyAsString();
//3. 得到品牌的图片
String brandImg = ((ParsedStringTerms)bucket.getAggregations().get("brand_img_agg")).getBuckets().get(0).getKeyAsString();
brandVo.setBrandId(brandId);
brandVo.setBrandName(brandName);
brandVo.setBrandImg(brandImg);
brandVos.add(brandVo);
}
result.setBrands(brandVos);
//4. 当前所有商品涉及到的所有分类信息
ParsedLongTerms catalog_agg = response.getAggregations().get("catalog_agg");
List<SearchResult.CatalogVo> catalogVos = new ArrayList<>();
List<? extends Terms.Bucket> buckets = catalog_agg.getBuckets();
for(Terms.Bucket bucket : buckets){
SearchResult.CatalogVo catalogVo = new SearchResult.CatalogVo();
//得到分类id
String keyAsString = bucket.getKeyAsString();
catalogVo.setCatalogId(Long.parseLong(keyAsString));
//得到分类名
ParsedStringTerms catalog_name_agg = bucket.getAggregations().get("catalog_name_agg");
String catalog_name = catalog_name_agg.getBuckets().get(0).getKeyAsString();
catalogVo.setCatalogName(catalog_name);
catalogVos.add(catalogVo);
}
result.setCatalogs(catalogVos);
//==========以上从聚合信息中获取==============
//5. 分页信息-页码
result.setPageNum(param.getPageNum());
//5. 分页信息-总记录数
long total = hits.getTotalHits().value;
result.setTotal(total);
//5. 分页信息-总页码
int totalPages = (int)total%EsConstant.PRODUCT_PAGESIZE == 0?(int)total/EsConstant.PRODUCT_PAGESIZE:((int)total/EsConstant.PRODUCT_PAGESIZE + 1);
result.setTotalPages(totalPages);
List<Integer> pageNavs = new ArrayList<>();
for(int i = 1; i <= totalPages; i++){
pageNavs.add(i);
}
result.setPageNavs(pageNavs);
//6.构建面包屑导航功能
if(param.getAttrs() != null && param.getAttrs().size()>0){
List<SearchResult.NavVo> collect = param.getAttrs().stream().map(attr -> {
//1.分析每个attrs传过来的查询参数值
SearchResult.NavVo navVo = new SearchResult.NavVo();
String[] s = attr.split("_");
navVo.setNavValue(s[1]);
R r = productFeignService.attrInfo(Long.parseLong(s[0]));
result.getAttrIds().add(Long.parseLong(s[0]));
if(r.getCode() == 0){
AttrResponseVo data = r.getData("attr", new TypeReference<AttrResponseVo>(){
});
navVo.setNavName(data.getAttrName());
}else{
navVo.setNavName(s[0]);
}
//2.取消面包屑后，跳转剩下条件的页面
//将请求地址的url清空
//拿到所有的查询条件，去掉当前
String replace = replaceQueryString(param, attr, "attrs");
navVo.setLink("http://search.yjlmall.com/list.html?"+replace);
return navVo;
}).collect(Collectors.toList());
result.setNavs(collect);
}
//品牌 分类
if(param.getBrandId() != null && param.getBrandId().size() > 0){
List<SearchResult.NavVo> navs = result.getNavs();
SearchResult.NavVo navVo = new SearchResult.NavVo();
navVo.setNavName("品牌");
//TODO 远程查询所有品牌
R r = productFeignService.brandsInfo(param.getBrandId());
if(r.getCode() == 0){
List<BrandVo> brand = r.getData("brand", new TypeReference<List<BrandVo>>() {});
StringBuffer buffer = new StringBuffer();
String replace = "";
for (BrandVo brandVo : brand){
buffer.append(brandVo.getBrandName()+";");
replace = replaceQueryString(param,brandVo.getBrandId()+"","brandId");
}
navVo.setNavValue(buffer.toString());
navVo.setLink("http://search.yjlmall.com/list.html?"+replace);
}
navs.add(navVo);
}
//TODO 分类：不需要导航取消
return result;
}
private String replaceQueryString(SearchParam param, String value, String key){
String encode = null;
try{
encode = URLEncoder.encode(value, "UTF-8");
encode = encode.replace("+","%20");
}catch (UnsupportedEncodingException e){
e.printStackTrace();
}
return param.get_queryString().replace("&"+key+"=" + encode, "");
}
}
5、实体类
package com.atguigu.gulimall.search.vo;
import lombok.Data;
@Data
public class BrandVo {
private Long brandId;
private String brandName;
}
package com.atguigu.gulimall.search.vo;
import lombok.Data;
@Data
public class AttrResponseVo {
/**
* 属性id
*/
private Long attrId;
/**
* 属性名
*/
private String attrName;
/**
* 是否需要检索[0-不需要，1-需要]
*/
private Integer searchType;
private Integer valueType;
/**
* 属性图标
*/
private String icon;
/**
* 可选值列表[用逗号分隔]
*/
private String valueSelect;
/**
* 属性类型[0-销售属性，1-基本属性，2-既是销售属性又是基本属性]
*/
private Integer attrType;
/**
* 启用状态[0 - 禁用，1 - 启用]
*/
private Long enable;
/**
* 所属分类
*/
private Long catelogId;
/**
* 快速展示【是否展示在介绍上；0-否 1-是】，在sku中仍然可以调整
*/
private Integer showDesc;
private Long attrGroupId;
/**
* "catelogName": "手机/数码/手机", //所属分类名字
* "groupName": "主体", //所属分组名字
*
*/
private String catelogName;
private String groupName;
private Long[] catelogPath;
}
package com.atguigu.gulimall.search.vo;
import lombok.Data;
import java.util.List;
/**
* 封装页面所有可能传递过来的查询条件
*
*
*/
@Data
public class SearchParam {
private String keyword; //页面传递过来的全文匹配关键字
private Long catalog3Id; //三级分类id
private String sort; //排序条件
private Integer hasStock;//是否有货
private String skuPrice;//价格区间查询
private List<Long> brandId;//根据品牌进行查询，可以多选
private List<String> attrs;//按照属性进行筛选
private Integer pageNum = 1;//页码
private String _queryString;//原生的所有查询条件
}
package com.atguigu.gulimall.search.vo;
import com.atguigu.common.to.es.SkuEsModel;
import lombok.Data;
import java.util.ArrayList;
import java.util.List;
@Data
public class SearchResult {
//查询到的所有商品信息
private List<SkuEsModel> products;
/**
* 以下是分页信息
*/
private Integer pageNum; //当前页码
private Long total; //总记录数
private Integer totalPages; //总页码
private List<Integer> pageNavs;
private List<BrandVo> brands; //当前查询到的结果，所有设计到的品牌
private List<AttrVo> attrs; //所有涉及到的所有属性
private List<CatalogVo> catalogs; //所有涉及到的所有分类
//======================以上是返回给页面的所有信息=============================
@Data
public static class BrandVo{
private Long brandId;
private String brandName;
private String brandImg;
}
@Data
public static class AttrVo{
private Long attrId;
private String attrName;
private List<String> attrValue;
}
@Data
public static class CatalogVo{
private Long catalogId;
private String catalogName;
}
//面包屑导航数据
private List<NavVo> navs = new ArrayList<>();
private List<Long> attrIds = new ArrayList<>();
@Data
public static class NavVo{
private String navName;
private String navValue;
private String link;
}
}
6、主要问题
1、数据一致性
一定要坚持之前商品上传的数据是否正确，有缺失，我就因为之前SkuTitle拷贝字段时，名称写错了，导致丢失这一字段，在搜索功能中，keyword查询就不能成功
2、为什么当list.html查询所有数据时，我返回的DSL只能查询出部分数据：
GET gulimall_product/_search
查询时，我是有返回苹果的数据
但输入DSL：全局查询的list.html
也有八个数据，但为什么没有苹果这个品牌，只有华为的，导致后面返回结果就没有封装苹果，主页面就只有两个华为信息
求解答！！！！！！！呜呜呜呜呜
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
