tkinter的columnspan和rowspan

columnspan和rowspan分别可以设置控件在行和列方向的合并数量
原代码为：

from tkinter import *

window = Tk()
window.title('grid')

lab1 = Label(window, text='one', bg='lightyellow', width=15)
lab2 = Label(window, text='two', bg='lightgreen', width=15)
lab3 = Label(window, text='three', bg='lightblue', width=15)
lab4 = Label(window, text='four', bg='lightgray', width=15)
lab5 = Label(window, text='five', bg='lightpink', width=15)

lab1.grid(row=0, column=0)  # 0行0列
lab2.grid(row=0, column=1)  # 0行1列
lab3.grid(row=0, column=2)  # 0行2列
lab4.grid(row=1, column=0)  # 1行0列
lab5.grid(row=1, column=2)  # 1行2列

window.mainloop()

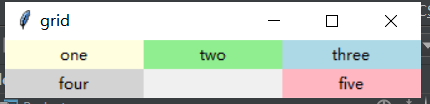

运行结果为：

修改为：

lab1.grid(row=0, column=0)  # 0行0列
lab2.grid(row=0, column=1)  # 0行1列
lab3.grid(row=0, column=2)  # 0行2列
lab4.grid(row=1, column=0, columnspan=2)  # 1行0列
lab5.grid(row=1, column=2)  # 1行2列

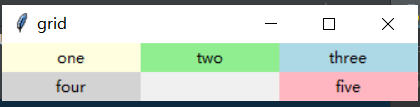

运行结果为：

修改为;

from tkinter import *

window = Tk()
window.title('grid')

lab1 = Label(window, text='one', bg='lightyellow', width=15)
lab2 = Label(window, text='two', bg='lightgreen', width=15)
lab3 = Label(window, text='three', bg='lightblue', width=15)
lab4 = Label(window, text='four', bg='lightgray', width=15)
lab5 = Label(window, text='five', bg='lightpink', width=15)

lab1.grid(row=0, column=0)  # 0行0列
lab2.grid(row=0, column=1, rowspan=2)  # 0行1列
lab3.grid(row=0, column=2)  # 0行2列
lab4.grid(row=1, column=0)  # 1行0列
lab5.grid(row=1, column=2)  # 1行2列

window.mainloop()

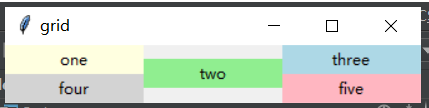

运行结果为：

值得注意的是，默认的是向右和向左合并，例如，若代码为：

lab1.grid(row=0, column=0)  # 0行0列
lab2.grid(row=0, column=1)  # 0行1列
lab3.grid(row=0, column=2)  # 0行2列
lab4.grid(row=1, column=0)  # 1行0列
lab5.grid(row=1, column=2, columnspan=2)  # 1行2列

运行结果为：
