一、稀疏矩阵
1.1 概念
在矩阵中,若数值为0的元素数目远远多于非0元素的数目,并且非0元素分布没有规律时,则称该矩阵为稀疏矩阵;与之相反,若非0元素数目占大多数时,则称该矩阵为稠密矩阵。定义非零元素的总数比上矩阵所有元素的总数为矩阵的稠密度。
二、图解和代码实现

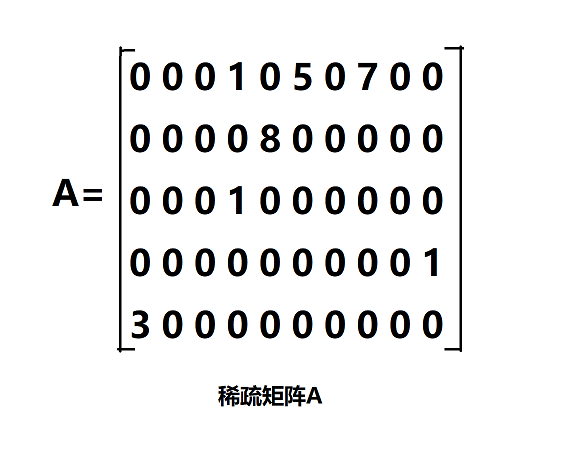

2.1 结构图
由上图可知非零元素远少于零元素,这是稀疏矩阵最大的特点
2.2 代码实现
Triple.cpp
/**
* @Author: lwj
* @Date: 2022-06-04 20:09:36
* @Description:三元组表构建稀疏矩阵
* @FilePath: /Linux_C_C-plus-plus/数据结构(C++)/Triple/triple.h
**/
#include <iostream>
#include <assert.h>
template <typename Type>
class Triple //三元组表
{
private:
struct Node //三元组表的类型,一个struct类型代表一个结点
{
int row; //非零元素的行号
int col; //非零元素的列号
Type data; //非零元素的值
Node(int r = -1, int c = -1, Type d = 0) //结点构造函数
{
row = r;
col = c;
data = d;
}
void pushNodeValue(int r, int c, Type d) //元素赋值
{
row = r;
col = c;
data = d;
}
};
Node *matrix; //三元组表
int numRow; //矩阵的行数
int numCol; //矩阵的列数
int count; //非零元素个数
int maxSize; //矩阵容量
public:
Triple(int r, int c, int size = 10); //构造函数,默认矩阵容量为10
~Triple() { delete[] matrix; } //析构函数
void pushValue(int r, int c, const Type &size); //元素赋值
Type getValue(int r, int c) const; //取元素的值
void transpose(const Triple<Type> &t); //用当前对象保存A的转置的三元组表
void print() const; //输出三元组表
void resize(); //扩大三元组表空间
};
template <typename Type>
Triple<Type>::Triple(int r, int c, int size) //行数r,列数c,非零个数size
{
assert(r >= 0 && c >= 0 && size >= 0); //判定传入的数是否越界
numRow = r;
numCol = c;
count = 0;
if (r * c > size) // r*c为最大容量
{
maxSize = size;
}
else
{
maxSize = r * c; //最多只能有c*r个非零元素
}
if (maxSize != 0)
{
matrix = new Node[maxSize]; //开辟矩阵空间
}
else
{
matrix = nullptr;
}
}
template <typename Type>
void Triple<Type>::pushValue(int r, int c, const Type &size) //元素赋值
{
if (size == 0) // 0不存储
{
return;
}
assert(r >= 0 && r < numRow && c >= 0 && c < numCol); //越界报错
if (count == maxSize) //空间满扩容
{
resize();
}
int i;
for (i = 0; i < count; i++)
{
if (matrix[i].row > r || (matrix[i].row == r && matrix[i].col > c))
{
break; //说明要插入的位置没有元素,跳出循环
}
if (matrix[i].row == r && matrix[i].col == c)
{
//说明要插入位置已有元素,则用新值覆盖它
matrix[i].pushNodeValue(r, c, size);
return;
}
}
for (int j = count - 1; j >= i; j--)
{
matrix[j + 1] = matrix[j];
}
matrix[i].pushNodeValue(r, c, size);
count++;
}
template <typename Type>
Type Triple<Type>::getValue(int r, int c) const //取元素的值
{
if (count == 0) //如果为空,直接返回0
{
return 0;
}
assert(r >= 0 && r < numRow && c >= 0 && c < numCol); //越界报错
for (int i = 0; i < count; i++)
{
if (matrix[i].row == r && matrix[i].col == c)
{
return matrix[i].data;
}
}
return 0;
}
// a为未逆置前,b是逆置后,根据矩阵的规律发现,逆置后:a[i][j]=b[j][i]
template <typename Type>
void Triple<Type>::transpose(const Triple<Type> &A) //用当前对象保存A的转置的三元组表
{
//先构建b矩阵
numCol = A.numRow;
numRow = A.numCol;
if (maxSize < A.count) //如果b矩阵存不下a的逆置,重新开辟空间
{
maxSize = A.maxSize;
delete[] matrix; //释放b的空间
matrix = new Node[maxSize];
}
count = A.count;
int q = 0; //控制当前对象matrix空间的下标
for (int i = 0; i < A.numCol; i++) //按列转序,列号不为-1则存在非0元素
{
for (int j = 0; j < A.count; j++) // j控制对象A的数组的下标
{
if (A.matrix[j].col == i)
{
matrix[q].row = A.matrix[j].col;
matrix[q].col = A.matrix[j].row;
matrix[q].data = A.matrix[j].data;
q++;
}
}
}
}
template <typename Type>
void Triple<Type>::print() const //输出三元组表
{
std::cout << "Row:" << numRow << "\t"
<< "Col:" << numCol << "\t"
<< "Count:" << count << std::endl;
for (int i = 0; i < count; i++)
{
std::cout << "(" << matrix[i].row << ","
<< matrix[i].col << ","
<< matrix[i].data << ")" << std::endl;
}
}
template <typename Type>
void Triple<Type>::resize() //扩大三元组表空间
{
Node *tmp = matrix; //把原空间先给tmp保管
if (2 * maxSize > numRow * numCol)
{
maxSize = numRow * numCol;
}
else
{
maxSize = 2 * maxSize;
}
matrix = new Node[maxSize]; //创建新空间
for (int i = 0; i < count; i++) //把数据放入新空间中
{
matrix[i] = tmp[i];
}
delete[] tmp;
tmp = nullptr;
}
main.cpp
/**
* @Author: lwj
* @Date: 2022-06-04 20:11:32
* @Description:稀疏矩阵的测试
* @FilePath: /Linux_C_C-plus-plus/数据结构(C++)/Triple/main.cpp
**/
#include <iostream>
#include "triple.h"
using namespace std;
void test01()
{
Triple<int> T1(3, 3, 2);
T1.pushValue(0, 2, 3);
T1.pushValue(0, 1, 2);
T1.pushValue(0, 0, 1);
T1.print();
//取位置为(2,0),(0,2)的元素
int value01 = T1.getValue(2, 0);
int value02 = T1.getValue(0, 2);
cout << "value01 = " << value01 << "\t"
<< "value02 = " << value02 << endl;
//逆置
Triple<int> T2(3, 3, 2);
T2.transpose(T1);
T2.print();
}
int main()
{
test01();
return 0;
}
