基于多路复用的服务端

基于多路复用的服务端

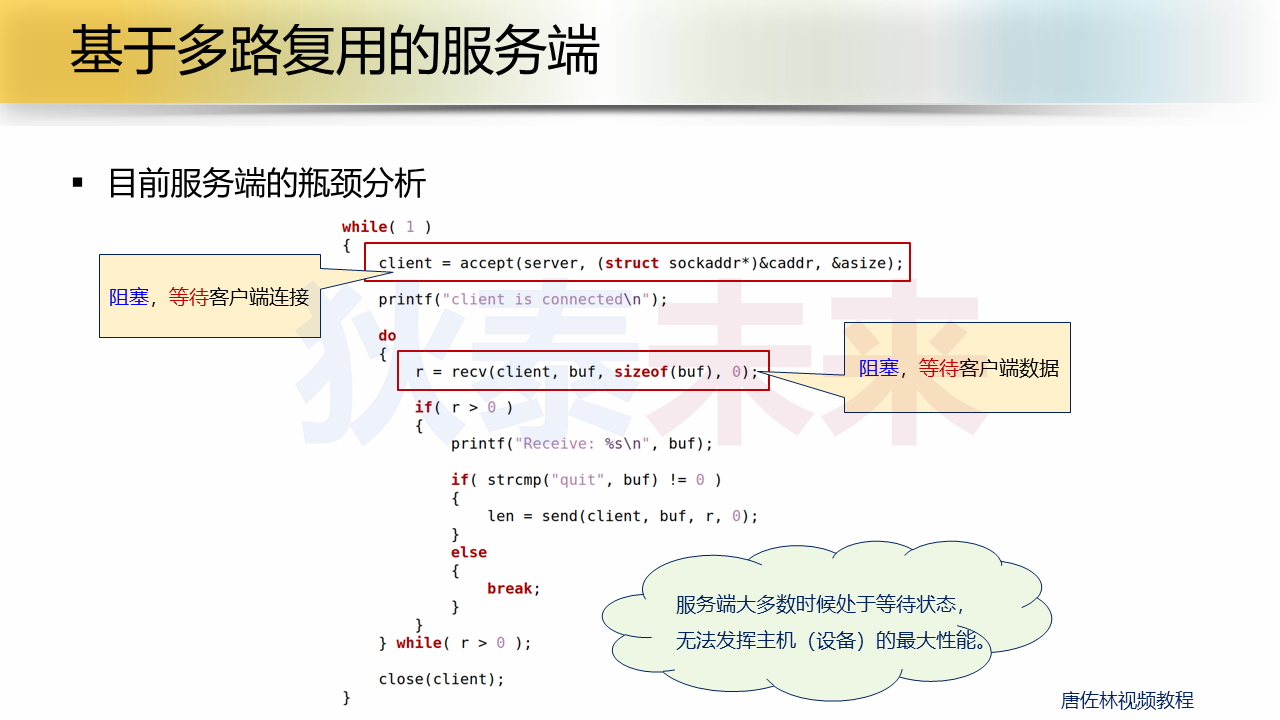

1、目前服务端的瓶颈分析

2、解决方案：阻塞变轮询

• 通过select()函数首先监听服务端server_fd，目标事件为“连接”（读）
• 当事件发生（客户端连接）则调用sccpet()接收连接
• 将client_fd加入监听范围，目标事件为“数据接收”
• 循环查看各个被监听的文件描述符是否有时间发生

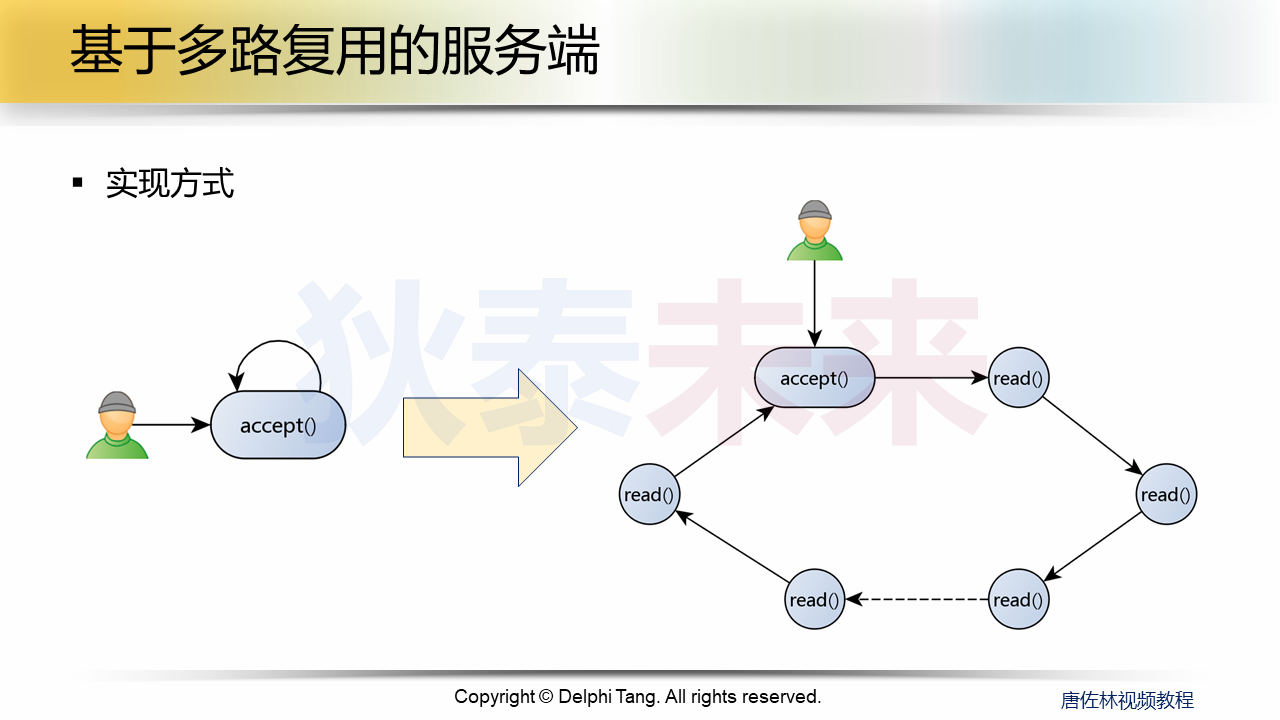

3、实现方式

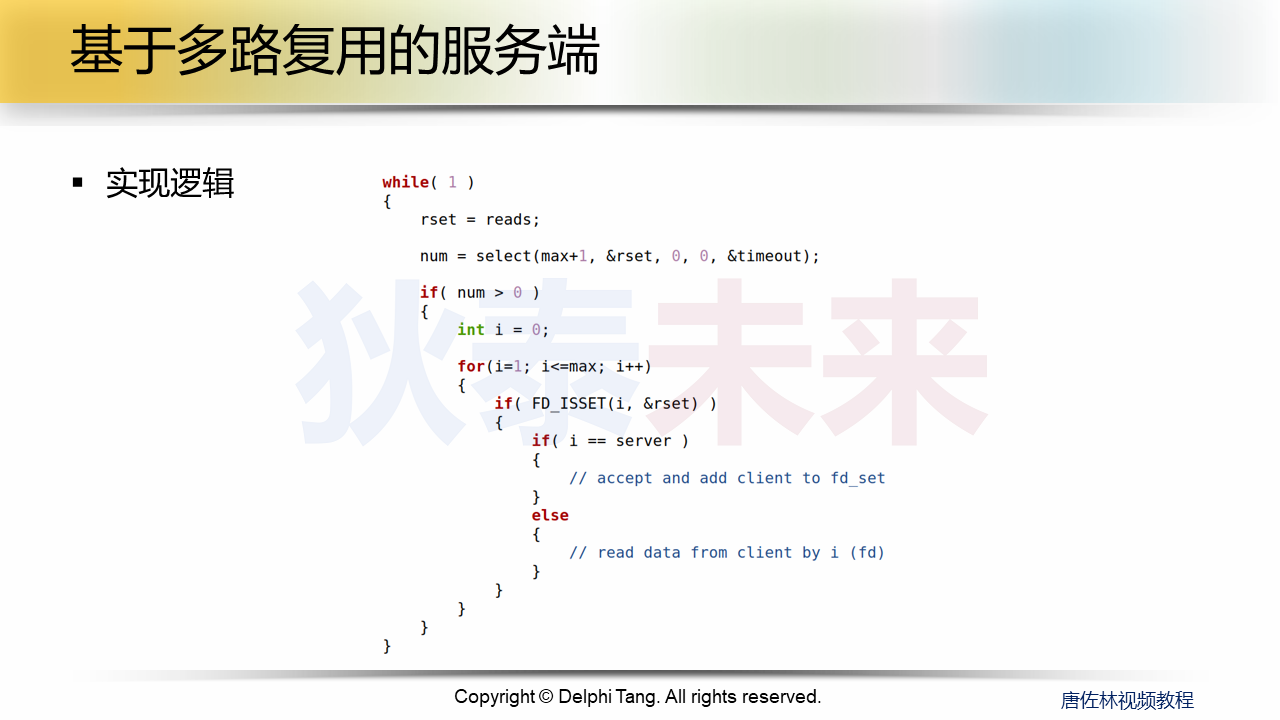

4、实现逻辑

5、实现关键

• 动态调整需要监视的文件描述符
  • 当接收到客户端连接时，将客户端文件描述符加入监听变量(fd_set)中
  • 当发现客户端断开时，在监听变量(fd_set)中剔除客户端文件描述符

if(client > -1)
{
    FD_SET(client, &reads);

    max = (client > max) ? client : max;

    printf("client accept\n");
}

if(r == -1)
{
    FD_CLR(i, &reads);

    close(i);
}

• 保证每个需要监视的文件描述符能够被轮询
• max = (client > max)?client:max;

6、代码实现

#include <sys/types.h>
#include <sys/socket.h>
#include <sys/select.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <stdio.h>
#include <unistd.h>
#include <string.h>

int server_handle(int server)
{
    struct sockaddr_in addr = {0};
    socklen_t asize = sizeof(addr);

    return accept(server, (struct sockaddr*)&addr, &asize);
}

int client_handle(int client)
{
    char buf[32] = {0};

    int ret = read(client, buf, sizeof(buf)-1);
    if(ret > 0)
    {
        buf[ret] = 0;

        printf("Receive buf:%s\n",buf);

        if(strcmp(buf, "quit") != 0)
        {
            ret = write(client, buf, ret);
        }
        else
        {
            ret = -1;
        }

    }
    return ret;
}

int main(void)
{
    int server = 0;
    struct sockaddr_in saddr = {0};
    int max = 0;
    int num = 0;
    fd_set reads = {0};
    fd_set tmps = {0};
    struct timeval timeout = {0};

	server = socket(PF_INET, SOCK_STREAM, 0);
    if( server == -1)
    {
        printf("server socket err\n");
        return -1;
    }

    saddr.sin_family = AF_INET;
    saddr.sin_addr.s_addr = htonl(INADDR_ANY);
    saddr.sin_port = htons(20108);

    if( bind(server,(struct sockaddr*)&saddr, sizeof(saddr)) == -1 )
    {
        printf("server bind err\n");
        return -1;
    }

    if( listen(server,1) == -1 )
    {
        printf("server listen err\n");
        return -1;
    }

    printf("server start success\n");

    FD_ZERO(&reads);
    FD_SET(server, &reads);

    max = server;

    while( 1 )
    {
        tmps = reads;

        timeout.tv_sec = 0;
        timeout.tv_usec = 10*1000;

        num = select(max+1, &tmps, 0, 0, &timeout);
        if(num > 0)
        {
            int i = 0;
            for(i = 1; i <= max; i++)
            {
                if(FD_ISSET(i, &tmps))
                {
                    if(i == server)
                    {
                        int client = server_handle(server);
                        if(client > -1)
                        {
                            FD_SET(client, &reads);

                            max = (client > max) ? client : max;

                            printf("client accept\n");
                        }
                    }
                    else
                    {
                        int r = client_handle(i);
                        if(r == -1)
                        {
                            FD_CLR(i, &reads);

                            close(i);
                        }
                    }
                }
            }
        }
    }
    close(server);
    return 0;
}

7、思考

改进后的服务端是否还有优化的空间？

select()是Linux系统特有的吗？
