SpringCloud Alibaba第十三章,升级篇,服务降级、熔断和限流Sentinel

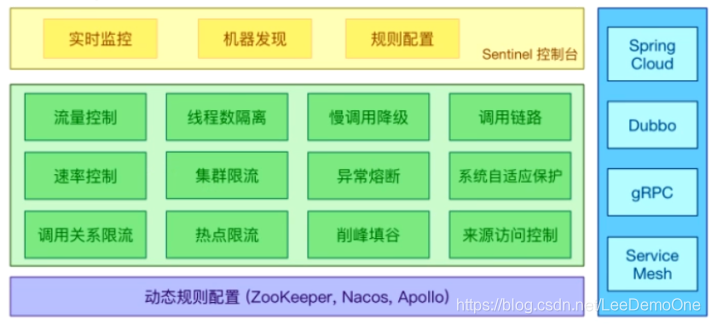

一、Sentinel概述
1、Sentinel是什么
随着微服务的流行,服务和服务之间的稳定性变得越来越重要。Sentinel 以流量为切入点,从流量控制、熔断降级、系统负载保护等多个维度保护服务的稳定性。
一句话概括:sentinel即Hystrix的替代品
官网: https://sentinelguard.io/zh-cn/
下载:https://github.com/alibaba/Sentinel/releases
2、Sentinel基本概念
2.1、资源:
资源是 Sentinel 的关键概念。它可以是 Java 应用程序中的任何内容,例如,由应用程序提供的服务,或由应用程序调
用的其它应用提供的服务,甚至可以是一段代码。在接下来的文档中,我们都会用资源来描述代码块。
只要通过 Sentinel API 定义的代码,就是资源,能够被 Sentinel 保护起来。大部分情况下,可以使用方法签名,
URL,甚至服务名称作为资源名来标示资源。
2.2、规则:
围绕资源的实时状态设定的规则,可以包括流量控制规则、熔断降级规则以及系统保护规则。所有规则可以动态实时调整。
2.3、流量控制:
流量控制在网络传输中是一个常用的概念,它用于调整网络包的发送数据。然而,从系统稳定性角度考虑,在处理请求的速度
上,也有非常多的讲究。任意时间到来的请求往往是随机不可控的,而系统的处理能力是有限的。我们需要根据系统的处理能
力对流量进行控制。Sentinel 作为一个调配器,可以根据需要把随机的请求调整成合适的形状.
流量控制有一下几个角度:
1、资源的调用关系,例如资源的调用链路,资源和资源之间的关系;
2、运行指标,例如 QPS、线程池、系统负载等;
3、控制的效果,例如直接限流、冷启动、排队等。
2.4、熔断降级:
降低调用链路中的不稳定资源也是 Sentinel 的使命之一。由于调用关系的复杂性,如果调用链路中的某个资源出现了不稳
定,最终会导致请求发生堆积。这个问题和 Hystrix 里面描述的问题是一样的。
Sentinel 和 Hystrix 的原则是一致的: 当调用链路中某个资源出现不稳定,例如,表现为 timeout,异常比例升高的
时候,则对这个资源的调用进行限制,并让请求快速失败,避免影响到其它的资源,最终产生雪崩的效果。
Sentinel和Hystrix在限制手段上,采取了不一样的方法:
1、Hystrix通过线程池的方式:
Hystrix 通过线程池的方式,来对依赖进行了隔离。
2、Sentinel 对这个问题采取了两种手段:
a、通过并发线程数进行限制
b、通过响应时间对资源进行降级
2.5、系统负载保护:
Sentinel 同时对系统的维度提供保护。防止雪崩,是系统防护中重要的一环。当系统负载较高的时候,如果还持续让请求
进入,可能会导致系统崩溃,无法响应。在集群环境下,网络负载均衡会把本应这台机器承载的流量转发到其它的机器上去。
如果这个时候其它的机器也处在一个边缘状态的时候,这个增加的流量就会导致这台机器也崩溃,最后导致整个集群不可用。
针对这个情况,Sentinel 提供了对应的保护机制,让系统的入口流量和系统的负载达到一个平衡,保证系统在能力范围之
内处理最多的请求。
二、Sentinel控制台安装
Sentinel分为两个部分:
1、核心库
2、控制台dashboard,基于Springboot开发,打包后可直接运行,不需要Tomcat等额外的容器
下载:
https://github.com/alibaba/Sentinel/releases
运行:
Sentinel Dashboard默认的端口是8080
java -jar sentinel-dashboard-1.7.0.jar
访问:
http://localhost:8080/
账号:sentinel 密码:sentinel
三、Sentinel案例
3.1、初始化演示工程
创建cloudalibaba-sentinel-service-8401
<parent>
<artifactId>cloud_2020</artifactId>
<groupId>com.lee.springcloud</groupId>
<version>1.0-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>cloudalibaba-sentinel-service-8401</artifactId>
POM
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<artifactId>cloud_2020</artifactId>
<groupId>com.lee.springcloud</groupId>
<version>1.0-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>cloudalibaba-sentinel-service-8401</artifactId>
<dependencies>
<!--SpringCloud ailibaba sentinel-datasource-nacos 后续做持久化用到-->
<dependency>
<groupId>com.alibaba.csp</groupId>
<artifactId>sentinel-datasource-nacos</artifactId>
</dependency>
<!--SpringCloud ailibaba sentinel -->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
</dependency>
<!--SpringCloud ailibaba nacos -->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>
<dependency>
<groupId>com.lee.springcloud</groupId>
<artifactId>cloud-api-commons</artifactId>
<version>${project.version}</version>
</dependency>
<!--openfeign-->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
<!-- SpringBoot整合Web组件+actuator -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
<!--日常通用jar包配置-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-devtools</artifactId>
<scope>runtime</scope>
<optional>true</optional>
</dependency>
<dependency>
<groupId>cn.hutool</groupId>
<artifactId>hutool-all</artifactId>
<version>4.6.3</version>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
