STM32 HAL库外部中断检测简记

CubeMX

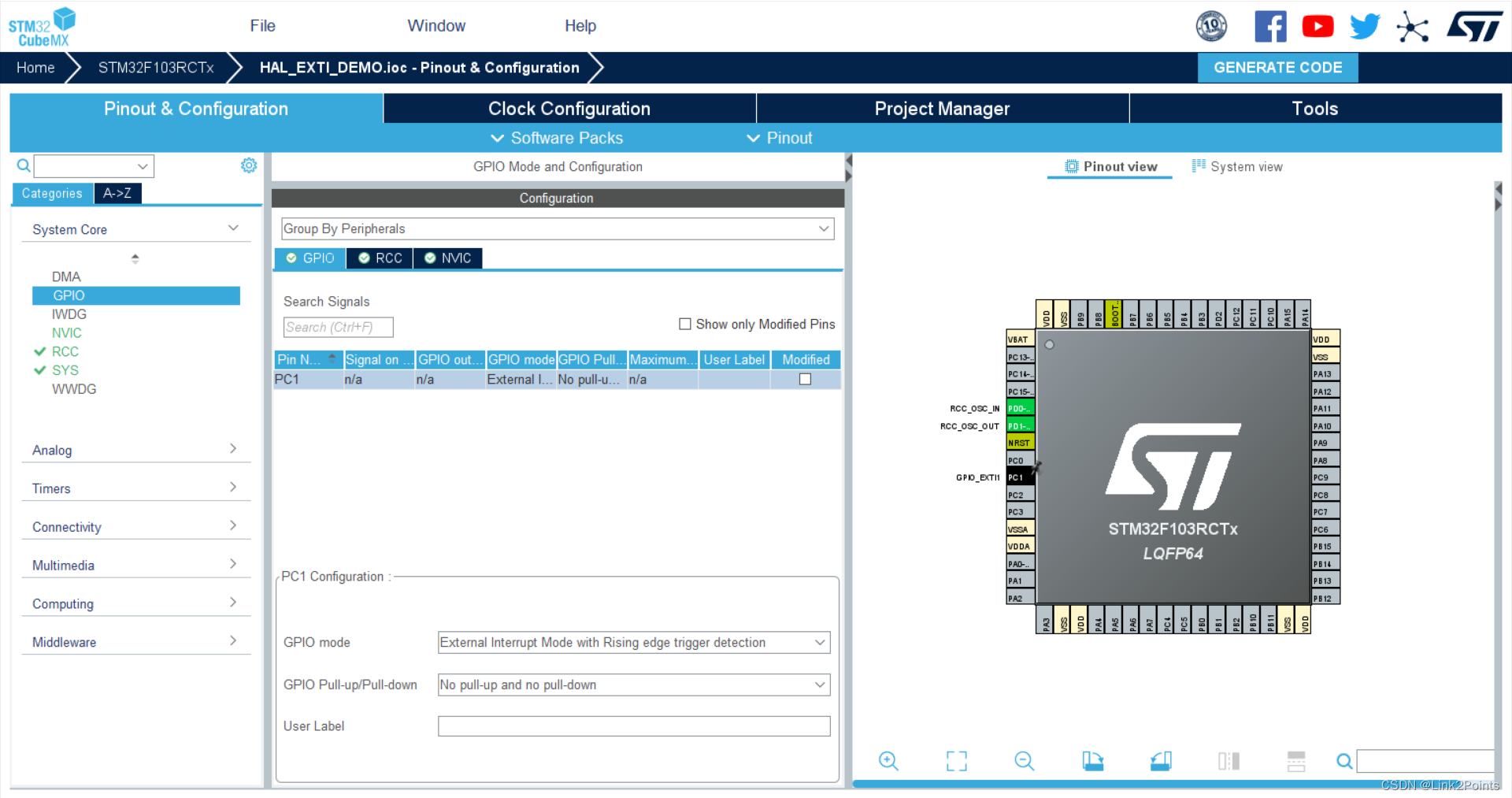

上升沿触发

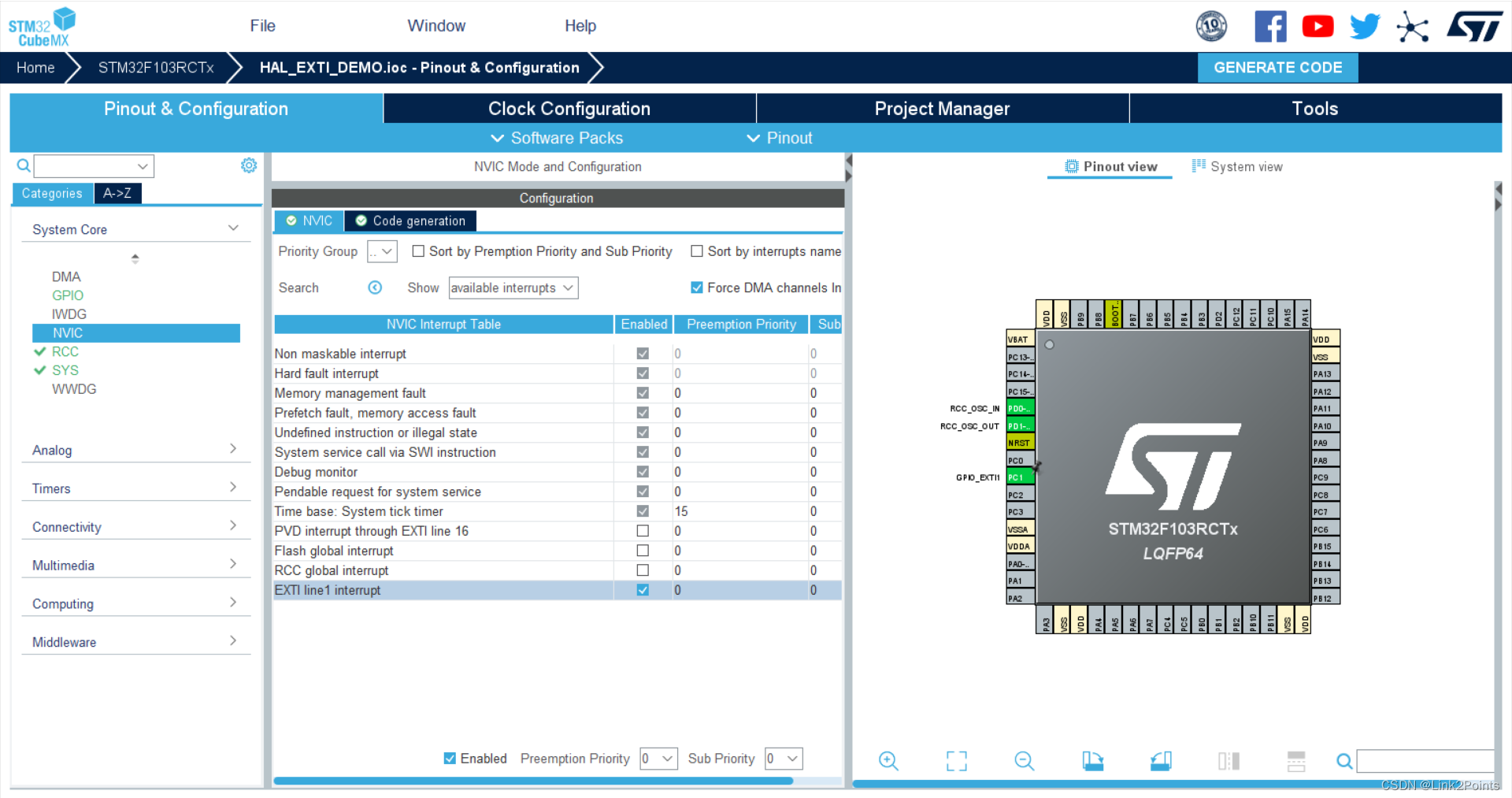

开启中断

编码

stm32f1xx_it.c

/**
  * @brief This function handles EXTI line1 interrupt.
  */
void EXTI1_IRQHandler(void)
{
  /* USER CODE BEGIN EXTI1_IRQn 0 */

  /* USER CODE END EXTI1_IRQn 0 */
  HAL_GPIO_EXTI_IRQHandler(GPIO_PIN_1);
  /* USER CODE BEGIN EXTI1_IRQn 1 */
	if (__HAL_GPIO_EXTI_GET_FLAG(GPIO_PIN_1))
	{

	}
  /* USER CODE END EXTI1_IRQn 1 */
}
