看到有些软件在桌面右下角弹框时, 任务栏没有图标, 看起来像是从托盘程序弹出的。
实际上是一个单独的exe, 在Create时, 将 WS_EX_APPWINDOW 屏蔽掉了,就有这效果.
这次, 将设置Create风格的实现直接挪到DuiLib中, 形成2个虚函数.
如果要实现的Dlg需要不同的风格, 就重载这两个虚函数.
这么搞, 以后再也不会忘记设置风格的代码如何写. 因为GetStyle和GetExStyle很容易记忆.
工程下载点: src_prj_dlg_no_task_bar_icon_2015_0718_2000.zip
编译环境 : vs2010 vc++ DuiLib

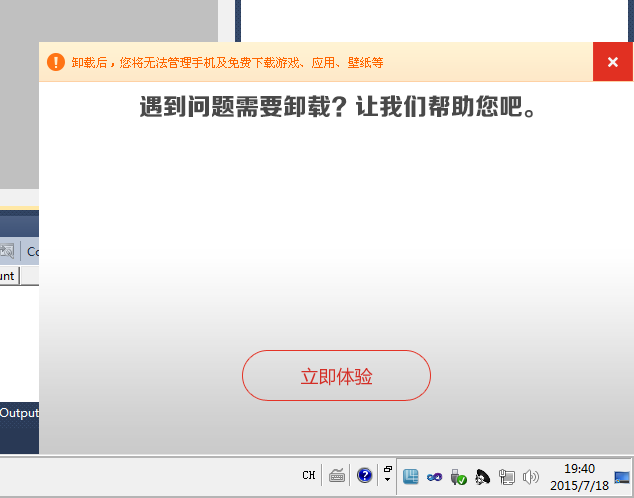

效果图:
\DuiLib\Utils\WinImplBase.h
virtual LONG GetStyle();
virtual LONG GetExStyle();
};
\srcMain\dlgNotify\MainDlg.h
virtual void InitWindow();
virtual LONG GetStyle();
\DuiLib\Utils\WinImplBase.cpp
LRESULT WindowImplBase::OnCreate(UINT uMsg, WPARAM wParam, LPARAM lParam, BOOL& bHandled)
{
LONG styleValue = 0;
styleValue = GetStyle();
::SetWindowLong(*this, GWL_STYLE, styleValue);
styleValue = GetExStyle();
::SetWindowLong(*this, GWL_EXSTYLE, styleValue);
//...
LONG WindowImplBase::GetStyle()
{
LONG styleValue = ::GetWindowLong(*this, GWL_STYLE);
styleValue &= ~WS_CAPTION;
styleValue |= WS_CLIPSIBLINGS;
styleValue |= WS_CLIPCHILDREN;
return styleValue;
}
LONG WindowImplBase::GetExStyle()
{
LONG styleValue = ::GetWindowLong(*this, GWL_EXSTYLE);
return styleValue;
}
\srcMain\dlgNotify\MainDlg.cpp
LONG CMainDlg::GetStyle()
{
long dwStyle = __super::GetStyle();
dwStyle &= ~WS_MAXIMIZEBOX;
return dwStyle;
}
LONG CMainDlg::GetExStyle()
{
long dwStyle = __super::GetExStyle();
dwStyle |= WS_EX_TOOLWINDOW;
dwStyle &= ~(WS_EX_APPWINDOW);
return dwStyle;
}
为了将窗体挪到桌面的右下角, 参考 CWindowWnd::CenterWindow(), 写了一个 CMainDlg::MoveMyWindowToDesktopRightBottom()
临时用一下, 没有进行重构.
void CMainDlg::MoveMyWindowToDesktopRightBottom()
{
ASSERT(::IsWindow(m_hWnd));
ASSERT((GetWindowStyle(m_hWnd)&WS_CHILD)==0);
RECT rcDlg = { 0 };
::GetWindowRect(m_hWnd, &rcDlg);
RECT rcArea = { 0 };
RECT rcCenter = { 0 };
HWND hWnd=*this;
HWND hWndParent = ::GetParent(m_hWnd);
HWND hWndCenter = ::GetWindowOwner(m_hWnd);
if (hWndCenter!=NULL)
hWnd=hWndCenter;
// 处理多显示器模式下屏幕居中
MONITORINFO oMonitor = {};
oMonitor.cbSize = sizeof(oMonitor);
::GetMonitorInfo(::MonitorFromWindow(hWnd, MONITOR_DEFAULTTONEAREST), &oMonitor);
rcArea = oMonitor.rcWork;
if( hWndCenter == NULL )
rcCenter = rcArea;
else
::GetWindowRect(hWndCenter, &rcCenter);
int DlgWidth = rcDlg.right - rcDlg.left;
int DlgHeight = rcDlg.bottom - rcDlg.top;
// Find dialog's upper left based on rcCenter
int xLeft = rcCenter.right - DlgWidth;
int yTop = rcCenter.bottom - DlgHeight;
// The dialog is outside the screen, move it inside
if( xLeft < rcArea.left )
xLeft = rcArea.left;
else if( xLeft + DlgWidth > rcArea.right )
xLeft = rcArea.right - DlgWidth;
if( yTop < rcArea.top )
yTop = rcArea.top;
else if( yTop + DlgHeight > rcArea.bottom )
yTop = rcArea.bottom - DlgHeight;
::SetWindowPos(m_hWnd, NULL, xLeft, yTop, -1, -1, SWP_NOSIZE | SWP_NOZORDER | SWP_NOACTIVATE);
}
