前言

断断续续的再看wireshark插件和wireshark解析器的代码。
今天做了实验, 如何在wireshark代码上新增一个wireshark插件。

有时做实验，该看的文档都看完了，感觉还不对，墨墨迹迹的不想动手，只能在心里琢磨，也不知道在琢磨什么…:(
等感觉对了，再做实验，心情很放松, 实验也做的很快。

因为插件代码少了，只能将插件加入wireshark插件体系, 但是解析具体应用层协议时(不管是啥应用层协议，都当作foo协议来解析)，选择 Decode as foo, 会崩溃的，还需要按照 wireshark\doc\README.dissector 的指南，增加更多的代码。

解析器代码不全时，报错代码片如下.
handle->dissector 为 NULL, 调用解析器回调指针时报错。
说明解析器回调指针没注册引起的.

/* This function will return
 * old style dissector :
 *   length of the payload or 1 of the payload is empty
 * new dissector :
 *   >0  this protocol was successfully dissected and this was this protocol.
 *   0   this packet did not match this protocol.
 *
 * The only time this function will return 0 is if it is a new style dissector
 * and if the dissector rejected the packet.
 */
static int
call_dissector_through_handle(dissector_handle_t handle, tvbuff_t *tvb,
                  packet_info *pinfo, proto_tree *tree, void *data)
{
    const char *saved_proto;
    int         len;

    saved_proto = pinfo->current_proto;

    if ((handle->protocol != NULL) && (!proto_is_pino(handle->protocol))) {
        pinfo->current_proto =
            proto_get_protocol_short_name(handle->protocol);
    }

    len = (*handle->dissector)(tvb, pinfo, tree, data);
    pinfo->current_proto = saved_proto;

    return len;
}

本实验的目的是增加一个合法的wireshark插件，只要能被wireshark载入，实验目的就达到了

先安装一个和源码配套的wireshark安装包(e.g. Wireshark-win64-2.4.2.msi)，然后将新编译releasex64的插件丢进入C:\Program Files\Wireshark\plugins\2.4.2.0.

打开wireshark, 在显示过滤器里面输入foo, 如果显示的是绿色，说明新增的插件载入成功. 我这是成功的。开始编译的是debug-x64版本，丢进插件目录，载入失败, 报错信息是乱码。想起真机上并没有装QT(没有QT版的DebugDLL), 就再编译release-x64, 这次插件载入成功了。

wireshark所有x64版本安装包下载点

实验

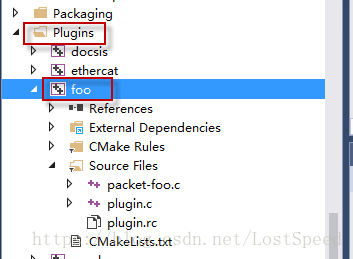

拷贝插件模板并修改

先将C:\Development\wireshark\plugins\gryphon作为模板(用C:\Development\wireshark\plugins\其他插件做模板也是可以的)，将文件拷贝到C:\Development\wireshark\plugins\foo，再修改成foo版本，将不用的代码都删掉，只留初始化的代码（只保留最基本的代码，只要注册插件的代码在就行）。

C:\Development\wireshark\plugins\foo>tree /F
文件夹 PATH 列表
卷序列号为 82BE-4BEF
C:.
    AUTHORS
    ChangeLog
    CMakeLists.txt
    COPYING
    Makefile.am
    moduleinfo.h
    packet-foo.c
    packet-foo.h
    plugin.c
    plugin.rc.in

修改配置文件

这一步，参考wireshark\doc\README.plugins，步骤还挺多的。实验成功后，用svn做了一个patch文件, 这比用文字描述要清楚专业的多。看了网上同学写的修改wireshark配置文件的文章，无论看中国同学还是外国同学写的都感到乱。
patch文件的好处是，只要修改前的顶层文件夹归档到了svn, svn提供了应用补丁的功能，指定补丁文件，指定补丁到的顶层文件夹, 直接打补丁就一步到位。
patch输出文件的含义可以参考svn patch 文件输出格式的含义
看懂了patch文件的格式，不用svn打补丁，自己手工打补丁也是很快的。
patch文件下载点:wireshark_foo_plugin_2018_0706_1607.patch

Index: CMakeLists.txt
===================================================================
--- CMakeLists.txt  (revision 1)
+++ CMakeLists.txt  (working copy)
@@ -1271,6 +1271,7 @@
    set(PLUGIN_SRC_DIRS
        plugins/docsis
        plugins/ethercat
+       plugins/foo
        plugins/gryphon
        plugins/irda
        plugins/m2m
Index: configure.ac
===================================================================
--- configure.ac    (revision 1)
+++ configure.ac    (working copy)
@@ -3012,6 +3012,7 @@
   plugins/docsis/Makefile
   plugins/easy_codec/Makefile
   plugins/ethercat/Makefile
+  plugins/foo/Makefile
   plugins/gryphon/Makefile
   plugins/irda/Makefile
   plugins/m2m/Makefile
Index: epan/Makefile.am
===================================================================
--- epan/Makefile.am    (revision 1)
+++ epan/Makefile.am    (working copy)
@@ -479,6 +479,8 @@
    ../plugins/ethercat/packet-ioraw.c \
    ../plugins/ethercat/packet-nv.c \
    ../plugins/ethercat/plugin.c \
+   ../plugins/foo/packet-foo.c \
+   ../plugins/foo/plugin.c \
    ../plugins/gryphon/packet-gryphon.c \
    ../plugins/gryphon/plugin.c \
    ../plugins/irda/packet-ircomm.c \
Index: Makefile.am
===================================================================
--- Makefile.am (revision 1)
+++ Makefile.am (working copy)
@@ -354,6 +354,7 @@
 plugin_ldadd = $(_CUSTOM_plugin_ldadd_) \
    -dlopen plugins/docsis/docsis.la \
    -dlopen plugins/ethercat/ethercat.la \
+   -dlopen plugins/foo/foo.la \
    -dlopen plugins/gryphon/gryphon.la \
    -dlopen plugins/irda/irda.la \
    -dlopen plugins/m2m/m2m.la \
Index: packaging/nsis/wireshark.nsi
===================================================================
--- packaging/nsis/wireshark.nsi    (revision 1)
+++ packaging/nsis/wireshark.nsi    (working copy)
@@ -1008,6 +1008,7 @@
 SetOutPath '$INSTDIR\plugins\${VERSION}'
 File "${STAGING_DIR}\plugins\docsis.dll"
 File "${STAGING_DIR}\plugins\ethercat.dll"
+File "${STAGING_DIR}\plugins\foo.dll"
 File "${STAGING_DIR}\plugins\gryphon.dll"
 File "${STAGING_DIR}\plugins\irda.dll"
 File "${STAGING_DIR}\plugins\m2m.dll"
Index: plugins/foo/AUTHORS
===================================================================
--- plugins/foo/AUTHORS (nonexistent)
+++ plugins/foo/AUTHORS (working copy)
@@ -0,0 +1,2 @@
+// @file AUTHORS
+// @note this file not allow empty
Index: plugins/foo/CMakeLists.txt
===================================================================
--- plugins/foo/CMakeLists.txt  (nonexistent)
+++ plugins/foo/CMakeLists.txt  (working copy)
@@ -0,0 +1,83 @@
+# CMakeLists.txt
+#
+# Wireshark - Network traffic analyzer
+# By Gerald Combs <gerald@wireshark.org>
+# Copyright 1998 Gerald Combs
+#
+# This program is free software; you can redistribute it and/or
+# modify it under the terms of the GNU General Public License
+# as published by the Free Software Foundation; either version 2
+# of the License, or (at your option) any later version.
+#
+# This program is distributed in the hope that it will be useful,
+# but WITHOUT ANY WARRANTY; without even the implied warranty of
+# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
+# GNU General Public License for more details.
+#
+# You should have received a copy of the GNU General Public License
+# along with this program; if not, write to the Free Software
+# Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA.
+#
+
+include(WiresharkPlugin)
+
+# Plugin name and version info (major minor micro extra)
+set_module_info(foo 1 0 1 1)
+
+set(DISSECTOR_SRC
+   packet-foo.c
+)
+
+set(PLUGIN_FILES
+   plugin.c
+   ${DISSECTOR_SRC}
+)
+
+set(CLEAN_FILES
+   ${PLUGIN_FILES}
+)
+
+set_source_files_properties(
+   ${CLEAN_FILES}
+   PROPERTIES
+   COMPILE_FLAGS "${WERROR_COMMON_FLAGS}"
+)
+
+include_directories(${CMAKE_CURRENT_SOURCE_DIR})
+
+register_dissector_files(plugin.c
+   plugin
+   ${DISSECTOR_SRC}
+)
+
+add_plugin_library(foo)
+
+install(TARGETS foo
+   LIBRARY DESTINATION ${CMAKE_INSTALL_LIBDIR}/${CPACK_PACKAGE_NAME}/plugins/${CPACK_PACKAGE_VERSION} NAMELINK_SKIP
+   RUNTIME DESTINATION ${CMAKE_INSTALL_LIBDIR}/${CPACK_PACKAGE_NAME}/plugins/${CPACK_PACKAGE_VERSION}
+   ARCHIVE DESTINATION ${CMAKE_INSTALL_LIBDIR}/${CPACK_PACKAGE_NAME}/plugins/${CPACK_PACKAGE_VERSION}
+)
+
+file(GLOB DISSECTOR_HEADERS RELATIVE "${CMAKE_CURRENT_SOURCE_DIR}" "*.h")
+CHECKAPI(
+   NAME
+     foo
+   SWITCHES
+     -g abort -g termoutput -build
+   SOURCES
+     ${DISSECTOR_SRC}
+     ${DISSECTOR_HEADERS}
+)
+
+#
+# Editor modelines  -  http://www.wireshark.org/tools/modelines.html
+#
+# Local variables:
+# c-basic-offset: 8
+# tab-width: 8
+# indent-tabs-mode: t
+# End:
+#
+# vi: set shiftwidth=8 tabstop=8 noexpandtab:
+# :indentSize=8:tabSize=8:noTabs=false:
+#
Index: plugins/foo/COPYING
===================================================================
--- plugins/foo/COPYING (nonexistent)
+++ plugins/foo/COPYING (working copy)
@@ -0,0 +1,2 @@
+// @file COPYING
+// @note this file not allow empty
Index: plugins/foo/ChangeLog
===================================================================
--- plugins/foo/ChangeLog   (nonexistent)
+++ plugins/foo/ChangeLog   (working copy)
@@ -0,0 +1,2 @@
+// @file ChangeLog
+// @note this file not allow empty
Index: plugins/foo/Makefile.am
===================================================================
--- plugins/foo/Makefile.am (nonexistent)
+++ plugins/foo/Makefile.am (working copy)
@@ -0,0 +1,68 @@
+# Makefile.am
+#
+# Wireshark - Network traffic analyzer
+# By Gerald Combs <gerald@wireshark.org>
+# Copyright 1998 Gerald Combs
+#
+# This program is free software; you can redistribute it and/or
+# modify it under the terms of the GNU General Public License
+# as published by the Free Software Foundation; either version 2
+# of the License, or (at your option) any later version.
+#
+# This program is distributed in the hope that it will be useful,
+# but WITHOUT ANY WARRANTY; without even the implied warranty of
+# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
+# GNU General Public License for more details.
+#
+# You should have received a copy of the GNU General Public License
+# along with this program; if not, write to the Free Software
+# Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA.
+
+include $(top_srcdir)/Makefile.am.inc
+include ../Makefile.am.inc
+
+# the name of the plugin
+PLUGIN_NAME = foo
+
+# Non-generated sources to be scanned for registration routines
+NONGENERATED_REGISTER_C_FILES = \
+   packet-foo.c
+
+# Non-generated sources
+NONGENERATED_C_FILES = \
+   $(NONGENERATED_REGISTER_C_FILES)
+
+# Headers.
+CLEAN_HEADER_FILES = \
+   packet-foo.h
+
+HEADER_FILES = \
+   $(CLEAN_HEADER_FILES)
+
+plugin_LTLIBRARIES = foo.la
+
+foo_la_SOURCES = \
+   plugin.c \
+   moduleinfo.h \
+   $(SRC_FILES)   \
+   $(HEADER_FILES)
+
+foo_la_CPPFLAGS = $(AM_CPPFLAGS) $(PLUGIN_CPPFLAGS)
+
+foo_la_CFLAGS = $(AM_CFLAGS) $(PLUGIN_CFLAGS)
+
+foo_la_LDFLAGS = $(PLUGIN_LDFLAGS)
+
+CLEANFILES = \
+   foo \
+   *~
+
+DISTCLEANFILES = \
+   plugin.c
+
+MAINTAINERCLEANFILES = \
+   Makefile.in
+
+EXTRA_DIST = \
+   plugin.rc.in        \
+   CMakeLists.txt
Index: plugins/foo/moduleinfo.h
===================================================================
--- plugins/foo/moduleinfo.h    (nonexistent)
+++ plugins/foo/moduleinfo.h    (working copy)
@@ -0,0 +1,40 @@
+/* moduleinfo.h
+ *
+ * Module info header for wireshark plugins.
+ *
+ * Wireshark - Network traffic analyzer
+ * By Gerald Combs <gerald@wireshark.org>
+ * Copyright 1998 Gerald Combs
+ *
+ * This program is free software; you can redistribute it and/or
+ * modify it under the terms of the GNU General Public License
+ * as published by the Free Software Foundation; either version 2
+ * of the License, or (at your option) any later version.
+ *
+ * This program is distributed in the hope that it will be useful,
+ * but WITHOUT ANY WARRANTY; without even the implied warranty of
+ * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
+ * GNU General Public License for more details.
+ *
+ * You should have received a copy of the GNU General Public License
+ * along with this program; if not, write to the Free Software
+ * Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA.
+ */
+
+/* Included *after* config.h, in order to re-define these macros */
+
+#ifdef PACKAGE
+#undef PACKAGE
+#endif
+
+/* Name of package */
+#define PACKAGE "foo"
+
+
+#ifdef VERSION
+#undef VERSION
+#endif
+
+/* Version number of package */
+#define VERSION "0.0.4"
+
Index: plugins/foo/packet-foo.c
===================================================================
--- plugins/foo/packet-foo.c    (nonexistent)
+++ plugins/foo/packet-foo.c    (working copy)
@@ -0,0 +1,41 @@
+// @file packet-foo.c
+// @ref http://www.dgtech.com/foo/sys/www/docs/html/
+
+#include "config.h"
+
+#include <epan/packet.h>
+#include <epan/prefs.h>
+#include <epan/dissectors/packet-tcp.h>
+#include "packet-foo.h"
+
+void proto_register_foo(void);
+void proto_reg_handoff_foo(void);
+
+#define foo_TCP_PORT 7000 /* Not IANA registed */
+
+static dissector_t dissect_foo = NULL;
+static int proto_foo = -1;
+
+void proto_register_foo(void)
+{
+   // first entry proto_register_foo
+   // then entry proto_reg_handoff_foo
+
+   module_t *foo_module = NULL;
+
+    proto_foo = proto_register_protocol("foo Protocol", "foo", "foo");
+   foo_module = prefs_register_protocol(proto_foo, NULL);
+
+   // @note
+   // when Decode as ... => foo => ok
+   // will be crash on call_dissector_through_handle
+   // please see wireshark\doc\README.dissector, add more code
+}
+
+void proto_reg_handoff_foo(void)
+{
+    dissector_handle_t foo_handle = NULL;
+
+    foo_handle = create_dissector_handle(dissect_foo, proto_foo);
+    dissector_add_uint_with_preference("tcp.port", foo_TCP_PORT, foo_handle);
+}
Index: plugins/foo/packet-foo.h
===================================================================
--- plugins/foo/packet-foo.h    (nonexistent)
+++ plugins/foo/packet-foo.h    (working copy)
@@ -0,0 +1 @@
+// @file packet-foo.h
Index: plugins/foo/plugin.c
===================================================================
--- plugins/foo/plugin.c    (nonexistent)
+++ plugins/foo/plugin.c    (working copy)
@@ -0,0 +1,40 @@
+/*
+ * Do not modify this file. Changes will be overwritten.
+ *
+ * Generated automatically from ../../tools/make-dissector-reg.py.
+ */
+
+#include "config.h"
+
+#include <gmodule.h>
+
+#include "moduleinfo.h"
+
+/* plugins are DLLs */
+#define WS_BUILD_DLL
+#include "ws_symbol_export.h"
+
+#ifndef ENABLE_STATIC
+WS_DLL_PUBLIC_DEF void plugin_register (void);
+WS_DLL_PUBLIC_DEF const gchar version[] = VERSION;
+
+extern void proto_register_foo(void);
+
+/* Start the functions we need for the plugin stuff */
+
+WS_DLL_PUBLIC_DEF void
+plugin_register (void)
+{
+    proto_register_foo();
+}
+
+extern void proto_reg_handoff_foo(void);
+
+WS_DLL_PUBLIC_DEF void plugin_reg_handoff(void);
+
+WS_DLL_PUBLIC_DEF void
+plugin_reg_handoff(void)
+{
+    proto_reg_handoff_foo();
+}
+#endif
Index: plugins/foo/plugin.rc.in
===================================================================
--- plugins/foo/plugin.rc.in    (nonexistent)
+++ plugins/foo/plugin.rc.in    (working copy)
@@ -0,0 +1,34 @@
+#include "winver.h"
+
+VS_VERSION_INFO VERSIONINFO
+ FILEVERSION @RC_MODULE_VERSION@
+ PRODUCTVERSION @RC_VERSION@
+ FILEFLAGSMASK 0x0L
+#ifdef _DEBUG
+ FILEFLAGS VS_FF_DEBUG
+#else
+ FILEFLAGS 0
+#endif
+ FILEOS VOS_NT_WINDOWS32
+ FILETYPE VFT_DLL
+BEGIN
+    BLOCK "StringFileInfo"
+    BEGIN
+        BLOCK "040904b0"
+        BEGIN
+            VALUE "CompanyName", "The Wireshark developer community, http://www.wireshark.org/\0"
+            VALUE "FileDescription", "@PACKAGE@ dissector\0"
+            VALUE "FileVersion", "@MODULE_VERSION@\0"
+            VALUE "InternalName", "@PACKAGE@ @MODULE_VERSION@\0"
+            VALUE "LegalCopyright", "Copyright ?1998 Gerald Combs <gerald@wireshark.org>, Gilbert Ramirez <gram@alumni.rice.edu> and others\0"
+            VALUE "OriginalFilename", "@PLUGIN_NAME@.dll\0"
+            VALUE "ProductName", "Wireshark\0"
+            VALUE "ProductVersion", "@VERSION@\0"
+            VALUE "Comments", "Built with @MSVC_VARIANT@\0"
+        END
+    END
+    BLOCK "VarFileInfo"
+    BEGIN
+        VALUE "Translation", 0x409, 1200
+    END
+END
Index: plugins/foo/AUTHORS
===================================================================
--- plugins/foo/AUTHORS (nonexistent)
+++ plugins/foo/AUTHORS (working copy)
@@ -0,0 +1,2 @@
+// @file AUTHORS
+// @note this file not allow empty
Index: plugins/foo/ChangeLog
===================================================================
--- plugins/foo/ChangeLog   (nonexistent)
+++ plugins/foo/ChangeLog   (working copy)
@@ -0,0 +1,2 @@
+// @file ChangeLog
+// @note this file not allow empty
Index: plugins/foo/CMakeLists.txt
===================================================================
--- plugins/foo/CMakeLists.txt  (nonexistent)
+++ plugins/foo/CMakeLists.txt  (working copy)
@@ -0,0 +1,83 @@
+# CMakeLists.txt
+#
+# Wireshark - Network traffic analyzer
+# By Gerald Combs <gerald@wireshark.org>
+# Copyright 1998 Gerald Combs
+#
+# This program is free software; you can redistribute it and/or
+# modify it under the terms of the GNU General Public License
+# as published by the Free Software Foundation; either version 2
+# of the License, or (at your option) any later version.
+#
+# This program is distributed in the hope that it will be useful,
+# but WITHOUT ANY WARRANTY; without even the implied warranty of
+# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
+# GNU General Public License for more details.
+#
+# You should have received a copy of the GNU General Public License
+# along with this program; if not, write to the Free Software
+# Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA.
+#
+
+include(WiresharkPlugin)
+
+# Plugin name and version info (major minor micro extra)
+set_module_info(foo 1 0 1 1)
+
+set(DISSECTOR_SRC
+   packet-foo.c
+)
+
+set(PLUGIN_FILES
+   plugin.c
+   ${DISSECTOR_SRC}
+)
+
+set(CLEAN_FILES
+   ${PLUGIN_FILES}
+)
+
+set_source_files_properties(
+   ${CLEAN_FILES}
+   PROPERTIES
+   COMPILE_FLAGS "${WERROR_COMMON_FLAGS}"
+)
+
+include_directories(${CMAKE_CURRENT_SOURCE_DIR})
+
+register_dissector_files(plugin.c
+   plugin
+   ${DISSECTOR_SRC}
+)
+
+add_plugin_library(foo)
+
+install(TARGETS foo
+   LIBRARY DESTINATION ${CMAKE_INSTALL_LIBDIR}/${CPACK_PACKAGE_NAME}/plugins/${CPACK_PACKAGE_VERSION} NAMELINK_SKIP
+   RUNTIME DESTINATION ${CMAKE_INSTALL_LIBDIR}/${CPACK_PACKAGE_NAME}/plugins/${CPACK_PACKAGE_VERSION}
+   ARCHIVE DESTINATION ${CMAKE_INSTALL_LIBDIR}/${CPACK_PACKAGE_NAME}/plugins/${CPACK_PACKAGE_VERSION}
+)
+
+file(GLOB DISSECTOR_HEADERS RELATIVE "${CMAKE_CURRENT_SOURCE_DIR}" "*.h")
+CHECKAPI(
+   NAME
+     foo
+   SWITCHES
+     -g abort -g termoutput -build
+   SOURCES
+     ${DISSECTOR_SRC}
+     ${DISSECTOR_HEADERS}
+)
+
+#
+# Editor modelines  -  http://www.wireshark.org/tools/modelines.html
+#
+# Local variables:
+# c-basic-offset: 8
+# tab-width: 8
+# indent-tabs-mode: t
+# End:
+#
+# vi: set shiftwidth=8 tabstop=8 noexpandtab:
+# :indentSize=8:tabSize=8:noTabs=false:
+#
Index: plugins/foo/COPYING
===================================================================
--- plugins/foo/COPYING (nonexistent)
+++ plugins/foo/COPYING (working copy)
@@ -0,0 +1,2 @@
+// @file COPYING
+// @note this file not allow empty
Index: plugins/foo/Makefile.am
===================================================================
--- plugins/foo/Makefile.am (nonexistent)
+++ plugins/foo/Makefile.am (working copy)
@@ -0,0 +1,68 @@
+# Makefile.am
+#
+# Wireshark - Network traffic analyzer
+# By Gerald Combs <gerald@wireshark.org>
+# Copyright 1998 Gerald Combs
+#
+# This program is free software; you can redistribute it and/or
+# modify it under the terms of the GNU General Public License
+# as published by the Free Software Foundation; either version 2
+# of the License, or (at your option) any later version.
+#
+# This program is distributed in the hope that it will be useful,
+# but WITHOUT ANY WARRANTY; without even the implied warranty of
+# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
+# GNU General Public License for more details.
+#
+# You should have received a copy of the GNU General Public License
+# along with this program; if not, write to the Free Software
+# Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA.
+
+include $(top_srcdir)/Makefile.am.inc
+include ../Makefile.am.inc
+
+# the name of the plugin
+PLUGIN_NAME = foo
+
+# Non-generated sources to be scanned for registration routines
+NONGENERATED_REGISTER_C_FILES = \
+   packet-foo.c
+
+# Non-generated sources
+NONGENERATED_C_FILES = \
+   $(NONGENERATED_REGISTER_C_FILES)
+
+# Headers.
+CLEAN_HEADER_FILES = \
+   packet-foo.h
+
+HEADER_FILES = \
+   $(CLEAN_HEADER_FILES)
+
+plugin_LTLIBRARIES = foo.la
+
+foo_la_SOURCES = \
+   plugin.c \
+   moduleinfo.h \
+   $(SRC_FILES)   \
+   $(HEADER_FILES)
+
+foo_la_CPPFLAGS = $(AM_CPPFLAGS) $(PLUGIN_CPPFLAGS)
+
+foo_la_CFLAGS = $(AM_CFLAGS) $(PLUGIN_CFLAGS)
+
+foo_la_LDFLAGS = $(PLUGIN_LDFLAGS)
+
+CLEANFILES = \
+   foo \
+   *~
+
+DISTCLEANFILES = \
+   plugin.c
+
+MAINTAINERCLEANFILES = \
+   Makefile.in
+
+EXTRA_DIST = \
+   plugin.rc.in        \
+   CMakeLists.txt
Index: plugins/foo/moduleinfo.h
===================================================================
--- plugins/foo/moduleinfo.h    (nonexistent)
+++ plugins/foo/moduleinfo.h    (working copy)
@@ -0,0 +1,40 @@
+/* moduleinfo.h
+ *
+ * Module info header for wireshark plugins.
+ *
+ * Wireshark - Network traffic analyzer
+ * By Gerald Combs <gerald@wireshark.org>
+ * Copyright 1998 Gerald Combs
+ *
+ * This program is free software; you can redistribute it and/or
+ * modify it under the terms of the GNU General Public License
+ * as published by the Free Software Foundation; either version 2
+ * of the License, or (at your option) any later version.
+ *
+ * This program is distributed in the hope that it will be useful,
+ * but WITHOUT ANY WARRANTY; without even the implied warranty of
+ * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
+ * GNU General Public License for more details.
+ *
+ * You should have received a copy of the GNU General Public License
+ * along with this program; if not, write to the Free Software
+ * Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA.
+ */
+
+/* Included *after* config.h, in order to re-define these macros */
+
+#ifdef PACKAGE
+#undef PACKAGE
+#endif
+
+/* Name of package */
+#define PACKAGE "foo"
+
+
+#ifdef VERSION
+#undef VERSION
+#endif
+
+/* Version number of package */
+#define VERSION "0.0.4"
+
Index: plugins/foo/packet-foo.c
===================================================================
--- plugins/foo/packet-foo.c    (nonexistent)
+++ plugins/foo/packet-foo.c    (working copy)
@@ -0,0 +1,41 @@
+// @file packet-foo.c
+// @ref http://www.dgtech.com/foo/sys/www/docs/html/
+
+#include "config.h"
+
+#include <epan/packet.h>
+#include <epan/prefs.h>
+#include <epan/dissectors/packet-tcp.h>
+#include "packet-foo.h"
+
+void proto_register_foo(void);
+void proto_reg_handoff_foo(void);
+
+#define foo_TCP_PORT 7000 /* Not IANA registed */
+
+static dissector_t dissect_foo = NULL;
+static int proto_foo = -1;
+
+void proto_register_foo(void)
+{
+   // first entry proto_register_foo
+   // then entry proto_reg_handoff_foo
+
+   module_t *foo_module = NULL;
+
+    proto_foo = proto_register_protocol("foo Protocol", "foo", "foo");
+   foo_module = prefs_register_protocol(proto_foo, NULL);
+
+   // @note
+   // when Decode as ... => foo => ok
+   // will be crash on call_dissector_through_handle
+   // please see wireshark\doc\README.dissector, add more code
+}
+
+void proto_reg_handoff_foo(void)
+{
+    dissector_handle_t foo_handle = NULL;
+
+    foo_handle = create_dissector_handle(dissect_foo, proto_foo);
+    dissector_add_uint_with_preference("tcp.port", foo_TCP_PORT, foo_handle);
+}
Index: plugins/foo/packet-foo.h
===================================================================
--- plugins/foo/packet-foo.h    (nonexistent)
+++ plugins/foo/packet-foo.h    (working copy)
@@ -0,0 +1 @@
+// @file packet-foo.h
Index: plugins/foo/plugin.c
===================================================================
--- plugins/foo/plugin.c    (nonexistent)
+++ plugins/foo/plugin.c    (working copy)
@@ -0,0 +1,40 @@
+/*
+ * Do not modify this file. Changes will be overwritten.
+ *
+ * Generated automatically from ../../tools/make-dissector-reg.py.
+ */
+
+#include "config.h"
+
+#include <gmodule.h>
+
+#include "moduleinfo.h"
+
+/* plugins are DLLs */
+#define WS_BUILD_DLL
+#include "ws_symbol_export.h"
+
+#ifndef ENABLE_STATIC
+WS_DLL_PUBLIC_DEF void plugin_register (void);
+WS_DLL_PUBLIC_DEF const gchar version[] = VERSION;
+
+extern void proto_register_foo(void);
+
+/* Start the functions we need for the plugin stuff */
+
+WS_DLL_PUBLIC_DEF void
+plugin_register (void)
+{
+    proto_register_foo();
+}
+
+extern void proto_reg_handoff_foo(void);
+
+WS_DLL_PUBLIC_DEF void plugin_reg_handoff(void);
+
+WS_DLL_PUBLIC_DEF void
+plugin_reg_handoff(void)
+{
+    proto_reg_handoff_foo();
+}
+#endif
Index: plugins/foo/plugin.rc.in
===================================================================
--- plugins/foo/plugin.rc.in    (nonexistent)
+++ plugins/foo/plugin.rc.in    (working copy)
@@ -0,0 +1,34 @@
+#include "winver.h"
+
+VS_VERSION_INFO VERSIONINFO
+ FILEVERSION @RC_MODULE_VERSION@
+ PRODUCTVERSION @RC_VERSION@
+ FILEFLAGSMASK 0x0L
+#ifdef _DEBUG
+ FILEFLAGS VS_FF_DEBUG
+#else
+ FILEFLAGS 0
+#endif
+ FILEOS VOS_NT_WINDOWS32
+ FILETYPE VFT_DLL
+BEGIN
+    BLOCK "StringFileInfo"
+    BEGIN
+        BLOCK "040904b0"
+        BEGIN
+            VALUE "CompanyName", "The Wireshark developer community, http://www.wireshark.org/\0"
+            VALUE "FileDescription", "@PACKAGE@ dissector\0"
+            VALUE "FileVersion", "@MODULE_VERSION@\0"
+            VALUE "InternalName", "@PACKAGE@ @MODULE_VERSION@\0"
+            VALUE "LegalCopyright", "Copyright ?1998 Gerald Combs <gerald@wireshark.org>, Gilbert Ramirez <gram@alumni.rice.edu> and others\0"
+            VALUE "OriginalFilename", "@PLUGIN_NAME@.dll\0"
+            VALUE "ProductName", "Wireshark\0"
+            VALUE "ProductVersion", "@VERSION@\0"
+            VALUE "Comments", "Built with @MSVC_VARIANT@\0"
+        END
+    END
+    BLOCK "VarFileInfo"
+    BEGIN
+        VALUE "Translation", 0x409, 1200
+    END
+END
Index: plugins/Makefile.am
===================================================================
--- plugins/Makefile.am (revision 1)
+++ plugins/Makefile.am (working copy)
@@ -25,6 +25,7 @@
    docsis \
    easy_codec \
    ethercat \
+   foo \
    gryphon \
    irda \
    m2m \

编译wireshark全部工程

将C:\Development\wsbuild32目录的内容删掉，重新编译。

wireshark 2.4.2

open vs2015 cmd line

cd c:\Development

call env.bat

cd wsbuild32

cmake -DENABLE_CHM_GUIDES=on -G "Visual Studio 14 2015 Win64" ..\wireshark

@echo off
rem @file env.bat
rem Let CMake determine the library download directory name under
rem WIRESHARK_BASE_DIR or set it explicitly by using WIRESHARK_LIB_DIR.
rem Set *one* of these.
set WIRESHARK_BASE_DIR=C:\Development
rem set WIRESHARK_LIB_DIR=c:\wireshark-win64-libs
rem Set the Qt installation directory
rem set QT5_BASE_DIR=C:\Qt\5.9.1\msvc2015_64
set QT5_BASE_DIR=C:\Qt\Qt5.9.3\5.9.3\msvc2015_64
rem Append a custom string to the package version. Optional.
set WIRESHARK_VERSION_EXTRA=-LsBuild
rem Chocolatey installs Cygwin in an odd location
rem set WIRESHARK_CYGWIN_INSTALL_PATH=C:\ProgramData\chocolatey\lib\Cygwin\tools\cygwin
set WIRESHARK_CYGWIN_INSTALL_PATH=C:\cygwin64

打开C:\Development\wsbuild32\Wireshark.sln, 先运行ALL_BUILD工程，会将C:\Development\wsbuild32\run下的依赖dll都build或拷贝过来,否则wireshark编译完了，也会因为缺少运行时dll, 而不能运行。
然后再编译Wireshark工程和foo插件工程，都编译过了，就可以在foo工程中下断点，跑起wireshark工程，随便抓个包，将tcp协议之上的应用层协议的包，用右击 => Decode as … => 选择应用层协议的端口(不能是tcp, 必须是具体的协议) + foo协议 => 确定，就可以调试foo插件代码了。

因为代码加少了，Decode as foo时，会崩溃(看到崩溃处的解析器指针为空), 正好可以继续看wireshark\doc\README.dissector，做后续的实验, 包分析，UI展现。

如果一个实验，就那么顺利的就做完，没有一点绕的地方，那就没意思了:)

插件工程的位置

最开始看wireshark工程时，子工程挺多的，一时都找不到插件工程的位置.
这里写图片描述

加入的最初的插件代码

// @file packet-foo.c
// @ref http://www.dgtech.com/foo/sys/www/docs/html/

#include "config.h"

#include <epan/packet.h>
#include <epan/prefs.h>
#include <epan/dissectors/packet-tcp.h>
#include "packet-foo.h"

void proto_register_foo(void);
void proto_reg_handoff_foo(void);

#define foo_TCP_PORT 7000 /* Not IANA registed */

static dissector_t dissect_foo = NULL;
static int proto_foo = -1;

void proto_register_foo(void)
{
    // first entry proto_register_foo
    // then entry proto_reg_handoff_foo

    module_t *foo_module = NULL;

    proto_foo = proto_register_protocol("foo Protocol", "foo", "foo");
    foo_module = prefs_register_protocol(proto_foo, NULL);

    // @note
    // when Decode as ... => foo => ok
    // will be crash on call_dissector_through_handle
    // please see wireshark\doc\README.dissector, add more code
}

void proto_reg_handoff_foo(void)
{
    dissector_handle_t foo_handle = NULL;

    foo_handle = create_dissector_handle(dissect_foo, proto_foo);
    dissector_add_uint_with_preference("tcp.port", foo_TCP_PORT, foo_handle);
}

/*
 * Do not modify this file. Changes will be overwritten.
 *
 * Generated automatically from C:\Development\wireshark\tools\make-dissector-reg.py.
 */

#include "config.h"

#include <gmodule.h>

#include "moduleinfo.h"

/* plugins are DLLs */
#define WS_BUILD_DLL
#include "ws_symbol_export.h"

#ifndef ENABLE_STATIC
WS_DLL_PUBLIC_DEF void plugin_register (void);
WS_DLL_PUBLIC_DEF const gchar version[] = VERSION;

extern void proto_register_foo(void);

/* Start the functions we need for the plugin stuff */

WS_DLL_PUBLIC_DEF void
plugin_register (void)
{
    proto_register_foo();
}

extern void proto_reg_handoff_foo(void);

WS_DLL_PUBLIC_DEF void plugin_reg_handoff(void);

WS_DLL_PUBLIC_DEF void
plugin_reg_handoff(void)
{
    proto_reg_handoff_foo();
}
#endif
