canvas动画:点随机运动 距离内自动连接成线 鼠标移动自动吸附附近的点

思路/实现步骤

    1. 创建canvas元素
    1. 获取canvas的上下文ctx
    1. 初始化点的信息(数量、初始坐标、移动方向、移动速度、大小、颜色)
    1. 绘制点
    1. 绘制点之间的连线
    1. 点有规律的动起来
    1. 动画循环
    1. 鼠标移动相关逻辑
    1. 点鼠标之间连线
    1. 鼠标吸附逻辑
    1. 添加配置项
    1. 重绘、重置

示例代码

<template>
	<div class='random-dot-line-canvas'>
		<!-- <div style="margin-bottom: 20px;"><el-button @click="nextDraw">下一帧</el-button></div> -->
		<div class="config">
			<el-form :inline="true" :model="canvasConfig">
				<el-form-item label="画布宽度" prop="canvasWidth">
					<el-input-number v-model="canvasConfig.canvasWidth" :min="800" :max="1920" :step="50"></el-input-number>
				</el-form-item>
				<el-form-item label="画布高度" prop="canvasHeight">
					<el-input-number v-model="canvasConfig.canvasHeight" :min="200" :max="900" :step="50"></el-input-number>
				</el-form-item>
				<el-form-item label="点数量" prop="DOT_NUM">
					<el-input-number v-model="canvasConfig.DOT_NUM" :min="10" :max="200" :step="5"></el-input-number>
				</el-form-item>
				<el-form-item label="点半径" prop="DOT_RADIUS">
					<el-input-number v-model="canvasConfig.DOT_RADIUS" :min="1" :max="20" :step="1"></el-input-number>
				</el-form-item>
				<el-form-item label="点颜色" prop="DOT_COLOR">
					<el-color-picker v-model="canvasConfig.DOT_COLOR" />
				</el-form-item>
				<el-form-item label="线颜色" prop="LINE_COLOR">
					<el-color-picker v-model="canvasConfig.LINE_COLOR" />
				</el-form-item>
				<el-form-item label="连线最大距离" prop="DOT_DRAW_LINE_MAX_DIST">
					<el-input-number v-model="canvasConfig.DOT_DRAW_LINE_MAX_DIST" :min="50" :max="400" :step="20"></el-input-number>
				</el-form-item>
				<el-form-item label="点移动速度" prop="DOT_MOVE_SPEED">
					<el-input-number v-model="canvasConfig.DOT_MOVE_SPEED" :min="1" :max="20" :step="1"></el-input-number>
				</el-form-item>
				<el-form-item>
					<el-button type="primary" @click="redraw">重绘</el-button>
					<el-button type="primary" @click="reset">重置</el-button>
				</el-form-item>
			</el-form>
		</div>
		<canvas
			v-if="!initing"
			id="random-dot-line-canvas"
      :width="canvasWidth"
      :height="canvasHeight"
			style="background-color: black;"
			color-space="srgb"
		>
      Your browser does not support the HTML5 canvas tag.
		</canvas>
	</div>
</template>

<script setup name='random-dot-line-canvas'>
import { ref, onMounted, nextTick, watch } from 'vue'
import store from '../../../../store';

const themeColor = ref(store.state.setting.themeColor || '#ffffff') // 主题色
const ctx = ref()
const initing = ref(true)
const canvasWidth = ref(800) // 画布宽度
const canvasHeight = ref(400) // 画布高度
const dotList = ref([]) // 点的坐标、移动方向/移动速度
const DOT_NUM = ref(40) // 点的数量
const DOT_RADIUS = ref(2.5) // 点的半径
const DOT_COLOR = ref(themeColor) // 点的颜色
const LINE_COLOR = ref(themeColor) // 连线颜色
const DOT_DRAW_LINE_MAX_DIST = ref(100) // 两点之间要连线的最大距离
const DOT_MOVE_SPEED = ref(1) // 点移动速度
const canvasConfig = ref({ // 表单配置项
	canvasWidth: canvasWidth.value,
	canvasHeight: canvasHeight.value,
	DOT_NUM: DOT_NUM.value,
	DOT_RADIUS: DOT_RADIUS.value,
	DOT_COLOR: DOT_COLOR.value,
	LINE_COLOR: LINE_COLOR.value,
	DOT_DRAW_LINE_MAX_DIST: DOT_DRAW_LINE_MAX_DIST.value,
	DOT_MOVE_SPEED: DOT_MOVE_SPEED.value,
})
const animationNum = ref(null)
const animationMouseNum = ref(null)
const canvasPositionInPage = ref() // 画布位置
const mousePosition = ref({}) // 鼠标位置

onMounted(()=>{
	init()
})

watch(
	() => mousePosition.value,
	(newConfig, oldConfig = {}) => {
		if(newConfig.inCanvas && !oldConfig.inCanvas) {
			// console.log('移入画布')
			mouseAdsorb()
		} else if (newConfig.inCanvas === false) {
			// console.log('移出画布')
			cancelAnimationFrame(animationMouseNum.value)
		}
	},
	{ immediate: true, deep: true }
)

/** 初始化函数 */
const init = async() => {
	initing.value = false
	await nextTick()
	let canvas = document.getElementById('random-dot-line-canvas')
	canvasPositionInPage.value = canvas.getBoundingClientRect()
	// {"x": 40, "y": 183, "width": 800, "height": 400, "top": 183, "right": 840, "bottom": 583, "left": 40 }
	try {
		ctx.value = canvas.getContext('2d')
	} catch (error) {
		console.log('canvas,ctx,getContext', error)
	}
	createdDot() // 创建点坐标
	draw() // 绘制
	mouseMove() // 鼠标移动相关逻辑
	dotMove() // 点动起来
}

/** 重绘 */
const redraw = () => {
	cancelAnimationFrame(animationNum.value)
	initing.value = true
	setNewConfigValue(canvasConfig.value)
	init()
}
/** 重置 */
const reset = () => {
	initing.value = true
	setNewConfigValue({
		canvasWidth: 800,
		canvasHeight: 400,
		DOT_NUM: 40,
		DOT_RADIUS: 2.5,
		DOT_DRAW_LINE_MAX_DIST: 100,
		DOT_MOVE_SPEED: 1,
	})
	init()
}

/** 设置配置项值 */
const setNewConfigValue = (newConfig) => {
	canvasWidth.value = newConfig.canvasWidth || canvasWidth.value
	canvasHeight.value = newConfig.canvasHeight || canvasHeight.value
	DOT_NUM.value = newConfig.DOT_NUM || DOT_NUM.value
	DOT_RADIUS.value = newConfig.DOT_RADIUS || DOT_RADIUS.value
	DOT_COLOR.value = newConfig.DOT_COLOR || DOT_COLOR.value
	LINE_COLOR.value = newConfig.LINE_COLOR || LINE_COLOR.value
	DOT_DRAW_LINE_MAX_DIST.value = newConfig.DOT_DRAW_LINE_MAX_DIST || DOT_DRAW_LINE_MAX_DIST.value
	DOT_MOVE_SPEED.value = newConfig.DOT_MOVE_SPEED || DOT_MOVE_SPEED.value
}

/** 绘制函数 */
const draw = () => {
	ctx.value.clearRect(0, 0, canvasWidth.value, canvasHeight.value)
	drawDot() // 绘制点
	drawLine() // 连线
	if(mousePosition.value.inCanvas) { // 鼠标在画布内 执行吸附逻辑
		drawLineByMouse() // 连线到鼠标
	}
}

/** 下一帧-调试用 */
const nextDraw = () => {
	dotMove()
}

/** 创建点坐标 */
const createdDot =() => {
	dotList.value = []
	for (let num = 1; num <= DOT_NUM.value; num++) {
			const x = getRandomInteger(0, canvasWidth.value)
			const y = getRandomInteger(0, canvasHeight.value)
			const move_x = (+(Math.random() * 2 - 1).toFixed(2)) * DOT_MOVE_SPEED.value // 移动x轴的速度
			const move_y = (+(Math.random() * 2 - 1).toFixed(2)) * DOT_MOVE_SPEED.value // 移动y轴的速度
			dotList.value.push({x,y,move_x,move_y})
	}
}

/** 绘制点 */
const drawDot = () => {
	ctx.value.save();
	ctx.value.translate(0.5, 0.5);
	dotList.value.forEach((dot, index)=>{
		ctx.value.fillStyle = index === 0 ? 'red' : DOT_COLOR.value || '#fff'
		ctx.value.beginPath();
		ctx.value.arc(dot.x, dot.y, DOT_RADIUS.value, 0, 2*Math.PI)
		ctx.value.fill()
		ctx.value.closePath();
	})
	ctx.value.restore();
}

/** 点之间连线 */
const drawLine = () => {
	ctx.value.save();
	ctx.value.translate(0.5, 0.5);
	const lineColorRgb = hexToRgb(LINE_COLOR.value)
	dotList.value.forEach((dot1, index1)=>{
		dotList.value.forEach((dot2, index2)=>{
			const s = getDistanceByTwoDot(dot1, dot2) // 两点之间的距离
			if(index1 !== index2 && s <= DOT_DRAW_LINE_MAX_DIST.value) {
				ctx.value.lineWidth = 1
				ctx.value.strokeStyle = `rgba(${lineColorRgb.r}, ${lineColorRgb.g}, ${lineColorRgb.b}, ${((DOT_DRAW_LINE_MAX_DIST.value-s) / DOT_DRAW_LINE_MAX_DIST.value)})`
				ctx.value.beginPath();
				ctx.value.moveTo(dot1.x, dot1.y)
				ctx.value.lineTo(dot2.x, dot2.y)
				ctx.value.stroke()
				ctx.value.closePath();
			}
		})
	})
	ctx.value.restore();
}

/** 点有规律的动起来 */
const dotMove = () => {
	dotList.value.forEach((dot, index) => {
		let nextX = dot.x
		let nextY = dot.y

		nextX = dot.x + dot.move_x
		nextY = dot.y + dot.move_y
		if(nextX > canvasWidth.value - DOT_RADIUS.value) {
			nextX = canvasWidth.value - DOT_RADIUS.value
			dot.move_x = -dot.move_x
		} else if(nextX < DOT_RADIUS.value) {
			nextX = DOT_RADIUS.value
			dot.move_x = -dot.move_x
		}
		if(nextY > canvasHeight.value - DOT_RADIUS.value) {
			nextY = canvasHeight.value - DOT_RADIUS.value
			dot.move_y = -dot.move_y
		} else if(nextY < DOT_RADIUS.value) {
			nextY = DOT_RADIUS.value
			dot.move_y = -dot.move_y
		}

		dot.x = nextX
		dot.y = nextY
	})
	draw() // 绘制
	animationNum.value = requestAnimationFrame(dotMove)
}

/** 鼠标移动相关逻辑 */
const mouseMove = () => {
	const canvas = document.getElementById('random-dot-line-canvas')
	canvas.addEventListener('mousemove', (e) => {
		mousePosition.value = {
			inCanvas: true,
			x: e.offsetX,
			y: e.offsetY,
			offsetX: e.offsetX, // 相对于canvas
			offsetY: e.offsetY,
			pageX: e.pageX, // 相对于页面
			pageY: e.pageY,
		}
	})
	canvas.addEventListener('mouseleave', (e) => {
		mousePosition.value.inCanvas = false
	})
}

/** 点移动兼容鼠标位置的戏份逻辑 */
const mouseAdsorb = () => {
	dotList.value.forEach((dot) => {
		let nextX = dot.x
		let nextY = dot.y
		const attractiveRange = DOT_DRAW_LINE_MAX_DIST.value + 50 // 吸引力作用范围
		const adsorptionDistance = DOT_DRAW_LINE_MAX_DIST.value // 吸附距离
		const distance = getDistanceByTwoDot(mousePosition.value, dot) // 鼠标和点的距离
		if(distance < attractiveRange && distance > adsorptionDistance) {
			dot.isAttractive = true // 点正在被鼠标吸引
			const { mouse_move_x, mouse_move_y } = getAdsorbSpeed(dot, mousePosition.value) // 计算鼠标吸附点xy方向上的速度
			nextX += mouse_move_x
			nextY += mouse_move_y
		} else if(distance <= adsorptionDistance) { // 吸附点
			dot.isAdsorption = true // 点已经被吸附
			dot.isAttractive = false
		} else {
			dot.isAttractive = false // 点没有被鼠标吸引
			dot.isAdsorption = false // 点没有被吸附
		}
		dot.x = nextX
		dot.y = nextY
	})
	draw() // 绘制
	animationMouseNum.value = requestAnimationFrame(mouseAdsorb)
}

/** 点鼠标之间连线 */
const drawLineByMouse = () => {
	ctx.value.save();
	ctx.value.translate(0.5, 0.5);
	const lineColorRgb = hexToRgb(LINE_COLOR.value)
	dotList.value.forEach((dot)=>{
		if(dot.isAdsorption || dot.isAttractive) { // 被吸引 或 被吸附的点 与鼠标位置连线
			ctx.value.lineWidth = 1
			ctx.value.strokeStyle = `rgba(${lineColorRgb.r}, ${lineColorRgb.g}, ${lineColorRgb.b}, ${0.3})`
			ctx.value.beginPath();
			ctx.value.moveTo(dot.x, dot.y)
			ctx.value.lineTo(mousePosition.value.x, mousePosition.value.y)
			ctx.value.stroke()
			ctx.value.closePath();
		}
	})
	ctx.value.restore();
}

/** 工具函数 */
// 生成min-max范围内随机整数
const getRandomInteger = (min, max) => {
  return Math.floor(Math.random() * (max - min + 1)) + min;
}
// 计算两点之间的距离
const getDistanceByTwoDot = (dot1, dot2) => {
	const w = Math.abs(dot1.x - dot2.x)
	const h = Math.abs(dot1.y - dot2.y)
	const s = Math.sqrt(w**2 + h**2)
	return s
}
// 十六进制颜色 转 rgb
function hexToRgb(hex) {
	if(hex.includes('#')) {
		hex = hex.replace('#', '')
	}
  // 解析红、绿、蓝分量
  let r = parseInt(hex.substring(0, 2), 16);
  let g = parseInt(hex.substring(2, 4), 16);
  let b = parseInt(hex.substring(4, 6), 16) || 0;

  return { r, g, b };
}
// 计算点被吸引时 x y 方向上的移动速度
const getAdsorbSpeed = (dot, mouse) => {
	// const distance = getDistanceByTwoDot(dot, mouse) // 鼠标和点的距离
	const distanceX = mouse.x - dot.x
	const distanceY = mouse.y - dot.y
	const speed = DOT_MOVE_SPEED.value * 3
	const mouse_move_x =  +(speed * (distanceX < 0 ? -1 : 1)).toFixed(2)
	const mouse_move_y =	+(speed * (distanceY < 0 ? -1 : 1) * Math.abs((distanceY / distanceX))).toFixed(2)
	return { mouse_move_x, mouse_move_y }
}
</script>
<style lang='scss' scoped>
#random-dot-line-canvas {
	cursor: pointer;
}

</style>

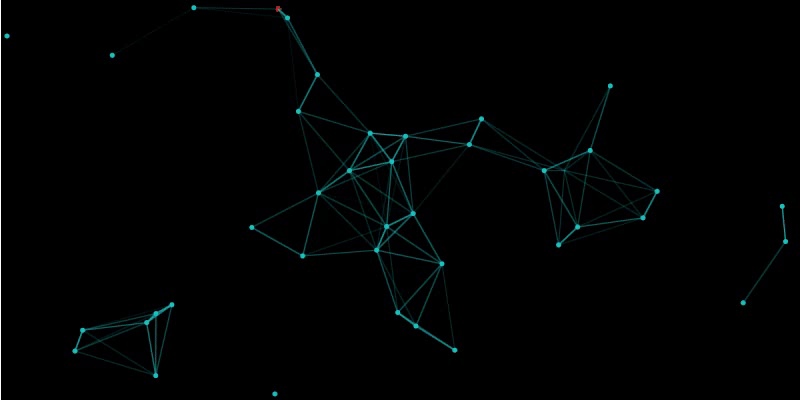

效果
