1.说在前面
初次接触android的网络编程,现在再一次被刷新了世界观,android程序往往扮演的是一个“客户端”的角色,和服务器之间进行沟通,从而获得服务器传来的数据,通过服务器传回的信息丰富程序的内容。
2.Http协议
2-1:概念
Hyper Text Transfer protocal (超文本传输协议),这是从万维网服务器传输超文本到本地浏览器的协议
http协议是基于tcp的应用层协议,不关心数据传输的细节,在乎客户端和服务端的数据传输格式,默认端口为“80”
2-2:结构

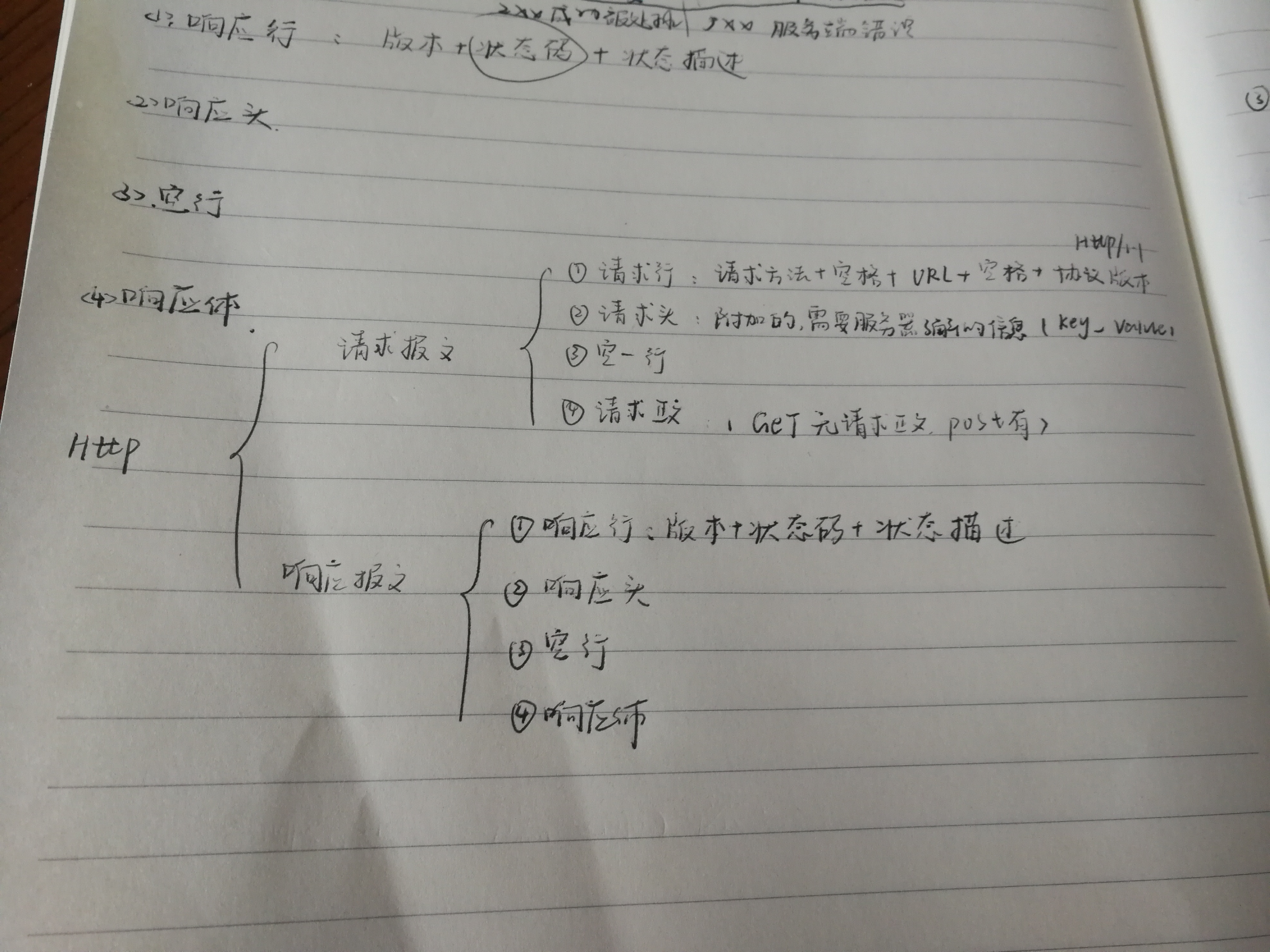

由请求报文和响应报文两部分组成,细节图如下:
注:在这里只是简单讲了下框架,http协议存在着很多细节部分需要去了解
具体信息:https://baike.sogou.com/v26357.htm?fromTitle=Http
3.get方法
通过get方法实现对某服务器的访问,同时,根据具体的信息细节得到服务器反馈的数据
在get方法中,通过拼接Url实现从服务器中获取数据
package com.example.httpurlconnectiondemo1;
import android.util.Log;
import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.net.HttpURLConnection;
import java.net.MalformedURLException;
import java.net.URL;
public class gethttpRequest {
/**
* 采用get方法进行对服务器的访问,以字符拼接的形式发送请求
*/
private String urlAddress = "http://cloud.bmob.cn/0906a62b462a3082/";//服务器地址
private String method = "getMemberBySex";//方法名
private String getUrl;
void get(String s) {
getUrl = urlAddress + method + "?sex" + s;//构造getUrl
new Thread(new Runnable() {
@Override
public void run() {
try {
URL url = new URL(getUrl);
HttpURLConnection connection = (HttpURLConnection) url.openConnection();//开启连接
connection.connect();//连接服务器
if (connection.getResponseCode() == 200) {
//使用字符流形式进行回复
InputStream is = connection.getInputStream();
//读取信息BufferReader
BufferedReader reader = new BufferedReader(new InputStreamReader(is));
StringBuffer buffer = new StringBuffer();
String readLine = "";
while ((readLine = reader.readLine()) != null) {
buffer.append(readLine);
}
is.close();
reader.close();
connection.disconnect();
Log.d("Msg", buffer.toString());
} else {
Log.d("TAG", "ERROR CONNECTED");
}
} catch (MalformedURLException e) {
e.printStackTrace();
} catch (IOException e) {
e.printStackTrace();
}
}
}).start();
}
}
4.post方法
通过post方法实现对某服务器的访问,同时,根据具体的信息细节得到服务器反馈的数据
post方法是通过输入输出流的形式,向服务器进行发送请求,然后进行信息的接收
package com.example.httpurlconnectiondemo1;
import android.provider.ContactsContract;
import android.util.Log;
import java.io.BufferedReader;
import java.io.DataOutputStream;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.net.HttpURLConnection;
import java.net.MalformedURLException;
import java.net.URL;
public class postHttpRequest {
/**
* post方法 以输入输出流的方式向服务器发送请求
*/
private String urlAddress = "http://cloud.bmob.cn/0906a62b462a3082/";//服务器地址
private String method = "getMemberBySex";//方法名
private String getUrl;
URL url;
void post(final String s) {
new Thread(new Runnable() {
@Override
public void run() {
try {
URL url = new URL(urlAddress + method);
HttpURLConnection connection = (HttpURLConnection) url.openConnection();
//设置输入输出流
connection.setDoOutput(true);
connection.setDoInput(true);
connection.setUseCaches(false);
connection.setRequestMethod("POST");//设置为POST方法
//开始设置请求头
connection.setRequestProperty("Accept-Charset", "UTF-8");
connection.setRequestProperty("Content-Type", "application/x-www-form-urlencoded");
connection.connect();//开始连接
//以输出流的形式进行给服务器传输数据
DataOutputStream outputStream = new DataOutputStream(connection.getOutputStream());
String content = "sex=" + s;
outputStream.writeBytes(content);
outputStream.flush();
outputStream.close();
//服务器进行响应
if (connection.getResponseCode() == 200) {
InputStream is = connection.getInputStream();
//读取信息
BufferedReader reader = new BufferedReader(new InputStreamReader(is));
StringBuffer stringBuffer = new StringBuffer();//使用StringBuffer来存储所有信息
String readLine = "";//使用readLine方法来存储整行信息
while ((readLine = reader.readLine()) != null) {
stringBuffer.append(readLine);
}
is.close();
reader.close();
connection.disconnect();
Log.d("Message", stringBuffer.toString());
} else {
//打印错误的信息
Log.d("TAG", "ERROR ");
}
} catch (MalformedURLException e) {
e.printStackTrace();
} catch (IOException e) {
e.printStackTrace();
}
}
}).start();
}
}
