Android——一个简单的银行系统

简述

采用SQLite数据库进行对数据进行读取和插入

实现功能：
1：注册用户信息
2：登录界面
3：存钱，取钱，查询余额

基类

第一步：先创建一个实体类User
除了对字段进行set和get还多了Deposit（）Withdraw两个方法，用于在后面FUNCTION界面进行存钱和取钱
代码如下：

public class User {
    private String BankName;
    private String Name;
    private int Money;
    private String PassWord;
    public  User(String Name, String Password, String BankName , int Money) {
        super();
        this.Name = Name;
        this.PassWord = Password;
        this.BankName = BankName;
        this.Money = Money;
    }
    public User(){
    }
    public void setMoney(int Money){
        this.Money = Money;
    }
    public String getName() {
        return Name;
    }
    public String getPassWord() {
        return PassWord;
    }
    public String getBankName() {
        return BankName;
    }
    public int getMoney() {
        return Money;
    }
    //存钱
    public void Deposit(int Money) {
        this.Money += Money;
        }
    //取钱
    public void Withdraw(int Money) {
        if (this.Money < Money) {
            Log.d(Dao.TAG, "Withdraw: 余额不足!");
            return;
        } else {
            this.Money -= Money;
        }
    }
    public String toString() {
        return "[户主:"+Name+"  银行类型："+BankName+"  余额："+Money+"]";
    }
}

数据库

第二步：
建立一个MyHelper类用于继承SQLiteOpenHelper类，用于创建数据库
代码如下：

public class MyHelper extends SQLiteOpenHelper {
    public static final String TableName = "BankSystem";
    public static final String Name = "Name";
    public static final String PassWord = "PassWord";
    public static final String BankType = "BankType";
    public static final String Money = "Money";
    private static final String DataBase = "BankSystem.db";
    private static final SQLiteDatabase.CursorFactory Factory = null;
    public static final int version = 1;
    public MyHelper(@Nullable Context context) {
        super(context, DataBase, Factory, version);
    }
    @Override
    public void onCreate(SQLiteDatabase db) {
        String sql = "create table " + TableName + "( "+Name+" varchar(20) primary key, "+PassWord+" varchar(20),"+BankType+" varchar(20) ,"+Money+" Interget);";
        db.execSQL(sql);
    }
    @Override
    public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {
        db.execSQL("drop table if exists "+TableName);
        onCreate(db);
    }
}

登录界面

第三步：
建立登录界面也就是启动项MainActivity
Drawable 类是对登录界面的两个图片进行合适的缩放
MainActivity.java代码如下：

public class MainActivity extends AppCompatActivity {
    private static EditText editTextUserName;
    private static EditText editTextUserPassWord;
    private Button btn_Login,btn_Register;
    private TextView TitleImage;
    public static String name =null;
    public static String password = null;
    static int i = 0;
    private  MyHelper myhelper = null ;
    private  SQLiteDatabase DB;
    Dao dao = null;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        myhelper = new MyHelper(MainActivity.this);

        editTextUserName = (EditText) findViewById(R.id.userName);
        editTextUserPassWord = (EditText) findViewById(R.id.userPassword);
        btn_Login = (Button) findViewById(R.id.Login);
        btn_Register = (Button) findViewById(R.id.Register);
        TitleImage = (TextView)findViewById(R.id.titleImage);

        Drawable drawableUserName = getResources().getDrawable(R.drawable.user);
        //第一个0是距左边距离，第二个0是距上边距离，40分别是长宽
        drawableUserName.setBounds(0, 0, 90, 90);
        editTextUserName.setCompoundDrawables(drawableUserName, null, null, null);
        //****************************
        Drawable drawableUserPassWord = getResources().getDrawable(R.drawable.unlock);
        drawableUserPassWord.setBounds(0, 0, 90, 90);
        editTextUserPassWord.setCompoundDrawables(drawableUserPassWord, null, null, null);
        //****************************
        Drawable drawableTitleImage= getResources().getDrawable(R.drawable.bastard);
        drawableTitleImage.setBounds(0, 0, 100, 90);
        TitleImage.setCompoundDrawables(drawableTitleImage, null, drawableTitleImage, null);
        OnClick onClick = new OnClick();
        btn_Login.setOnClickListener(onClick);
        btn_Register.setOnClickListener(onClick);
    }
//    public boolean checkAccount(String Name){
//        DB=myhelper.getReadableDatabase();
//        String query="select * from BankSystem where Name=? ";
//        Cursor cursor=DB.rawQuery(query, new String[]{Name});
//        if(cursor.moveToNext()){
//            cursor.close();
//            return true;
//        }
//        cursor.close();
//        return false;
//    }

   class OnClick implements View.OnClickListener{
        @Override
        public void onClick(View v) {
            Intent intent = null;
            dao = new Dao(MainActivity.this);

            name = editTextUserName.getText().toString().trim();
            password = editTextUserPassWord.getText().toString().trim();
            switch (v.getId())
            {
                case R.id.Login:
                    if (dao.login(name,password) == true) {
                       Toast.makeText(MainActivity.this,"LOGIN Success",Toast.LENGTH_SHORT).show();
                        intent = new Intent(MainActivity.this, Function.class);
                        break;
                    }
                    else
                    {
                        Toast.makeText(MainActivity.this,"LOGIN Fail",Toast.LENGTH_SHORT).show();
                        break;
                    }
                case R.id.Register:
                    intent = new Intent(MainActivity.this,Register.class);
                    break;
            }
            startActivity(intent);
        }
    }
}

效果图

activity_main.xml文件如下

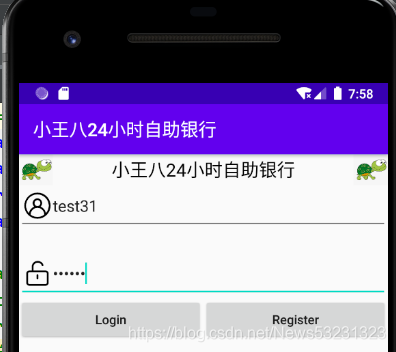

效果图如下：

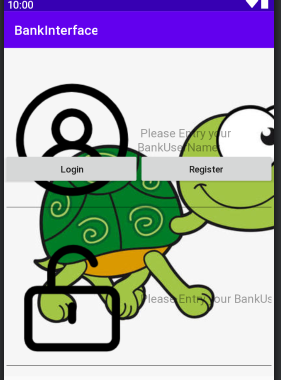

前者是对图片进行了Drawable处理，后面是没有进行处理

布局代码

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
                    android:layout_width="match_parent"
                    android:layout_height="match_parent"
                    android:orientation="vertical"
                    android:layout_marginBottom="20dp">
    <TextView
     android:id="@+id/titleImage"
     android:layout_width="match_parent"
     android:layout_height="wrap_content"
     android:text="小王八24小时自助银行"
     android:textColor="#000"
     android:textSize="20dp"
     android:gravity="center"
     android:drawableLeft="@drawable/bastard"/>

    <EditText
       android:id="@+id/userName"
       android:layout_width="match_parent"
       android:layout_height="wrap_content"
       android:hint=" Please Entry your BankUserName:"
       android:drawableLeft="@drawable/user"
       android:layout_marginTop="30dp"/>
    <EditText
            android:id="@+id/userPassword"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:hint=" Please Entry your BankUserPassword:"
            android:drawableLeft="@drawable/unlock"
            android:layout_below="@id/userName"
            android:layout_marginTop="20dp"
            android:inputType="textPassword"/>
    <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:orientation="horizontal">
    <Button
     android:id="@+id/Login"
     android:layout_width="0dp"
     android:layout_height="wrap_content"
     android:text="Login"
     android:textAllCaps="false"
     android:layout_marginTop="160dp"
     android:layout_weight="1"/>
    <Button
            android:id="@+id/Register"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:text="Register"
            android:textAllCaps="false"
            android:layout_marginTop="160dp"
            android:layout_weight="1"/>
    </LinearLayout>
</RelativeLayout>

注册

第四步建立一个注册的avtivity命名为Register
Register.java代码如下：

public class Register extends AppCompatActivity {
    private  EditText editTextName,editTextPassWord,editTextEntryPassWord,FirstDeposit,editBankType;
    private  Button btn_Submit;
    private Spinner spinner;
    public  static String Name = null;
    public  static String PassWord = null;
    public  static String EntryPassWord = null;
    public  static String BankType = null;
    public  static int Money =0;
    Dao dao =null;

    @Override
    protected void onCreate(final Bundle savedInstanceState)  {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_register);
        editTextName = (EditText) findViewById(R.id.RegisterBankUserName);
        editTextPassWord = (EditText) findViewById(R.id.RegisterBankPassWord);
        editTextEntryPassWord = (EditText) findViewById(R.id.AgainRegisterBankPassWord);
        FirstDeposit = (EditText) findViewById(R.id.InitDeposit);
        spinner = (Spinner) findViewById(R.id.spinner_BankType);
        btn_Submit = (Button) findViewById(R.id.RegisterSubmitButton);

    spinner.setOnItemSelectedListener(new AdapterView.OnItemSelectedListener() {
            @Override
            public void onItemSelected(AdapterView<?> parent, View view, int position, long id) {

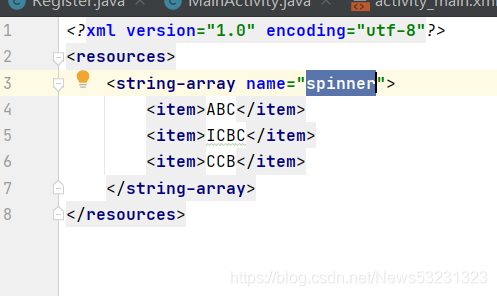

                String [] str = getResources().getStringArray(R.array.spinner);
                //点击的事项，选择的开户银行
                BankType = str[position];
            }

            @Override
            public void onNothingSelected(AdapterView<?> parent) {

            }
        });
            btn_Submit.setOnClickListener(new View.OnClickListener() {
                @Override
                public void onClick(View v) {
                    dao = new Dao(Register.this);
                    Name = editTextName.getText().toString().trim();
                    PassWord = editTextPassWord.getText().toString().trim();
                    EntryPassWord = editTextEntryPassWord.getText().toString().trim();
                    BankType = spinner.getContext().toString().trim();
                    try {
                        Money = Integer.parseInt(FirstDeposit.getText().toString().trim());
                    }catch (NumberFormatException e)
                    {
                        e.printStackTrace();
                    }
                    if ("".equals(Name) && "".equals(PassWord) && "".equals(EntryPassWord) && "".equals(BankType))
                    {
                        Toast.makeText(Register.this,"信息不能为空，请重试",Toast.LENGTH_SHORT).show();
                        return;
                    }
                    if (! PassWord.equals(EntryPassWord))
                    {
                        Toast.makeText(Register.this,"密码不一致，请重试",Toast.LENGTH_SHORT).show();
                        return;
                    }
                    else if ( Money  < 10)
                    {
                        Toast.makeText(Register.this,"首次开户金额不能小于10元，请重试",Toast.LENGTH_SHORT).show();
                        return;
                    }
                        dao.Insert(new User(Name,PassWord,BankType,Money));
                        Log.d(Dao.TAG,"success");
                        Intent intent = new Intent(Register.this, Function.class);
                        startActivity(intent);
                }
            });
        }
    }

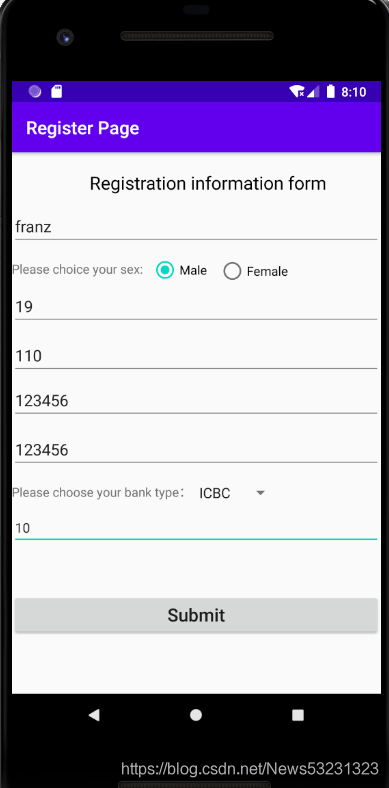

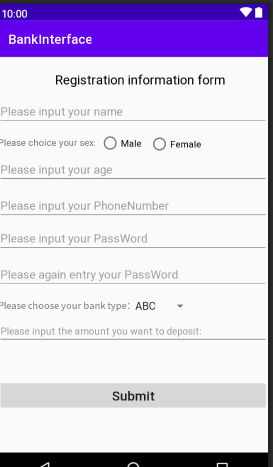

效果图

布局代码

   <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
                android:layout_width="match_parent"
                android:layout_height="match_parent"
                android:layout_marginTop="20dp">
    <TextView
            android:id="@+id/Title"
            android:layout_width="400dp"
            android:layout_height="30dp"
            android:text="Registration information form"
            android:layout_marginLeft="87dp"
            android:textSize="20sp"
            android:textColor="#000" />
    <EditText
            android:id="@+id/RegisterBankUserName"
            android:hint="Please input your name"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_marginTop="10dp"
            android:layout_below="@id/Title"/>
    <TextView
            android:id="@+id/Sex"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:text="Please choice your sex:"
            android:layout_below="@id/RegisterBankUserName"
            android:layout_marginTop="15dp"/>
    <RadioGroup
            android:layout_width="match_parent"
            android:layout_height="wrap_content">
        <RadioButton
                android:id="@+id/sexRadioButtonMale"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="Male"
                android:layout_marginTop="95dp"
                android:layout_marginLeft="155dp"/>
        <RadioButton
                android:id="@+id/sexRadioButtonFemale"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="Female"
                android:layout_marginTop="-31dp"
                android:layout_marginLeft="230dp"/>

    </RadioGroup>
    <EditText
            android:id="@+id/Age"
            android:hint="Please input your age"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_marginTop="10dp"
            android:layout_below="@id/Sex"/>
    <EditText
            android:id="@+id/PhoneNumber"
            android:hint="Please input your PhoneNumber"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_marginTop="10dp"
            android:layout_below="@id/Age"/>

    <EditText
            android:id="@+id/RegisterBankPassWord"
            android:hint="Please input your PassWord"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_marginTop="5dp"
            android:layout_below="@id/PhoneNumber"/>
    <EditText
            android:id="@+id/AgainRegisterBankPassWord"
            android:hint="Please again entry your PassWord"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_marginTop="10dp"
            android:layout_below="@id/RegisterBankPassWord"/>
    <TextView
            android:id="@+id/title"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_marginTop="15dp"
            android:text="Please choose your bank type："
            android:layout_below="@id/AgainRegisterBankPassWord"/>
    <EditText
            android:id="@+id/InitDeposit"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:hint="Please input the amount you want to deposit:"
            android:layout_below="@id/title"
            android:textSize="15sp"
            android:layout_marginTop="10dp"/>
    <Spinner
            android:id="@+id/spinner_BankType"
            android:layout_width="100dp"
            android:layout_height="wrap_content"
            android:entries="@array/spinner"
            android:layout_gravity="center"
            android:layout_marginTop="347dp"
            android:layout_marginRight="110dp"
            android:layout_alignRight="@id/InitDeposit"/>
    <Button
            android:id="@+id/RegisterSubmitButton"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:text="Submit"
            android:layout_below="@id/spinner_BankType"
            android:layout_marginTop="100dp"
            android:textAllCaps="false"
            android:textSize="20sp" />
</RelativeLayout>

数据操作

第五步：建立一个Function活动，用于存钱，取钱，查询三个功能
Function.java代码如下：

public class Function extends AppCompatActivity {
    private Button btn_saveMoney,btn_withdrawMoney,btn_search;
    Dao dao = new Dao();
    User user = null;
    public static int FUNC_Money = 0;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.function);
        btn_saveMoney = (Button) findViewById(R.id.SaveMoney);
        btn_withdrawMoney = (Button) findViewById(R.id.WithdrawMoney);
        btn_search = (Button) findViewById(R.id.Search);
        OnClick onClick = new OnClick();
        btn_saveMoney.setOnClickListener(onClick);
        btn_withdrawMoney.setOnClickListener(onClick);
        btn_search.setOnClickListener(onClick);
    }
    class OnClick implements View.OnClickListener
    {

        @Override
        public void onClick(View v) {
            String Name = Register.Name;
            String Password = Register.PassWord;
            String BankType = Register.BankType;
            int Money = Register.Money;
            user = new User(Name,Password,BankType,Money);
            switch (v.getId()){
                case R.id.SaveMoney:
                    AlertDialog.Builder dialogSaveMoney = new AlertDialog.Builder(Function.this);
                    View viewSaveMoney = LayoutInflater.from(Function.this).inflate(R.layout.activity_save_money,null);
                    TextView textViewSaveMoney = viewSaveMoney.findViewById(R.id.SaveMoneyTextView);
                    final EditText editTextSaveMoney = viewSaveMoney.findViewById(R.id.SaveMoneyEditText);
                    Button submitSaveMoney = viewSaveMoney.findViewById(R.id.SaveMoneyButton);
                    submitSaveMoney.setOnClickListener(new View.OnClickListener() {
                        @Override
                        public void onClick(View v) {
                            try {
                                FUNC_Money = Integer.parseInt(editTextSaveMoney.getText().toString());
                            }catch (NumberFormatException e)
                            {
                                e.printStackTrace();
                            }
                            String Name = Register.Name;
                            int Money = dao.Query(Name);
                            user.setMoney(Money);
                            user.Deposit(FUNC_Money);
                            dao.Update(Name,user.getMoney());
                            Toast.makeText(Function.this,"当前账户余额为"+ user.getMoney(),Toast.LENGTH_SHORT).show();

                        }
                        public void onClick(DialogInterface dialog, int which, boolean isChecked){
                            dialog.dismiss();
                        }
                    });
                    dialogSaveMoney.setTitle("Little Bastard Bank").setIcon(R.drawable.bastard).setView(viewSaveMoney).show();
                    break;
                case R.id.WithdrawMoney:
                    AlertDialog.Builder dialogWithdraw = new AlertDialog.Builder(Function.this);
                    View viewWithdrawMoney = LayoutInflater.from(Function.this).inflate(R.layout.activity_withdraw_money,null);
                    TextView textViewWithdrawMoney = viewWithdrawMoney.findViewById(R.id.WithdrawMoneyTextView);
                    final EditText editTextWithdrawMoney = viewWithdrawMoney.findViewById(R.id.WithdrawMoneyEditText);
                    Button buttonWithdrawMoney = viewWithdrawMoney.findViewById(R.id.WithdrawMoneyButton);
                    buttonWithdrawMoney.setOnClickListener(new View.OnClickListener() {
                        @Override
                        public void onClick(View v) {
                            try {
                                FUNC_Money = Integer.parseInt(editTextWithdrawMoney.getText().toString());
                            }catch (NumberFormatException e)
                            {
                                e.printStackTrace();
                            }
                            String Name = Register.Name;
                            int Money = dao.Query(Name);
                            user.setMoney(Money);
                            user.Withdraw(FUNC_Money);
                            dao.Update(Name,user.getMoney());
                            Toast.makeText(Function.this,"当前账户余额为"+ user.getMoney(),Toast.LENGTH_SHORT).show();

                        }
                        public void onClick(DialogInterface dialog, int which, boolean isChecked){
                            dialog.dismiss();
                        }
                    });
                    dialogWithdraw.setTitle("Little Bastard Bank").setIcon(R.drawable.bastard).setView(viewWithdrawMoney).show();
                    break;
                case R.id.Search:
                    AlertDialog.Builder dialogSearch = new AlertDialog.Builder(Function.this);
                    View viewSearch = LayoutInflater.from(Function.this).inflate(R.layout.activity_search,null);
                    TextView textViewSearch = viewSearch.findViewById(R.id.SearchTextView);
                    final TextView textViewSearchHint = viewSearch.findViewById(R.id.SearchTextViewHint);
                    Button buttonSearch = viewSearch.findViewById(R.id.SearchButton);
                    buttonSearch.setOnClickListener(new View.OnClickListener() {
                        @Override
                        public void onClick(View v) {
                            String Name = Register.Name;
                            int EXE_Money = dao.Query(Name);
                            Toast.makeText(Function.this,"当前账户余额为"+ EXE_Money,Toast.LENGTH_SHORT).show();
                        }
                    });
                    dialogSearch.setTitle("Little Bastard Bank").setIcon(R.drawable.bastard).setView(viewSearch).show();
                    break;
            }
        }
    }
}

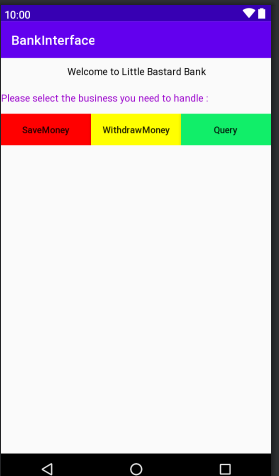

效果图

布局代码

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
                    android:layout_width="match_parent"
                    android:layout_height="match_parent">
    <TextView
            android:id="@+id/functionTitle"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:text="Welcome to Little Bastard Bank"
            android:textColor="#000"
            android:textSize="15dp"
            android:layout_marginTop="10dp"
            android:gravity="center" />
    <TextView
     android:id="@+id/ShowMessage"
     android:layout_width="match_parent"
     android:layout_height="wrap_content"
     android:text="Please select the business you need to handle :"
     android:textSize="15dp"
     android:layout_below="@id/functionTitle"
     android:layout_marginTop="20dp"
     android:textColor="#9900cc"/>
    <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content">
    <Button
     android:id="@+id/SaveMoney"
     android:layout_width="0dp"
     android:layout_height="wrap_content"
     android:text="SaveMoney"
     android:textAllCaps="false"
     android:layout_weight="1"
     android:layout_marginTop="85dp"
     android:background="#ff0000"/>
    <Button
            android:id="@+id/WithdrawMoney"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:text="WithdrawMoney"
            android:textAllCaps="false"
            android:layout_weight="1"
            android:layout_marginTop="85dp"
            android:background="#FFFF00"/>
    <Button
            android:id="@+id/Search"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:text="Query"
            android:textAllCaps="false"
            android:layout_weight="1"
            android:layout_marginTop="85dp"
            android:background="#11EE69"/>
    </LinearLayout>
</RelativeLayout>

最终效果图

/*********************************************运行效果图演示***************************************/
首先得注册才能登录，或者使用数据库中的用户信息登录都可以

注册界面，未填写信息前

填写完信息之后

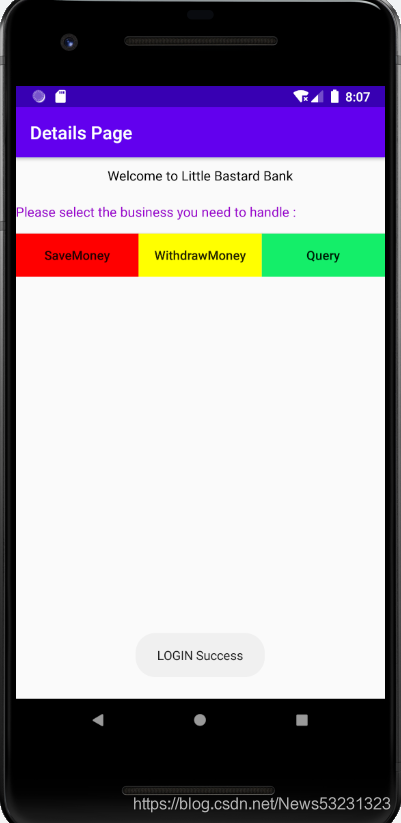

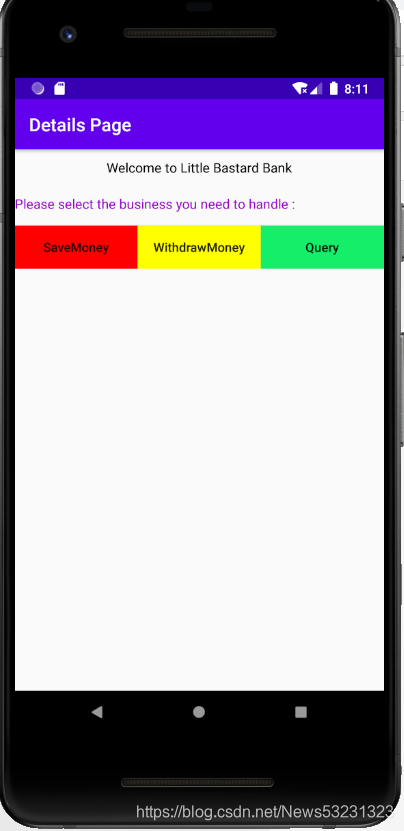

点击submit按钮跳转到Function界面

随意点一个然后进行操作

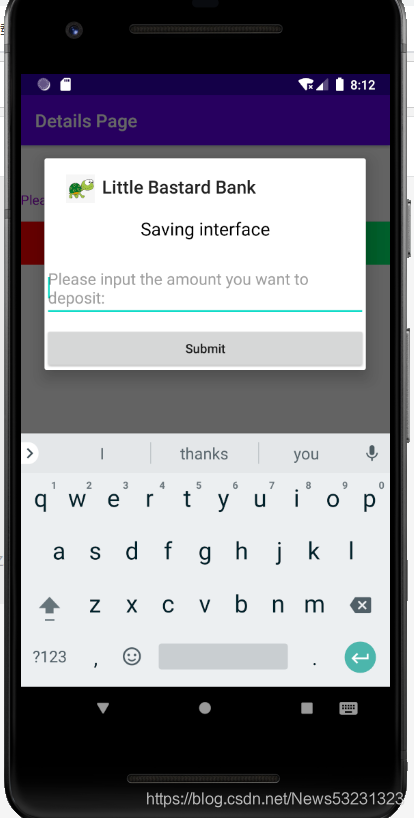

我们先点存钱，界面如下：

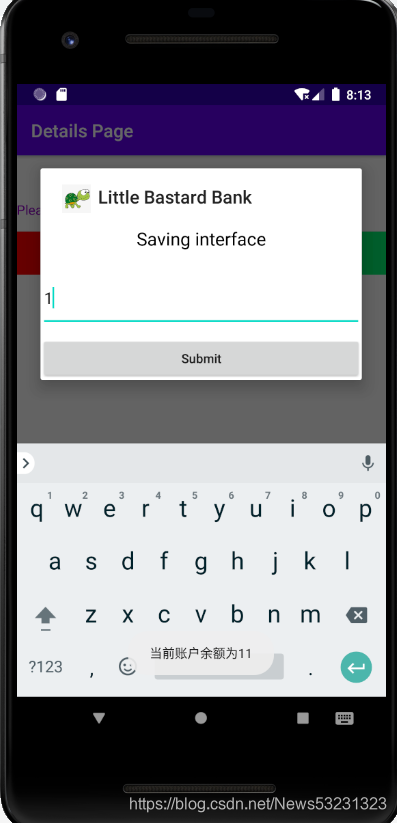

在我们注册用户时存入的金额是10元（开户最少存入金额10元），在这里我们存1块进去，底部会用Toast显示11块
//注意看底部Toast
//注意看底部Toast
//注意看底部Toast

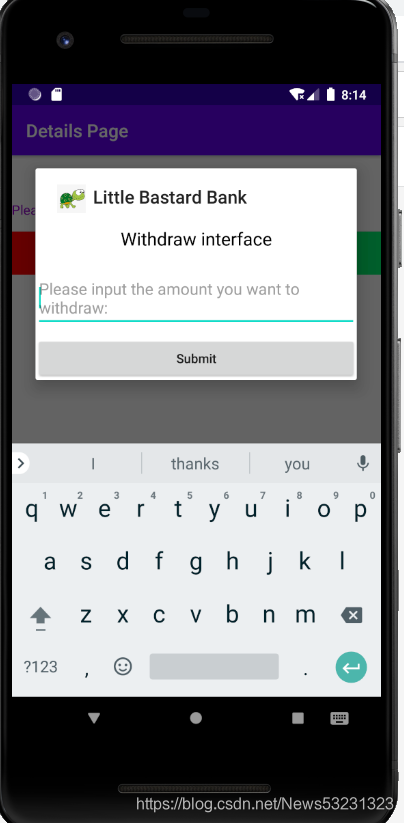

然后我们点击取钱，界面如下:

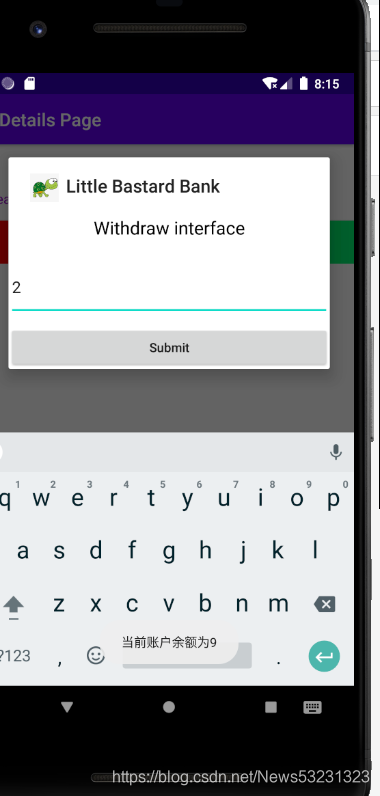

由于之前存入一块，我们的账户现在剩余11元，然后在取出2元，账户剩余9元
//注意看底部Toast
//注意看底部Toast
//注意看底部Toast

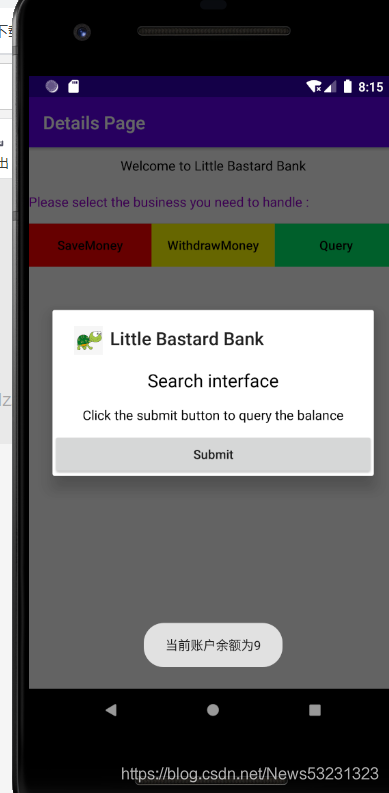

然后点击查询按钮，会显示9元
//注意看底部Toast
//注意看底部Toast
//注意看底部Toast

数据库后台记录

记得在values中建立文件用于Spinner下拉列表中可供选择的值，不然就会出现上面那个错误，找不到选择的值
