Pyqt5 --小工具功能实现【一】

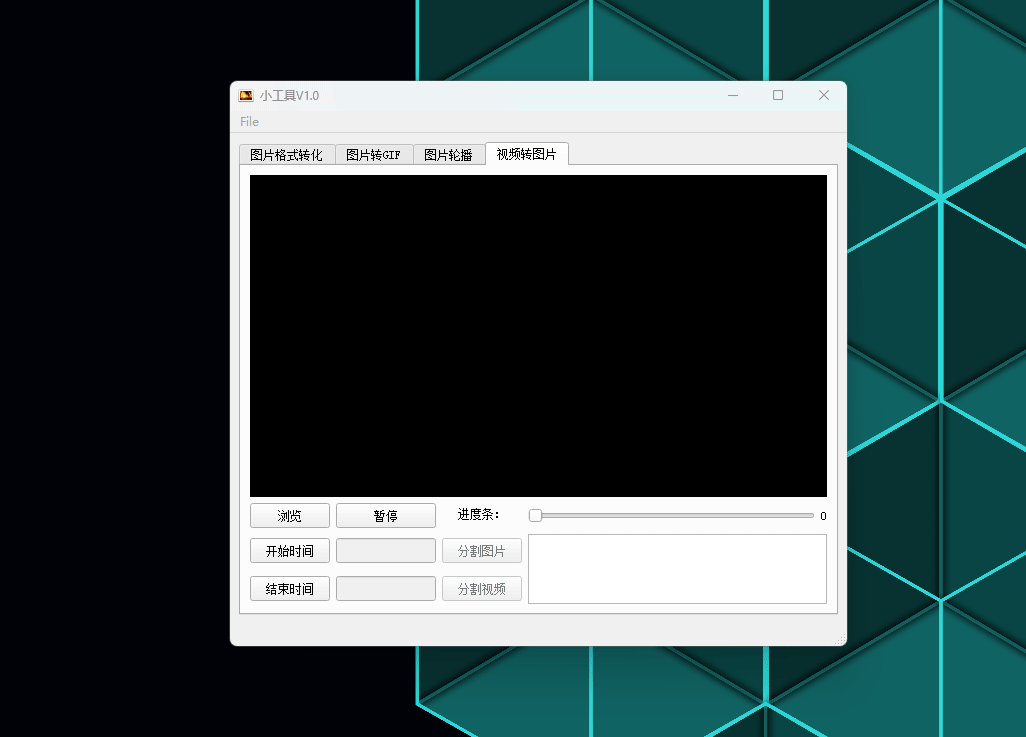

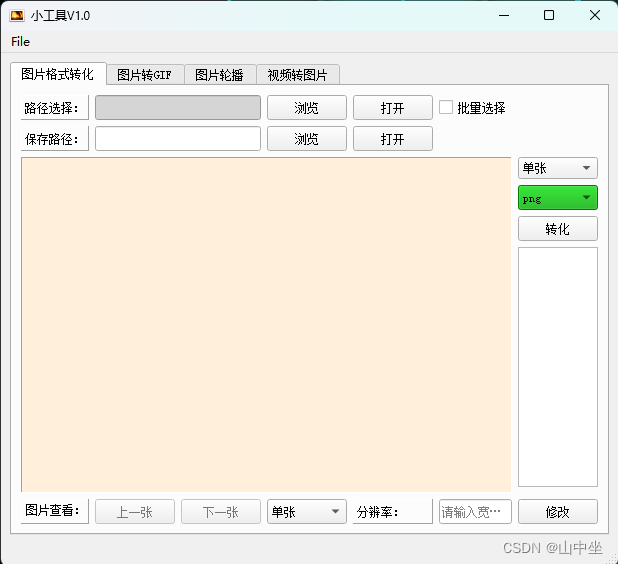

主界面展示：

在这里插入图片描述

文章目录

Pyqt5 --小工具功能实现【一】
前言
一、==图片格式转化模块：==
- （1）功能使用说明：
二、==图片转GIF模块：==
- （1）功能使用说明：
三、==图片轮播模块：==
- （1）功能使用说明：
四、==视频转图片模块：==
- （1）功能使用说明：
五、==其他功能模块：==
- - 5.1 打开程序运行本地目录的文件夹；
  - 5.2 重启小工具功能模块；
六、==代码功能模块介绍：==

前言

1、首先需要明晰工具的功能及其设计（包括：UI部分和逻辑程序部分）：
该小工具分为四个功能模块；
【1】图片格式转化模块；
【2】图片转GIF模块；
【3】图片轮播模块；
【4】视频转图片模块；

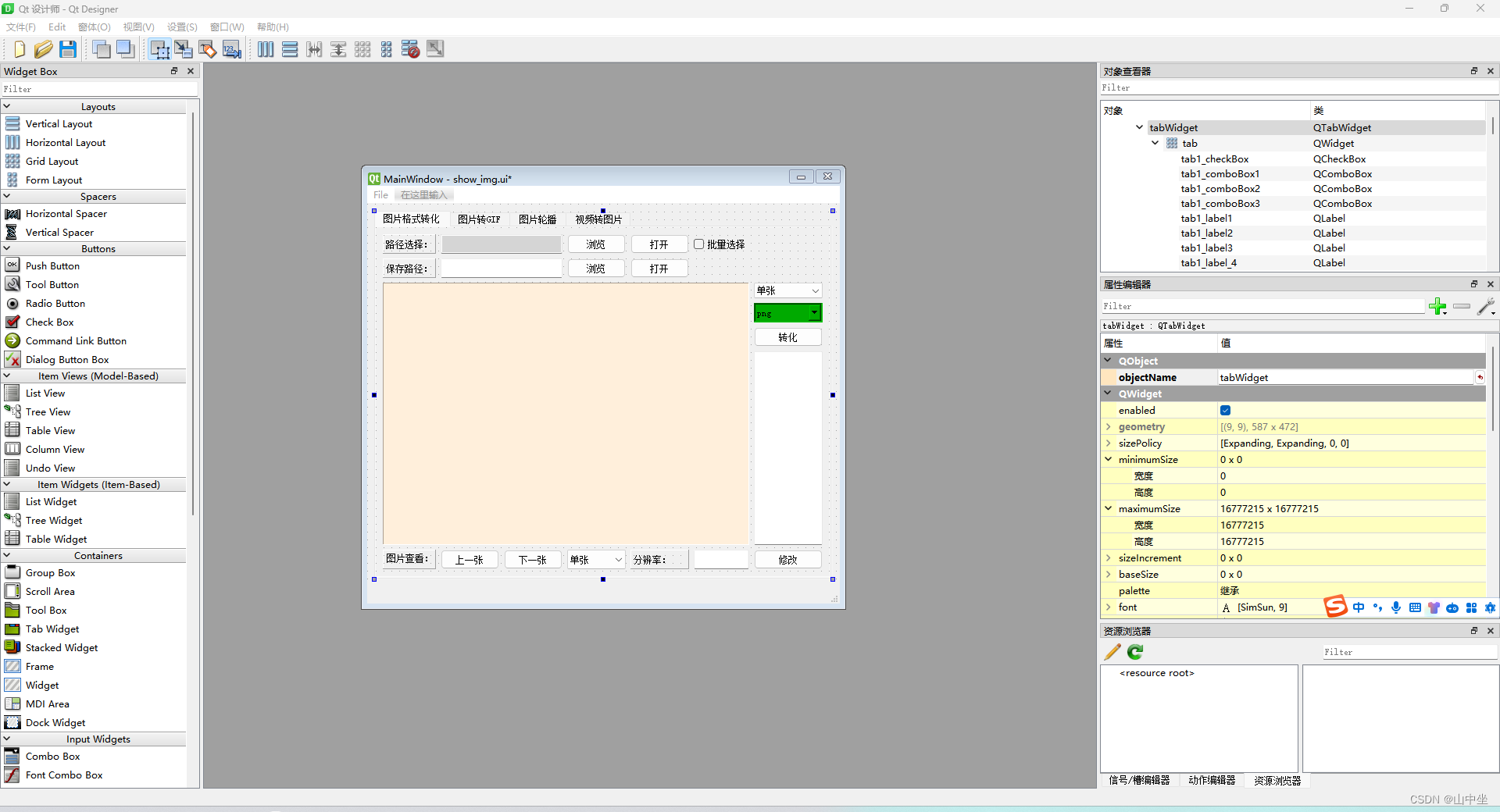

2、首先设计UI，通过Pyqt5工具设计，自动编译为python可识别UI程序；（这里不作详述安装及使用方法，如有需要，可自行查找相关资料学习）

在这里插入图片描述

3、逻辑程序：主要分为主程序（界面修改，逻辑功能控制）和QT线程启用程序（为了执行占用资源和持续性运行的功能程序）

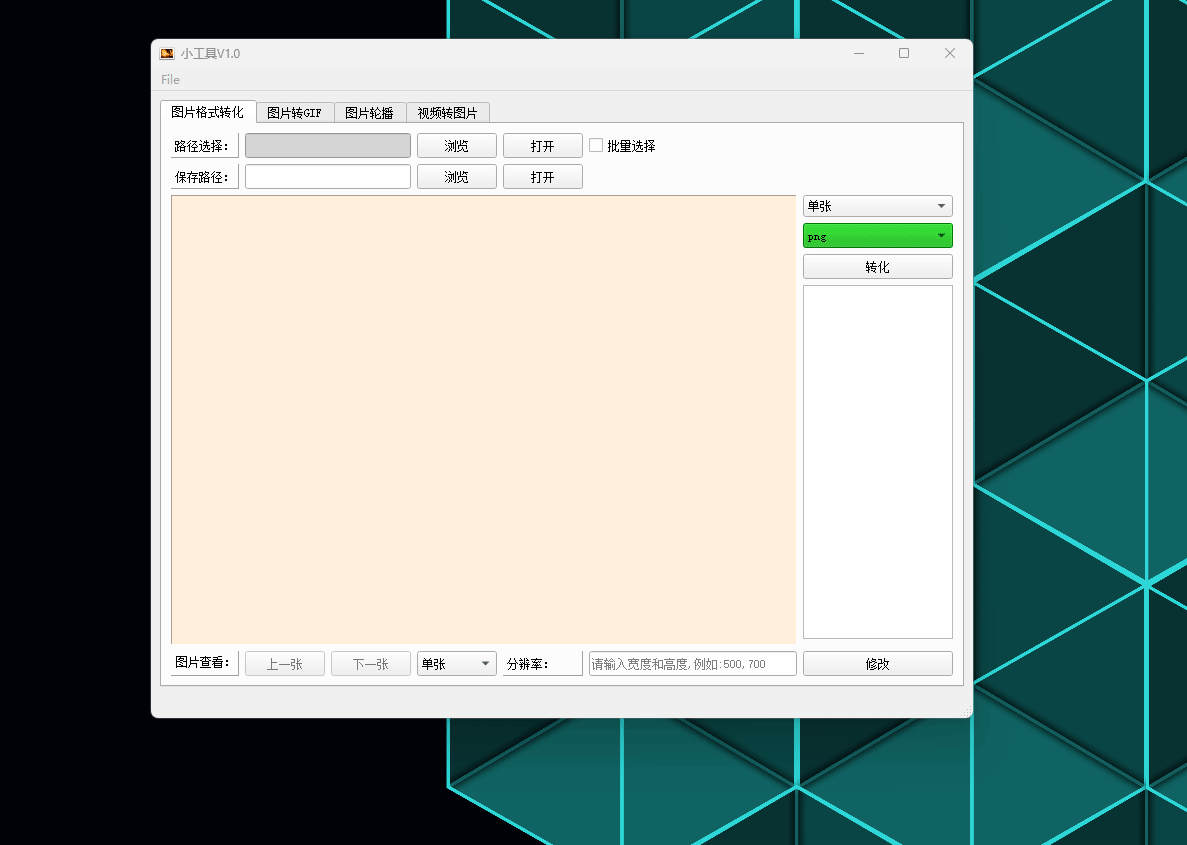

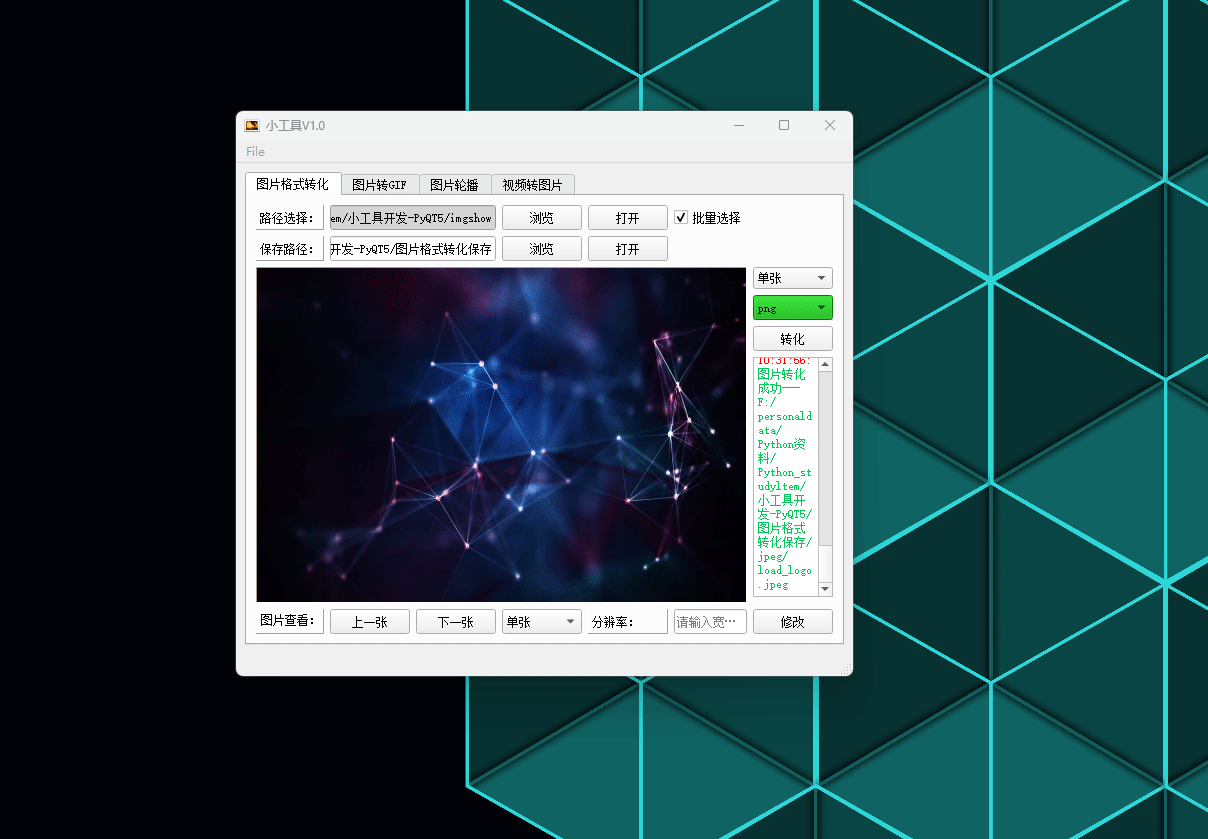

一、图片格式转化模块：

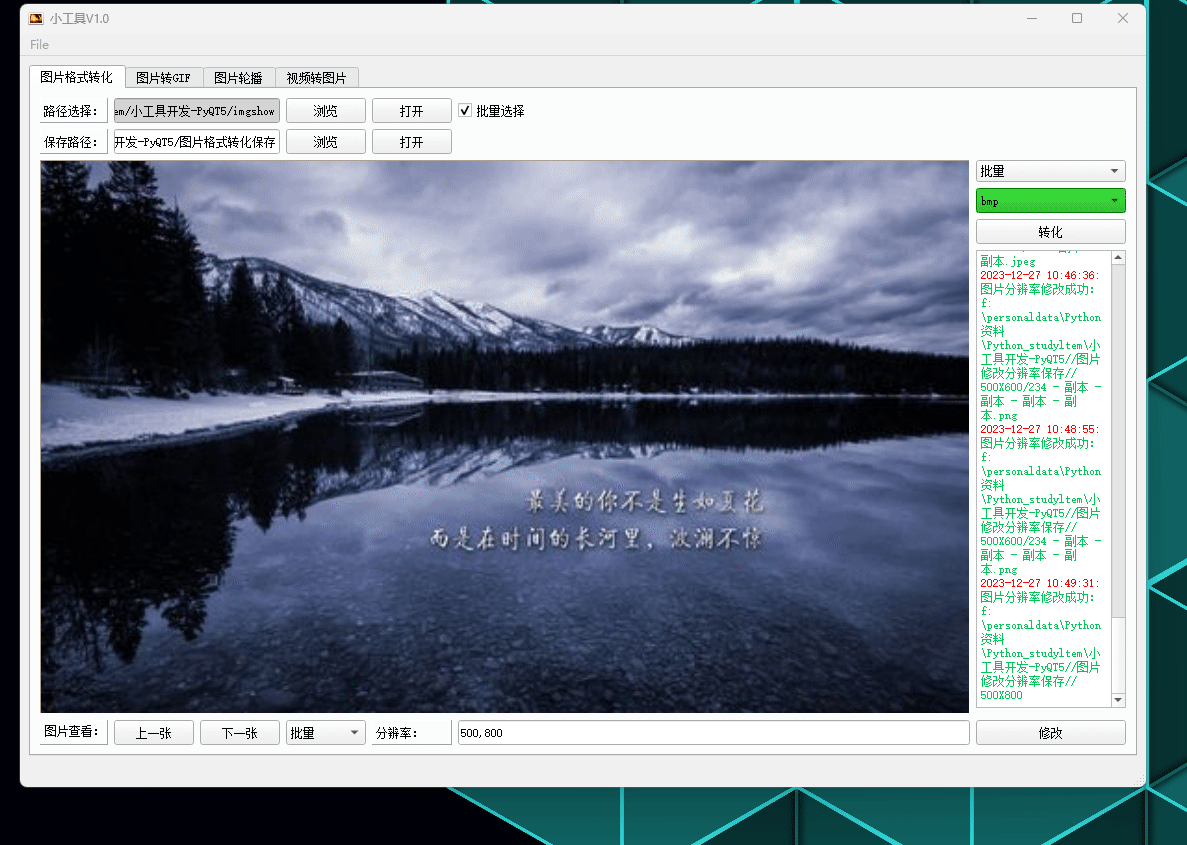

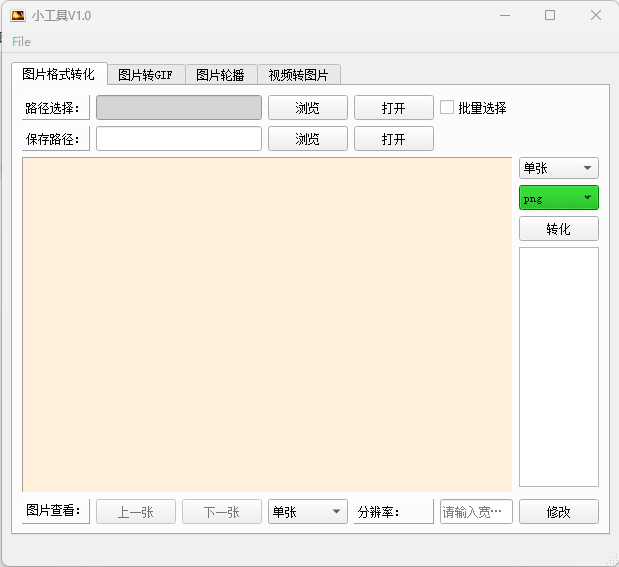

在这里插入图片描述

（1）功能使用说明：

1.1 点击浏览按钮，选择图片路径，点击打开按钮；

1.2 勾选批量选择，点击浏览按钮，选择图片存放的文件夹；

1.3 选择单张，选择图片转化格式，点击转化按钮，保存转换格式后的图片；

1.4 选择多张，选择图片转化格式，点击转化按钮，保存转换格式后的图片；

自动创建对应图片格式转化后的保存文件夹路径

1.5 选择单张或者多张，点击修改按钮，修改图片的分辨率，自动保存至对应路径；

自动保存到目录下【图片修改分辨率保存】的文件夹内

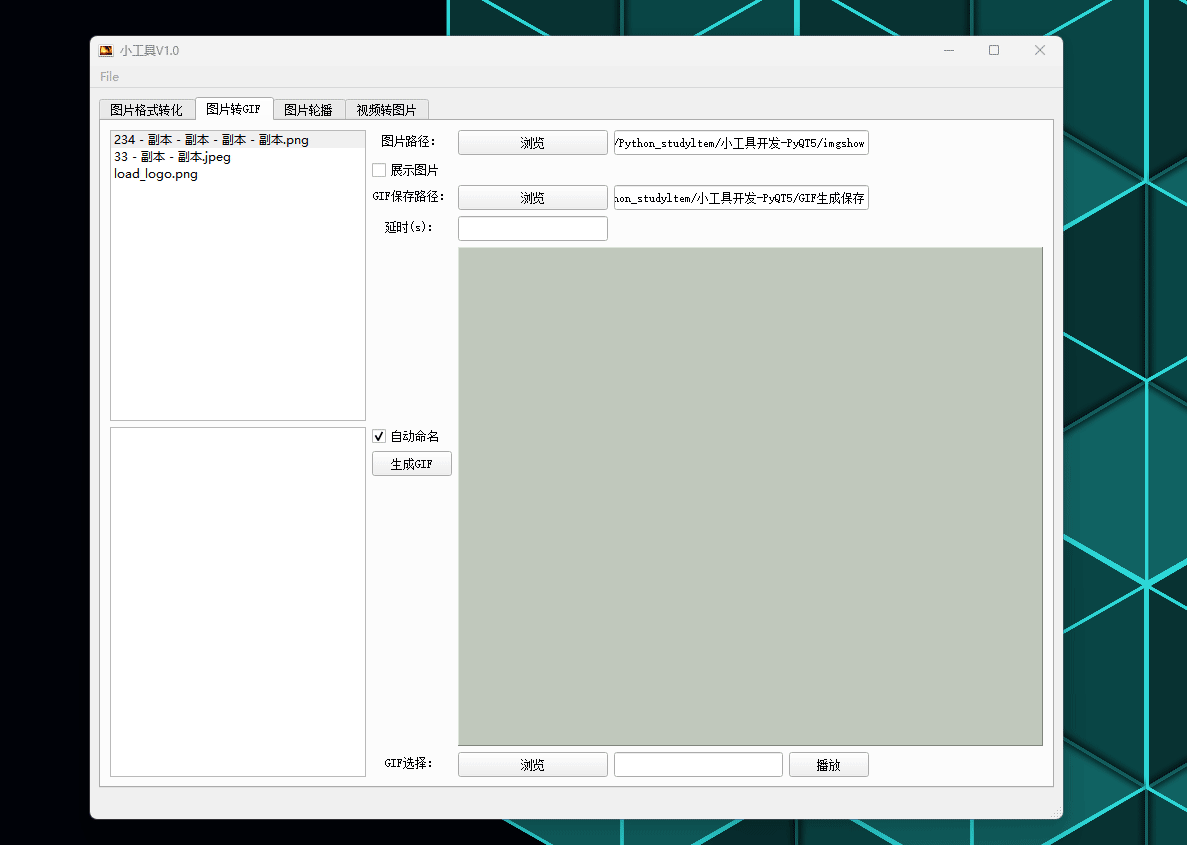

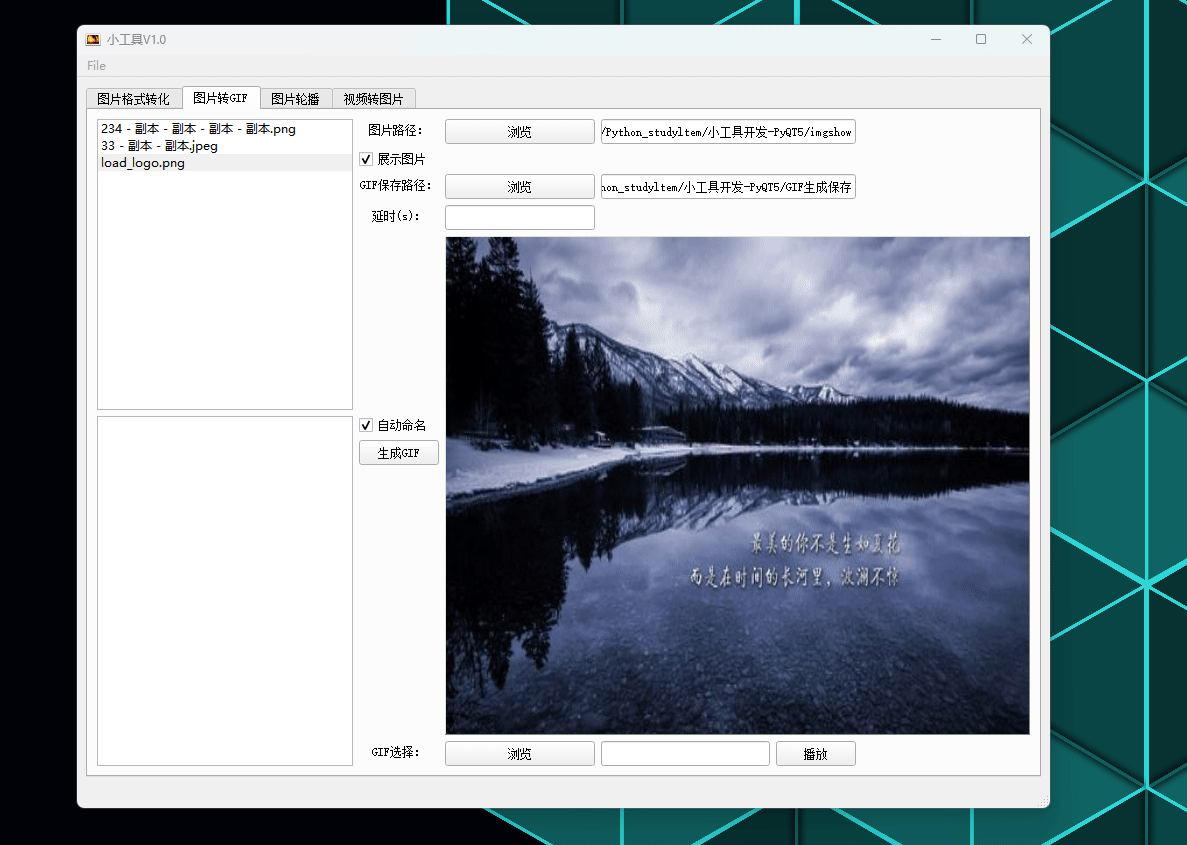

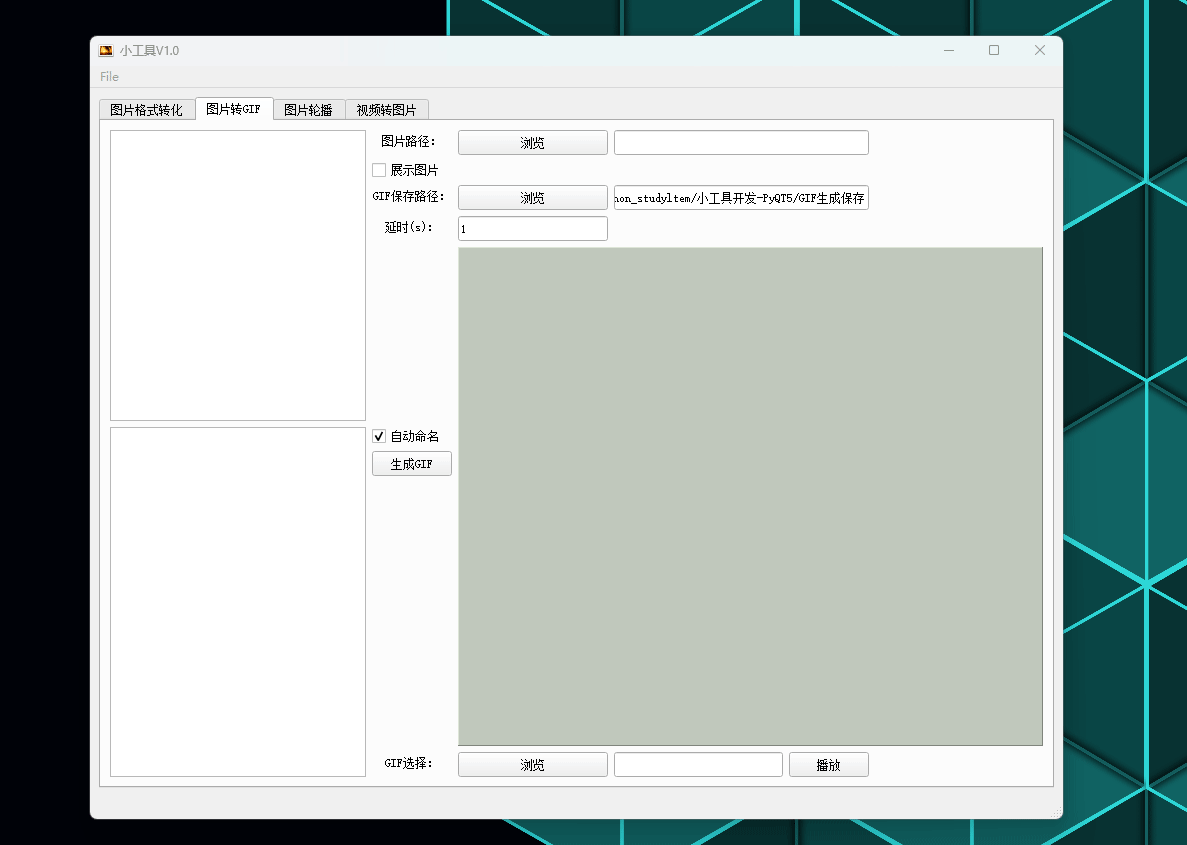

二、图片转GIF模块：

（1）功能使用说明：

2.1 点击浏览按钮，选择多图片文件夹存放路径后，展示栏中自动添加图片名称；

2.2 勾选展示图片后，点击展示栏中的图片名称，界面自动显示对应图片；

2.3 双击展示栏中的图片名称，对应图片会自动添加至GIF图片生成展示栏；

2.4 自动生成GIF，并播放GIF；

如果不勾选自动命名，则以第一个图片命名生成GIF的名称
延时：设置GIF 图片之间切换的时间间隔![在这里插入图片描述](https://img-blog.csdnimg.cn/direct/d406056ee396405695f61c7e24d83051.gif

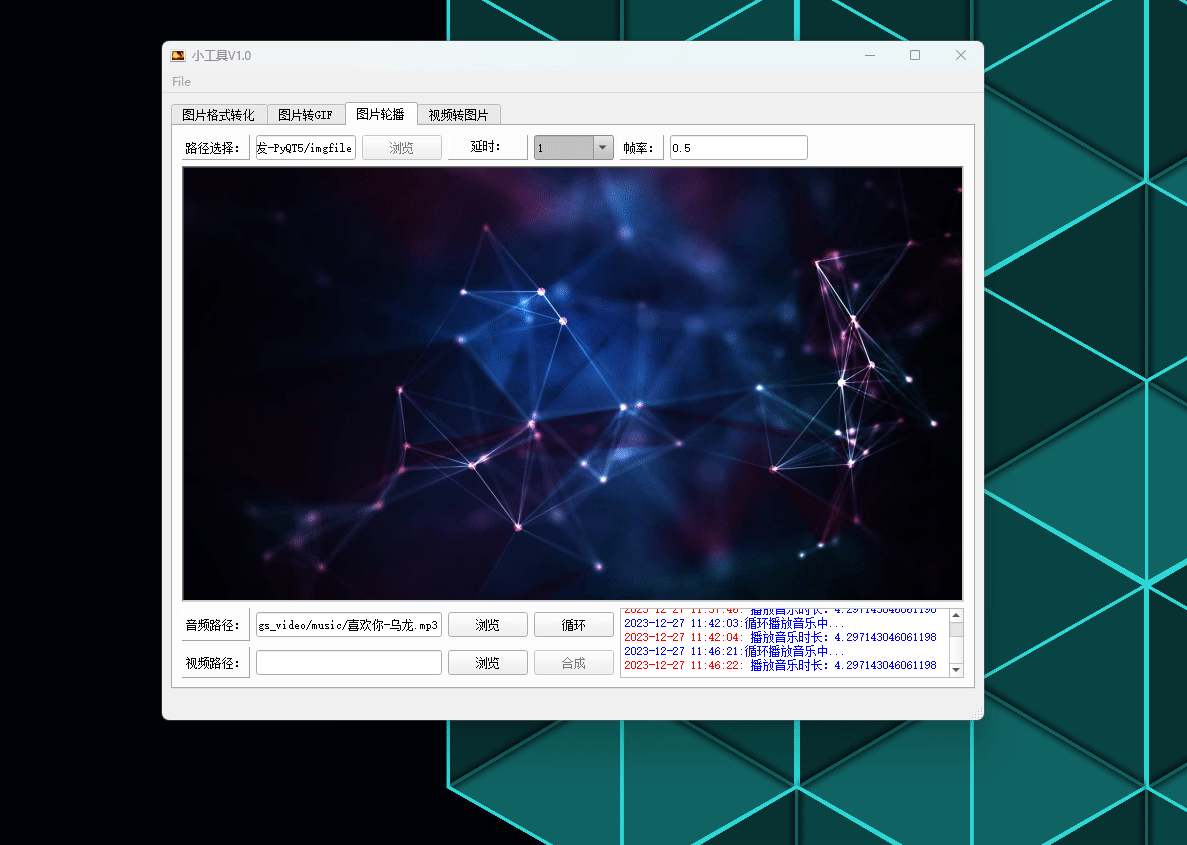

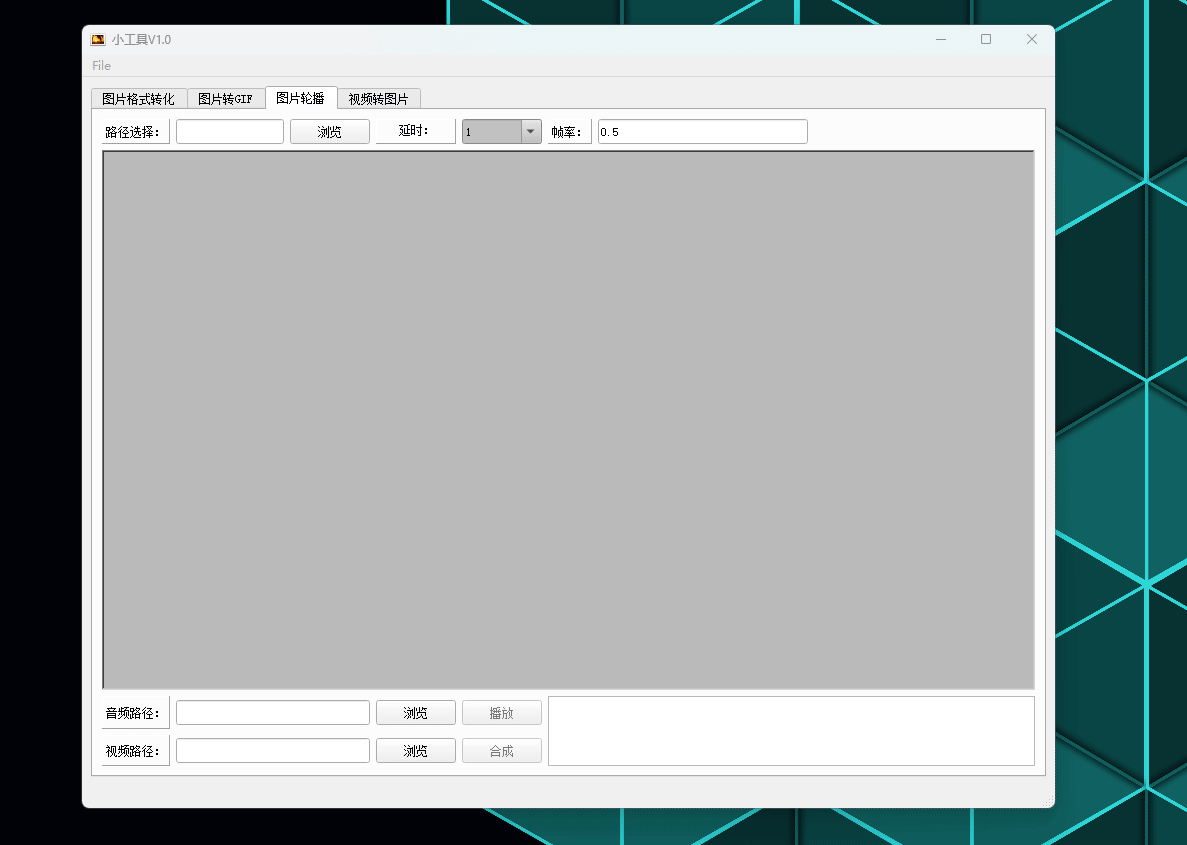

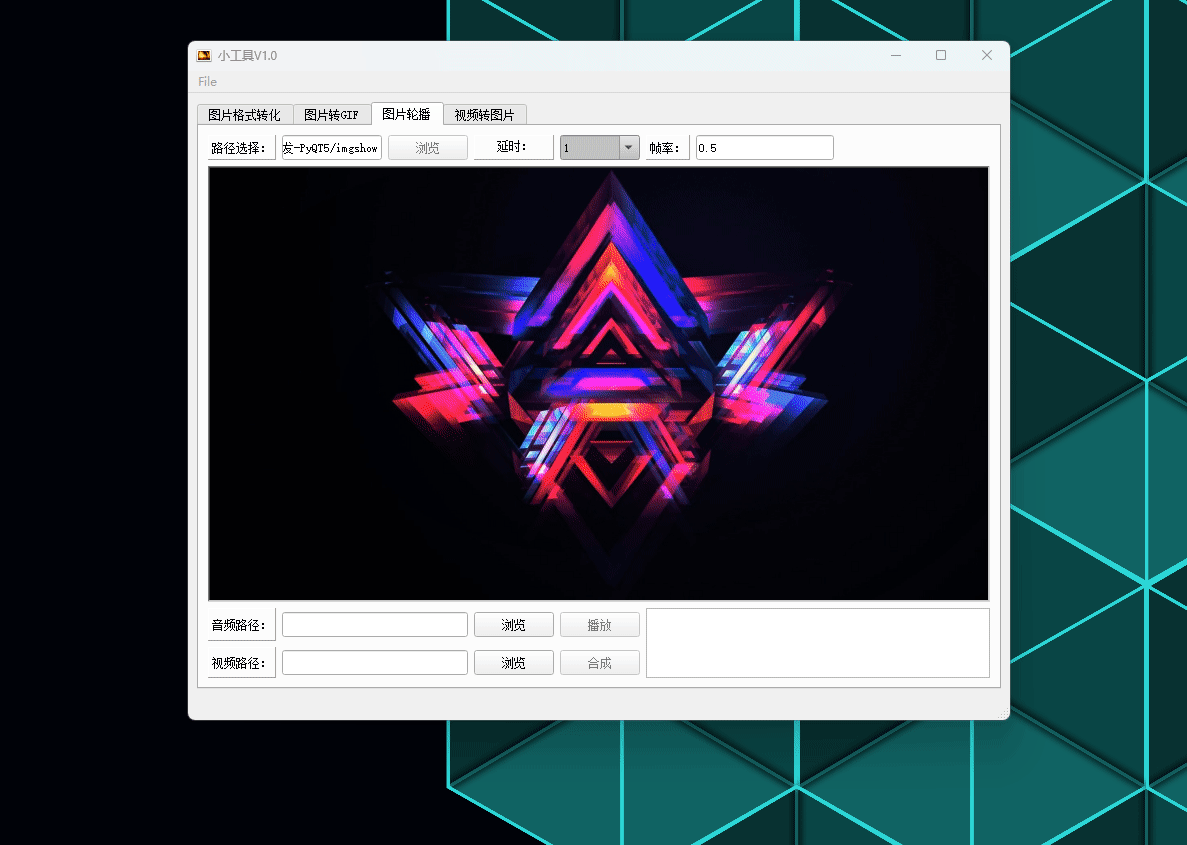

三、图片轮播模块：

（1）功能使用说明：

3.1 图片循环播放；

延时：图片循环切换的时间间隔

3.2 音频播放；

循环：音乐持续循环播放

3.2 合成视频；将循环播放的图片与音乐结合，合成视频

注意：这里存在视频时长计算：帧率【已知】 = 图片张数【已知】 /视频时长【该时间不会超过音频时长】，想要理解，自行理解代码，此处不作详述，嘿嘿，反正我就理解这么多╮(￣▽￣)╭

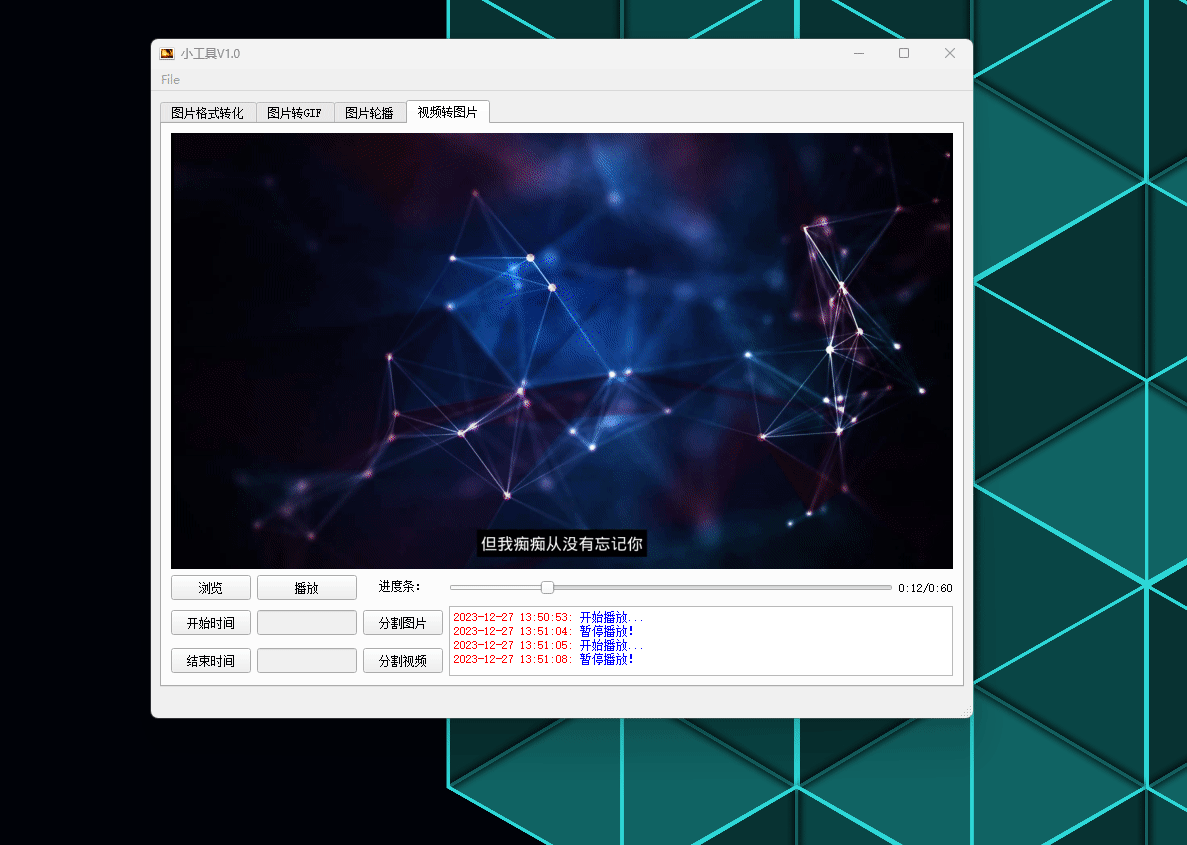

四、视频转图片模块：

（1）功能使用说明：

4.1 点击浏览按钮，选择视频路径，直接播放视频；

4.2 选择开始时间和结束时间，将该段时间的视频分割为图片；

4.3 选择开始时间和结束时间，将该段时间的视频分割为新视频保存；

五、其他功能模块：

5.1 打开程序运行本地目录的文件夹；

5.2 重启小工具功能模块；

六、代码功能模块介绍：

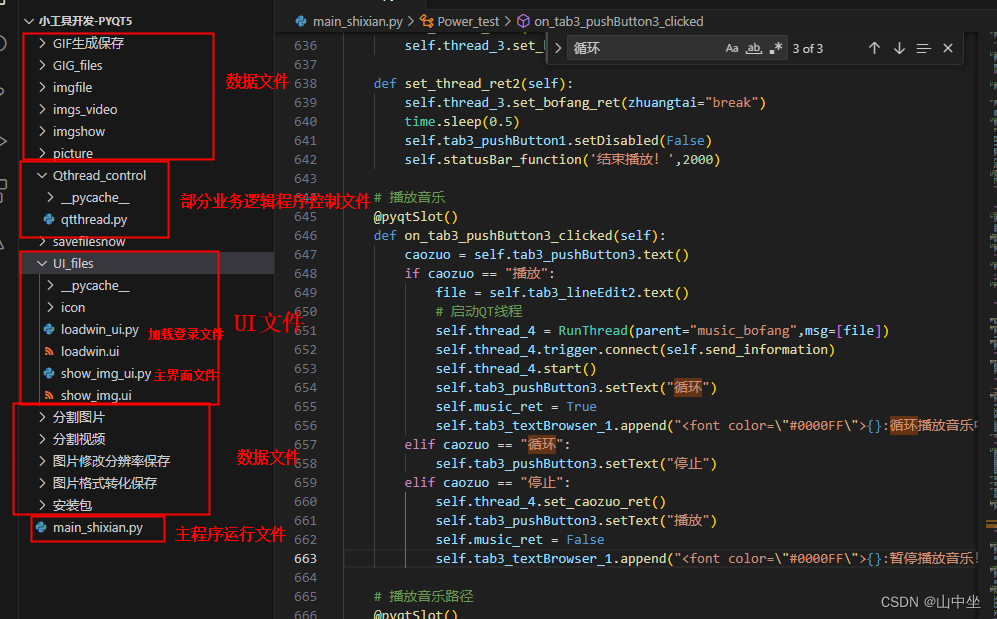

文件概述：

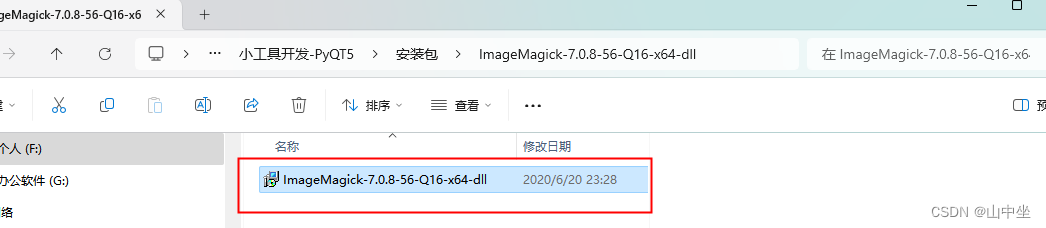

需要安装的第三方包：用于视频剪辑的功能

在这里插入图片描述

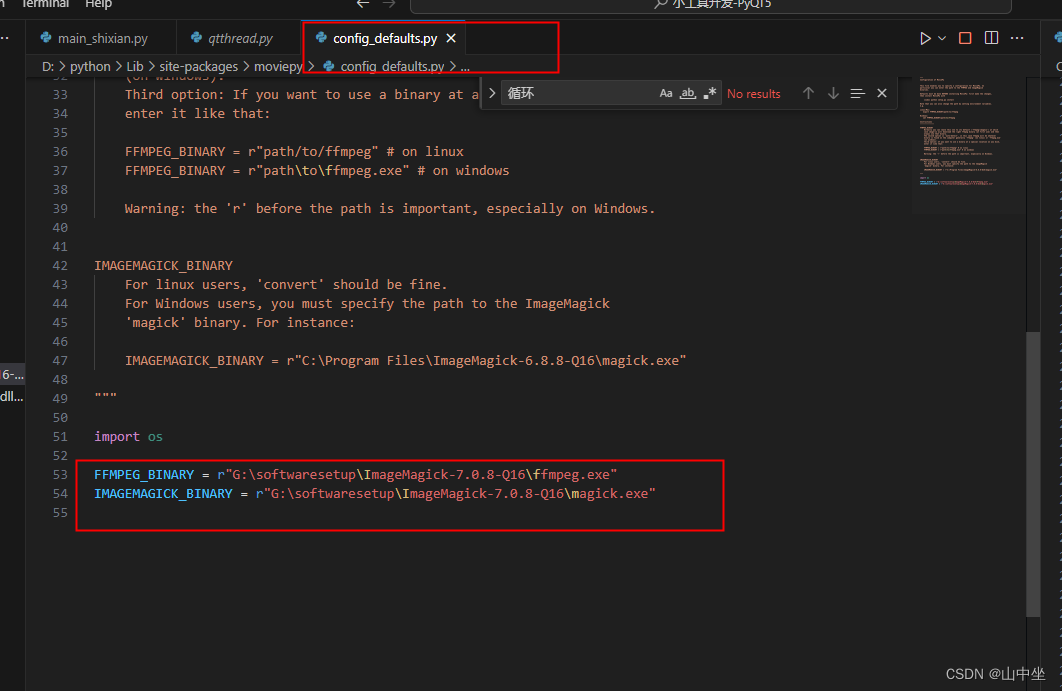

安装完成后，需要找到config_defaults.py（python安装目录下的第三方库文件夹中，如：D:\python\Lib\site-packages\moviepy\config_defaults.py），随后，打开文件，修改成自己安装的对应路径即可。

在这里插入图片描述

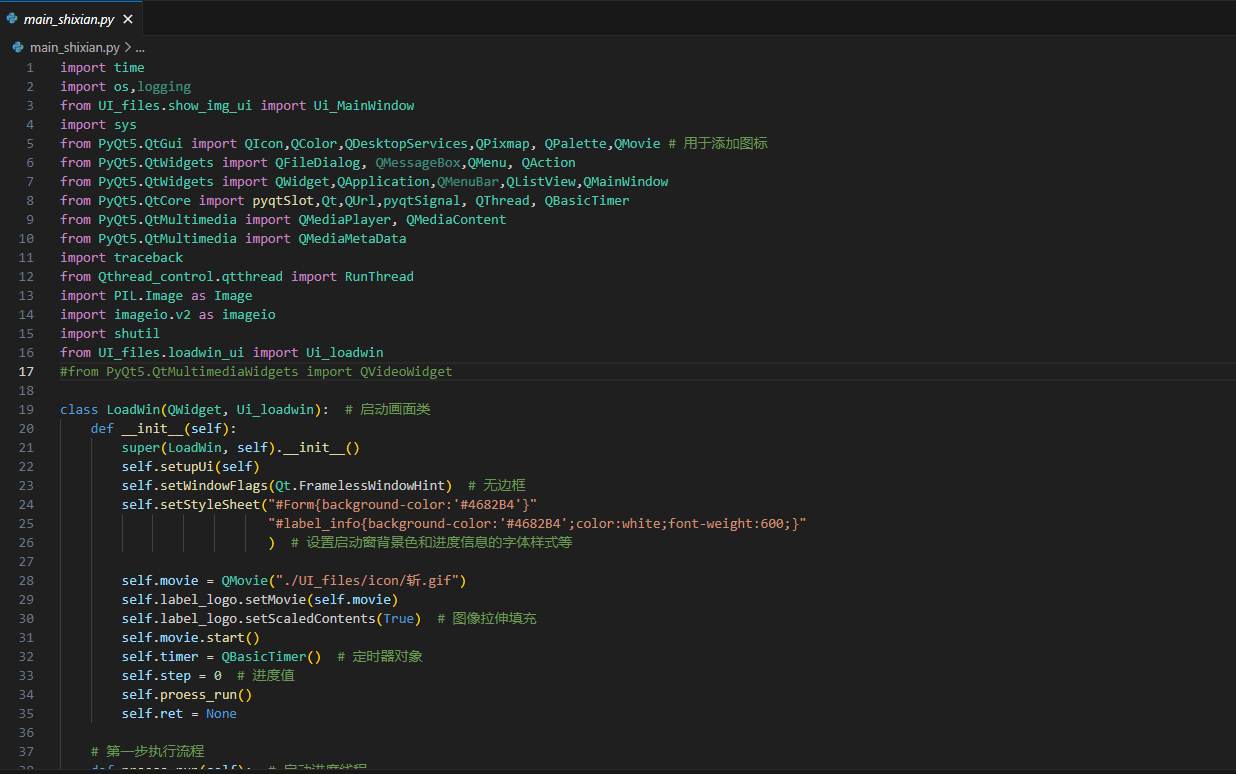

6.1 主程序代码；【main_shixian.py】

import time
import os,logging
from UI_files.show_img_ui import Ui_MainWindow
import sys
from PyQt5.QtGui import QIcon,QColor,QDesktopServices,QPixmap, QPalette,QMovie # 用于添加图标
from PyQt5.QtWidgets import QFileDialog, QMessageBox,QMenu, QAction
from PyQt5.QtWidgets import QWidget,QApplication,QMenuBar,QListView,QMainWindow
from PyQt5.QtCore import pyqtSlot,Qt,QUrl,pyqtSignal, QThread, QBasicTimer
from PyQt5.QtMultimedia import QMediaPlayer, QMediaContent
from PyQt5.QtMultimedia import QMediaMetaData
import traceback
from Qthread_control.qtthread import RunThread
import PIL.Image as Image
import imageio.v2 as imageio
import shutil
from UI_files.loadwin_ui import Ui_loadwin
#from PyQt5.QtMultimediaWidgets import QVideoWidget

class LoadWin(QWidget, Ui_loadwin):  # 启动画面类
    def __init__(self):
        super(LoadWin, self).__init__()
        self.setupUi(self)
        self.setWindowFlags(Qt.FramelessWindowHint)  # 无边框
        self.setStyleSheet("#Form{background-color:'#4682B4'}"
                           "#label_info{background-color:'#4682B4';color:white;font-weight:600;}"
                           )  # 设置启动窗背景色和进度信息的字体样式等

        self.movie = QMovie("./UI_files/icon/斩.gif")
        self.label_logo.setMovie(self.movie)
        self.label_logo.setScaledContents(True)  # 图像拉伸填充
        self.movie.start()
        self.timer = QBasicTimer()  # 定时器对象
        self.step = 0  # 进度值
        self.proess_run()
        self.ret = None

    # 第一步执行流程
    def proess_run(self):  # 启动进度线程
        self.cal = LoadThread()  # 线程对象
        self.cal.part_signal.connect(self.process_set_part)
        self.cal.data_signal.connect(self.show_main_win)
        self.cal.start()  # 调用线程run

    def process_set_part(self, num):
        self.step = num  # 进度从num开始
        self.progressBar.setValue(self.step)
        if num == 0:
            self.timer.start(20, self)  # 启动QBasicTimer, 每20毫秒调用一次回调函数
            self.label_info.setText("等待主页加载...")

    def timerEvent(self, *args, **kwargs):   # QBasicTimer的事件回调函数
        self.progressBar.setValue(self.step)  # 设置进度条的值
        if self.step < 100:
            self.step += 1
        else:
            self.cal.set_ret()

    # 显示主界面
    def show_main_win(self, mes):
        w.close()
        print(mes)
        ui2.show()

class LoadThread(QThread):  # 自定义计算线程类 -----------
    part_signal = pyqtSignal(int)  # 进度信号
    data_signal = pyqtSignal(str)  # 数据传输信号

    def __init__(self):
        super().__init__()
        self.ret = None

    # 启动线程
    def run(self):
        # 该消息发送后，启用process_set_part函数
        self.part_signal.emit(0)
        while True:
            if self.ret == True:
                self.data_signal.emit("计算结果：2023 要结束了！") #发送消息使主界面功能加载
                break
            else:
                time.sleep(1)
                continue

    # 建立标志
    def set_ret(self):
        self.ret = True



class Power_test(Ui_MainWindow,QMainWindow):

    def __init__(self):
        super().__init__() # 使用超类，继承父类的属性及方法
        self.setupUi(self) # 构造窗体界面
        self.setWindowIcon(QIcon("./UI_files/icon/icon.png"))
        self.setWindowTitle("小工具V1.0 ") # 设置窗体主体
        self.intUI()

    def intUI(self):
        self.tab_function()
        self.player = QMediaPlayer()                # 定义播放器
        self.player.setVideoOutput(self.mywidget)   # 视频播放输出的窗口，ui自定义
        self.tab4_pushButton_pause.clicked.connect(self.playPause)
        self.current_img_path_show = None
        self.chushihua_funtion()
        self.img_name = ["png","jpg","jpeg","bmp"]
        self.tab3_pushButton3.setEnabled(False)
        self.tab3_pushButton5.setEnabled(False)
        self.tab3_comboBox1.setEditable(True)
        self.music_ret = None
        self.menu_add()
        self.video_int()

    def yichangchuli(func=None):
        def deco(self,*args, **kwargs):
            # print(func.__name__) #获取方法名称
            try:
                res = func(self,*args, **kwargs)
                return res
            except Exception as error:
                error = traceback.format_exc()
                print(error)
                return deco

    # 添加打开本地文件夹按钮
    def menu_add(self):
        add_opeen= QAction("打开",self)
        add_opeen.setShortcut('Ctrl+F')
        add_opeen.triggered.connect(self.open_local_file)
        self.menuFile.addAction(add_opeen)
        add_opeens= QAction("重启工具",self)
        add_opeens.setShortcut('Ctrl+S')
        add_opeens.triggered.connect(self.restartApp)
        self.menuFile.addAction(add_opeens)

    # 打开本地文件夹
    def open_local_file(self):
        path = os.getcwd()
        QDesktopServices.openUrl(QUrl.fromLocalFile(path))

    '''图片格式化===start'''
    def tab_function(self):
        self.tab1_pushButton_up.setDisabled(True)
        self.tab1_pushButton_down.setDisabled(True)
        self.tab1_lineEdit3.setPlaceholderText("请输入宽度和高度,例如:500,700")

    # 选择文件按钮
    @pyqtSlot()
    def on_tab1_pushButton1_clicked(self):
        path = os.getcwd()
        if self.tab1_checkBox.isChecked():
            folder_path = QFileDialog.getExistingDirectory(self, "选择文件夹")
            if folder_path == "":
                return
            self.tab1_lineEdit1.setText(folder_path)
            self.tab_function()
        else:

            fileInfo = QFileDialog.getOpenFileName(self, "选择文件", path,'Image files (*.jpg *.gif *.png *.jpeg )')
            if fileInfo[0] == "":
                return
            else:
                self.tab1_lineEdit1.setText(fileInfo[0])
                self.tab_function()
        self.current_img_path_show = False

    # 打开图片,界面显示图片
    @pyqtSlot()
    def on_tab1_pushButton_open1_clicked(self):
        # 获取图片目录
        if self.tab1_checkBox.isChecked():
            self.imgnumber = 0
            self.tab1_pushButton_up.setDisabled(False)
            self.tab1_pushButton_down.setDisabled(False)

            path = self.tab1_lineEdit1.text()
            if path =="":
                print("无文件夹路径加载！")
                self.statusBar_function('无文件夹路径加载！',2000)
                return
            # 列出文件名称
            img_files = os.listdir(path)
            print(img_files)
            self.imgfiles = []
            for img in img_files:
                # 只显示第一张图片
                for imggehsi in self.img_name:
                    if imggehsi in img:
                        self.imgfiles.append(img)
            if len(self.imgfiles) > 0:
                self.allnumbers = len(self.imgfiles) -1
                self.tab1_showimg.setPixmap(QPixmap(path + "/" +self.imgfiles[0]))  #选择路径

                self.tab1_showimg.setScaledContents(True)              #图片大小与label适应，否则图片可能显示不全
                # 当前显示图片路径
                self.current_img_path_show = path + "/" +self.imgfiles[0]
            else:
                self.statusBar_function('当前目录下无图片加载成功！',2000)
        else:
            path = self.tab1_lineEdit1.text()
            if path =="":
                print("无图片路径加载！")
                self.statusBar_function('无图片路径加载！',2000)
                return
            self.tab1_showimg.setPixmap(QPixmap(path))
            self.tab1_showimg.setScaledContents(True)
            # 当前显示图片路径
            self.current_img_path_show = path

    # 上一张图片
    @pyqtSlot()
    def on_tab1_pushButton_up_clicked(self):
        if self.imgnumber == 0:
            self.statusBar_function('当前已为第一张图片',3000)
        else:
            self.imgnumber = self.imgnumber -1
            path = self.tab1_lineEdit1.text()
            self.tab1_showimg.setPixmap(QPixmap(path + "/" +self.imgfiles[self.imgnumber] ))
            self.current_img_path = path + "/" +self.imgfiles[self.imgnumber]
            self.tab1_showimg.setScaledContents(True)
            # 当前显示图片路径
            self.current_img_path_show = path + "/" +self.imgfiles[self.imgnumber]

    # 下一张图片
    @pyqtSlot()
    def on_tab1_pushButton_down_clicked(self):
        try:
            if  self.imgnumber >= self.allnumbers:
                self.statusBar_function('当前已为最后一张图片',2000)
                return
            self.imgnumber = self.imgnumber +1
            if  self.imgnumber <= self.allnumbers:
                path = self.tab1_lineEdit1.text()
                self.tab1_showimg.setPixmap(QPixmap(path + "/" +self.imgfiles[self.imgnumber] ))
                self.tab1_showimg.setScaledContents(True)
                # 当前显示图片路径
                self.current_img_path_show = path + "/" +self.imgfiles[self.imgnumber]
            else:
                self.statusBar_function('当前已为最后一张图片',2000)
                return
        except Exception:
            return

    # 保存路径
    @pyqtSlot()
    def on_tab1_pushButton2_clicked(self):
        folder_path = QFileDialog.getExistingDirectory(self, "选择文件夹")
        if folder_path == "":
            return
        self.tab1_lineEdit2.setText(folder_path)

    @pyqtSlot()
    def on_tab1_pushButton_open2_clicked(self):
        folder = self.tab1_lineEdit2.text()
        if folder == "":
            self.statusBar_function('未选择文件夹路径',2000)
            return
        os.startfile(folder)

    # 转化功能按钮
    @pyqtSlot()
    def on_tab1_pushButton_zhuanhua_clicked(self):
        # 获取图片单张或者批量参数
        shuju1 = self.tab1_comboBox1.currentText()
        # 获取图片转化格式
        geshi  =self.tab1_comboBox2.currentText()

        savepath = self.tab1_lineEdit2.text()
        if shuju1 == "单张":
            if self.current_img_path_show ==None:
                self.statusBar_function('未选择图片路径',2000)
                return
            elif self.current_img_path_show == False:
                self.statusBar_function('需要先打开图片',2000)
                return
            if savepath == "":
                self.statusBar_function('未选择转化图片后的保存路径',2000)
                return
            else:
                if os.path.exists(savepath) == False:
                    self.statusBar_function('保存路径填写异常',2000)
                    return
            paths = [self.current_img_path_show,geshi,savepath]
            # 将当前图片转化，保存至保存路径
            self.thread_1 = RunThread(parent="one_image_change",msg=paths)
            self.thread_1.trigger.connect(self.send_information)
            self.thread_1.start()
        elif shuju1 == "批量":
            xuanzhepath = self.tab1_lineEdit1.text()
            if os.path.isdir(xuanzhepath) == False:
                self.statusBar_function('请选择图片保存的文件夹路径',2000)
                return
            if savepath == "":
                self.statusBar_function('未选择转化图片后的保存路径',2000)
                return
            else:
                if os.path.exists(savepath) == False:
                    self.statusBar_function('保存路径填写异常',2000)
                    return

            paths = [xuanzhepath,geshi,savepath]
            # 将当前文件夹内的所有图片转化，保存至保存路径
            self.thread_2 = RunThread(parent="more_image_change",msg=paths)
            self.thread_2.trigger.connect(self.send_information)
            self.thread_2.start()

    # 修改图片的分辨率
    @pyqtSlot()
    def on_tab1_pushButton_xiugai_clicked(self):
        # 图片路径或者文件夹路径
        path1 =self.tab1_lineEdit1.text()
        if os.path.isfile(path1):
            # 获取选择
            xuanzhe = self.tab1_comboBox3.currentText()
            if xuanzhe == "单张":
                pass
            else:
                self.statusBar_function('分辨率：应选择单张选项',2000)
                return
        elif os.path.isdir(path1):
            # 获取选择
            xuanzhe = self.tab1_comboBox3.currentText()
            if xuanzhe == "批量":
                pass
            else:
                self.statusBar_function('分辨率：应选择批量选项',2000)
                return
        else:
            self.statusBar_function('分辨率：图片路径选择异常',2000)
            return
        # 获取分辨率
        width_high = self.tab1_lineEdit3.text()
        if "，" in width_high:
            w_h = tuple(width_high.split("，"))
        elif "," in width_high:
            w_h = tuple(width_high.split(","))
        else:
            self.statusBar_function('分辨率：宽度和高度参数设置异常',2000)
            return
        # 保存路径
        save_path = os.getcwd()
        save_path = save_path+"//图片修改分辨率保存" +"//{}X{}".format(w_h[0],w_h[1])
        if not os.path.exists(save_path):
            os.makedirs(save_path)
        shujulist = [xuanzhe,path1,w_h,save_path]
        self.thread_2 = RunThread(parent="resize_images",msg=shujulist)
        self.thread_2.trigger.connect(self.send_information)
        self.thread_2.start()

    '''图片格式化===end'''

    '''共用函数 -- start'''
    def get_time(self):
        shijian = time.strftime('%Y-%m-%d %H:%M:%S', time.localtime())
        return shijian

    def send_information(self,text=[]):
        #接收信息
        time_now = self.get_time()
        if text[0] == "0":
            self.textBrowser.append("<font color=\"#0000FF\">{}:检测IP地址连通.....</font> ".format(time_now))   # 设置字体颜色
        elif text[0] == "info":
            self.textBrowser.append("{}:{}".format(time_now,text[1]))
        elif text[0] == "prompt":
            time_now = ("<font color=\"#FF0000\">{}:</font> ".format(time_now))
            if text[2] == None:
                self.textBrowser.append("{}<font color=\"#0000FF\">{}</font> ".format(time_now,text[1]))  # 设置字体颜色
            elif text[2] == "3":
                self.tab3_textBrowser_1.append("{}<font color=\"#0000FF\">{}</font> ".format(time_now,text[1]))  # 设置字体颜色
            elif text[2] == "4":
                self.tab4_textBrowser.append("{}<font color=\"#0000FF\">{}</font> ".format(time_now,text[1]))  # 设置字体颜色
        elif text[0] == "read":
            if text[2] == None:
                self.textBrowser.append("<font color=\"#FF0000\">{}:{}</font> ".format(time_now,text[1]))  # 设置字体颜色
            elif text[2] == "3":
                self.tab3_textBrowser_1.append("{}<font color=\"#0000FF\">{}</font> ".format(time_now,text[1]))  # 设置字体颜色
            elif text[2] == "4":
                self.tab4_textBrowser.append("{}<font color=\"#0000FF\">{}</font> ".format(time_now,text[1]))  # 设置字体颜色
        elif text[0] == "green":
            time_now = ("<font color=\"#FF0000\">{}:</font> ".format(time_now))
            self.textBrowser.append("{}<font color=\"#00C957\">{}</font> ".format(time_now,text[1]))  # 设置字体颜
        elif text[0] == "自动打开文件夹":
            os.startfile(text[1])
        elif text[0] == "img_path":
            path0 = text[1]
            self.set_img_show(path0)
        elif text[0] == "change_bofang":
            self.tab3_pushButton3.setText("播放")
            if "音频设备初始化错误！" in text[1]:
                return
            # 重复播放
            if self.music_ret == True:
                self.on_tab3_pushButton3_clicked()
    '''共用函数  --end'''


    '''图片转GIG ---start'''
    def chushihua_funtion(self):
        self.tab2_listWidget1.itemDoubleClicked.connect(self.additem) #绑定点击事件
        self.tab2_listWidget1.itemClicked.connect(self.showimg)
        self.tab2_listWidget2.setMovement(QListView.Free)
        self.tab2_listWidget2.setDragDropMode(QListView.InternalMove)
        self.tab2_listWidget2.itemDoubleClicked.connect(self.showitem) #绑定点击事件
        self.giffution()

    def giffution(self):
        self.tab2_listWidget1.clear()
        self.tab2_pushButton_play.setEnabled(False)

    def showimg(self):
        selected_item = self.tab2_listWidget1.currentItem()
        if selected_item:
            item_text = selected_item.text()
            print(item_text)
        if self.tab2_checkBox_1.isChecked():
            path = self.tab2_lineEdit_1.text()
            self.tab2_label_show.setPixmap(QPixmap(path + "/" + item_text))
            self.tab2_label_show.setScaledContents(True)

    # 图片显示至列表
    def show_list(self):
        add_list = self.tab2_listWidget1
        folder_path = QFileDialog.getExistingDirectory(self, "选择文件夹")
        if folder_path == "":
            return
        add_list.clear()
        self.tab2_lineEdit_1.setText(folder_path)
        # 查找文件夹中的图片
        listfiles = os.listdir(folder_path)
        for imagefile in listfiles:
            for shuju in self.img_name:
                if shuju in imagefile:
                    add_list.addItem(imagefile)

    # 显示列表1中的功能,双击后，将数据填写在list2
    def additem(self):
        selected_item = self.tab2_listWidget1.currentItem()
        if selected_item:
            item_text = selected_item.text()
            print(item_text)
            self.tab2_listWidget2.addItem(item_text)
            self.statusBar_function('成功添加{}'.format(item_text),2000,"green")

    def showitem(self):
        selected_item = self.tab2_listWidget2.currentItem()
        if selected_item:
            item_text = selected_item.text()
            # print(item_text)
        number = self.tab2_listWidget2.currentRow()
        self.tab2_listWidget2.takeItem(number)
        self.statusBar_function('成功删除{}'.format(item_text),2000)

    # 获取需要组合的图片列表
    def get_images_liebiao(self):
        items = []
        for i in range(self.tab2_listWidget2.count()):
            items.append(self.tab2_listWidget2.item(i).text())
        print(items)
        if items == []:
            self.statusBar_function('图片未正确选择！',2000)
            return
        path_use = self.tab2_lineEdit_1.text()
        # 修改图片为统一分辨率
        new_path = self.resize_image(path_use,items)

        new_imgslist = os.listdir(new_path)

        gif_name = self.get_gifname(new_imgslist)
        duration = self.get_dur()
        savepath = self.get_path()
        if duration == None or savepath == None:
            return
        self.create_gif(new_imgslist,gif_name,duration,new_path)
        # 删除创建的目录
        time.sleep(0.5)
        shutil.rmtree(new_path)
        print("完成删除动作")

    '''# 统一分辨率'''
    # 文件夹 files：图片列表
    def resize_image(self,path,files):
        # 获取输入文件夹中的所有文件
        output_dir =  path +"/savefilesnow"
        # 判断输出文件夹是否存在，不存在则创建
        if not os.path.exists(output_dir):
            os.makedirs(output_dir)
        for file in files:
            img = Image.open(path +"\\"+ file)
            if img.mode == "P":
                img = img.convert('RGB')
            if img.mode == "RGBA":
                img = img.convert('RGB')
            # 宽度 高度
            img = img.resize((700, 500), Image.LANCZOS)
            img.save(os.path.join(output_dir, file))
            print(str(file) + " :图片分辨率更改成功！")
        return output_dir


    '''创作GIF图片'''
    # 图片列表，GIF名称，延时时间(单位毫秒)，保存路径
    def create_gif(self,images, gif_name, duration,paths):
        frames = []
        for image_name in images:
            frames.append(imageio.imread(paths + "/{}".format(image_name))) #传递图片路径给画面
        imageio.mimsave(gif_name, frames, 'GIF', duration=duration,loop=0, disposal=2)
        self.statusBar_function("GIF成功保存！",3000,"green")
        self.tab2_lineEdit_4.setText(gif_name)
        self.tab2_pushButton_play.setEnabled(True)

    # 生成GIF按钮
    @pyqtSlot()
    def on_tab2_pushButton_make_clicked(self):
        self.get_images_liebiao()

    # 获取延时
    def get_dur(self):
        shuju = self.tab2_lineEdit_3.text()
        if shuju.isdigit():
            return float(shuju)*1000
        else:
            self.statusBar_function("延时设置错误！",3000)
            return None

    # 获取保存GIF路径
    def get_path(self):
        path = self.tab2_lineEdit_2.text()
        if path == "" or path == None:
            self.statusBar_function("GIF图片保存文件夹填写异常！",3000)
            return None
        if not os.path.exists(path):
            os.makedirs(path)
        return path

    # 获取GIF名称
    def get_gifname(self,path=None):
        if self.tab2_checkBox_2.isChecked():
            savepath = self.get_path()
            if savepath == "" or savepath == None:
                self.statusBar_function("GIF图片保存文件夹填写异常！",3000)
                return
            shijian = time.strftime('%Y_%m_%d_%H_%M_%S', time.localtime())
            gifname= savepath + "/" +shijian+".gif"
            return gifname
        else:
            savepath = self.get_path()
            if  savepath == "" or savepath == None:
                self.statusBar_function("GIF图片保存文件夹填写异常！",3000)
                return
            gifname= savepath +"/"+ str(path[0]).split(".")[0]+".gif"
            return gifname

    @pyqtSlot()
    def on_tab2_pushButton_1_clicked(self):
        self.show_list()

    @pyqtSlot()
    def on_tab2_pushButton_2_clicked(self):
        folder_path = QFileDialog.getExistingDirectory(self, "选择文件夹")
        if folder_path == "":
            return
        self.tab2_lineEdit_2.setText(folder_path)

    @pyqtSlot()
    def on_tab2_pushButton_3_clicked(self):
        path = os.getcwd()
        fileInfo = QFileDialog.getOpenFileName(self, "选择文件", path,'Image files ( *.gif)')
        if fileInfo[0] == "":
            return
        else:
            self.tab2_lineEdit_4.setText(fileInfo[0])
            self.tab2_pushButton_play.setEnabled(True)

    @pyqtSlot()
    def on_tab2_pushButton_play_clicked(self):
        path = self.tab2_lineEdit_4.text()
        movie = QMovie(path)
        self.tab2_label_show.setMovie(movie)
        self.tab2_label_show.setScaledContents(True)
        if self.tab2_pushButton_play.text() == "播放":
            movie.start()
            self.tab2_pushButton_play.setText("暂停")
        elif self.tab2_pushButton_play.text() == "暂停":
            movie.stop()
            self.tab2_pushButton_play.setText("播放")


    '''图片转GIf ---end'''

    '''图片轮播，插入音频 --- start'''
    @pyqtSlot()
    def on_tab3_pushButton1_clicked(self):
        folder_path = QFileDialog.getExistingDirectory(self, "选择文件夹")
        if folder_path == "":
            return
        self.tab3_lineEdit1.setText(folder_path)

        # 获取时间
        shijian = self.tab3_comboBox1.currentText()
        # 创建右键菜单
        self.tab3_label1.setContextMenuPolicy(Qt.CustomContextMenu)
        self.tab3_label1.customContextMenuRequested.connect(self.show_menu)

        # 启动QT线程
        self.thread_3 = RunThread(parent="images_bofang",msg=[folder_path,shijian])
        self.thread_3.trigger.connect(self.send_information)
        self.thread_3.set_bofang_ret(zhuangtai=True)
        self.thread_3.start()
        self.tab3_pushButton1.setDisabled(True)

    def set_img_show(self,path=None):
        try:
            self.tab3_label1.setPixmap(QPixmap(path))
            self.tab3_label1.setScaledContents(True)
        except Exception as error:
            print("错误异常:",error)

    # Qlable中添加右键菜单
    def show_menu(self, pos):
        menu = QMenu(self)
        action1 = QAction('播放', self)
        action2 = QAction('暂停', self)
        action3 = QAction('结束播放', self)
        menu.addAction(action1)
        menu.addAction(action2)
        menu.addAction(action3)
        action1.triggered.connect(self.set_thread_ret0)
        action2.triggered.connect(self.set_thread_ret1)
        action3.triggered.connect(self.set_thread_ret2)
        menu.exec_(self.tab3_label1.mapToGlobal(pos))

    def set_thread_ret0(self):
        self.thread_3.set_bofang_ret(zhuangtai=True)

    def set_thread_ret1(self):
        self.thread_3.set_bofang_ret(zhuangtai=False)

    def set_thread_ret2(self):
        self.thread_3.set_bofang_ret(zhuangtai="break")
        time.sleep(0.5)
        self.tab3_pushButton1.setDisabled(False)
        self.statusBar_function('结束播放！',2000)

    # 播放音乐
    @pyqtSlot()
    def on_tab3_pushButton3_clicked(self):
        caozuo = self.tab3_pushButton3.text()
        if caozuo == "播放":
            file = self.tab3_lineEdit2.text()
            # 启动QT线程
            self.thread_4 = RunThread(parent="music_bofang",msg=[file])
            self.thread_4.trigger.connect(self.send_information)
            self.thread_4.start()
            self.tab3_pushButton3.setText("循环")
            self.music_ret = True
            self.tab3_textBrowser_1.append("<font color=\"#0000FF\">{}:循环播放音乐中...</font> ".format(self.get_time()))   # 设置字体颜色"
        elif caozuo == "循环":
            self.tab3_pushButton3.setText("停止")
        elif caozuo == "停止":
            self.thread_4.set_caozuo_ret()
            self.tab3_pushButton3.setText("播放")
            self.music_ret = False
            self.tab3_textBrowser_1.append("<font color=\"#0000FF\">{}:暂停播放音乐！</font> ".format(self.get_time()))   # 设置字体颜色"

    # 播放音乐路径
    @pyqtSlot()
    def on_tab3_pushButton2_clicked(self):
        path = os.getcwd()
        fileInfo = QFileDialog.getOpenFileName(self, "选择文件", path,'music file (*)')
        if fileInfo[0] == "":
            return
        self.tab3_lineEdit2.setText(fileInfo[0])
        self.tab3_pushButton3.setEnabled(True)



    # 保存视频路径
    @pyqtSlot()
    def on_tab3_pushButton4_clicked(self):
        path = os.getcwd()
        folder_path = QFileDialog.getExistingDirectory(self, "选择文件夹")
        if folder_path == "":
            return
        self.tab3_lineEdit3.setText(folder_path)
        self.tab3_pushButton5.setEnabled(True)

    # 合成视频
    @pyqtSlot()
    def on_tab3_pushButton5_clicked(self):
        # 判断前提条件

        # 保存路径
        save_file = self.tab3_lineEdit3.text()
        # 多图片路径
        images = self.tab3_lineEdit1.text()
        # 音乐路径
        music_file =self.tab3_lineEdit2.text()

        # 帧率设置
        fps = float(self.tab3_lineEdit1_2.text())
        if type(fps)== float:
            pass
        else:
            self.statusBar_function("帧率数值设置异常！",3000)
            return

        # 启动QT线程
        self.thread_5 = RunThread(parent="video_create",msg=[images,music_file,save_file])
        self.thread_5.trigger.connect(self.send_information)
        self.thread_5.start()

    '''图片轮播，插入音频 --- end'''



    '''视频播放+转图片----start'''
    def video_int(self):
        self.starttime = None
        self.tab4_lineEdit1.setDisabled(True)
        self.tab4_lineEdit2.setDisabled(True)
        self.tab4_pushButton_split_image.setDisabled(True)
        self.tab4_pushButton_split_video.setDisabled(True)

    def video_set(self):
        # 进度条
        self.player.durationChanged.connect(self.getDuration)
        self.player.positionChanged.connect(self.getPosition)
        self.horizontalSlider.sliderMoved.connect(self.updatePosition)
        self.tab4_pushButton_split_image.setDisabled(False)
        self.tab4_pushButton_split_video.setDisabled(False)

    # 浏览播放视频
    @pyqtSlot()
    def on_tab4_pushButton_1_clicked(self):
        ret = self.video_funtion()
        if ret == True:
            self.video_set()

    def video_funtion(self):
        path = QFileDialog.getOpenFileUrl()[0]
        print(path.fileName(),type(path))
        print(path.path())
        if path.fileName() == "" or "mp4" not in path.fileName():
            self.statusBar_function("视频文件加载出错！",3000)
            return False
        try:
            self.player.setMedia(QMediaContent(path))  # 选取视频文件
            self.player.play()
            self.video_paths = path.path().replace("/","",1)
            self.tab4_pushButton_pause.setText("暂停")
            self.send_information(text=["prompt","开始播放...","4"])
        except Exception:
            error = traceback.format_exc()
            print(error)
            self.statusBar_function("视频文件加载出错！",3000)
            return False
        return True

     # 播放和暂停视频
    def playPause(self):
        if self.player.state()==1:
            self.player.pause()
            self.tab4_pushButton_pause.setText("播放")
            self.send_information(text=["prompt","暂停播放！","4"])
        else:
            self.player.play()
            self.tab4_pushButton_pause.setText("暂停")
            self.send_information(text=["prompt","开始播放...","4"])

    # 视频总时长获取
    def getDuration(self, d):
        '''d是获取到的视频总时长（ms）'''
        self.horizontalSlider.setRange(0, d)
        self.horizontalSlider.setEnabled(True)
        self.max_videotime =d
        self.displayTime(d)

    # 视频实时位置获取
    def getPosition(self, p):
        self.horizontalSlider.setValue(p)
        # self.displayTime(self.horizontalSlider.maximum()-p)
        self.displayTime(p)
        if p == self.horizontalSlider.maximum():
            self.tab4_pushButton_pause.setText("播放")
        self.media_status_changed()

    # 显示剩余时间
    def displayTime(self, ms):
        minutes = int(ms/60000)
        seconds = int((ms-minutes*60000)/1000)
        self.tab4_baifenbi.setText('{}:{}/{}:{}'.format(minutes,seconds,minutes,int(self.max_videotime/1000)))
        # 记录时间
        self.starttime = '{}:{}'.format(minutes,seconds)

    # 用进度条更新视频位置
    def updatePosition(self, v):
        self.player.setPosition(v)
        self.displayTime(self.horizontalSlider.maximum()-v)

    def media_status_changed(self):
        frame_rate = self.player.metaData(QMediaMetaData.VideoFrameRate)
        # print("Frame rate:", frame_rate)

    # 选择当前开始时间
    @pyqtSlot()
    def on_tab4_pushButton_2_clicked(self):
        print(self.starttime)
        if self.starttime == None:
            self.statusBar_function(text="未选择播放视频！",time=3000)
            return
        self.tab4_lineEdit1.setText(self.starttime)

    # 选择结束时间
    @pyqtSlot()
    def on_tab4_pushButton_3_clicked(self):
        print(self.starttime)
        if self.starttime == None:
            self.statusBar_function(text="未选择播放视频！",time=3000)
            return
        self.tab4_lineEdit2.setText(self.starttime)

    # 分割图片
    @pyqtSlot()
    def on_tab4_pushButton_split_image_clicked(self):
        if self.tab4_lineEdit1.text() == "" or self.tab4_lineEdit2.text() =="":
            self.statusBar_function(text="未选择起止时间！")
            return
        self.split_video_img()

    def split_video_img(self):
        # 需要传递的数据，视频路径，开始时间和结束时间
        folder_path = self.video_paths
        starttimes = self.tab4_lineEdit1.text()
        endtimes = self.tab4_lineEdit2.text()
        shijian = [starttimes,endtimes]
        # 启动QT线程
        self.thread_tab41 = RunThread(parent="split_video_img",msg=[folder_path,shijian])
        self.thread_tab41.trigger.connect(self.send_information)
        self.thread_tab41.start()


    # 分割视频
    @pyqtSlot()
    def on_tab4_pushButton_split_video_clicked(self):
        if self.tab4_lineEdit1.text() == "" or self.tab4_lineEdit2.text() =="":
            self.statusBar_function(text="未选择起止时间！")
            return
        self.split_video()

    def split_video(self):
        # 需要传递的数据，视频路径，开始时间和结束时间
        folder_path = self.video_paths
        starttimes = self.return_startvideo_time()
        endtimes = self.return_endvideo_time()
        shijian = [starttimes,endtimes]

        self.thread_tab42 = RunThread(parent="split_video",msg=[folder_path,shijian])
        self.thread_tab42.trigger.connect(self.send_information)
        self.thread_tab42.start()

    def return_startvideo_time(self):
        starttimes = self.tab4_lineEdit1.text().split(":")
        starttime = float(starttimes[0])*60 + float(starttimes[1])
        return starttime

    def return_endvideo_time(self):
        starttimes = self.tab4_lineEdit2.text().split(":")
        starttime = float(starttimes[0])*60 + float(starttimes[1])
        return starttime

    '''视频播放+转图片----end'''

    # 状态栏显示
    def statusBar_function(self,text,time=2000,color=None):
        palette = self.statusBar().palette()
        if color == None:
            # 修改字体颜色
            palette.setColor(QPalette.WindowText, QColor(255, 0, 0))
        elif color == "green":
            # 修改字体颜色
            palette.setColor(QPalette.WindowText, QColor(0, 255, 0))
        self.statusBar().setPalette(palette)
        self.statusBar().showMessage(text,time)

    # 重新启动APP
    def restartApp(self):
        python = sys.executable
        os.execl(python, python, *sys.argv)


    def set_data(self, mes):  # 接收进度线程的计算结果
        self.statusBar_function(mes)

if __name__ == "__main__":
    app = QApplication(sys.argv)
    # 设置应用程序的风格
    app.setStyle('Fusion')
    w = LoadWin()
    w.show()
    ui2 = Power_test()
    sys.exit(app.exec_())

6.2 业务逻辑程序代码；【qtthread.py】

from PyQt5.QtCore import pyqtSignal,QThread
from PIL import Image
import traceback
import os
import time
from pygame import mixer
from moviepy.editor import *
from moviepy.audio.io.AudioFileClip import AudioFileClip


#业务线程
class RunThread(QThread):
  # 通过类成员对象定义信号对象
  # _signal = pyqtSignal(str)

  trigger = pyqtSignal(list)

  def __init__(self, parent=None,msg=None):
      super(RunThread, self).__init__()
      self.parent = parent
      self.msg = msg

  # def __del__(self): #等待
  #   self.wait()

  '''处理业务逻辑'''
  def run(self):
      #识别业务命令，在进行执行
      try:
        if self.parent == "one_image_change":
          self.oneimagechange()
        elif self.parent == "more_image_change":
          self.moreimagechange()
        elif self.parent == "resize_images":
          self.xiugai_fenbianlv()
        elif self.parent == "images_bofang":
          self.images_bofang()
          self.bofang_ret= None
        elif self.parent == "music_bofang":
          self.music_play()
          self.caozuo_ret = None
        elif self.parent == "video_create":
          self.video_create()
        elif self.parent == "split_video":
          self.split_video()
        elif self.parent == "split_video_img":
          self.split_video_img()

      except Exception:
        errors = traceback.format_exc()
        print(errors)


  # 单张图片转化
  def oneimagechange(self):
      img = self.msg[0]        # 输入转换前的图片存放路径
      name  = str(img).split("/")[-1].split(".")[0]
      strs = self.msg[2]
      output = strs + "/{}.{}".format(name,self.msg[1]) # 转换后的格式
      im = Image.open(img)
      im.save(output)#保存图片
      self.send_emit(change="green",result="图片转化成功--" + output)

  # 多张图片转化
  def moreimagechange(self):
      # 图片存放文件夹目录
      files_saveimage = self.msg[0]
      images = os.listdir(files_saveimage)
      # 选择的格式
      geshi = self.msg[1]
      # 图片转化后保存的文件夹目录
      savepath = self.msg[2]
      if os.path.exists(savepath+"/"+geshi):
          pass
      else:
          os.mkdir(savepath+"/"+geshi)
      for i in images:
          img = str(files_saveimage +"/" +i)
          name = str(img).split("/")[-1].split(".")[0]
          output =  savepath+"/"+geshi +"/" + name + ".{}".format(geshi) # 转换后的格式
          im = Image.open(img)
          im.save(output) # 保存图片
          self.send_emit(change="green",result="图片转化成功---" + output)
          time.sleep(0.1)

  # 分辨率转化
  def xiugai_fenbianlv(self):
    xuanzhe = self.msg[0]
    input_image_path = self.msg[1]
    new_width,new_height = self.msg[2] # 给元组
    output_image_path = self.msg[3]
    if  xuanzhe == "单张":
          imgname = str(input_image_path).split("/")[-1]
          image = Image.open(input_image_path)
          resized_image = image.resize((int(new_width), int(new_height)))
          resized_image.save(output_image_path +"/{}".format(imgname))
          self.send_emit(change="green",result="图片分辨率修改成功：" + output_image_path +"/{}".format(imgname))
    elif xuanzhe == "批量":
      imglist = os.listdir(input_image_path)
      for img in imglist:
        print(img)
        image = Image.open(input_image_path + "/{}".format(img))
        resized_image = image.resize((int(new_width), int(new_height)))
        resized_image.save(output_image_path + "/{}".format(img))
      self.send_emit(change="green",result="图片分辨率修改成功：" + output_image_path)
      self.send_emit(change="自动打开文件夹" ,result=output_image_path)

  # 图片轮播
  def images_bofang(self):
    path =self.msg[0]
    shijina = float(self.msg[1])
    # 图片自动轮播
    images = os.listdir(path)
    while True:
      if self.bofang_ret== None or self.bofang_ret== False:
        time.sleep(1)
        print("检查中")
        continue
      elif self.bofang_ret== True:
        for image in images:
          time.sleep(shijina)
          self.send_emit(change="img_path",result="{}".format(path+"/"+image))
      elif self.bofang_ret== "break":
        print("播放结束！")
        break

  # 修改状态
  def set_bofang_ret(self,zhuangtai=None):
    self.bofang_ret= zhuangtai

  # 停止播放音乐
  def set_caozuo_ret(self):
    mixer.music.stop()
    # 发送信息

  def send_emit(self,change="info",result="",tab=None):
    self.trigger.emit([change, result,tab])

  # 播放音乐
  def music_play(self):
    try:
      file =self.msg[0]
      print("路径：" +file)
      mixer.init()
    except Exception as error:
      print(error)
      self.send_emit(change="change_bofang",result="{}:音频设备初始化错误！".format(error))
      return
    mixer.music.load(file)
    # 设置音乐播放完成事件
    mixer.music.set_endevent()
    mixer.music.set_volume(5)
    mixer.music.play()
    shuju = mixer.music.get_busy()
    print(shuju)
    # 获取音乐时长
    length = mixer.Sound(file).get_length()
    self.send_emit(change="prompt",result="播放音乐时长：{}".format(length/60),tab="3")
    # 监听事件
    while True:
      ret = mixer.music.get_busy()
      if ret == True:
        continue
      else:
        print('音乐播放完成')
        self.send_emit(change="change_bofang",result="播放")
        mixer.music.stop()
        break

  #  生成视频
  def video_create(self):
    fps = 0.5
    image_path = self.msg[0]
    music_path = self.msg[1]
    save_path  = self.msg[2]
    print(image_path)
    print(music_path)
    print(save_path)

    try:
      # 循环遍历图片
      images = os.listdir(image_path)
      clip = ImageSequenceClip([os.path.join(image_path, img)for img in images], fps=fps)
      path = save_path + "./{}.mp4".format(self.get_time())
      clip.write_videofile(path)

      video = VideoFileClip(path)
      audio = AudioFileClip(music_path)
      video_duration = video.duration
      # 获取音频长度
      audio_duration = audio.duration
      self.send_emit(change="prompt",result="音频长度：{}".format(audio_duration),tab="3")
      # 长度必须保持一致
      if audio_duration > video_duration:
        audio = audio.subclip(0, video_duration)

      newvideo = video.set_audio(audio)
      newvideo.write_videofile(path)

      self.send_emit(change="prompt",result="视频合成完成:{}".format(path),tab="3")
    except Exception as error:
      print(error)
      self.send_emit(change="read",result="{}".format(error),tab="3")

  def get_time(self):
    shijian = time.strftime('%Y%m%d%H%M%S', time.localtime())
    return shijian


  def split_video(self):
    folder_path = self.msg[0]
    video = VideoFileClip(folder_path)
    # 定义剪辑的起始和结束时间（以秒为单位）
    start_time = self.msg[1][0]
    end_time = self.msg[1][1]

    # 对视频进行剪辑 ，开始时间，结束时间
    clipped_video = video.subclip(start_time, end_time)

    # 创建文件路径
    path = os.getcwd() + "/分割视频"
    if os.path.isdir(path):
      pass
    else:
      os.mkdir(path)
    # 导出视频
    savepath = path + "/output{}.mp4".format(self.get_time())
    clipped_video.write_videofile(savepath)
    self.send_emit(change="prompt",result="分割视频已完成：{}".format(savepath),tab="4")


  def split_video_img(self):
    folder_path = self.msg[0]
    # 定义剪辑的起始和结束时间（以秒为单位）
    start_time = self.msg[1][0]
    end_time = self.msg[1][1]
    time = 0
    dir='./分割图片/'
    if os.path.isdir(dir):
      pass
    else:
      os.mkdir(dir)
    # 对视频进行剪辑 ，开始时间，结束时间
    video = VideoFileClip(folder_path)
    clipped_video = video.subclip(start_time, end_time)

    videotimes = video.duration
    print("视频时长：",videotimes)
    frames = int(float(videotimes)/0.5)

    for i in range(1,frames+1):
      filename = os.path.join(dir+str(i)+'.jpg')
      time = time + 0.5
      clipped_video.save_frame(filename,t=time)
    self.send_emit(change="prompt",result="分割图片已完成：{}".format(dir),tab="4")

6.3 加载界面py文件；【loadwin_ui.py】

# -*- coding: utf-8 -*-

# Form implementation generated from reading ui file 'f:\personaldata\img_video_chuli_gongju\UI_files\loadwin.ui'
#
# Created by: PyQt5 UI code generator 5.15.9
#
# WARNING: Any manual changes made to this file will be lost when pyuic5 is
# run again.  Do not edit this file unless you know what you are doing.


from PyQt5 import QtCore, QtGui, QtWidgets


class Ui_loadwin(object):
    def setupUi(self, loadwin):
        loadwin.setObjectName("loadwin")
        loadwin.resize(455, 349)
        self.gridLayout = QtWidgets.QGridLayout(loadwin)
        self.gridLayout.setObjectName("gridLayout")
        self.label_logo = QtWidgets.QLabel(loadwin)
        self.label_logo.setMinimumSize(QtCore.QSize(0, 280))
        self.label_logo.setText("")
        self.label_logo.setObjectName("label_logo")
        self.gridLayout.addWidget(self.label_logo, 0, 0, 1, 1)
        self.label_info = QtWidgets.QLabel(loadwin)
        self.label_info.setObjectName("label_info")
        self.gridLayout.addWidget(self.label_info, 1, 0, 1, 1)
        self.progressBar = QtWidgets.QProgressBar(loadwin)
        self.progressBar.setProperty("value", 24)
        self.progressBar.setObjectName("progressBar")
        self.gridLayout.addWidget(self.progressBar, 2, 0, 1, 1)

        self.retranslateUi(loadwin)
        QtCore.QMetaObject.connectSlotsByName(loadwin)

    def retranslateUi(self, loadwin):
        _translate = QtCore.QCoreApplication.translate
        loadwin.setWindowTitle(_translate("loadwin", "Form"))
        self.label_info.setText(_translate("loadwin", "TextLabel"))

6.4 主界面py程序代码；【show_img_ui.py】

# -*- coding: utf-8 -*-

# Form implementation generated from reading ui file 'f:\personaldata\img_video_chuli_gongju\UI_files\show_img.ui'
#
# Created by: PyQt5 UI code generator 5.15.9
#
# WARNING: Any manual changes made to this file will be lost when pyuic5 is
# run again.  Do not edit this file unless you know what you are doing.


from PyQt5 import QtCore, QtGui, QtWidgets


class Ui_MainWindow(object):
    def setupUi(self, MainWindow):
        MainWindow.setObjectName("MainWindow")
        MainWindow.resize(605, 535)
        self.centralwidget = QtWidgets.QWidget(MainWindow)
        self.centralwidget.setObjectName("centralwidget")
        self.gridLayout_5 = QtWidgets.QGridLayout(self.centralwidget)
        self.gridLayout_5.setObjectName("gridLayout_5")
        self.tabWidget = QtWidgets.QTabWidget(self.centralwidget)
        self.tabWidget.setObjectName("tabWidget")
        self.tab = QtWidgets.QWidget()
        self.tab.setObjectName("tab")
        self.gridLayout_3 = QtWidgets.QGridLayout(self.tab)
        self.gridLayout_3.setObjectName("gridLayout_3")
        self.tab1_checkBox = QtWidgets.QCheckBox(self.tab)
        self.tab1_checkBox.setMinimumSize(QtCore.QSize(0, 25))
        self.tab1_checkBox.setObjectName("tab1_checkBox")
        self.gridLayout_3.addWidget(self.tab1_checkBox, 0, 5, 1, 1)
        self.tab1_pushButton2 = QtWidgets.QPushButton(self.tab)
        self.tab1_pushButton2.setMinimumSize(QtCore.QSize(0, 25))
        self.tab1_pushButton2.setObjectName("tab1_pushButton2")
        self.gridLayout_3.addWidget(self.tab1_pushButton2, 1, 3, 1, 1)
        self.tab1_pushButton_open2 = QtWidgets.QPushButton(self.tab)
        self.tab1_pushButton_open2.setMinimumSize(QtCore.QSize(0, 25))
        self.tab1_pushButton_open2.setObjectName("tab1_pushButton_open2")
        self.gridLayout_3.addWidget(self.tab1_pushButton_open2, 1, 4, 1, 1)
        self.tab1_label3 = QtWidgets.QLabel(self.tab)
        self.tab1_label3.setMinimumSize(QtCore.QSize(0, 25))
        self.tab1_label3.setFrameShape(QtWidgets.QFrame.Panel)
        self.tab1_label3.setFrameShadow(QtWidgets.QFrame.Raised)
        self.tab1_label3.setObjectName("tab1_label3")
        self.gridLayout_3.addWidget(self.tab1_label3, 7, 0, 1, 1)
        self.tab1_label1 = QtWidgets.QLabel(self.tab)
        self.tab1_label1.setMinimumSize(QtCore.QSize(0, 25))
        self.tab1_label1.setFrameShape(QtWidgets.QFrame.Panel)
        self.tab1_label1.setFrameShadow(QtWidgets.QFrame.Raised)
        self.tab1_label1.setObjectName("tab1_label1")
        self.gridLayout_3.addWidget(self.tab1_label1, 0, 0, 1, 1)
        self.tab1_comboBox1 = QtWidgets.QComboBox(self.tab)
        self.tab1_comboBox1.setObjectName("tab1_comboBox1")
        self.tab1_comboBox1.addItem("")
        self.tab1_comboBox1.addItem("")
        self.gridLayout_3.addWidget(self.tab1_comboBox1, 2, 7, 1, 1)
        self.tab1_pushButton_down = QtWidgets.QPushButton(self.tab)
        self.tab1_pushButton_down.setMinimumSize(QtCore.QSize(0, 25))
        self.tab1_pushButton_down.setObjectName("tab1_pushButton_down")
        self.gridLayout_3.addWidget(self.tab1_pushButton_down, 7, 2, 1, 1)
        self.tab1_pushButton_zhuanhua = QtWidgets.QPushButton(self.tab)
        self.tab1_pushButton_zhuanhua.setMinimumSize(QtCore.QSize(0, 25))
        self.tab1_pushButton_zhuanhua.setObjectName("tab1_pushButton_zhuanhua")
        self.gridLayout_3.addWidget(self.tab1_pushButton_zhuanhua, 4, 7, 1, 1)
        self.tab1_pushButton1 = QtWidgets.QPushButton(self.tab)
        self.tab1_pushButton1.setMinimumSize(QtCore.QSize(0, 25))
        self.tab1_pushButton1.setObjectName("tab1_pushButton1")
        self.gridLayout_3.addWidget(self.tab1_pushButton1, 0, 3, 1, 1)
        self.tab1_label2 = QtWidgets.QLabel(self.tab)
        self.tab1_label2.setMinimumSize(QtCore.QSize(0, 25))
        self.tab1_label2.setFrameShape(QtWidgets.QFrame.Panel)
        self.tab1_label2.setFrameShadow(QtWidgets.QFrame.Raised)
        self.tab1_label2.setObjectName("tab1_label2")
        self.gridLayout_3.addWidget(self.tab1_label2, 1, 0, 1, 1)
        self.tab1_lineEdit1 = QtWidgets.QLineEdit(self.tab)
        self.tab1_lineEdit1.setMinimumSize(QtCore.QSize(0, 25))
        self.tab1_lineEdit1.setStyleSheet("background-color: rgb(213, 213, 213);")
        self.tab1_lineEdit1.setObjectName("tab1_lineEdit1")
        self.gridLayout_3.addWidget(self.tab1_lineEdit1, 0, 1, 1, 2)
        self.tab1_lineEdit2 = QtWidgets.QLineEdit(self.tab)
        self.tab1_lineEdit2.setMinimumSize(QtCore.QSize(0, 25))
        self.tab1_lineEdit2.setObjectName("tab1_lineEdit2")
        self.gridLayout_3.addWidget(self.tab1_lineEdit2, 1, 1, 1, 2)
        self.tab1_comboBox2 = QtWidgets.QComboBox(self.tab)
        self.tab1_comboBox2.setMinimumSize(QtCore.QSize(0, 25))
        self.tab1_comboBox2.setStyleSheet("background-color: rgb(0, 170, 0);")
        self.tab1_comboBox2.setObjectName("tab1_comboBox2")
        self.tab1_comboBox2.addItem("")
        self.tab1_comboBox2.addItem("")
        self.tab1_comboBox2.addItem("")
        self.tab1_comboBox2.addItem("")
        self.tab1_comboBox2.addItem("")
        self.gridLayout_3.addWidget(self.tab1_comboBox2, 3, 7, 1, 1)
        self.tab1_pushButton_up = QtWidgets.QPushButton(self.tab)
        self.tab1_pushButton_up.setMinimumSize(QtCore.QSize(0, 25))
        self.tab1_pushButton_up.setObjectName("tab1_pushButton_up")
        self.gridLayout_3.addWidget(self.tab1_pushButton_up, 7, 1, 1, 1)
        self.tab1_pushButton_open1 = QtWidgets.QPushButton(self.tab)
        self.tab1_pushButton_open1.setMinimumSize(QtCore.QSize(0, 25))
        self.tab1_pushButton_open1.setObjectName("tab1_pushButton_open1")
        self.gridLayout_3.addWidget(self.tab1_pushButton_open1, 0, 4, 1, 1)
        self.textBrowser = QtWidgets.QTextBrowser(self.tab)
        self.textBrowser.setMaximumSize(QtCore.QSize(150, 16777215))
        self.textBrowser.setObjectName("textBrowser")
        self.gridLayout_3.addWidget(self.textBrowser, 5, 7, 1, 1)
        self.tab1_comboBox3 = QtWidgets.QComboBox(self.tab)
        self.tab1_comboBox3.setMinimumSize(QtCore.QSize(0, 25))
        self.tab1_comboBox3.setObjectName("tab1_comboBox3")
        self.tab1_comboBox3.addItem("")
        self.tab1_comboBox3.addItem("")
        self.gridLayout_3.addWidget(self.tab1_comboBox3, 7, 3, 1, 1)
        self.tab1_pushButton_xiugai = QtWidgets.QPushButton(self.tab)
        self.tab1_pushButton_xiugai.setMinimumSize(QtCore.QSize(0, 25))
        self.tab1_pushButton_xiugai.setObjectName("tab1_pushButton_xiugai")
        self.gridLayout_3.addWidget(self.tab1_pushButton_xiugai, 7, 7, 1, 1)
        self.tab1_lineEdit3 = QtWidgets.QLineEdit(self.tab)
        self.tab1_lineEdit3.setMinimumSize(QtCore.QSize(0, 25))
        self.tab1_lineEdit3.setObjectName("tab1_lineEdit3")
        self.gridLayout_3.addWidget(self.tab1_lineEdit3, 7, 5, 1, 1)
        self.tab1_label_4 = QtWidgets.QLabel(self.tab)
        self.tab1_label_4.setFrameShape(QtWidgets.QFrame.Panel)
        self.tab1_label_4.setFrameShadow(QtWidgets.QFrame.Raised)
        self.tab1_label_4.setObjectName("tab1_label_4")
        self.gridLayout_3.addWidget(self.tab1_label_4, 7, 4, 1, 1)
        self.tab1_showimg = QtWidgets.QLabel(self.tab)
        self.tab1_showimg.setMinimumSize(QtCore.QSize(300, 250))
        self.tab1_showimg.setStyleSheet("background-color: rgb(255, 239, 219);")
        self.tab1_showimg.setFrameShape(QtWidgets.QFrame.Panel)
        self.tab1_showimg.setFrameShadow(QtWidgets.QFrame.Sunken)
        self.tab1_showimg.setText("")
        self.tab1_showimg.setObjectName("tab1_showimg")
        self.gridLayout_3.addWidget(self.tab1_showimg, 2, 0, 5, 6)
        self.tabWidget.addTab(self.tab, "")
        self.tab_4 = QtWidgets.QWidget()
        self.tab_4.setObjectName("tab_4")
        self.gridLayout = QtWidgets.QGridLayout(self.tab_4)
        self.gridLayout.setObjectName("gridLayout")
        self.tab2_checkBox_1 = QtWidgets.QCheckBox(self.tab_4)
        self.tab2_checkBox_1.setObjectName("tab2_checkBox_1")
        self.gridLayout.addWidget(self.tab2_checkBox_1, 1, 1, 1, 1)
        self.tab2_pushButton_play = QtWidgets.QPushButton(self.tab_4)
        self.tab2_pushButton_play.setMinimumSize(QtCore.QSize(0, 25))
        self.tab2_pushButton_play.setObjectName("tab2_pushButton_play")
        self.gridLayout.addWidget(self.tab2_pushButton_play, 11, 4, 1, 1)
        self.tab2_pushButton_make = QtWidgets.QPushButton(self.tab_4)
        self.tab2_pushButton_make.setMinimumSize(QtCore.QSize(0, 25))
        self.tab2_pushButton_make.setObjectName("tab2_pushButton_make")
        self.gridLayout.addWidget(self.tab2_pushButton_make, 7, 1, 1, 1)
        self.tab2_label_1 = QtWidgets.QLabel(self.tab_4)
        self.tab2_label_1.setMinimumSize(QtCore.QSize(0, 25))
        self.tab2_label_1.setObjectName("tab2_label_1")
        self.gridLayout.addWidget(self.tab2_label_1, 0, 1, 1, 1)
        spacerItem = QtWidgets.QSpacerItem(40, 20, QtWidgets.QSizePolicy.Expanding, QtWidgets.QSizePolicy.Minimum)
        self.gridLayout.addItem(spacerItem, 3, 3, 1, 1)
        self.tab2_label_2 = QtWidgets.QLabel(self.tab_4)
        self.tab2_label_2.setMinimumSize(QtCore.QSize(0, 25))
        self.tab2_label_2.setObjectName("tab2_label_2")
        self.gridLayout.addWidget(self.tab2_label_2, 2, 1, 1, 1)
        spacerItem1 = QtWidgets.QSpacerItem(40, 20, QtWidgets.QSizePolicy.Expanding, QtWidgets.QSizePolicy.Minimum)
        self.gridLayout.addItem(spacerItem1, 0, 5, 1, 1)
        self.tab2_label_3 = QtWidgets.QLabel(self.tab_4)
        self.tab2_label_3.setMinimumSize(QtCore.QSize(0, 25))
        self.tab2_label_3.setObjectName("tab2_label_3")
        self.gridLayout.addWidget(self.tab2_label_3, 3, 1, 1, 1)
        self.tab2_listWidget1 = QtWidgets.QListWidget(self.tab_4)
        self.tab2_listWidget1.setMaximumSize(QtCore.QSize(300, 16777215))
        self.tab2_listWidget1.setObjectName("tab2_listWidget1")
        item = QtWidgets.QListWidgetItem()
        self.tab2_listWidget1.addItem(item)
        item = QtWidgets.QListWidgetItem()
        self.tab2_listWidget1.addItem(item)
        item = QtWidgets.QListWidgetItem()
        self.tab2_listWidget1.addItem(item)
        item = QtWidgets.QListWidgetItem()
        self.tab2_listWidget1.addItem(item)
        self.gridLayout.addWidget(self.tab2_listWidget1, 0, 0, 6, 1)
        self.tab2_pushButton_1 = QtWidgets.QPushButton(self.tab_4)
        self.tab2_pushButton_1.setMinimumSize(QtCore.QSize(100, 25))
        self.tab2_pushButton_1.setMaximumSize(QtCore.QSize(150, 16777215))
        self.tab2_pushButton_1.setObjectName("tab2_pushButton_1")
        self.gridLayout.addWidget(self.tab2_pushButton_1, 0, 2, 1, 1)
        self.tab2_label_4 = QtWidgets.QLabel(self.tab_4)
        self.tab2_label_4.setMinimumSize(QtCore.QSize(0, 25))
        self.tab2_label_4.setObjectName("tab2_label_4")
        self.gridLayout.addWidget(self.tab2_label_4, 11, 1, 1, 1)
        self.tab2_checkBox_2 = QtWidgets.QCheckBox(self.tab_4)
        self.tab2_checkBox_2.setObjectName("tab2_checkBox_2")
        self.gridLayout.addWidget(self.tab2_checkBox_2, 6, 1, 1, 1)
        self.tab2_listWidget2 = QtWidgets.QListWidget(self.tab_4)
        self.tab2_listWidget2.setMinimumSize(QtCore.QSize(0, 230))
        self.tab2_listWidget2.setMaximumSize(QtCore.QSize(300, 16777215))
        self.tab2_listWidget2.setObjectName("tab2_listWidget2")
        self.gridLayout.addWidget(self.tab2_listWidget2, 6, 0, 6, 1)
        self.tab2_lineEdit_2 = QtWidgets.QLineEdit(self.tab_4)
        self.tab2_lineEdit_2.setMinimumSize(QtCore.QSize(0, 25))
        self.tab2_lineEdit_2.setMaximumSize(QtCore.QSize(16777215, 16777215))
        self.tab2_lineEdit_2.setObjectName("tab2_lineEdit_2")
        self.gridLayout.addWidget(self.tab2_lineEdit_2, 2, 3, 1, 2)
        self.tab2_pushButton_2 = QtWidgets.QPushButton(self.tab_4)
        self.tab2_pushButton_2.setMinimumSize(QtCore.QSize(100, 25))
        self.tab2_pushButton_2.setMaximumSize(QtCore.QSize(150, 16777215))
        self.tab2_pushButton_2.setObjectName("tab2_pushButton_2")
        self.gridLayout.addWidget(self.tab2_pushButton_2, 2, 2, 1, 1)
        self.tab2_pushButton_3 = QtWidgets.QPushButton(self.tab_4)
        self.tab2_pushButton_3.setMinimumSize(QtCore.QSize(0, 25))
        self.tab2_pushButton_3.setMaximumSize(QtCore.QSize(150, 16777215))
        self.tab2_pushButton_3.setObjectName("tab2_pushButton_3")
        self.gridLayout.addWidget(self.tab2_pushButton_3, 11, 2, 1, 1)
        self.tab2_label_show = QtWidgets.QLabel(self.tab_4)
        self.tab2_label_show.setEnabled(True)
        self.tab2_label_show.setMinimumSize(QtCore.QSize(400, 250))
        self.tab2_label_show.setMaximumSize(QtCore.QSize(16777215, 16777215))
        self.tab2_label_show.setStyleSheet("background-color: rgb(192, 200, 188);")
        self.tab2_label_show.setFrameShape(QtWidgets.QFrame.Panel)
        self.tab2_label_show.setFrameShadow(QtWidgets.QFrame.Raised)
        self.tab2_label_show.setText("")
        self.tab2_label_show.setObjectName("tab2_label_show")
        self.gridLayout.addWidget(self.tab2_label_show, 4, 2, 7, 4)
        self.tab2_lineEdit_3 = QtWidgets.QLineEdit(self.tab_4)
        self.tab2_lineEdit_3.setMinimumSize(QtCore.QSize(50, 25))
        self.tab2_lineEdit_3.setMaximumSize(QtCore.QSize(150, 16777215))
        self.tab2_lineEdit_3.setObjectName("tab2_lineEdit_3")
        self.gridLayout.addWidget(self.tab2_lineEdit_3, 3, 2, 1, 1)
        self.tab2_lineEdit_1 = QtWidgets.QLineEdit(self.tab_4)
        self.tab2_lineEdit_1.setMinimumSize(QtCore.QSize(0, 25))
        self.tab2_lineEdit_1.setMaximumSize(QtCore.QSize(16777215, 16777215))
        self.tab2_lineEdit_1.setObjectName("tab2_lineEdit_1")
        self.gridLayout.addWidget(self.tab2_lineEdit_1, 0, 3, 1, 2)
        spacerItem2 = QtWidgets.QSpacerItem(40, 20, QtWidgets.QSizePolicy.Expanding, QtWidgets.QSizePolicy.Minimum)
        self.gridLayout.addItem(spacerItem2, 11, 5, 1, 1)
        spacerItem3 = QtWidgets.QSpacerItem(40, 20, QtWidgets.QSizePolicy.Expanding, QtWidgets.QSizePolicy.Minimum)
        self.gridLayout.addItem(spacerItem3, 2, 5, 1, 1)
        self.tab2_lineEdit_4 = QtWidgets.QLineEdit(self.tab_4)
        self.tab2_lineEdit_4.setMinimumSize(QtCore.QSize(0, 25))
        self.tab2_lineEdit_4.setMaximumSize(QtCore.QSize(16777215, 16777215))
        self.tab2_lineEdit_4.setObjectName("tab2_lineEdit_4")
        self.gridLayout.addWidget(self.tab2_lineEdit_4, 11, 3, 1, 1)
        self.tab2_checkBox_1.raise_()
        self.tab2_pushButton_play.raise_()
        self.tab2_pushButton_make.raise_()
        self.tab2_label_1.raise_()
        self.tab2_label_2.raise_()
        self.tab2_label_3.raise_()
        self.tab2_listWidget1.raise_()
        self.tab2_pushButton_1.raise_()
        self.tab2_label_4.raise_()
        self.tab2_checkBox_2.raise_()
        self.tab2_listWidget2.raise_()
        self.tab2_lineEdit_2.raise_()
        self.tab2_pushButton_2.raise_()
        self.tab2_pushButton_3.raise_()
        self.tab2_label_show.raise_()
        self.tab2_lineEdit_3.raise_()
        self.tab2_lineEdit_4.raise_()
        self.tab2_lineEdit_1.raise_()
        self.tabWidget.addTab(self.tab_4, "")
        self.tab_2 = QtWidgets.QWidget()
        self.tab_2.setObjectName("tab_2")
        self.gridLayout_2 = QtWidgets.QGridLayout(self.tab_2)
        self.gridLayout_2.setObjectName("gridLayout_2")
        self.tab3_lineEdit1 = QtWidgets.QLineEdit(self.tab_2)
        self.tab3_lineEdit1.setMinimumSize(QtCore.QSize(100, 25))
        self.tab3_lineEdit1.setMaximumSize(QtCore.QSize(900, 16777215))
        self.tab3_lineEdit1.setObjectName("tab3_lineEdit1")
        self.gridLayout_2.addWidget(self.tab3_lineEdit1, 0, 1, 1, 2)
        self.tab3_label_3 = QtWidgets.QLabel(self.tab_2)
        self.tab3_label_3.setMinimumSize(QtCore.QSize(0, 25))
        self.tab3_label_3.setFrameShape(QtWidgets.QFrame.Panel)
        self.tab3_label_3.setFrameShadow(QtWidgets.QFrame.Raised)
        self.tab3_label_3.setObjectName("tab3_label_3")
        self.gridLayout_2.addWidget(self.tab3_label_3, 7, 0, 1, 1)
        self.tab3_pushButton2 = QtWidgets.QPushButton(self.tab_2)
        self.tab3_pushButton2.setMinimumSize(QtCore.QSize(0, 25))
        self.tab3_pushButton2.setMaximumSize(QtCore.QSize(100, 16777215))
        self.tab3_pushButton2.setObjectName("tab3_pushButton2")
        self.gridLayout_2.addWidget(self.tab3_pushButton2, 6, 4, 1, 1)
        self.tab3_label_4 = QtWidgets.QLabel(self.tab_2)
        self.tab3_label_4.setMinimumSize(QtCore.QSize(0, 25))
        self.tab3_label_4.setFrameShape(QtWidgets.QFrame.Panel)
        self.tab3_label_4.setFrameShadow(QtWidgets.QFrame.Raised)
        self.tab3_label_4.setObjectName("tab3_label_4")
        self.gridLayout_2.addWidget(self.tab3_label_4, 0, 4, 1, 1)
        self.tab3_label1 = QtWidgets.QLabel(self.tab_2)
        self.tab3_label1.setMinimumSize(QtCore.QSize(200, 200))
        self.tab3_label1.setStyleSheet("background-color: rgb(186, 186, 186);")
        self.tab3_label1.setFrameShape(QtWidgets.QFrame.WinPanel)
        self.tab3_label1.setFrameShadow(QtWidgets.QFrame.Sunken)
        self.tab3_label1.setText("")
        self.tab3_label1.setObjectName("tab3_label1")
        self.gridLayout_2.addWidget(self.tab3_label1, 1, 0, 5, 11)
        spacerItem4 = QtWidgets.QSpacerItem(60, 20, QtWidgets.QSizePolicy.Expanding, QtWidgets.QSizePolicy.Minimum)
        self.gridLayout_2.addItem(spacerItem4, 0, 8, 1, 1)
        self.tab3_lineEdit2 = QtWidgets.QLineEdit(self.tab_2)
        self.tab3_lineEdit2.setMinimumSize(QtCore.QSize(0, 25))
        self.tab3_lineEdit2.setObjectName("tab3_lineEdit2")
        self.gridLayout_2.addWidget(self.tab3_lineEdit2, 6, 1, 1, 3)
        self.tab3_label_5 = QtWidgets.QLabel(self.tab_2)
        self.tab3_label_5.setMinimumSize(QtCore.QSize(0, 25))
        self.tab3_label_5.setFrameShape(QtWidgets.QFrame.Panel)
        self.tab3_label_5.setFrameShadow(QtWidgets.QFrame.Raised)
        self.tab3_label_5.setObjectName("tab3_label_5")
        self.gridLayout_2.addWidget(self.tab3_label_5, 0, 6, 1, 1)
        self.tab3_pushButton3 = QtWidgets.QPushButton(self.tab_2)
        self.tab3_pushButton3.setMinimumSize(QtCore.QSize(0, 25))
        self.tab3_pushButton3.setObjectName("tab3_pushButton3")
        self.gridLayout_2.addWidget(self.tab3_pushButton3, 6, 5, 1, 1)
        self.tab3_comboBox1 = QtWidgets.QComboBox(self.tab_2)
        self.tab3_comboBox1.setMinimumSize(QtCore.QSize(0, 25))
        self.tab3_comboBox1.setStyleSheet("background-color: rgb(193, 193, 193);")
        self.tab3_comboBox1.setObjectName("tab3_comboBox1")
        self.tab3_comboBox1.addItem("")
        self.tab3_comboBox1.addItem("")
        self.tab3_comboBox1.addItem("")
        self.gridLayout_2.addWidget(self.tab3_comboBox1, 0, 5, 1, 1)
        self.tab3_pushButton5 = QtWidgets.QPushButton(self.tab_2)
        self.tab3_pushButton5.setMinimumSize(QtCore.QSize(0, 25))
        self.tab3_pushButton5.setObjectName("tab3_pushButton5")
        self.gridLayout_2.addWidget(self.tab3_pushButton5, 7, 5, 1, 1)
        self.tab3_pushButton1 = QtWidgets.QPushButton(self.tab_2)
        self.tab3_pushButton1.setMinimumSize(QtCore.QSize(0, 25))
        self.tab3_pushButton1.setObjectName("tab3_pushButton1")
        self.gridLayout_2.addWidget(self.tab3_pushButton1, 0, 3, 1, 1)
        self.tab3_label_2 = QtWidgets.QLabel(self.tab_2)
        self.tab3_label_2.setMinimumSize(QtCore.QSize(0, 25))
        self.tab3_label_2.setMaximumSize(QtCore.QSize(16777215, 16777215))
        self.tab3_label_2.setFrameShape(QtWidgets.QFrame.Panel)
        self.tab3_label_2.setFrameShadow(QtWidgets.QFrame.Raised)
        self.tab3_label_2.setObjectName("tab3_label_2")
        self.gridLayout_2.addWidget(self.tab3_label_2, 6, 0, 1, 1)
        self.tab3_label_1 = QtWidgets.QLabel(self.tab_2)
        self.tab3_label_1.setMinimumSize(QtCore.QSize(0, 25))
        self.tab3_label_1.setFrameShape(QtWidgets.QFrame.Panel)
        self.tab3_label_1.setFrameShadow(QtWidgets.QFrame.Raised)
        self.tab3_label_1.setObjectName("tab3_label_1")
        self.gridLayout_2.addWidget(self.tab3_label_1, 0, 0, 1, 1)
        self.tab3_pushButton4 = QtWidgets.QPushButton(self.tab_2)
        self.tab3_pushButton4.setMinimumSize(QtCore.QSize(0, 25))
        self.tab3_pushButton4.setObjectName("tab3_pushButton4")
        self.gridLayout_2.addWidget(self.tab3_pushButton4, 7, 4, 1, 1)
        self.tab3_lineEdit3 = QtWidgets.QLineEdit(self.tab_2)
        self.tab3_lineEdit3.setMinimumSize(QtCore.QSize(0, 25))
        self.tab3_lineEdit3.setObjectName("tab3_lineEdit3")
        self.gridLayout_2.addWidget(self.tab3_lineEdit3, 7, 1, 1, 3)
        self.tab3_lineEdit1_2 = QtWidgets.QLineEdit(self.tab_2)
        self.tab3_lineEdit1_2.setMinimumSize(QtCore.QSize(0, 25))
        self.tab3_lineEdit1_2.setObjectName("tab3_lineEdit1_2")
        self.gridLayout_2.addWidget(self.tab3_lineEdit1_2, 0, 7, 1, 1)
        self.tab3_textBrowser_1 = QtWidgets.QTextBrowser(self.tab_2)
        self.tab3_textBrowser_1.setObjectName("tab3_textBrowser_1")
        self.gridLayout_2.addWidget(self.tab3_textBrowser_1, 6, 6, 2, 5)
        self.tabWidget.addTab(self.tab_2, "")
        self.tab_3 = QtWidgets.QWidget()
        self.tab_3.setObjectName("tab_3")
        self.gridLayout_4 = QtWidgets.QGridLayout(self.tab_3)
        self.gridLayout_4.setObjectName("gridLayout_4")
        self.tab4_baifenbi = QtWidgets.QLabel(self.tab_3)
        self.tab4_baifenbi.setObjectName("tab4_baifenbi")
        self.gridLayout_4.addWidget(self.tab4_baifenbi, 1, 4, 1, 1)
        self.horizontalSlider = QtWidgets.QSlider(self.tab_3)
        self.horizontalSlider.setMinimumSize(QtCore.QSize(0, 25))
        self.horizontalSlider.setOrientation(QtCore.Qt.Horizontal)
        self.horizontalSlider.setObjectName("horizontalSlider")
        self.gridLayout_4.addWidget(self.horizontalSlider, 1, 3, 1, 1)
        self.tab4_pushButton_split_video = QtWidgets.QPushButton(self.tab_3)
        self.tab4_pushButton_split_video.setMinimumSize(QtCore.QSize(0, 25))
        self.tab4_pushButton_split_video.setObjectName("tab4_pushButton_split_video")
        self.gridLayout_4.addWidget(self.tab4_pushButton_split_video, 3, 2, 1, 1)
        self.tab4_lineEdit2 = QtWidgets.QLineEdit(self.tab_3)
        self.tab4_lineEdit2.setMinimumSize(QtCore.QSize(0, 25))
        self.tab4_lineEdit2.setMaximumSize(QtCore.QSize(100, 16777215))
        self.tab4_lineEdit2.setObjectName("tab4_lineEdit2")
        self.gridLayout_4.addWidget(self.tab4_lineEdit2, 3, 1, 1, 1)
        self.tab4_pushButton_pause = QtWidgets.QPushButton(self.tab_3)
        self.tab4_pushButton_pause.setMinimumSize(QtCore.QSize(50, 25))
        self.tab4_pushButton_pause.setMaximumSize(QtCore.QSize(100, 16777215))
        self.tab4_pushButton_pause.setObjectName("tab4_pushButton_pause")
        self.gridLayout_4.addWidget(self.tab4_pushButton_pause, 1, 1, 1, 1)
        self.mywidget = QVideoWidget(self.tab_3)
        self.mywidget.setStyleSheet("background-color: rgb(0, 0, 0);")
        self.mywidget.setObjectName("mywidget")
        self.gridLayout_4.addWidget(self.mywidget, 0, 0, 1, 5)
        self.tab4_pushButton_1 = QtWidgets.QPushButton(self.tab_3)
        self.tab4_pushButton_1.setMinimumSize(QtCore.QSize(60, 25))
        self.tab4_pushButton_1.setObjectName("tab4_pushButton_1")
        self.gridLayout_4.addWidget(self.tab4_pushButton_1, 1, 0, 1, 1)
        self.tab4_pushButton_3 = QtWidgets.QPushButton(self.tab_3)
        self.tab4_pushButton_3.setMinimumSize(QtCore.QSize(0, 25))
        self.tab4_pushButton_3.setObjectName("tab4_pushButton_3")
        self.gridLayout_4.addWidget(self.tab4_pushButton_3, 3, 0, 1, 1)
        self.tab4_textBrowser = QtWidgets.QTextBrowser(self.tab_3)
        self.tab4_textBrowser.setMaximumSize(QtCore.QSize(16777215, 16777215))
        self.tab4_textBrowser.setObjectName("tab4_textBrowser")
        self.gridLayout_4.addWidget(self.tab4_textBrowser, 2, 3, 2, 2)
        self.tab4_label_1 = QtWidgets.QLabel(self.tab_3)
        self.tab4_label_1.setObjectName("tab4_label_1")
        self.gridLayout_4.addWidget(self.tab4_label_1, 1, 2, 1, 1)
        self.tab4_pushButton_2 = QtWidgets.QPushButton(self.tab_3)
        self.tab4_pushButton_2.setMinimumSize(QtCore.QSize(0, 25))
        self.tab4_pushButton_2.setObjectName("tab4_pushButton_2")
        self.gridLayout_4.addWidget(self.tab4_pushButton_2, 2, 0, 1, 1)
        self.tab4_lineEdit1 = QtWidgets.QLineEdit(self.tab_3)
        self.tab4_lineEdit1.setMinimumSize(QtCore.QSize(0, 25))
        self.tab4_lineEdit1.setMaximumSize(QtCore.QSize(100, 16777215))
        self.tab4_lineEdit1.setObjectName("tab4_lineEdit1")
        self.gridLayout_4.addWidget(self.tab4_lineEdit1, 2, 1, 1, 1)
        self.tab4_pushButton_split_image = QtWidgets.QPushButton(self.tab_3)
        self.tab4_pushButton_split_image.setMinimumSize(QtCore.QSize(0, 25))
        self.tab4_pushButton_split_image.setObjectName("tab4_pushButton_split_image")
        self.gridLayout_4.addWidget(self.tab4_pushButton_split_image, 2, 2, 1, 1)
        self.tabWidget.addTab(self.tab_3, "")
        self.gridLayout_5.addWidget(self.tabWidget, 0, 0, 1, 1)
        MainWindow.setCentralWidget(self.centralwidget)
        self.menubar = QtWidgets.QMenuBar(MainWindow)
        self.menubar.setGeometry(QtCore.QRect(0, 0, 605, 23))
        self.menubar.setObjectName("menubar")
        self.menuFile = QtWidgets.QMenu(self.menubar)
        self.menuFile.setObjectName("menuFile")
        MainWindow.setMenuBar(self.menubar)
        self.statusbar = QtWidgets.QStatusBar(MainWindow)
        self.statusbar.setObjectName("statusbar")
        MainWindow.setStatusBar(self.statusbar)
        self.menubar.addAction(self.menuFile.menuAction())

        self.retranslateUi(MainWindow)
        self.tabWidget.setCurrentIndex(3)
        QtCore.QMetaObject.connectSlotsByName(MainWindow)

    def retranslateUi(self, MainWindow):
        _translate = QtCore.QCoreApplication.translate
        MainWindow.setWindowTitle(_translate("MainWindow", "MainWindow"))
        self.tab1_checkBox.setText(_translate("MainWindow", "批量选择"))
        self.tab1_pushButton2.setText(_translate("MainWindow", "浏览"))
        self.tab1_pushButton_open2.setText(_translate("MainWindow", "打开"))
        self.tab1_label3.setText(_translate("MainWindow", "<html><head/><body><p align=\"center\">图片查看：</p></body></html>"))
        self.tab1_label1.setText(_translate("MainWindow", "路径选择："))
        self.tab1_comboBox1.setItemText(0, _translate("MainWindow", "单张"))
        self.tab1_comboBox1.setItemText(1, _translate("MainWindow", "批量"))
        self.tab1_pushButton_down.setText(_translate("MainWindow", "下一张"))
        self.tab1_pushButton_zhuanhua.setText(_translate("MainWindow", "转化"))
        self.tab1_pushButton1.setText(_translate("MainWindow", "浏览"))
        self.tab1_label2.setText(_translate("MainWindow", "保存路径："))
        self.tab1_comboBox2.setItemText(0, _translate("MainWindow", "png"))
        self.tab1_comboBox2.setItemText(1, _translate("MainWindow", "jpeg"))
        self.tab1_comboBox2.setItemText(2, _translate("MainWindow", "jpg"))
        self.tab1_comboBox2.setItemText(3, _translate("MainWindow", "bmp"))
        self.tab1_comboBox2.setItemText(4, _translate("MainWindow", "pdf"))
        self.tab1_pushButton_up.setText(_translate("MainWindow", "上一张"))
        self.tab1_pushButton_open1.setText(_translate("MainWindow", "打开"))
        self.tab1_comboBox3.setItemText(0, _translate("MainWindow", "单张"))
        self.tab1_comboBox3.setItemText(1, _translate("MainWindow", "批量"))
        self.tab1_pushButton_xiugai.setText(_translate("MainWindow", "修改"))
        self.tab1_label_4.setText(_translate("MainWindow", "分辨率："))
        self.tabWidget.setTabText(self.tabWidget.indexOf(self.tab), _translate("MainWindow", "图片格式转化"))
        self.tab2_checkBox_1.setText(_translate("MainWindow", "展示图片"))
        self.tab2_pushButton_play.setText(_translate("MainWindow", "播放"))
        self.tab2_pushButton_make.setText(_translate("MainWindow", "生成GIF"))
        self.tab2_label_1.setText(_translate("MainWindow", "<html><head/><body><p align=\"center\">图片路径：</p></body></html>"))
        self.tab2_label_2.setText(_translate("MainWindow", "<html><head/><body><p align=\"center\">GIF保存路径：</p></body></html>"))
        self.tab2_label_3.setText(_translate("MainWindow", "<html><head/><body><p align=\"center\">延时(s)：</p></body></html>"))
        __sortingEnabled = self.tab2_listWidget1.isSortingEnabled()
        self.tab2_listWidget1.setSortingEnabled(False)
        item = self.tab2_listWidget1.item(0)
        item.setText(_translate("MainWindow", "222"))
        item = self.tab2_listWidget1.item(1)
        item.setText(_translate("MainWindow", "333"))
        item = self.tab2_listWidget1.item(2)
        item.setText(_translate("MainWindow", "4444"))
        item = self.tab2_listWidget1.item(3)
        item.setText(_translate("MainWindow", "111"))
        self.tab2_listWidget1.setSortingEnabled(__sortingEnabled)
        self.tab2_pushButton_1.setText(_translate("MainWindow", "浏览"))
        self.tab2_label_4.setText(_translate("MainWindow", "<html><head/><body><p align=\"center\">GIF选择：</p></body></html>"))
        self.tab2_checkBox_2.setText(_translate("MainWindow", "自动命名"))
        self.tab2_pushButton_2.setText(_translate("MainWindow", "浏览"))
        self.tab2_pushButton_3.setText(_translate("MainWindow", "浏览"))
        self.tabWidget.setTabText(self.tabWidget.indexOf(self.tab_4), _translate("MainWindow", "图片转GIF"))
        self.tab3_label_3.setText(_translate("MainWindow", "视频路径："))
        self.tab3_pushButton2.setText(_translate("MainWindow", "浏览"))
        self.tab3_label_4.setText(_translate("MainWindow", "<html><head/><body><p align=\"center\">延时：</p></body></html>"))
        self.tab3_label_5.setText(_translate("MainWindow", "帧率："))
        self.tab3_pushButton3.setText(_translate("MainWindow", "播放"))
        self.tab3_comboBox1.setItemText(0, _translate("MainWindow", "1"))
        self.tab3_comboBox1.setItemText(1, _translate("MainWindow", "2"))
        self.tab3_comboBox1.setItemText(2, _translate("MainWindow", "3"))
        self.tab3_pushButton5.setText(_translate("MainWindow", "合成"))
        self.tab3_pushButton1.setText(_translate("MainWindow", "浏览"))
        self.tab3_label_2.setText(_translate("MainWindow", "音频路径："))
        self.tab3_label_1.setText(_translate("MainWindow", "路径选择："))
        self.tab3_pushButton4.setText(_translate("MainWindow", "浏览"))
        self.tab3_lineEdit1_2.setText(_translate("MainWindow", "0.5"))
        self.tabWidget.setTabText(self.tabWidget.indexOf(self.tab_2), _translate("MainWindow", "图片轮播"))
        self.tab4_baifenbi.setText(_translate("MainWindow", "0"))
        self.tab4_pushButton_split_video.setText(_translate("MainWindow", "分割视频"))
        self.tab4_pushButton_pause.setText(_translate("MainWindow", "暂停"))
        self.tab4_pushButton_1.setText(_translate("MainWindow", "浏览"))
        self.tab4_pushButton_3.setText(_translate("MainWindow", "结束时间"))
        self.tab4_label_1.setText(_translate("MainWindow", "<html><head/><body><p align=\"center\">进度条：</p></body></html>"))
        self.tab4_pushButton_2.setText(_translate("MainWindow", "开始时间"))
        self.tab4_pushButton_split_image.setText(_translate("MainWindow", "分割图片"))
        self.tabWidget.setTabText(self.tabWidget.indexOf(self.tab_3), _translate("MainWindow", "视频转图片"))
        self.menuFile.setTitle(_translate("MainWindow", "File"))
from PyQt5.QtMultimediaWidgets import QVideoWidget

6.5 加载界面原始UI文件；【loadwin.ui】Pyqt5工具可打开

<?xml version="1.0" encoding="UTF-8"?>
<ui version="4.0">
 <class>loadwin</class>
 <widget class="QWidget" name="loadwin">
  <property name="geometry">
   <rect>
    <x>0</x>
    <y>0</y>
    <width>455</width>
    <height>349</height>
   </rect>
  </property>
  <property name="windowTitle">
   <string>Form</string>
  </property>
  <layout class="QGridLayout" name="gridLayout">
   <item row="0" column="0">
    <widget class="QLabel" name="label_logo">
     <property name="minimumSize">
      <size>
       <width>0</width>
       <height>280</height>
      </size>
     </property>
     <property name="text">
      <string/>
     </property>
    </widget>
   </item>
   <item row="1" column="0">
    <widget class="QLabel" name="label_info">
     <property name="text">
      <string>TextLabel</string>
     </property>
    </widget>
   </item>
   <item row="2" column="0">
    <widget class="QProgressBar" name="progressBar">
     <property name="value">
      <number>24</number>
     </property>
    </widget>
   </item>
  </layout>
 </widget>
 <resources/>
 <connections/>
</ui>

6.6 主界面原始UI文件；【show_img.ui】Pyqt5工具可打开

<?xml version="1.0" encoding="UTF-8"?>
<ui version="4.0">
 <class>MainWindow</class>
 <widget class="QMainWindow" name="MainWindow">
  <property name="geometry">
   <rect>
    <x>0</x>
    <y>0</y>
    <width>605</width>
    <height>535</height>
   </rect>
  </property>
  <property name="windowTitle">
   <string>MainWindow</string>
  </property>
  <widget class="QWidget" name="centralwidget">
   <layout class="QGridLayout" name="gridLayout_5">
    <item row="0" column="0">
     <widget class="QTabWidget" name="tabWidget">
      <property name="currentIndex">
       <number>3</number>
      </property>
      <widget class="QWidget" name="tab">
       <attribute name="title">
        <string>图片格式转化</string>
       </attribute>
       <layout class="QGridLayout" name="gridLayout_3">
        <item row="0" column="5">
         <widget class="QCheckBox" name="tab1_checkBox">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>批量选择</string>
          </property>
         </widget>
        </item>
        <item row="1" column="3">
         <widget class="QPushButton" name="tab1_pushButton2">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>浏览</string>
          </property>
         </widget>
        </item>
        <item row="1" column="4">
         <widget class="QPushButton" name="tab1_pushButton_open2">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>打开</string>
          </property>
         </widget>
        </item>
        <item row="7" column="0">
         <widget class="QLabel" name="tab1_label3">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="frameShape">
           <enum>QFrame::Panel</enum>
          </property>
          <property name="frameShadow">
           <enum>QFrame::Raised</enum>
          </property>
          <property name="text">
           <string>&lt;html&gt;&lt;head/&gt;&lt;body&gt;&lt;p align=&quot;center&quot;&gt;图片查看：&lt;/p&gt;&lt;/body&gt;&lt;/html&gt;</string>
          </property>
         </widget>
        </item>
        <item row="0" column="0">
         <widget class="QLabel" name="tab1_label1">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="frameShape">
           <enum>QFrame::Panel</enum>
          </property>
          <property name="frameShadow">
           <enum>QFrame::Raised</enum>
          </property>
          <property name="text">
           <string>路径选择：</string>
          </property>
         </widget>
        </item>
        <item row="2" column="7">
         <widget class="QComboBox" name="tab1_comboBox1">
          <item>
           <property name="text">
            <string>单张</string>
           </property>
          </item>
          <item>
           <property name="text">
            <string>批量</string>
           </property>
          </item>
         </widget>
        </item>
        <item row="7" column="2">
         <widget class="QPushButton" name="tab1_pushButton_down">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>下一张</string>
          </property>
         </widget>
        </item>
        <item row="4" column="7">
         <widget class="QPushButton" name="tab1_pushButton_zhuanhua">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>转化</string>
          </property>
         </widget>
        </item>
        <item row="0" column="3">
         <widget class="QPushButton" name="tab1_pushButton1">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>浏览</string>
          </property>
         </widget>
        </item>
        <item row="1" column="0">
         <widget class="QLabel" name="tab1_label2">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="frameShape">
           <enum>QFrame::Panel</enum>
          </property>
          <property name="frameShadow">
           <enum>QFrame::Raised</enum>
          </property>
          <property name="text">
           <string>保存路径：</string>
          </property>
         </widget>
        </item>
        <item row="0" column="1" colspan="2">
         <widget class="QLineEdit" name="tab1_lineEdit1">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="styleSheet">
           <string notr="true">background-color: rgb(213, 213, 213);</string>
          </property>
         </widget>
        </item>
        <item row="1" column="1" colspan="2">
         <widget class="QLineEdit" name="tab1_lineEdit2">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
         </widget>
        </item>
        <item row="3" column="7">
         <widget class="QComboBox" name="tab1_comboBox2">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="styleSheet">
           <string notr="true">background-color: rgb(0, 170, 0);</string>
          </property>
          <item>
           <property name="text">
            <string>png</string>
           </property>
          </item>
          <item>
           <property name="text">
            <string>jpeg</string>
           </property>
          </item>
          <item>
           <property name="text">
            <string>jpg</string>
           </property>
          </item>
          <item>
           <property name="text">
            <string>bmp</string>
           </property>
          </item>
          <item>
           <property name="text">
            <string>pdf</string>
           </property>
          </item>
         </widget>
        </item>
        <item row="7" column="1">
         <widget class="QPushButton" name="tab1_pushButton_up">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>上一张</string>
          </property>
         </widget>
        </item>
        <item row="0" column="4">
         <widget class="QPushButton" name="tab1_pushButton_open1">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>打开</string>
          </property>
         </widget>
        </item>
        <item row="5" column="7">
         <widget class="QTextBrowser" name="textBrowser">
          <property name="maximumSize">
           <size>
            <width>150</width>
            <height>16777215</height>
           </size>
          </property>
         </widget>
        </item>
        <item row="7" column="3">
         <widget class="QComboBox" name="tab1_comboBox3">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <item>
           <property name="text">
            <string>单张</string>
           </property>
          </item>
          <item>
           <property name="text">
            <string>批量</string>
           </property>
          </item>
         </widget>
        </item>
        <item row="7" column="7">
         <widget class="QPushButton" name="tab1_pushButton_xiugai">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>修改</string>
          </property>
         </widget>
        </item>
        <item row="7" column="5">
         <widget class="QLineEdit" name="tab1_lineEdit3">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
         </widget>
        </item>
        <item row="7" column="4">
         <widget class="QLabel" name="tab1_label_4">
          <property name="frameShape">
           <enum>QFrame::Panel</enum>
          </property>
          <property name="frameShadow">
           <enum>QFrame::Raised</enum>
          </property>
          <property name="text">
           <string>分辨率：</string>
          </property>
         </widget>
        </item>
        <item row="2" column="0" rowspan="5" colspan="6">
         <widget class="QLabel" name="tab1_showimg">
          <property name="minimumSize">
           <size>
            <width>300</width>
            <height>250</height>
           </size>
          </property>
          <property name="styleSheet">
           <string notr="true">background-color: rgb(255, 239, 219);</string>
          </property>
          <property name="frameShape">
           <enum>QFrame::Panel</enum>
          </property>
          <property name="frameShadow">
           <enum>QFrame::Sunken</enum>
          </property>
          <property name="text">
           <string/>
          </property>
         </widget>
        </item>
       </layout>
      </widget>
      <widget class="QWidget" name="tab_4">
       <attribute name="title">
        <string>图片转GIF</string>
       </attribute>
       <layout class="QGridLayout" name="gridLayout">
        <item row="1" column="1">
         <widget class="QCheckBox" name="tab2_checkBox_1">
          <property name="text">
           <string>展示图片</string>
          </property>
         </widget>
        </item>
        <item row="11" column="4">
         <widget class="QPushButton" name="tab2_pushButton_play">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>播放</string>
          </property>
         </widget>
        </item>
        <item row="7" column="1">
         <widget class="QPushButton" name="tab2_pushButton_make">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>生成GIF</string>
          </property>
         </widget>
        </item>
        <item row="0" column="1">
         <widget class="QLabel" name="tab2_label_1">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>&lt;html&gt;&lt;head/&gt;&lt;body&gt;&lt;p align=&quot;center&quot;&gt;图片路径：&lt;/p&gt;&lt;/body&gt;&lt;/html&gt;</string>
          </property>
         </widget>
        </item>
        <item row="3" column="3">
         <spacer name="horizontalSpacer_5">
          <property name="orientation">
           <enum>Qt::Horizontal</enum>
          </property>
          <property name="sizeHint" stdset="0">
           <size>
            <width>40</width>
            <height>20</height>
           </size>
          </property>
         </spacer>
        </item>
        <item row="2" column="1">
         <widget class="QLabel" name="tab2_label_2">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>&lt;html&gt;&lt;head/&gt;&lt;body&gt;&lt;p align=&quot;center&quot;&gt;GIF保存路径：&lt;/p&gt;&lt;/body&gt;&lt;/html&gt;</string>
          </property>
         </widget>
        </item>
        <item row="0" column="5">
         <spacer name="horizontalSpacer_3">
          <property name="orientation">
           <enum>Qt::Horizontal</enum>
          </property>
          <property name="sizeHint" stdset="0">
           <size>
            <width>40</width>
            <height>20</height>
           </size>
          </property>
         </spacer>
        </item>
        <item row="3" column="1">
         <widget class="QLabel" name="tab2_label_3">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>&lt;html&gt;&lt;head/&gt;&lt;body&gt;&lt;p align=&quot;center&quot;&gt;延时(s)：&lt;/p&gt;&lt;/body&gt;&lt;/html&gt;</string>
          </property>
         </widget>
        </item>
        <item row="0" column="0" rowspan="6">
         <widget class="QListWidget" name="tab2_listWidget1">
          <property name="maximumSize">
           <size>
            <width>300</width>
            <height>16777215</height>
           </size>
          </property>
          <item>
           <property name="text">
            <string>222</string>
           </property>
          </item>
          <item>
           <property name="text">
            <string>333</string>
           </property>
          </item>
          <item>
           <property name="text">
            <string>4444</string>
           </property>
          </item>
          <item>
           <property name="text">
            <string>111</string>
           </property>
          </item>
         </widget>
        </item>
        <item row="0" column="2">
         <widget class="QPushButton" name="tab2_pushButton_1">
          <property name="minimumSize">
           <size>
            <width>100</width>
            <height>25</height>
           </size>
          </property>
          <property name="maximumSize">
           <size>
            <width>150</width>
            <height>16777215</height>
           </size>
          </property>
          <property name="text">
           <string>浏览</string>
          </property>
         </widget>
        </item>
        <item row="11" column="1">
         <widget class="QLabel" name="tab2_label_4">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>&lt;html&gt;&lt;head/&gt;&lt;body&gt;&lt;p align=&quot;center&quot;&gt;GIF选择：&lt;/p&gt;&lt;/body&gt;&lt;/html&gt;</string>
          </property>
         </widget>
        </item>
        <item row="6" column="1">
         <widget class="QCheckBox" name="tab2_checkBox_2">
          <property name="text">
           <string>自动命名</string>
          </property>
         </widget>
        </item>
        <item row="6" column="0" rowspan="6">
         <widget class="QListWidget" name="tab2_listWidget2">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>230</height>
           </size>
          </property>
          <property name="maximumSize">
           <size>
            <width>300</width>
            <height>16777215</height>
           </size>
          </property>
         </widget>
        </item>
        <item row="2" column="3" colspan="2">
         <widget class="QLineEdit" name="tab2_lineEdit_2">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="maximumSize">
           <size>
            <width>16777215</width>
            <height>16777215</height>
           </size>
          </property>
         </widget>
        </item>
        <item row="2" column="2">
         <widget class="QPushButton" name="tab2_pushButton_2">
          <property name="minimumSize">
           <size>
            <width>100</width>
            <height>25</height>
           </size>
          </property>
          <property name="maximumSize">
           <size>
            <width>150</width>
            <height>16777215</height>
           </size>
          </property>
          <property name="text">
           <string>浏览</string>
          </property>
         </widget>
        </item>
        <item row="11" column="2">
         <widget class="QPushButton" name="tab2_pushButton_3">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="maximumSize">
           <size>
            <width>150</width>
            <height>16777215</height>
           </size>
          </property>
          <property name="text">
           <string>浏览</string>
          </property>
         </widget>
        </item>
        <item row="4" column="2" rowspan="7" colspan="4">
         <widget class="QLabel" name="tab2_label_show">
          <property name="enabled">
           <bool>true</bool>
          </property>
          <property name="minimumSize">
           <size>
            <width>400</width>
            <height>250</height>
           </size>
          </property>
          <property name="maximumSize">
           <size>
            <width>16777215</width>
            <height>16777215</height>
           </size>
          </property>
          <property name="styleSheet">
           <string notr="true">background-color: rgb(192, 200, 188);</string>
          </property>
          <property name="frameShape">
           <enum>QFrame::Panel</enum>
          </property>
          <property name="frameShadow">
           <enum>QFrame::Raised</enum>
          </property>
          <property name="text">
           <string/>
          </property>
         </widget>
        </item>
        <item row="3" column="2">
         <widget class="QLineEdit" name="tab2_lineEdit_3">
          <property name="minimumSize">
           <size>
            <width>50</width>
            <height>25</height>
           </size>
          </property>
          <property name="maximumSize">
           <size>
            <width>150</width>
            <height>16777215</height>
           </size>
          </property>
         </widget>
        </item>
        <item row="0" column="3" colspan="2">
         <widget class="QLineEdit" name="tab2_lineEdit_1">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="maximumSize">
           <size>
            <width>16777215</width>
            <height>16777215</height>
           </size>
          </property>
         </widget>
        </item>
        <item row="11" column="5">
         <spacer name="horizontalSpacer_2">
          <property name="orientation">
           <enum>Qt::Horizontal</enum>
          </property>
          <property name="sizeHint" stdset="0">
           <size>
            <width>40</width>
            <height>20</height>
           </size>
          </property>
         </spacer>
        </item>
        <item row="2" column="5">
         <spacer name="horizontalSpacer_4">
          <property name="orientation">
           <enum>Qt::Horizontal</enum>
          </property>
          <property name="sizeHint" stdset="0">
           <size>
            <width>40</width>
            <height>20</height>
           </size>
          </property>
         </spacer>
        </item>
        <item row="11" column="3">
         <widget class="QLineEdit" name="tab2_lineEdit_4">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="maximumSize">
           <size>
            <width>16777215</width>
            <height>16777215</height>
           </size>
          </property>
         </widget>
        </item>
       </layout>
       <zorder>tab2_checkBox_1</zorder>
       <zorder>tab2_pushButton_play</zorder>
       <zorder>tab2_pushButton_make</zorder>
       <zorder>tab2_label_1</zorder>
       <zorder>tab2_label_2</zorder>
       <zorder>tab2_label_3</zorder>
       <zorder>tab2_listWidget1</zorder>
       <zorder>tab2_pushButton_1</zorder>
       <zorder>tab2_label_4</zorder>
       <zorder>tab2_checkBox_2</zorder>
       <zorder>tab2_listWidget2</zorder>
       <zorder>tab2_lineEdit_2</zorder>
       <zorder>tab2_pushButton_2</zorder>
       <zorder>tab2_pushButton_3</zorder>
       <zorder>tab2_label_show</zorder>
       <zorder>tab2_lineEdit_3</zorder>
       <zorder>tab2_lineEdit_4</zorder>
       <zorder>tab2_lineEdit_1</zorder>
      </widget>
      <widget class="QWidget" name="tab_2">
       <attribute name="title">
        <string>图片轮播</string>
       </attribute>
       <layout class="QGridLayout" name="gridLayout_2">
        <item row="0" column="1" colspan="2">
         <widget class="QLineEdit" name="tab3_lineEdit1">
          <property name="minimumSize">
           <size>
            <width>100</width>
            <height>25</height>
           </size>
          </property>
          <property name="maximumSize">
           <size>
            <width>900</width>
            <height>16777215</height>
           </size>
          </property>
         </widget>
        </item>
        <item row="7" column="0">
         <widget class="QLabel" name="tab3_label_3">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="frameShape">
           <enum>QFrame::Panel</enum>
          </property>
          <property name="frameShadow">
           <enum>QFrame::Raised</enum>
          </property>
          <property name="text">
           <string>视频路径：</string>
          </property>
         </widget>
        </item>
        <item row="6" column="4">
         <widget class="QPushButton" name="tab3_pushButton2">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="maximumSize">
           <size>
            <width>100</width>
            <height>16777215</height>
           </size>
          </property>
          <property name="text">
           <string>浏览</string>
          </property>
         </widget>
        </item>
        <item row="0" column="4">
         <widget class="QLabel" name="tab3_label_4">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="frameShape">
           <enum>QFrame::Panel</enum>
          </property>
          <property name="frameShadow">
           <enum>QFrame::Raised</enum>
          </property>
          <property name="text">
           <string>&lt;html&gt;&lt;head/&gt;&lt;body&gt;&lt;p align=&quot;center&quot;&gt;延时：&lt;/p&gt;&lt;/body&gt;&lt;/html&gt;</string>
          </property>
         </widget>
        </item>
        <item row="1" column="0" rowspan="5" colspan="11">
         <widget class="QLabel" name="tab3_label1">
          <property name="minimumSize">
           <size>
            <width>200</width>
            <height>200</height>
           </size>
          </property>
          <property name="styleSheet">
           <string notr="true">background-color: rgb(186, 186, 186);</string>
          </property>
          <property name="frameShape">
           <enum>QFrame::WinPanel</enum>
          </property>
          <property name="frameShadow">
           <enum>QFrame::Sunken</enum>
          </property>
          <property name="text">
           <string/>
          </property>
         </widget>
        </item>
        <item row="0" column="8">
         <spacer name="horizontalSpacer">
          <property name="orientation">
           <enum>Qt::Horizontal</enum>
          </property>
          <property name="sizeHint" stdset="0">
           <size>
            <width>60</width>
            <height>20</height>
           </size>
          </property>
         </spacer>
        </item>
        <item row="6" column="1" colspan="3">
         <widget class="QLineEdit" name="tab3_lineEdit2">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
         </widget>
        </item>
        <item row="0" column="6">
         <widget class="QLabel" name="tab3_label_5">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="frameShape">
           <enum>QFrame::Panel</enum>
          </property>
          <property name="frameShadow">
           <enum>QFrame::Raised</enum>
          </property>
          <property name="text">
           <string>帧率：</string>
          </property>
         </widget>
        </item>
        <item row="6" column="5">
         <widget class="QPushButton" name="tab3_pushButton3">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>播放</string>
          </property>
         </widget>
        </item>
        <item row="0" column="5">
         <widget class="QComboBox" name="tab3_comboBox1">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="styleSheet">
           <string notr="true">background-color: rgb(193, 193, 193);</string>
          </property>
          <item>
           <property name="text">
            <string>1</string>
           </property>
          </item>
          <item>
           <property name="text">
            <string>2</string>
           </property>
          </item>
          <item>
           <property name="text">
            <string>3</string>
           </property>
          </item>
         </widget>
        </item>
        <item row="7" column="5">
         <widget class="QPushButton" name="tab3_pushButton5">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>合成</string>
          </property>
         </widget>
        </item>
        <item row="0" column="3">
         <widget class="QPushButton" name="tab3_pushButton1">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>浏览</string>
          </property>
         </widget>
        </item>
        <item row="6" column="0">
         <widget class="QLabel" name="tab3_label_2">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="maximumSize">
           <size>
            <width>16777215</width>
            <height>16777215</height>
           </size>
          </property>
          <property name="frameShape">
           <enum>QFrame::Panel</enum>
          </property>
          <property name="frameShadow">
           <enum>QFrame::Raised</enum>
          </property>
          <property name="text">
           <string>音频路径：</string>
          </property>
         </widget>
        </item>
        <item row="0" column="0">
         <widget class="QLabel" name="tab3_label_1">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="frameShape">
           <enum>QFrame::Panel</enum>
          </property>
          <property name="frameShadow">
           <enum>QFrame::Raised</enum>
          </property>
          <property name="text">
           <string>路径选择：</string>
          </property>
         </widget>
        </item>
        <item row="7" column="4">
         <widget class="QPushButton" name="tab3_pushButton4">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>浏览</string>
          </property>
         </widget>
        </item>
        <item row="7" column="1" colspan="3">
         <widget class="QLineEdit" name="tab3_lineEdit3">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
         </widget>
        </item>
        <item row="0" column="7">
         <widget class="QLineEdit" name="tab3_lineEdit1_2">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>0.5</string>
          </property>
         </widget>
        </item>
        <item row="6" column="6" rowspan="2" colspan="5">
         <widget class="QTextBrowser" name="tab3_textBrowser_1"/>
        </item>
       </layout>
      </widget>
      <widget class="QWidget" name="tab_3">
       <attribute name="title">
        <string>视频转图片</string>
       </attribute>
       <layout class="QGridLayout" name="gridLayout_4">
        <item row="1" column="4">
         <widget class="QLabel" name="tab4_baifenbi">
          <property name="text">
           <string>0</string>
          </property>
         </widget>
        </item>
        <item row="1" column="3">
         <widget class="QSlider" name="horizontalSlider">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="orientation">
           <enum>Qt::Horizontal</enum>
          </property>
         </widget>
        </item>
        <item row="3" column="2">
         <widget class="QPushButton" name="tab4_pushButton_split_video">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>分割视频</string>
          </property>
         </widget>
        </item>
        <item row="3" column="1">
         <widget class="QLineEdit" name="tab4_lineEdit2">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="maximumSize">
           <size>
            <width>100</width>
            <height>16777215</height>
           </size>
          </property>
         </widget>
        </item>
        <item row="1" column="1">
         <widget class="QPushButton" name="tab4_pushButton_pause">
          <property name="minimumSize">
           <size>
            <width>50</width>
            <height>25</height>
           </size>
          </property>
          <property name="maximumSize">
           <size>
            <width>100</width>
            <height>16777215</height>
           </size>
          </property>
          <property name="text">
           <string>暂停</string>
          </property>
         </widget>
        </item>
        <item row="0" column="0" colspan="5">
         <widget class="QVideoWidget" name="mywidget" native="true">
          <property name="styleSheet">
           <string notr="true">background-color: rgb(0, 0, 0);</string>
          </property>
         </widget>
        </item>
        <item row="1" column="0">
         <widget class="QPushButton" name="tab4_pushButton_1">
          <property name="minimumSize">
           <size>
            <width>60</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>浏览</string>
          </property>
         </widget>
        </item>
        <item row="3" column="0">
         <widget class="QPushButton" name="tab4_pushButton_3">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>结束时间</string>
          </property>
         </widget>
        </item>
        <item row="2" column="3" rowspan="2" colspan="2">
         <widget class="QTextBrowser" name="tab4_textBrowser">
          <property name="maximumSize">
           <size>
            <width>16777215</width>
            <height>16777215</height>
           </size>
          </property>
         </widget>
        </item>
        <item row="1" column="2">
         <widget class="QLabel" name="tab4_label_1">
          <property name="text">
           <string>&lt;html&gt;&lt;head/&gt;&lt;body&gt;&lt;p align=&quot;center&quot;&gt;进度条：&lt;/p&gt;&lt;/body&gt;&lt;/html&gt;</string>
          </property>
         </widget>
        </item>
        <item row="2" column="0">
         <widget class="QPushButton" name="tab4_pushButton_2">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>开始时间</string>
          </property>
         </widget>
        </item>
        <item row="2" column="1">
         <widget class="QLineEdit" name="tab4_lineEdit1">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="maximumSize">
           <size>
            <width>100</width>
            <height>16777215</height>
           </size>
          </property>
         </widget>
        </item>
        <item row="2" column="2">
         <widget class="QPushButton" name="tab4_pushButton_split_image">
          <property name="minimumSize">
           <size>
            <width>0</width>
            <height>25</height>
           </size>
          </property>
          <property name="text">
           <string>分割图片</string>
          </property>
         </widget>
        </item>
       </layout>
      </widget>
     </widget>
    </item>
   </layout>
  </widget>
  <widget class="QMenuBar" name="menubar">
   <property name="geometry">
    <rect>
     <x>0</x>
     <y>0</y>
     <width>605</width>
     <height>23</height>
    </rect>
   </property>
   <widget class="QMenu" name="menuFile">
    <property name="title">
     <string>File</string>
    </property>
   </widget>
   <addaction name="menuFile"/>
  </widget>
  <widget class="QStatusBar" name="statusbar"/>
 </widget>
 <customwidgets>
  <customwidget>
   <class>QVideoWidget</class>
   <extends>QWidget</extends>
   <header location="global">qvideowidget.h</header>
   <container>1</container>
  </customwidget>
 </customwidgets>
 <resources/>
 <connections/>
</ui>
