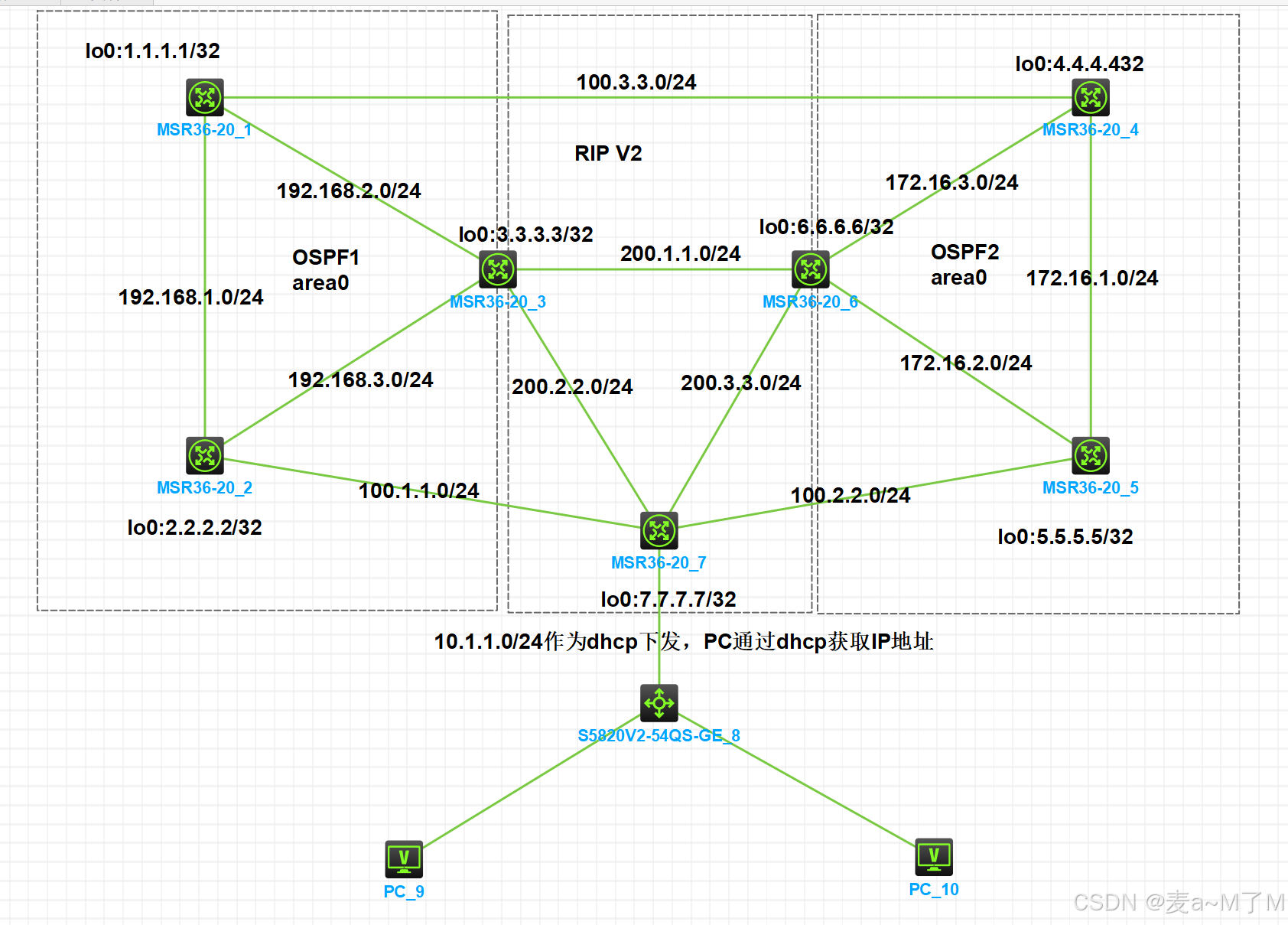

实验拓扑

注意：描述中的R1、R2或SW1、SW2对应拓扑中设备名称末尾数字为1、2的设备，以此类推

1.按照图示配置IP地址；

2.按照图示区域划分配置对应的动态路由协议；

3.在R7上配置dhcp服务器，能够让pc可以获取IP地址；

4.将所有环回⼝宣告进ospf中，将环回⼝7宣告进rip中，将rip路由引⼊ospf 中，ospf路由引⼊rip中

5.要求实现全⽹互通；

6.在r3和r6上开启rip的端⼝验证，密码为hyzy

7.在R7上开启rip静默接⼝，要求业务⽹段不允许接收协议报⽂

8.在R5和R4上开启ospf端⼝验证，密码为hyzy

9.要求在R4上配置ftp服务，测试时可以允许所有设备均可登录访问

10.要求在R1上配置telnet服务，测试时可以允许所有设备均可登录访问管理

11.要求拒绝R5访问R1的telnet服务，其他设备均不影响

12.要求拒绝R2访问R4的ftp服务，其他设备均不影响

13.要求拒绝10.1.1.0/24⽹段ping通R1地址

14.要求拒绝10.1.1.1/24地址访问R4地址

实验步骤

1.依照图配置IP地址

[H3C]sysn R1
[R1]int g0/0
[R1-GigabitEthernet0/0]ip add 192.168.1.1 24
[R1-GigabitEthernet0/0]int g0/1
[R1-GigabitEthernet0/1]ip add 192.168.2.1 24
[R1-GigabitEthernet0/1]int g0/2
[R1-GigabitEthernet0/2]ip add 100.3.3.1 24
[R1-GigabitEthernet0/2]int l0
[R1-LoopBack0]ip add 1.1.1.1 32

[H3C]sysn R2
[R2]int g0/0
[R2-GigabitEthernet0/0]ip add 192.168.1.2 24
[R2-GigabitEthernet0/0]int g0/1
[R2-GigabitEthernet0/1]ip add 192.168.3.2 24
[R2-GigabitEthernet0/1]int g0/2
[R2-GigabitEthernet0/2]ip add 100.1.1.2 24
[R2-GigabitEthernet0/2]int l0
[R2-LoopBack0]ip add 2.2.2.2 32

[H3C]sysn R3
[R3]int g0/0
[R3-GigabitEthernet0/0]ip add 192.168.2.3 24
[R3-GigabitEthernet0/0]int g0/1
[R3-GigabitEthernet0/1]ip add 192.168.3.3 24
[R3-GigabitEthernet0/1]int g0/2
[R3-GigabitEthernet0/2]ip add 200.2.2.3 24
[R3-GigabitEthernet0/2]int g5/0
[R3-GigabitEthernet5/0]ip add 200.1.1.3
[R3-GigabitEthernet5/0]int l0
[R3-LoopBack0]ip add 3.3.3.3 32

[R4]int g0/0
[R4-GigabitEthernet0/0]ip add 172.16.3.4 24
[R4-GigabitEthernet0/0]int g0/1
[R4-GigabitEthernet0/1]ip add 172.16.1.4 24
[R4-GigabitEthernet0/1]int g0/2
[R4-GigabitEthernet0/2]ip add 100.3.3.4 24
[R4-GigabitEthernet0/2]int l0
[R4-LoopBack0]ip add 4.4.4.4 32

[R5]sysn R5
[R5]int g0/0
[R5-GigabitEthernet0/0]ip add 172.16.1.5 24
[R5-GigabitEthernet0/0]int g0/1
[R5-GigabitEthernet0/1]ip add 172.16.2.5 24
[R5-GigabitEthernet0/1]int g0/2
[R5-GigabitEthernet0/2]ip add 100.2.2.5 24
[R5-GigabitEthernet0/2]int l0
[R5-LoopBack0]ip add 5.5.5.5 32

[H3C]sysn R6
[R6]int g0/0
[R6-GigabitEthernet0/0]ip add 200.3.3.6 24
[R6-GigabitEthernet0/0]int g0/1
[R6-GigabitEthernet0/1]ip add 200.1.1.6 24
[R6-GigabitEthernet0/1]int g0/2
[R6-GigabitEthernet0/2]ip add 172.16.3.6 24
[R6-GigabitEthernet0/2]int g5/0
[R6-GigabitEthernet5/0]ip add 172.16.2.6 24
[R6-GigabitEthernet5/0]int l0
[R6-LoopBack0]ip add 6.6.6.6 32

[H3C]sysn R6
[R6]int g0/0
[R6-GigabitEthernet0/0]ip add 200.3.3.6 24
[R6-GigabitEthernet0/0]int g0/1
[R6-GigabitEthernet0/1]ip add 200.1.1.6 24
[R6-GigabitEthernet0/1]int g0/2
[R6-GigabitEthernet0/2]ip add 172.16.3.6 24
[R6-GigabitEthernet0/2]int g5/0
[R6-GigabitEthernet5/0]ip add 172.16.2.6 24
[R6-GigabitEthernet5/0]int l0
[R6-LoopBack0]ip add 6.6.6.6 32

2.按照图示区域划分配置对应的动态路由协议

[R1]ospf 1 router-id 1.1.1.1
[R1-ospf-1]area 0
[R1-ospf-1-area-0.0.0.0]network 192.168.1.0 0.0.0.255
[R1-ospf-1-area-0.0.0.0]network 192.168.2.0 0.0.0.255
[R1-ospf-1-area-0.0.0.0]network 100.3.3.0 0.0.0.255
[R1-ospf-1-area-0.0.0.0]network 1.1.1.1 0.0.0.0

[R2]ospf 1 router-id 2.2.2.2
[R2-ospf-1]area 0
[R2-ospf-1-area-0.0.0.0]network 192.168.3.0 0.0.0.255
[R2-ospf-1-area-0.0.0.0]network 192.168.1.0 0.0.0.255                                 ^
[R2-ospf-1-area-0.0.0.0]network 100.1.1.0 0.0.0.255
[R2-ospf-1-area-0.0.0.0]network 2.2.2.2 0.0.0.0

[R3]ospf 1 router-id 3.3.3.3
[R3-ospf-1]area 0
[R3-ospf-1-area-0.0.0.0]network 192.168.2.0 0.0.0.255
[R3-ospf-1-area-0.0.0.0]network 192.168.3.0 0.0.0.255
[R3-ospf-1-area-0.0.0.0]network 3.3.3.3 0.0.0.0
[R3-ospf-1-area-0.0.0.0]quit
[R3-ospf-1]quit
[R3]rip 1
[R3-rip-1]version 2
[R3-rip-1]undo summary
[R3-rip-1]network 200.1.1.0
[R3-rip-1]network 200.2.2.2

[R4]ospf 1 router-id 4.4.4.4
[R4-ospf-1]area 0
[R4-ospf-1-area-0.0.0.0]network 172.16.3.0 0.0.0.255
[R4-ospf-1-area-0.0.0.0]network 192.16.1.0 0.0.0.255
[R4-ospf-1-area-0.0.0.0]network 100.3.3.0 0.0.0.255
[R4-ospf-1-area-0.0.0.0]network 3.3.3.3 0.0.0.0

[R5]ospf 1 router-id 5.5.5.5
[R5-ospf-1]area 0
[R5-ospf-1-area-0.0.0.0]network 172.16.1.0 0.0.0.255
[R5-ospf-1-area-0.0.0.0]network 172.16.2.0 0.0.0.255
[R5-ospf-1-area-0.0.0.0]network 100.2.2.0 0.0.0.255
[R5-ospf-1-area-0.0.0.0]network 5.5.5.5 0.0.0.0

[R6]ospf 2 router-id 6.6.6.6
[R6-ospf-2]area 0
[R6-ospf-2-area-0.0.0.0]network 172.16.3.0 0.0.0.255
[R6-ospf-2-area-0.0.0.0]network 172.16.2.0 0.0.0.255
[R6-ospf-2-area-0.0.0.0]network 6.6.6.6 0.0.0.0
[R6-ospf-2-area-0.0.0.0]quit
[R6-ospf-2]quit
[R6]rip 1
[R6-rip-1]version 2
[R6-rip-1]undo summary
[R6-rip-1]network 200.1.1.0
[R6-rip-1]network 200.3.3.0

[R7]rip 1
[R7-rip-1]version 2
[R7-rip-1]undo summary
[R7-rip-1]network 200.2.2.0
[R7-rip-1]network 200.3.3.0
[R7]ospf 1
[R7-ospf-1]area 0[R7-ospf-1-area-0.0.0.0]network 100.1.1.0 0.0.0.255
[R7-ospf-1-area-0.0.0.0]network 100.1.1.0 0.0.0.255
[R7-ospf-1]quit
[R7]ospf 2
[R7-ospf-2]area 0
[R7-ospf-2-area-0.0.0.0]network 100.2.2.0 0.0.0.255

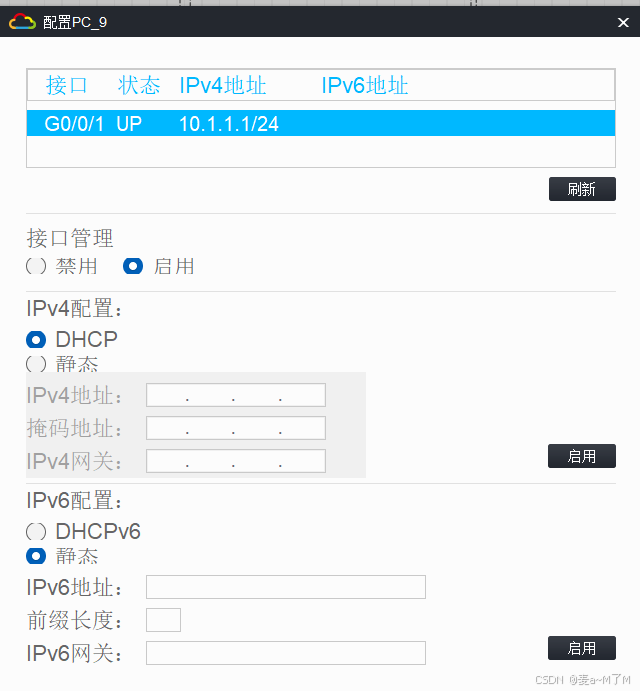

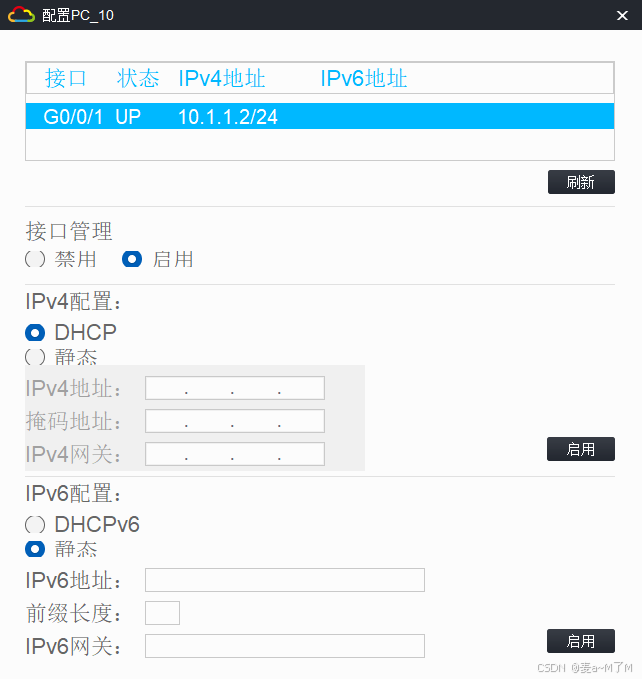

3.在R7上配置dhcp服务器，能够让pc可以获取IP地址

[R7]dhcp enable
[R7]dhcp server ip-pool 1
[R7-dhcp-pool-1]network 10.1.1.0 24
[R7-dhcp-pool-1]gateway-list 10.1.1.254

4.将所有环回口宣告进ospf中，将环回口宣告进rip中，将rip路由引入ospf中，ospf路由引入rip中

[R3]rip 1
[R3-rip-1]import-route ospf 1
[R3-rip-1]import-route direct
[R3-rip-1]quit
[R3]ospf 1
[R3-ospf-1]import-route rip
[R3-ospf-1]import-rout  direct

[R6]ospf 2
[R6-ospf-2]import-route rip
[R6-ospf-2]import-route direct
[R6-ospf-2]quit
[R6]rip 1
[R6-rip-1]import-route ospf 2
[R6-rip-1]import-route direct

[R7]rip
[R7-rip-1]import-route ospf 1
[R7-rip-1]import-route ospf 2
[R7-rip-1]import-route direct
[R7-rip-1]quit
[R7]ospf 1
[R7-ospf-1]import-route rip
[R7-ospf-1]import-route direct
[R7]ospf 2
[R7-ospf-2]import-route rip
[R7-ospf-2]import-route direct

5.要求实现全⽹互通

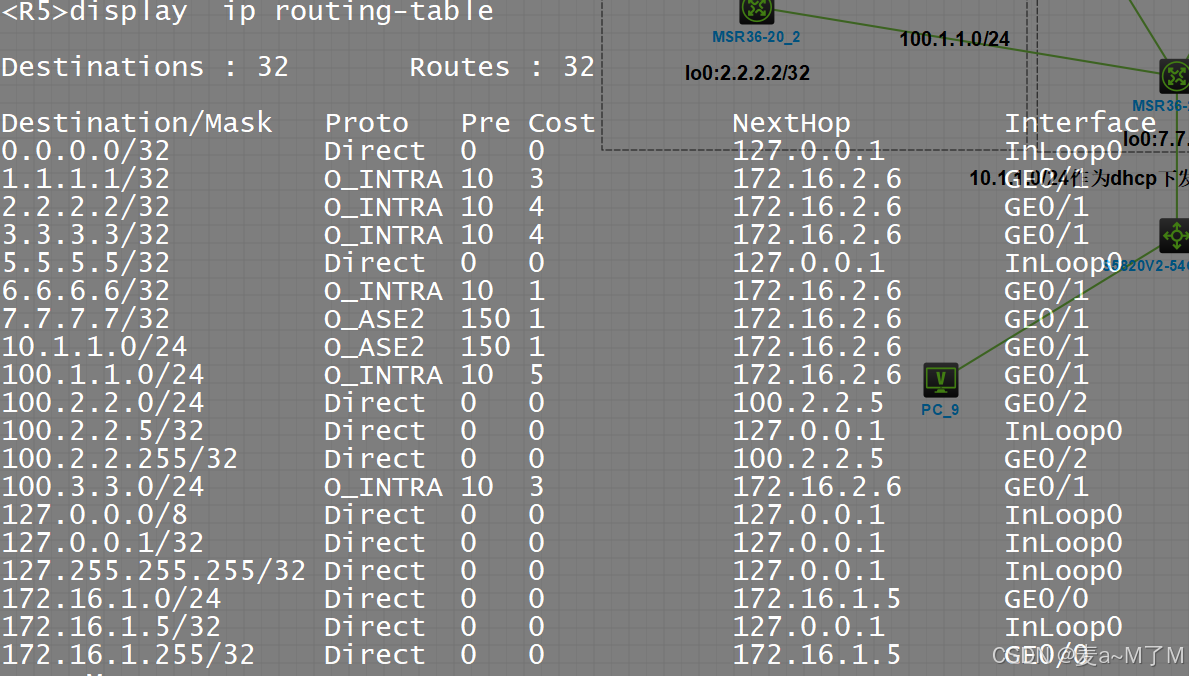

查看路由状况

6.在r3和r6上开启rip的端⼝验证，密码为yy(密码随意)

[R3]int g5/0
[R3-GigabitEthernet5/0]rip authentication-mode simple plain yy

[R6]int g0/1
[R6-GigabitEthernet0/1]rip authentication-mode simple plain yy

7.在R7上开启rip静默接⼝，要求业务⽹段不允许接收协议报⽂

[R7]rip 1
[R7-rip-1]silent-interface g5/1

8.在R5和R4上开启ospf端⼝验证，密码为yy

[R4]int g0/1
[R4-GigabitEthernet0/1]ospf authentication-mode simple plain yy

[R5]int g0/0
[R5-GigabitEthernet0/0]ospf authentication-mode simple plain  yy

9.要求在R4上配置ftp服务，测试时可以允许所有设备均可登录访问

R4]ftp server enable
[R4]local-user yy class manage
New local user added.
[R4-luser-manage-yy]password simple 123456789q
[R4-luser-manage-yy]service-type ftp
[R4-luser-manage-yy]authorization-attribute user-role level-15
[R4-luser-manage-yy]line v 0 4
[R4-line-vty0-4]authentication-mode scheme
[R4-line-vty0-4]user-role level-15

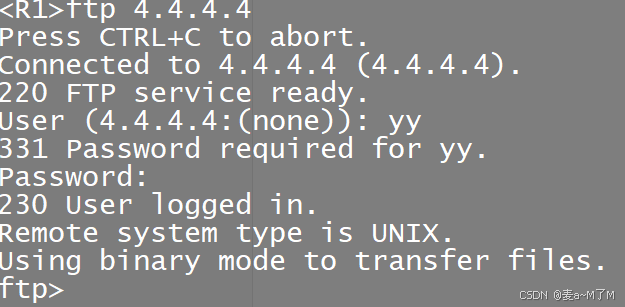

在R1登录访问

10.要求在R1上配置telnet服务，测试时可以允许所有设备均可登录访问管理

[R1]telnet server enable
[R1]local-user aaa class manage
[R1-luser-manage-aaa]password simple 123456789q
[R1-luser-manage-aaa]service-type telnet
[R1-luser-manage-aaa]authorization-attribute user-role level-15
[R1-luser-manage-aaa]line v 0 4
[R1-line-vty0-4]authentication-mode scheme
[R1-line-vty0-4]user-role level-15

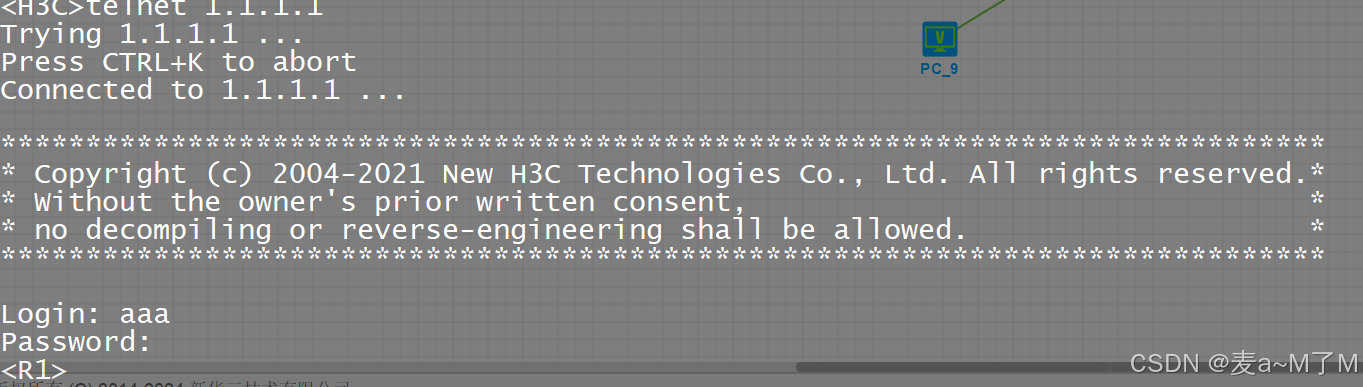

在PC9测试

11.要求拒绝R5访问R1的telnet服务，其他设备均不影响

[R1]acl advanced 3000
[R1-acl-ipv4-adv-3000]rule  deny  tcp source 172.16.1.5 0 destination-port eq 23
[R1-acl-ipv4-adv-3000]rule  deny  tcp source 172.16.2.5 0 destination-port eq 23
[R1-acl-ipv4-adv-3000]rule  deny  tcp source 100.2.2.5 0 destination-port eq 23
[R1-acl-ipv4-adv-3000]rule  deny  tcp source 5.5.5.5 0 destination-port eq 23
[R1-acl-ipv4-adv-3000]quit
[R1]int g0/0
[R1-GigabitEthernet0/0]packet-filter 3000 inbound
[R1-GigabitEthernet0/0]int g0/1
[R1-GigabitEthernet0/1]packet-filter 3000 inbound
[R1-GigabitEthernet0/1]int g0/2
[R1-GigabitEthernet0/2]packet-filter 3000 inbound
[R1-GigabitEthernet0/2]

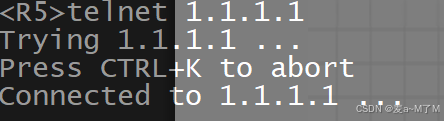

R5访问R1的telnet被拒

12. 要求拒绝R2访问R4的ftp服务，其他设备均不影响

[R4]acl advanced 3000
[R4-acl-ipv4-adv-3000]rule deny tcp source 192.168.1.2 0 destination-port range
20 21
[R4-acl-ipv4-adv-3000]rule deny tcp source 192.168.3.2 0 destination-port range
20 21
[R4-acl-ipv4-adv-3000]rule deny tcp source 100.1.1.2 0 destination-port range 20
 21
[R4-acl-ipv4-adv-3000]rule deny tcp source 2.2.2.2 0 destination-port range 20 2
1
[R4-acl-ipv4-adv-3000]quit
[R4]int g0/0
[R4-GigabitEthernet0/0]packet-filter 3000 inbound
[R4-GigabitEthernet0/0]int g0/1
[R4-GigabitEthernet0/1]packet-filter 3000 inbound
[R4-GigabitEthernet0/1]int g0/2
[R4-GigabitEthernet0/2]packet-filter 3000 inbound

R2访问R4的ftp被拒

13.要求拒绝10.1.1.0/24⽹段ping通R1地址

[R1]acl basic 2000
[R1-acl-ipv4-basic-2000]rule deny  source  10.1.1.0 0.0.0.255
[R1-acl-ipv4-basic-2000]quit
[R1]int g0/0
[R1-GigabitEthernet0/0]packet-filter 2000 inbound
[R1-GigabitEthernet0/0]int g0/1
[R1-GigabitEthernet0/1]packet-filter 2000 inbound
[R1-GigabitEthernet0/1]int g0/2
[R1-GigabitEthernet0/2]packet-filter 2000 inbound

在PC中查看

14.要求拒绝10.1.1.1/24地址访问R4地址

[R4]acl basic 2000
[R4-acl-ipv4-basic-2000]rule deny  source 10.1.1.1 0.0.0.255
[R4-acl-ipv4-basic-2000]quit
[R4]int g0/0
[R4-GigabitEthernet0/0]packet-filter 2000 inbound
[R4-GigabitEthernet0/0]int g0/1
[R4-GigabitEthernet0/1]packet-filter 2000 inbound
[R4-GigabitEthernet0/1]int g0/2
[R4-GigabitEthernet0/2]packet-filter 2000 inbound

在PC中查看
