>参考资料《深入理解net-snmp书籍》。 >本文提供编写&编译MIB文件的法、提供使用net-snmp工具开发代码、测试程序的方法。
1. net-snmp简介
1.1. 操作
net-snmp是SNMP的开源实现。SNMP即网络管理功能，主要包括以下操作：
get系列命令，网管发出请求，获取代理的管理信息；set命令，网管发出请求，将报文中携带的数据写入代理中；trap系列，代理主动向网管发出告警/事件报文的信息；
1.2. MIB中的管理对象
1.2.1. 标量对象
标量对象指的是在运行期间只有一个实例值的对象；
1.2.2. 表格对象
表格对象指的是在运行期间有多个实例值的对象；
1.3. OID
OID树，也称为MIB树，在SNMP中，所有的管理对象都以一颗树形结构来组织，管理对象则体现为树中的节点；在OID树中我们称没有子节点的OID为叶子节点，把具有子节点的OID分支称为子树。叶子节点是MIB中具体管理的对象，是可以使用命令直接管理的节点。
OID在整个树形结构中具有唯一标识。

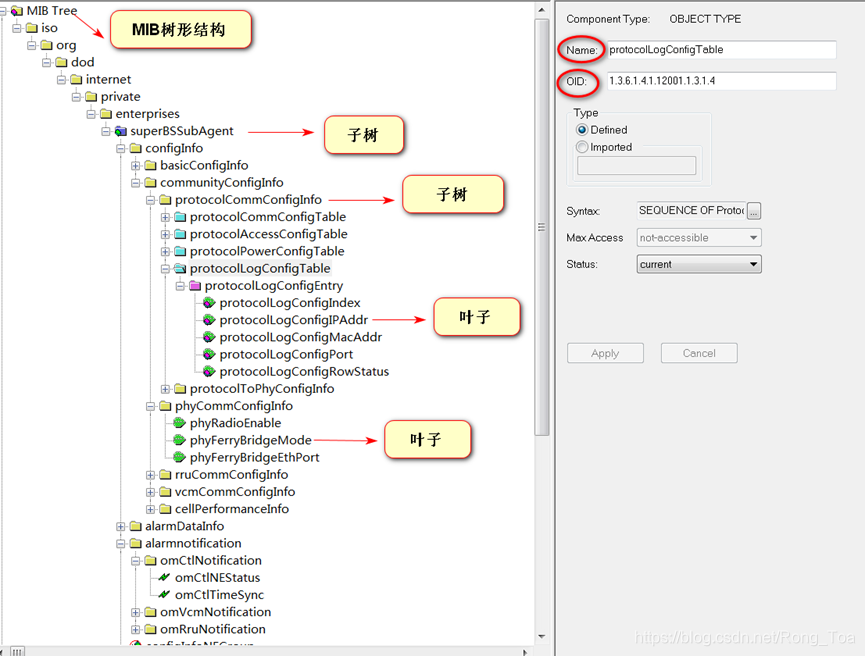

我们可以使用mibs开发套件，如下图：
2. 数据类型
2.1. 基础数据类型
基础数据类型如下：常用的类型为Unsigned32、OBJTCT STRING(char 类型)
2.1.1. DatAandTime
时间类型；
2.1.2. MacAddress
Mac地址；
2.1.3. TimeTicks
1秒为100ticks；
2.1.4. RowStatus
rowstatus类型；
2.1.5. TruthValue
true or false；
2.1.6. DispalyString
字符串；
2.1.7. OCTET STRING
十六进制字节流；
2.2. 宏

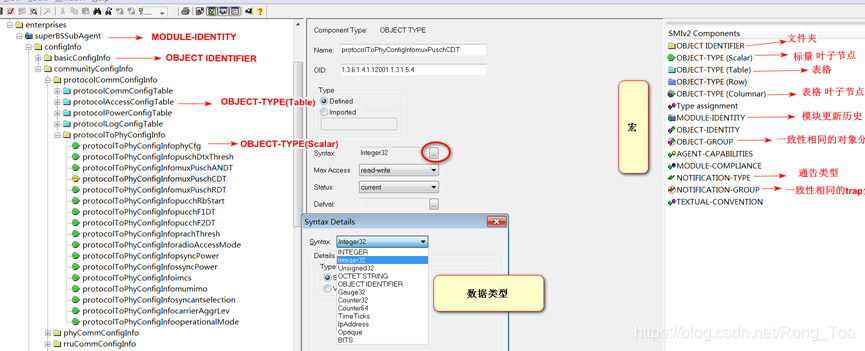

如上图右侧部分为宏，左侧部分为相关宏的应用。
2.2.1. OBJECT IDENTIFIER
用于扩展子树（文件夹）；
2.2.2. OBJECT-TYPE(Scalar)
用于创建标量叶子节点对象；
2.2.3. OBJECT-TYPE(Table)
用于创建表格对象；
2.2.4. OBJECT-TYPE(Columnar)
用于创建表格列队向叶子节点；
2.2.5. NOTIFICATION-TYPE
用于创建trap对象；
2.2.6. MODULE-IDENTITY
用于描述模块的更新历史，相当于模块的父节点；
2.2.7. OBJECT-GROUP
将具有一致性需要的相关管理对象描述在一个组中，便于一致性说明、管理和实现；
2.2.8. NOTIFICATION-GROUP
将相关的通告类消息描述在一个组中，便于一致性说明、管理和实现；
3. MIB的编写
3.1. 编写建议
3.1.1. 如何组织OID

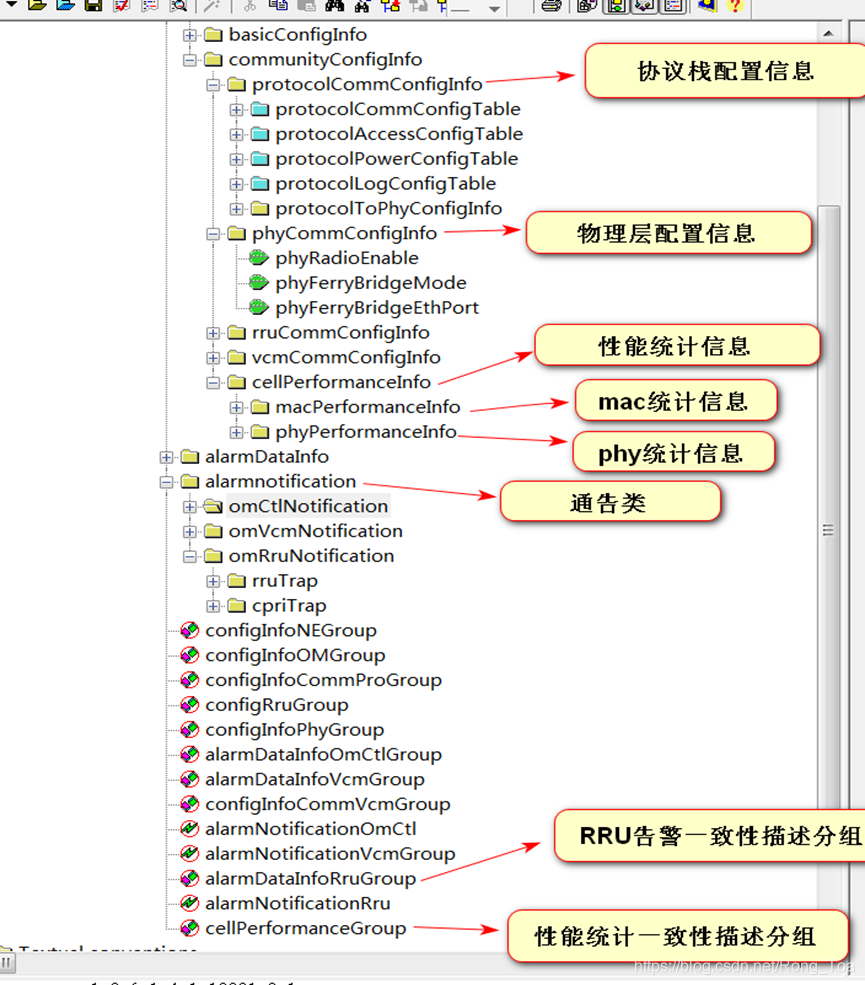

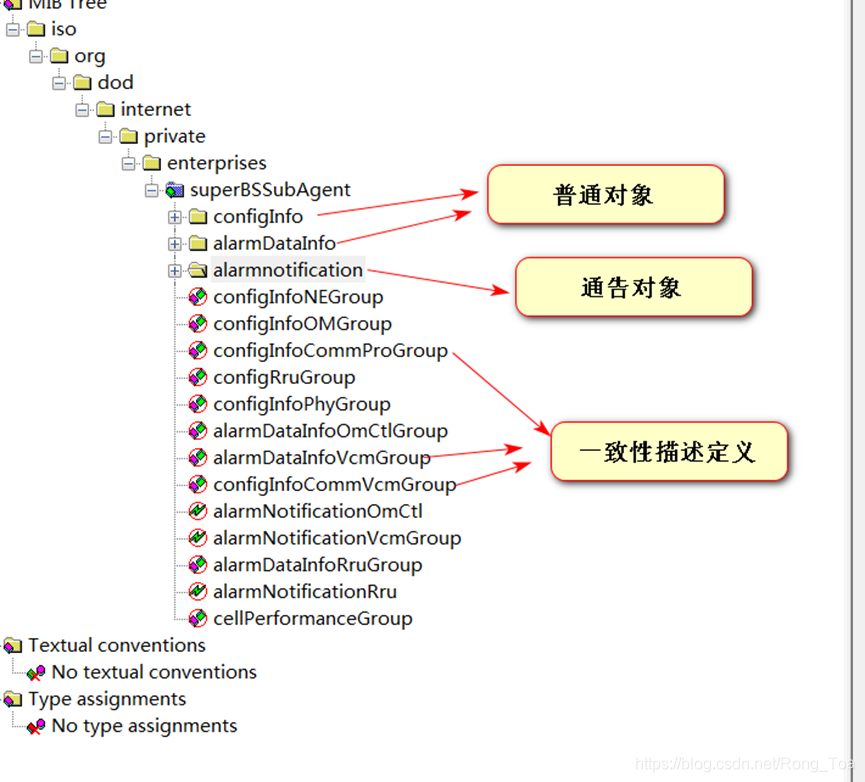

MIB的设计、编写过程中的主要困难是如何划分MIB中的对象，即如何组织MIB。一般来说一个MIB模块可分为3个主要分支：通告对象、普通对象和一致性描述的定义。顶层结构如下图：
除了顶层结构的划分，下面的分支定义往往也会按照某种规则继续划分，规则如下：
- 根据业务功能进行分组：也就是将相似功能的对象分为一组；
- 根据数据类型进行分组：如控制量分一组、只读对象分一组、只写对象分一组；
TRAP单独分一类；使用宏NOTIFICATION-GROUP将TRAP组织起来；- 建议使用OBJECT-GROUP宏将某一类中属性或关系更为相近的普通对象归纳为一个子类；
3.1.2. 如何命名
命名的规范主要体现在三个方面：名称的长度、名称的大小写和名称的含义。
- 名称的长度：字符名称长度建议在
32字节长度内； - 名称大小写：
MODULE-IDENTITY定义的模块描述符一般形如”xxxMIB”、”xxxMib”、”xxxMibModule”，该模块中的其他描述符建议以相同的前缀”xxx”开头； - 名称的含义：名称应该体现明确的含义，能够见其名知其义，便于识别和记忆。名称设计缩写时，其缩写风格应该保持一致。定义MIB模块时，模块的名称也应该保持全局唯一，如果模块名重复，我们可能无法通过OID标签唯一的确认MIB中的对象。
3.1.3. 如何正确使用数据类型
比较容易混淆的时整数数据类型，32位整数数据类型有INTEGER、Integer32、Gauge32、Unsigned32，64位整数数据类型为Counter64。
使用32位数据类型时有以下使用建议：
- 定义整形的枚举对象时只能使用INTEGER；
- 取值范围是
[-2^31 , (2^31)- 1]时最好使用Integer32、也可使用INTEGER，不要使用其他两种类型； - 当对象的取值范围是
[0, (2^32) - 1]时，建议使用Gauge32，也可以使用Unsigned32；
3.2. MIB的编写和编译工具
MG-SOFT套件：
3.2.1. MIB Builder
MIB Builder是属于MG-SOFT套件中的MIB编写工具，具有可视化界面、简单、可拖放等操作特点，具有严格的规则检查机制，通过该工具能够准确的定义私有MIB。
MIB Builder软件界面如下：

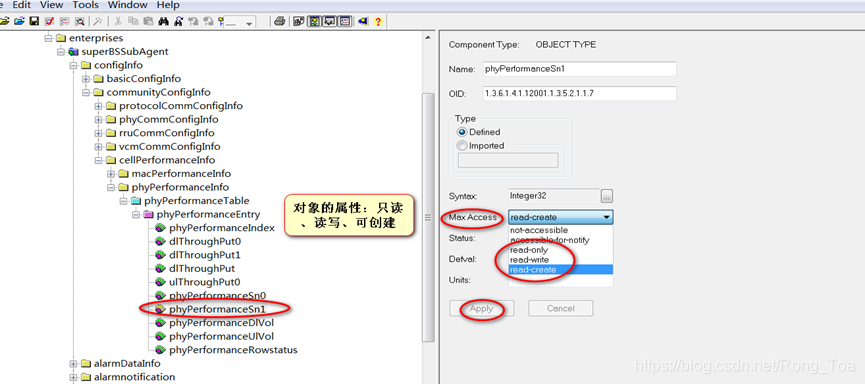

对象属性设置，会生成对应的代码框架；(务必明确对象属性，否则生成多余垃圾代码)
编译检测未出现错误提示如下：

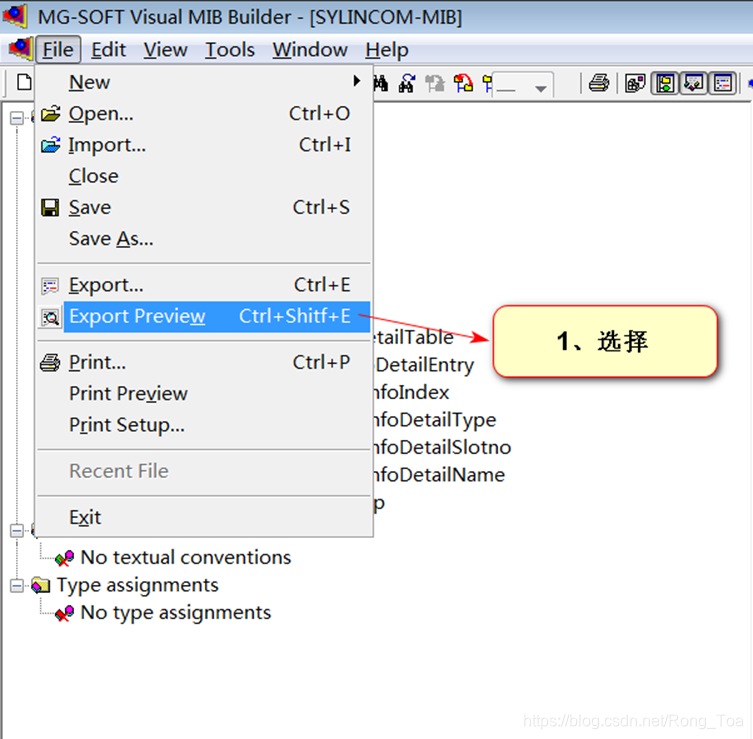

此时MIB对象的编写完成、编译语法正确，可导出MIB文件的文本文件，使用mib2c工具生成对应的框架代码。导出文本文件操作如下：
3.2.2. MIB Compiler
MIB Compiler是编译MIB的工具。其主要功能是对MIB文件进行编写规则的检查，并提示相应的编译信息或告警信息。输入为MIB builder中编译完成后导出的文本文件，输出为MG-SOFT可识别的二进制文件，该文件的格式为SMIDB。该文件可用于MIB Browser(MIB浏览器)测试使用。

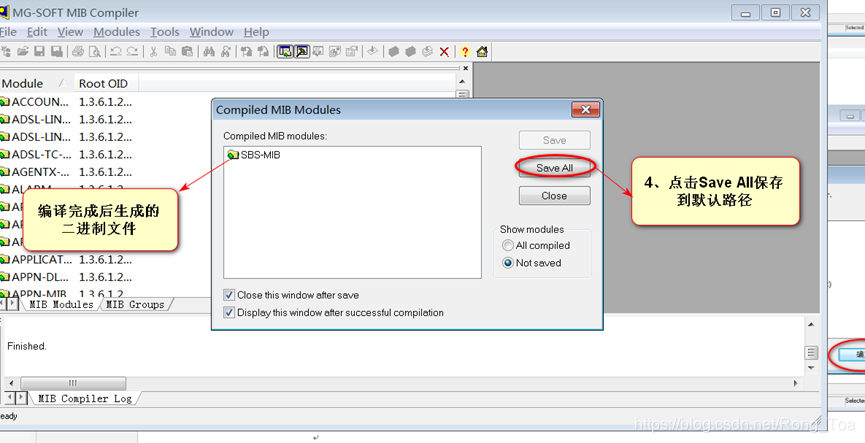

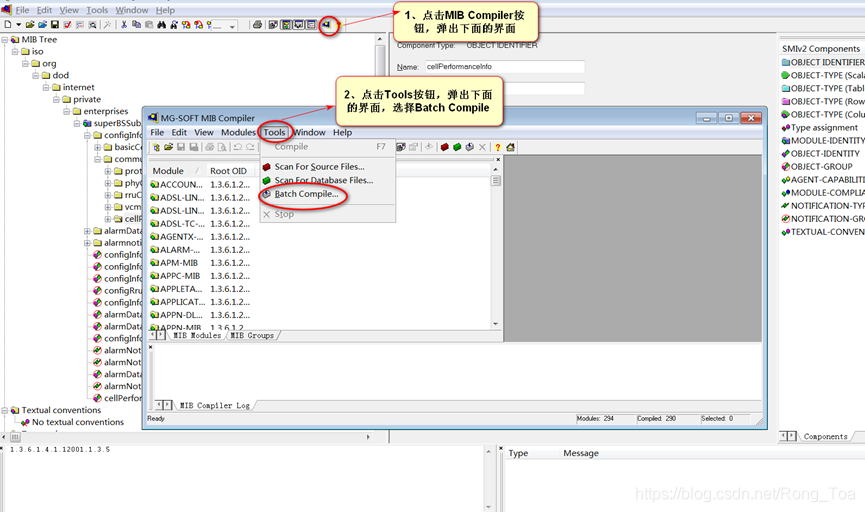

编译方法如下：
4. 使用mib2c工具生成框架代码
4.1. 简述
mib2c顾名思义是将MIB转化为C语言代码的开发工具，它是net-snmp开发中最直接和高效的开发工具。它的输入时是某种代码框架的配置文件和MIB文件中的某一节点(树)，输出是该节点(树)对应的C代码框架，也就是个半成品。只要在输出的代码框架中添加具体业务的实现，就可以实现net-snmp的二次开发。
4.2. 生成框架代码前的准备
MIB文件中有标量、表格，按照标准的MIB设计方法，这些管理对象都是组织在某个父节点下。mib2c的输入要求是某个这样的父节点或者单独的某个节点，而不是整个文件名（注入文件名）。这样针对不同的对象类型产生对应的代码实现，所以mib2c需要以某种方式找到MIB文件中对应的节点，需要做一下事情：
- 把新的MIB文本文件复制到路径
/usr/local/share/snmp/mibs下； - 进入
/usr/local/share/snmp/mibs路径下执行export MIBS=ALL命令；
export MIBS=ALL

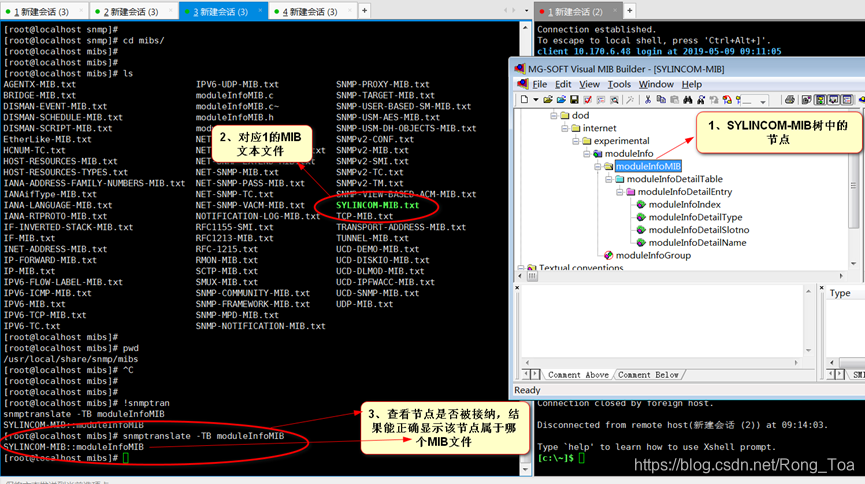

上述操作完成后新的MIB文件被导入系统，可使用下面的命令查看MIB文件中的节点是否被系统接纳：
snmptranslate –TB S
S为节点名称；如下图：
至此，生成框架代码的前期工作准备完毕，即可使用命令生成对应节点的某种代码框架。
4.3. 常用的框架代码配置文件
系统默认的各类框架代码的配置文件在/usr/local/share/snmp目录下，一般不需要对框架类的配置文件做修改，有需求再了解。
mib2c.scalar.conf：适用于所有的标量对象；mib2c.iterate.conf：适用于对象的实例值需要某种迭代、反复查询的操作，该配置文件生成的代码使用的API对GET和GETNEXT请求效率较高。该代码框架的API核心函数中使用了大量的case处理get和set请求，代码不太美观；mib2c.old-api.conf：能够同时处理标量和表格的配置文件，代码紧凑、直观。比较常用；（统一使用这个模板）mib2c.notify.conf：生成通告消息相关的模板代码；
4.4. 生成代码命令
进入/usr/local/share/snmp/mibs路径：
mib2c.scalar.conf，生成scalar框架代码：
mib2c -c mib2c.scalar.conf S1::S2
mib2c.iterate.conf，生成iterate框架代码：
mib2c -c mib2c.iterate.conf S1::S2
mib2c.old-api.conf，生成oil-api框架代码：
mib2c -c mib2c.old-api.conf S1::S2
S1为MIB模块名称，S2为节点名称。命令执行完成后生成以S2命名的.c和.h文件在当前目录下。
4.5. 框架代码二次开发
使用上述命令生成的代码有两个文件，一个.c文件和一个.h文件；.h文件基本不用修改，.c文件主要需要完成具体对象get/set操作的实现。
4.5.1. 动态表header函数
下面这个是一个例子，里面的逻辑关系都一样，大家只需要根据自己的需求，修改索引长度以及getfirst、getnext函数。
int header_onuVlanConfigTable(struct variable *vp,
oid *name,
size_t *length,
int exact,
size_t *var_len,
long * pvid,
long * pdev)
{
int ret = MATCH_FAILED;
long var_oid_len = vp->namelen;
if(pdev && pvid )
{
if(exact)
{
if(*length == var_oid_len+VLAN_CONFIG_TABLE_INDEX_LEN)
{
*pvid = name[var_oid_len];
*pdev = name[var_oid_len+1];
ret = MATCH_SUCCEEDED;
}
}
else
{
int rt = snmp_oid_compare(name, var_oid_len, vp->name, var_oid_len);
if(rt < 0 || (rt == 0 && (*length < var_oid_len+VLAN_CONFIG_TABLE_INDEX_LEN)))
{
if(rtVlanConfigEntryGetFirst(pvid,pdev) == 0)
{
memcpy(name, vp->name, sizeof(oid)*vp->namelen);
ret = MATCH_SUCCEEDED;
}
}
else if(rt == 0)
{
*pvid = name[var_oid_len];
*pdev = name[var_oid_len+1];
if(rtVlanConfigEntryGetNext(pvid,pdev) == 0)
{
ret = MATCH_SUCCEEDED;
}
}
else
{
}
}
if(ret == MATCH_SUCCEEDED)
{
*length = var_oid_len+VLAN_CONFIG_TABLE_INDEX_LEN;
name[var_oid_len] = *pvid;
name[var_oid_len+1] = *pdev;
}
}
return ret;
}
4.5.2. write函数（set操作）
int
write_gwEthLoopVlanId(int action,
u_char *var_val,
u_char var_val_type,
size_t var_val_len,
u_char *statP,
oid *name,
size_t name_len)
{
long value;
int size;
switch ( action ) {
case RESERVE1:
if (var_val_type != ASN_OCTET_STR) {
return SNMP_ERR_WRONGTYPE;
}
if (var_val_len > ETH_LOOPVLANLIST_LEN) {
return SNMP_ERR_WRONGLENGTH;
}
break;
case RESERVE2:
break;
case ACTION: /参考示例.c文件中action动作的逻辑处理/
if(setGwEthLoopVlanList(var_val)==VOS_ERROR)
return SNMP_ERR_COMMITFAILED;
break;
case COMMIT:
break;
}
return SNMP_ERR_NOERROR;
}
4.5.3. RowStatus逻辑
参考示例.c文件中RowStatus的处理逻辑；
5. 测试MIB
5.1. MIB Browser测试

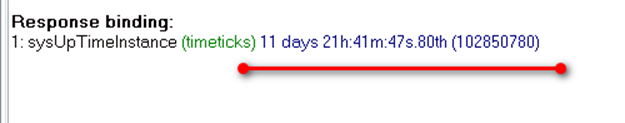

MIB浏览器提供了丰富的可视化测试方法，下图简单说明：

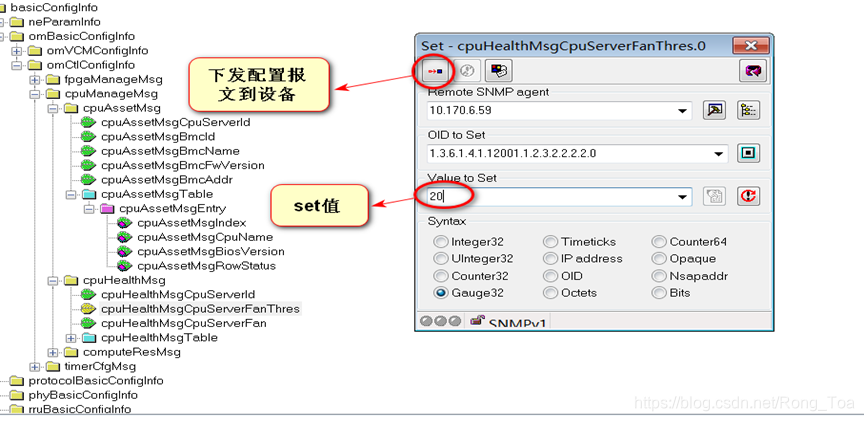

set命令：
5.2. 示例代码
oid vlanManagementObjects_variables_oid[] = { 1,3,6,1,4,1,17409,2,3,7 };
extern void cs_printf(const cs_int8 *String, ...);
/*
* variable4 vlanManagementObjects_variables:
* this variable defines function callbacks and type return information
* for the vlanManagementObjects mib section
*/
struct variable8 vlanManagementObjects_variables[] = {
/* magic number , variable type , ro/rw , callback fn , L, oidsuffix */
#if(VLAN_TRANSLATION_TABLE_SUPPORT)
#define PVTDEVICEINDEX 1
{PVTDEVICEINDEX, ASN_UNSIGNED, RONLY,
var_portVlanTranslationTable, 4, { 3,2 , 1, 1 }},
#define PVTCARDINDEX 2
{PVTCARDINDEX, ASN_UNSIGNED, RONLY,
var_portVlanTranslationTable, 4, { 3,2 , 1, 2 }},
#define PVTPORTINDEX 3
{PVTPORTINDEX, ASN_INTEGER, RONLY,
var_portVlanTranslationTable, 4, { 3,2 , 1, 3 }},
#define PORTVIDINDEX 4
{PORTVIDINDEX, ASN_UNSIGNED, RONLY,
var_portVlanTranslationTable, 4, { 3,2 , 1, 4 }},
#define TRANSLATIONNEWVID 5
{TRANSLATIONNEWVID, ASN_UNSIGNED, RWRITE,
var_portVlanTranslationTable, 4, { 3,2 , 1, 5 }},
#define TRANSLATIONROWSTATUS 6
{TRANSLATIONROWSTATUS, ASN_INTEGER, RWRITE,
var_portVlanTranslationTable, 4, { 3,2 , 1, 6 }},
#endif /* end of #if(VLAN_TRANSLATION_TABLE_SUPPORT) */
};
/** Initializes the vlanManagementObjects module */
void init_vlanManagementObjects(void)
{
DEBUGMSGTL(("vlanManagementObjects", "Initializing\n"));
/* register ourselves with the agent to handle our mib tree */
REGISTER_MIB("vlanManagementObjects", vlanManagementObjects_variables, variable8,
vlanManagementObjects_variables_oid);
/* place any other initialization junk you need here */
}
#if 1 /***************参考header函数逻辑，注意header函数的参数（索引个数）*/
/*实现get_first、get_next*****************/
int rtVlanConfigEntryGetFirst(long *vid, long *dev)
{
int ret = -1;
if(dev && vid)
{
ret = mib_vlan_get_first(vid,dev);
}
return ret;
}
int rtVlanConfigEntryGetNext(long *nextvid, long *nextdev)
{
int ret = -1;
if(nextdev && nextvid)
{
ret = mib_vlan_get_next(nextvid,nextdev);
}
return ret;
}
/*参数，注意表索引个数*/
int header_onuVlanConfigTable(struct variable *vp,
oid *name,
size_t *length,
int exact,
size_t *var_len,
long * pvid,
long * pdev)
{
int ret = MATCH_FAILED;
long var_oid_len = vp->namelen;
if(pdev && pvid )
{
if(exact)
{
if(*length == var_oid_len+VLAN_CONFIG_TABLE_INDEX_LEN) /*VLAN_CONFIG_TABLE_INDEX_LEN 索引个数*/
{
*pvid = name[var_oid_len];
*pdev = name[var_oid_len+1];
ret = MATCH_SUCCEEDED;
}
}
else
{
int rt = snmp_oid_compare(name, var_oid_len, vp->name, var_oid_len);
if(rt < 0 || (rt == 0 && (*length < var_oid_len+VLAN_CONFIG_TABLE_INDEX_LEN)))
{
if(rtVlanConfigEntryGetFirst(pvid,pdev) == 0)
{
memcpy(name, vp->name, sizeof(oid)*vp->namelen);
ret = MATCH_SUCCEEDED;
}
}
else if(rt == 0)
{
*pvid = name[var_oid_len];
*pdev = name[var_oid_len+1];
if(rtVlanConfigEntryGetNext(pvid,pdev) == 0)
{
ret = MATCH_SUCCEEDED;
}
}
else
{
}
}
if(ret == MATCH_SUCCEEDED)
{
*length = var_oid_len+VLAN_CONFIG_TABLE_INDEX_LEN;
name[var_oid_len] = *pvid;
name[var_oid_len+1] = *pdev;
}
}
return ret;
}
/*
* var_onuVlanConfigTable():
* Handle this table separately from the scalar value case.
* The workings of this are basically the same as for var_vlanManagementObjects above.
*/
unsigned char *
var_onuVlanConfigTable(struct variable *vp,
oid *name,
size_t *length,
int exact,
size_t *var_len,
WriteMethod **write_method)
{
/* variables we may use later */
static long long_ret;
/* static u_long ulong_ret;
static oid objid[MAX_OID_LEN];
static struct counter64 c64;*/
static unsigned char string[VLAN_NAME_SIZE];
long vid = 0,dev = 0;
/*
* This assumes that the table is a 'simple' table.
* See the implementation documentation for the meaning of this.
* You will need to provide the correct value for the TABLE_SIZE parameter
*
* If this table does not meet the requirements for a simple table,
* you will need to provide the replacement code yourself.
* Mib2c is not smart enough to write this for you.
* Again, see the implementation documentation for what is required.
*/
if (header_onuVlanConfigTable(vp,name,length,exact,var_len, &vid, &dev)
== MATCH_FAILED )
return NULL;
memset(string,0,sizeof(string));
long_ret = 0;
/*
* this is where we do the value assignments for the mib results.
*/
switch(vp->magic) {
case ONUVLANINDEX:
long_ret = vid;
*var_len = sizeof(long int);
return (u_char*) &long_ret;
case ONUVLANDEVICEINDEX:
long_ret = dev;
*var_len = sizeof(long int);
return (u_char*) &long_ret;
case ONUVLANNAME:
*write_method = write_onuVlanName;
mib_vlan_get_name(vid,dev,string);
*var_len = sizeof(string);
return (u_char*) string;
case ONUVLANTAGGEDPORT:
*write_method = write_onuVlanTaggedPort;
mib_vlan_get_tagged_port(vid,dev,string);
*var_len = VLAN_MEMBER_MAP_SIZE;
return (u_char*) string;
case ONUVLANUNTAGGEDPORT:
*write_method = write_onuVlanUntaggedPort;
mib_vlan_get_untagged_port(vid,dev,string);
*var_len = VLAN_MEMBER_MAP_SIZE;
return (u_char*) string;
case ONUVLANROWSTATUS:
*write_method = write_onuVlanRowStatus;
mib_vlan_get_rowstatus(vid,dev,&long_ret);
*var_len = sizeof(long int);
return (u_char*) &long_ret;
default:
ERROR_MSG("");
}
return NULL;
}
#endif
#if 1 /*动态表 参考RowStatus处理逻辑、以及配置set（case action：）的逻辑*/
/*debug switch*/
INT bfd_snmp_debug = 0;
/*bfd Sess Table*/
#define BFDSESSINDEX 1
#define BFDSESSVERSIONNUMBER 2
#define BFDSESSTYPE 3
#define BFDSESSDISCRIMINATOR 4
#define BFDSESSREMOTEDISCR 5
#define BFDSESSDESTINATIONUDPPORT 6
#define BFDSESSSOURCEUDPPORT 7
#define BFDSESSECHOSOURCEUDPPORT 8
#define BFDSESSADMINSTATUS 9
#define BFDSESSOPERSTATUS 10
#define BFDSESSSTATE 11
#define BFDSESSREMOTEHEARDFLAG 12
#define BFDSESSDIAG 13
#define BFDSESSOPERMODE 14
#define BFDSESSDEMANDMODEDESIREDFLAG 15
#define BFDSESSCONTROLPLANEINDEPFLAG 16
#define BFDSESSMULTIPOINTFLAG 17
#define BFDSESSINTERFACE 18
#define BFDSESSSRCADDRTYPE 19
#define BFDSESSSRCADDR 20
#define BFDSESSDSTADDRTYPE 21
#define BFDSESSDSTADDR 22
#define BFDSESSGTSM 23
#define BFDSESSGTSMTTL 24
#define BFDSESSDESIREDMINTXINTERVAL 25
#define BFDSESSREQMINRXINTERVAL 26
#define BFDSESSREQMINECHORXINTERVAL 27
#define BFDSESSDETECTMULT 28
#define BFDSESSNEGOTIATEDINTERVAL 29
#define BFDSESSNEGOTIATEDECHOINTERVAL 30
#define BFDSESSNEGOTIATEDDETECTMULT 31
#define BFDSESSAUTHPRESFLAG 32
#define BFDSESSAUTHENTICATIONTYPE 33
#define BFDSESSAUTHENTICATIONKEYID 34
#define BFDSESSAUTHENTICATIONKEY 35
#define BFDSESSSTORAGETYPE 36
#define BFDSESSROWSTATUS 37
/*global point*/
#define BFDSESSINDEXNEXT 4
#define GWD_ERR_OUT VOS_Printf("error! %s(%u),%s,\r\n",__FILE__,__LINE__,__func__)
/*define for array length to last charcater*/
#define COMPLEMENT_INDEX_LEN 1
/*bfd session table oid*/
oid BFDObjects_variables_oid[] = { 1,3,6,1,2,1,222,1 };
struct variable4 BFD_Sess_Group_variables[] = {
{BFDSESSINDEXNEXT,ASN_INTEGER,RONLY,var_gpnBfdScalarObjects,2,{1,4}},
{BFDSESSINDEX, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,1}},
{BFDSESSVERSIONNUMBER, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,2}},
{BFDSESSTYPE, ASN_INTEGER, RWRITE, var_bfdsessTable, 3, {2,1,3}},
{BFDSESSDISCRIMINATOR, ASN_INTEGER, RWRITE, var_bfdsessTable, 3, {2,1,4}},
{BFDSESSREMOTEDISCR, ASN_INTEGER, RWRITE, var_bfdsessTable, 3, {2,1,5}},
{BFDSESSDESTINATIONUDPPORT, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,6}},
{BFDSESSSOURCEUDPPORT, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,7}},
{BFDSESSECHOSOURCEUDPPORT, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,8}},
{BFDSESSADMINSTATUS, ASN_INTEGER, RWRITE, var_bfdsessTable, 3, {2,1,9}},
{BFDSESSOPERSTATUS, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,10}},
{BFDSESSSTATE, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,11}},
{BFDSESSREMOTEHEARDFLAG, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,12}},
{BFDSESSDIAG, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,13}},
{BFDSESSOPERMODE, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,14}},
{BFDSESSDEMANDMODEDESIREDFLAG, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,15}},
{BFDSESSCONTROLPLANEINDEPFLAG, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,16}},
{BFDSESSMULTIPOINTFLAG, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,17}},
{BFDSESSINTERFACE, ASN_INTEGER, RWRITE, var_bfdsessTable, 3, {2,1,18}},
{BFDSESSSRCADDRTYPE, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,19}},
{BFDSESSSRCADDR, ASN_OCTET_STR, RONLY, var_bfdsessTable, 3, {2,1,20}},
{BFDSESSDSTADDRTYPE, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,21}},
{BFDSESSDSTADDR, ASN_OCTET_STR, RWRITE, var_bfdsessTable, 3, {2,1,22}},
{BFDSESSGTSM, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,23}},
{BFDSESSGTSMTTL, ASN_UNSIGNED, RWRITE, var_bfdsessTable, 3, {2,1,24}},
{BFDSESSDESIREDMINTXINTERVAL, ASN_INTEGER, RWRITE, var_bfdsessTable, 3, {2,1,25}},
{BFDSESSREQMINRXINTERVAL, ASN_INTEGER, RWRITE, var_bfdsessTable, 3, {2,1,26}},
{BFDSESSREQMINECHORXINTERVAL, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,27}},
{BFDSESSDETECTMULT, ASN_INTEGER, RWRITE, var_bfdsessTable, 3, {2,1,28}},
{BFDSESSNEGOTIATEDINTERVAL, ASN_UNSIGNED, RONLY, var_bfdsessTable, 3, {2,1,29}},
{BFDSESSNEGOTIATEDECHOINTERVAL, ASN_UNSIGNED, RONLY, var_bfdsessTable, 3, {2,1,30}},
{BFDSESSNEGOTIATEDDETECTMULT, ASN_UNSIGNED, RONLY, var_bfdsessTable, 3, {2,1,31}},
{BFDSESSAUTHPRESFLAG, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,32}},
{BFDSESSAUTHENTICATIONTYPE, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,33}},
{BFDSESSAUTHENTICATIONKEYID, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,34}},
{BFDSESSAUTHENTICATIONKEY, ASN_OCTET_STR, RONLY, var_bfdsessTable, 3, {2,1,35}},
{BFDSESSSTORAGETYPE, ASN_INTEGER, RONLY, var_bfdsessTable, 3, {2,1,36}},
{BFDSESSROWSTATUS, ASN_INTEGER, RWRITE, var_bfdsessTable, 3, {2,1,37}},
};
extern INT32
header_generic( struct variable *vp,
oid *name,
size_t *length,
INT32 exact,
size_t *var_len,
WriteMethod **write_method );
STRUCT_BFDROWBUF bfd_RowBuf;
void init_gpnBFDMib(void)
{
REGISTER_MIB("bfdobjectsession", BFD_Sess_Group_variables, variable4,BFDObjects_variables_oid);
}
STATUS headerbfdsessionTable(struct variable * vp,
oid * name,
size_t * length,
INT32 exact,
ulong_t *pNextSessIfIndex)
{
LONG ret;
ulong_t sessIfIndex, nextSessIfIndex;
STATUS lret;
STATUS rc = MATCH_FAILED;
const ulong_t namelen = vp->namelen;
const ulong_t qnamelen = *length;
if((qnamelen > MAX_OID_LEN)||(pNextSessIfIndex==NULL))
return rc;
ret = snmp_oid_compare( name, namelen, vp->name, namelen );
if(ret < 0 )
{
lret = bfdGetFirstSessionIndex(&sessIfIndex);
if(sessIfIndex < 1 || sessIfIndex > g_ulSessionMax)
return rc;
if( lret != VOS_ERROR )
{
rc = MATCH_SUCCEEDED;
VOS_MemCpy( name, vp->name, sizeof(oid)*namelen );
}
}
else if( 0 == ret )
{
if( 0 == exact )
{
/*oidΪֻìһڽûԐո̷ӽ*/
if(qnamelen < (namelen + COMPLEMENT_INDEX_LEN))
{
lret = bfdGetFirstSessionIndex(&sessIfIndex);
if(sessIfIndex < 1 || sessIfIndex > g_ulSessionMax)
return rc;
if( lret != VOS_ERROR )
{
rc = MATCH_SUCCEEDED;
}
}
/*oidΪֻìҢȒո̷ӽ*/
else if( qnamelen == (namelen+COMPLEMENT_INDEX_LEN) )
{
sessIfIndex = name[namelen];
lret = bfdGetNextSessionIndex( sessIfIndex,&nextSessIfIndex);
if(nextSessIfIndex < 1 || nextSessIfIndex > g_ulSessionMax)
return rc;
if( lret == VOS_OK )
{
sessIfIndex = nextSessIfIndex;
rc = MATCH_SUCCEEDED;
}
}
}
else
{
if( qnamelen == namelen + COMPLEMENT_INDEX_LEN)
{
sessIfIndex = name[namelen];
rc = MATCH_SUCCEEDED;
}
}
}
if( rc == MATCH_SUCCEEDED )
{
*pNextSessIfIndex = sessIfIndex;
*length = namelen + COMPLEMENT_INDEX_LEN;
name[namelen] = sessIfIndex;
}
return rc;
}
unsigned char *var_gpnBfdScalarObjects(struct variable *vp,
oid *name,
size_t *length,
int exact,
size_t *var_len,
WriteMethod **write_method)
{
/* variables we may use later */
ULONG ntnewsessIndex;
static u_long ulong_ret;
if (header_generic(vp, name, length, exact, var_len, write_method) == MATCH_FAILED)
{
GWD_ERR_OUT;
*name = 0;
*length = 0;
*var_len = 0;
return NULL;
}
/*ܱȡޚֵ֣ܘ,ҢܘǤӤ*/
switch(vp->magic)
{
case BFDSESSINDEXNEXT:
if(bfdGetNewIndex(&ntnewsessIndex) == VOS_OK)
{
ulong_ret = ntnewsessIndex;
*var_len = sizeof( u_long);
return (u_char*) &ulong_ret;
}
else
GWD_ERR_OUT;
#if 0
if(NULL == name[*length-COMPLEMENT_INDEX_LEN])
{
if(VOS_OK == bfdGetFirstSessionIndex(&ulong_ret))
{
*var_len = sizeof(ULONG);
return (uchar_t*)&ulong_ret;
}
}
else
if(VOS_OK == bfdGetNextSessionIndex(name[*length-COMPLEMENT_INDEX_LEN],&ulong_ret))
{
*var_len = sizeof(ULONG);
return (uchar_t*)&ulong_ret;
}
#endif
default:
GWD_ERR_OUT;
break;
}
return NULL;
}
unsigned char *var_bfdsessTable(struct variable *vp,
oid *name,
size_t *length,
int exact,
size_t *var_len,
WriteMethod **write_method)
{
u_long min_num ,max_num;
static u_long ulong_ret; /*ܘֵ*/
static u_long stat;
ULONG sessionIndex;
STRUCT_BFDROWBUF stResult;
if ( headerbfdsessionTable( vp, name, length, exact, &sessionIndex) == MATCH_FAILED)
{
GWD_ERR_OUT;
return NULL;
}
VOS_MemZero((CHAR*)&stResult,sizeof(STRUCT_BFDROWBUF));
switch(vp->magic)
{
case BFDSESSINDEX:
ulong_ret = sessionIndex;
*var_len = sizeof( u_long);
return (u_char*) &ulong_ret;
case BFDSESSTYPE:
*write_method = bfdsess_write_sesstype;
if(VOS_OK == bfdConfigGet(sessionIndex,&stResult))
{
ulong_ret = stResult.bfdSesstype;
}
*var_len = sizeof(u_long);
return (u_char*)&ulong_ret;
case BFDSESSDISCRIMINATOR:
*write_method = bfdsess_write_discri;
if(VOS_OK == bfdConfigGet(sessionIndex,&stResult))
{
ulong_ret = stResult.bfdDiscriminator;
}
*var_len = sizeof( u_long);
return (u_char*)&ulong_ret;
case BFDSESSREMOTEDISCR:
*write_method = bfdsess_write_remotediscr;
if(VOS_OK == bfdConfigGet(sessionIndex,&stResult))
{
ulong_ret = stResult.bfdRemoteDiscri;
}
*var_len = sizeof( u_long);
return (u_char*) &ulong_ret;
case BFDSESSADMINSTATUS:
*write_method = bfdsess_write_bfdsessadminstatus;
if(VOS_OK == bfdConfigGet(sessionIndex,&stResult))
{
ulong_ret = stResult.bfdSessAdminStatus;
}
if(0==ulong_ret)
{
ulong_ret=2;
}
*var_len = sizeof( u_long);
return (u_char*) &ulong_ret;
case BFDSESSSTATE:
*write_method = bfdsess_write_state;
if(VOS_OK == bfdConfigGet(sessionIndex,&stResult))
{
ulong_ret = stResult.bfdsessState;
}
*var_len = sizeof( u_long);
return (u_char*) &ulong_ret;
case BFDSESSINTERFACE:
*write_method = bfdsess_write_interface;
if(VOS_OK == bfdConfigGet(sessionIndex,&stResult))
{
ulong_ret = stResult.bfdsessinterface;
}
*var_len = sizeof( u_long);
return (u_char*) &ulong_ret;
case BFDSESSDSTADDR:
*write_method = bfdsess_write_bfdsessdstaddr;
if(VOS_OK == bfdConfigGet(sessionIndex,&stResult))
{
ulong_ret = stResult.bfdSessDstAddr;
}
*var_len = sizeof( u_long);
return (u_char*) &ulong_ret;
case BFDSESSGTSMTTL:
*write_method = bfdsess_write_bfdsessgtsmttl;
if(VOS_OK == bfdConfigGet(sessionIndex,&stResult))
{
ulong_ret = stResult.bfdSessGTSMTTL;
}
*var_len = sizeof( u_long);
return (u_char*) &ulong_ret;
case BFDSESSDESIREDMINTXINTERVAL:
*write_method = bfdsess_write_desiredTxInterval;
if(VOS_OK == bfdConfigGet(sessionIndex,&stResult))
{
ulong_ret = stResult.bfdsessdiscriTxInterval;
}
*var_len = sizeof( u_long);
return (u_char*) &ulong_ret;
case BFDSESSREQMINRXINTERVAL:
*write_method = bfdsess_write_ReqRxInterval;
if(VOS_OK == bfdConfigGet(sessionIndex,&stResult))
{
ulong_ret = stResult.bfdsessReqRxInterval;
}
*var_len = sizeof( u_long);
return (u_char*) &ulong_ret;
case BFDSESSDETECTMULT:
*write_method = bfdsess_write_detectMult;
if(VOS_OK == bfdConfigGet(sessionIndex,&stResult))
{
ulong_ret = stResult.bfdsessdetectMult;
}
*var_len = sizeof(ulong_t);
return (u_char*) &ulong_ret;
case BFDSESSNEGOTIATEDINTERVAL:
if(VOS_OK != bfd_SessionValueGet(sessionIndex,&ulong_ret,BFD_NEGOTIATED_INTERVAL))
{
GWD_ERR_OUT;
return NULL;
}
*var_len = sizeof(ulong_t);
return (u_char*) &ulong_ret;
case BFDSESSNEGOTIATEDECHOINTERVAL:
if(VOS_OK != bfd_SessionValueGet(sessionIndex,&ulong_ret,BFD_NEGOTIATED_ECHO_INTERVAL))
{
GWD_ERR_OUT;
return NULL;
}
*var_len = sizeof(ulong_t);
return (u_char*) &ulong_ret;
case BFDSESSNEGOTIATEDDETECTMULT:
if(VOS_OK != bfd_SessionValueGet(sessionIndex,&ulong_ret,BFD_NEGOTIATED_DETECT_MULT))
{
GWD_ERR_OUT;
return NULL;
}
*var_len = sizeof(ulong_t);
return (u_char*) &ulong_ret;
case BFDSESSROWSTATUS:
*write_method = bfdsess_write_RowStatus;
if(VOS_OK == bfdConfigGet(sessionIndex,&stResult))
{
ulong_ret = stResult.bfdsessRowStatus;
}
*var_len = sizeof( u_long);
return (u_char*) &ulong_ret;
default:
ERROR_MSG("");
break;
}
return NULL;
}
int bfdsess_write_sesstype(int action,
u_char *var_val,
u_char var_val_type,
size_t var_val_len,
u_char *statP,
oid *name,
size_t name_len)
{
ulong_t ulIndex = (ULONG)name[name_len-COMPLEMENT_INDEX_LEN];
ulong_t value=0 ;
if(ulIndex < 0 ||ulIndex > g_ulSessionMax)
{
return (SNMP_ERR_WRONGVALUE);
}
value = *(ULONG*)var_val;
switch(action)
{
case RESERVE1:
if(var_val == NULL)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGVALUE);
}
if(var_val_type != ASN_INTEGER)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGTYPE);
}
if(var_val_len > sizeof(ulong_t))
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGLENGTH);
}
break;
case RESERVE2:
break;
case OP_FREE:
break;
case ACTION:
if(SNMP_ROW_NOTREADY == bfd_RowBuf.bfdsessRowStatus)
{
bfd_RowBuf.bfdSesstype = value;
}
else
{
return SNMP_ERR_COMMITFAILED;
}
break;
case UNDO:
break;
case COMMIT:
break;
default:
return (SNMP_ERR_WRONGVALUE);
}
return (SNMP_ERR_NOERROR);
}
int bfdsess_write_discri(int action,
u_char *var_val,
u_char var_val_type,
size_t var_val_len,
u_char *statP,
oid *name,
size_t name_len)
{
ulong_t ulIndex = (ULONG)name[name_len-COMPLEMENT_INDEX_LEN];
ulong_t value=0 ;
if(ulIndex < 0 ||ulIndex >g_ulSessionMax)
{
return (SNMP_ERR_WRONGVALUE);
}
value = *(ULONG*)var_val;
switch(action)
{
case RESERVE1:
if(var_val == NULL)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGVALUE);
}
if(var_val_type != ASN_GAUGE)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGTYPE);
}
if(var_val_len > sizeof(ulong_t))
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGLENGTH);
}
break;
case RESERVE2:
break;
case OP_FREE:
break;
case ACTION:
if(SNMP_ROW_NOTREADY == bfd_RowBuf.bfdsessRowStatus)
{
bfd_RowBuf.bfdDiscriminator = value;
}
else
{
return SNMP_ERR_COMMITFAILED;
}
break;
case UNDO:
break;
case COMMIT:
break;
default:
return (SNMP_ERR_WRONGVALUE);
}
return (SNMP_ERR_NOERROR);
}
int bfdsess_write_remotediscr(int action,
u_char *var_val,
u_char var_val_type,
size_t var_val_len,
u_char *statP,
oid *name,
size_t name_len)
{
ulong_t ulIndex = (ULONG)name[name_len-COMPLEMENT_INDEX_LEN];
ulong_t value=0 ;
if(ulIndex < 0 ||ulIndex >g_ulSessionMax)
{
return (SNMP_ERR_WRONGVALUE);
}
value = *(ULONG*)var_val;
switch(action)
{
case RESERVE1:
if(var_val == NULL)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGVALUE);
}
if(var_val_type != ASN_GAUGE)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGTYPE);
}
if(var_val_len > sizeof(ulong_t))
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGLENGTH);
}
break;
case RESERVE2:
break;
case OP_FREE:
break;
case ACTION:
if(SNMP_ROW_NOTREADY == bfd_RowBuf.bfdsessRowStatus)
{
bfd_RowBuf.bfdRemoteDiscri = value;
}
else
{
return SNMP_ERR_COMMITFAILED;
}
break;
case UNDO:
break;
case COMMIT:
break;
default:
return (SNMP_ERR_WRONGVALUE);
}
return (SNMP_ERR_NOERROR);
}
int bfdsess_write_bfdsessadminstatus(int action,
u_char *var_val,
u_char var_val_type,
size_t var_val_len,
u_char *statP,
oid *name,
size_t name_len)
{
ulong_t ulIndex = (ULONG)name[name_len-COMPLEMENT_INDEX_LEN];
ulong_t value=0 ;
ulong_t ret=0 ;
if(ulIndex < 0 ||ulIndex >g_ulSessionMax)
{
return (SNMP_ERR_WRONGVALUE);
}
value = *(ULONG*)var_val;
switch(action)
{
case RESERVE1:
if(var_val == NULL)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGVALUE);
}
if(var_val_type != ASN_INTEGER)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGTYPE);
}
if(var_val_len > sizeof(ulong_t))
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGLENGTH);
}
break;
case RESERVE2:
break;
case OP_FREE:
break;
case ACTION:
if(SNMP_ROW_NOTREADY == bfd_RowBuf.bfdsessRowStatus)
{
if(2==value)
{
value=0;
}
bfd_RowBuf.bfdSessAdminStatus= value;
}
else if((SNMP_ROW_NONEXISTENT == bfd_RowBuf.bfdsessRowStatus)&&(ulIndex > 0 && ulIndex <g_ulSessionMax))
{
if(2==value)
{
value=0;
}
ret = bfd_SessAdminStatusSet(ulIndex,value);
if(ret == VOS_ERROR)
{
return SNMP_ERR_COMMITFAILED;
}
}
else
{
return SNMP_ERR_COMMITFAILED;
}
break;
case UNDO:
break;
case COMMIT:
break;
default:
return (SNMP_ERR_WRONGVALUE);
}
return (SNMP_ERR_NOERROR);
}
int bfdsess_write_state(int action,
u_char *var_val,
u_char var_val_type,
size_t var_val_len,
u_char *statP,
oid *name,
size_t name_len)
{
ulong_t ulIndex = (ULONG)name[name_len-COMPLEMENT_INDEX_LEN];
ulong_t value=0 ;
if(ulIndex == 0 ||ulIndex >g_ulSessionMax)
{
return (SNMP_ERR_WRONGVALUE);
}
value = *(ULONG*)var_val;
switch(action)
{
case RESERVE1:
if(var_val == NULL)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGVALUE);
}
if(var_val_type != ASN_INTEGER)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGTYPE);
}
if(var_val_len > sizeof(ulong_t))
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGLENGTH);
}
break;
case RESERVE2:
break;
case OP_FREE:
break;
case ACTION:
if(SNMP_ROW_NOTREADY == bfd_RowBuf.bfdsessRowStatus)
{
bfd_RowBuf.bfdsessState = value;
}
else
{
return SNMP_ERR_COMMITFAILED;
}
break;
case UNDO:
break;
case COMMIT:
break;
default:
return (SNMP_ERR_WRONGVALUE);
}
return (SNMP_ERR_NOERROR);
}
int bfdsess_write_interface(int action,
u_char *var_val,
u_char var_val_type,
size_t var_val_len,
u_char *statP,
oid *name,
size_t name_len)
{
ulong_t ulIndex = (ULONG)name[name_len-COMPLEMENT_INDEX_LEN];
ulong_t value=0 ;
if(ulIndex == 0 ||ulIndex >g_ulSessionMax)
{
return (SNMP_ERR_WRONGVALUE);
}
value = *(ULONG*)var_val;
switch(action)
{
case RESERVE1:
if(var_val == NULL)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGVALUE);
}
if(var_val_type != ASN_INTEGER)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGTYPE);
}
if(var_val_len > sizeof(ulong_t))
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGLENGTH);
}
break;
case RESERVE2:
break;
case OP_FREE:
break;
case ACTION:
if(SNMP_ROW_NOTREADY == bfd_RowBuf.bfdsessRowStatus)
{
bfd_RowBuf.bfdsessinterface = value;
}
else
{
return SNMP_ERR_COMMITFAILED;
}
break;
case UNDO:
break;
case COMMIT:
break;
default:
return (SNMP_ERR_WRONGVALUE);
}
return (SNMP_ERR_NOERROR);
}
/*begin yanlei 20161028 */
int bfdsess_write_bfdsessdstaddr(int action,
u_char *var_val,
u_char var_val_type,
size_t var_val_len,
u_char *statP,
oid *name,
size_t name_len)
{
ulong_t ulIndex = (ULONG)name[name_len-COMPLEMENT_INDEX_LEN];
ulong_t value=0 ;
if(ulIndex < 0 ||ulIndex >g_ulSessionMax)
{
return (SNMP_ERR_WRONGVALUE);
}
value = *(ULONG*)var_val;
switch(action)
{
case RESERVE1:
if(var_val == NULL)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGVALUE);
}
if(var_val_type != ASN_OCTET_STR)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGTYPE);
}
if(var_val_len > sizeof(ulong_t))
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGLENGTH);
}
break;
case RESERVE2:
break;
case OP_FREE:
break;
case ACTION:
if(SNMP_ROW_NOTREADY == bfd_RowBuf.bfdsessRowStatus)
{
bfd_RowBuf.bfdSessDstAddr = value;
}
else
{
return SNMP_ERR_COMMITFAILED;
}
break;
case UNDO:
break;
case COMMIT:
break;
default:
return (SNMP_ERR_WRONGVALUE);
}
return (SNMP_ERR_NOERROR);
}
int bfdsess_write_bfdsessgtsmttl(int action,
u_char *var_val,
u_char var_val_type,
size_t var_val_len,
u_char *statP,
oid *name,
size_t name_len)
{
ulong_t ulIndex = (ULONG)name[name_len-COMPLEMENT_INDEX_LEN];
ulong_t value=0 ;
if(ulIndex < 0 ||ulIndex >g_ulSessionMax)
{
return (SNMP_ERR_WRONGVALUE);
}
value = *(ULONG*)var_val;
switch(action)
{
case RESERVE1:
if(var_val == NULL)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGVALUE);
}
if(var_val_type != ASN_UNSIGNED)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGTYPE);
}
if(var_val_len > sizeof(ulong_t))
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGLENGTH);
}
break;
case RESERVE2:
break;
case OP_FREE:
break;
case ACTION:
if(SNMP_ROW_NOTREADY == bfd_RowBuf.bfdsessRowStatus)
{
bfd_RowBuf.bfdSessGTSMTTL = value;
}
else
{
return SNMP_ERR_COMMITFAILED;
}
break;
case UNDO:
break;
case COMMIT:
break;
default:
return (SNMP_ERR_WRONGVALUE);
}
return (SNMP_ERR_NOERROR);
}
/*end*/
int bfdsess_write_desiredTxInterval(int action,
u_char *var_val,
u_char var_val_type,
size_t var_val_len,
u_char *statP,
oid *name,
size_t name_len)
{
ulong_t ulIndex = (ULONG)name[name_len-COMPLEMENT_INDEX_LEN];
ulong_t value=0 ;
ulong_t ret=0 ;
if(ulIndex < 0 ||ulIndex >g_ulSessionMax)
{
return (SNMP_ERR_WRONGVALUE);
}
value = *(ULONG*)var_val;
switch(action)
{
case RESERVE1:
if(var_val == NULL)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGVALUE);
}
if(var_val_type != ASN_GAUGE)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGTYPE);
}
if(var_val_len > sizeof(ulong_t))
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGLENGTH);
}
break;
case RESERVE2:
break;
case OP_FREE:
break;
case ACTION:
if(SNMP_ROW_NOTREADY == bfd_RowBuf.bfdsessRowStatus)
{
bfd_RowBuf.bfdsessdiscriTxInterval = value;
}
else if((SNMP_ROW_NONEXISTENT == bfd_RowBuf.bfdsessRowStatus)&&(ulIndex > 0 && ulIndex < g_ulSessionMax))
{
ret = bfd_SessionValueSet(ulIndex,value,1);
if(ret == VOS_ERROR)
{
return SNMP_ERR_COMMITFAILED;
}
}
else
{
return SNMP_ERR_COMMITFAILED;
}
break;
case UNDO:
break;
case COMMIT:
break;
default:
return (SNMP_ERR_WRONGVALUE);
}
return (SNMP_ERR_NOERROR);
}
int bfdsess_write_ReqRxInterval(int action,
u_char *var_val,
u_char var_val_type,
size_t var_val_len,
u_char *statP,
oid *name,
size_t name_len)
{
ulong_t ulIndex = (ULONG)name[name_len-COMPLEMENT_INDEX_LEN];
ulong_t value=0 ;
ulong_t ret=0 ;
if(ulIndex < 0 ||ulIndex >g_ulSessionMax)
{
return (SNMP_ERR_WRONGVALUE);
}
value = *(ULONG*)var_val;
switch(action)
{
case RESERVE1:
if(var_val == NULL)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGVALUE);
}
if(var_val_type != ASN_GAUGE)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGTYPE);
}
if(var_val_len > sizeof(ulong_t))
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGLENGTH);
}
break;
case RESERVE2:
break;
case OP_FREE:
break;
case ACTION:
if(SNMP_ROW_NOTREADY == bfd_RowBuf.bfdsessRowStatus)
{
bfd_RowBuf.bfdsessReqRxInterval = value;
}
else if((SNMP_ROW_NONEXISTENT == bfd_RowBuf.bfdsessRowStatus)&&(ulIndex > 0 && ulIndex < g_ulSessionMax))
{
ret = bfd_SessionValueSet(ulIndex,value,2);
if(ret == VOS_ERROR)
{
return SNMP_ERR_COMMITFAILED;
}
}
else
{
return SNMP_ERR_COMMITFAILED;
}
break;
case UNDO:
break;
case COMMIT:
break;
default:
return (SNMP_ERR_WRONGVALUE);
}
return (SNMP_ERR_NOERROR);
}
int bfdsess_write_detectMult(int action,
u_char *var_val,
u_char var_val_type,
size_t var_val_len,
u_char *statP,
oid *name,
size_t name_len)
{
ulong_t ulIndex = (ULONG)name[name_len-COMPLEMENT_INDEX_LEN];
ulong_t value=0 ;
ulong_t ret=0 ;
if(ulIndex == 0 ||ulIndex >g_ulSessionMax)
{
return (SNMP_ERR_WRONGVALUE);
}
value = *(ULONG*)var_val;
switch(action)
{
case RESERVE1:
if(var_val == NULL)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGVALUE);
}
if(var_val_type != ASN_GAUGE)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGTYPE);
}
if(var_val_len > sizeof(ulong_t))
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGLENGTH);
}
break;
case RESERVE2:
break;
case OP_FREE:
break;
case ACTION:
if(SNMP_ROW_NOTREADY == bfd_RowBuf.bfdsessRowStatus)
{
bfd_RowBuf.bfdsessdetectMult = value;
}
else if((SNMP_ROW_NONEXISTENT == bfd_RowBuf.bfdsessRowStatus)&&(ulIndex > 0 && ulIndex < g_ulSessionMax))
{
ret = bfd_SessionValueSet(ulIndex,value,4);
if(ret == VOS_ERROR)
{
return SNMP_ERR_COMMITFAILED;
}
}
else
{
return SNMP_ERR_COMMITFAILED;
}
break;
case UNDO:
break;
case COMMIT:
break;
default:
return (SNMP_ERR_WRONGVALUE);
}
return (SNMP_ERR_NOERROR);
}
int bfdsess_write_RowStatus(int action,
u_char *var_val,
u_char var_val_type,
size_t var_val_len,
u_char *statP,
oid *name,
size_t name_len)
{
LONG lVar = 0; /* ѨҪʨ׃քֵ */
LONG lIndex = 0; /* ҭ̷ӽ */
ULONG exist=0;
ULONG type = 0;
bfdSession_t *pSessionPre = NULL;
switch (action)
{
case RESERVE1:
if(var_val == NULL)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGVALUE);
}
if(var_val_type != ASN_INTEGER)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGTYPE);
}
if(var_val_len <= 0)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGLENGTH);
}
break;
case RESERVE2:
break;
case OP_FREE:
break;
case ACTION:
lVar = *(LONG *)var_val;
if((lVar < 0) || (lVar > 6)) return(SNMP_ERR_WRONGVALUE);
lIndex = name[name_len-COMPLEMENT_INDEX_LEN];
if(lIndex <=0 ||lIndex >g_ulSessionMax)
{
GWD_ERR_OUT;
return (SNMP_ERR_WRONGVALUE);
}
switch(lVar)
{
case SNMP_ROW_CREATEANDWAIT:
if(bfd_session_find(lIndex, &pSessionPre) != NULL)
{
return(SNMP_ERR_WRONGVALUE);
}
memset(&bfd_RowBuf, 0x0, sizeof(bfd_RowBuf));
bfd_RowBuf.SessionIndex = lIndex;
bfd_RowBuf.bfdsessRowStatus = SNMP_ROW_NOTREADY;
break;
case SNMP_ROW_ACTIVE:
if((bfd_RowBuf.bfdsessRowStatus != SNMP_ROW_NOTREADY) ||
(bfd_RowBuf.SessionIndex != lIndex))
{
return (SNMP_ERR_INCONSISTENTVALUE);
}
else
{
bfd_RowBuf.bfdsessRowStatus = SNMP_ROW_ACTIVE;
}
if(bfd_snmp_debug)
{
sys_console_printf("%s %d::bfdsessiondiscriminator:%d\r\nbfdsessionindex:%d\r\n",
__FUNCTION__,__LINE__,
bfd_RowBuf.bfdDiscriminator,bfd_RowBuf.SessionIndex);
}
if(VOS_OK != bfdConfigSet(&bfd_RowBuf))
{
return SNMP_ERR_COMMITFAILED;
}
if(bfd_snmp_debug)
{
sys_console_printf("######bfdconfigset seccessful######\r\n");
}
memset(&bfd_RowBuf, 0x0, sizeof(bfd_RowBuf));
bfd_RowBuf.bfdsessRowStatus = SNMP_ROW_NONEXISTENT;
break;
case SNMP_ROW_DESTROY:
if(2 == bfd_snmp_debug)
{
sys_console_printf("%s,%d::inter destroy case !",__FUNCTION__,__LINE__);
}
if(bfd_RowBuf.bfdsessRowStatus == SNMP_ROW_NOTREADY
&& bfd_RowBuf.SessionIndex == lIndex)
{
memset(&bfd_RowBuf, 0x0, sizeof(bfd_RowBuf));
bfd_RowBuf.bfdsessRowStatus = SNMP_ROW_NONEXISTENT;
}
else
{
if(bfd_RowBuf.bfdsessRowStatus == SNMP_ROW_NONEXISTENT)
{
if(2 == bfd_snmp_debug)
{
sys_console_printf("%s %d::bfdsessRowStatus value is %d \r\n",__FUNCTION__,__LINE__,SNMP_ROW_NONEXISTENT);
}
bfd_RowBuf.bfdsessRowStatus = SNMP_ROW_DESTROY;
bfd_RowBuf.SessionIndex = lIndex;
if(VOS_OK != bfdConfigSet(&bfd_RowBuf))
{
memset(&bfd_RowBuf, 0x0, sizeof(bfd_RowBuf));
GWD_ERR_OUT;
return (SNMP_ERR_COMMITFAILED);
}
memset(&bfd_RowBuf, 0x0, sizeof(bfd_RowBuf));
}
}
break;
default:
return (SNMP_ERR_COMMITFAILED);
}
break;
case UNDO:
break;
case COMMIT:
break;
default:
return (SNMP_ERR_WRONGVALUE);
}
return (SNMP_ERR_NOERROR);
}
#endif
以上内容由RTOAX整理自网络。
扫一扫
411
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
