本文介绍了Linux内核中的内存块（memblock）管理机制，详细解析了memblock的数据结构及其初始化过程，并深入探讨了memblock API的使用方法。
1. 简介
内存管理是操作系统内核中最复杂的部分之一(我认为没有之一)。在讲解内核进入点之前的准备工作时，我们在调用 start_kernel 函数前停止了讲解。start_kernel 函数在内核启动第一个 init 进程前初始化了所有的内核特性(包括那些依赖于架构的特性)。你也许还记得在引导时建立了初期页表、识别页表和固定映射页表，但是复杂的内存管理部分还没有开始工作。当 start_kernel 函数被调用时，我们会看到从初期内存管理到更复杂的内存管理数据结构和技术的转变。为了更好地理解内核的初始化过程，我们需要对这些技术有更清晰的理解。本章节是内存管理框架和 API 的不同部分的概述，从 memblock 开始。
2. 内存块
**内存块是在引导初期，泛用内核内存分配器还没有开始工作时对内存区域进行管理的方法之一。**以前它被称为 逻辑内存块，但是内核接纳了 Yinghai Lu 提供的补丁后改名为 memblock 。x86_64 架构上的内核会使用这个方法。我们已经在讲解内核进入点之前的准备工作时遇到过了它。现在是时候对它更加熟悉了。我们会看到它是被怎样实现的。
我们首先会学习 memblock 的数据结构。以下所有的数据结构都在 include/linux/memblock.h 头文件中定义。
第一个结构体的名字就叫做 memblock。它的定义如下：
struct memblock {
bool bottom_up;
phys_addr_t current_limit;
struct memblock_type memory; //--> array of memblock_region
struct memblock_type reserved; //--> array of memblock_region
#ifdef CONFIG_HAVE_MEMBLOCK_PHYS_MAP
struct memblock_type physmem;
#endif
};
这个结构体包含五个域。第一个 bottom_up 域置为 true 时允许内存以自底向上模式进行分配。下一个域是 current_limit 这个域描述了内存块的尺寸限制。接下来的三个域描述了内存块的类型。内存块的类型可以是：被保留，内存和物理内存(如果 CONFIG_HAVE_MEMBLOCK_PHYS_MAP 编译配置选项被开启)。接下来我们来看看下一个数据结构- memblock_type 。让我们来看看它的定义：
struct memblock_type {
unsigned long cnt;
unsigned long max;
phys_addr_t total_size;
struct memblock_region *regions;
};
这个结构体提供了关于内存类型的信息。它包含了描述当前内存块中内存区域的数量、所有内存区域的大小、内存区域的已分配数组的尺寸和指向 memblock_region 结构体数据的指针的域。memblock_region 结构体描述了一个内存区域，定义如下：
struct memblock_region {
phys_addr_t base;
phys_addr_t size;
unsigned long flags;
#ifdef CONFIG_HAVE_MEMBLOCK_NODE_MAP
int nid;
#endif
};
memblock_region 提供了内存区域的基址和大小，flags 域可以是：
#define MEMBLOCK_ALLOC_ANYWHERE (~(phys_addr_t)0)
#define MEMBLOCK_ALLOC_ACCESSIBLE 0
#define MEMBLOCK_HOTPLUG 0x1
同时，如果 CONFIG_HAVE_MEMBLOCK_NODE_MAP 编译配置选项被开启， memblock_region 结构体也提供了整数域 - numa 节点选择器。

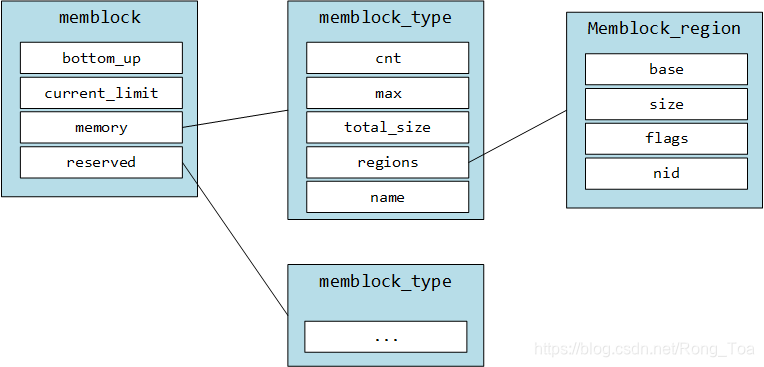

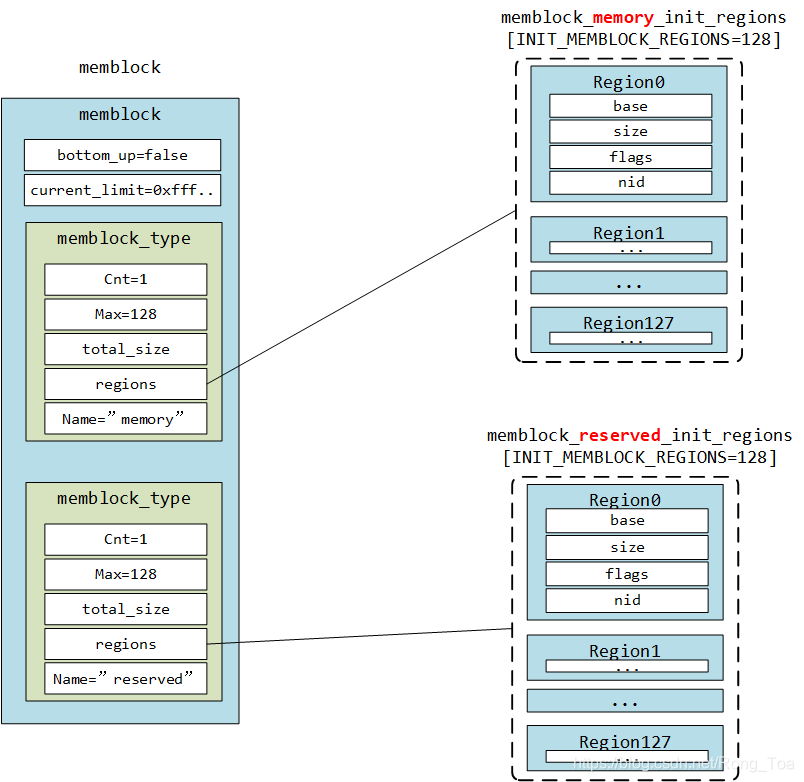

我们将以上部分想象为如下示意图：
+---------------------------+ +---------------------------+
| memblock | | |
| _______________________ | | |
| | memory | | | Array of the |
| | memblock_type |-|-->| membock_region |
| |_______________________| | | |
| | +---------------------------+
| _______________________ | +---------------------------+
| | reserved | | | |
| | memblock_type |-|-->| Array of the |
| |_______________________| | | memblock_region |
| | | |
+---------------------------+ +---------------------------+
这三个结构体： memblock， memblock_type 和 memblock_region 是 Memblock 的主要组成部分。现在我们可以进一步了解 Memblock 和 它的初始化过程了。
3. 内存块初始化
所有 memblock 的 API 都在 include/linux/memblock.h 头文件中描述, 所有函数的实现都在 mm/memblock.c 源码中。首先我们来看一下源码的开头部分和 memblock 结构体的初始化吧。
struct memblock memblock __initdata_memblock = {
.memory.regions = memblock_memory_init_regions,
.memory.cnt = 1,
.memory.max = INIT_MEMBLOCK_REGIONS,
.reserved.regions = memblock_reserved_init_regions,
.reserved.cnt = 1,
.reserved.max = INIT_MEMBLOCK_REGIONS,
#ifdef CONFIG_HAVE_MEMBLOCK_PHYS_MAP
.physmem.regions = memblock_physmem_init_regions,
.physmem.cnt = 1,
.physmem.max = INIT_PHYSMEM_REGIONS,
#endif
.bottom_up = false,
.current_limit = MEMBLOCK_ALLOC_ANYWHERE,
};
在这里我们可以看到 memblock 结构体的同名变量的初始化。首先请注意 __initdata_memblock 。这个宏的定义就像这样：
#ifdef CONFIG_ARCH_DISCARD_MEMBLOCK
#define __init_memblock __meminit
#define __initdata_memblock __meminitdata
#else
#define __init_memblock
#define __initdata_memblock
#endif
你会发现这个宏依赖于 CONFIG_ARCH_DISCARD_MEMBLOCK 。如果这个编译配置选项开启，内存块的代码会被放置在 .init 段，这样它就会在内核引导完毕后被释放掉。
接下来我们可以看看 memblock_type memory ， memblock_type reserved 和 memblock_type physmem 域的初始化。在这里我们只对 memblock_type.regions 的初始化过程感兴趣，请注意每一个 memblock_type 域都是 memblock_region 的数组初始化的：
static struct memblock_region memblock_memory_init_regions[INIT_MEMBLOCK_REGIONS] __initdata_memblock;
static struct memblock_region memblock_reserved_init_regions[INIT_MEMBLOCK_REGIONS] __initdata_memblock;
#ifdef CONFIG_HAVE_MEMBLOCK_PHYS_MAP
static struct memblock_region memblock_physmem_init_regions[INIT_PHYSMEM_REGIONS] __initdata_memblock;
#endif
每个数组包含了 128 个内存区域。我们可以在 INIT_MEMBLOCK_REGIONS 宏定义中看到它：
#define INIT_MEMBLOCK_REGIONS 128
请注意所有的数组定义中也用到了在 memblock 中使用过的 __initdata_memblock 宏(如果忘掉了就翻到上面重温一下)。
最后两个域描述了 bottom_up 分配是否被开启以及当前内存块的限制：
#define MEMBLOCK_ALLOC_ANYWHERE (~(phys_addr_t)0)
这个限制是 0xffffffffffffffff.
On this step the initialization of the memblock structure has been finished and we can look on the Memblock API.
到此为止 memblock 结构体的初始化就结束了，我们可以开始看内存块相关 API 了。
4. 内存块应用程序接口
我们已经结束了 memblock 结构体的初始化讲解，现在我们要开始看内存块 API 和它的实现了。就像我上面说过的，所有 memblock 的实现都在 mm/memblock.c 中。为了理解 memblock 是怎样被实现和工作的，让我们先看看它的用法。内核中有很多地方用到了内存块。举个例子，我们来看看 arch/x86/kernel/e820.c 中的 memblock_x86_fill 函数。这个函数使用了 e820 提供的内存映射并使用 memblock_add 函数在 memblock 中添加了内核保留的内存区域。既然我们首先遇到了 memblock_add 函数，让我们从它开始讲解吧。
这个函数获取了物理基址和内存区域的大小并把它们加到了 memblock 中。memblock_add 函数本身没有做任何特殊的事情，它只是调用了
memblock_add_range(&memblock.memory, base, size, MAX_NUMNODES, 0);
函数。我们将内存块类型 - memory，内存基址和内存区域大小，节点的最大数目和标志传进去。如果 CONFIG_NODES_SHIFT 没有被设置，最大节点数目就是 1，否则是 1 << CONFIG_NODES_SHIFT。memblock_add_range 函数将新的内存区域加到了内存块中，它首先检查传入内存区域的大小，如果是 0 就直接返回。然后，这个函数会用 memblock_type 来检查 memblock 中的内存区域是否存在。如果不存在，我们就简单地用给定的值填充一个新的 memory_region 然后返回(我们已经在对内核内存管理框架的初览中看到了它的实现)。如果 memblock_type 不为空，我们就会使用提供的 memblock_type 将新的内存区域加到 memblock 中。
首先，我们获取了内存区域的结束点：
phys_addr_t end = base + memblock_cap_size(base, &size);
memblock_cap_size 调整了 size 使 base + size 不会溢出。它的实现非常简单：
static inline phys_addr_t memblock_cap_size(phys_addr_t base, phys_addr_t *size)
{
return *size = min(*size, (phys_addr_t)ULLONG_MAX - base);
}
memblock_cap_size 返回了提供的值与 ULLONG_MAX - base 中的较小值作为新的尺寸。
之后，我们获得了新的内存区域的结束地址，memblock_add_range 会检查与已加入内存区域是否重叠以及能否合并。将新的内存区域插入 memblock 包含两步：
- 将新内存区域的不重叠部分作为单独的区域加入；
- 合并所有相接的区域。
我们会迭代所有的已存储内存区域来检查是否与新区域重叠：
for (i = 0; i < type->cnt; i++) {
struct memblock_region *rgn = &type->regions[i];
phys_addr_t rbase = rgn->base;
phys_addr_t rend = rbase + rgn->size;
if (rbase >= end)
break;
if (rend <= base)
continue;
...
...
...
}
如果新的内存区域不与已有区域重叠，直接插入。否则我们会检查这个新内存区域是否合适并调用 memblock_double_array 函数：
while (type->cnt + nr_new > type->max)
if (memblock_double_array(type, obase, size) < 0)
return -ENOMEM;
insert = true;
goto repeat;
memblock_double_array 会将提供的区域数组长度加倍。然后我们会将 insert 置为 true，接着跳转到 repeat 标签。第二步，我们会从 repeat 标签开始，迭代同样的循环然后使用 memblock_insert_region 函数将当前内存区域插入内存块：
if (base < end) {
nr_new++;
if (insert)
memblock_insert_region(type, i, base, end - base,
nid, flags);
}
我们在第一步将 insert 置为 true，现在 memblock_insert_region 会检查这个标志。memblock_insert_region 的实现与我们将新区域插入空 memblock_type 的实现(看上面)几乎相同。这个函数会获取最后一个内存区域：
struct memblock_region *rgn = &type->regions[idx];
然后用 memmove 拷贝这部分内存：
memmove(rgn + 1, rgn, (type->cnt - idx) * sizeof(*rgn));
之后我们会填充 memblock_region 域，然后增长 memblock_type 的尺寸。在函数执行的结束，memblock_add_range 会调用 memblock_merge_regions 来在第二步合并相邻可合并的内存区域。
还有第二种情况，新的内存区域与已储存区域完全重叠。比如 memblock 中已经有了 region1 :
0 0x1000
+-----------------------+
| region1 |
+-----------------------+
现在我们想在 memblock 中添加 region2 ，它的基址和尺寸如下：
0x100 0x2000
+-----------------------+
| region2 |
+-----------------------+
在这种情况下，新内存区域的基址会被像下面这样设置：
base = min(rend, end);
所以在我们设置的这种场景中，它会被设置为 0x1000 。然后我们会在第二步中将这个区域插入：
if (base < end) {
nr_new++;
if (insert)
memblock_insert_region(type, i, base, end - base, nid, flags);
}
在这种情况下我们会插入 overlapping portion (我们之插入地址高的部分，因为低地址部分已经被包含在重叠区域里了)，然后会使用 memblock_merge_regions 合并剩余部分区域。就像我上文中所说的那样，这个函数会合并相邻的可合并区域。它会从给定的 memblock_type 遍历所有的内存区域，取出两个相邻区域 - type->regions[i] 和 type->regions[i + 1]，并检查他们是否拥有同样的标志，是否属于同一个节点，第一个区域的末尾地址是否与第二个区域的基地址相同。
while (i < type->cnt - 1) {
struct memblock_region *this = &type->regions[i];
struct memblock_region *next = &type->regions[i + 1];
if (this->base + this->size != next->base ||
memblock_get_region_node(this) !=
memblock_get_region_node(next) ||
this->flags != next->flags) {
BUG_ON(this->base + this->size > next->base);
i++;
continue;
}
如果上面所说的这些条件全部符合，我们就会更新第一个区域的长度，将第二个区域的长度加上去。
this->size += next->size;
我们在更新第一个区域的长度同时，会使用 memmove 将后面的所有区域向前移动一个下标。
memmove(next, next + 1, (type->cnt - (i + 2)) * sizeof(*next));
然后将 memblock_type 中内存区域的数量减一：
type->cnt--;
经过这些操作后我们就成功地将两个内存区域合并了：
0 0x2000
+------------------------------------------------+
| region1 |
+------------------------------------------------+
这就是 memblock_add_range 函数的工作原理和执行过程。
同样还有一个 memblock_reserve 函数与 memblock_add 几乎完成同样的工作，只有一点不同： memblock_reserve 将 memblock_type.reserved 而不是 memblock_type.memory 储存到内存块中。
当然这不是全部的 API。内存块不仅提供了添加 memory 和 reserved 内存区域，还提供了：
- memblock_remove - 从内存块中移除内存区域；
- memblock_find_in_range - 寻找给定范围内的未使用区域；
- memblock_free - 释放内存块中的内存区域；
- for_each_mem_range - 迭代遍历内存块区域。
等等…
5. 获取内存区域的相关信息
内存块还提供了获取 memblock 中已分配内存区域信息的 API。包括两部分：
- get_allocated_memblock_memory_regions_info - 获取有关内存区域的信息；
- get_allocated_memblock_reserved_regions_info - 获取有关保留区域的信息。
这些函数的实现都很简单。以 get_allocated_memblock_reserved_regions_info 为例：
phys_addr_t __init_memblock get_allocated_memblock_reserved_regions_info(
phys_addr_t *addr)
{
if (memblock.reserved.regions == memblock_reserved_init_regions)
return 0;
*addr = __pa(memblock.reserved.regions);
return PAGE_ALIGN(sizeof(struct memblock_region) *
memblock.reserved.max);
}
这个函数首先会检查 memblock 是否包含保留内存区域。如果否，就直接返回 0 。否则函数将保留内存区域的物理地址写到传入的数组中，然后返回已分配数组的对齐后尺寸。注意函数使用 PAGE_ALIGN 这个宏实现对齐。实际上这个宏依赖于页的尺寸：
#define PAGE_ALIGN(addr) ALIGN(addr, PAGE_SIZE)
get_allocated_memblock_memory_regions_info 函数的实现是基本一样的。只有一处不同，get_allocated_memblock_memory_regions_info 使用 memblock_type.memory 而不是 memblock_type.reserved 。
6. 内存块的相关除错技术
在内存块的实现中有许多对 memblock_dbg 的调用。如果在内核命令行中传入 memblock=debug 选项，这个函数就会被调用。实际上 memblock_dbg 是 printk 的一个拓展宏：
#define memblock_dbg(fmt, ...) \
if (memblock_debug) printk(KERN_INFO pr_fmt(fmt), ##__VA_ARGS__)
比如你可以在 memblock_reserve 函数中看到对这个宏的调用：
memblock_dbg("memblock_reserve: [%#016llx-%#016llx] flags %#02lx %pF\n",
(unsigned long long)base,
(unsigned long long)base + size - 1,
flags, (void *)_RET_IP_);

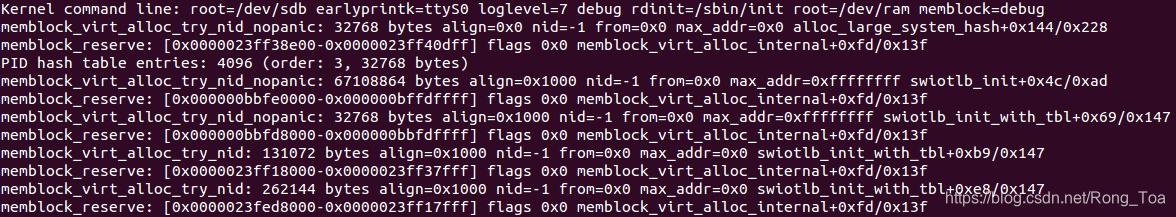

然后你将看到类似下图的画面：
内存块技术也支持 debugfs 。如果你不是在 X86 架构下运行内核，你可以访问：
- /sys/kernel/debug/memblock/memory
- /sys/kernel/debug/memblock/reserved
- /sys/kernel/debug/memblock/physmem
来获取 memblock 内容的核心转储信息。
7. 结束语
讲解内核内存管理的第一部分到此结束，如果你有任何的问题或者建议，你可以直接发消息给我twitter，也可以给我发邮件或是直接创建一个 issue。
英文不是我的母语。如果你发现我的英文描述有任何问题，请提交一个PR到linux-insides.
8. 相关连接
Linux kernel memory management Part 1.
Introduction
Memory management is one of the most complex (and I think that it is the most complex) part of the operating system kernel. In the last preparations before the kernel entry point part we stopped right before call of the start_kernel function. This function initializes all the kernel features (including architecture-dependent features) before the kernel runs the first init process. You may remember as we built early page tables, identity page tables and fixmap page tables in the boot time. No complicated memory management is working yet. When the start_kernel function is called we will see the transition to more complex data structures and techniques for memory management. For a good understanding of the initialization process in the linux kernel we need to have a clear understanding of these techniques. This chapter will provide an overview of the different parts of the linux kernel memory management framework and its API, starting from the memblock.
Memblock
Memblock is one of the methods of managing memory regions during the early bootstrap period while the usual kernel memory allocators are not up and
running yet. Previously it was called Logical Memory Block, but with the patch by Yinghai Lu, it was renamed to the memblock. As Linux kernel for x86_64 architecture uses this method. We already met memblock in the Last preparations before the kernel entry point part. And now it’s time to get acquainted with it closer. We will see how it is implemented.
We will start to learn memblock from the data structures. Definitions of all logical-memory-block-related data structures can be found in the include/linux/memblock.h header file.
The first structure has the same name as this part and it is:
struct memblock {
bool bottom_up;
phys_addr_t current_limit;
struct memblock_type memory; --> array of memblock_region
struct memblock_type reserved; --> array of memblock_region
#ifdef CONFIG_HAVE_MEMBLOCK_PHYS_MAP
struct memblock_type physmem;
#endif
};
This structure contains five fields. First is bottom_up which allows allocating memory in bottom-up mode when it is true. Next field is current_limit. This field describes the limit size of the memory block. The next three fields describe the type of the memory block. It can be: reserved, memory and physical memory (physical memory is available if the CONFIG_HAVE_MEMBLOCK_PHYS_MAP configuration option is enabled). Now we see yet another data structure - memblock_type. Let’s look at its definition:
struct memblock_type {
unsigned long cnt;
unsigned long max;
phys_addr_t total_size;
struct memblock_region *regions;
};
This structure provides information about the memory type. It contains fields which describe the number of memory regions inside the current memory block, the size of all memory regions, the size of the allocated array of the memory regions, and a pointer to the array of the memblock_region structures. memblock_region is a structure which describes a memory region. Its definition is:
struct memblock_region {
phys_addr_t base;
phys_addr_t size;
unsigned long flags;
#ifdef CONFIG_HAVE_MEMBLOCK_NODE_MAP
int nid;
#endif
};
memblock_region provides the base address and size of the memory region as well as a flags field which can have the following values:
enum {
MEMBLOCK_NONE = 0x0, /* No special request */
MEMBLOCK_HOTPLUG = 0x1, /* hotpluggable region */
MEMBLOCK_MIRROR = 0x2, /* mirrored region */
MEMBLOCK_NOMAP = 0x4, /* don't add to kernel direct mapping */
};
Also memblock_region provides an integer field - numa node selector, if the CONFIG_HAVE_MEMBLOCK_NODE_MAP configuration option is enabled.
Schematically we can imagine it as:
+---------------------------+ +---------------------------+
| memblock | | |
| _______________________ | | |
| | memory | | | Array of the |
| | memblock_type |-|-->| memblock_region |
| |_______________________| | | |
| | +---------------------------+
| _______________________ | +---------------------------+
| | reserved | | | |
| | memblock_type |-|-->| Array of the |
| |_______________________| | | memblock_region |
| | | |
+---------------------------+ +---------------------------+
These three structures: memblock, memblock_type and memblock_region are main in the Memblock. Now we know about it and can look at Memblock initialization process.
Memblock initialization
As all API of the memblock are described in the include/linux/memblock.h header file, all implementations of these functions are in the mm/memblock.c source code file. Let’s look at the top of the source code file and we will see the initialization of the memblock structure:
struct memblock memblock __initdata_memblock = {
.memory.regions = memblock_memory_init_regions,
.memory.cnt = 1,
.memory.max = INIT_MEMBLOCK_REGIONS,
.reserved.regions = memblock_reserved_init_regions,
.reserved.cnt = 1,
.reserved.max = INIT_MEMBLOCK_REGIONS,
#ifdef CONFIG_HAVE_MEMBLOCK_PHYS_MAP
.physmem.regions = memblock_physmem_init_regions,
.physmem.cnt = 1,
.physmem.max = INIT_PHYSMEM_REGIONS,
#endif
.bottom_up = false,
.current_limit = MEMBLOCK_ALLOC_ANYWHERE,
};
Here we can see initialization of the memblock structure which has the same name as structure - memblock. First of all note the __initdata_memblock. Definition of this macro looks like:
#ifdef CONFIG_ARCH_DISCARD_MEMBLOCK
#define __init_memblock __meminit
#define __initdata_memblock __meminitdata
#else
#define __init_memblock
#define __initdata_memblock
#endif
You can see that it depends on CONFIG_ARCH_DISCARD_MEMBLOCK. If this configuration option is enabled, memblock code will be put into the .init section and will be released after the kernel is booted up.
Next we can see the initialization of the memblock_type memory, memblock_type reserved and memblock_type physmem fields of the memblock structure. Here we are interested only in the memblock_type.regions initialization process. Note that every memblock_type field is initialized by and array of memblock_regions:
static struct memblock_region memblock_memory_init_regions[INIT_MEMBLOCK_REGIONS] __initdata_memblock;
static struct memblock_region memblock_reserved_init_regions[INIT_MEMBLOCK_REGIONS] __initdata_memblock;
#ifdef CONFIG_HAVE_MEMBLOCK_PHYS_MAP
static struct memblock_region memblock_physmem_init_regions[INIT_PHYSMEM_REGIONS] __initdata_memblock;
#endif
Every array contains 128 memory regions. We can see it in the INIT_MEMBLOCK_REGIONS macro definition:
#define INIT_MEMBLOCK_REGIONS 128
Note that all arrays are also defined with the __initdata_memblock macro which we already saw in the memblock structure initialization (read above if you’ve forgotten).
The last two fields describe that bottom_up allocation is disabled and the limit of the current Memblock is:
#define MEMBLOCK_ALLOC_ANYWHERE (~(phys_addr_t)0)
which is 0xffffffffffffffff.
On this step the initialization of the memblock structure has been finished and we can have a look at the Memblock API.
Memblock API
Ok we have finished with the initialization of the memblock structure and now we can look at the Memblock API and its implementation. As I said above, the implementation of memblock is taking place fully in mm/memblock.c. To understand how memblock works and how it is implemented, let’s look at its usage first. There are a couple of places in the linux kernel where memblock is used. For example let’s take memblock_x86_fill function from the arch/x86/kernel/e820.c. This function goes through the memory map provided by the e820 and adds memory regions reserved by the kernel to the memblock with the memblock_add function. Since we have met the memblock_add function first, let’s start from it.
This function takes a physical base address and the size of the memory region as arguments and add them to the memblock. The memblock_add function does not do anything special in its body, but just calls the:
memblock_add_range(&memblock.memory, base, size, MAX_NUMNODES, 0);
function. We pass the memory block type - memory, the physical base address and the size of the memory region, the maximum number of nodes which is 1 if CONFIG_NODES_SHIFT is not set in the configuration file or 1 << CONFIG_NODES_SHIFT if it is set, and the flags. The memblock_add_range function adds a new memory region to the memory block. It starts by checking the size of the given region and if it is zero it just returns. After this, memblock_add_range checks the existence of the memory regions in the memblock structure with the given memblock_type. If there are no memory regions, we just fill a new memory_region with the given values and return (we already saw the implementation of this in the First touch of the linux kernel memory manager framework). If memblock_type is not empty, we start to add a new memory region to the memblock with the given memblock_type.
First of all we get the end of the memory region with the:
phys_addr_t end = base + memblock_cap_size(base, &size);
memblock_cap_size adjusts size that base + size will not overflow. Its implementation is pretty easy:
static inline phys_addr_t memblock_cap_size(phys_addr_t base, phys_addr_t *size)
{
return *size = min(*size, (phys_addr_t)ULLONG_MAX - base);
}
memblock_cap_size returns the new size which is the smallest value between the given size and ULLONG_MAX - base.
After that we have the end address of the new memory region, memblock_add_range checks for overlap and merge conditions with memory regions that have been added before. Insertion of the new memory region to the memblock consists of two steps:
- Adding of non-overlapping parts of the new memory area as separate regions;
- Merging of all neighboring regions.
We are going through all the already stored memory regions and checking for overlap with the new region:
for (i = 0; i < type->cnt; i++) {
struct memblock_region *rgn = &type->regions[i];
phys_addr_t rbase = rgn->base;
phys_addr_t rend = rbase + rgn->size;
if (rbase >= end)
break;
if (rend <= base)
continue;
...
...
...
}
If the new memory region does not overlap with regions which are already stored in the memblock, insert this region into the memblock with and this is first step, we check if the new region can fit into the memory block and call memblock_double_array in another way:
while (type->cnt + nr_new > type->max)
if (memblock_double_array(type, obase, size) < 0)
return -ENOMEM;
insert = true;
goto repeat;
memblock_double_array doubles the size of the given regions array. Then we set insert to true and go to the repeat label. In the second step, starting from the repeat label we go through the same loop and insert the current memory region into the memory block with the memblock_insert_region function:
if (base < end) {
nr_new++;
if (insert)
memblock_insert_region(type, i, base, end - base,
nid, flags);
}
Since we set insert to true in the first step, now memblock_insert_region will be called. memblock_insert_region has almost the same implementation that we saw when we inserted a new region to the empty memblock_type (see above). This function gets the last memory region:
struct memblock_region *rgn = &type->regions[idx];
and copies the memory area with memmove:
memmove(rgn + 1, rgn, (type->cnt - idx) * sizeof(*rgn));
After this fills memblock_region fields of the new memory region base, size, etc. and increases size of the memblock_type. In the end of the execution, memblock_add_range calls memblock_merge_regions which merges neighboring compatible regions in the second step.
In the second case the new memory region can overlap already stored regions. For example we already have region1 in the memblock:
0 0x1000
+-----------------------+
| |
| |
| region1 |
| |
| |
+-----------------------+
And now we want to add region2 to the memblock with the following base address and size:
0x100 0x2000
+-----------------------+
| |
| |
| region2 |
| |
| |
+-----------------------+
In this case set the base address of the new memory region as the end address of the overlapped region with:
base = min(rend, end);
So it will be 0x1000 in our case. And insert it as we did it already in the second step with:
if (base < end) {
nr_new++;
if (insert)
memblock_insert_region(type, i, base, end - base, nid, flags);
}
In this case we insert overlapping portion (we insert only the higher portion, because the lower portion is already in the overlapped memory region), then the remaining portion and merge these portions with memblock_merge_regions. As I said above memblock_merge_regions function merges neighboring compatible regions. It goes through all memory regions from the given memblock_type, takes two neighboring memory regions - type->regions[i] and type->regions[i + 1] and checks that these regions have the same flags, belong to the same node and that the end address of the first regions is not equal to the base address of the second region:
while (i < type->cnt - 1) {
struct memblock_region *this = &type->regions[i];
struct memblock_region *next = &type->regions[i + 1];
if (this->base + this->size != next->base ||
memblock_get_region_node(this) !=
memblock_get_region_node(next) ||
this->flags != next->flags) {
BUG_ON(this->base + this->size > next->base);
i++;
continue;
}
If none of these conditions are true, we update the size of the first region with the size of the next region:
this->size += next->size;
As we update the size of the first memory region with the size of the next memory region, we move all memory regions which are after the (next) memory region one index backwards with the memmove function:
memmove(next, next + 1, (type->cnt - (i + 2)) * sizeof(*next));
The memmove here moves all regions which are located after the next region to the base address of the next region. In the end we just decrease the count of the memory regions which belong to the memblock_type:
type->cnt--;
After this we will get two memory regions merged into one:
0 0x2000
+------------------------------------------------+
| |
| |
| region1 |
| |
| |
+------------------------------------------------+
As we decreased counts of regions in a memblock with certain type, increased size of the this region and shifted all regions which are located after next region to its place.
That’s all. This is the whole principle of the work of the memblock_add_range function.
There is also memblock_reserve function which does the same as memblock_add, but with one difference. It stores memblock_type.reserved in the memblock instead of memblock_type.memory.
Of course this is not the full API. Memblock provides APIs not only for adding memory and reserved memory regions, but also:
- memblock_remove - removes memory region from memblock;
- memblock_find_in_range - finds free area in given range;
- memblock_free - releases memory region in memblock;
- for_each_mem_range - iterates through memblock areas.
and many more…
Getting info about memory regions
Memblock also provides an API for getting information about allocated memory regions in the memblock. It is split in two parts:
- get_allocated_memblock_memory_regions_info - getting info about memory regions;
- get_allocated_memblock_reserved_regions_info - getting info about reserved regions.
Implementation of these functions is easy. Let’s look at get_allocated_memblock_reserved_regions_info for example:
phys_addr_t __init_memblock get_allocated_memblock_reserved_regions_info(
phys_addr_t *addr)
{
if (memblock.reserved.regions == memblock_reserved_init_regions)
return 0;
*addr = __pa(memblock.reserved.regions);
return PAGE_ALIGN(sizeof(struct memblock_region) *
memblock.reserved.max);
}
First of all this function checks that memblock contains reserved memory regions. If memblock does not contain reserved memory regions we just return zero. Otherwise we write the physical address of the reserved memory regions array to the given address and return aligned size of the allocated array. Note that there is PAGE_ALIGN macro used for align. Actually it depends on size of page:
#define PAGE_ALIGN(addr) ALIGN(addr, PAGE_SIZE)
Implementation of the get_allocated_memblock_memory_regions_info function is the same. It has only one difference, memblock_type.memory used instead of memblock_type.reserved.
Memblock debugging
There are many calls to memblock_dbg in the memblock implementation. If you pass the memblock=debug option to the kernel command line, this function will be called. Actually memblock_dbg is just a macro which expands to printk:
#define memblock_dbg(fmt, ...) \
if (memblock_debug) printk(KERN_INFO pr_fmt(fmt), ##__VA_ARGS__)
For example you can see a call of this macro in the memblock_reserve function:
memblock_dbg("memblock_reserve: [%#016llx-%#016llx] flags %#02lx %pF\n",
(unsigned long long)base,
(unsigned long long)base + size - 1,
flags, (void *)_RET_IP_);
And you will see something like this:
Memblock also has support in debugfs. If you run the kernel on another architecture than X86 you can access:
- /sys/kernel/debug/memblock/memory
- /sys/kernel/debug/memblock/reserved
- /sys/kernel/debug/memblock/physmem
to get a dump of the memblock contents.
Conclusion
This is the end of the first part about linux kernel memory management. If you have questions or suggestions, ping me on twitter 0xAX, drop me an email or just create an issue.
Please note that English is not my first language and I am really sorry for any inconvenience. If you found any mistakes please send me a PR to linux-insides.
扫一扫
3137
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
