Docker Net 网络命名

C:\Users\Administrator\AppData\Roaming\Typora\typora-user-images\image-20200324175528289.png

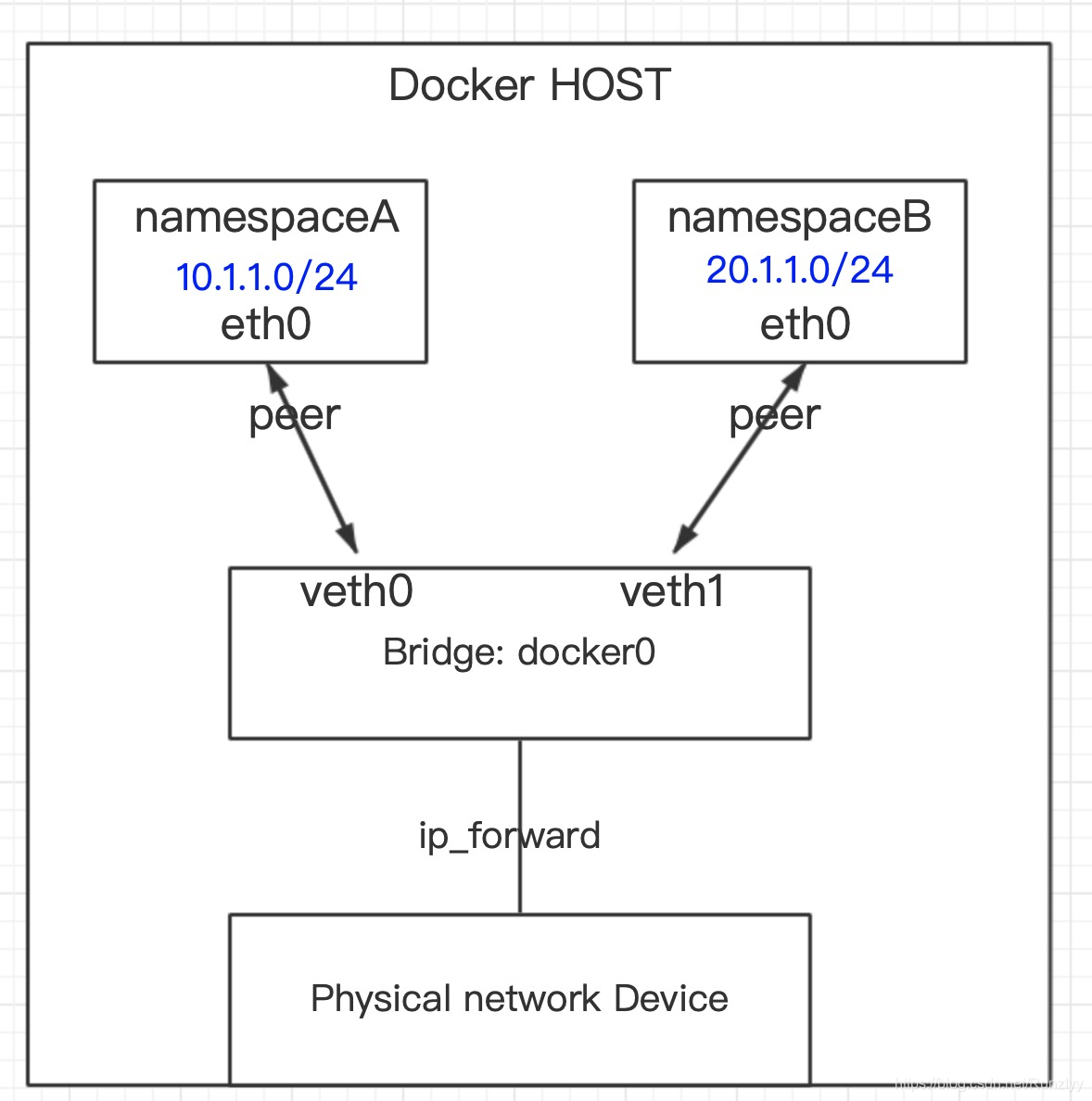

  • 两个命名空间可以实现,不同网段访问

1. 创建命名空间

  • test_a
 ip netns add test_a
  • test_b
 ip netns add test_b

2. 开启网络设备

  • test_a
ip netns exec test_a ip link set dev lo up
  • test_b
ip netns exec test_b ip link set dev lo up

3. 创建网卡

ip link add veth0 type veth peer name veth1
  • 给 test_a 命名空间分配一个
ip link set veth1 netns test_a
ip link add veth2 type veth peer name veth1
  • 给 test_b 命名空间分配一个
ip link set veth1 netns test_b

4) 设置IP地址

  • test_a
[root@localhost ~]# ip netns exec test_a ifconfig veth1 10.1.1.1/24 up
[root@localhost ~]# ifconfig veth0 10.1.1.2/24 up
[root@localhost ~]# ping 10.1.1.1
  • test_b
[root@localhost ~]# ip netns exec test_b ifconfig veth1 20.1.1.1/24 up
[root@localhost ~]# ifconfig veth2 20.1.1.2/24 up

5) 为其设置网关

  • test_a
ip netns exec test_a route add default gw 10.1.1.2
  • test_b
ip netns exec test_b route add default gw 20.1.1.2

6) 开启路由转发

[root@localhost ~]# vim /etc/sysctl.conf
[root@localhost ~]# sysctl -p
net.ipv4.ip_forward = 1
开启路由转发
[root@localhost ~]# vim /etc/sysctl.conf
[root@localhost ~]# sysctl -p
net.ipv4.ip_forward = 1
