iOS - 音频AAC编码

版权声明:本文为博主原创文章,遵循 CC 4.0 BY-SA 版权协议,转载请附上原文出处链接和本声明。
本文链接:https://blog.csdn.net/SSY_1992/article/details/79726957

开发中通常会遇到的音频流的处理,我们知道从苹果设备麦克风上面获取的声音是驳杂的,我们利用原生框架<AVFoundation/AVFoundation.h>可以把音频源经过PCM编码后得到音频裸流,这个音频流理论上你也可以在网络上传输(推流),但是这个裸流内容量太大,不仅传输慢,而且服务器承受不了。这时候我们就需要将其编码,进而引入AAC高级音频编码!

1、PCM编码

通常我们采用的是脉冲代码调制编码,即PCM编码。PCM通过抽样、量化、编码三个步骤将连续变化的模拟信号转换为数字编码。

抽样:对模拟信号进行周期性扫描,把时间上连续的信号变成时间上离散的信号;
量化:用一组规定的电平,把瞬时抽样值用最接近的电平值来表示,通常是用二进制表示;
编码:用一组二进制码组来表示每一个有固定电平的量化值;

采样后的数据大小 = 采样率值×采样大小值×声道数 bps。
一个采样率为44.1KHz,采样大小为16bit,双声道的PCM编码的WAV文件,它的数据速率=44.1K×16×2 bps=1411.2 Kbps= 176.4 KB/s。
这个速率和压缩后的视频数据速率差不多!
延伸出来AAC高级音频编码。

2、AAC高级音频编码

AAC(Advanced Audio Coding),中文名:高级音频编码,出现于1997年,基于MPEG-2的音频编码技术。由Fraunhofer IIS、杜比实验室、AT&T、Sony等公司共同开发,目的是取代MP3格式。更具体的可以看看AAC的维基百科

3、AAC音频格式

AAC音频格式有ADIFADTS

ADIF:Audio Data Interchange Format 音频数据交换格式。这种格式的特征是可以确定的找到这个音频数据的开始,不需进行在音频数据流中间开始的解码,即它的解码必须在明确定义的开始处进行。故这种格式常用在磁盘文件中。
ADTS:Audio Data Transport Stream 音频数据传输流。这种格式的特征是它是一个有同步字的比特流,解码可以在这个流中任何位置开始,更利于网络传输。它的特征类似于mp3数据流格式。

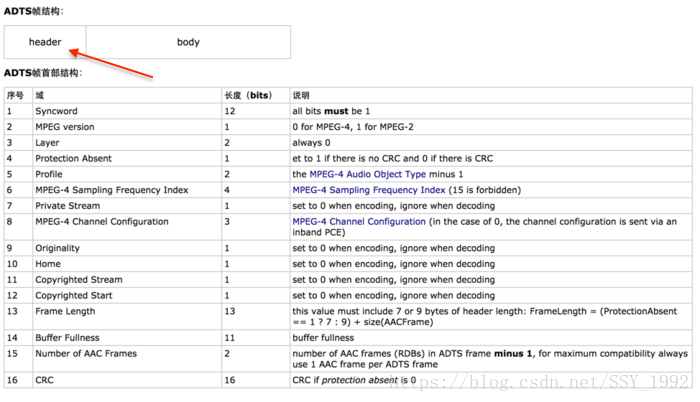

这里写图片描述

4、iOS上把PCM音频编码成AAC音频流

1.设置编码器(codec),并开始录制;
2.收集到PCM数据,传给编码器;
3.编码完成回调callback,写入文件。

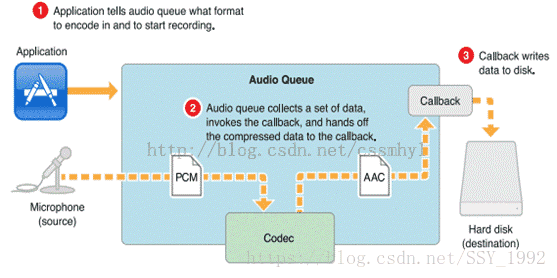

这里写图片描述

具体实现步骤:

ViewController.m

1.创建文件夹句柄

#pragma mark 创建文件夹句柄
- (void)createFileToDocument{
    NSString *audioFile = [[NSSearchPathForDirectoriesInDomains(NSDocumentDirectory, NSUserDomainMask, YES) lastObject] stringByAppendingPathComponent:@"abc.aac"];
    // 有就移除掉
    [[NSFileManager defaultManager] removeItemAtPath:audioFile error:nil];
    // 移除之后再创建
    [[NSFileManager defaultManager] createFileAtPath:audioFile contents:nil attributes:nil];
    self.audioFileHandle = [NSFileHandle fileHandleForWritingAtPath:audioFile];
}

2.创建并配置AVCaptureSession

#pragma mark - 设置音频
- (void)setupAudioCapture {

    self.aacEncoder = [[AACEncoder alloc] init];

    self.session = [[AVCaptureSession alloc] init];

    AVCaptureDevice *audioDevice = [AVCaptureDevice defaultDeviceWithMediaType:AVMediaTypeAudio];

    NSError *error = nil;
    AVCaptureDeviceInput *audioInput = [[AVCaptureDeviceInput alloc]initWithDevice:audioDevice error:&error];
    if (error) {
        NSLog(@"Error getting audio input device:%@",error.description);
    }

    if ([self.session canAddInput:audioInput]) {
        [self.session addInput:audioInput];
    }

    self.AudioQueue = dispatch_queue_create("Audio Capture Queue", DISPATCH_QUEUE_SERIAL);

    AVCaptureAudioDataOutput *audioOutput = [AVCaptureAudioDataOutput new];
    [audioOutput setSampleBufferDelegate:self queue:self.AudioQueue];

    if ([self.session canAddOutput:audioOutput]) {
        [self.session addOutput:audioOutput];
    }

    self.audioConnection = [audioOutput connectionWithMediaType:AVMediaTypeAudio];
}

3.接收到外界音频后回调代理方法

#pragma mark - 实现 AVCaptureOutputDelegate:
- (void)captureOutput:(AVCaptureOutput *)captureOutput didOutputSampleBuffer:(CMSampleBufferRef)sampleBuffer fromConnection:(AVCaptureConnection *)connection {

    if (connection == _audioConnection)
    {
        // 音频
        [self.aacEncoder encodeSampleBuffer:sampleBuffer completionBlock:^(NSData *encodedData, NSError *error) {
            if (encodedData) {
                //NSLog(@"Audio data (%lu):%@", (unsigned long)encodedData.length,encodedData.description);
                [self.audioFileHandle writeData:encodedData];
            }else {
                NSLog(@"Error encoding AAC: %@", error);
            }
        }];
    }else{
        // 视频
    }
}

AACEncoder.m

4、创建转换器

AudioStreamBasicDescription是输出流的结构体描述,
配置好outAudioStreamBasicDescription后,
根据AudioClassDescription(编码器),
调用AudioConverterNewSpecific创建转换器。

- (void) setupEncoderFromSampleBuffer:(CMSampleBufferRef)sampleBuffer {

    AudioStreamBasicDescription inAudioStreamBasicDescription = *CMAudioFormatDescriptionGetStreamBasicDescription((CMAudioFormatDescriptionRef)CMSampleBufferGetFormatDescription(sampleBuffer));

    AudioStreamBasicDescription outAudioStreamBasicDescription = {0}; // 初始化输出流的结构体描述为0. 很重要。
    outAudioStreamBasicDescription.mSampleRate = inAudioStreamBasicDescription.mSampleRate; // 音频流,在正常播放情况下的帧率。如果是压缩的格式,这个属性表示解压缩后的帧率。帧率不能为0。
    outAudioStreamBasicDescription.mFormatID = kAudioFormatMPEG4AAC; // 设置编码格式
    outAudioStreamBasicDescription.mFormatFlags = kMPEG4Object_AAC_LC; // 无损编码 ,0表示没有
    outAudioStreamBasicDescription.mBytesPerPacket = 0; // 每一个packet的音频数据大小。如果的动态大小,设置为0。动态大小的格式,需要用AudioStreamPacketDescription 来确定每个packet的大小。
    outAudioStreamBasicDescription.mFramesPerPacket = 1024; // 每个packet的帧数。如果是未压缩的音频数据,值是1。动态帧率格式,这个值是一个较大的固定数字,比如说AAC的1024。如果是动态大小帧数(比如Ogg格式)设置为0。
    outAudioStreamBasicDescription.mBytesPerFrame = 0; //  每帧的大小。每一帧的起始点到下一帧的起始点。如果是压缩格式,设置为0 。
    outAudioStreamBasicDescription.mChannelsPerFrame = 1; // 声道数
    outAudioStreamBasicDescription.mBitsPerChannel = 0; // 压缩格式设置为0
    outAudioStreamBasicDescription.mReserved = 0; // 8字节对齐,填0.
    AudioClassDescription *description = [self
                                          getAudioClassDescriptionWithType:kAudioFormatMPEG4AAC
                                          fromManufacturer:kAppleSoftwareAudioCodecManufacturer]; //软编

    OSStatus status = AudioConverterNewSpecific(&inAudioStreamBasicDescription, &outAudioStreamBasicDescription, 1, description, &_audioConverter); // 创建转换器
    if (status != 0) {
        NSLog(@"setup converter: %d", (int)status);
    }
}

获取编码器的方法

- (AudioClassDescription *)getAudioClassDescriptionWithType:(UInt32)type
                                           fromManufacturer:(UInt32)manufacturer
{
    static AudioClassDescription desc;

    UInt32 encoderSpecifier = type;
    OSStatus st;

    UInt32 size;
    st = AudioFormatGetPropertyInfo(kAudioFormatProperty_Encoders,
                                    sizeof(encoderSpecifier),
                                    &encoderSpecifier,
                                    &size);
    if (st) {
        NSLog(@"error getting audio format propery info: %d", (int)(st));
        return nil;
    }

    unsigned int count = size / sizeof(AudioClassDescription);
    AudioClassDescription descriptions[count];
    st = AudioFormatGetProperty(kAudioFormatProperty_Encoders,
                                sizeof(encoderSpecifier),
                                &encoderSpecifier,
                                &size,
                                descriptions);
    if (st) {
        NSLog(@"error getting audio format propery: %d", (int)(st));
        return nil;
    }

    for (unsigned int i = 0; i < count; i++) {
        if ((type == descriptions[i].mSubType) &&
            (manufacturer == descriptions[i].mManufacturer)) {
            memcpy(&desc, &(descriptions[i]), sizeof(desc));
            return &desc;
        }
    }

    return nil;
}

5、获取到PCM数据并传入编码器

CMSampleBufferGetDataBuffer获取到CMSampleBufferRef里面的CMBlockBufferRef,
再通过CMBlockBufferGetDataPointer获取到_pcmBufferSize和_pcmBuffer;
调用AudioConverterFillComplexBuffer传入数据,并在callBack函数调用填充buffer的方法。

- (void) encodeSampleBuffer:(CMSampleBufferRef)sampleBuffer completionBlock:(void (^)(NSData * encodedData, NSError* error))completionBlock {
    CFRetain(sampleBuffer);
    dispatch_async(_encoderQueue, ^{
        if (!_audioConverter) {
            [self setupEncoderFromSampleBuffer:sampleBuffer];
        }
        CMBlockBufferRef blockBuffer = CMSampleBufferGetDataBuffer(sampleBuffer);
        CFRetain(blockBuffer);
        OSStatus status = CMBlockBufferGetDataPointer(blockBuffer, 0, NULL, &_pcmBufferSize, &_pcmBuffer);
        NSError *error = nil;
        if (status != kCMBlockBufferNoErr) {
            error = [NSError errorWithDomain:NSOSStatusErrorDomain code:status userInfo:nil];
        }
        //NSLog(@"PCM Buffer Size: %zu", _pcmBufferSize);

        memset(_aacBuffer, 0, _aacBufferSize);
        AudioBufferList outAudioBufferList = {0};
        outAudioBufferList.mNumberBuffers = 1;
        outAudioBufferList.mBuffers[0].mNumberChannels = 1;
        outAudioBufferList.mBuffers[0].mDataByteSize = (int)_aacBufferSize;
        outAudioBufferList.mBuffers[0].mData = _aacBuffer;
        AudioStreamPacketDescription *outPacketDescription = NULL;
        UInt32 ioOutputDataPacketSize = 1;
        status = AudioConverterFillComplexBuffer(_audioConverter, inInputDataProc, (__bridge void *)(self), &ioOutputDataPacketSize, &outAudioBufferList, outPacketDescription);
        //NSLog(@"ioOutputDataPacketSize: %d", (unsigned int)ioOutputDataPacketSize);
        NSData *data = nil;
        if (status == 0) {
            NSData *rawAAC = [NSData dataWithBytes:outAudioBufferList.mBuffers[0].mData length:outAudioBufferList.mBuffers[0].mDataByteSize];
            NSData *adtsHeader = [self adtsDataForPacketLength:rawAAC.length];
            NSMutableData *fullData = [NSMutableData dataWithData:adtsHeader];
            [fullData appendData:rawAAC];
            data = fullData;
        } else {
            error = [NSError errorWithDomain:NSOSStatusErrorDomain code:status userInfo:nil];
        }
        if (completionBlock) {
            dispatch_async(_callbackQueue, ^{
                completionBlock(data, error);
            });
        }
        CFRelease(sampleBuffer);
        CFRelease(blockBuffer);
    });
}

Callback函数

static OSStatus inInputDataProc(AudioConverterRef inAudioConverter, UInt32 *ioNumberDataPackets, AudioBufferList *ioData, AudioStreamPacketDescription **outDataPacketDescription, void *inUserData)
{
    AACEncoder *encoder = (__bridge AACEncoder *)(inUserData);
    UInt32 requestedPackets = *ioNumberDataPackets;
    //NSLog(@"Number of packets requested: %d", (unsigned int)requestedPackets);
    size_t copiedSamples = [encoder copyPCMSamplesIntoBuffer:ioData];
    if (copiedSamples < requestedPackets) {
        //NSLog(@"PCM buffer isn't full enough!");
        *ioNumberDataPackets = 0;
        return -1;
    }
    *ioNumberDataPackets = 1;
    //NSLog(@"Copied %zu samples into ioData", copiedSamples);
    return noErr;
}

/**
 *  填充PCM到缓冲区
 */
- (size_t) copyPCMSamplesIntoBuffer:(AudioBufferList*)ioData {
    size_t originalBufferSize = _pcmBufferSize;
    if (!originalBufferSize) {
        return 0;
    }
    ioData->mBuffers[0].mData = _pcmBuffer;
    ioData->mBuffers[0].mDataByteSize = (int)_pcmBufferSize;
    _pcmBuffer = NULL;
    _pcmBufferSize = 0;
    return originalBufferSize;
}

6、得到rawAAC码流,添加ADTS头,并写入文件

AudioConverterFillComplexBuffer返回的是AAC原始码流,需要在AAC每帧添加ADTS头,调用adtsDataForPacketLength方法生成,最后把数据写入audioFileHandle的文件。

/**
 *  Add ADTS header at the beginning of each and every AAC packet.
 *  This is needed as MediaCodec encoder generates a packet of raw
 *  AAC data.
 *
 *  Note the packetLen must count in the ADTS header itself.
 *  See: http://wiki.multimedia.cx/index.php?title=ADTS
 *  Also: http://wiki.multimedia.cx/index.php?title=MPEG-4_Audio#Channel_Configurations
 **/
- (NSData*) adtsDataForPacketLength:(NSUInteger)packetLength {
    int adtsLength = 7;
    char *packet = malloc(sizeof(char) * adtsLength);
    // Variables Recycled by addADTStoPacket
    int profile = 2;  //AAC LC
    //39=MediaCodecInfo.CodecProfileLevel.AACObjectELD;
    int freqIdx = 4;  //44.1KHz
    int chanCfg = 1;  //MPEG-4 Audio Channel Configuration. 1 Channel front-center
    NSUInteger fullLength = adtsLength + packetLength;
    // fill in ADTS data
    packet[0] = (char)0xFF; // 11111111     = syncword
    packet[1] = (char)0xF9; // 1111 1 00 1  = syncword MPEG-2 Layer CRC
    packet[2] = (char)(((profile-1)<<6) + (freqIdx<<2) +(chanCfg>>2));
    packet[3] = (char)(((chanCfg&3)<<6) + (fullLength>>11));
    packet[4] = (char)((fullLength&0x7FF) >> 3);
    packet[5] = (char)(((fullLength&7)<<5) + 0x1F);
    packet[6] = (char)0xFC;
    NSData *data = [NSData dataWithBytesNoCopy:packet length:adtsLength freeWhenDone:YES];
    return data;
}

到这里基本上就实现了从麦克风录制音频并编码成AAC码流,代码实现起来不难,大都可以在网上找到,但是想要深究的话。还是需要细细的琢磨,要熟悉C语言才能更好的理解。这里感谢简书的落影loyinglin大牛,他对音视频编解码以及OpenGL都有很深的理解,值得学习!

Demo下载地址
