教程原文在这里Tutorial,这篇文章中用LSTM实现了一个简单的词类标注模型。下面是一些具体的解析:
# Author: Robert Guthrie
import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim
torch.manual_seed(1)
# 引用库函数
我们首先了解如何初始化一个nn.LSTM实例, 以及它的输入输出。初始化nn.LSTM实例, 可以设定的参数如下:
常用的是前两个,用来描述LSTM输入的词向量维度和输出的向量的维度(与hidden state相同),其中num_layer指的是这样的结构:
这种称作stacked LSTM,如上就是两层LSTM堆叠起来。bi-direction指的是双向,双向的LSTM会从正反两个方向读句子,依次输入词向量, 两个方向的hidden state也并不是公共的,如下图:
对应到下面代码的第一行,就是创建了一个输入输出的维度均为3、单层单向的LSTM网络。
lstm = nn.LSTM(3, 3) # Input dim is 3, output dim is 3
inputs = [torch.randn(1, 3) for _ in range(5)] # make a sequence of length 5

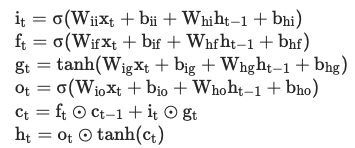

这个网络的输入输出怎么样呢?LSTM的基本功能是接收一个句子(一个词向量序列),从第一个词开始逐个后移,移到每一个词的时候,根据hidden state、cell state以及当前的词向量计算输出,并更新hidden state 和cell state,因此输入首先是一个词向量列,同时也可以设定一开始的hidden state和cell state,如果不设定那就自动初始化为0。而输出有三个,一个是每一步的输出构成的序列,这里每一个输出对应句子中的每一个词,第二个输出是最后的hidden state,第三个则是最后的cell state,具体的输入输出如下图:
# initialize the hidden state.
hidden = (torch.randn(1, 1, 3),
torch.randn(1, 1, 3))
for i in inputs:
# Step through the sequence one element at a time.
# after each step, hidden contains the hidden state.
out, hidden = lstm(i.view(1, 1, -1), hidden)
# alternatively, we can do the entire sequence all at once.
# the first value returned by LSTM is all of the hidden states throughout
# the sequence. the second is just the most recent hidden state
# (compare the last slice of "out" with "hidden" below, they are the same)
# The reason for this is that:
# "out" will give you access to all hidden states in the sequence
# "hidden" will allow you to continue the sequence and backpropagate,
# by passing it as an argument to the lstm at a later time
# Add the extra 2nd dimension
inputs = torch
