SparkContext应用：rdd算子 SQL练习，from hdfs to mysql

本文主要讲解应用SparkContext从hdfs上获取数据，做搜索，结果传到mysql上的过程！

一、应用scala编程，批处理上传数据到hdfs上

1.1.在maven工程的同目录小创建config目录，在下面在创建datasource.properties配置文件config/datasource.properties配置文件的内容为：

mysql.driver=com.mysql.jdbc.Driver
mysql.url=jdbc:mysql://192.168.43.200:3306/test?useSSL=true&useUnicode=true&characterEncoding=utf-8
mysql.username=root
mysql.password=ok

1.2.创建/util/common，/util/mysql目录结构。

1.3.在common下写配置文件

import java.io._
import java.util.Properties
import java.util.concurrent.{ConcurrentHashMap, ConcurrentMap}

import cn.kgc.util.common.Config._

class Config{
  private var path:String = _
  protected def _getPath:String = path

  protected def _init(conf:Properties)(configPath:String)(f:()=>Unit = ()=>{})(createIfNotExist:Boolean=false):Unit = {
    path = Config.init(conf)(configPath)(f)(createIfNotExist)
  }

  protected def _serialize(map:ConcurrentMap[String,Int], path:String="config/serialize.log"):String = {
    val _path = s"${configRoot()}/$path"
    serialize(map)(_path)
  }

  protected def _deserialize(path:String = "config/serialize.log"):ConcurrentMap[String,Int] = {
    val _path = s"${configRoot()}/$path"
    deserialize(_path)
  }

  protected def _close(closes:AutoCloseable*) = {
    close(closes)
  }

}

object Config {
  protected def close(closes:Seq[AutoCloseable]):Unit
= closes.filterNot(null == _).foreach(close => {
    try {
      close.close()
    } catch {
      case e:Throwable => e.printStackTrace()
    }
  })

  protected def configRoot()={
    val path = Thread.currentThread()
      .getContextClassLoader
      .getResource("")
      .getPath
    new File(path)
      .getParentFile
      .getParentFile
      .getParentFile
      .getAbsolutePath
  }

  protected def init(conf: Properties)(configPath:String)(f:()=>Unit)(createIfNotExist:Boolean):String = {
    var path = ""
    try {
      path = configRoot()
      path = s"$path/$configPath"
      if(createIfNotExist){
        val file = new File(path)
        val dir = file.getParentFile
        if(!dir.exists()){
          dir.mkdirs()
        }
        if(!file.exists()){
          file.createNewFile()
        }
      }
      conf.load(new FileReader(path))
      f()
    } catch {
      case e: Throwable => {
        println(e.getMessage)
        System.exit(-1)
      }
    }
    path
  }

  //序列化
  protected def serialize(map:ConcurrentMap[String,Int])(path:String):String ={
    if(null != map && !map.isEmpty){
      var fis:FileOutputStream = null
      var oos:ObjectOutputStream = null
      try {
        fis = new FileOutputStream(path)
        oos = new ObjectOutputStream(fis)
        oos.writeObject(map)
      } catch {
        case e:Throwable => e.printStackTrace()
      } finally {
        close(Seq(oos,fis))
      }
    }
    path
  }

  //反序列化
  protected def deserialize(path:String):ConcurrentMap[String,Int] = {
    var fis : FileInputStream = null
    var ois : ObjectInputStream = null
    try {
      fis = new FileInputStream(path)
      ois = new ObjectInputStream(fis)
      ois.readObject().asInstanceOf[ConcurrentMap[String,Int]]
    } catch {
      case e:Throwable => {
        println(e.getMessage)
        new ConcurrentHashMap[String,Int]()
      }
    } finally {
      close(Seq(ois,fis))
    }
  }
}

1.4创建特质：（为了做批处理用的）

trait Batch {
  def init(sql:String, batchSize:Int):Unit
  def addBatch(params:Any*):Unit
  def close:Long

}

1.5在mysql下创建MySqlDao类（MySqlDao.scala）

import java.sql.{Connection, DriverManager, PreparedStatement, ResultSet}
import java.util.Properties

import cn.kgc.util.common.Config

import scala.collection.mutable.ArrayBuffer
import scala.reflect.ClassTag

/**
 * scala -> mysql
 */

class MySqlDao(path:String) extends Config {
  private val _conf:Properties = new Properties()
  private var driver:String = _
  private var url:String = _
  private var username:String = _
  private var password:String = _
  init(path)

  //解析配置文件：E:/Projects/scala/config/datasource.properties
  private def init(path:String):Unit = {
    _init(_conf)(path)(()=>{
        driver = _conf.getProperty("mysql.driver")
        url = _conf.getProperty("mysql.url")
        username = _conf.getProperty("mysql.username")
        password = _conf.getProperty("mysql.password")
        if(null==driver || null==url || null==username || null==password){
          throw new NullPointerException("Null for driver or url or username or password")
        }
        Class.forName(driver)  //加载驱动
    })()
  }


  //获取链接
  private def getCon:Connection
  = DriverManager.getConnection(url,username,password)

  private def getPst(con:Connection, sql:String, params:Seq[Any]=Seq())(implicit batched:Boolean = false):PreparedStatement
  = {
    val pst = con.prepareStatement(sql)
    if(!batched){
      if(!params.isEmpty){
        params.zipWithIndex.foreach(tp2=>{
          pst.setObject(tp2._2 + 1, tp2._1)
        })
      }
    }
    pst
  }



  //执行增，删，改
  def update(sql:String, params:Any*):Option[Int] = {
    var opt:Option[Int] = None
    var con:Connection = null
    var pst:PreparedStatement = null
    try{
      con = getCon
      pst = getPst(con, sql, params)
      opt = Some(pst.executeUpdate())
    }catch{
      case e:Throwable => println(e.getMessage)
    }finally{
      _close(pst, con)
    }
    opt
  }

  //批处理
  def exeBatch(sql:String,params:ArrayBuffer[Any])(f:()=>Int):Either[String,Int] = {
    var rtn:Either[String,Int] = Left("UNKNOWN")
    var con:Connection = null
    var pst:PreparedStatement = null

    //sql中的？数量，也就是列的数量
    val FIELD_COUNT:Int = sql.split("\\?").size - 1
    val ONE_BATCH:Int = f()*FIELD_COUNT

    //批处理方法
    def exe():Int = {
      val sum = pst.executeBatch.sum
      pst.clearBatch
      sum
    }

    //单批次处理
    def fill(seq:Seq[Any]):Int = {
      val ixs:Seq[Int] = 0 until FIELD_COUNT
      //按行滚动
      seq
        .sliding(FIELD_COUNT,FIELD_COUNT)
        .foreach(seq=>{
          //向执行者传参
          ixs.foreach(ix=>pst.setObject(ix+1, seq(ix)))
          //将当前行添加到当前批次中
          pst.addBatch()
        })
      exe()
    }

    implicit val batched:Boolean = true
    try {
      con = getCon
      pst = getPst(con,sql)
      rtn = Right(
        params
          //按批次行滚动
        .sliding(ONE_BATCH, ONE_BATCH)
          //按批次执行并返回每个批次执行成功数量
        .map(fill)
          //累加所有执行成功的数量
        .sum
      )
    } catch {
      case e:Throwable => rtn = Left(e.getMessage)
    } finally {
      _close(pst, con)
    }
    rtn
  }

  //Batch特质内部类实现
  def createBatch():Batch = {
    new Batch {
      private var con:Connection = null
      private var pst:PreparedStatement = null
      private var _batchSize:Int = 0
      private var batchCount = 0
      private var affectedRows:Long = 0

      override def init(sql:String, batchSize:Int): Unit = {
        con = getCon
        pst = getPst(con, sql)
        _batchSize = batchSize
      }

      private def exe(forced:Boolean = false): Unit = {
        if (forced || batchCount % _batchSize == 0) {
          affectedRows += pst.executeBatch().sum
          pst.clearBatch()
        }
      }

      override def addBatch(params: Any*): Unit = {
        params
          .zipWithIndex
          .foreach(tp2 => pst.setObject(tp2._2 + 1, tp2._1))
        pst.addBatch()
        batchCount += 1
        exe()
      }

      override def close: Long = {
        exe(true)
        _close(pst, con)
        affectedRows
      }
    }
  }

  //执行查询
     //class[T]静态类型：编译时有效，classTag[T] 动态类型：运行时有效
  def select[T:ClassTag](f:Array[String]=>T)(sql:String, params:Any*)(implicit c:ClassTag[T]):Option[Array[T]] = {
    var opt:Option[Array[T]] = None
    var con:Connection = null
    var pst:PreparedStatement = null
    var rst:ResultSet = null
    try{
      con = getCon
      pst = getPst(con, sql, params)
      rst = pst.executeQuery

      val buffer = ArrayBuffer[T]()
      val colCount = rst.getMetaData.getColumnCount
      val arr = new Array[String](colCount)
      val seq = for(i<-0 until colCount) yield i
      while (rst.next()) {
        seq.foreach(ix=>arr(ix)=rst.getString(ix+1))
        buffer += f(arr)
      }
      opt = Some(buffer.toArray(c))
    } catch {
      case e:Throwable => e.printStackTrace()
    } finally {
      _close(rst, pst, con)
    }
    opt
  }
}

//伴生对象
object MySqlDao{
def apply(path:String): MySqlDao = new MySqlDao(path)
}

1.6测试类：（批量插入）

在测试类之前，先创建mysql表格，在用测试类导入数据

score_kb16(stu_name,stu_gender,java_score,mysql_score)

import scala.util.Random

object Test {
  def main(args: Array[String]): Unit = {
    val batch:Batch = new MySqlDao("config/datasource.properties").createBatch()
    val sql:String ="insert into score_kb16(stu_name,stu_gender,java_score,mysql_score) values(?,?,?,?)"
    batch.init(sql,100)
    Array(
      ("henry","m",55+Random.nextInt(45),55+Random.nextInt(45)),
      ("ariel","f",55+Random.nextInt(45),55+Random.nextInt(45)),
      ("pola","f",55+Random.nextInt(45),55+Random.nextInt(45)),
      ("jack","m",55+Random.nextInt(45),55+Random.nextInt(45)),
      ("rose","f",55+Random.nextInt(45),55+Random.nextInt(45))
    ).foreach(tp4=>batch.addBatch(tp4._1,tp4._2,tp4._3,tp4._4))
    val affectedRows:Long =batch.close
    println(affectedRows)

  }
}

1.7数据插入成功了，可以打jar包，以后要用mysql上传数据，就可以用这个jar包了

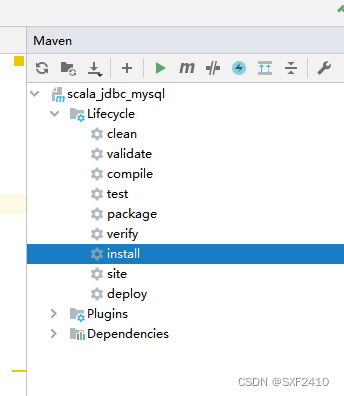

在idea上双击install，会在里的本地仓库生成jar包，点开pom.xml，里面的groupId，artifactId，version，下次导入到需要使用这个jar包的maven工程pom.xml的dependency里就可以使用jar包了

 二、创建想的maven工程，创建scala对象，使用SparkContext从hdfs上获取数据做SQL练习，结果批处理上传到mysql上

import cn.kgc.util.mysql.{Batch, MySqlDao}
import org.apache.spark.{SparkConf, SparkContext}

import scala.collection.mutable.ArrayBuffer

/*
SparkContext:应用
 */
object App {
  def main(args: Array[String]): Unit = {
    val config: SparkConf = new SparkConf()
      .setAppName("spark_rdd_03")//设置任务名称
      .setMaster("local[*]")//设置Master,本地模式，“ * ” 表示cup资源有多少，用多少；也可以用local[2]，表示2个核
    val sc = new SparkContext(config)

    //统计用户的观影数，重复看最多的前三名movieId,个人热点观影时段（每3个小时内的时间段（1,2）或（2,3）或（1,2,3）占三个小时总观影数>80%）
    //数据：tags.csv
    //样例类
    case class Tag(userId: Int, movieId: Int, tag: String, timestamp: Long)
   //用正则处理数据
    val r1 = "(.*?),(.*?),(.*?),(.*?)".r    //正常数据匹配
    val r2 = "(.*?),(.*?),(\".*?,.*?\"+),(.*?)".r //异常数据匹配
    //偏函数处理数据异常
    val pf: PartialFunction[String, (Int, Tag)] = (line: String) => line match {
      case r2(a, b, c, d) => (a.toInt, Tag(a.toInt, b.toInt, c, d.toLong))
      case r1(a, b, c, d) => (a.toInt, Tag(a.toInt, b.toInt, c, d.toLong))
    }
  //补全每天数据
    def fillIfNot24(arr:Array[(String,(Int,Int))]):Iterator[(String,(Int,Int,Int))]={
      val map: Map[Int, Int] = arr.map(_._2)
        .groupBy(_._1)  //以小时为单位分组
        .map(tp2 => (tp2._1, tp2._2.map(_._2).distinct.size))//（小时，每小时内的观看不同的影数量）

      val seqToTp3=(seq:IndexedSeq[(Int,Int)])=>(seq(0)._2,seq(1)._2,seq(2)._2)

      (0 to 23 )
        //补全每天缺失的小时数
        .map(hour=>(hour,map.getOrElse(hour,0)))
        .sliding(3,1)
        .map(seq=>{
          val h3: String = seq.map(_._1).mkString("_")
          //（连续3小时，每连续3小时内的观看不同的影数量(步进1)）
          (h3,seqToTp3(seq))
        })

    }

    val int3OutTp2=(map:Map[String,(Int,Int,Int)])=>{
      val fstHourSum: Int = map.map(_._2._1).sum
      val sndHourSum: Int = map.map(_._2._2).sum
      val trdHourSum: Int = map.map(_._2._3).sum
      val sum =fstHourSum+sndHourSum+trdHourSum
      val h3 = map.map(_._1).toArray.apply(0)
       val h3s= h3.split("_")

      var accSum =0.0
      val buffer = new ArrayBuffer[Int](1)
      import scala.util.control.Breaks._
      var lastIx = -1
      //找出3个连续小时内达到要求的（>80%）小时对应的下标
      breakable(
        Array(fstHourSum, sndHourSum, trdHourSum)
          .zipWithIndex
          //按观影数降序排列
          .sortWith(_._1>_._1)
          .foreach(tp2=>{
            if(Math.abs(lastIx-tp2._2)<=1){
              accSum +=tp2._1
              buffer.append(tp2._2)
            }
            //达到80%跳出
            if(accSum/sum>=0.8){
              lastIx = -1
              break
            }
            lastIx=tp2._2
          })
      )
    //对达到要求的小时的下标进行升序排序后再拼接
      (sum,if(lastIx != -1) h3 else buffer
        .sortWith(_<_)
        .map(h3s(_))
        .mkString("_"))
    }

    implicit class LongExpand(v:Long){  //隐式类
      def toDate()="%tF".format(v)  //提取日期yyyy-MM-dd
      def toHour()="%tT".format(v).substring(0,2).toInt //提取小时
    }


  /*
    事先要提前在mysql上创建好表格
    show databases;
    use test;
    show tables;
    create table tags_user_analysis(
    userId int primary key ,
    uqMovieCount int,
    top3Movie varchar(100),
    hotWatchHours varchar(8)
);
    */
    //批处理上传数据，MySqlDao是自己编的jar包里的类，用于批处理上传数据到mysql
    val batch:Batch = new MySqlDao("config/datasource.properties").createBatch()
    val sql:String = "insert into tags_user_analysis(userId,uqMovieCount,top3Movie,hotWatchHours) values(?,?,?,?)"
    batch.init(sql,100)
    // tags_user_analysis(userId ,uqMovieCount ,top3Movie ,hotWatchHours)

    sc
      .textFile("hdfs://single01:9000/spark/resource/src/tags.csv", 3)
      .mapPartitionsWithIndex((index, it) => {  //给每个分区建立索引了
        if (index == 0) it.drop(1) //删除第一个分区的表头
        it.collect(pf)  //把每行数据解析
      })
      //shuffle 分3个分区，以键聚合 同一个userId
      .groupByKey(3)
      .mapValues(it=>{
        val arr = it.toArray //迭代器转成数组 (三个指标，重复使用)
        val uqMovieCount: Int= arr.map(_.movieId).distinct.size   //第一个指标
        val top3MovieId: String = arr   //第二个指标
          .map(tag => (tag.movieId, 1))
          .groupBy(_._1).map(tp2 => (tp2._1, tp2._2.size))//(movieId,重复观看电影数)
          .toArray
          .sortWith(_._2 > _._2)
          .take(3)
          .mkString("-")

        val tp2: (Int, String) = arr
          .map(tag => (tag.timestamp.toDate, (tag.timestamp.toHour, tag.movieId)))
          //以天分组
          .groupBy(_._1)
          .flatMap(tp2 => fillIfNot24(tp2._2)) //(String,((Int,Int),(Int,Int),(Int,Int))) 一天的数据
          //对所有天数以小时分组
          .groupBy(_._1)
          .mapValues(int3OutTp2)
          .map(_._2)
          .toArray
          .sortWith(_._1 > _._1)
          .apply(0)
        (uqMovieCount,top3MovieId,tp2._2)
      })
//        .foreach(println)

      // 把处理过得数据并写入到hdfs里
//      .saveAsTextFile(s"hdfs://single01:9000/spark/source/src/tags_${System.currentTimeMillis().toDate()}_${System.currentTimeMillis()}")

      //把处理过的数据写入到mysql表 tags_user_analysis中
      .coalesce(1,false)
      .collect()
      .foreach(tp2 => batch.addBatch(tp2._1, tp2._2._1, tp2._2._2, tp2._2._3))
    val affectedRows:Long = batch.close
    println(s"AFFECTED ROWS : $affectedRows")

    sc.stop()
  }
}

好了，完成了1
